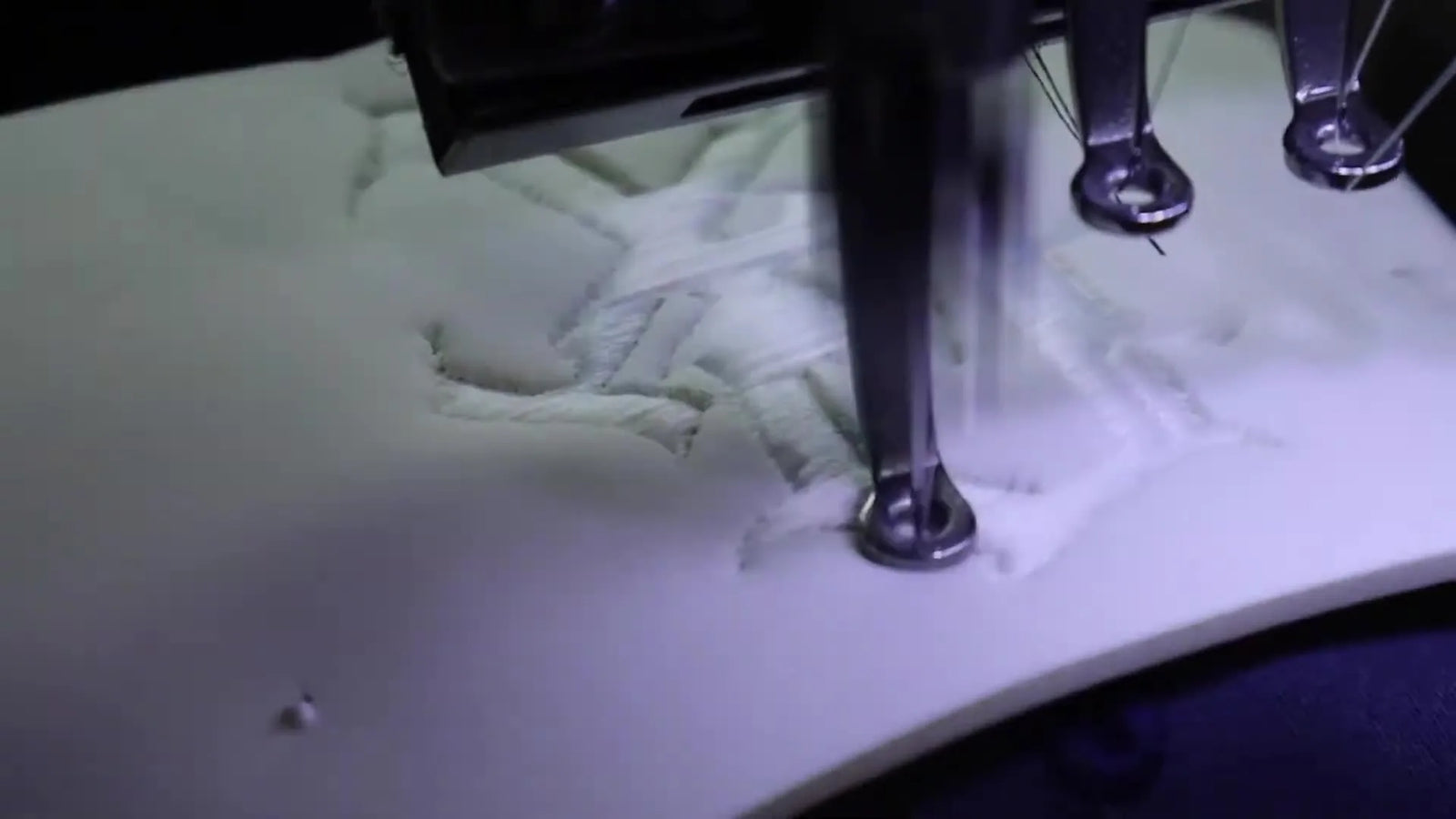

3D Puff Hat Embroidery on a Ricoma Cap Driver: The Exact Workflow, the “Mud-Squeeze” Fix, and Pricing That Actually Pays

3D puff on hats is one of those techniques that makes you feel like a wizard when it works, and like you want to throw your machine out the window when it doesn't. You’ve seen the Instagram videos: crisp, raised letters that look like they were molded from plastic. But when you try it? You’re staring at foam fuzz, a thread-break alarm that won’t quit, or—absolute worst case—a needle striking the metal cap driver.

If you are feeling that fear, take a breath. It’s not just you. 3D puff is an "experience science." It relies on friction, physics, and precise setup.

JC’s workflow in this video is solid because it treats embroidery like a manufacturing process, not a craft project. He tests first, hoops with intention, traces like his machine’s life depends on it, and stitches at a "safe harbor" speed.

The Calm-Down Moment: 3D Puff Hat Embroidery on a Ricoma Embroidery Machine Without Breaking Needles

If you’re new to 3D puff on caps, the panic usually hits in two places: when the machine beeps and stops mid-letter, or when you peer closer at the finished hat and see the colored foam peeking out from under your stitches like "foam dandruff."

Here’s the truth after 20 years on the production floor: most 3D puff failures aren't bad luck. They are physics problems. They come from three specific enemies:

1. The Trampoline Effect: The gap between the hat and the needle plate causes the fabric to bounce.
2. Foam Resistance: The needle has to punch through 3mm of dense EVA foam, creating heat and friction.
3. Digitizing Density: Using standard flat stitch files on foam will cut your hat in half (literally).

This tutorial is filmed on a multi-needle Ricoma setup. However, whether you are running a generic single-needle home machine or a ricoma embroidery machine, the mindset is identical. You need a repeatable routine that protects your machine and your sanity.

The $2 Hat Rule: Testing 3D Puff on Cheap Structured Caps Before You Touch a Client Order

JC starts exactly where a profitable shop starts: testing on "sacrificial" hats. These can be the cheap structured caps from gas stations or flea markets. Why? Because mistakes should cost you $2, not the $15 wholesale cost of a premium Richardson 112.

Why Testing is Non-Negotiable for Puff:

• The magnifying glass effect: Foam exaggerates every digitizing flaw. A density issue that looks passable on a flat polo shirt will look like a disaster on foam.
• The Curvature Factor: A design that looks straight on your flat computer screen will distort when wrapped around a forehead.

In the video, the red test hat reveals loose threads and coverage issues immediately. This isn't a failure; it's data.

The "Sensory" Check: When testing, run your fingers over the finished puff. It should feel firm, like a dense eraser. If it feels squishy or soft, your thread tension is too loose or your foam is too thin.

Cap Hooping on a Standard Cap Driver: Aligning the Center Seam, Offsetting for Pull, and Locking the Clamps

Cap hooping is the number one source of "mystery misalignment." If the hat isn't "drum tight," the needle will push the fabric rather than piercing it.

JC’s method on the cap station is very specific and designed to fight physics:

1. Flex the Sweatband: Fold it out completely so the cap creates a smooth tunnel for the driver.
2. Find the Spine: Align the hat’s center seam with the red mark on your hoop.
3. The "Pre-Compensation" Offset: He suggests offsetting slightly to the side. Why? Because when you clamp the driver shut, the mechanical torque often twists the hat 1-2mm. You are pre-adjusting for that twist.
4. The Binders: Use clips at the back. Loose mesh is the enemy of registration.


The Physics You’re Fighting (And How to Win)

A structured cap is a 3D shell. When you force it flat onto a cylindrical driver, it wants to fight back. Traditional clamping rings often create "Hoop Burn"—shiny, crushed circles on the fabric that won't steam out.

The "Tool Upgrade" Diagnosis: If you are doing one hat for fun, the struggle with clips and manual tightening is fine. But if you have an order for 50 hats, your wrists will be screaming by hat #10.

This is where professionals upgrade to Magnetic Hoops.

• The Pain: Re-hooping takes 2-3 minutes per hat, and hoop burn ruins 5% of your inventory.
• The Solution: magnetic embroidery hoops allow you to float the hat or clamp it instantly without mechanical twisting. The magnets hold thick seams (like on Carhartt jackets or heavy caps) that plastic hoops can't grip.
• The Business Logic: If you save 2 minutes per hat, on a 50-hat order, you've saved nearly 2 hours of labor. That pays for the hoop.


Ricoma Control Panel Setup: Loading the File, Selecting Cap Mode, and Choosing Needle #15 (White)

Once the cap is mounted, JC moves to the Ricoma interface. This step is about telling the machine's "brain" that the physical world has changed.

1. Select Cap Mode: This is crucial. It flips the design 180 degrees (usually) so it stitches correctly relative to the driver.
2. Color Assignment: He selects Needle #15 (White).
3. Visual Check: Look at the screen. is the design upside down? Good. For most cap drivers, that means it will stitch right-side up on the hat.

Pro-Tip for Beginners: Always designate a "Cap Needle" on your multi-needle machine (like Needle 1 or 15). Caps are brutal on needles. By keeping one needle specifically for caps (usually a 75/11 Sharp titanium), you save your other needles for delicate flat work.

The Collision-Prevention Ritual: Two-Step Trace on a Ricoma Cap Frame So You Don’t Strike Metal or the Bill

This is the most terrifying part for new users, but it is your safety net. If you skip this, you risk breaking a needle, shattering the bobbin case, or throwing the machine's timing out.

JC performs a Two-Step Trace:

1. The "Safe Box" Trace: The machine moves the hoop in a square around the design's outer limits.
2. The "Contour" Trace: The hoop moves along the exact shape of the design.

The Tactile Confirmation: While the machine traces, lower the needle bar (make sure the machine is stopped!) and physically verify the distance.

• Check the Bill: Is the presser foot hitting the brim?
• Check the Ears: Is the needle getting too close to the metal strap on the side?

Warning: A needle strike on the metal cap driver doesn't just break a needle. The shockwave can crack the reciprocating gear inside the head of your machine. Treat the Trace button like a "Confirm I Won't Break My Machine" button. Never skip it.

Pins vs. Adhesive for 3D Puff Foam: Clean Placement, Color Matching, and No Sticky Residue

How do you keep the foam on the hat? JC uses straight pins.

• The Method: Pin the corners of the foam into the hat’s buckram (the stiffener).
• The Advantage: No sticky residue gumming up your needles. Spray adhesives (like KK100) are great for flat work but can create a mess on 3D foam.
• The Rule of Color: Match your foam to your thread. White foam for white thread. Black foam for black thread. If you use white foam under red thread, you will see white specks poking through.

If you are browsing shop supplies, you might see discussions about the best cap hoop for embroidery machine. While the hoop matters, your method of securing the foam (Pins vs. Tape vs. Spray) dictates how clean your final edges look.

Hidden Consumable: Keep a dedicated "foam boneyard." Don't throw away small scraps of foam; they are perfect for testing small letters or fill adjustments.

The "Sweet Spot" 550 SPM: Speed Control for 3D Puff on Structured Hats

JC sets the machine to 550 stitches per minute (SPM). To a novice, this feels slow. Why not run at 1000?

The Physics of Speed:

• Friction = Heat: As the needle punches through foam 10 times a second, it gets hot. Hot needles melt the EVA foam.
• The Result: Melted foam sticks to the thread, creating burrs and causing thread breaks.

The "Sweet Spot" Strategy:

• Start at 500-600 SPM. This is the safe zone.
• Listen to the Machine: A happy machine makes a rhythmic "thump-thump-thump." A stressed machine sounds like "clack-clack-clack." If the sound changes, slow down.

Ergonomics Check: If you find yourself running hundreds of hats, speed isn't just about the needle; it's about you. The repetitive motion of hooping is the #1 cause of Carpal Tunnel in our industry. A magnetic hooping station combined with magnetic frames transforms this. It turns a "wrist-twisting" motion into a simple "place and snap" motion. If you plan to scale, invest in your physical health first.

The Thread-Break Beep That Isn’t Real: When to Ignore the Sensor (and When Not To)

Machines like Ricoma have sensitive thread-break sensors. Sometimes, the sensor wheel doesn't spin fast enough immediately, triggering a false alarm.

JC’s advice:

• Use your eyes. If the thread is clearly still in the needle, you can sometimes ignore the initial start-up beep.
• However, if the beep happens mid-design, stop.

Warning: Never blindly bypass a thread break sensor on a cap. If the thread has actually shredded and you keep sewing, the thread tail can get caught in the hook assembly, causing a "bird's nest" that can suck the cap down into the throat plate.

When the Machine Stops Mid-Run: Fixing a Bobbin Run-Out and Backing Up 15 Stitches for Clean Overlap

In the video, the machine stops. The needle thread is fine, but the bobbin is empty. This is a classic production interruption.

The Recovery Protocol:

1. Replace the bobbin.
2. Back Up: Do not just hit start. Use the control panel to back up roughly 15 stitches.
3. Why? You need the new thread to overlap the old thread to lock it in. If you don't overlap, that seam will unravel the first time the customer wears the hat.

Production Tip: If you notice your bobbin is getting low (less than 1/4 full) before starting a new hat, change it before you start. Save the partial bobbins for small test runs. It’s not worth stopping a production run for 5 cents of thread.

Bobbin Case Threading on Ricoma: Clockwise Orientation, the Slit, and Two Loops Around the Pigtail

Tension problems usually start in the bobbin case. JC demonstrates the specific "Pigtail" threading method for Ricoma/commercial machines.

Step-by-Step Visualization:

1. The "9" Shape: Hold the bobbin so the thread hangs down to the right, forming the number 9 (Clockwise).
2. The Click: Drop it in. Slide the thread into the slit until you hear/feel a click.
3. The Pigtail: Wrap the thread twice around the curled pigtail wire. This adds the necessary resistance for commercial speeds.

The "Yo-Yo" Test: Hold the bobbin thread end and let the case hang. Drop your hand slightly and stop.

• Result A: The case falls to the floor -> Too Loose.
• Result B: The case doesn't move at all -> Too Tight.
• Result C (Goldilocks): The case drops a few inches and then stops -> Perfect.


Reading Tension Like a Pro: “Black–White–Black” on the Back, and Why Bobbin Shouldn’t Show on Top

JC flips the hat to check the tension. This is your report card.

The H-Test (Visualizing Tension): Look at the back of a satin column.

• You should see Top Thread (Color) on the left (1/3).
• Bobbin Thread (White) in the middle (1/3).
• Top Thread (Color) on the right (1/3).
• It should look like the letter 'H' where the vertical bars are your top color.

If you see white bobbin thread on the front of the hat (the puff side), your top tension is way too tight, or your bobbin is way too loose.

Why Experienced Embroiderers Loosen Tension for Puff: For 3D Puff, we actually want somewhat looser tension than for flat shirts. We want the thread to wrap around the foam, not slice through it. Think of it like wrapping a present with ribbon—you want it snug, but not so tight you crush the box.

The “Mud-Squeeze” Diagnosis: Fixing Foam Poking Out by Adjusting Stitch Angles and Loosening Density in Digitizing

After the test run, JC spots "foam poke-out." He uses a brilliant analogy: "Squishing mud."

If your stitches are too dense (too close together), they crush the foam so hard that it has nowhere to go but out. It squeezes out the sides like mud between your toes.

The Fix is (Usually) NOT the Machine: You cannot fix "mud squeeze" by tightening the machine tension. You must fix the file (Digitizing).

• Action: Open your software (Wilcom, Hatch, Chroma).
• Adjustment: Increase the spacing between stitches (lower density). Raise the spacing from a standard 0.40mm to 0.55mm or even 0.60mm for puff.
• Cap stitch ends: Add "Capping" stitches at the ends of columns to seal the foam in.

If you are running a ricoma mt 1501 embroidery machine, utilize the machine's memory to save your "Generic Cap" settings, but always keep a computer nearby for these density edits.

The Cleanup Reality: Removing Foam Edges, Checking the Worst Spots First, and Knowing What’s “File” vs “Operator”

Cleanup is where the magic happens. JC tears the foam away.

The Cleanup Toolkit:

1. Tweezers: For plucking tiny bits.
2. Heat Gun (The Secret Weapon): A quick blast of hot air (don't burn the hat!) will shrink the remaining foam bits back under the thread. It’s like magic.

Diagnostic check:

• Operator Error: If the design is crooked or the height is wrong.
• Digitizer Error: If the foam is consistently poking out on the same sharp corners of the letter "A" or "E".


Pricing Bulk 3D Puff Hat Orders: Stitch Count, Blank Cost, Digitizing Time, and the $2.50 per 1,000 Stitch Baseline

JC wraps up with the business side. How do you make money on this? He suggests a baseline of $2.50 per 1,000 stitches.

The Pricing Equation: [Blank Cost] + [Stitch Count Cost] + [Puff Surcharge] + [Setup Fee] = Price

Example:

• Blank Hat: $5.00
• Stitches (6,000): $5.00 x 6 = $15.00 (This seems high, but covers the slow speed of caps).
• Total: $20 - $25 per hat for custom puff.

The Commercial Upgrade Path: When you transition from "hobby" to "business," your bottlenecks change. You aren't limited by creativity; you are limited by throughput.

1. Level 1 (Technique): Use better needles and stabilizers.
2. Level 2 (Workflow): Buy ricoma embroidery hoops (Magnetic) to speed up the loading process.
3. Level 3 (Scale): When you have orders for 100+ hats, a single-head machine isn't enough. This is when upgrading to a multi-head production unit (like SEWTECH industrial lines) allows you to stitch 4, 6, or 12 hats simultaneously.

Decision Tree: Choosing Stabilizer/Backing and Foam Handling for 3D Puff Hats

Use this logical flow to stop guessing and start stitching.

1. Is the hat Structured (Stiff front)?
   • YES: Use Tear-away backing. The hat provides the stability; the backing just smoothens the ride.
   • NO (Unstructured/Dad Hat): Use Cut-away backing. You need the fiber stability to support the heavy foam stitches.
2. Is the design very wide (wrapping around the forehead)?
   • YES: Hoop very tightly and ensure the "ears" of the hat are clipped back. Use cut-away to prevent registration loss.
   • NO (Center logo only): Standard tear-away is sufficient.
3. Are you experiencing thread breaks on the foam?
   • Check A: Is the speed over 600 SPM? -> Slow Down.
   • Check B: Is the needle old? -> Change to a fresh 75/11 Sharp.
   • Check C: Is the density too high? -> Loosen density in software.
4. Are your hands/wrists hurting from hooping?
   • YES: Stop. Research Magnetic Hoops immediately. Your physical health is your primary asset.

Prep Checklist (Before You Hoop)

• Fresh Needles: Installed sharp 75/11 Titanium needles?
• Bobbin Check: Is the bobbin at least 50% full? (Don't start a cap on a low bobbin).
• Consumables: 3mm EVA Foam (Color matched to thread), Lighter/Heat Gun, Tweezers.
• The "Sacrificial" Hat: Do you have a cheap hat ready for the first test run?

Setup Checklist (At the Machine)

• Cap Mode: Is the machine definitely in "Cap" mode (design flipped)?
• Hooping: Is the sweatband folded out? Is the red line aligned with the center seam?
• Tension: Is the hat "drum tight" on the driver?
• Trace: Did you perform the 2-step trace AND visually confirm clearance of the bill?

Operation Checklist (The Run)

• Speed: Set to 550 - 600 SPM.
• Pins: Are pins securely placed away from the stitch path?
• Listen: Does the machine sound rhythmic?
• Post-Mortem: Check the back of the hat. Do you see the "H" tension pattern (Black-White-Black)?

Warning: Magnet Safety. If you start using high-end Magnetic Hoops, be aware they are incredibly powerful. They can pinch fingers severely. Keep them away from pacemakers, credit cards, and computerized machine screens. Handle with respect.

Warning: Needle Breaks. Always wear safety glasses or keep the safety shield down when running 3D puff at high speeds. If a needle breaks on the metal cap driver, the shard can fly with bullet-like velocity.

FAQ

• Q: How do I prevent a needle strike on a Ricoma cap driver when running 3D puff hat embroidery?
  A: Always run a two-step trace and physically confirm clearance before stitching; skipping trace is the fastest way to hit metal.
  • Run the “Safe Box” trace first, then run the “Contour” trace for the exact design path.
  • Lower the needle bar while the machine is stopped and visually verify the presser foot/needle will not contact the bill or the cap-frame metal “ears.”
  • Reposition the cap on the driver if any point looks tight, then trace again.
  • Success check: The full trace completes with consistent clearance and no point where the hoop or bill comes close to the needle path.
  • If it still fails: Reduce the design size/placement for the cap sewing field and repeat the trace until the path is clearly safe.
• Q: What is the correct Ricoma cap mode setup so a 3D puff hat design stitches in the right orientation?
  A: Put the Ricoma machine in Cap Mode and confirm the on-screen orientation looks “upside down” relative to the driver before you start.
  • Select Cap Mode on the control panel before running trace or stitching.
  • Assign the intended needle (many operators dedicate a single “cap needle” to take the abuse of cap jobs).
  • Visually confirm the design preview appears flipped (commonly 180°) as expected for cap frames.
  • Success check: The on-screen preview matches the cap-frame workflow (appearing inverted) and the trace path aligns with the hat’s target area.
  • If it still fails: Stop and re-check that Cap Mode is actually active (not flat mode), then re-trace after any change.
• Q: How do I hoop a structured cap on a standard cap driver to avoid misalignment during 3D puff embroidery?
  A: Hoop “drum tight,” align the center seam to the driver mark, and pre-compensate for the 1–2 mm twist that can happen when clamping.
  • Fold the sweatband fully out to create a smooth tunnel for the driver.
  • Align the cap’s center seam to the red center mark on the hoop/driver.
  • Offset slightly as a pre-compensation because clamping torque often twists the cap slightly.
  • Clip and secure the back/mesh (“ears”) so nothing pulls during stitching.
  • Success check: The cap feels drum tight and does not shift when you gently tug the sides; the trace stays centered where expected.
  • If it still fails: Re-hoop and focus on tightening plus clipping the “ears,” because loose fabric is a common cause of “mystery” registration drift.
• Q: How can I reduce thread breaks on 3D puff foam on structured hats when using a multi-needle embroidery machine like Ricoma?
  A: Slow down to the 500–600 SPM safe zone and treat thread breaks as a friction/foam/density problem, not bad luck.
  • Set speed to about 550 SPM as a safe starting point for structured caps with 3 mm EVA foam.
  • Replace with a fresh sharp cap needle (caps are hard on needles, and dull needles overheat and shred thread).
  • Check the digitizing is intended for foam (over-dense “flat” files often cause friction and breaks).
  • Success check: The machine sound stays rhythmic (“thump-thump-thump”) and the design runs without repeated alarms or shredded thread.
  • If it still fails: Edit the file to reduce density for puff (often increasing stitch spacing) and test again on a sacrificial cap.
• Q: How do I thread and tension a Ricoma bobbin case correctly to avoid nesting and poor stitch formation on cap embroidery?
  A: Thread the Ricoma bobbin case in the clockwise “9” orientation, seat it with the click, wrap twice on the pigtail, then confirm with a yo-yo test.
  • Hold the bobbin so the thread forms a “9” shape (clockwise), then drop it into the case.
  • Slide thread into the slit until you feel/hear the click.
  • Wrap the thread twice around the pigtail wire for proper resistance at commercial speeds.
  • Success check: Yo-yo test drops a few inches and stops (not free-falling, not frozen).
  • If it still fails: Re-seat the thread path and re-check the back-of-design tension pattern after a short test sew.
• Q: What is the correct tension “success standard” for 3D puff on hats, and how do I read it on the back of a satin column?
  A: Use the “Black–White–Black” (H-pattern) on the underside as the pass/fail test, and keep bobbin from showing on the front puff.
  • Flip the cap and inspect the back of a satin column: top thread on left third, bobbin in the middle third, top thread on right third.
  • If white bobbin shows on the front, treat it as a top-tension-too-tight or bobbin-too-loose situation and correct before running production.
  • Remember puff often runs slightly looser than flat work so the thread wraps the foam instead of cutting it.
  • Success check: The back shows a clean H-pattern and the front coverage looks solid with no bobbin popping through.
  • If it still fails: Re-check bobbin case threading/yo-yo test first, then re-test; do not compensate for a digitizing problem with extreme tension changes.
• Q: When should a hat embroidery shop upgrade from manual cap hooping to magnetic embroidery hoops for reducing hoop burn and improving throughput?
  A: Upgrade to magnetic hoops when re-hooping time and hoop burn become repeatable production losses, especially on 50+ hat runs.
  • Diagnose the pain: If re-hooping takes 2–3 minutes per hat or hoop burn ruins a noticeable portion of inventory, the process is the bottleneck.
  • Try Level 1 first: Improve hooping consistency (drum tight, clip the ears, trace every time).
  • Move to Level 2: Use magnetic hoops to reduce mechanical twisting and speed loading/clamping on thick seams and caps.
  • Success check: Hooping becomes a consistent “place and clamp” action with fewer alignment re-dos and less visible hoop burn.
  • If it still fails: If demand is 100+ hats and the single-head schedule is the constraint, consider a production-scale machine upgrade path for true throughput gains.
• Q: What are the safety risks of using magnetic embroidery hoops and high-speed 3D puff cap embroidery, and how do I reduce injury risk?
  A: Treat magnets and needles like industrial hazards: powerful magnets can pinch severely, and a needle strike on a cap driver can throw shards and damage the machine.
  • Keep fingers clear when closing magnetic frames; handle slowly and deliberately to avoid pinch injuries.
  • Keep magnets away from pacemakers, credit cards, and sensitive electronics/screens.
  • Wear safety glasses or keep the machine safety shield down, especially during cap work where strikes can happen.
  • Success check: Hands stay clear during clamping, and the run completes without any contact events (no strike sounds, no sudden shock).
  • If it still fails: Stop immediately after any strike, re-run the two-step trace, and do not continue stitching until the collision cause is corrected.
