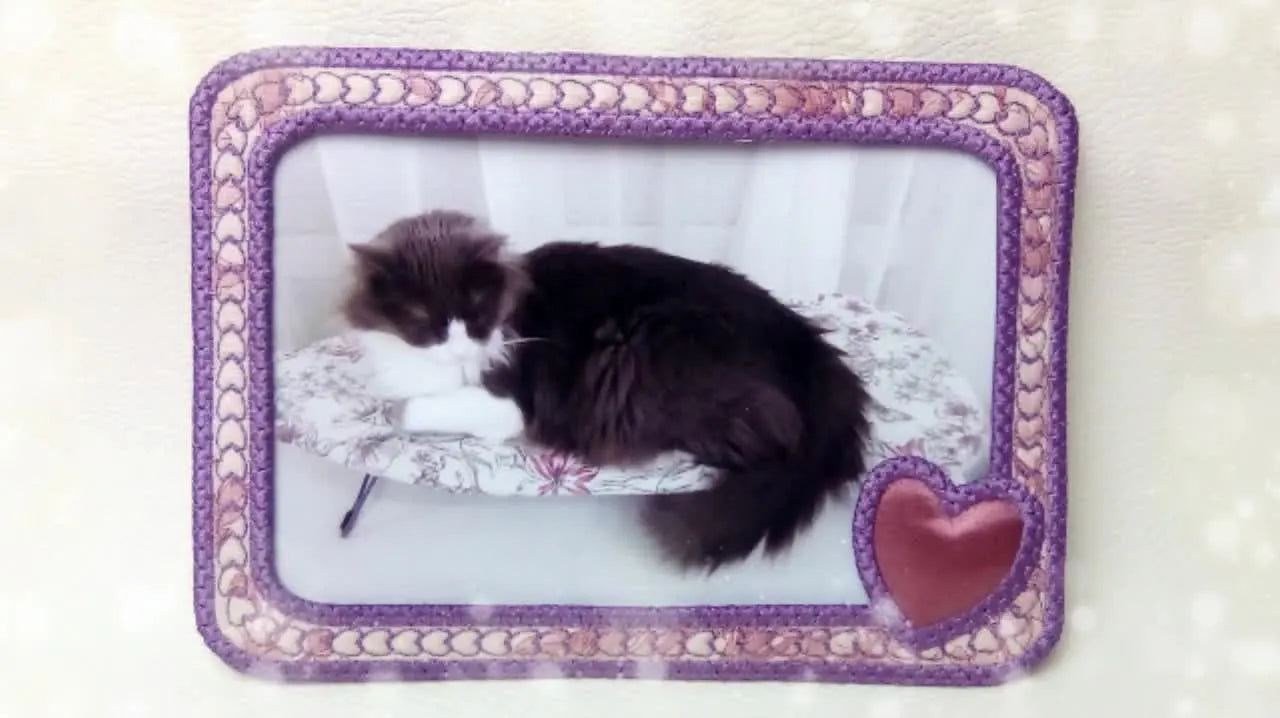

A No-Hand-Sew ITH Photo Frame in a 5x7 Hoop: Clean Windows, Crisp Satin Edges, and Zero “Why Did It Shift?” Panic

The Ultimate Guide to Perfect ITH Photo Frames: Mastering the 5x7 Hooping & Cutting Sequence

In the world of machine embroidery, In-The-Hoop (ITH) projects are the ultimate test of patience and precision. Unlike standard flat embroidery, an ITH project like the Kreative Kiwi photo frame relies on a strict architectural sequence. When it goes wrong, it usually fails in two specific "danger zones": The Hooping (where layers shift) and The Cutting (where one slip nicks safeguards).

The good news? This project is entirely achievable on a home single-needle machine if you treat it as an engineering sequence rather than a casual craft.

Below is the "Shop-Floor Standard" workflow, calibrated to ensure your window is crisp, your satin stitch is smooth, and your machine remains happy.

The Calm-Down Primer: Why This 5x7 ITH Photo Frame Feels "Fiddly" (and How to Fix It)

This design is built around sequential layering: stitch placement, add fabric, stitch tac-down, trim, decorative stitch, flip, add backing, and seal.

To succeed, you must control two physical forces that ruin ITH projects:

1. Drag: The needle pushing fabric down into the throat plate.
2. Distortion: The hoop rings squeezing fabric unevenly.

If you are working with a standard plastic brother 5x7 hoop, you can achieve professional results, but you must be disciplined about tension. If the stabilizer isn't "drum-tight," the weight of the added heavy batting and fabric will cause the design to shrink inward, leading to gaps in your satin stitch.

The "Hidden" Prep Pros Do First: Materials, Cutting, and Reality Checks

Novices organize materials; experts organize their environment. ITH projects punish sloppy prep. Before you even touch the screen, let's gather the "Visible" and "Hidden" essentials.

The Visible List

• 5x7 Embroidery Hoop (Standard or Magnetic).
• Two sheets of water-soluble stabilizer (Mesh-type wash-away is preferred for stability).
• Embroidery Tape (Paper tape or specific embroidery tape—do not use Scotch tape).
• Batting (Quilt batting works well).
• Fabrics: Back, Front, and Appliqué Heart square.
• Ribbon (for the hanging loop).

The Hidden Consumables (Do Not Skip)

• New Needle: Size 75/11 Sharp or Embroidery. Why? A dull needle pushes fabric rather than piercing it, causing the layers to shift.
• Curved Embroidery Scissors: Double-curved are best for getting into the hoop.
• Seam Ripper: Sharp, with no burrs.

Warning: The "Red Zone" Safety
Seam rippers and curved scissors are precision tools, but they are also the fastest way to slice your finger or the stabilizer base. Always cut away from your holding hand. When puncturing the fabric window, keep the hoop flat on a table—never do this while balancing the hoop on your lap.

Prep Checklist: The Pre-Flight Inspection

• File Check: Design loaded and confirmed 5x7 size.
• Needle Check: Is the needle straight and sharp? (Run your fingernail down the tip; if it catches, toss it).
• Fabric Press: All fabric pre-ironed. Wrinkles become permanent creases under satin stitching.
• Safety Cut: Batting and fabrics cut 1-inch larger than the placement line to account for "draw-in."
• Tool Readiness: Ribbon is pre-cut and folded. Tape is torn into ready-to-grab strips.


Lock the Stabilizer Like a Technician: Hooping Two Layers

Kay’s workflow introduces a clever hack to prevent stabilizer slippage in standard hoops.

1. Double Up: Use two layers of wash-away stabilizer. This minimizes the "bouncing" effect that causes registration errors.
2. The Pin Lock: Stabilizer often drags downward as you tighten the screw. Kay places pins horizontally across the top edge of the stabilizer before fully seating the inner ring. The pins act as a physical brake against the outer ring.
3. Sensory Check: Tap on the hooped stabilizer. It should sound like a tight drum skin (thump). If it sounds like paper (flap), tighten and re-hoop.

The Problem with Friction

The process of hooping for embroidery machine projects involving thick layers (like batting) creates massive friction. Standard hoops rely on a screw to create side-pressure. Over time, or with thick fabrics, this pressure becomes uneven, leading to "hoop burn" or slippage.

The Professional Upgrade: Magnetic Hoops If you find yourself constantly re-hooping because the stabilizer slipped, or if your wrists ache from tightening screws, this is the trigger point to upgrade tools.

• Level 1 Fix: Use the pin method described above.
• Level 2 Fix (Speed & Quality): Switch to a magnetic embroidery hoop. These use vertical magnetic force to clamp layers instantly without "dragging" the fabric. For ITH projects, they allow you to float layers easily and eliminate the "hoop burn" marks often left on delicate frames.


Round 1 & Round 2: The Sandwich Stack

Once the hoop is locked and loaded:

Round 1: The Blueprint

Stitch the placement line directly onto the stabilizer. This is your map.

The Stack (Crucial Order)

1. Back Fabric: Face plain side UP (Wait, actually wrong side up if you want the pretty side showing inside the frame—check your specific pattern instructions, but standard is pretty side facing the stabilizer). Correction based on Kay's generic method: Back fabric face down against stabilizer, batting, then front fabric face up.
2. Batting: Place over the outline.
3. Front Fabric: Right side facing UP.
4. Tape: Secure corners.

Machine Data - Speed Control: For these tack-down stitches (Round 2), drop your machine speed to 400-600 SPM (Stitches Per Minute). High speed here can push a wave of fabric in front of the foot, creating a permanent pucker.

Setup Checklist (Right Before Round 2)

• Sandwich Order: Back (Wrong side up) -> Batting -> Front (Right side up).
• Coverage: Fabric covers the placement line by at least 1/2 inch on all sides.
• Tape Safety: Tape is secured outside the stitching path (gumming up the needle causes thread shreds).
• Clearance: Nothing is caught under the hoop.


Round 3: The Heart Appliqué

Place your small fabric square over the heart placement line. Tape it. Stitch Round 3. This is a standard appliqué tack-down.

The "Make-or-Break" Moment: Reverse Appliqué Cutting

This is where the fear sets in. You must cut the fabric window without cutting the stabilizer. The stabilizer is the only thing holding your project together; if you cut it, the frame falls apart.

The Surgical Technique

1. The Entry: Do not stab with scissors. Take your seam ripper. gently pinch the fabric/batting in the center of the window (pulling it up away from the stabilizer). Puncture only the fabric/batting. Slice a small 1/2 inch opening.
2. The Cut: Insert your curved scissors (blade curving up) into the slit. Glide the bottom blade along the top of the stabilizer.
3. The Feel: You should feel the slick resistance of the stabilizer below your scissors. If you feel a "crunch," stop immediately—you have caught the mesh.




Rounds 4–7: Decorative Borders & Satin Precision

Return the hoop to the machine. You will now stitch zigzags and satin borders.

Tension Reality Check: Satin stitches (Rounds 6 & 7) require balanced tension.

• Visual Check: Look at the back of a test stitch. You should see 1/3 bobbin thread in the center.
• Auditory Check: Listen to the machine. A rhythmic hum is good. A sharp slap-slap-slap usually means the thread has jumped out of the take-up lever.


Aesthetics Tip: Change your bobbin thread to match your top thread for the satin stitching. Since this is a frame, the back edge might be visible. "Matchy-matchy" looks professional; white bobbin thread on a dark frame looks cheap.

Flip-and-Tape: The Backing & Ribbon

Remove the hoop. Flip it over.

1. Backing: Place your backing fabric to cover the unsightly stitching on the rear.
2. Ribbon: Tape your folded ribbon loop at the top, facing IN (loop hanging down into the frame area), raw edges at the top border.




Warning: Magnetic Hoop Safety
If you have upgraded to embroidery hoops magnetic for your production workflow, be extremely careful when flipping and re-seating the hoop.
* Pinch Hazard: The magnets are industrial strength. Do not let your fingers get between the magnets.
* Medical Safety: Keep these hoops at least 6 inches away from pacemakers or insulin pumps.

The Final Edge: Trim and Seal

Stitch the final tack-down (Round 8). Remove hoop, trim the backing fabric close to the stitches. Return to machine for the final Satin Stitch (Round 10).

The "Fuzzy Edge" Prevention: If you see little "whiskers" of batting poking through your final satin stitch, it means your batting wasn't trimmed close enough, or you are using low-quality batting. A heat-away topping can solve this, but sharp trimming is the best cure.

Operation Checklist: Final Pass

• Tape Removal: All positioning tape removed.
• Ribbon Security: Ribbon loop is under the stitch path.
• Bobbin Match: Color matched bobbin is loaded.
• Hoop Latched: Confirm the hoop is fully locked into the carriage (the "click" sound).

The Clean Reveal

Unhoop. Cut around the exterior satin stitch (leave 2-3mm of stabilizer). Dissolve the edges with a cotton bud dipped in warm water. Do not soak the whole frame unless necessary; spot dissolving keeps the inner cardboard-like stiffness of the stabilizer intact, which helps the frame hold its shape.

Decision Tree: Troubleshooting & Optimization

Use this logic to diagnose issues and decide when to upgrade your tools.

The Industry Perspective: Efficiency & Scaling

If you are making one frame for Mom, the standard plastic hoop and patience are sufficient. However, if you are running a small Etsy shop making 20 of these for Christmas:

1. Consistency: Terms like hooping station for embroidery refer to fixtures that hold your hoop in the exact same spot for every shirt or frame. This ensures the design is never crooked.
2. Ergonomics: ITH projects involve constant un-hooping and re-hooping. This is hard on wrists. Professional shops solve this with magnetic frames to snap layers in place instantly.
3. Volume: If you find yourself limited by the single-needle speed, look into a SEWTECH Multi-Needle Machine. The ability to queue colors and not change threads manually is the only way to scale profitability.

Many hobbyists search for a hoopmaster or similar aids when they hit the "frustration wall." Recognize that wall—it's not a lack of skill; it's a signal that your volume has outgrown your current toolset.

Stitch carefully, respect the sequence, and trust the physics of the hoop!

FAQ

• Q: What hidden prep items should be checked before stitching a 5x7 ITH photo frame on a home single-needle embroidery machine?
  A: Use a sharp new needle and the right cutting tools before starting, because most ITH failures come from dull needles and risky trimming.
  • Install a new 75/11 Sharp or Embroidery needle before hooping.
  • Prepare double-curved embroidery scissors and a smooth, burr-free seam ripper for the window cut.
  • Pre-press all fabrics and pre-cut batting/fabric at least 1 inch larger than the placement line.
  • Success check: The needle pierces cleanly without pushing layers, and the fabric lies flat with no pre-existing wrinkles.
  • If it still fails: Slow the machine for tack-down rounds and re-check hoop tightness before blaming the design.
• Q: How do you know wash-away stabilizer is hooped correctly for a 5x7 ITH photo frame using a standard plastic embroidery hoop?
  A: Hoop two layers of wash-away stabilizer “drum-tight” and confirm it by sound and feel before stitching any placement line.
  • Double up two sheets of mesh-type wash-away stabilizer to reduce bounce and registration shift.
  • Tighten the hoop gradually and evenly so the stabilizer does not sag while the screw is tightened.
  • Tap the hooped stabilizer like a technician and re-hoop if it loosens during tightening.
  • Success check: The stabilizer sounds like a tight drum skin (“thump”), not a loose paper flap.
  • If it still fails: Use the pin-lock method to stop stabilizer from sliding as the inner ring seats.
• Q: How does the pin-lock method prevent stabilizer slippage when hooping wash-away stabilizer for ITH embroidery in a standard hoop?
  A: Add horizontal pins across the top edge of the stabilizer before fully seating the inner ring to physically brake downward drag.
  • Place pins horizontally at the top edge of the stabilizer before the hoop is fully tightened.
  • Seat the inner ring while keeping the stabilizer aligned, then finish tightening the screw.
  • Re-check tension after tightening because the stabilizer can creep as the screw compresses the hoop.
  • Success check: The stabilizer edge stays in the same position relative to the hoop after tightening (no visible creep).
  • If it still fails: Consider switching to a magnetic hoop to eliminate drag from screw-tightening pressure.
• Q: What is the correct fabric-and-batting stack order for a 5x7 ITH photo frame sandwich before the tack-down stitches?
  A: Build the sandwich in the correct order—back fabric (wrong side up) → batting → front fabric (right side up)—then tape corners outside the stitch path.
  • Stitch the placement line first so the outline is a map, then align layers to cover the line by at least 1/2 inch on all sides.
  • Place back fabric with the wrong side up, add batting, then place front fabric right side up.
  • Tape only the corners and keep tape well clear of the needle path to avoid gumming and thread shredding.
  • Success check: After tack-down, the fabric is smooth with no waves and the placement outline is fully covered.
  • If it still fails: Reduce speed to 400–600 SPM for tack-down rounds to prevent the presser foot from pushing a pucker.
• Q: How do you cut the reverse appliqué window in an ITH photo frame without cutting the wash-away stabilizer base?
  A: Start the opening with a seam ripper while lifting fabric away from the stabilizer, then cut with curved scissors gliding along the stabilizer surface.
  • Pinch the fabric/batting in the window center and puncture only the fabric/batting with the seam ripper to create a small slit.
  • Insert curved scissors (curve up) and keep the lower blade riding on top of the stabilizer—not into it.
  • Stop immediately if the cut feels crunchy, because that usually means the mesh stabilizer is being caught.
  • Success check: The stabilizer remains intact with a smooth, unbroken mesh under the cut edge.
  • If it still fails: Re-check tool sharpness and keep the hoop flat on a table to control hand angle and pressure.
• Q: What tension and stitch-quality checks prevent satin stitch gaps on a 5x7 ITH photo frame border?
  A: Verify balanced tension before the final satin borders by checking the stitch back and listening for smooth machine rhythm.
  • Inspect a test stitch back: aim to see about 1/3 bobbin thread centered in the stitch.
  • Listen during stitching: a steady hum is healthy; sharp “slap-slap-slap” often means the thread jumped out of the take-up lever.
  • Match bobbin thread color to top thread if the frame back edge may be visible.
  • Success check: Satin borders look dense with no visible gaps and no looping on the back.
  • If it still fails: Address fabric draw-in by improving hoop stability and consider increasing pull compensation in software.
• Q: When should an ITH photo frame maker upgrade from a standard plastic hoop to a magnetic embroidery hoop or a SEWTECH multi-needle embroidery machine for production?
  A: Upgrade when re-hooping time, stabilizer slippage, hoop burn, or wrist strain becomes the bottleneck—fix technique first, then improve tooling, then scale capacity.
  • Level 1 (Technique): Use two stabilizer layers, pin-lock hooping, and run tack-down at 400–600 SPM to reduce shifting and puckers.
  • Level 2 (Tooling): Move to a magnetic embroidery hoop when stabilizer keeps slipping, hoop burn appears, or screw-tightening causes repeated re-hooping.
  • Level 3 (Capacity): Consider a SEWTECH multi-needle machine when single-needle color changes and cycle time limit throughput for batches (for example, seasonal orders).
  • Success check: Re-hooping stops being the main delay and results become consistent frame-to-frame.
  • If it still fails: Add a hooping station-style placement routine to standardize alignment and reduce crooked setups.
• Q: What safety steps prevent finger injuries during reverse appliqué cutting and prevent pinch injuries when using magnetic embroidery hoops for ITH projects?
  A: Cut away from the holding hand with the hoop flat on a table, and keep fingers clear of magnetic clamp points when flipping or re-seating the hoop.
  • Keep the hoop supported flat on a work surface for all seam-ripper punctures and window trimming—never on your lap.
  • Cut away from the hand holding the project and slow down when approaching corners.
  • When using magnetic hoops, separate and re-seat magnets deliberately to avoid pinch points, and keep magnets away from medical devices like pacemakers or insulin pumps.
  • Success check: Trimming is controlled with no sudden slips, and fingers never enter the magnet closing gap.
  • If it still fails: Switch to sharper tools and reposition hands before each cut rather than forcing the angle.
