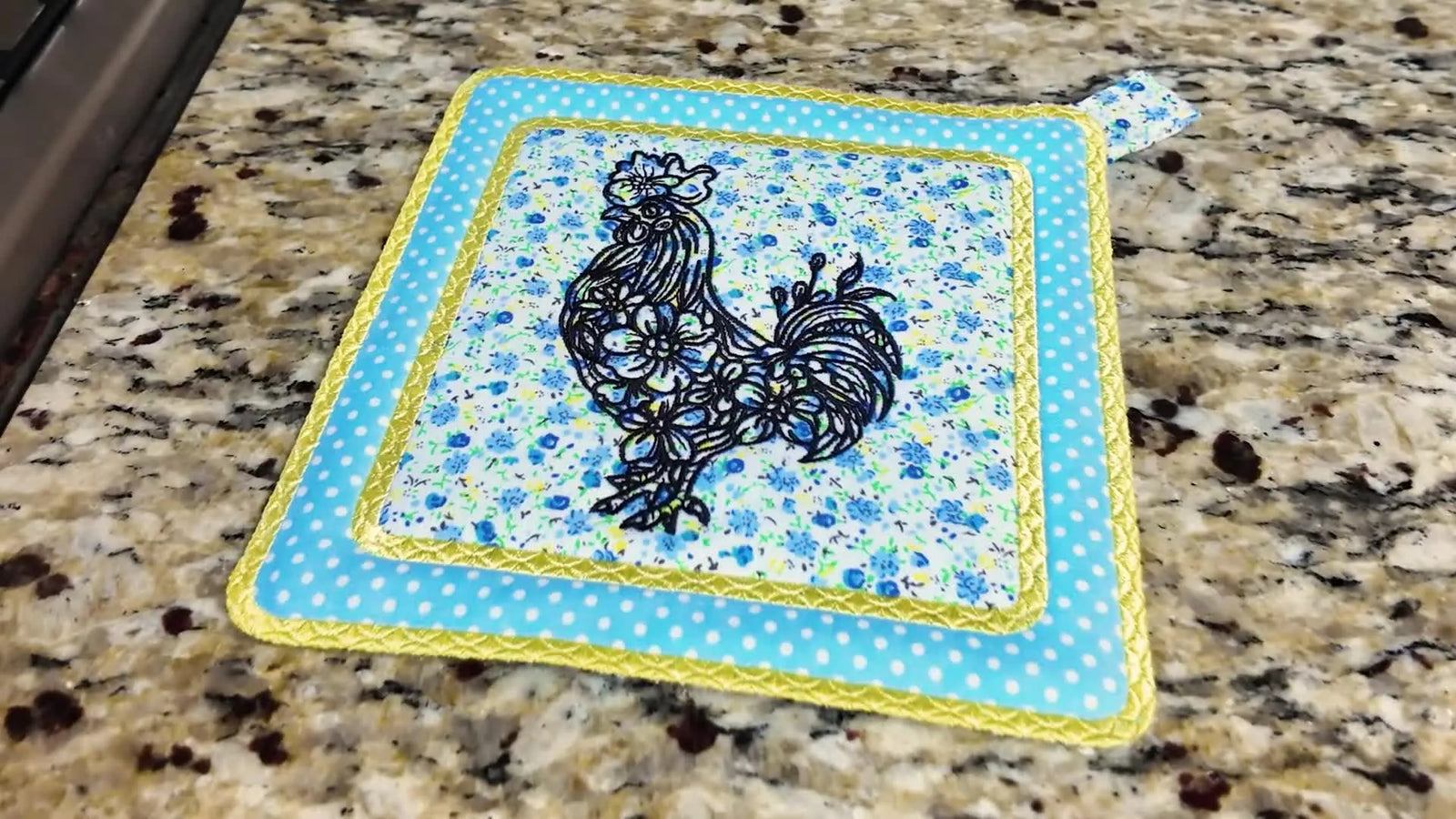

A No-Pucker ITH Trivet on a Tajima 10x10 Hoop: Clean Layers, Crisp Appliqué, and a Satin Edge That Doesn’t Bite Back

Master Class: The Architecture of a Perfect ITH Trivet

If you have ever pulled an "In-The-Hoop" (ITH) project off your machine only to find the edges chewed up, the layers shifted, or the satin stitch revealing the batting underneath, you know the specific heartbreak of embroidery physics fighting against you. An ITH trivet—essentially a quilted heat-pad made entirely within the hoop—might look like a simple beginner project, but I view it as a comprehensive stress test for your entire embroidery ecosystem. It tests your hooping tension, your trimming discipline, your machine’s penetration power, and your ability to manage bulk.

This project, executed here on a Tajima multi-needle setup with a 10" x 10" frame, follows the classic ITH architectural sequence: placement → structural anchor (batting) → decorative layers → waterproofing (sealing the edge).

The Calm-Down Check: What This ITH Trivet Design Is Really Doing (and Why It Works)

Before we thread a needle, let’s deconstruct the engineering. A trivet has two non-negotiable jobs: insulate against heat and lay perfectly flat. In this design, the structural integrity comes from Insul-Bright batting being locked down first. This is crucial because Insul-Bright contains metallicized mylar fibers—it is slippery, crinkly, and hates to be hooped directly.

The logic here is "Framing." The design locks the batting, then covers it with a front fabric, and finally creates a "window" using a center appliqué square. The raw edges are hidden inside the sandwich, and the final heavy satin stitch acts as the binding.

The Physics of the Shift

Why do newbies fail here? Creep. When you add thick batting and multiple layers of fabric, the foot of the embroidery machine pushes the fabric like a bulldozer pushing snow. If the hoop tension isn’t drum-tight, the fabric waves, and your final border misses the edge.

This is why tooling matters. While standard hoops work, they rely on friction and screw tension. A magnetic embroidery hoop relies on vertical clamping force. When you are sandwiching thick insulating batting, that vertical force prevents the "hoop burn" and fabric distortion that ruins geometric centers.

The “Hidden” Prep Pros Never Skip: Fabric Cuts, Thread Choices, and Stabilizer Reality

In my twenty years of teaching, 80% of "machine errors" are actually "prep errors." Do not eyeball these cuts. ITH files are digitized with precise tolerances—often less than 2mm. If your fabric is short, the tack-down line will stitch into thin air.

The "Non-Negotiable" Cut List:

• Hoop Size: 10" x 10" (Minimum field requirement).
• Center Fabric (Floral): 6.5" x 6.5".
• Tab Fabric: 2" x 4.5" (Folded in half lengthwise to create a stronger loop).
• Backing & Banding Fabric (Blue Dot): 8.5" x 8.5" (You need two of these: one for the front frame, one for the total back).
• Insul-Bright Batting: 8.5" x 8.5".
• Stabilizer: Heavy-duty water-soluble stabilizer (WSS) (Badgemaster type recommended).

Hidden Consumables (The Stuff You Forgot)

• Fresh Needle: Size 90/14 Topstitch. Why? Insul-Bright is tough on needles. A dull needle will push the fabric rather than piercing it, causing alignment issues.
• Tape Strategy: Use low-tack embroidery tape or painter's tape. Scotch tape leaves gummy residue on your needle.
• Double Curved Scissors: Essential for digging over the hoop lip.

Thread question from the comments: “Does it need to be 100% cotton for heat resistance?”

The video is silent on this, but let's apply industry safety standards. For a trivet holding a warm teapot, 40wt Polyester (like standard embroidery thread) is perfectly fine (melting point ~480°F). However, if this is a potholder meant to pull cast iron out of a 500°F oven, you must use 100% Cotton thread and cotton batting (no polyester Insul-Bright versions). Expert Rule: If you sell it, label it. "Trivet/Table Protector" (Poly safe) vs. "Oven Mitt" (Cotton mandatory).

Why water-soluble stabilizer is used here

We use WSS because we need the stabilizer to vanish. Tear-away would leave fuzzy white paper whiskers in your satin edge, and cut-away would be visible forever. WSS also "gelatinizes" when wet, stiffening the satin border like starch when it dries.

Prep Checklist (do this before you power on)

• Needle Check: Is a fresh Size 90/14 installed? (Insul-Bright demands it).
• Bobbin Check: Is the bobbin thread matched to the top border color? (Visible on the back).
• Scissor Check: Are your double curved scissors within arm's reach?
• Fabric Audit: Are all cutting dimensions verified against the file specs?
• Tab Fold: Is the hanging tab pre-pressed flat?


Hooping Water-Soluble Stabilizer in a 10x10 Frame Without Ripples (Your Border Depends on It)

The video demonstrates hooping a single layer of water-soluble stabilizer in a large 10" x 10" frame.

The Sensory Check: Tap the hooped stabilizer with your middle finger.

• Bad Sound: A dull, floppy wobble. This means your outline will distort.
• Good Sound: A crisp, high-pitched "ping" or drum-skin sound.

Because WSS is essentially plastic, it stretches under needle heat. If you are using a standard hoop, tighten the screw before you push the inner ring in, then tighten again after. If you are using a magnetic hoop, let the magnets snap shut, then gently tug the corners to ensure zero slack before the magnets fully seat.

Pro Tip: If you live in a humid climate, WSS absorbs moisture and sags. Hoop immediately before stitching. Do not leave it hooped overnight.

The Batting Lock-In: Placement Stitch, Tape the Corners, Then Tack Down Insul-Bright

We begin the construction. Load the hoop.

1. Placement Stitch: The machine draws a box on the stabilizer. This is map, not art.
2. Batting Placement: float the 8.5" x 8.5" Insul-Bright over the line.
3. Tape Security: Tape the four corners.
   • Caution: Do not tape where the needle travels. Stitching through masking tape gums up the hook assembly and causes thread breaks.
4. Tack-Down: The machine stitches the batting down.

The "Snowplow" Risk: Batting is puffy. As the foot moves, it pushes a wave of batting ahead of it. Keep your speed low here—600 SPM (Stitches Per Minute) is the sweet spot for the "Beginner Safe Zone."

Warning: Mechanical Safety Hazard. When smoothing fabric inside the hoop while the machine is engaged, keep fingers strictly away from the needle bar area. An unexpected machine start or a "Trim" command cycle can result in severe injury. Always keep hands at the outer perimeter of the frame.

The “Close, Not Careless” Trim: Using Double Curved Scissors on Batting

The video removes the hoop for trimming. This is a critical discipline. You must trim the Insul-Bright as close as physically possible to the stitching line without snipping the knot.

Why Precision Matters: If you leave a 5mm lip of batting, your final satin border will have to climb over it like a speed bump. This creates ugly gaps and "hairy" edges where batting pokes through.

Technique: Use double curved scissors. Rest the "bowl" of the curve on the stabilizer. This lifts the cutting blades slightly up, allowing you to glide along the fabric edge without slicing the stabilizer sheet underneath.

• Auditory Cue: You should hear a crisp snip-snip, not a tearing sound.


The Appliqué “Window” Look: Tack Down the Front Fabric, Then Frame It With the Center Square

This stage separates the amateurs from the pros. We are building the "Face" of the trivet.

The Sequence:

1. Base Layer: Place the "Back & Banding" fabric (Blue Dot) right side up. Tape. Tack down.
2. Center Layer: Place the "Center Fabric" (Floral) over the middle. Tape. Tack down.
3. The Reveal Trim: Remove the hoop. Trim only the excess Floral fabric close to the stitches.

The Risk of the diagonal: Fabrics cut on the bias (diagonal) stretch easily. When taping your fabric down, do not pull it tight. Lay it flat and tape it "neutral." If you pull it tight, it will snap back like a rubber band after you unhoop, creating puckers.

Setup Checklist (right before you stitch the center design)

• Adhesion Check: light tug on the fabric corners—is the tape holding?
• Flatness Check: Run your hand over the fabric. Any bubbles? (Bubbles = folds later).
• Clearance Check: Is the excess fabric trimmed close enough to the appliqué line (1-2mm max)?
• Thread Check: Have you changed to the correct color for the Rooster design?


Let the Tajima Run: Stitching the Center Rooster Design Without Thread Drama

Now the machine takes over for the decorative rooster.

Multi-Needle Advantage: On a single-needle machine, this multicolor rooster requires 5+ manual thread changes. On the video's Tajima, it’s a continuous run. This is where production shops make their money.

Stabilization Reality: If your stabilizer was loose in step 1, this is where you see "registration errors" (where the red comb doesn't line up with the rooster's head).

• Observation: If you see outlines drifting, your hoop is vibrating.
• Solution: This is often a clamping issue. Professionals frequently transition to magnetic hoops for tajima machines because the solid magnetic lock dampens vibration better than plastic clips, keeping lines crisp even at higher speeds.


The Flip-and-Tape Move: Adding the Hanging Tab and Backing Fabric on the Underside

The machine stops. You remove the hoop. Now we work on the back side (the side touching the machine bed).

The Architectural Challenge: Gravity is your enemy here. You must tape the folded tab and the backing fabric securely because they will be sliding against the machine arm.

1. Tab: Top left corner, raw edges inward, loop inward. Overhang by 1/4 inch across the stitch line to ensure it's caught deeply.
2. Backing: Cover the entire area right-side out.

Tape Strategy: Use aggressive taping here. If a corner of the backing fabric peels back while the machine is moving, it will flip under the needle and sew itself to the front of your project. Ruined.

Warning: High-Strength Magnet Safety. If you are using industrial magnetic frames (like the Mighty Hoop mentioned in pro workflows), be aware they snap together with up to 30lbs of force. Never place fingers between the brackets. Keep away from pacemakers and sensitive electronics.

When fighting gravity on the underside of a hoop, you realize why the industry loves the mighty hoop system. The ability to "snap" fabric into place without screwing and unscrewing outer rings reduces the chance of shifting layers during these acrobatic flip-and-tape maneuvers.

The Make-or-Break Moment: Final Perimeter Trim Before the Satin Stitch Border

The machine runs a "Basting Stitch" or "Tack-down" around the extreme perimeter. This stitch locks the front, batting, and backing together.

The "Credit Card" Rule: Remove the hoop. You must trim the fabric from the front AND the back. Your trim needs to be barely wider than the tack-down line—think of the thickness of a credit card (about 1mm - 2mm).

• Too Wide: The satin stitch won't cover the raw edge.
• Too Close: You might cut the knot, and the layers will explode open.

Tactile feedback: Run your fingernail along the trimmed edge. It should feel like a solid ridge, not a fraying mess.

The Satin Stitch Border That Looks Expensive: Matching Bobbin and Letting the Edge Seal

We are in the endgame. The machine will now lay down a dense column of stitches (Satin Stitch) to wrap the raw edges.

Crucial Settings:

• Speed: Drop to 600 SPM. The needle is penetrating stabilizer + front fabric + Insul-Bright + back fabric + tab. High speed causes needle deflection (bending), which leads to broken needles or hitting the throat plate.
• Bobbin: Use a thread that matches the top thread. Even with perfect tension, a bit of bobbin thread often peeks through on the corners of a satin stitch. If it matches, it's invisible. If it's white, it looks cheap.

Production Note: If you were making 50 of these for a craft fair, the time you spent taping and trimming is your "Cost of Goods Sold." This is why high-volume shops implement a hooping station for embroidery. It allows an operator to prep the next hoop perfectly squarely while the machine is stitching the current one, doubling throughput.

Operation Checklist (before you call it “done”)

• Visual Scan: Did the satin stitch cover all raw edges?
• Tab Test: Give the hanging tab a firm tug. Is it anchored?
• Jump Thread Patrol: Snip all jump threads now, before wetting the stabilizer.
• Backside Check: Flip it over. Are there any loops or bird nests?


The Warm-Water Finish: Trimming Stabilizer to 1/4" and “Tapping” the Edge to Seal

Remove the project from the hoop. Cut away the excess water-soluble stabilizer, but leave a 1/4 inch margin all around.

The "Sealing" Technique: Do not throw it in the wash.

1. Dip your finger in warm water.
2. Tap the raw edge of the satin stitch.
3. The 1/4 inch WSS margin will dissolve into a sticky gel.
4. Rub this gel into the thread edge with your finger.
5. Let it dry.
   This "glues" the threads together, preventing fraying and giving the trivet a rigid, professional rim.


Decision Tree: Picking Stabilizer + Batting Strategy for an ITH Trivet

Use this logic flow to ensure safety and quality before you start:

• Scenario A: The Kitchen Workhorse (Heat is Priority)
  • Material: 100% Cotton Thread + 100% Cotton Batting (Double Layer).
  • Stabilizer: Water-Soluble (wash out completely to prevent scorching).
  • Machine Speed: Standard.
• Scenario B: The Decorative Gift (Look is Priority - modeled in video)
  • Material: Poly Thread + Insul-Bright Batting.
  • Stabilizer: Heavy Duty Water-Soluble.
  • Technique: The "Tap and Seal" finish for rigid edges.
• Scenario C: High Volume Production (Profit is Priority)
  • Efficiency Hack: Use pre-cut fabric squares.
  • Tooling: Use a magnetic hooping station to guarantee placement accuracy without measuring every single time.
  • Batching: Stitch all Step 1s, then all Step 2s if using multiple hoops.


Real-World Constraints: “My Biggest Hoop Is 6 x 10”—What You Can Do (Without Fighting the File)

A common distress signal in the comments: "I only have a 6x10 hoop!"

Hard Truth: You cannot shrink a 10x10 ITH file to 6x10. The stitching density will double, and your needle will chop the fabric into mulch.

• The Fix: You must find a design specifically digitized for 6x10.
• The Workaround: You can sew the trivet "traditionally" (sewing machine) and just use the embroidery machine for the center Rooster design.

However, if you are struggling with hoop sizes because you are maximizing a smaller home machine, this is often the friction point where hobbyists start looking at upgrades. Better machine embroidery hoops—specifically magnetic ones—can help you maximize the usable area of your current machine by holding fabric closer to the edge without the bulk of screw mechanisms.

The Upgrade Path That Actually Makes Sense: When Better Hooping and Better Machines Pay You Back

Completing this trivet is a milestone. It proves you understand layering and structure. But if the process left you with sore wrists from clamping or frustration from re-threading needles, it’s time to look at your toolkit through a commercial lens.

Here is the "Pain-to-Solution" diagnostic I use with my students:

**Pain Point 1: "My wrists hurt and I can't get thick items hooped straight."**

• Diagnosis: Physical Limitation of Standard Hoops. Standard hoops struggle with the "sandwich" of Insul-Bright.
• The Level-Up: Upgrade to Magnetic Hoops. They snap over any thickness instantly. For home machines, these solve the "hoop burn" issue. For industrial machines, they solve the speed issue.

**Pain Point 2: "I spent 40 minutes sitting there changing thread colors for one trivet."**

• Diagnosis: Production Bottleneck. You are trading your time for color changes.
• The Level-Up: This is the trigger for a Multi-Needle Machine (like SEWTECH). If you are moving from hobby to business, a 10-needle machine doesn't just save time—it allows you to press "Start" and walk away to prep the next hoop, turning a chore into a workflow.

**Pain Point 3: "My outlines are vaguer than my intent."**

• Diagnosis: Stabilization Failure.
• The Level-Up: Before buying a new machine, buy better consumables. Fresh needles, high-quality heavy WSS, and a dedicated Hooping Station to ensure your fabric is square before it ever touches the needle.

Master the physics of the sandwich, respect the danger of the needle, and upgrade your tools only when the current ones become the bottleneck to your creativity. Happy stitching.

FAQ

• Q: How do I hoop heavy-duty water-soluble stabilizer in a 10" x 10" embroidery frame without ripples for an ITH trivet border?
  A: Hoop the water-soluble stabilizer drum-tight right before stitching, because ripples will telegraph into the final border.
  • Tighten: On a standard hoop, tighten the screw before inserting the inner ring, then tighten again after seating.
  • Test: Tap the hooped stabilizer with a middle finger to check tension.
  • Prevent: If humidity is high, do not leave water-soluble stabilizer hooped overnight—hoop immediately before running the design.
  • Success check: The stabilizer makes a crisp, high-pitched “ping” (not a dull wobble) and looks flat with no waves.
  • If it still fails: Slow down the run and re-hoop; loose stabilizer commonly causes registration drift later in the design.
• Q: Which needle size should be used for an ITH trivet with Insul-Bright batting to prevent shifting and penetration problems?
  A: Use a fresh Size 90/14 Topstitch needle, because Insul-Bright dulls needles and a dull needle can push layers instead of piercing cleanly.
  • Replace: Install a brand-new Size 90/14 Topstitch needle before starting the project.
  • Observe: If fabric seems to “walk” or distort, stop and swap the needle rather than forcing the run.
  • Pair: Keep speed in the beginner-safe zone during bulky steps to reduce deflection risk.
  • Success check: Stitches form cleanly without the fabric being shoved or wrinkled around the needle path.
  • If it still fails: Re-check hoop tension and trimming accuracy; many “machine problems” are prep problems.
• Q: How close should Insul-Bright batting be trimmed on an ITH trivet, and why are double curved scissors recommended?
  A: Trim Insul-Bright as close as physically possible to the stitch line without cutting the knot, using double curved scissors to avoid nicking the stabilizer.
  • Remove hoop: Take the hoop out for trimming so visibility and control are high.
  • Glide: Rest the curved “bowl” on the stabilizer and glide along the edge to keep blades off the stabilizer sheet.
  • Reduce bulk: Do not leave a wide batting lip, because the final satin border must climb over it and gaps can appear.
  • Success check: The edge feels smooth and low-profile, and no batting fuzz peeks past the tack-down line.
  • If it still fails: Re-trim to within about 1–2 mm of the stitch line, carefully avoiding the stitch knots.
• Q: What is the safest way to smooth fabric inside an embroidery hoop during ITH trivet stitching to avoid needle injuries?
  A: Keep hands at the outer perimeter of the frame and never reach near the needle bar area while the machine is engaged—unexpected starts or trim cycles can injure fingers.
  • Stop first: Pause/stop the machine before adjusting anything near the stitching field.
  • Position: Smooth only from the hoop’s outer edges, not near the needle path.
  • Plan: Do major smoothing and taping during designated “remove hoop” steps instead of mid-run.
  • Success check: Fingers never cross into the needle bar zone, and adjustments are made with the machine not actively cycling.
  • If it still fails: Build a habit checklist—stop machine, move hands away, then adjust—before resuming.
• Q: What safety precautions are required when using high-strength industrial magnetic embroidery frames that snap together with strong force?
  A: Treat industrial magnetic frames as pinch hazards—never place fingers between the brackets, and keep them away from pacemakers and sensitive electronics.
  • Grip: Hold magnets by the outside edges and guide them into place slowly.
  • Clear: Keep fingertips completely out of the closing gap before letting magnets seat.
  • Control: Set magnets down on a stable surface; do not let them “jump” together uncontrolled.
  • Success check: The frame closes without finger contact, and fabric is clamped evenly without a sudden snap onto skin.
  • If it still fails: Switch to a slower, two-handed placement routine and reposition the work area to reduce accidental magnet jumps.
• Q: What embroidery machine speed should be used for the final satin stitch border on a thick ITH trivet sandwich to reduce needle deflection and breakage?
  A: Drop to about 600 SPM for the satin stitch border, because the needle is penetrating stabilizer + fabrics + Insul-Bright + tab and high speed increases deflection risk.
  • Slow down: Set speed to 600 SPM before the final border starts.
  • Match bobbin: Use bobbin thread that matches the top thread color to hide corner peek-through.
  • Inspect: Watch corners closely; corners are where deflection and tension artifacts show first.
  • Success check: Satin stitch fully covers the raw edge with smooth corners and no needle strikes or broken needles.
  • If it still fails: Re-check trimming width at the perimeter; too much bulk or a wide lip can prevent full coverage.
• Q: When ITH trivet layers shift or outlines drift during a multi-color center design run, should the next step be technique optimization, magnetic hoops, or upgrading to a multi-needle machine?
  A: Start with technique (hoop tension, taping, trimming, speed), then consider magnetic hoops for better clamping on thick layers, and only upgrade to a multi-needle machine if thread changes are the true bottleneck.
  • Level 1 (Technique): Re-hoop water-soluble stabilizer drum-tight, tape corners without stitching through tape, and keep bulky steps around 600 SPM.
  • Level 2 (Tooling): Use magnetic hooping when thick “sandwich” layers are creeping; vertical clamping often reduces distortion and vibration-related drift.
  • Level 3 (Capacity): Move to a multi-needle setup when repeated manual color changes dominate job time and disrupt workflow.
  • Success check: Registration stays crisp (no drifting outlines) and the final border hits the edge evenly all around.
  • If it still fails: Audit prep dimensions against the file tolerances; short cuts or inaccurate trims can cause stitch lines to land in the wrong place even with perfect hooping.
