Precision Placement Masterclass: Mastering Brother My Design Snap (Advanced Mode)

If you have ever tried to add specific stitches to a printed fabric—like one leaf on a floral pattern or a logo on a precise pocket corner—you know the sinking feeling of the "Hope & Pray" method. You line it up, you press Go, and the needle lands 3mm to the left. The project is ruined, and your frustration spikes.

This workflow (My Design Snap → My Design Center → LED calibration) is Brother’s engineering answer to that anxiety. However, as any veteran embroiderer knows, software is only as accurate as your physical setup.

This guide will deconstruct the "Advanced Mode" workflow, moving beyond the manual to teach you the feel, the sound, and the physics required for perfect placement every single time.

The Calm Truth About Advanced Mode: It’s Not Hard, It’s Just Unforgiving

Brother’s My Design Snap app opens in "Easy Mode" by default. This is fine for general centering. But the video demonstrates why Advanced Mode is mandatory for professional results: it allows for off-center precision.

When you are trying to stitch veins inside a specific printed leaf that isn't in the center of your hoop, Easy Mode fails. Advanced Mode maps the specific geometry of the hoop to the screen, allowing you to draw details exactly where they belong physically.

On your phone, you will tap the middle icon for My Design Center and switch to Advanced. The interface changes and immediately demands you use the positioning sticker.

Psychological Check: Many intermediate users freeze here because it feels technical. It is essentially "camera calibration," but only for the specific area you mark. Think of it as telling the machine: "Ignore the rest of the world. This dot right here is my distinct reference point."

If you are searching for a reliable workflow on a brother embroidery machine, mastering this local calibration is the difference between "homemade" and "custom."

Why the Snowman Works (And Why Direction is Irrelevant)

The "Snowman" sticker is your physical anchor. In the workflow, one sticker is peeled and pressed firmly onto the specific leaf where the user wants to add veins.

Two rules that defy beginner logic:

1. Location represents the Target: Place it exactly where the work needs to happen.
2. Rotation is Irrelevant: You do not need to align the sticker vertically. Use any angle.




The Coordinates Behind the Curtain: The machine's camera system isn't looking for "up" or "down." It is triangulating the geometric pattern on the sticker to find the center dot. Once it finds that center dot, it builds a coordinate system around it.

Sensory Tip: When applying the sticker, press it down until you see the texture of the fabric through the sticker material (if possible). If the edge lifts even 1mm, the camera may misread the angle, resulting in a tilted design.

Warning: Mechanical Safety. Keep hands and fingers clear of the needle area and hoop carriage during calibration movements. The carriage moves rapidly and automatically to find the sticker. A hoop strike can break a needle, shatter the sticker recognition, or cause physical injury.

The "Hidden" Prep: Where Accuracy is Actually Won

Before you touch the app, you must stabilize the battlefield. Experienced operators know that 90% of placement errors are actually hooping errors.

Fabric Dynamics & The "Drum Skin" Myth

In the demonstration, the fabric is a floral print cotton. Cotton is stable. However, if you are working with knits, performance wear, or loose weaves, a standard hoop can be a distinct disadvantage.

• The Problem: If you pull the fabric "tight like a drum" in a standard inner/outer ring hoop, you often stretch the bias. When you remove the hoop later, the fabric relaxes, and your perfect circle becomes an oval.
• The Artifact: Standard hoops often leave "hoop burn" (crushed fibers) on delicate velvets or dark cottons that involves tedious steaming to remove.

The Professional Workaround: Magnetic Integrity

If you are doing this process once, a standard hoop is acceptable. If you are doing this for a production run (e.g., 20 shirts), standard hooping is a bottleneck for both speed and precision.

This is where the industry separates hobbyists from producers.

• Level 1 (Technique): Use "float" techniques with adhesive stabilizer to avoid hooping the fabric directly.
• Level 2 (Tool Upgrade): Use a magnetic hoop for brother. Magnetic frames claim the fabric without forcing it into a distortion channel. The fabric stays flat, the grain line stays straight, and you eliminate the muscle fatigue of tightening screws.

If you are constantly fighting hoop burn or finding that your fabric shifts during the scan, a magnetic hoop for brother is the logical hardware solution to stabilize your software results.

Prep Checklist: The "Zero-Drift" Standard

• Tension Check: Tap the hooped fabric. It should sound taut (a dull thud), but the geometric print must not look warped or stretched.
• Obstruction Check: Ensure no excess fabric is bunched under the hoop that could drag against the machine bed.
• Sticker Integrity: Press the Snowman sticker one last time. Ensure it is perfectly flat.
• Stabilizer Match: Confirm you have a heavy enough stabilizer to support the stitch density (see Decision Tree below).

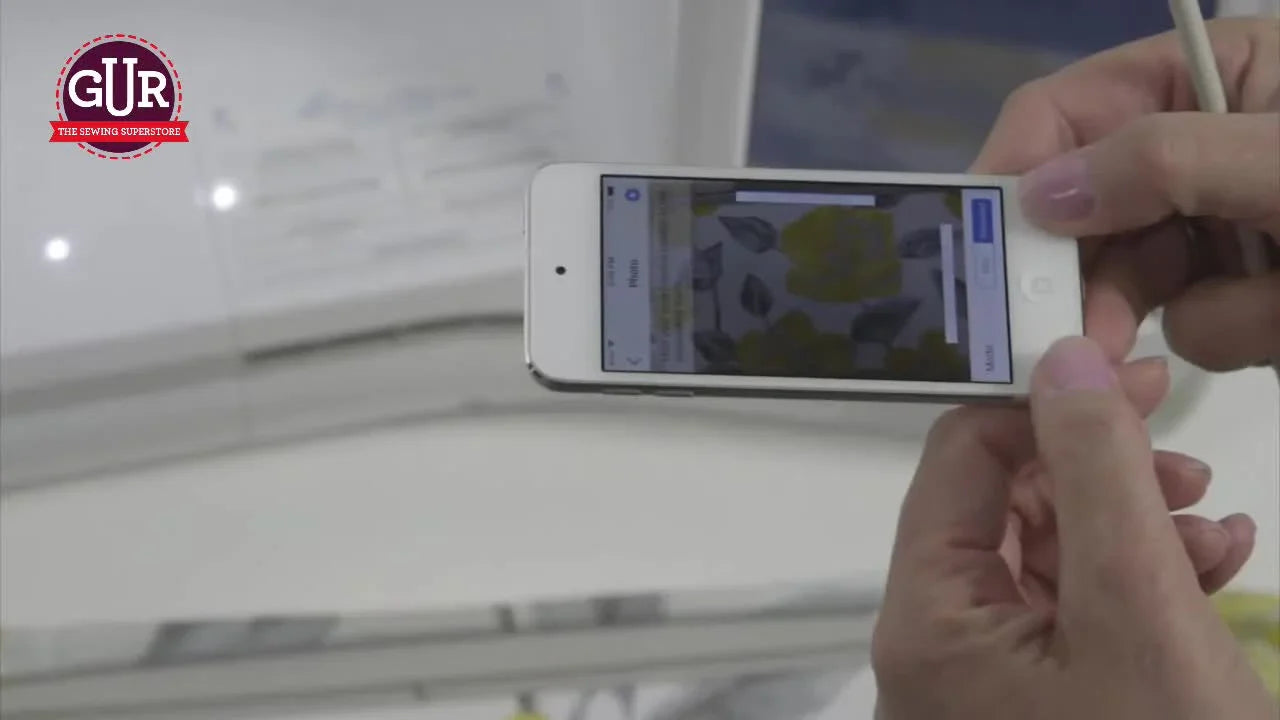

Capturing the Image: The "Parallel Phone" Rule

Once the sticker is placed, the app prompts visual capture. The creator uses a technique that is mandatory for accuracy: The Elevator Method.

Do not tilt the phone like you are taking a selfie. Hold the device perfectly parallel to the floor, directly above the hoop. Start low, and slowly raise it like an elevator until the frame brackets turn green/active.

Why this matters: This is about minimizing parallax error. If your phone is tilted 15 degrees, the app has to mathematically guess the distortion. It usually gets it right, but "usually" isn't good enough for precise vein stitching.

For shops using hooping stations, this is easier because the hoop is already level. Consistency in capture height leads to consistency in stitch placement.

Loading in My Design Center: Verification

After the app sends the data:

1. Wake the machine screen.
2. Navigate to My Design Center -> Load -> Wireless LAN.
3. Critical Step: Select the top-most file. Timestamps matter here.


Visual Confirmation: The image will load with a specific "Advanced Mode" tag. If you do not see this tag, you are likely in the wrong mode and the coordinate mapping will not be precise.

Note for Researchers: If you are currently comparing brother embroidery hoops sizes for a purchase, remember that larger hoops require more stabilization. A tiny shift in a 4x4 hoop is negligible; that same shift in a 10x16 hoop can multiply across the distance.

LED Pointer Calibration: The Moment of Truth

After you tap Set, the carriage will move the hoop. The red LED pointer will illuminate.

The Reality Check: The LED will rarely land perfectly on the center dot of the sticker automatically. This is normal. Do not panic.

The Fix: Use the on-screen arrow keys. The video highlights the importance of the increment settings. Switch the movement increment to 0.1mm (the smallest setting).

1. Look closely at the sticker.
2. Tap the arrows until the red light is dead-center.
3. Sensory Check: You are looking for the light to disappear slightly into the black center dot of the sticker.








Setup Checklist: Calibration

• Hoop Seating: Push the hoop firmly into the carriage arm. Listen for the audible "Click" of the lock. A loose hoop renders calibration useless.
• Precision: Did you use the 0.1mm setting? If you used the large arrows, you are likely 0.5mm off.
• Commitment: Only press OK when the red light is perfectly centered. This establishes the "World Zero" for your design.

Drawing the Stitches: Control and Visibility

Once calibrated, the screen displays your fabric. The video demonstrates a vital workflow tip: Opacity Management.

Cycle the background image visibility.

1. High Visibility: To confirm you are looking at the right leaf.
2. Faded Visibility: Fade it out so the background is pale. This makes it easier to see the black line you are drawing.


Drawing Technique: Use the stylus. Do not use your finger. Your finger blocks your view and is too blunt for vein work. Draw with confident, smooth strokes.

Tool Choice: If you are working on expensive garments, this is where magnetic embroidery hoops for brother provide peace of mind. Without the massive friction of a traditional hoop inner ring, you can adjust delicate fabrics without "scrubbing" the fibers, ensuring the surface serves as a pristine canvas for your drawing.

Warning: Magnet Safety. Magnetic hoops use industrial-strength magnets (Neo). They can pinch skin severely. PACE MAKER WARNING: Keep magnetic hoops at least 6 inches away from implanted medical devices. Keep away from credit cards and mechanical watches.

Preview, Adjust, and The Final Stitch

The sequence is: Next -> Preview -> OK.

The machine converts your drawing into stitch data. On the stitch-out screen, you will see the design overlay on the camera view.

The Speed Limit: For intricate detail work like leaf veins or text, do not run your machine at maximum speed (e.g., 1050 SPM).

• Recommended Speed: 600 - 700 SPM.
• Why: Slower speeds reduce vibration and allow the thread to lay flatter on precise curves.


If you find yourself doing this setup repeatedly—for example, monogramming 50 pockets—the setup time (Hooping + Sticker + Scan + Calibrate) eats your profit margin. This is the trigger point where businesses upgrade.

• Efficiency Upgrade: A magnetic embroidery hoop allows for faster hooping (5 seconds vs 45 seconds).
• Scale Upgrade: Moving to a multi-needle machine for batch processing.

Operation Checklist: Pre-Flight

• Thread Path: Floss the thread through the tension discs. Ensure the foot is raised when detailed threading occurs.
• Bobbin: Is there enough bobbin thread? (Visual check: standard bobbin should not be near empty).
• Hoop Clearance: Rotate the handwheel (if needed) or check visually that the needle bar won't hit the hoop edge.
• Speed: Dial down to 600 SPM for the first minute.

Troubleshooting: Why did it miss?

If you followed the steps but the needle still missed the vein, consult this diagnostic table.

Decision Tree: Fabric, Stabilizer & Hoop Strategy

A 4x4 inch sample is easy. A knit jersey shirt is hard. Use this logic to choose your gear before you start scanning.

Scenario A: The Stable Cotton (Quilting cotton, Denim)

• Stabilizer: Tearaway (Medium weight).
• Hoop: Standard hoop is acceptable.
• Strategy: Iron fabric flat first.

Scenario B: The Stretchy Knit (T-Shirts, Performance Wear)

• Stabilizer: Cutaway (Mandatory). No-Show Mesh is best for wearables.
• Hoop: Magnetic Hoop is highly recommended. Standard hoops distort the ribbing/grain when tightened, causing the design to pucker when unhooped.
• Needle: Ballpoint 75/11.

Scenario C: The Delicate/Slippery (Silk, Satin, Velvet)

• Stabilizer: Cutaway or fusible.
• Hoop: brother luminaire magnetic hoop (or compatible model). Do not use a friction hoop on velvet; it will crush the pile permanently (hoop burn).
• Strategy: Use the scan function to avoid chalking or marking the delicate fabric.

Final Review: Turning Features into Workflows

Advanced Mode is not a toy; it is a bridge between digital design and physical reality. But it demands respect for the physics of embroidery.

You can have the best software in the world, but if your hooping is sloppy, your calibration will lie to you. By combining the precision of the My Design Snap app with the physical reliability of tools like brother stellaire hoops upgrades (specifically magnetic options), you transform a stressful guessing game into valid, repeatable production.

Master the prep. Trust the calibration. Slow down the stitch. That is how you hit the mark every time.

FAQ

• Q: How do I use Brother My Design Snap Advanced Mode so off-center details (like veins inside a printed leaf) stitch in the correct spot?
  A: Use Advanced Mode with the positioning sticker, then calibrate the LED pointer at 0.1 mm—accuracy comes from the sticker reference, not guessing.
  • Switch: Open My Design Center on the phone and select Advanced so the hoop geometry is mapped for off-center placement.
  • Place: Press the Snowman sticker exactly on the target area; rotation angle does not matter, but the sticker must be perfectly flat.
  • Capture: Hold the phone parallel to the hoop and lift straight up (“elevator method”) until the capture frame confirms.
  • Success check: The loaded file on the machine shows the Advanced Mode tag, and the final stitch preview overlay matches the intended printed feature.
  • If it still fails… Re-take the photo with the phone truly level and re-do LED calibration using the smallest increment.
• Q: How can I tell if embroidery hooping is stable enough for Brother My Design Snap scanning without fabric distortion or drift?
  A: Hoop to a “zero-drift” standard—taut without warping the print, and with no drag points under the hoop.
  • Tap: Check tension by tapping the hooped fabric; aim for a dull taut sound, not a loose flap.
  • Inspect: Look at the printed pattern/grain; it must not look stretched, skewed, or “pulled” in one direction.
  • Clear: Remove/bundle excess fabric so nothing drags against the machine bed during scan and carriage travel.
  • Success check: The fabric stays flat during scanning and later stitching does not “walk” away from the intended area.
  • If it still fails… Re-hoop and consider a magnetic hoop or a float method with adhesive stabilizer to reduce distortion.
• Q: Why does the Brother red LED pointer miss the center dot during My Design Snap calibration, and what is the fastest fix?
  A: This is common—manually center the LED using 0.1 mm increments and only confirm when the light is dead-center on the dot.
  • Set: Verify the hoop is fully seated and locked in the carriage (listen/feel for the click).
  • Adjust: Change the on-screen movement increment to 0.1 mm, then nudge the LED with the arrow keys.
  • Commit: Press OK only after the LED is perfectly centered on the sticker’s black dot.
  • Success check: The red light appears to “sink” into the black center dot with no visible offset.
  • If it still fails… Re-check that the sticker edge is not lifted and re-capture the image with the phone held parallel (no tilt).
• Q: Why does Brother My Design Snap embroidery stitch correctly at first and then drift later in the run?
  A: Drift usually means the fabric shifted in the hoop after scanning—re-hoop for grip and remove anything that can pull or drag.
  • Re-hoop: Tighten the setup so the fabric is taut without print distortion (avoid over-stretching knits).
  • Check: Confirm no excess fabric is bunched underneath where it can snag the bed during movement.
  • Upgrade: If hoop slack keeps happening, use a magnetic hoop to hold fabric flat with less distortion and better grip consistency.
  • Success check: After re-hooping, the stitched path stays aligned to the printed feature from start to finish.
  • If it still fails… Reduce stitch speed for detail work and confirm stabilizer is heavy enough for the stitch density.
• Q: What should I do if Brother My Design Snap embroidery looks rotated or tilted even though the placement sticker was used?
  A: Replace the sticker and apply it perfectly flat—tilt is commonly caused by a lifted or curled sticker edge.
  • Replace: Use a fresh positioning sticker; do not reuse one that has lost adhesion.
  • Press: Firmly press the entire sticker so no edge is raised (even 1 mm can affect recognition).
  • Recalibrate: Run the scan and LED centering again after the new sticker is applied.
  • Success check: The camera preview overlay and final stitches align without a consistent diagonal “twist.”
  • If it still fails… Re-take the photo using the parallel-phone capture method to reduce parallax error.
• Q: What is the safety rule during Brother My Design Snap calibration when the hoop carriage moves automatically?
  A: Keep hands completely clear of the needle area and hoop carriage during calibration—rapid automatic movement can cause a hoop strike or injury.
  • Pause: Stop and reposition fabric/sticker before starting calibration movements, not during.
  • Watch: Observe the carriage travel path so nothing (hands, tools, excess fabric) enters the motion zone.
  • Verify: Confirm hoop clearance to avoid the needle or hoop edge contacting the machine during movement.
  • Success check: Calibration completes with no contact, no sudden jolts, and no needle/hoop collision.
  • If it still fails… Power down and re-seat the hoop; a loose or mis-seated hoop can trigger strikes during movement.
• Q: What are the key safety precautions when using industrial-strength magnetic embroidery hoops for Brother-style hooping workflows?
  A: Treat magnetic hoops as pinch hazards and keep them away from implanted medical devices—strong magnets can injure fingers and interfere with devices.
  • Handle: Keep fingers out of the closing path; bring parts together slowly and deliberately.
  • Separate: Store magnets securely so they cannot snap together unexpectedly.
  • Protect: Keep magnetic hoops at least 6 inches away from pacemakers and away from credit cards and mechanical watches.
  • Success check: The fabric is clamped evenly without finger pinches, and the hoop can be removed without sudden snapping.
  • If it still fails… Switch to a safer handling routine (two-hand control, controlled placement) before increasing production speed.
• Q: If Brother My Design Snap setup time is killing pocket/garment profits, when should the workflow upgrade from technique changes to magnetic hoops to a multi-needle machine?
  A: Use a tiered approach: optimize technique first, add magnetic hoops when hooping becomes the bottleneck, and consider a multi-needle machine when batch volume makes changeovers unprofitable.
  • Level 1 (Technique): Float fabric with adhesive stabilizer to reduce distortion and speed up positioning without re-hooping.
  • Level 2 (Tool): Use magnetic hoops when hoop burn, fabric shift during scan, or slow screw-hooping repeats every piece.
  • Level 3 (Production): Move to a multi-needle machine when repeated setups (hoop + sticker + scan + calibrate) dominate total time across batches.
  • Success check: Repeat jobs maintain placement accuracy while total time per piece drops in a measurable, consistent way.
  • If it still fails… Track where time is lost (hooping vs calibration vs stitching) and upgrade the step that is actually limiting throughput.
