Mastering Auto Punch: From Pixelated Mess to Production-Ready Embroidery

If you’ve ever watched an auto-digitized design look "fine" on your computer screen—only for it to stitch out like a bulletproof vest or a bird's nest of thread—you are not alone. This is the number one frustration for embroidery beginners.

In my 20 years of running embroidery floors, I’ve learned that "Auto Punch" is not a magic wand; it is a translator. It translates pixels into stitch commands. If you feed it vague instructions, it translates them into chaos. However, when controlled with specific constraints, it can be a lifesaver for quick corporate logos or simple clipart.

In this guide, we are rebuilding the standard Auto Punch workflow into a shop-ready routine. We will cover image import, strict boundary enforcement, the "Sweet Spot" parameter settings, and the critical conversion of stitch types. Crucially, we will bridge the gap between software settings and physical reality—because software doesn't tear fabric, physics does.

1. The Mindset Shift: It’s Not Art, It’s a Blueprint

Auto Punch is excellent at one specific task: turning clean, high-contrast images (like cartoons or logos) into distinct stitch blocks. It is terrible at interpreting photographs, gradients, or watercolor textures.

The Golden Rule: Auto Punch doesn't "create"; it calculates. If your source image has "noise" (fuzzy pixels at the edges), the software interprets that as "I need to place 50 microscopic stitches here." This leads to thread breaks and a machine that sounds like it's grinding gears.

Visual Check: Zoom in on your image before you import it. If the edges look blurry or pixelated, you will fight the software. If the edges are crisp (like a vector or high-res PNG), you are 90% of the way to a good result.

2. The Setup: Select the "Apple," Not the "Photo"

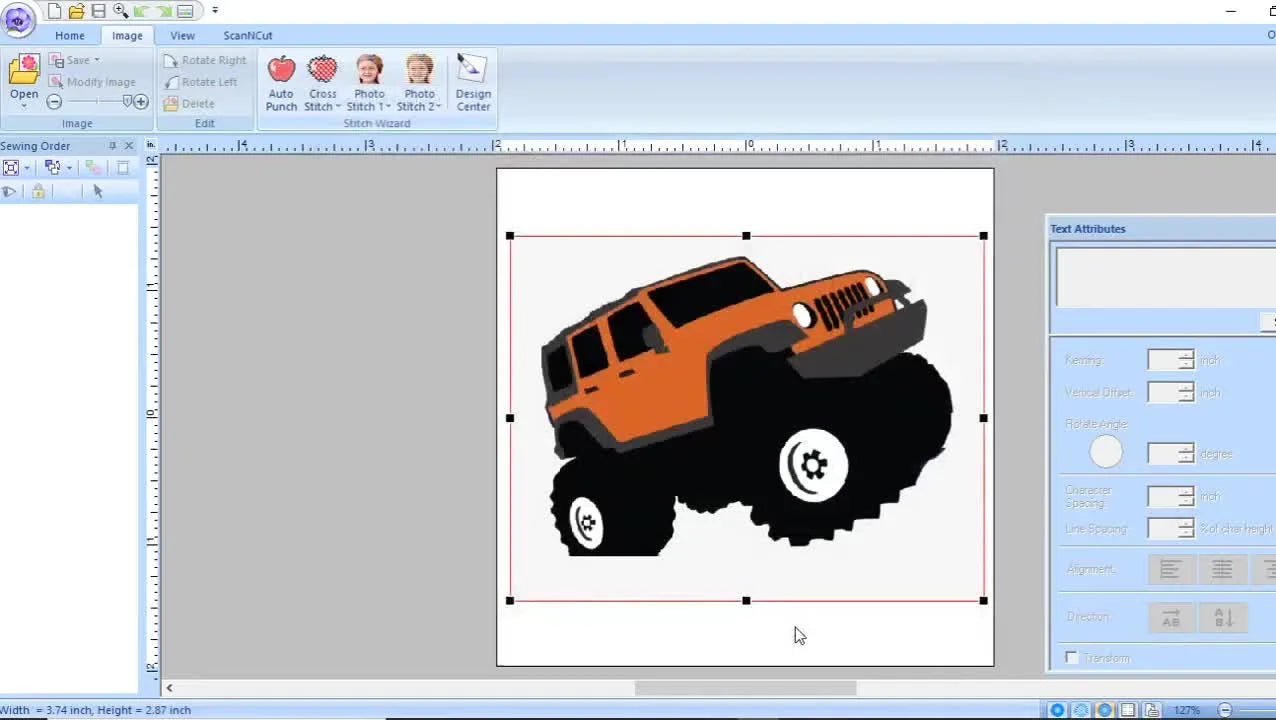

In the software’s Image tools, Erica selects Auto Punch (the apple icon). Do not confuse this with "Photo Stitch."

• Photo Stitch: Creates a chaotic mesh of colors to mimic a photograph (high density, long run time).
• Auto Punch: Creates clean, defined areas of color (ideal for logos, t-shirts, and uniforms).

For production-minded stitchers: Keep a "Digital Notebook." When you find a clipart style that digitizes perfectly, save it as a reference. It is faster to find a similar style of image than to spend hours fixing a bad one in software.

3. Importing Without the "Unexpected Format" Panic

The workflow begins by going to Image and opening your file.

The "Unexpected File Format" Error: A viewer noted receiving an "unexpected file format" error with JPGs. In a professional environment, this usually means the file header is corrupt, or the color mode is CMYK (print) instead of RGB (screen).

The Safe Fix:

1. Open the image in a basic tool like Paint or Canva.
2. Re-save it as a standard PNG. This strips out weird metadata.
3. If that fails, use vector formats like SVG, EMF, or WMF if your software supports them. These are mathematically defined lines, meaning the software doesn't have to "guess" where the pixels end.

**Prep Checklist: Pre-Flight Your Image**

• Contrast Check: Is there a clear difference between the subject and the background?
• Detail Check: Are there lines thinner than 1mm? (These will vanish or break needles).
• Format Check: Is it a clean RGB PNG or JPG?
• Hidden Consumable: Have your temporary spray adhesive and quality 75/11 needles ready. Bad digitizing breaks needles; have backups.


4. The Mask: Framing the Subject

Erica demonstrates using a Mask Shape (Square vs. Dome) to crop the image.

Think of this as a cookie cutter. It removes outside noise, but it does not fix the inside. If you mask a blurry image, you just have a focused circle of blur. For beginners, I recommend sticking to the Rectangular Mask to capture the whole image, unless you specifically need a shaped patch look.

5. The Critical Step: Hoop Boundaries & Physical Limits

This is where software meets reality. Erica notices the design extends past the black boundary lines (safe stitching area) and clicks Fit to Page.

The Trap: If you force a large design (e.g., 7 inches) into a small specific hoop (e.g., 4 inches) by shrinking it heavily, density increases. 1000 stitches in 1 inch is fine; 1000 stitches in 0.5 inches creates a "bulletproof" stiff patch that breaks needles.

The Commercial Upgrade Path: If you find yourself constantly shrinking designs to fit a small 4x4 hoop, you are compromising design quality.

• The Problem: Traditional plastic hoops limit your area and can leave "hoop burn" (shiny crushed rings) on delicate fabrics when you wrestle with tight placement.
• The Solution: If you are researching brother embroidery hoops sizes to get more space, consider upgrading to Magnetic Hoops.
  • Level 1 (Technique): Use "floating" techniques with adhesive stabilizer to avoid hoop burn.
  • Level 2 (Tool): Sewtech Magnetic Hoops allow you to clamp fabric instantly without forcing inner and outer rings together. This preserves the fabric grain and allows you to use the maximum stitch area of your machine without fear of popping out.


6. The "Sweet Spot" Sliders: Noise Reduction vs. Segmentation

After fitting to the hoop, you face two critical sliders. Here is the empirical data on how to set them for clean results.

A. Noise Reduction (The Clean-Up Crew)

This determines how big a speck needs to be before it becomes a stitch.

• Low Setting: Every artifact and dust speck becomes a jump stitch. Result: Your machine constantly trims, stops, and starts.
• High Setting: Small details are ignored.
• Recommendation: Start High. It is better to lose a tiny detail and draw it back in later than to have 50 "micro-stitches" that clutter your design.

B. Segmentation Sensitivity (The Detail Detector)

This controls how many colors the software "sees."

• High Sensitivity: The software sees 50 shades of blue in a sky gradient. Result: A mess of confetti stitches.
• Low Sensitivity: The software averages the blue into one block.
• Recommendation: Start Low to Medium. Aim for the minimum number of colors required to recognize the image.

Sensory Check: Look at the preview. Do you see "islands" of color smaller than a grain of rice? If yes, increase Noise Reduction or decrease Sensitivity. Those islands will causing bird-nesting on the machine.

7. Removing the Background (The "Jersey" Saver)

Erica clicks the background area to toggle it off (checkerboard pattern appears).

Why this is non-negotiable for apparel: Stitching a large white rectangle on a white t-shirt is a rookie mistake.

1. Cost: It wastes roughly 200 yards of thread.
2. Feel: It creates a "shield" on the chest that doesn't drape.
3. Risk: Large fills push fabric around, creating waves/puckering at the edges.

Pro Tip: Always remove the background unless you are making a patch/badge.

8. Stitch Types: The Satin vs. Fill Decision

Auto Punch loves Satin stitches (the shiny, column-like stitches). They look great on screen but can be disastrous in reality if they are too wide.

Erica demonstrates converting "Satin" areas to "Outline" or Fill stitches:

1. Select Object.
2. Right-click -> Convert to Stitches.
3. Convert Parts to Outline (preserves colors).






The Physics of the Stitch:

• Satin Stitches: Great for borders and text. Danger Zone: Any satin stitch wider than 7mm is prone to snagging in the wash. If your Auto Punch creates a wide satin block, convert it to a Tatami/Step Fill.
• Fill Stitches: These run back and forth to cover large areas. They are durable and handle tension better on knit fabrics.

Warning: Mechanical Safety. Never test a new Auto Punch design at full speed (e.g., 1000 SPM). First runs should be done at 400-600 SPM. Watch for "needle deflection"—if a needle hits a dense knot of thread, it can shatter, sending metal shards flying. Always wear eye protection or keep the safety cover down.

**Setup Checklist: Software Finalization**

• Hoop Check: Is the design fully inside the grid?
• Speckle Check: Did Noise Reduction remove the "confetti"?
• Background: Is the background toggled to "Transparent" (Checkerboard)?
• Stitch Type: Are wide areas converted to Fill? Are thin lines Satin?

9. Saving and Transferring

As viewers asked, "How do I save?"

1. Save Working File: Save as the native format (e.g., .BE, .JAN) first. This allows you to edit the sliders later.
2. Export Stitch File: Save as the format your machine eats (.DST, .PES, .JEF).
   • Note: The machine file is "dumb"—it doesn't know it's a "Jeep," it only knows "Move X, Move Y, Drop Needle." You cannot easily resize this file later.

10. The Physical Execution: Fabric, Stabilizer, and Hooping

You can have perfect software settings, but if your physical setup is weak, the embroidery will fail. Here is a decision tree to guide your choices.

**Decision Tree: The "Fabric-First" Approach**

**The "Hoop Burn" Bottleneck**

If you are stitching on delicate performance wear or thick hoodies, you may encounter the dreaded "Hoop Burn" (permanent rings crushed into the fabric) or "Pop-out" (thick fabric springing out of the hoop).

The Solution: If you find hooping difficult, or if your wrists hurt from tightening screws, this is the trigger to upgrade your tools.

• Magnetic Hoops: Professionals use Magnetic Hoops because they self-adjust to fabric thickness.
• If you’re currently building a repeatable workflow and researching hooping for embroidery machine, realize that consistency is key. A magnetic hoop ensures the exact same tension every time, preventing the "puckering" caused by pulling fabric too tight in a manual screw hoop.

Warning: Magnet Safety. Magnetic hoops/frames are powerful industrial tools. They can pinch skin severely. Keep them away from pacemakers (minimum 6-12 inches) and do not store them near magnetic storage media or credit cards.

11. Troubleshooting Guide

When things go wrong (and they will), use this table to diagnose the issue before you blame the machine.

12. Beyond the Basics: Professional Production

Once you master Auto Punch, your bottleneck will shift from "designing" to "production."

If you are stitching one shirt a week, standard tools are fine. But if you are doing a run of 20 shirts for a local team:

• The Pain: Re-hooping takes 5 minutes per shirt.
• The Upgrade: A hooping station for machine embroidery paired with magnetic frames can drop that time to 30 seconds per shirt.
• The Next Level: If you are tired of changing thread colors manually on a single-needle machine, look into Sewtech’s Multi-Needle Machines. They stitch faster and handle color changes automatically, turning a 2-hour job into a 45-minute job.

**Operation Checklist: The Go/No-Go Launch**

1. Bobbin Check: Do you have enough bobbin thread for the whole design? (Listen for the smooth unspooling sound).
2. Needle Check: Is the needle fresh? (Run your fingernail down the tip; if it catches, replace it).
3. Hoop Check: Tap the fabric. It should sound like a tambourine, but not be stretched so tight it warps the grain.
4. Path Check: Is the carriage area clear of walls/coffee mugs?
5. Speed: Set machine to 600 SPM for the first test run.

By respecting the limitations of Auto Punch and combining it with professional physical tools like stable stabilizers and hoops for embroidery machines that protect your fabric, you can turn simple JPEGs into high-value embroidered goods.
