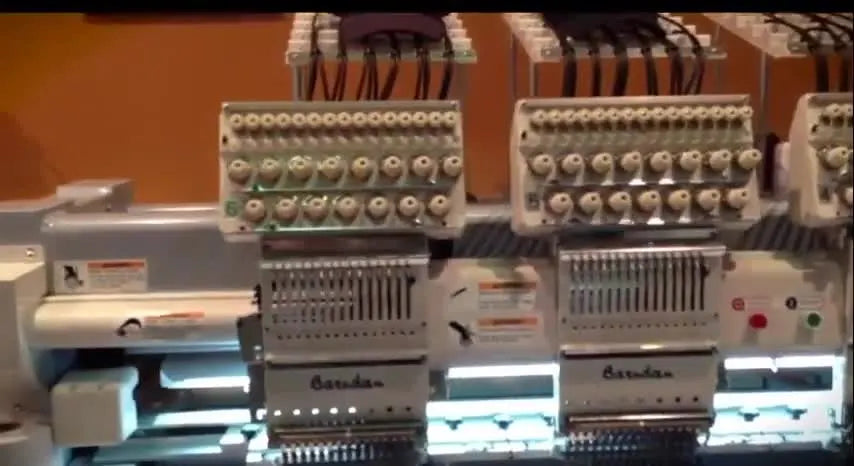

Barudan Multi-Head Embroidery Machines in the Real World: The 60-Second Cap Changeover, Cleaner Cap Geometry, and Shop Automation That Actually Pays

If you’re shopping for—or already running—Barudan equipment, you’re usually not looking for hype. You’re looking for two things: predictable uptime and repeatable quality when the schedule is ugly and the order mix keeps changing.

In the embroidery industry, machines like Barudan are often called the “Rolls-Royce” of the trade. But a high-end machine is only as good as the operator’s understanding of it. Real reliability comes from hand-fit precision and a workflow that lets you jump between caps and garments without turning your operators into mechanics.

Barudan Build Quality: The "Stress Test" Reality

The core promise of high-end equipment is that it is built to run hard. In a production environment, reliability is the sum of small tolerances: smoother rotation, less heat build-up, and fewer “mystery” thread breaks that only show up on dense logos.

A common industry stress test is running "cheap, nasty thread" at high speeds. Why does this matter?

• The Physics: Cheap thread has high friction and inconsistent thickness.
• The Test: If a machine’s thread path is polished and the timing is perfect, it handles the variance of cheap thread without shredding it.
• The Payoff: When you switch to high-quality thread, the machine feels effortless.

Sensory Check: When evaluating a barudan embroidery machine for commercial work, listen to the motor. It should hum rhythmically, not rattle or clatter. Touch the needle bar case after a 30-minute run; it should be warm, not hot. If you feel excessive heat, friction is eating your profit margin.

The “Hidden” Prep: A 6-Point Production Readiness Protocol

Maintenance isn't just about preventing breakdowns; it's about consistency. While modern machines are faster and quieter, they still rely on physical mechanics.

Here is the preparation protocol I insist on for any shift. It prevents the 2 a.m. panic call.

Hidden Consumables You Need Everyday

Before you start, ensure you have these within reach:

• Clear machine oil (in a precision pen oiler).
• Compressed air (or a soft brush).
• Fresh needles (size 75/11 is your standard start point, ballpoint for knits, sharp for woven).
• Bobbin gauge (to verify tension data, not just "feel").

Checklist 1: The Pre-Flight Prep (End-of-Shift or First Run)

1. Thread Audit: Confirm thread type matches the job (Polyester for workwear/bleach resistance; Rayon for sheen/fashion).
2. Path Hygiene: Check that thread paths are clean. A single lint ball in the tension disk can drop your tension by 20g, causing looping.
3. Lubrication: Add oil exactly as your manual specifies. Do not over-oil. One drop is lubrication; three drops is a stain risk.
4. Lint Clearing: Remove the throat plate. Wipe lint from the rotary hook area.
5. The "Click" Test: Insert the bobbin case. You must hear a positive, sharp click. If it feels mushy, pull it out and check for lint packing behind the latch.
6. Stage Your Hoops: Pre-set your cap frames or garment hoops so operators aren't hunting for parts mid-run.


Hooping Physics: Why Fabric Fights the Stitch

Versatility is real—customers embroider everything from silk to car mats—but it only works when hooping and stabilization match the physics of the fabric.

The Golden Rule: Fabric moves because stitch tension acts like a drawstring.

• Under-hooped (Loose): Stitches pull the fabric in, causing puckering.
• Over-hooped (Stretched): Fabric relaxes after unhooping, causing the design to distort.
• Perfect Hoop: Taut like a drum skin, but the weave is not distorted.

The "Hoop Burn" Pain Point

Traditional plastic hoops rely on friction and high clamp force. On sensitive fabrics (velvet, performance wear), this leaves a permanent "hoop burn" ring. This is where tool upgrades become necessary.

If your team struggles with hoop burn or inconsistent tension, a barudan magnetic embroidery frame is often the professional solution. Magnetic hoops use vertical force rather than friction, securing the fabric without crushing the fibers. This reduces the "fighting" between hoop and fabric, allowing for cleaner runs on difficult items.

The 60-Second Changeover: Cap to Flat (SOP)

Barudan machines are famous for their tool-less changeover. The goal is under one minute per head.

Step-by-Step Procedure (Cap Mode → Flat Mode)

Step 1: Access the Thumb Screws Reach behind the cap driver mechanism. Locate the knurled thumb screws. Loosen them by hand.

• Sensory Check: The screw should turn freely. If it requires pliers, it was overtightened last time.

Step 2: Slide the Driver Off Slide the entire cap driver mechanism straight off the pantograph rail.

• Sensory Check: It should glide. If it binds, check your angle. Do not force it.

Step 3: Install Flat Support Arms Slide the flat hoop support arms into the same slot immediately.

• Success Metric: The arms seat fully with a solid metallic "thunk." No wobbling.

Warning: Pinch Hazard
Keep fingers clear of the interface between the pantograph rail and the heavy cap driver. These components are solid metal. When the thumb screws release, the weight shifts suddenly. A rushed changeover is the #1 cause of operator finger injuries.

Bed Geometry: Why "Round" Matters for Quality

Cap specialists prefer Barudan because of the specific geometry of the cylinder arm. The top surface of the bed is rounded to match the natural curve of a cap frame.

The Physics of Flagging When a needle penetrates a cap, the cap front tries to bounce up and down (flagging).

• Flat Bed: The cap sits high, creating a gap. The needle bar has to push the cap down to meet the hook. This causes deflection and missed stitches.
• Rounded Bed: The cap sits flush against the plate. The fabric is supported instantly.

Result: Cleaner registration on small text (down to 4mm) and fewer gaps on satin borders.

The Control Panel: Standardizing Input

Modern panels offer touch screens, USB ports, and massive memory storage. But technology creates risk if not managed.

The "Error Tax" If you rely on operators manually picking files from a USB stick containing 500 designs, you are paying an "error tax." Eventually, they will pick Client_Main_Logo_v2 instead of Client_Main_Logo_v3.

The Network Solution Use the LAN connection and Barcode scanning features.

1. Operator scans the work order.
2. Server pushes the exact file to the machine.
3. Operator presses start.

This removes the "choice" from the operator, eliminating file errors.

Thread Inventory: Cash Flow vs. Creativity

Paul White mentions 650+ shades of Kingstar polyester and 480 shades of rayon. Standardizing your thread inventory is critical for profit.

Polyester vs. Rayon: A Quick Guide

• Polyester (Kingstar): The workhorse. High tensile strength. Resists bleaching/chlorine. Use for: Uniforms, hats, corporate wear.
• Rayon: High sheen, softer hand feel. Weaker tensile strength. Use for: Fashion, high-end promotional branding, delicate fabrics.

Inventory Strategy: Keep your top 20 "A-list" colors in 5,000m cones. Keep specific/rare brand colors in smaller cones. This frees up cash that would otherwise sit on a shelf gathering dust.

Bottleneck Analysis: Hooping & Stabilization Strategy

The machine stitches faster than you can hoop. Therefore, your profitability is determined at the hooping station.

If you are using barudan hoops and encountering bottlenecks, use this decision tree to optimize your tooling.

Warning: Magnetic Field Safety
Magnetic hoops use strong Neodymium magnets.
1. Pacemakers: Keep a safe distance (usually 6+ inches) if you have an implanted device.
2. Pinch: The magnets snap together with significant force. Keep fingertips clear of the mating surfaces.

Decision Tree: Fabric, Stabilizer, and Hoop Selection

If you are building a volume shop, a machine embroidery hooping station is the next logical investment. It standardizes placement (e.g., "Left Chest is always 7 inches down") so that every operator produces the exact same result.

Checklist 2: The Production Setup (Do Not Skip)

Before the first needle drops on a new job, perform this sequence.

1. Mode Verification: Cap driver installed for caps? Hoop arms for flats?
2. File Match: Does the screen match the physical work order?
3. Clearance Trace: Run the TRACE function. Watch the needle bar relative to the hoop clips.
   • Visual Check: Ensure at least 5mm clearance between the presser foot and the hoop edge.
4. Tension Pull: Pull the thread through the needle. It should feel like flossing teeth—firm resistance, but smooth. If it jerks, clean the tension path.
5. Bobbin Check: Is there enough bobbin thread for the run? (Don't start a 20,000 stitch jacket back with a low bobbin).

Checklist 3: Operation Monitoring (QC)

During the run, "Set it and forget it" is a myth. Active monitoring saves garments.

1. Auditory Scan: Listen for "Birdnesting" (a deep, thumping sound indicating thread gathering under the plate).
2. Visual Scan (Bobbin): Look at the back of the embroidery. You should see 1/3 white bobbin thread in the center of the satin column.
   • Too much white: Top tension is too tight (or bobbin too loose).
   • No white: Top tension is too loose (looping risk).
3. Registration Check: Are the outlines lining up with the fill? If they drift, your stabilization is too weak or your hooping is too loose.

Troubleshooting: From Symptoms to Solutions

When the machine stops or warns you, do not guess. Follow this logic path.

Note: If you encounter warnings like "Warning Level 4," document the code and consult the manual or your tech support. Blindly restarting can damage electronics.

The Growth Path: When to Upgrade Tools

Finally, understanding when to upgrade your toolkit is key to scaling.

1. Level 1: Skill & Consumables. Correct stabilization and needle choice solve 70% of quality issues.
2. Level 2: Tooling Upgrade. If you are losing time to hoop adjustments or ruining garments with hoop burn, upgrading to Magnetic Hoops (for your Barudan or other machines) creates immediate ROI by reducing reject rates.
3. Level 3: Capacity Upgrade. If your single-head barudan embroidery machine single head is running 24/7 and you are still turning away orders, it is time to scale.
   • Consider adding SEWTECH multi-needle machines to handle your volume runs, allowing your precision Barudan to focus on complex, high-value custom work.

The best shops don’t win because they have a "magic" machine. They win because their process makes quality repeatable—caps today, coats tomorrow, and zero panic in between.

FAQ

• Q: What daily “hidden consumables” should be kept next to a Barudan embroidery machine before production starts?
  A: Keep a small, repeatable kit at the machine so operators don’t improvise mid-run.
  • Prepare clear machine oil in a precision pen oiler, compressed air (or a soft brush), fresh needles, and a bobbin gauge.
  • Replace needles proactively (75/11 is a safe starting point; use ballpoint for knits and sharp for wovens, and confirm with the machine manual).
  • Verify bobbin tension with the gauge instead of relying on “feel.”
  • Success check: The first test run sounds smooth (no rattling/clatter) and thread pulls through the needle with firm, smooth resistance.
  • If it still fails: Stop and do a full thread-path hygiene check (lint in tension areas is a common cause of looping).
• Q: How do Barudan operators confirm correct bobbin-case installation using the “click test” before running a job?
  A: Re-seat the bobbin case until a sharp, positive click confirms it is fully latched.
  • Remove the bobbin case and inspect the latch area for packed lint before re-inserting.
  • Insert the bobbin case and listen/feel for a crisp “click” (not a mushy seat).
  • Clean the rotary hook area by removing the throat plate and wiping lint if seating feels inconsistent.
  • Success check: The bobbin case locks in with a sharp click and does not feel loose or vague when touched.
  • If it still fails: Clear more lint around the latch/hook area and re-try; do not force the parts.
• Q: What is the correct “perfect hoop” tension standard for Barudan garment hoops to prevent puckering and design distortion?
  A: Hoop fabric taut like a drum skin without stretching or distorting the weave.
  • Tighten hooping until the fabric is evenly taut, then stop before the material is visibly stretched.
  • Match stabilization to fabric (for example, cutaway for stretchy knits; confirm choices with job requirements).
  • Run a short test and watch for fabric drawing inward like a drawstring (a sign of under-hooping).
  • Success check: After unhooping, the design shape stays true and the fabric surface is flat (no puckering or relaxed distortion).
  • If it still fails: Upgrade stabilization first, then consider a magnetic hoop if clamp pressure is causing marks or inconsistency.
• Q: How can Barudan embroiderers prevent hoop burn on velvet or performance wear when using traditional plastic hoops?
  A: Reduce friction and crushing force—magnetic hoops often solve hoop burn by clamping vertically instead of squeezing fibers.
  • Loosen clamp pressure and avoid over-tight hooping on sensitive fabrics.
  • Use a magnetic hoop when hoop rings are leaving visible marks or causing tension inconsistency on slippery/mark-prone items.
  • Consider floating the fabric with adhesive spray when hooping marks are unacceptable (test on scrap first).
  • Success check: After unhooping, there is no permanent ring and the fabric pile/finish is not flattened.
  • If it still fails: Re-evaluate stabilizer choice and hooping method for that fabric type; some materials require a different approach to avoid marks.
• Q: What is the safest way to remove a Barudan cap driver and switch from cap mode to flat mode in under 60 seconds?
  A: Follow the tool-less sequence and control the cap driver’s weight to avoid pinch injuries.
  • Loosen the knurled thumb screws by hand (do not use pliers; overtightening causes binding later).
  • Slide the entire cap driver straight off the pantograph rail without forcing the angle.
  • Immediately slide in the flat hoop support arms into the same slot.
  • Success check: The cap driver glides off smoothly, and the flat arms seat fully with a solid metallic “thunk” and no wobble.
  • If it still fails: Stop and check alignment/angle—forcing the mechanism is how rails get damaged and fingers get pinched.
• Q: How do Barudan operators use a tension “back-of-design” check to prevent looping and quality drift during production runs?
  A: Use the back of the embroidery as the tension indicator—aim for about 1/3 white bobbin thread centered in satin columns.
  • Inspect the back of the design during the run instead of waiting until the end.
  • If there is too much white bobbin thread showing, reduce top tension (or verify bobbin is not too loose).
  • If there is no white showing, increase top tension (top tension is likely too loose and looping risk increases).
  • Success check: Satin columns show a consistent center strip of bobbin thread on the back (about one-third), and the run sounds steady (no deep thumping).
  • If it still fails: Clean the thread path (lint in tension disks can cause sudden changes) and re-check threading.
• Q: What is the fastest fix for Barudan birdnesting (thread clump under the needle plate), and what should be checked before restarting?
  A: Power down and re-thread completely—birdnesting is commonly caused by missing the take-up lever.
  • Turn off power, then clear the thread clump from under the throat plate/rotary hook area.
  • Re-thread the upper thread path from spool to needle, confirming the take-up lever is correctly threaded.
  • Run a slow test and listen for the “deep, thumping” sound that signals birdnesting starting again.
  • Success check: The stitch formation resumes cleanly with no clumping under the plate and normal machine sound.
  • If it still fails: Check for lint in the tension path and replace the needle (a damaged needle can escalate thread issues quickly).
• Q: What safety rules should shops follow when using magnetic embroidery hoops near pacemakers and to prevent finger pinch injuries?
  A: Treat magnetic hoops like a high-force clamping tool—keep pacemakers at a safe distance and keep fingers out of the mating surfaces.
  • Keep magnetic hoops away from implanted devices (a common minimum is 6+ inches, and users should follow medical/device guidance).
  • Close the hoop deliberately and keep fingertips clear where magnets snap together.
  • Train operators to handle magnets one-handed only when stable and never “catch” the closing ring.
  • Success check: The hoop closes without trapping skin, and operators can repeat the motion calmly without rushing.
  • If it still fails: Switch the workflow so hoop closing happens on a stable table/hooping station rather than in the air, reducing pinch risk and placement errors.
