Before Your Yunfu 2-Head Embroidery Machine Ships: The QC Tests, Accessory List, and Crating Details That Prevent Costly Surprises

Buying a commercial embroidery machine is an adrenaline spike. It is equal parts excitement for the business potential and pure, unadulterated anxiety about the logistics. If you found yourself waking up at 3 AM wondering, “What if the timing belt snapped in transit?” or “What if I don’t know how to thread it?”, you are not paranoid—you are a conscientious business owner.

This guide takes the standard testing and packing procedure for a 2-head commercial machine (like the Yunfu model shown in factory footage) and translates it into a Master Class for new owners. We will not just look at what happens; we will examine how to replicate those results in your shop, establish safe operating baselines, and avoid the specific mistakes that break machines in the first week.

Calm the Panic First: What “Final Testing” on a Yunfu 2-Head Embroidery Machine Really Proves (and What It Doesn’t)

When a factory technician runs a final test, they are validating the mechanics, not the artistry. The video evidence provided with your machine usually shows two distinct phases: a flat test and a cap test. Understanding the difference is crucial for your peace of mind.

1. The Flat Test (Synchronization Check): This proves the main motor, X/Y pantograph, and hook timing are synchronized. If both heads stitch the same geometric pattern without breaking thread, the machine’s "heartbeat" is healthy.

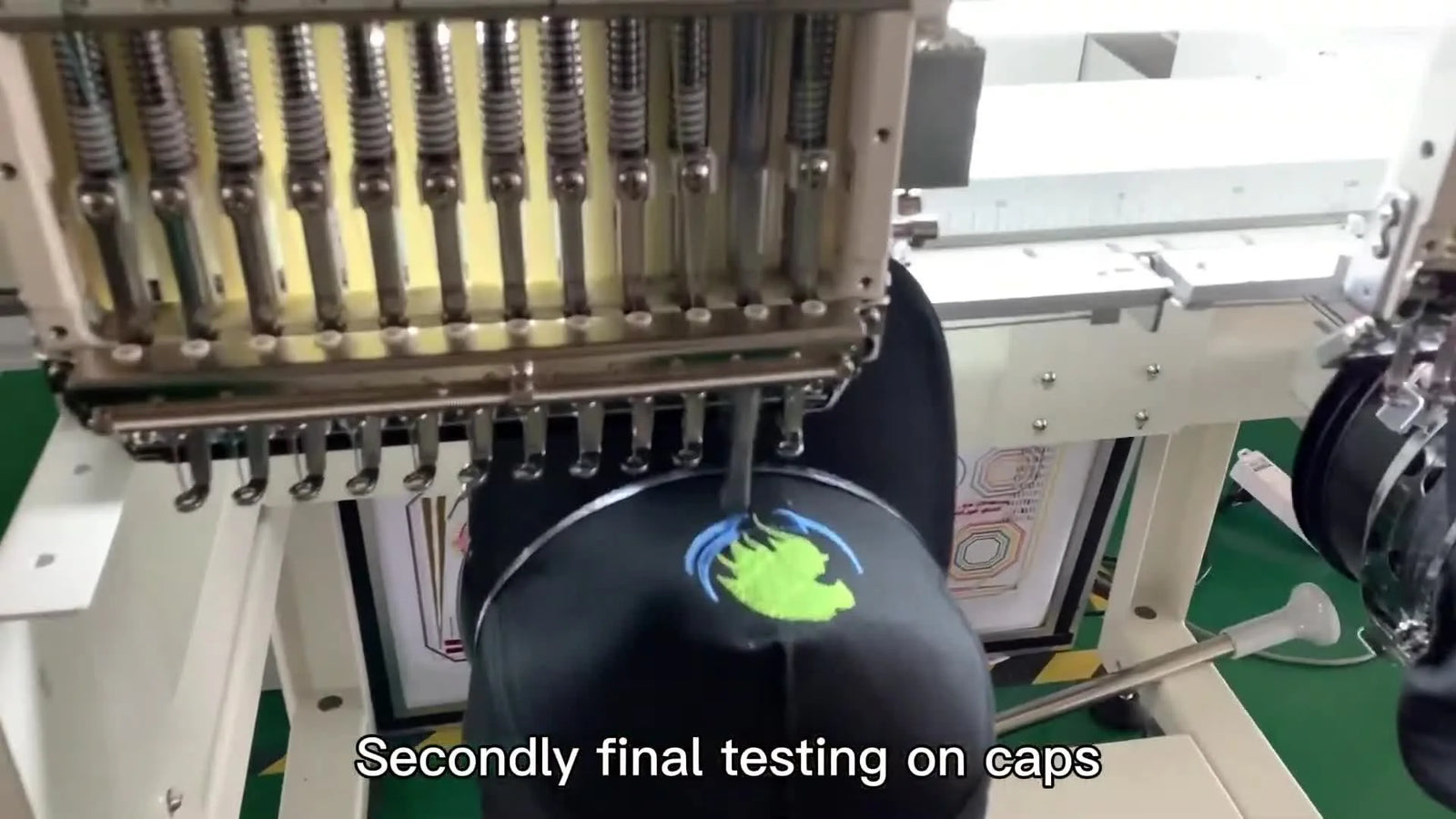

2. The Cap Test (Hardware Check): This confirms the rotary cap driver is installed correctly and the wide-angle frame spins without binding.

The Reality Gap: The test you see on video is performed under "Laboratory Conditions"—perfectly stabilized felt, high-quality thread, and optimized designs.

• What it proves: The machine is 100% functional.
• What it doesn’t prove: That it will perfectly stitch a dense 20,000-stitch logo on a flimsy performance polo using cheap backing.

Your First Move: Compare the test swatch included with the machine to the video. If the bobbin tension on the back shows a consistent 1/3 white center column (the "I-Test"), your tension baseline is correct. Do not touch the tension knobs until you have stitched for at least 30 hours.

The Flat Sash Frame Test: How to Read Stitch Quality Without Overthinking It

In the first video segment, you see the machine running a sash frame (a large rectangular border frame). To the untrained eye, it’s just colorful noise. To a pro, it’s a data stream.

Here is how to read a flat test like a technician:

1. Audit the Sound: A healthy machine emits a rhythmic thump-thump-thump. A high-pitched whine or a metallic clack-clack indicates lubrication issues or a needle hitting the throat plate.
2. Check Registration: Look at the outlines. Do the borders perfectly align with the fill stitches? If there is a gap (white space) on one side and overlap on the other, the X/Y belts might be loose, or the hoop moved.
3. Inspect the "Tie-Offs": Look at the end of a color block. Are there loose tails? The automatic trimmer should cut cleanly, leaving a tail of about 0.5cm (1/4 inch) on the back.

The "Sweet Spot" Speed Rule: Factory tests often run at high speeds (1000+ SPM). Do not do this in your first week.

• Safe Zone: 600–700 SPM.
• Production Zone: 750–850 SPM.
• Red Zone: 950+ SPM (Reserved for highly stabilized, simple designs).

If you are new to multi-head production, ignore the maximum speed rating on the box. Running a machine at 100% capacity on day one is like redlining a car engine before the break-in period is over.

The Cap Driver Swap: Switching from Flat Table to Cap Attachment Without Creating a Week-One Disaster

The video captures the most dangerous procedure for a new operator: swapping the flat table for the cylindrical cap driver. This is where 80% of accidental needle strikes happen.

The cap driver requires precise mechanical engagement. You must hear a distinct "Click" or feel the locking pin seat fully. If you tighten the driver while it is slightly crooked, the needle will slam into the metal bar, potentially bending the needle bar itself—a costly repair.

The "Flag" Safety Check: Before pressing start on a cap run, manually lower the needle bar (with the machine off) and rotate the cap frame. Ensuring there is a physical gap between the needle and the cap frame metal is non-negotiable.

If you are operating a commercial hat embroidery machine, realize that caps are unpredictable. They vary in thickness, structure, and sizing.

Warning: Mechanical Hazard. Never put your hands inside the hoop area while the machine is powered on. A multi-needle machine moves the frame at speeds up to 12 inches per second. If your finger is trapped between the cap driver and the mounting bar, it can cause severe crushing injuries or broken bones. Always hit the Emergency Stop before touching the hoop.

The “Hidden” Prep Pros Do Before Any Shipment Test: Thread Path, Needles, and Sensory Checks

While the video shows packing, the most critical part of the process is the "Pre-Flight" check. When your machine arrives, you must replicate this. Do not rely on the factory setup remaining perfect after an ocean voyage.

The "Floss" Tension Test

You don’t need a digital tension gauge to start. You need your hands.

1. Top Thread: Pull the thread near the needle eye. It should feel like pulling dental floss through tight teeth—firm, consistent resistance, but smooth.
2. Bobbin: It should feel like pulling a loose shoelace—very light resistance. If the bobbin case creates a "spider web" of loose thread, tighten the small screw on the side of the case by a 1/8th turn (clock-face 12:00 to 12:05).

"Hidden Consumables" You Need on Day 1

The box includes tools, but often misses the daily essentials. Ensure you have:

• Machine Oil: Clear, white sewing machine oil.
• 75/11 Sharp Needles: For woven fabrics/caps.
• 70/10 Ballpoint Needles: For knits/polos.
• Spray Adhesive: For floating stabilizers.

Prep Checklist (Do this *before* turning the power on)

• Needle Check: Remove the pre-installed needles. Roll them on a flat table. If they wobble, they are bent. Install fresh 75/11 needles.
• Rotary Hook Area: Open the bobbin covers. Blow out any cardboard dust or packing fuzz. Apply one drop of oil to the rotary hook race.
• Thread Tree: Ensure the thread stand guides are directly above the spools. If the path is angled, thread will snag and snap.
• Electrical: Verify the voltage switch on the power supply matches your country (110V vs 220V). This is the #1 way new owners fry electronics.


The Two-Screw Pallet Lock: The Shipping Detail You Must Reverse During Unboxing

In the footage, technicians bolt the machine feet to the wooden pallet using two large, brightly colored retention bolts.

Crucial Alert: Failing to remove these bolts before trying to lift the machine is a disaster.

1. The Risk: If you forklift or crane the machine while it is still bolted, you will rip the rubber leveling feet off the chassis or twist the steel base frame.
2. The Fix: These bolts are often painted red or yellow. Locate them immediately. Use the included wrench to remove them before attaching any ramp or lifting gear.

Store these bolts in your toolbox. If you ever move your shop or sell the machine, you will need them to transport it safely.

The Accessory Inventory Reveal: What Should Arrive With the Yunfu 2-Head Package Shown

Use the video as a manifest. When your crate opens, lay everything out on a table. Missing parts are easier to claim on Day 1 than Day 30.

Standard Loadout Verification:

• Cap Driver System: 1 Driver per head + 1 Hooping Station (Gauge).
• Cap Frames: Usually 2 per head (allows you to hoop one while the other sews).
• Tubular Hoops: 2 sets of each size per head (e.g., 12cm, 15cm, 30cm).
• Tabletop: For flat sash work.

The "Hooping" Reality Check: The standard tubular hoops included are functional, but they rely on manual thumbscrews. This creates a "bottleneck" where the machine finishes sewing faster than you can hoop the next shirt.

In a commercial environment, time is currency. If you find your machine sitting idle while you struggle to align a logo, this is a trigger to look for upgrades. Advanced tools like a dedicated hooping station for embroidery can cut your setup time by 50% and ensure every left-chest logo is exactly 7 inches down from the shoulder seam.

Hoops, Stations, and Real-World Speed: Where Most New Owners Lose Hours (and How to Get Them Back)

The green tubular hoops shown in the box are the industry standard, but they have a flaw: "Hoop Burn." This is the permanent ring mark left on delicate garments (like performance polos) when you tighten the outer ring too much.

The Physics of the Grip:

• Too Loose: The fabric shifts -> Registration errors (white gaps).
• Too Tight: The fabric grains crush -> Unremovable hoop burn.

This struggle is why experienced shops eventually migrate their tooling. When you are tired of rejecting shirts due to hoop marks, solutions like magnetic embroidery hoops become essential. Unlike mechanical hoops that pinch the fabric, magnetic systems use vertical force to hold the material without crushing the fibers. They essentially "float" the fabric between two magnetic layers, eliminating hoop burn and significantly reducing wrist strain during high-volume runs.

Warning: Magnetic Safety Field. Commercial magnetic hoops use industrial-grade neodymium magnets. They are incredibly powerful.
* Pinch Hazard: They can snap effective immediately; keep fingers clear of the mating surfaces.
* Medical Risk: Operators with pacemakers or insulin pumps must maintain a safe distance (usually 6+ inches), as the field can disrupt medical electronics.
* Tech Safety: Never place credit cards or phone screens directly on the magnet.

The Toolbox and Bobbin Winder: Small Items That Quietly Decide Your Production Rhythm

The yellow toolbox shown contains your survival kit. Inside, you will find a dedicated high-speed bobbin winder.

Operational Efficiency Tip: Never wind bobbins on the machine while trying to sew. It engages the main motor and adds wear. Use the standalone winder.

• Pro Tip: Dedicate one morning a week to "Bobbin Prep." Wind 50 bobbins at once. Store them in a case.
• The "L" Type Bobbin: Most commercial machines use "L" style bobbins. Verify this in your manual before buying bulk generic bobbins online.


The Aluminum Sash Frame and Flat Table: When “Big Frames” Help (and When They Create New Problems)

The large aluminum frame (Sash Frame) is designed for flat goods: table runners, flags, or fabric yardage.

The Friction Trap: When using the sash frame, the sheer weight of the fabric can drag against the table edge, causing the X-axis motor to skip steps.

• The Fix: Ensure the table surface is perfectly smooth. Use silicone spray polish on the table surface to reduce friction.
• Support: Do not let heavy fabric hang off the edge of the table. If gravity pulls the fabric, your design will distort.


The Packing Routine That Prevents Shipping Damage: Foam, Film, and Smart Part Placement

Note how the technician places foam blocks between the head and the control panel arm. This is vibration damping.

Unboxing Inspection Step: Sea freight involves saltwater air and massive temperature swings. The stretch film wrap is your moisture barrier.

• Check for Rust: Look at the needle bars and the rotary hook immediately after removing the film. If you see surface rust, clean it immediately with oil and a scouring pad.
• Desiccant Packs: Locate the silica gel packs. If they are saturated or burst, inspect the electronics area carefully for moisture damage.


The Wooden Crate Build: Why Metal Corner Clips and Roof Screws Matter More Than Extra Nails

The crate isn't just wood; it's an exoskeleton. The video highlights roof screws specifically. This prevents the box from "racking" (twisting into a parallelogram) when a forklift lifts it from one side.

Logistics Advice: Do not destroy the crate. Disassemble it carefully. The wood panels are often high-quality plywood useful for shop shelves, and the metal clips are reusable. If you ever need to send the machine for service or move locations, you will regret smashing this crate with a sledgehammer.

Receiving Day: A No-Regrets Unboxing Flow for a 2-Head Commercial Embroidery Machine

Your machine arrives. The driver drops it at the curb. What now? Follow this strict sequence to protect your investment.

1. Visual Audit: Before the driver leaves, inspect the crate. Is the wood splintered? Is the "Tip-N-Tell" indicator blue? Photograph any damage.
2. Deconstruct Top-Down: Remove the roof first, then the sides. Never try to slide a machine out of a walled crate.
3. Bolt Removal: Remove the yellow/red pallet bolts (as discussed in FIG-05).
4. Accessories Hunt: Locate the toolbox and cap drivers before throwing away any packing foam. They are often tucked inside the machine arm cavity.

Setup Checklist (Day 1 Mandatory Actions)

• Level the Stand: Use a spirit level on the table surface. Adjust the feet until the bubble is dead center. An unlevel machine will vibrate and cause thread breaks.
• Oiling Run: Manually oil every red-marked oil point. The factory oil has likely settled during shipping.
• Manual Turn: Turn the main shaft knob (usually on the side or rear) by hand for one full rotation (from 100 degrees to 100 degrees). It should turn smoothly. If it jams, STOP. Do not turn on power. Check for a bent needle or shipping block.


A Simple Stabilizer Decision Tree: Match Fabric to Backing Before You Blame the Machine

Bad stabilization causes 90% of "Machine Problems." The factory test used felt (easy). You are likely using stretchy knits (hard).

Use this logic flow to make the right choice:

Decision Tree (Fabric → Stabilizer)

• Is the fabric stretchy? (T-shirts, Polos, Hoodies)
  • YES: Use Cut-Away Stabilizer (2.5oz or 3.0oz). Physics: The backing becomes the structural skeleton; the shirt just rides on top.
  • NO: (Canvas, Denim, Towels) -> Proceed to next.
• Is the fabric thick/stable? (Caps, Jackets)
  • YES: Use Tear-Away Stabilizer. Physics: The fabric supports itself; the backing just aids smooth feeding.
• Is the fabric "fluffy"? (Fleece, Velvet, Towels)
  • YES: Use Water Soluble Topping (Solvy) on top + Backing underneath. Physics: Prevents stitches from sinking into the pile.


Troubles You’ll Actually See in Week One: Symptoms → Likely Cause → Fix

Even with a perfect setup, you will face issues. Here is how to troubleshoot without panic.

1) The "Bird's Nest" (Thread ball under the throat plate)

• Symptom: Machine jams, makes a grinding noise, fabric is stuck to the plate.
• Likely Cause: Upper thread tension was too loose (missing the tension discs) or you forgot to hold the thread tail at the start.
• Fix: Do not pull up. Cut the threads under the fabric carefully. Remove the throat plate to clean. Ensure the top thread creates a "floss-like" resistance.

2) Cap Design is Crooked/Slanted

• Symptom: Logo looks rotated or off-center.
• Likely Cause: The cap was hooped loosely, allowing it to shift under the needle drag.
• Fix: Use binder clips on the bottom of the cap frame (on the stabilizer side) to pull the cap material purely tight ("Drum Skin" tight). Verify your cap hoop for embroidery machine is clicked fully into the driver.

3) Needle Breaks Instantly

• Symptom: A loud snap or ping immediately after starting.
• Likely Cause: The hoop plastic hit the needle (Design not centered) OR the cap driver is not locked.
• Fix: Always do a "Trace" (Contour Check) before sewing. If using typical embroidery machine hoops, ensure the design fits within the inner dimensions, not the outer ones.


The Upgrade Conversation (Without the Hype): When to Add Magnetic Hoops, Better Thread, or a Higher-Output Machine

Once you survive the first month, your focus will shift from "Safety" to "Speed." You will hit ceilings. Here is how to break through them.

Phase 1: The Quality Ceiling If you are fighting hoop burn or registration issues on slippery fabrics, tool up. A hooping station for machine embroidery combined with magnetic frames solves the physical limitation of manual hooping.

Phase 2: The Volume Ceiling If you have orders for 500 shirts and you are running a single-head or a slower 2-head machine, you are bleeding profit in labor hours.

• The Trigger: When you are turning down rush orders because you "don't have time."
• The Option: This is when moving to a dedicated commercial multi-head system (like the SEWTECH multi-needle series) becomes a math equation, not a luxury. A 4-head machine doesn't just do 4x the work; it allows one operator to bill for 4x the revenue per hour.

Phase 3: The Versatility Ceiling If you need to embroider on thick bags, horse sheets, or deep pockets, standard tubular hoops fail. An advanced embroidery frame system (like magnetic clamps) opens up these lucrative "hard-to-hoop" markets.

Operation Checklist (The "Every Job" Routine)

• Trace the Design: 100% of the time. No exceptions.
• Check the Bobbin: Do you have enough thread for the run?
• Verify Graphic Orientation: Is the design right-side up?
• Stabilizer Match: Did you check the decision tree?


Final Reality Check: What This Video Should Make You Feel Confident About

The video proves that your machine was built, tested, and packed with military precision. The crate is solid. The accessories are counted. The mechanics are sound.

The rest is up to you.

The gap between a frustrated operator and a profitable shop owner is rarely the machine itself—it is the Pre-Flight Rituals. Check your specific tensions. Use the right stabilizer. Upgrade your hooping tools when production demands it.

Treat your embroidery machine like an airplane: Do the walk-around, check the fluids, verify the path, and only then take off. Welcome to the fleet.

FAQ

• Q: How can a new owner verify the bobbin tension baseline on a Yunfu 2-head commercial embroidery machine without touching tension knobs?
  A: Use the factory test swatch as the baseline and confirm the “1/3 white center column” on the back before making any adjustments.
  • Compare: Match the physical test swatch you received to the factory test video result.
  • Inspect: Flip the swatch and look for a consistent 1/3 white bobbin “column” centered in the stitch line.
  • Hold: Keep hands off the tension knobs until you have at least ~30 hours of stitching time on the machine.
  • Success check: The underside shows a stable, repeatable 1/3 bobbin column (not fully white, not fully top-thread color).
  • If it still fails: Re-thread the entire upper thread path and repeat the test before adjusting any tension.
• Q: What is the safest speed setting for the first week on a Yunfu 2-head commercial embroidery machine to reduce thread breaks and early damage?
  A: Run 600–700 SPM for the first week, then increase only after the machine and setup prove stable.
  • Set: Start at 600–700 SPM as the break-in “safe zone.”
  • Increase: Move to 750–850 SPM only after consistent runs with clean trims and no abnormal noise.
  • Avoid: Do not run 950+ SPM unless the design is simple and heavily stabilized.
  • Success check: The machine sound stays a steady rhythmic “thump-thump,” not a whine or metallic clack.
  • If it still fails: Stop and inspect lubrication points and needle strike evidence (needle/throat plate contact).
• Q: How can an operator prevent instant needle breaks when installing a Yunfu cap driver and cap frame on a commercial hat embroidery machine?
  A: Lock the cap driver fully, then do a manual clearance check before any powered stitch-out.
  • Listen/feel: Install the cap driver and confirm a distinct “click” or the locking pin fully seats (no crooked engagement).
  • Check: With power OFF, manually lower the needle bar and rotate the cap frame to confirm physical clearance.
  • Run: Use the machine’s trace/contour check before pressing start.
  • Success check: The needle never approaches or contacts cap frame metal during manual rotation and trace.
  • If it still fails: Re-seat the cap driver from zero and inspect for bent needles before restarting.
• Q: What “Day 1” pre-flight checklist should be repeated after unboxing a Yunfu 2-head commercial embroidery machine to prevent nesting and thread snaps?
  A: Do a basic needle/thread-path/hook-area inspection and oiling before powering on, because shipping can shift settings and introduce debris.
  • Replace: Remove pre-installed needles, roll-test them on a flat table, and install fresh 75/11 needles if any wobble appears.
  • Clean/Oil: Open bobbin covers, clear packing fuzz/dust, and apply one drop of oil to the rotary hook race.
  • Align: Confirm the thread stand guides sit directly above spools so thread does not snag at an angle.
  • Verify: Check the power supply voltage setting matches your country (110V vs 220V) before switching on.
  • Success check: Hand-rotating the main shaft through one full cycle feels smooth with no jams or hard stops.
  • If it still fails: Stop and look for a bent needle or shipping block before applying power.
• Q: How do you fix a “bird’s nest” thread ball under the throat plate on a Yunfu commercial multi-needle embroidery machine without damaging fabric?
  A: Do not yank the fabric—cut threads free, clear the jam, then correct the upper threading/tension-disc engagement.
  • Stop: Hit stop/emergency stop and do not pull the garment upward.
  • Cut: Cut threads under the fabric carefully; remove the throat plate if needed to clean the jam fully.
  • Re-thread: Re-thread the upper path to ensure the thread is inside the tension discs and has “floss-like” resistance near the needle.
  • Success check: The next start does not grind or jam, and stitches form cleanly with no thread balling underneath.
  • If it still fails: Confirm the operator is holding the thread tail at the start and re-check bobbin insertion and cleanliness.
• Q: What stabilizer should be used first when a Yunfu commercial embroidery machine stitches perfectly on factory felt but puckers on polos, T-shirts, or hoodies?
  A: For stretchy knits (polos/T-shirts/hoodies), start with cut-away stabilizer (2.5oz or 3.0oz) before blaming the machine.
  • Decide: Identify if the fabric is stretchy; if yes, select cut-away backing as the default support.
  • Add: For fluffy fabrics (fleece/towels/velvet), add water-soluble topping on top plus backing underneath.
  • Match: Use tear-away on thick stable goods (caps/jackets) where the fabric supports itself.
  • Success check: The design stays flat after unhooping, with reduced distortion and cleaner registration.
  • If it still fails: Re-check hooping tightness (too loose shifts, too tight crushes) and slow speed to the 600–700 SPM safe zone.
• Q: How can a shop reduce hoop burn and hooping bottlenecks on commercial tubular hoops before upgrading to magnetic embroidery hoops or a SEWTECH multi-head embroidery machine?
  A: First optimize hooping pressure and workflow, then upgrade tools if the machine is waiting on hooping or garments are being rejected.
  • Level 1 (Technique): Hoop to secure the fabric without over-cranking thumbscrews; avoid crushing delicate performance polos.
  • Level 2 (Tooling): Add a hooping station and consider magnetic embroidery hoops when hoop burn or alignment time becomes the consistent limiter.
  • Level 3 (Capacity): Consider a higher-output multi-head system when orders force overtime or rush jobs are being declined due to throughput limits.
  • Success check: Fewer rejected shirts from hoop marks and the machine spends more time stitching than waiting for the next hoop.
  • If it still fails: Track where minutes are lost (alignment, re-hooping, rejects) and address the single biggest bottleneck first.
• Q: What magnetic hoop safety rules should operators follow when using commercial magnetic embroidery hoops to avoid pinch injuries and pacemaker interference?
  A: Treat commercial magnetic hoops as a pinch and medical-device hazard and keep hands and sensitive devices out of the magnetic snap zone.
  • Keep clear: Do not place fingers between mating surfaces; magnets can snap together immediately.
  • Separate safely: Open/close the magnetic frame with controlled placement, not a “drop-on” motion.
  • Protect people/tech: Keep pacemakers/insulin pumps at a safe distance (often 6+ inches) and avoid placing phones/credit cards on magnets.
  • Success check: The hoop closes without finger contact or sudden uncontrolled snapping, and operators maintain consistent safe spacing.
  • If it still fails: Stop using the hoop until the team is retrained on handling and the workstation layout prevents accidental contact.
