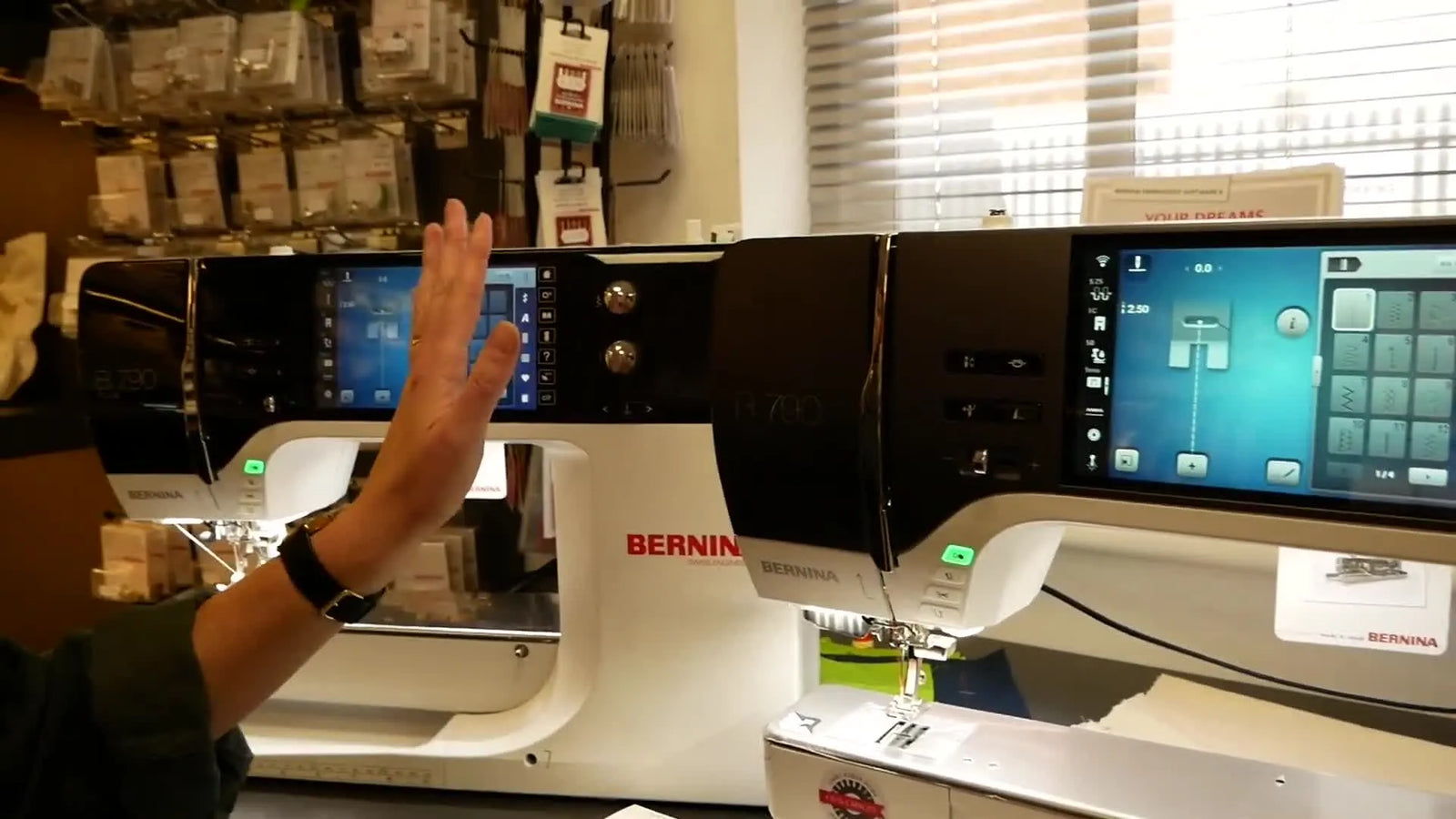

Bernina 790 PRO vs 790 PLUS: The Upgrades That Actually Change Your Embroidery Workflow (and the Ones That Don’t)

If you’re comparing the Bernina 790 PRO and the Bernina 790 PLUS, you’re probably not looking for a spec sheet—you’re trying to avoid buyer's remorse and, more importantly, avoid the heartbreak of a ruined project after hours of work.

I’ve spent two years watching stitchers lose precious time to three specific "silent killers": agonizingly slow thread changes, precise placement drifting by a millimeter, and the exhaustion of "babysitting" a machine. This guide deconstructs the Frank Nutt Sewing Machines video comparison, not just to show you the buttons, but to teach you the sensory habits and industrial logic that transform these features into professional results.

The Anthracite Bernina 790 PRO Faceplate: A Cosmetic Change That Still Matters in a Studio

The first difference is visual: the Bernina 790 PRO features a new anthracite black/grey finish, distinguishing it from the classic white 790 PLUS. The screen resolution remains consistent, so don't expect a smartphone-style visual leap.

However, in my experience, the darker faceplate offers a subtle optical advantage: contrast. When working with light fabrics or bright overhead studio lighting, the matte dark finish reduces glare near the needle bar, helping your eyes focus on the thread path.

The "Sweet Spot" Strategy: Beginners often equate "Pro" with "Maximum Speed." The 790 PRO can stitch fast, but speed is the enemy of precision until your stabilization is perfect.

• Expert Rule: For your first 10 hours, cap your speed at 600-700 SPM (Stitches Per Minute). You can hear the difference: the machine should hum rhythmically, not rattle. If it sounds like a jackhammer, you are driving too fast for your stabilizer.

The Fully Automatic Needle Threader on the Bernina 790 PRO: The Upgrade You Feel on Every Color Change

The 790 PRO introduces a fully automatic needle threader, replacing the semi-automatic swing/manual style of the 790 PLUS.

Why is this an industrial upgrade?

1. Thread Integrity: Manual threading often leads to "shredding"—micro-fraying of the thread as it passes through the eye. The auto-threader uses a precise hook that pulls the thread cleanly.
2. Workflow Rhythm: On a 15-color design, saving 20 seconds per change adds up to 5 minutes of saved time, but more importantly, it keeps you in the "flow state."

Sensory Check: Listen for the specific mechanical whir-click-whir sequence. If the sound is grinding or the cycle stops halfway, do not force it. It usually means your needle is slightly bent (even if you can't see it).

Warning: Pinch Hazard. Keep fingers, scissors, and loose jewelry at least 4 inches away from the needle area when activating the threader. The mechanism moves with torque and will not stop for your finger.

The “Hidden” Prep Before You Thread: What Prevents Most Mid-Run Stops

A machine is only as good as the path the thread travels. Before you even touch the screen, perform this "Pre-Flight" check.

Prep Checklist (The "No-Fail" Protocol):

• The Fingernail Test: Run your fingernail down the front of the installed needle. If you feel a "tick" or catch, the needle has a burr. Replace it immediately. A burred needle shreds thread regardless of the machine's price.
• Bobbin Inspection: clear the bobbin area of lint. A "bird's nest" (tangled thread under the plate) is 90% caused by top threading errors or lint preventing the bobbin case from seating.
• Fresh Consumables: Ensure you have the right needle (Ballpoint for knits, Sharp for wovens) and a fresh backing/stabilizer.
• Thread Path: When threading, hold the thread taut with your right hand directly above the spool while guiding it with your left. You should feel a slight "snap" as it seats into the prolonged tension discs.

The Bernina Needlepoint Laser: Stop Turning the Handwheel Just to Find the Drop Point

The needlepoint laser eliminates the "parallax error"—the optical illusion where the needle looks aligned from your seat but is actually 2mm off.

The User Reality: This is essential for "restart recovery." If your thread breaks and the machine stops, use the laser to verify exactly where the next stitch will land.

• Visual Anchor: The red dot must appear distinct and sharp. If it looks fuzzy or wide, check if lint is blocking the emitter lens near the needle bar.

Veteran Advice: The laser shows where the needle will go, but it cannot stop your fabric from moving. If your hooping is loose (drum-skin test: tap the fabric, it should sound taut), the laser is accurately pointing at a moving target.

4-Point Placement on the Bernina 790 PRO: The Feature That Fixes Awkward Blocks (If Your Hooping Is Solid)

The 790 PRO allows for 4-Point Placement (morphing/skewing), whereas the PLUS relies on Pinpoint Placement (rotation/scaling). This allows you to fit a square design into a slightly trapezoidal quilt block.

This feature is powerful, but it relies entirely on your understanding of hooping for embroidery machine mechanics. If your fabric is stretched during hooping, it will shrink back after you unhoop, distorting the "perfect" placement you just set.

A Decision Tree: Fabric → Stabilizer → Hooping Strategy

Use this logic flow to determine your setup before relying on digital placement tools.

Decision Tree: The "Safe Zone" Selection

1. Is the fabric unstable/stretchy (T-shirts, Knits, Polos)?
   • Stabilizer: Cut-away (Mesh). No exceptions for beginners.
   • Hoop Strategy: Do not pull the fabric to stretch it. Use a magnetic hoop if available to "sandwich" the fabric without distortion.
   • Action: If you use a standard hoop, float the fabric on top of adhesive stabilizer rather than clamping it in the ring to prevent "hoop burn."
2. Is the fabric stable (Quilt Cotton, Denim, Canvas)?
   • Stabilizer: Tear-away is acceptable here.
   • Hoop Strategy: Standard hoop is fine. Tighten the screw until the fabric feels like a drum skin.
3. Is the item bulky or difficult to clamp (Towels, Bags, Finished Jackets)?
   • Stabilizer: Tear-away or Wash-away (for towels).
   • Hoop Strategy: Upgrade trigger. Standard hoops struggle here. A magnetic hoop is virtually required to hold thick layers without popping open mid-stitch.

If you are doing production runs (e.g., 50 left-chest logos), standard hooping is your bottleneck. This is where professionals look for a magnetic hooping station to standardize placement off-machine.

Warning: Magnetic Safety. Magnetic hoops contain powerful industrial magnets. Do not place them near pacemakers, insulin pumps, or MRI-sensitive implants. Keep fingers clear of the "snap zone" to avoid blood blisters.

BQM File Compatibility on the Bernina 790 PRO: A Quiet Bridge to the Q-matic World

The 790 PRO reads BQM files, bridging the gap between domestic embroidery and the Bernina Q-Series longarm system.

For the home embroiderer, the immediate benefit is the library of over 700 built-in designs. However, remember: File format does not fix physics. A BQM file will pucker just as badly as a DST file if your stabilization is weak.

The QWERTY Keyboard on the Bernina 790 PRO: Quilt Labels Get Faster (and Cleaner)

The interface now includes a QWERTY layout and, crucially, a "Return" (Enter) key for multi-line text.

The Hidden Application: On the 790 PLUS, aligning three lines of a poem for a quilt label required manual spacing calculations. The PRO handles this naturally.

• Tip: When typing, double-check your font size. Small fonts (under 6mm) often require a thinner thread (60wt) and a smaller needle (70/10) to remain legible. If it looks like a blob on screen, it will stitch like a blob on fabric.

WiFi + Bernina Stitchout App: The Upgrade That Saves You From Babysitting Thread Breaks

The WiFi connectivity allows the machine to talk to the Stitchout App on your phone.

Why this is a "Production" Feature: In a professional shop, we measure "Down Time."

• Without App: The machine runs out of bobbin thread. It sits idle for 15 minutes until you walk back into the room.
• With App: Your phone buzzes "Thread Break" or "Bobbin Empty." You return immediately.

This reduces the "fear of leaving the room," allowing you to prep your next hoop or cut stabilizer while the machine works.

Setup Habits That Make the 790 PRO’s Precision Features Actually Pay Off

Precision features amplify bad habits. If you use the laser to align a design on a poorly hooped towel, you will get a perfectly aligned stitch on a permanent wrinkle.

To get the most out of magnetic embroidery hoops for bernina or standard hoops, follow this setup routine.

Setup Checklist (The "Green Light" Protocol):

• Orientation Check: Is the "Top" of your design actually at the "Top" of the hoop? (A classic mistake).
• Placement Verification: Use the laser to trace the boundary box, not just the center. ensure the needle won't hit the hoop frame.
• Floating Check: If "floating" a towel, ensure the spray adhesive or basting stitch is holding the center firm.
• Clearance: Ensure the fabric drape isn't getting caught under the embroidery arm.

“Can I Embroider With Fine Yarn or Wool?”—What Fiber Artists Should Know Before Going Down the Rabbit Hole

A common question regarding high-end machines is the use of non-standard fibers like wool yarn.

The Reality: Domestic machines are designed for 40wt embroidery thread.

• Risk: Wool yarn sheds line. This lint clogs tension discs and the bobbin cutter.
• Method: If you attempt this (couching), use the specific foot designed for it.
• Speed Limit: Drop speed to 400 SPM.
• Sensory Check: If you hear a "sawing" noise, the thread is too thick for the needle eye. Stop immediately or you will break the needle mechanism.

Magnetic Hoops, Snap Hoops, and Stations: The Upgrade Path When Placement Becomes Your Bottleneck

The Bernina 790 PRO is a powerhouse, but if you are fighting with the hoop, you are losing money (or sanity).

The Upgrade Path:

1. Struggle: Your hands hurt from tightening screws, or you leave "burn marks" on velvet.
   • Solution: bernina snap hoop systems ease the pressure on your wrists and the fabric.
2. Struggle: You need to hoop thick items (Carhartt jackets, quilt sandwiches).
   • Solution: bernina magnetic hoops allow you to secure thick layers without forcing inner/outer rings together.
3. Struggle: You have an order for 20 identical shirts.
   • Solution: Combine magnetic hoops with a placement station.

When researching bernina magnetic hoop sizes, bigger is not always better. A massive hoop on a single-needle machine introduces "flagging" (fabric bouncing up and down). Choose the smallest hoop that fits your design comfortably.

Many users searching for how to use magnetic embroidery hoop are surprised to find it's safer for the fabric than standard hoops because it eliminates friction burns.

Troubleshooting the Real-World Problems: Symptoms → Likely Cause → Fix

When things go wrong, do not panic. Use this diagnostic table.

The Upgrade Verdict: When the Bernina 790 PRO Is Worth It (and How to Get the Value Back)

The 790 PRO is a stunning machine for the "Hybrid Creative"—someone who quilts, sews garments, and embroiders. The laser and 4-point placement are legitimate engineering triumphs.

The Commercial Pivot: However, if your passion turns into a business where you are running 50+ items a week, you will hit a wall. A single-needle flat-bed machine requires a thread change for every single color stop.

• The Bottleneck: Human intervention time.
• The Next Step: If you find yourself guarding the machine for 4 hours to finish 5 shirts, consider the jump to a multi-needle solution like SEWTECH machines. These allow you to set 12-15 colors at once and walk away.




Operation Checklist (The "Don't Waste a Saturday" List)

• Design Check: Did you verify the colors on screen match the cones you actually loaded?
• Clearance: Is the wall behind the machine clear? (Hoops move backward!).
• Sound Check: Start the machine. Does it sound smooth? If it sounds "dry" or "clunky," Stop. Check threading.
• App: Is your phone volume on so you hear the thread-break alert?
• Safety: Are scissors and spare needles cleared away from the hoop movement zone?


FAQ

• Q: How do I prevent Bernina 790 PRO automatic needle threader grinding sounds or stopping halfway during threading?
  A: Stop immediately and check the needle first—this symptom often comes from a slightly bent or burred needle, and forcing the cycle can damage the mechanism.
  • Replace the needle even if it “looks fine,” then try the threader again.
  • Keep fingers, scissors, and jewelry at least 4 inches away from the needle area when activating the threader (pinch hazard).
  • Listen for the normal “whir-click-whir” cycle and avoid pushing or pulling the thread while it runs.
  • Success check: The threader completes one smooth cycle and pulls the thread cleanly through the needle eye without hesitation.
  • If it still fails: Re-run the pre-flight checks—especially the needle burr “fingernail test” and correct threading path seating into the tension discs.
• Q: What is the Bernina “Pre-Flight” thread path check to stop thread shredding and mid-run thread breaks on Bernina 790 PRO and Bernina 790 PLUS?
  A: Do the needle + bobbin + lint + threading-path checks before you start—most shredding and bird’s nests begin with these basics, not the design file.
  • Run the “fingernail test” down the front of the installed needle; replace the needle immediately if you feel a tick/catch (burr).
  • Clean lint from the bobbin area so the bobbin case seats correctly.
  • Install the correct needle type for the fabric (ballpoint for knits, sharp for wovens) and use fresh stabilizer.
  • Thread with presser foot up and keep the thread taut; feel a slight “snap” as thread seats into the tension discs.
  • Success check: The machine stitches with a steady hum (not rattling) and the thread does not fuzz or fray near the needle.
  • If it still fails: Reduce speed to the 600–700 SPM range and re-check for adhesive buildup on the needle shaft.
• Q: How do I stop a bird’s nest (thread tangle under the needle plate) on a Bernina 790 PRO or Bernina 790 PLUS during embroidery?
  A: Cut the tangle carefully, then rethread the top thread correctly with the presser foot UP—bird’s nests are usually top-threading tension loss or bobbin-area lint.
  • Cut and remove the nest without yanking; clear loose thread from the bobbin area.
  • Rethread the upper thread with the presser foot up so the thread seats in the tension system.
  • Change the needle before restarting (a damaged needle can restart the problem immediately).
  • Success check: After restarting, the underside shows clean, controlled bobbin stitching—not a wad of loops under the fabric.
  • If it still fails: Clean the bobbin area again and confirm the bobbin case is fully seated and free of lint.
• Q: How can Bernina 790 PRO 4-Point Placement still stitch crooked even when the on-screen placement looks perfect?
  A: 4-Point Placement can only be as accurate as the hooping—if fabric is stretched or loose in the hoop, the “perfect” digital placement will drift physically.
  • Choose stabilizer by fabric: use cut-away mesh for knits/polos; tear-away is acceptable for stable woven fabrics.
  • Hoop without stretching the fabric; for stretchy items, consider floating on adhesive stabilizer instead of clamping hard in a standard hoop.
  • Use the “drum-skin test” on hooped fabric; it should feel taut and stable before relying on placement tools.
  • Success check: After stitching, the design remains square/true relative to seams or block edges, and the fabric does not relax into distortion after unhooping.
  • If it still fails: Switch to a magnetic hoop approach to “sandwich” fabric with less distortion, especially on knits or thick layers.
• Q: What should Bernina 790 PRO needlepoint laser alignment look like, and what causes the laser dot to look fuzzy during restart recovery?
  A: The Bernina needlepoint laser dot should look sharp and distinct—if it looks fuzzy or wide, check for lint blocking the emitter lens near the needle bar.
  • Clean the area near the needle bar carefully to remove lint that can diffuse the laser.
  • Use the laser for restart recovery by confirming exactly where the next stitch will land.
  • Remember the laser cannot prevent fabric movement; verify the hooping is firm before trusting the dot.
  • Success check: The dot is crisp, and tracing the boundary confirms the needle path matches the intended stitch location.
  • If it still fails: Re-hoop the project tighter (drum-skin taut) or address fabric shifting (especially on towels or bulky items).
• Q: What is the safest speed setting for new users on Bernina 790 PRO embroidery to avoid rattling, thread shredding, and precision drift?
  A: Cap early learning speed at 600–700 SPM to protect precision—high speed is the enemy until stabilization and hooping are consistent.
  • Start at 600–700 SPM for the first 10 hours and only increase after results are stable.
  • Listen to the machine; reduce speed if the sound becomes a rattle or “jackhammer” effect.
  • Pair speed control with correct stabilizer choice so fabric does not bounce or shift during stitching.
  • Success check: The machine “hums rhythmically” and stitches cleanly without shredding or visible fabric shifting.
  • If it still fails: Re-check needle condition (burr/bend) and stabilizer choice before pushing speed higher.
• Q: When should Bernina 790 PRO owners upgrade from standard hoops to magnetic hoops or consider a multi-needle machine to stop babysitting thread changes and hooping struggles?
  A: Upgrade when the bottleneck is human time—first optimize technique, then upgrade hooping for control, and only then consider multi-needle for volume.
  • Level 1 (Technique): Fix hooping tension, stabilizer choice, and speed habits before buying tools.
  • Level 2 (Tool): Move to magnetic hoops when standard hoops cause hoop burn, wrist strain, popping open on thick items, or repeated fabric shifting.
  • Level 3 (Production): Consider a multi-needle machine when frequent color changes and constant supervision limit weekly output (for example, batches of dozens of logos).
  • Success check: Fewer restarts, fewer placement failures, and less time standing by the machine between color stops or hooping attempts.
  • If it still fails: Standardize placement with a hooping/placement station workflow so each hoop is repeatable before scaling production.
