Big Jacket-Back Letters on a Brother SE625: Make a Repositional Hoop Behave (Without Ruining the Windbreaker)

When you try to put a big, bold jacket-back design on a 4x4 machine, the stress is real: you’re fighting a limited stitch field, slippery nylon fabric, bulky seams, and the paralyzing fear of turning a brand-new $50 windbreaker into a a rag. The video associated with this post proves it is absolutely doable on a Brother SE625—but only if you treat hooping and repositioning like a precision engineering job, not a casual craft moment.

This project stitches an outline/appliqué-style “GLO” graphic in black on the back of a red windbreaker, utilizing a specialized long repositional hoop to bypass the machine's physical hardware limitations. The creator also reveals an honest hiccup—registration drift resulting in extra stitches—and demonstrates a practical recovery.

Calm the Panic First: What a Brother SE625 Can (and Can’t) Do on a Jacket Back

A Brother SE625 is a small-field machine. This isn't a flaw; it is a boundary you must engineer around. The repositional hoop approach works because you are not magically enlarging the stitch field (the machine ensures the needle never travels outside 4x4 inches); instead, you are mechanically shifting the hoop to stitch the design in adjacent sections while keeping the garment chemically bonded to the stabilizer.

If you are currently researching machines, understand that the physical limit of a standard brother 4x4 embroidery hoop is exactly why production workflow requires either smart file splitting or a dedicated repositioning system.

Two mindset shifts to prevent heartbreak:

1. Finished garments punish sloppy hooping. A windbreaker back isn’t a flat quilt sandwich. It is a "tube" of fabric with slick lining, zipper teeth that fight gravity, and seams that create uneven surface tension.
2. Repositioning is a registration game. If anything shifts—fabric tension, stabilizer bond, or hoop seating—your splice point will show a gap or an overlap.


The “Hidden” Prep Pros Don’t Skip: Splicing Cutaway Stabilizer

The video’s most critical preparation step is stabilizer engineering. The creator utilizes standard pre-cut cutaway stabilizer sheets. However, a single 8x8 or 10x12 sheet is insufficient for the vertical length of a repositional hoop. Her solution is to overlap multiple sheets and bond them with temporary spray adhesive (like Odif 505) to create a single, rigid "spine" for the jacket.

The "Structural Splice" Technique

1. Layout: Lay out three sheets of medium-weight cutaway stabilizer (2.5oz is standard).
2. Overlap: Overlap the edges by at least 1 inch.
3. Bond: Spray a light mist of adhesive on the overlap zone and press firmly.
4. Extend: She chooses three sheets instead of two. This is crucial. You need the stabilizer to extend past the top and bottom of the hoop to prevent "hoop burn" or fabric slippage at the extremities.

Expert Insight: Why This Matters Cutaway stabilizer performs two functions here: supporting stitches and resisting distortion. When you splice sheets, the adhesive overlap becomes a "stiffener rail."

• The Risk: If the overlap is thick and lumpy, it can catch on the needle plate.
• The Solution: Press the overlaps with a cool iron (with a pressing cloth) or a seam roller to ensure they are perfectly flat. If using multi hooping machine embroidery techniques, the stability of this backing is the only thing keeping your design aligned.

Hidden Consumables Checklist

Before you start, ensure you have these items that beginners often forget:

• Medium-weight Cutaway Stabilizer: (Tear-away is unsafe for windbreaker nylon; the stitches will pull through).
• Temporary Spray Adhesive (505): Essential for "floating" or bonding layers.
• 75/11 Ballpoint Needles: Sharp needles can cut nylon fibers; ballpoint slides between them.
• Curved Appliqué Scissors: For trimming threads close to the fabric without snipping the jacket.

Hooping a Windbreaker Through the Zipper: The “Don’t Fight the Tube” Method

Hooping a finished jacket is where 80% of beginners lose confidence. The creator hoops through the zipper opening to isolate the back panel. This is a physical wrestling match against the garment's desire to slide away.

The Physics of Hooping Nylon

1. Insertion: Insert the bottom (inner) frame inside the jacket body through the unzipped front.
2. Smoothing: Lay the jacket back over the stabilizer and inner frame. Sensory Check: Run your hand over the fabric. It should feel cool and smooth, with zero ripples. If you feel a "bump," it’s a seam or a lining fold trapped underneath.
3. The Press: Press the top frame down firmly. Listen for a sharp "Click" or "Snap." If it feels mushy, the hoop isn't locked.
4. Tension Check: The video creator aims for "nice and tight."
   • Beginner Metric: Tap the fabric. It should sound like a dull thud (tight), not a paper bag (loose). It should feel like a drum skin, but do not stretch the nylon so tight that the grain distorts.

Scene-Triggered Upgrade: Validating Your Tools

If you find yourself using your entire body weight to close the hoop, or if you notice "hoop burn" (shiny crushed rings) on the nylon after un-hooping, your tools may be the bottleneck.

• Trigger: Wrist pain from clamping or fabric damage from friction.
• Criteria: Are you stitching more than 5 jackets a week?
• Option (Level 2): Magnetic Hoops. Unlike traditional friction hoops that force fabric into a gap, magnetic hoops clamp vertically. This eliminates "hoop burn" and reduces the physical force required to zero. For production runs, searching for hooping for embroidery machine efficiency will eventually lead you to magnetic solutions as the industry standard for finished garments.

Warning: Mechanical Safety
Keep scissors, fingers, and hoodie drawstrings clear of the needle area during setup and stitching. A 4x4 machine arm moves rapidly; a drawstring catching on the presser foot can snap the needle bar or shatter the needle, sending metal shards toward your eyes.

Prep Checklist: The "Go/No-Go" Test

• Stabilizer Bond: Is the splice flat? Run a fingernail over it; if it catches, smooth it down.
• Fabric Isolation: Is the front of the jacket completely cleared away from the back?
• Zipper Head: Is the metal zipper pull tapped down or moved far away from the hoop area?
• Bobbin Check: Do you have a full bobbin? Changing bobbins mid-design on a repositional hoop increases the risk of misalignment.

Mounting the Repositional Hoop: Precision Alignment

After hooping, the creator attaches the hoop to the embroidery arm. This is mechanically different from a standard hoop.

The Mounting Protocol

1. Slide: Slide the hoop’s mounting bracket under the foot.
2. Align Position 1: Align the first set of mounting pegs (Top Position) with the carriage arm slots.
3. Mechanism Check: Flip the locking lever. Sensory Check: It should offer moderate resistance. If it flops down, the pegs aren't seated. If you have to force it, STOP—you are misaligned and risk breaking the carriage.
4. The "Underneath" Sweep: Pass your hand under the hoop inside the jacket. Ensure no sleeve fabric has bunched up under the needle plate.

Decision Tree: Select Your Stabilizer Strategy

Use this logic to confirm your prep before stitching.

• Logic A: Is the jacket lined?
  • YES: Use cutaway stabilizer and float the jacket if possible, or hoop loosely and use magnetic frames to avoid crushing the lining layers.
  • NO (Single Layer): Hoop normally with cutaway.
• Logic B: Is the design dense (Full Fill) or Light (Outline)?
  • DENSE: Required heavy Cutaway (3.0oz) + Water Soluble Topper (to prevent stitches sinking).
  • LIGHT (Like the "GLO" design): Medium Cutaway (2.5oz) is sufficient.
• Logic C: Is the fabric stretchy?
  • YES: You must use Fusible Cutaway or Spray adhesive.
  • NO: Standard Cutaway is fine.

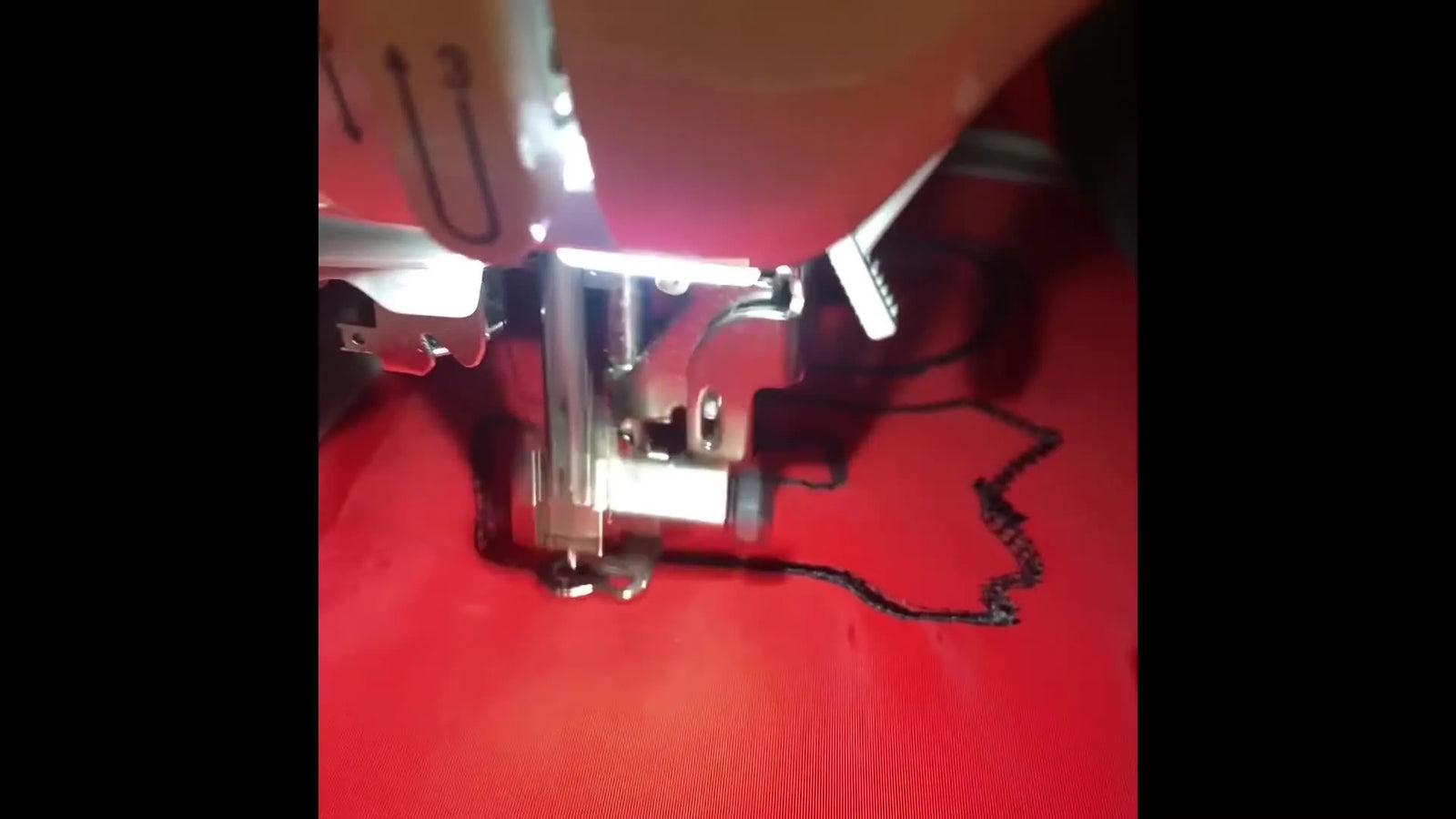

Stitching Position 1: Managing Speed and Tension

The video stitches the first section (letters "G" and half of "L") in black.

Empirically Verified Settings for Nylon

• Speed: The Brother SE625 can run up to ~710 SPM. Do not use max speed here. The heavy repositional hoop + heavy jacket creates inertia.
  • Recommendation: Cap speed at 400-500 SPM. This reduces hoop vibration and improves registration reliability.
• Tension: Nylon creates friction. Standard tension (4.0) is a starting point, but watch the back.
  • Visual Check: You want to see 1/3 white bobbin thread in the center of the satin column. If you see only top thread on the back, tighten the top tension.

The Reposition Move: The Core Skill

This is the defining moment of the repositionable embroidery hoop workflow: The fabric stays clamped, but the hoop hardware moves relative to the machine.

The Maneuver

1. Pause: The machine stops after Section 1 finishes.
2. Unlock: Lift the lever on the embroidery arm.
3. Shift: Physically slide the hoop so the second set of pegs aligns with the carriage slots. Do not un-hoop the fabric.
4. Relock: Secure the lever.
5. Resume: Press start for Section 2.

Expert Insight: The creator notes confusion in the naming convention (1st vs 2nd pegs). Ignore the labels; follow the geometry. You are moving the hoop up (towards the back of the machine) to bring the lower fabric down into the stitching field.

When Registration Goes Sideways: Troubleshooting the "Extra Stitches"

The creator encounters a common reality: after repositioning, the machine stitched slightly off-target or generated "extra stitches" (likely a jump stitch that didn't trim, or a file artifact).

Troubleshooting Matrix: Symptom -> Cause -> Fix

Pro Tip: The creator manually trimmed the erratic stitches. This is acceptable. Embroidery is forgiving. A small lighter flame (held 1 inch away) can clean up fuzzy nylon thread ends—but be extremely careful not to melt the jacket!

The Result Reveal—and The Commercial Reality

The finished jacket displays the full "GLO" design. It verified that a 4x4 machine is capable of large-scale placement.

However, the creator implies the "time tax" involved. It takes significant effort to prep, hoop, and carefully reposition.

The Upgrade Path: Moving from Hobby to Pro

If you are doing this once for a friend, the repositional hoop is a cost-effective miracle. But if you are taking orders for 20 team jackets, this workflow will destroy your profit margin due to labor time.

Commercial Logic for upgrading:

1. Level 1 (Technique): Use Spray Adhesive + Cutaway to stabilize slippery nylon.
2. Level 2 (Tooling): If you struggle with heavy jackets slipping, upgrading to Magnetic Hoops (compatible with your machine) secures the fabric instantly without "unscrewing and tightening."
3. Level 3 (Scale): If you are consistently stitching multi-position designs, the SEWTECH Multi-Needle Machines offer larger native stitching fields (e.g., 8x12), eliminating the need to reposition entirely.

Start terms like brother repositional hoop searches if you are budget-constrained, but recognize that "time saved" is the ultimate ROI in embroidery.

Warning: Magnetic Field Safety
If you upgrade to Magnetic Hoops, be aware they use high-power Neodymium magnets.
* Health: Keep them at least 6 inches away from pacemakers or insulin pumps.
* Pinch Hazard: These magnets snap together with up to 30lbs of force. Do not place fingers between the rings. Slide them apart; never try to pry them open.

Operation Checklist: Post-Flight Inspection

• Design Integrity: Check the splice point. Is there a gap? (Fill with fabric marker if tiny).
• Clean Up: Trim all jump stitches on the front and back.
• Stabilizer Removal: Cut away the excess stabilizer, leaving about 0.5 inches around the design. Do not cut too close or the stitches will unravel.
• Lining Check: Put your hand inside the jacket one last time to ensure you didn't accidentally stitch the front to the back (it happens to the best of us).

By following this disciplined approach, you turn a frightening "jacket back" project into a repeatable, low-stress process. The machine is small, but your engineering doesn't have to be.

FAQ

• Q: What supplies are non-negotiable for stitching a jacket back on a Brother SE625 with a repositioning hoop?
  A: Use cutaway stabilizer + temporary spray adhesive + the right needle, then verify bobbin and trimming tools before hooping—this prevents most “first-jacket disasters.”
  • Prepare: Splice medium-weight cutaway sheets and bond overlaps with temporary spray adhesive before the jacket ever touches the hoop.
  • Install: Use a 75/11 ballpoint needle to avoid cutting nylon fibers.
  • Load: Start with a full bobbin to avoid a mid-design stop during repositioning.
  • Success check: You can complete Section 1 and Section 2 without pausing for supplies or seeing fabric distortion around the stitch area.
  • If it still fails: Re-check stabilizer coverage length—stabilizer should extend beyond the top and bottom of the hoop area to resist slippage.
• Q: How do you splice cutaway stabilizer for a long repositioning hoop when one sheet is not tall enough?
  A: Overlap and bond multiple cutaway sheets into one flat “spine,” then press the overlap so it cannot catch during stitching.
  • Lay out: Use three sheets of medium-weight cutaway stabilizer and plan the full hoop length.
  • Overlap: Overlap each edge by at least 1 inch.
  • Bond: Spray a light mist of temporary adhesive on overlap zones and press firmly.
  • Success check: Running a fingernail across every overlap feels smooth—no “catch” or ridge.
  • If it still fails: Flatten overlaps with a cool iron and pressing cloth (or a seam roller) until the splice is perfectly flat.
• Q: What is the correct way to hoop a windbreaker back through the zipper on a Brother SE625 to avoid trapping seams and lining?
  A: Hoop through the unzipped front so only the back panel is captured, then do a tactile “sweep” before locking the hoop.
  • Insert: Slide the inner frame into the jacket through the zipper opening.
  • Smooth: Lay the jacket back over stabilizer and inner frame; clear the front of the jacket away from the back panel.
  • Lock: Press the top frame down firmly until the hoop locks.
  • Success check: The fabric surface feels cool and smooth with zero ripples, and hoop locking gives a clear “click/snap” (not a mushy feel).
  • If it still fails: Stop and re-hoop—if a seam bump or lining fold is trapped, repositioning accuracy will suffer later.
• Q: What are the best Brother SE625 speed and tension checks for embroidering slippery nylon with a heavy repositioning hoop?
  A: Slow the Brother SE625 down and judge tension by the thread balance on the back, not by the front appearance alone.
  • Set: Cap stitch speed around 400–500 SPM to reduce vibration and registration drift.
  • Watch: Stitch a short section and immediately inspect the back of the satin/outline area.
  • Adjust: Use standard tension as a starting point, then correct if the underside looks unbalanced.
  • Success check: About 1/3 white bobbin thread sits centered on the back of the stitch column (not all top thread, not all bobbin).
  • If it still fails: Re-check hoop lock and stabilizer bonding—vibration and slip can mimic “tension problems.”
• Q: How do you reposition a repositioning embroidery hoop on a Brother SE625 without losing registration between sections?
  A: Keep the garment clamped and only move the hoop hardware to the next peg position, then re-lock with a firm seat before resuming.
  • Pause: Let Section 1 finish completely before touching the hoop.
  • Unlock: Lift the embroidery arm locking lever.
  • Shift: Slide the hoop so the second set of mounting pegs aligns with the carriage slots (do not un-hoop fabric).
  • Success check: The locking lever closes with moderate resistance—if it flops, pegs are not seated; if it must be forced, alignment is wrong.
  • If it still fails: Stop and re-seat the pegs—forcing the lever can damage the carriage and still won’t stitch accurately.
• Q: What should you do when a Brother SE625 multi-position jacket-back design shows a gap, extra stitches, or puckering after repositioning?
  A: Match the symptom to the likely cause, apply the quick recovery, then reinforce the stabilizer/hooping method before the next jacket.
  • Fix gap: Stop and use the machine “Back” key to overlap stitches slightly where the join is visible.
  • Fix extra/jump stitches: Finish the run, then trim carefully with curved appliqué scissors.
  • Fix puckering: Press after stitching (use a pressing cloth) and improve bonding next time with stronger adhesive or a more secure hooping method.
  • Success check: The splice point looks continuous (no obvious gap/overlap) and the fabric lies flat without ripples around the design.
  • If it still fails: Revisit stabilizer strategy—poor bonding between nylon and cutaway is a common root cause of drift and puckering.
• Q: When should a Brother SE625 user upgrade from a standard hoop to magnetic hoops, or upgrade to a multi-needle machine for jacket-back work?
  A: Upgrade when the pain point is repeatable—first optimize technique, then reduce hooping damage/effort with magnetic hoops, then scale out of repositioning with a larger-field multi-needle machine.
  • Level 1 (Technique): Use cutaway stabilizer plus temporary spray adhesive to control slippery nylon and reduce shifting.
  • Level 2 (Tooling): Choose magnetic hoops if standard hoops cause hoop burn, require excessive clamping force, or slow you down on multiple jackets per week.
  • Level 3 (Scale): Move to a multi-needle machine with a larger native stitch field if frequent multi-position designs are killing time and consistency.
  • Success check: You can hoop quickly without wrist strain, stitch without fabric shifting, and joins are consistently clean across multiple jackets.
  • If it still fails: Track where time is lost (hooping vs repositioning vs trimming)—the bottleneck tells you which upgrade level actually pays off.
• Q: What safety checks prevent needle strikes and pinch injuries when embroidering jackets on a Brother SE625 with a repositioning hoop or magnetic hoops?
  A: Clear the needle area and manage the jacket “tube,” and treat magnets as a pinch hazard with medical-device spacing.
  • Clear: Keep scissors, fingers, and drawstrings away from the needle path during setup and stitching.
  • Sweep: Pass a hand under the hoop inside the jacket to ensure sleeves/front panels are not bunched under the needle plate.
  • Control: Move the metal zipper pull away from the hoop area before starting.
  • Success check: The embroidery arm can move freely without snagging fabric, and hands never enter the needle area while the machine is active.
  • If it still fails: Stop immediately—unplug before untangling fabric, and if using magnetic hoops, slide magnets apart (do not pry) and keep them at least 6 inches from pacemakers or insulin pumps.
