The Tote Bag "Survival Guide": Mastering Split Designs on the Brother SE1900

If you have ever stood in front of your embroidery machine holding a stiff, thick canvas tote bag, you know the specific type of anxiety that kicks in. You want that professional "boutique look," but your brain is screaming about hoop burn, broken needles, and the terrifying possibility of stitching the bag handles to the bag front.

Embroidery is a game of physics and friction. Canvas totes are notoriously difficult because they fight the hoop. They are thick, they have seams that refuse to flatten, and handles that act like obstacles.

This guide deconstructs a successful "floating" workflow on a Brother SE1900 using a 5x12 multi-positional hoop. But we aren't just following steps; we are applying industrial best practices scaled down for your home studio. We will cover the sensory cues you need to look for, the specific "safe zone" settings, and how to eventually upgrade your workflow if you plan to sell these for profit.

1. The "Floating" Physics: Why We Don't Hoop the Bag

The rule of thumb for beginners: If the item is thicker than a T-shirt or has complex seams, do not try to force it between the inner and outer rings of a standard hoop. You risk "hoop burn" (permanent friction marks) or popping the hoop apart mid-stitch.

The Strategy

Instead, we use the Floating Method. In this workflow, the hoop holds the stabilizer, and the adhesive/pins hold the bag. This changes the physics: the machine no longer has to drag the weight of a clamped bag; it only has to move the hoop frame.

If you are currently searching for brother se1900 hoops because you broke one trying to force a thick bag in, this method is your salvation. It reduces stress on both the plastic frame and the machine's pantograph (the arm that moves).

2. Preparation: Creating a Stable Foundation

Stabilizer Selection

The source project uses Tearaway Stabilizer.

• Expert Calibration: For heavy canvas, Tearaway is acceptable if the design density is low to medium. However, if your design has heavy satin stitches (thick borders), Tearaway can perforate and cause the design to separate.
• The Fix: If you hear a "crunching" paper sound during the stitch-out, your stabilizer is failing. For density-heavy designs, switch to Cutaway or use two layers of Tearaway.

The "Drum-Tight" Sensory Test

Most beginners fail here. They hoop the stabilizer "snug." Snug is not enough.

1. Hoop the stabilizer. High-quality heavy tearaway is best.
2. Tighten the screw. Use the included screwdriver. Do not rely on finger strength.
3. The Tap Test: Tap the center of the stabilizer with your fingernail.
   • Bad Sound: A dull thud or paper rustle.
   • Good Sound: A sharp, high-pitched "ping" like a snare drum.
   • Why: If the stabilizer is loose, the bag will shift even if it's glued down.


Hidden Consumables Setup

Before you start, gather these often-overlooked essentials:

• Needles: Swap to a Size 90/14 Sharp needle (for canvas). Standard 75/11 needles may deflect on thick weave, causing needle breaks.
• Temporary Adhesive: 505 Spray (or similar).
• Painter's Tape: For securing handles (safer than plastic clips).

Prep Checklist: The "Go/No-Go" Gauge

• Bobbin Check: Is your bobbin at least 75% full? (Running out mid-split-design is a nightmare).
• Wall Clearance: Pull your machine 12+ inches away from the wall. The big hoop needs room to travel back.
• Stabilizer Tension: Did it pass the "Drum Tap" test?
• Hoop Screw: Is it tightened with a screwdriver?

Warning: Mechanical Safety. Never stick pins inside the embroidery area. A needle hitting a pin at 600 SPM can shatter the needle, sending metal shards towards your eyes or down into the bobbin case, timing out your machine. Keep pins at least 1 inch outside the stitch variance.

3. Mounting the Canvas: Architecture of Alignment

The Inside-Out Trick

Turning the tote bag inside out is the secret weapon. It pushes the bulk of the bag away from the needle bar, leaving only the flat surface you want to stitch exposed.

The Anchor Process

1. Apply Adhesive: Spray the stabilizer, not the machine. Do this over a trash can to avoid gumming up your sewing table.
2. Find Center: Fold the bag in half vertically to create a crease (or use an iron).
3. Tactile Alignment: Match the bag's center crease with the plastic notches on the hoop.
4. Press and Smooth: Use the palm of your hand. You want to feel the fabric bond with the adhesive.




Securing the Perimeter

Adhesive isn't enough for a heavy bag. As the hoop moves, inertia throws the bag weight around.

• Pinning: Pin the corners of the bag to the stabilizer, far outside the stitch zone.
• Clipping: Use clamps or tape to bundle the handles. If a handle flops under the needle block, the machine will jam instantly.




When investigating the floating embroidery hoop technique, remember: the goal is to immobilize the fabric without crushing it.

4. Setting Up the Machine: The Split Design Workflow

The 5x12 hoop on the Brother SE1900 is a Multi-Position Hoop. This means the machine sees it as a smaller hoop (5x7) that you physically move. This confuses many users.

The "Split" Reality

A 5x12 design is actually two 5x7 designs loaded sequentially.

• File 1 (Bottom/End): Usually stitches the bottom half of the word/graphic.
• File 2 (Top/Start): Stitches the top half.

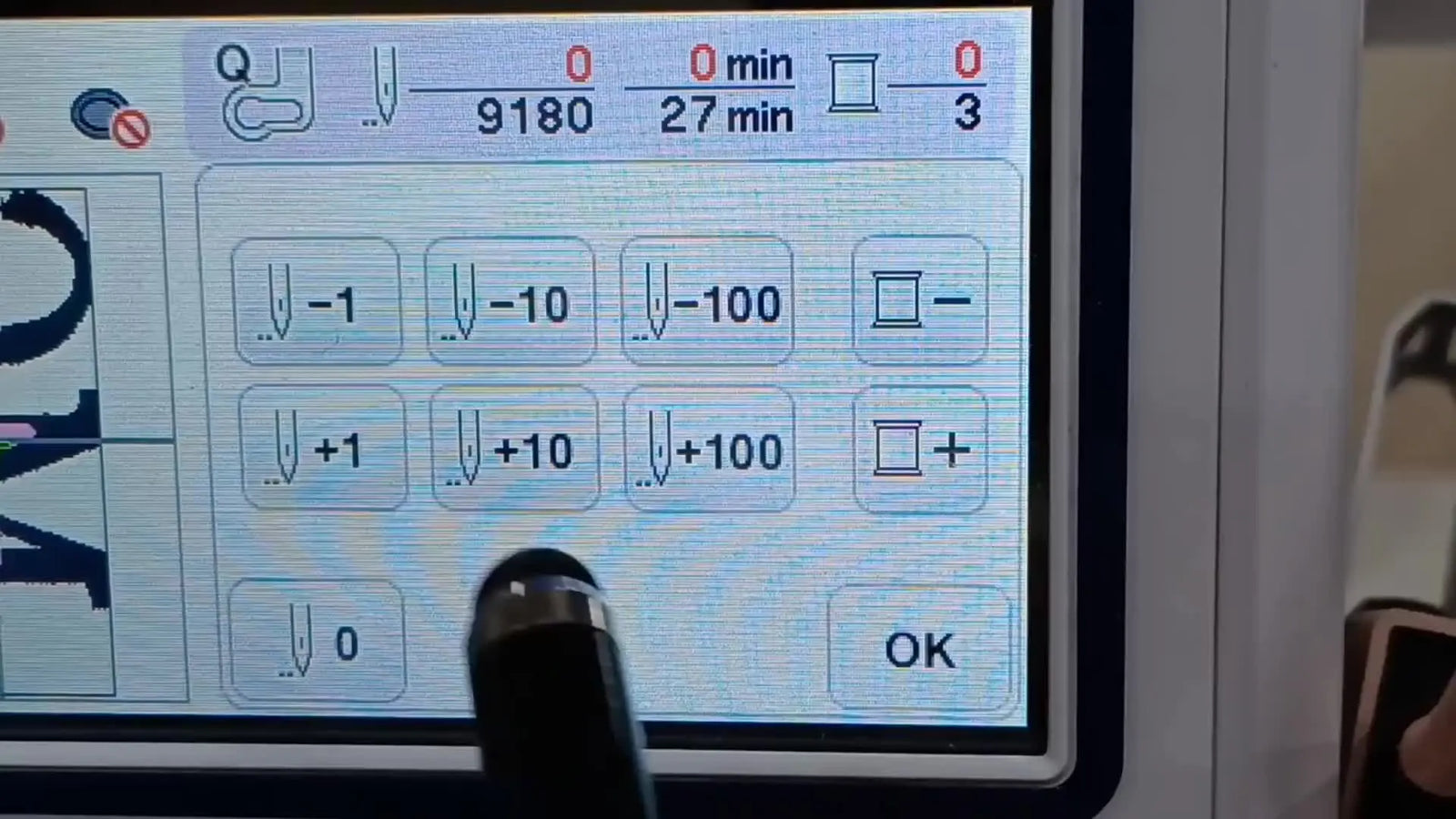

Screen Setup Steps

1. Load File 1.
2. Rotation: Rotate 90 degrees so the text runs along the length of the hoop.
3. Bypass Basting: The source video recommends skipping the "basting box" (the rectangular outline stitching) using the + / - color button.
   • Why: Basting holes in canvas are permanent. If you mess up, you ruin the bag.




5. The "Trace" Ritual: Your Insurance Policy

Never hit "Start" without Tracing.

1. Select the Trace/Check button on the screen.
2. Watch the Needle Bar: As the hoop moves to the four corners, is it getting close to your pins?
3. Listen: Do you hear the hoop frame hitting the wall behind the machine?
4. Touch: Run your hand under the hoop to ensure the bag handles haven't folded underneath.


6. Execution: Stitching File #1

The Speed Sweet Spot

The source suggests 458 SPM (Stitches Per Minute).

• Expert Verification: This is a safe, conservative speed. For canvas, I recommend a "Sweet Spot" of 400-500 SPM.
• Why not 800? High speeds create vibration. On a floating bag, vibration breaks the adhesive bond, causing the design to shift.

Sensory Monitoring

• Sound: Listen for a rhythmic thump-thump. A grinding noise means the bag weight is dragging on the table.
• Sight: Watch the fabric in front of the foot. Is it "bubbling"? If so, pause and smooth it down.


7. The Critical Transition: Repositioning the Hoop

This is where the magic (or the disaster) happens. DO NOT UNHOOP THE FABRIC. The fabric stays glued to the stabilizer.

1. Remove the Hoop from the Carriage: Unlock the lever and pull the hoop off the machine arm.
2. Shift Positions: Look at the mounting bracket on the side of the hoop. It has multiple sets of teeth.
3. Re-attach: Slide the bracket to the Top Position (aligning with the top half of the design area).
4. The "Click": You must feel a solid mechanical click/lock. If it feels mushy, it's not seated, and your alignment will be off by millimeters.

By using a repositionable embroidery hoop, you effectively double your stitch area, but only if you respect the grid.

8. Stitching File #2 & Finishing

1. Load File 2 on the screen.
2. Rotate 90 degrees (just like File 1).
3. Trace Again: You moved the hoop; new obstacles might be in the way.
4. Stitch Ops: Watch the join point. If your stabilizer was "drum tight," the two halves will meet perfectly. If it was loose, you might see a gap.






Operation Checklist: The Finish

• Jump Stitches: Trim all jump stitches before removing from the hoop (easier tension).
• Solvent Clean: Did the 505 spray leave a residue? Use a scrap of fleece to gently rub it off, or a specialized adhesive remover.
• Interior Check: Turn the bag right side out. Did you accidentally catch the pocket? (It happens to the best of us).

9. The Decision Matrix: Tools vs. Technique

If you are doing one "Mom" bag for a gift, the method above is perfect. However, if you plan to sell 50 of these for a school fundraiser, the pinning/spraying method will destroy your wrists and your patience.

When to Upgrade Your Workflow?

Use this decision tree to determine if you need to upgrade your tools:

Scenario A: "I do 1-5 bags a month."

• Method: Floating with Pins & Spray.
• Verdict: Stick with the standard hoops. It's cheap and effective.

Scenario B: "I struggle with hand strength or hoop burn."

• Diagnosis: Canvas is hard to hoop. If you find yourself unable to tighten the screw enough, or if the hoop leaves "shiny rings" on the fabric.
• Solution: A magnetic hoop for brother se1900.
  • Why: Magnetic hoops use intense magnetic force to clamp the fabric automatically. No screws, no wrestling. They hold thick canvas effortlessly without crushing the fibers (hoop burn). It turns a 5-minute struggle into a 10-second "snap."

Scenario C: "I need to produce 20+ bags quickly."

• Diagnosis: The time spent pinning and removing adhesive residue is killing your profit margin.
• Solution: Look into a hoopmaster hooping station system compatible with magnetic embroidery hoop sets. This ensures every bag is centered exactly the same way without measuring, doubling your production speed.

Many users searching for a brother 4x4 embroidery hoop or similar sizes often don't realize that magnetic frames are available for almost all machine sizes, including the SE1900.

Warning: Magnetic Safety. Industrial-grade magnetic hoops are powerful. They can pinch fingers severely. If you have a pacemaker, consult your doctor before handling high-gauss magnets. Always store them with the plastic spacers inserts to prevent them from slamming together.

Summary

Embroidering a tote bag on a domestic machine is a rite of passage. It tests your patience and your prep work.

1. Hoop the stabilizer drum-tight.
2. Float the bag inside out.
3. Manage your clearance (Trace!).
4. Respect the speed limits.

Master these physics, and you can stitch almost anything. Happy stitching!

FAQ

• Q: How do I prevent hoop burn and cracked plastic hoops when embroidering a thick canvas tote bag on a Brother SE1900?
  A: Use the floating method: hoop only the stabilizer drum-tight and attach the tote to the stabilizer with adhesive and perimeter securing instead of forcing the canvas into the standard hoop.
  • Hoop stabilizer only, then tighten the hoop screw with the included screwdriver (not just fingers).
  • Spray temporary adhesive onto the stabilizer (not the machine), then press/smooth the tote onto it.
  • Secure tote corners outside the stitch area and bundle handles with painter’s tape.
  • Success check: the hooped stabilizer makes a sharp “ping” when tapped, and the tote surface stays flat without shiny ring marks.
  • If it still fails: switch to a magnetic hoop for thick materials if hand-tightening is inconsistent or hoop burn keeps showing up.
• Q: How do I hoop stabilizer “drum-tight” for floating embroidery on a Brother SE1900 so the split design lines up?
  A: Hoop the stabilizer tighter than “snug” and verify with the tap test before any adhesive or fabric goes on.
  • Tighten the hoop screw using the screwdriver until resistance is firm.
  • Tap the center of the hooped stabilizer with a fingernail before mounting the tote.
  • Re-hoop immediately if the stabilizer shifts or sounds dull.
  • Success check: a high-pitched “ping” (snare-drum sound), not a thud or paper rustle.
  • If it still fails: use higher-quality heavy tearaway, add a second layer of tearaway, or move to cutaway for dense designs.
• Q: What stabilizer should I use for a canvas tote bag on a Brother SE1900, and what does a “crunching paper sound” during stitching mean?
  A: Tearaway can work for low-to-medium density designs, but a crunching sound often means the tearaway is perforating and failing—switch to cutaway or double tearaway.
  • Stop the machine if the stabilizer sounds like it is tearing or crumbling.
  • Change to cutaway for designs with heavy satin stitches/borders, or stack two layers of tearaway.
  • Re-check stabilizer hooping tension before restarting.
  • Success check: stitching runs smoothly without “crunching,” and the design area stays supported without separating.
  • If it still fails: reduce design density (if possible) or test the design on scrap canvas with the same stabilizer stack.
• Q: What needle and hidden supplies should be prepared before embroidering a thick canvas tote bag on a Brother SE1900?
  A: Start with a Size 90/14 Sharp needle and pre-check bobbin, clearance, adhesive, and handle control to avoid breaks and mid-design stops.
  • Install a Size 90/14 Sharp needle for canvas (a smaller needle may deflect on thick weave).
  • Confirm the bobbin is at least 75% full before starting a split design.
  • Pull the Brother SE1900 at least 12 inches away from the wall for 5x12 hoop travel.
  • Use temporary adhesive and painter’s tape to secure handles safely.
  • Success check: no needle deflection/breaks, hoop moves freely without hitting the wall, and the tote handles stay fully out of the needle area.
  • If it still fails: slow the stitch speed and re-check that the tote bulk is kept away from the needle bar by turning the bag inside out.
• Q: How do I avoid hitting pins and prevent needle shatter when floating a canvas tote bag on a Brother SE1900?
  A: Keep pins completely out of the embroidery movement area—place them at least 1 inch outside the stitch variance and never inside the active stitching field.
  • Pin only at tote corners/perimeter well outside the design path.
  • Use painter’s tape or clamps to manage handles instead of placing pins near the needle travel.
  • Run a full Trace/Check before pressing Start.
  • Success check: during Trace/Check, the needle path clears all pins and the tote handles stay visibly away from the needle block.
  • If it still fails: remove pins entirely and rely on stronger perimeter securing (tape/clamps) plus better adhesive bonding.
• Q: How do I use the Trace/Check function on a Brother SE1900 to prevent hoop collisions and stitching tote bag handles by accident?
  A: Trace/Check before every stitch-out and again after repositioning the multi-position hoop to catch clearance problems early.
  • Tap Trace/Check and watch the needle bar move to the corners while you visually confirm pin/handle clearance.
  • Listen for contact sounds that indicate the hoop is hitting the wall or the tote weight is dragging.
  • Feel under the hoop to confirm no handles or layers have folded underneath.
  • Success check: the hoop completes the trace with no wall contact, no dragging/grinding sounds, and no fabric/handle trapped under the hoop.
  • If it still fails: increase machine-to-wall distance and re-bundle the tote bulk farther away from the hoop travel.
• Q: How do I reposition a Brother SE1900 5x12 multi-position hoop for a split design without ruining alignment between File 1 and File 2?
  A: Do not unhoop the stabilizer or remove the fabric—shift the hoop bracket to the next position and confirm a solid mechanical “click” lock before stitching File 2.
  • Stitch File 1, then remove only the hoop from the carriage (leave fabric adhered to stabilizer).
  • Slide the hoop mounting bracket to the top position using the hoop’s teeth/grid.
  • Re-attach and confirm the bracket locks firmly (no mushy feel).
  • Trace/Check again, then load File 2 and rotate the same way as File 1.
  • Success check: the join point meets cleanly with no visible gap, and the hoop feels solidly seated when mounted.
  • If it still fails: re-check that stabilizer was drum-tight from the start, because loose stabilizer commonly causes millimeter-level misalignment.
• Q: When should a Brother SE1900 tote-bag workflow be upgraded from floating with pins and spray to a magnetic hoop or a hooping station for faster production?
  A: Upgrade when physical struggle (hoop burn, weak hand strength) or production time (pinning/adhesive cleanup) becomes the bottleneck.
  • Choose technique optimization first: slow to 400–500 SPM and improve stabilizer tension and handle control.
  • Move to a magnetic hoop if tightening screws is difficult or hoop burn/shiny rings keep happening on canvas.
  • Consider a hooping station system when repeating the same placement for batches and centering consistency affects profit/time.
  • Success check: setup time drops significantly and placement consistency improves across multiple bags.
  • If it still fails: prioritize safety—magnetic hoops are powerful and can pinch fingers; store with spacers and follow medical guidance if a pacemaker is involved.
