Boo Hoop Appliqué Done Right: Merge Files in Embrilliance, Hoop Poly Mesh Cleanly, and Trim a Perfect 4.5" Block

Appliqué blocks are the "icebergs" of machine embroidery. They look deceptively simple on the surface—just a few fabric swaps and some satin stitching—but 90% of the danger lies beneath the waterline.

When an appliqué block looks "simple," that’s exactly when people get blindsided—by a shifted center, a pucker that shows up only after trimming, or batting that sneaks into the seam allowance and makes piecing miserable.

This Boo Hoop block (Kimberbell Candy Corn Quilt Shop, Boo Hoop on the pattern’s page 14) is a perfect teaching specimen. The stitching itself is straightforward, but the workflow—software merge, hoop prep, floating batting, alignment, trimming, and final squaring—decides whether you get a crisp 4.5" block or a block you’ll be struggling to "make work" later.

Below is a reconstructed, workshop-grade protocol. I have layered in the sensory checks (what to feel and hear) and the specific safety margins I’ve developed over 20 years to keep your blocks consistent.

Make Embrilliance Essentials behave: set the 130×180 (5×7) hoop before you merge anything

Embroidery is a game of millimeters. If your screen is showing a larger hoop (like a 9×14) and you start dragging files in, you lose your sense of scale. You might center the design on the screen, but not in the reality of the physical hoop you are about to use.

We need to create a "Digital Twin" of your physical setup first.

In Embrilliance Essentials:

• Open Preferences (the yellow icon).
• Go to Hoops.
• Select 130 × 180 mm (the 5×7 hoop).
• Click OK, then zoom/resize so you can clearly see the hoop boundary.

Expert Note: One small but important detail from the video: if you don’t see the precise hoop dimensions you own, Embrilliance lets you create a new hoop entry. Do this once. Don't "wing it."

If you’re building a repeatable workflow for quilt blocks, this is where you start: correct hoop boundary, consistent centering, fewer surprises.

Merge the Kimberbell background quilting PES with Boo Hoop—so the stitch order stays predictable

In professional embroidery, file management is quality control. The video merges two PES files into one combined design to lock in the sequence:

1. Bring in the background quilting file first (the “Halloween 4” background quilting PES used for Boo Hoop).
2. Drag-and-drop the Boo Hoop design file on top.

Visual Check: You’ll know it merged correctly when the Objects panel shows two design trees in one project. You must verify the sequence that matters for clean construction:

1. Batting placement line (Run Stitch)
2. Batting tack-down (Run Stitch)
3. Fabric placement line (Run Stitch)
4. Fabric tack-down (Run/Zigzag)
5. Background quilting motif (Stipple/Motif)
6. Boo cross-stitch lettering
7. Ghost fill, outline, and eyes
8. The hoop details (tightening screw, outer hoop)

Save the combined stitch file. Why? Because "operator error" usually happens when we are tired. One file means fewer chances to load the wrong design, rotate something accidentally, or forget which step you’re on.

No Embrilliance? Load designs one-by-one on the machine without losing your place

Not everyone runs software, and that is fine. The machine can do the heavy lifting if you are disciplined.

The video shows the manual path:

• Copy the background quilting file to your USB.
• Copy the Boo Hoop file to your USB.
• At the machine, load the background quilting first.
• Crucial Step: Use the Add function to load the Boo Hoop design without closing the first one.

Quality Control: Does this change the stitch quality? No. The physics of the needle remains the same. What changes is your "cognitive load"—you have to remember the order. If you choose this path, write the steps down on a sticky note and place it on your machine screen.

Send the stitch file to Brother Luminaire XP1 / Baby Lock Solaris: wireless is fast, but not universal

If you have a modern flagship machine like the Brother Luminaire (XP1/XP2) or Baby Lock Solaris, the video demonstrates wireless sending from Embrilliance:

• Turn the machine on and let it complete its initial sequence/calibration.
• In Embrilliance, go to Utility → Send to Solaris XP1.
• Name the file and send.

The "Gotcha": A comment thread highlights a real-world issue: wireless "send to machine" depends on manufacturer agreements. Brother and Baby Lock are the primary supported brands for this specific feature in Embrilliance.

If your setup prompts you for a card or doesn’t allow sending, don’t assume you’re doing it wrong—use a reliable USB stick (2GB-8GB size is the sweet spot; larger drives can sometimes confuse machine processors) and keep moving.

The hidden prep that makes the stitch-out calm: needle, bobbin, stabilizer, and a batching habit

Amateurs start hooping immediately. Pros prepare their "mise en place" (setup) first so they never have to stop mid-stitch.

The "Hidden Consumables" List: Beyond the obvious, ensure you have:

• Curved Embroidery Snips: Essential for trimming batting in the hoop.
• Tweezers: For grabbing jump stitches.
• Temporary Spray Adhesive (Optional): Can help if you struggle with floating batting, though not strictly required if your tactile control is good.

The Specs (From the Video & Expert Protocol):

• Needle: Organ 75/11 EBBR (or Schmetz Embroidery 75/11). Why? A 75/11 has a sharp enough point to pierce batik/cotton but makes a small enough hole to keep the satin stitches clean.
• Bobbin: 90 wt pre-wound bobbin. Why? Thinner bobbin thread reduces bulk on the back of the quilt block.
• Stabilizer: Poly Mesh (No Show Mesh) Cutaway. Do not use Tearaway. Tearaway will disintegrate during the quilting process over time. Cutaway provides the permanent skeleton the block needs.
• Fabric Backing: Shape-Flex (SF101) / Fusible Woven stabilizer ironed to the back of the fabric.

The Production Habit: Pre-cut your batting pieces and keep them organized by section in bags. That’s not "extra"—it’s how you keep a quilt project from turning into a constant reset.

If you’re building a more efficient workflow, this is where hooping stations start paying off: you can prep stabilizer, mark centers, and stage batting/fabric without tying up the machine, effectively separating your "prep time" from your "run time."

Prep Checklist (Pre-Flight Safety Check):

• Needle Check: Run your fingernail down the needle tip. If it catches, throw it away. Enter with a fresh 75/11.
• Bobbin Check: Ensure the bobbin is wound evenly. Spongy bobbins cause tension accumulation.
• Batting Cut: Cut to 5" × 5" for this 4.5" trimmed block (allows 0.25" margin).
• Stabilizer Cut: Cut Poly Mesh large enough to extend 1-2 inches past the hoop edge on all sides.
• Fabric Prep: Fuse the Woven stabilizer to the back of the appliqué square. Sensory Cue: The fabric should feel slightly stiffer, like cardstock, not limp.
• Notching: Make the small center notches on the fabric (top/bottom/left/right).


Hoop Poly Mesh Light Cutaway like a pro: even tension, consistent margin, and true center marks

The video hoops only the Poly Mesh—not the fabric. This is a classic "floating" technique for appliqué blocks because it separates the stabilizer tension from the fabric texture.

The Hooping Ritual:

1. Loosen the hoop screw significantly.
2. Place the inner hoop.
3. Sensory Check: Tighten the screw until the stabilizer feels taut. Tap it with your finger. It should sound like a dull drum ("thump-thump"). It should not be stretched so tight that the weave distorts (look for warped grid lines on the mesh).
4. Marking: Use a ruler and friction pen/water-soluble pen to draw vertical and horizontal crosshairs on the hooped stabilizer to find the absolute center.

The "Wrist Saver": Hooping requires grip strength. If hoop screw tightening is the part that slows you down or leaves marks on your hands, that’s exactly the scenario where magnetic hoops for brother luminaire can be a practical upgrade path. The goal is consistent clamping pressure without the physical wrestling match.

Warning: Needle Zone Safety. Keep your fingers out of the embroidery field and never reach under the needle area while the machine is running. A needle strike at 1000 SPM happens in 0.06 seconds—faster than your reflex can pull away.

Back your fabric with Fusible Woven—and notch the centers so alignment becomes automatic

In the video, the fabric prep is simple but disciplined:

• Iron Fusible Woven stabilizer to the back of the fabric.
• Fold the fabric in half to find the center.
• Make tiny nip cuts/notches at the centers (top/bottom/left/right). The cuts should be no deeper than 1/8" (3mm).

Why this matters: Those notches are a "future you" gift. When the placement line stitches, you won’t be guessing where the fabric center is—you’ll be matching notch to crosshair.

Expert Q&A: A viewer asked about shrink/draw-up and steaming Poly Mesh. The creator replied that her Poly Mesh doesn’t shrink and she doesn’t use steam. My Add: If you are using a new brand of stabilizer, steam it before hooping. If it shrinks, it shrinks on the ironing board, not inside your quilt block.

Float the 5×5 batting on the placement line, tack it down, then trim cleanly without nicking stitches

The stitch-out sequence begins with batting. This provides the "puff" for the appliqué.

1. Stitch the batting placement line.
2. Place the 5" × 5" batting over the placement stitches.
3. Stitch the batting tack-down.
4. Remove the hoop from the machine (optional, but recommended for beginners) or slide the frame forward to trim.

The Trimming Technique (The 45-Degree Rule):

• Use double-curved embroidery scissors.
• Keep the curve flat to the hoop base (curve facing down implies digging in; curve facing up minimizes risk).
• Tactile specific: Pull up slightly on the batting with your non-dominant hand. This creates tension that allows the scissors to drive through the batting like butter.
• Trim as close to the stitching as possible without cutting the thread. A 1mm buffer is acceptable.




Slide the hoop into the Brother Luminaire arm safely—one hand on the arm, every time

The video calls out a critical mechanical habit: when inserting the hoop into a machine with a robotic arm like the Luminaire/Solaris, keep your hand on the machine arm as you slide the clamp in.

Mechanism Protection:

• It stabilizes the arm so you’re not torquing the gears.
• It helps you seat the hoop smoothly so you don’t bump the needle bar.
• Auditory Check: Listen for a solid "Click" when the hoop creates a lock. If you don't hear it, wiggle it gently.

This is also where many home embroiderers feel the "hoop fight." If you’re frequently stitching quilt blocks and want less wrestling, hooping for embroidery machine becomes a system problem, not a strength problem—better staging, better alignment marks, and (when it makes sense) better hoop technology.

Align the appliqué fabric using the notch + crosshair method, then tack it down without shifting

After batting is trimmed, the machine stitches the fabric placement line.

The "Roll Method" for Perfect Centers:

1. Fold the fabric in half at the notch.
2. Match the notch to the drawn center line on the stabilizer.
3. "Roll" the fabric down flat.
4. Smooth it out from the center to the edges.
5. Check: Ensure the fabric covers the batting completely.
6. Stitch the fabric tack-down.

Expert Insight: A comment asked whether the fabric placement/tack-down "box" is different from the batting lines. The creator replied that the fabric placement line is 1/4" larger all around than the batting tack-down. This "stepped" construction reduces bulk in the seams later.

Setup Checklist (The "Run" Confirmation):

• Poly Mesh is hooped evenly (tapping sound is consistent).
• Crosshairs are visible on the stabilizer.
• Batting is trimmed close (no fluff overhanging the placement line).
• Fabric is fused, notched, and covers the batting completely.
• Speed Check: If you are a beginner, lower your machine speed to 600 SPM for these tack-down steps. Speed kills accuracy when you are learning.

Stitch the background quilting motif and lettering without thread-change chaos

The video uses a single-needle machine, which means you are the thread changer.

Thread Sequence:

1. Background Quilting: Choose a thread that blends or contrasts intentionally.
2. "BOO" Lettering: Change to Black.

The Knotting Trick: The creator ties on to the existing thread tail with a simple knot to change threads without fully unthreading the machine path.

• Caveat: This works well on many machines, but if your knot is too large, it can jam the tension discs. Ensure you trim the tails of the knot very short. If you feel resistance pulling the knot through, stop and thread manually.

Speed Data: The video runs the machine at the default 1000 SPM. For the fill stitches (ghost body) and background quilting, this is fine. For the tiny satin columns on the lettering, I recommend slowing down to 700-800 SPM to ensure sharper corners and less thread breakage.

Sequence:

• White (Ghost Fill)
• Black (Outline & Eyes)
• Dark Gray (Screw detail)
• Final Color (Hoop outline)

Clean jump stitches the way pros do: pull with tweezers, snip with tension working for you

Jump stitches are the mark of the amateur. We want them gone.

The Tension-Cut Method:

• Use tweezers to hold the jump stitch thread. Pull it gently up.
• Use tiny snips to cut flush against the fabric.
• Direction Matters: Cut from the landing point (end) back to the start point. This uses the thread's own anchor tension to help you slice cleanly.

If you are doing a lot of cleanup work across many blocks, consider whether your time is better spent upgrading tools (better snips/tweezers) or upgrading the machine. In a production setting, 10 minutes of trimming per block destroys profitability.

The “finished size” mind trick: why Kimberbell’s 4.5" can still be right

One of the most common confusion points is the word "Finished."

A viewer noticed that the Orange Pop Ruler labeling can make it feel like you’re cutting too small.

• Traditional Quilting Definition: "Finished" means the size in the final quilt after it is sewn. A 4" finished block is cut at 4.5".
• Kimberbell Context: "Finished" here often implies the block is done with embroidery and trimmed to the size needed to act as the raw block.

The Rule: Follow the project instructions explicitly. If it says trim to 4.5", trim to 4.5". Do not second-guess the math unless you are redesigning the quilt.

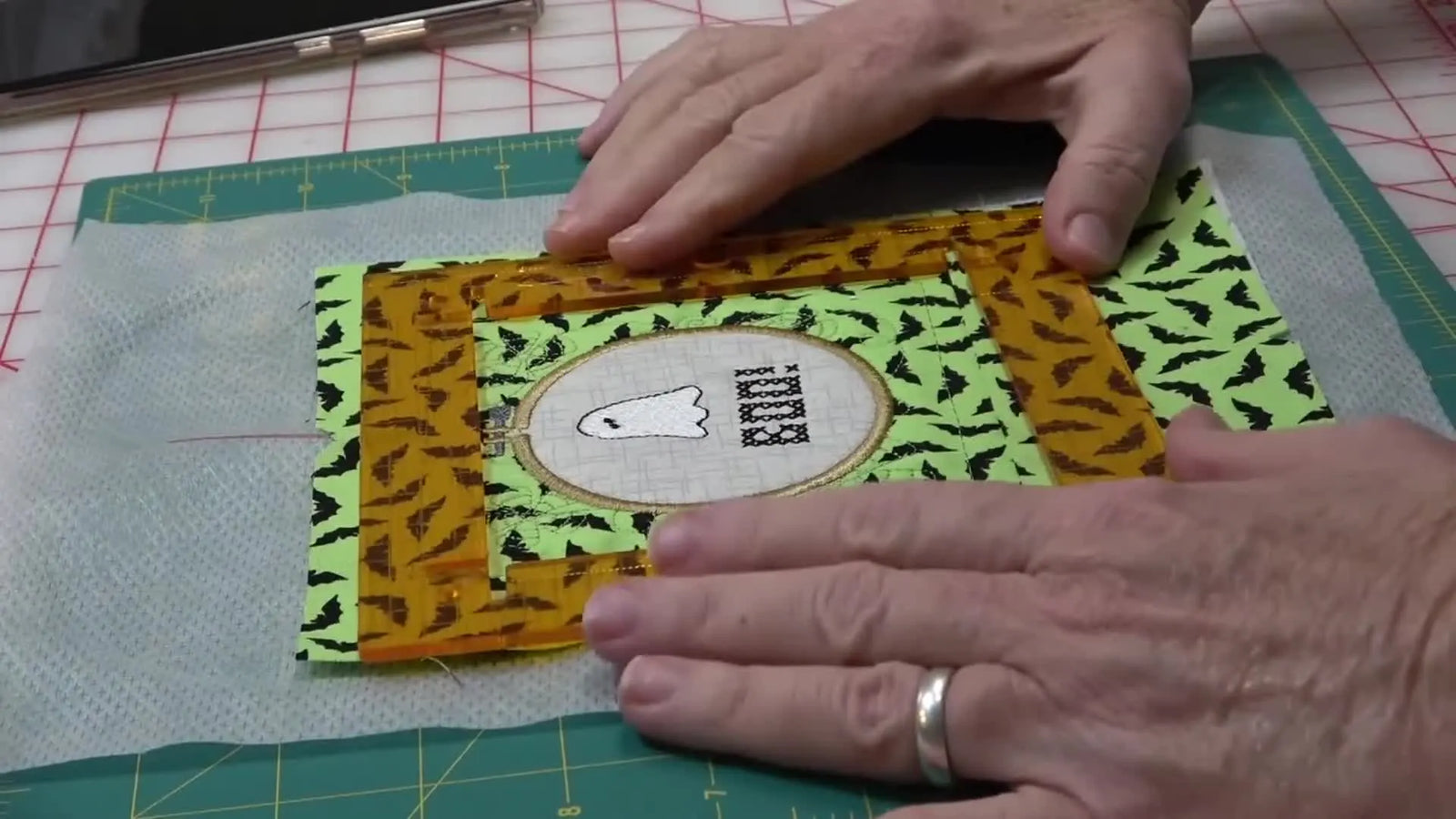

Square it up with Orange Pop Rulers: align the N/S/E/W guides, then cut like you mean it

Squaring up (trimming) is where you earn your precision.

Tools:

• Orange Pop Ruler (square set)
• Rotating Cutting Mat (Highly recommended to prevent awkward arm angles)
• Rotary Cutter (Fresh blade)

The Technique:

1. Place the ruler frame over the embroidery.
2. Alignment: Align the ruler’s inner directional guides (North/South/East/West markings) with the embroidery center lines.
3. Press down firmly. Use your body weight, not just your wrist.
4. Cut Sequence: If right-handed, cut the left side first, then rotate the mat. Always cut away from your body or across, never pull the cutter toward you dangerously.






Decision tree: choose stabilizer + hoop strategy based on fabric behavior

Use this quick decision tree to determine if you can stick to the standard method or if you need to upgrade your tools/process.

A) Is your fabric stable quilting cotton with a fusible woven backing?

• YES: Hoop Poly Mesh only. Float batting and fabric. (Standard Method).
• NO (It is knit, stretchy, or slippery): You must hoop the fabric with the stabilizer or use a sticky stabilizer. Do not float unstable fabrics.

B) Are you fighting the screw-tightened hoop (Hoop Burn / Hand Pain)?

• YES: This is a mechanical failure of the hoop system. Consider a magnetic hoop upgrade. magnetic embroidery hoops for brother (or your specific brand) allow you to clamp fabric without "unscrewing and rescrewing," reducing hoop burn and wrist fatigue.
• NO: Continue with standard hoops, but ensure you clean the inner hoop surface regularly to maintain grip.

C) Production Volume: One block or fifty?

• ONE: Manual marking and standard hooping is fine.
• FIFTY: You need a repeatable station. Pre-cut all stabilizers. Use a jig.

The SVG cut file confusion: why it exists even if you trim “in the hoop”

A viewer asked why an SVG cut file is supplied if we are trimming by hand.

The workflow fork:

• Path A (In-the-Hoop): You stitch placement, lay fabric, stitch tack-down, hand trim. (Most common).
• Path B (Pre-Cut): You use a Cricut/ScanNCut to cut the fabric shapes before embroidery.

Use the SVG only if you are confident in your machine's absolute placement accuracy. For most appliance blocks, the "Path A" hand-trim method is actually faster and more forgiving of slight misalignments.

The upgrade path that actually makes sense (when you’re ready)

If you’re enjoying this style of quilt-block embroidery, the bottleneck usually isn't your creativity—it's the material handling.

Here are sensible "tool upgrade" triggers, using the same scenario-based logic you’d use in a professional studio:

• Pain Point: Hoop Burn & Hooping Speed.
  If hooping is slow, your hands get tired, or you struggle to clamp delicate fabrics evenly, consider evaluating magnetic embroidery hoop options. The magnetic force clamps directly down, rather than pulling the fabric sideways, which eliminates the leading cause of puckering.
• Pain Point: Machine Compatibility.
  If you are on a Brother/Baby Lock platform and strictly stitch flat blocks, magnetic hoops for babylock embroidery machines (and their Brother equivalents) are often the highest-ROI accessory you can buy. They turn a 2-minute struggle into a 10-second "snap."
• Pain Point: Thread Changes.
  If you find yourself spending more time changing threads than stitching, or if you want to run 50 blocks for a massive quilt, a single-needle machine becomes the bottleneck. This is when a multi-needle machine (like a SEWTECH) becomes a viable production partner. It’s not just about speed; it’s about loading all 6-10 colors once and walking away while the machine does the work.

Warning: Magnetic Hazard. Industrial-strength magnetic hoops are incredibly powerful. Keep them away from pacemakers, ICDs, and other medical implants. Keep fingers clear when the magnets snap together to avoid severe pinching.

Operation Checklist (the “don’t ruin it at the last 10%” list)

• Batting Phase: stitched placement → floated batting → tacked down → trimmed clean (angled scissors).
• Fabric Phase: stitched placement → aligned fabric (notch match) → tacked down.
• Background Phase: Quilt motif stitched (correct thread color).
• Detail Phase: Lettering (Black) → Fill (White) → Outline (Black) → Details (Gray).
• Cleanup: Remove hoop. Tweeze and snip all jump stitches flush.
• Squaring: Trim to exactly 4.5" × 4.5" (or pattern specific size) using ruler guides.
• Storage: Bag and label the finished block immediately.




If you follow this exact sequence—digital prep, tactile hooping checks, safe trimming angles, and disciplined squaring—you’ll get blocks that piece together flat, match size across the quilt, and look professionally finished. Stick to the physics, respect the safety margins, and the art will follow.

FAQ

• Q: How do I set the correct 130×180 mm (5×7) hoop in Embrilliance Essentials before merging the Kimberbell Boo Hoop PES files?
  A: Set the 130×180 mm hoop in Embrilliance before importing/merging designs so the on-screen hoop matches the physical hoop and scaling stays realistic.
  • Open Preferences (yellow icon) → Hoops → select 130 × 180 mm → OK.
  • Zoom so the hoop boundary is clearly visible, then import/merge files.
  • Create a custom hoop entry if the exact hoop size is not listed instead of “guessing.”
  • Success check: The design sits fully inside the 130×180 boundary with predictable centering relative to the hoop edges.
  • If it still fails: Re-check that the file was not created while a larger hoop (e.g., 9×14) was selected and re-merge with the correct hoop set first.
• Q: What is the correct stitch order when merging the Kimberbell background quilting PES with the Boo Hoop design to avoid sequencing mistakes?
  A: Import the background quilting first, then add the Boo Hoop file, and verify the critical construction steps appear in the expected order.
  • Bring in background quilting PES first, then drag-and-drop the Boo Hoop design on top.
  • Verify the sequence includes: batting placement → batting tack-down → fabric placement → fabric tack-down → background quilting motif → BOO lettering → ghost fill/outline/eyes → hoop details.
  • Save as one combined file to reduce wrong-file/wrong-step errors when tired.
  • Success check: The Objects/design tree shows both designs in one project and the early steps are clearly batting/fabric placement lines (not decorative stitching).
  • If it still fails: Stop and re-load the files in the correct order—do not “just stitch and hope” because the early placement lines control alignment.
• Q: What stabilizer and needle setup should be used for the Kimberbell Boo Hoop appliqué quilt block to prevent puckers and long-term breakdown?
  A: Use Poly Mesh (No Show Mesh) cutaway with a 75/11 embroidery needle and a 90 wt pre-wound bobbin as the stable baseline for this block style.
  • Install Organ 75/11 EBBR (or Schmetz Embroidery 75/11) and start with a fresh needle if there’s any doubt.
  • Use a 90 wt pre-wound bobbin to reduce bulk on the back of the block.
  • Hoop Poly Mesh cutaway (not tearaway); fuse Shape-Flex SF101 (fusible woven) to the back of the appliqué fabric square.
  • Success check: Hooped mesh feels taut without distorted weave, and the fabric feels slightly stiff “like cardstock,” not limp.
  • If it still fails: If a new stabilizer brand shrinks, pre-test by steaming/pressing it before hooping so any shrink happens on the ironing board, not in the stitched block.
• Q: How tight should Poly Mesh Light Cutaway be hooped for a floating appliqué block, and how can I tell if the hoop tension is correct?
  A: Hoop Poly Mesh evenly until it is taut like a dull drum—tight enough to hold, not so tight the weave distorts.
  • Loosen the hoop screw a lot first, then tighten gradually.
  • Tap the hooped mesh and listen for a dull “thump-thump,” not a loose flutter.
  • Look for weave distortion or warped grid lines as a warning you overstretched it.
  • Success check: The tapping sound is consistent across the hoop and the mesh weave stays visually straight.
  • If it still fails: Re-hoop and prioritize even tension; uneven hooping is a common cause of shifting and puckering later.
• Q: How do I trim 5" × 5" batting after the tack-down stitch without cutting the tack-down thread on a Brother Luminaire/Baby Lock Solaris appliqué block?
  A: Trim batting using the “45-degree rule” with double-curved scissors and keep a tiny safety buffer so the tack-down stitches stay intact.
  • Stitch batting placement → place 5" × 5" batting → stitch batting tack-down.
  • Remove the hoop (or slide the frame forward) so trimming is stable and visible.
  • Hold scissors so the curve stays flat to the hoop base and trim close, leaving about a 1 mm buffer if needed.
  • Success check: No batting fuzz extends past the tack-down line and the tack-down stitches are uncut and continuous.
  • If it still fails: Slow down and trim in smaller bites; if visibility is poor, remove the hoop from the machine for safer control.
• Q: What is the safest way to insert an embroidery hoop into the Brother Luminaire arm so the hoop locks correctly and the arm is not torqued?
  A: Stabilize the machine arm with one hand while sliding the hoop in, and confirm the lock with an audible click.
  • Place one hand on the machine arm as you guide the hoop into the clamp.
  • Slide smoothly—do not force or twist the hoop into place.
  • Listen for a solid “click” that confirms the hoop is seated and locked.
  • Success check: You hear/feel the click and the hoop does not wiggle loose when gently tested.
  • If it still fails: Stop and reseat the hoop gently; never reach into the needle zone while the machine is running because needle strikes happen faster than reflexes.
• Q: When hooping causes hoop burn or hand pain on screw-tightened hoops during quilt-block embroidery, what is a practical upgrade path (technique → tool → machine)?
  A: Treat hoop burn and slow hooping as a process bottleneck: optimize the setup first, then consider a magnetic hoop, and only then consider a multi-needle machine if volume demands it.
  • Level 1 (Technique): Pre-cut batting/stabilizer, mark crosshairs clearly, and keep hoop tension even to reduce re-hooping and wrestling.
  • Level 2 (Tool): Consider a magnetic embroidery hoop when repeated screw-tightening causes hoop burn or inconsistent clamping pressure.
  • Level 3 (Capacity): Consider a multi-needle machine when thread changes and block volume (e.g., dozens of blocks) become the main time sink.
  • Success check: Hooping time and rework drop noticeably, and blocks stay consistent in size/flatness across repeats.
  • If it still fails: Reassess whether the fabric should be floated or hooped (unstable fabrics generally need to be hooped with stabilizer or use sticky stabilizer), and follow the machine manual for any accessory limits; keep strong magnets away from pacemakers/ICDs and keep fingers clear when magnets snap together.
