Brother Innov-is NV880E: From Unboxing to a Clean First Stitch (Plus the Hooping & Threading Mistakes That Waste Hours)

If you just bought (or inherited) a Brother Innov-is NV880E, you’re probably feeling a complex mix of emotions: the thrill of creative potential, and that quiet, gnawing fear of making one small mistake that sends the needle slamming into the plastic hoop.

Take a deep breath. Start by understanding that embroidery is 20% machine setting and 80% physical preparation. The NV880E is designed to be beginner-friendly, but "friendly" doesn't mean "foolproof."

What we are going to do here is dismantle the fear. We will transform a generic manual into a Studio Routine—a set of sensory checks, safety habits, and logical steps that prevent the four horsemen of embroidery failure: birdnesting, hoop burn, broken needles, and crooked designs.

Unbox the Brother Innov-is NV880E Like a Pro: Anatomy of a Two-Part System

The NV880E arrives as two distinct entities: the sewing machine body and the embroidery module (the carriage arm). They slide together to form your workstation. Included are three standard hoops: 260×160 mm (approx. 10×6), 150×150 mm, and 100×100 mm.

The Hoop Sensor: Your Safety Net The machine features a sensor system that detects which hoop is attached.

• What it does: It prevents you from selecting a design that is mathematically too large for the hoop, stopping the needle from crashing into the frame.
• What it does NOT do: It cannot tell if your fabric is straight, if your tension is correct, or if you have chosen the wrong stabilizer. That responsibility remains yours.


The "Hidden" Consumables You Need Immediately

The box contains the basics, but to stitch like a pro, you need to add three things to your kit immediately:

1. Fresh Needles (Size 75/11): The factory needle is for testing. Replace it after your first major project.
2. Temporary Adhesive Spray (e.g., 505): Essential for floating fabrics (protecting delicate items from hoop burn).
3. Curved Embroidery Scissors: For snipping jump stitches without snipping the fabric.


The Power-On Calibration: The "Hands-Off" Rule

When you flip the switch, the screen lights up. You will tap the touchscreen to acknowledge the safety warning. Immediately after, the embroidery arm will move to find its X and Y axis limits. This is Calibration.

Sensory Check:

• Listen: You should hear a smooth mechanical whir.
• Watch: The arm moves fully left, then centers itself.

Warning: CRUSH HAZARD. Keep hands, scissors, coffee mugs, and loose thread away from the carriage arm during calibration. This is the #1 moment users get pinched or knock a cup over.

The "Pre-Flight" Prep: Stabilizer, Needles, and Physics

Before selecting a butterfly design, we must address the physics of the fabric. Experienced embroiderers know that stabilizer is not optional; it is the foundation.

Decision Tree: Fabric vs. Stabilizer

Use this logic flow to make your decision:

• Is the fabric stretchy (T-shirt, Knit)?
  • YES: Use Cut-Away stabilizer. (Tear-away will result in a distorted design).
  • NO (Denim, Towel): proceed below.
• Is the fabric unstable/fluffy (Towel, Fleece)?
  • YES: Use Tear-Away on the back + Water Soluble Topper on top (to keep stitches from sinking).
• Is it standard wovens (Cotton, Felt)?
  • YES: Tear-Away is usually sufficient.

If you are setting up a dedicated corner, organize your workspace into what professionals call hooping stations—a flat, clean table with your stabilizers pre-cut and ready. This prevents the "stabilizer struggle" on your lap.

Prep Checklist (Do this BEFORE loading the design)

• Needle Check: Is the needle straight and free of burrs? (Run your fingernail down the tip; if it catches, change it).
• Bobbin Check: Do you have enough bobbin thread for the entire color block?
• Clearance: Is the space behind the machine clear for the hoop to travel backward?


On-Screen Editing: Resize, Rotate, and Risk Management

Anna selects a butterfly from the built-in library. The NV880E screen acts as your digital canvas.

• Resize: You can scale designs up or down by roughly 10-20%. Expert Not: If you scale a design down too much, the stitch density increases, potentially causing a bulletproof-stiff result or a broken needle.
• Rotate: Use the 1-degree rotation tool for precision.
  • Pro Tip: Don't fight the fabric. If you hooped your towel slightly crooked, don't re-hoop. Just rotate the design 2 degrees to match the fabric grain.


Typography and Arc Functions: The "Medium Font" Rule

When adding text like "butterfly," the video shows the use of the Array/Arc function to curve the text.

The Readability Factor: Small fonts are the enemy of beginners. If you go below 6-8mm in height, verify your thread tension and stabilizer are perfect. For the NV880E, sticking to Medium size fonts ensures crisp, legible letters without the letters bleeding into each other.

Color Assignment: The Screen is a Guide, Not a Cop

The video demonstrates changing the screen colors (Gold 208 and Plum) to match the physical spools.

Crucial Concept: The machine has no eyes. It does not know what color thread you actually threaded. The screen color is purely for your reference so you know when to change the thread.

If you are currently researching an embroidery machine for beginners, this flexibility is a major plus—you are not locked into a specific brand's color palette. You can use any thread you have, provided you map it correctly in your head (or on the screen).

The Bobbin "P-Shape" Rule: The Foundation of Tension

Bad bobbin loading causes 90% of "tension problems."

1. Remove the plastic cover.
2. Hold the bobbin so the thread hangs down from the left side, forming the letter P.
3. Drop it in.
4. Sensory Check: Place your finger on the bobbin to stop it from spinning. Pull the thread through the slit. You should feel a slight drag or resistance. That is the tension spring engaging.
5. Cut the thread on the built-in blade.


Hooping Strategy: The "Drum-Tight" Misconception vs. Magnetic Reality

In the video, felt is hooped with cut-away stabilizer. The goal is a surface that is taut but not stretched—known as "drum-tight."

The Standard Hoop Struggle: Standard embroidery hoops use friction and screws.

1. Loosen screw.
2. Place outer ring, stabilizer, fabric, inner ring.
3. Push. (This is where thin fabrics wrinkle and thick fabrics hurt your wrists).
4. Tighten screw.

Sensory Check: Tap the hooped fabric. It should sound like a dull thud (good) or a tambourine (too tight). It should NOT sound like loose paper (too loose).

The Professional Upgrade: If you find yourself constantly adjusting the screw, getting "hoop burn" (white rings on dark fabric), or struggling with thick hoodies, this is the limit of the standard tool. This is why pros use magnetic embroidery hoops for brother. They use magnetic force to clamp rather than friction, allowing you to hoop thick items or delicate silks without distortion or physical strain.

Warning: MAGNET SAFETY. Magnetic hoops are industrial tools. Do not place them near pacemakers. Keep fingers clear of the "snap zone" to avoid painful pinches.

Precision Placement: The "Trace" Function is Non-Negotiable

Anna uses the LED pointer (Red Dot) to position the design. Then, she hits the Trace button (box icon).

Why you must Trace: The machine physically moves the hoop in a rectangle around where the design will go.

• Visual Check: Does the needle bar hit the plastic hoop?
• Fabric Check: Does the design fall off the edge of the patch?

Never skip the trace. It is your last line of defense against a ruined garment.

Speed and Workflow: The "Sweet Spot"

The NV880E can hit 850 stitches per minute (spm). However, just because your car can go 120mph doesn't mean you should drive that fast in a parking lot.

• Broad fills/Denim: 850 spm is fine.
• Metallic thread/Delicate designs: Slow it down to 400-600 spm.
• Video Feature: Color Sort. If you have two gold sections separated by a plum section, Color Sort reorganizes the file to stitch all gold first. This saves you manual thread changes.

For those producing batches of patches using a smaller hoop for brother embroidery machine, the Color Sort feature cuts production time by 30%.

Threading the Machine: Listening for the "Click"

Threading is more than putting string through holes. It is about seating the thread between tension discs.

The "Floss" Technique: When passing the thread through the top channels (steps 2 and 3), hold the thread with two hands (one near spool, one near needle). Floss it down into the channel.

• Sensory Check: You should feel the thread snap or slide into the tension discs. If it feels loose, the machine will create birdnesting (loops) on the back of the fabric.


The Stitch-Out: Operation Checklist

Everything is set. Presser foot down. The button turns green.

Setup Checklist (Final Go/No-Go)

• Hoop Security: Is the hoop lever locked down tight?
• Clearance: Did the Trace run clear?
• Tail Management: Is the bobbin tail cut short?
• Presser Foot: Is it down? (The machine usually yells at you if it's not, but check anyway).

Press Start.

Visual Monitoring: Watch the first 100 stitches. If the sound changes from a rhythmic thump-thump to a grinding clack-clack, hit Stop immediately.

If you are using standard brother embroidery machine hoops and notice the fabric slipping inward (puckering) as it stitches, your matching of stabilizer to fabric was incorrect. Do not blame the machine; note it for next time.

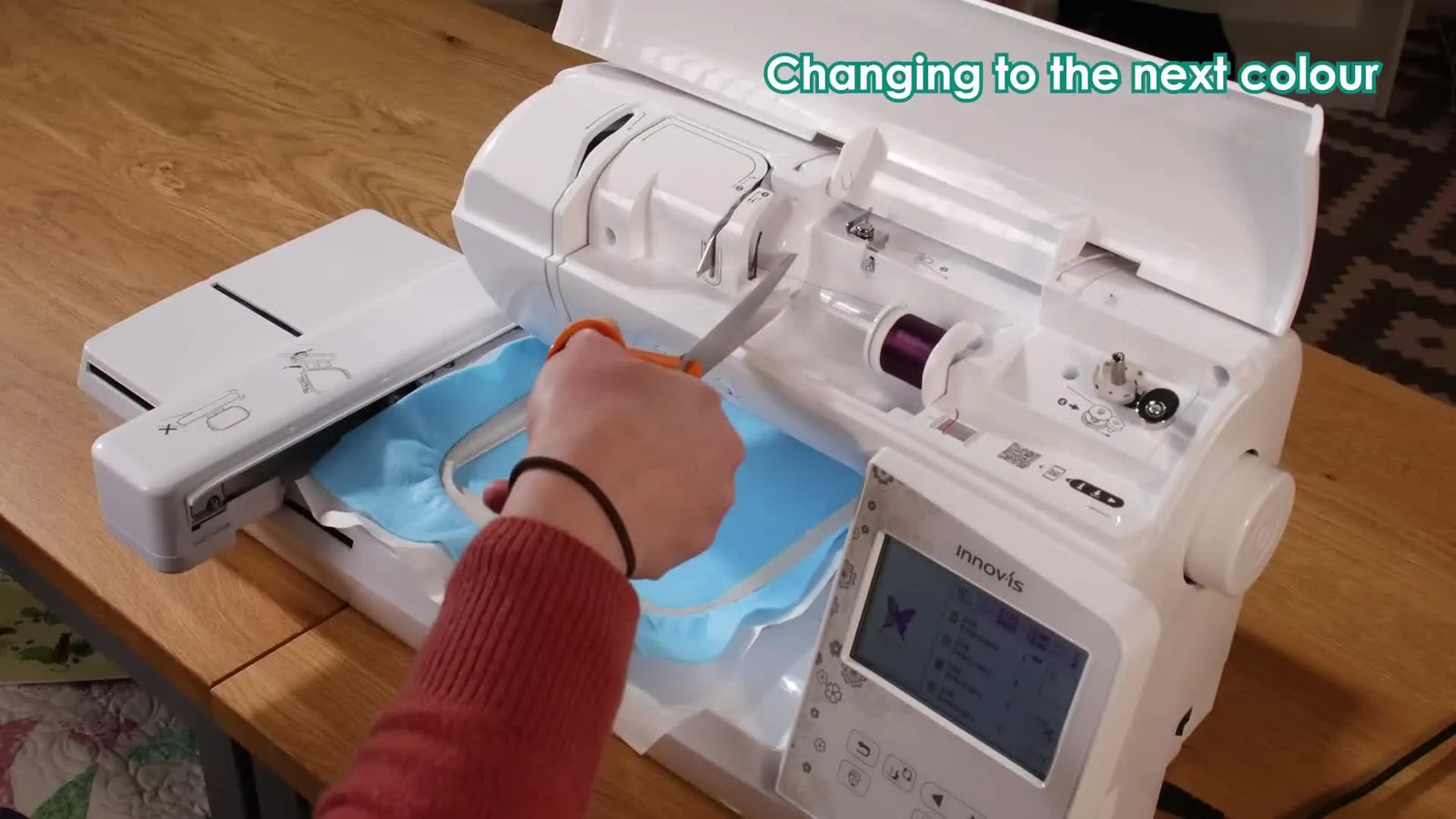

Changing Colors: The "Pull-Through" Method

When the machine stops for a color change:

1. Snip the thread at the spool pin (top).
2. Pull the excess thread out through the needle (bottom).

Why? Never pull the thread backward toward the spool. This drags lint and microscopic thread fuzz into the tension discs, clogging your machine over time.

Recovery: The "Stitch Back" Lifesaver

Thread breaks happen. It is a fact of life. When the thread snaps, the machine might stitch 5 or 6 "ghost stitches" before the sensor stops it.

The Fix: Do not just re-thread and start. Use the Stitch Back (+/-) button on the screen.

• Tap the "minus" key to move the needle back about 10 stitches.
• Start from there to overlap the break.
• Result: A seamless repair with no visible gap.


Inspecting the Result: The "1/3 Rule"

Anna finishes the butterfly. It looks clean. But the truth is on the back.

The Quality Text: Look at the underside of the embroidery.

• Good Tension: You should see a white strip of bobbin thread down the middle (roughly 1/3 width), with colored top thread showing on the edges (1/3 each).
• Bad Tension: If you see ONLY top thread on the back, your top tension is too loose. If you see white bobbin thread on the TOP of the design, your top tension is too tight.


Moving Beyond "Crafting": When to Upgrade Your Tools

The NV880E is a capable machine, but the bottleneck in your workflow will rarely be the machine's stitching speed. The bottleneck is Hooping.

If you start doing this for profit or volume, standard hooping becomes a physical and temporal drain.

The Upgrade Path:

1. Level 1 (Technique): Use better stabilizers and spray adhesives.
2. Level 2 (Tooling): If you are fighting with thick garments, bags, or just want speed, a magnetic hoop for brother is the industry standard upgrade. They eliminate "hoop burn," reduce wrist strain, and cut hooping time in half.
3. Level 3 (Capacity): If you are changing colors 50 times a day, look toward multi-needle machines (like SEWTECH or Brother PR series) that handle color changes automatically.

Operation Checklist (Post-Job)

• Trim: Cut jump stitches on the front AND back.
• Clean: Remove the hoop and brush lint out of the bobbin case.
• Reset: Return the carriage to the park position before turning off.
• Storage: Store standard brother 4x4 embroidery hoop frames flat. Leaving them locked tight when not in use can warp the plastic over time.

Embroidery is a journey of precision. Master these setup checks, treat your hoop choices seriously, and your NV880E will serve you for years.

FAQ

• Q: What hidden consumables are essential to start embroidery on a Brother Innov-is NV880E without needle breaks or hoop burn?
  A: Replace the test needle and add a few key consumables immediately to prevent the most common beginner failures.
  • Install a fresh 75/11 needle for real projects (the factory needle is mainly for testing).
  • Keep temporary adhesive spray (e.g., 505) ready for floating delicate items to reduce hoop burn risk.
  • Use curved embroidery scissors to trim jump stitches safely without cutting fabric.
  • Success check: The first stitches sound smooth (not harsh “clack-clack”), and the fabric surface shows no white hoop ring after unhooping.
  • If it still fails: Re-check stabilizer choice and bobbin loading before changing machine settings.
• Q: What is the correct stabilizer choice for stretchy knits, towels, and standard woven cotton on a Brother Innov-is NV880E?
  A: Match stabilizer to fabric behavior first, because stabilizer is the foundation of stitch quality on the Brother Innov-is NV880E.
  • Use cut-away stabilizer for stretchy fabric (T-shirts/knits) to prevent distortion.
  • Use tear-away on the back plus a water-soluble topper on top for fluffy towels/fleece to prevent stitches sinking.
  • Use tear-away stabilizer for most standard wovens (cotton/felt) as a typical starting point.
  • Success check: The design stays square (no warping) and does not “sink” into towel loops.
  • If it still fails: Add better fabric control (spray adhesive/floating) or change hooping method to reduce movement.
• Q: How do I load the bobbin on a Brother Innov-is NV880E using the “P-shape rule” to avoid tension problems?
  A: Load the bobbin so the thread forms a “P” and confirm you feel controlled drag when pulling through the slit.
  • Hold the bobbin so the thread hangs down from the left side (forming the letter “P”), then drop it into the case.
  • Stop the bobbin from spinning with a finger, then pull the thread through the slit and along the path.
  • Cut the thread using the built-in blade and reinstall the cover.
  • Success check: You feel a slight, consistent resistance (drag) when pulling the bobbin thread through the slit.
  • If it still fails: Re-seat the bobbin thread in the slit again—misrouting here causes most “tension problems.”
• Q: How can I tell if hooping is correct on a Brother Innov-is NV880E, and what does “drum-tight” actually mean?
  A: Aim for taut-but-not-stretched fabric; “drum-tight” is a feel and sound check, not maximum force.
  • Hoop fabric so it is smooth and taut, but do not stretch the fabric grain.
  • Tap the hooped area to judge tension instead of over-tightening the screw hoop.
  • Avoid over-tight hooping on dark/delicate fabrics to reduce hoop burn (white rings).
  • Success check: The tap sound is a dull thud (good), not a tambourine (too tight) and not loose paper (too loose).
  • If it still fails: Consider floating with adhesive spray or upgrading to a magnetic hoop for more consistent clamping.
• Q: Why is the Brother Innov-is NV880E “Trace” function non-negotiable before stitching a design?
  A: Always run Trace because it physically confirms the design will stitch inside the safe area without hitting the hoop.
  • Position the design, then press Trace so the machine moves the hoop around the design boundary.
  • Watch for hoop clearance and confirm the needle bar will not contact the plastic frame.
  • Confirm the design boundary stays fully on the fabric/patch area.
  • Success check: The traced rectangle runs clean with no contact risk and no part of the design crosses the fabric edge.
  • If it still fails: Reduce/rotate the design on-screen or switch to a larger hoop before pressing Start.
• Q: How do I prevent birdnesting on a Brother Innov-is NV880E when threading the top thread?
  A: “Floss” the thread firmly into the tension path so it seats in the tension discs; loose seating is a common cause of birdnesting.
  • Hold the thread with two hands and floss it down into the upper channels (especially through the tension points).
  • Re-thread carefully if the thread feels like it is just “floating” through guides without engagement.
  • Watch the first ~100 stitches and stop immediately if the sound changes to grinding or clacking.
  • Success check: The stitch-out starts with a steady rhythmic sound and the underside shows no looping piles of top thread.
  • If it still fails: Re-check bobbin loading (P-shape rule) and confirm the presser foot is down before starting.
• Q: What is the Brother Innov-is NV880E tension “1/3 rule” on the back of embroidery, and how do I read it?
  A: Use the underside to judge balance: a centered bobbin strip with top thread on both sides indicates good tension.
  • Flip the hoop and inspect the back immediately after the stitch-out.
  • Look for a white bobbin thread strip down the middle (about 1/3 width) with top thread showing on the outer thirds.
  • Treat extreme results as a clear signal (all top thread on back = too loose; bobbin showing on top = too tight).
  • Success check: The underside shows a stable centered bobbin line rather than messy loops or bobbin thread pulled to the top.
  • If it still fails: Pause and correct threading/bobbin seating first—do not immediately blame the machine.
• Q: What safety rules should beginners follow during Brother Innov-is NV880E calibration and when using magnetic embroidery hoops?
  A: Keep hands and objects away during calibration movement, and treat magnetic hoops as pinch-hazard industrial tools.
  • Keep fingers, scissors, cups, and loose thread away from the carriage arm during power-on calibration (crush hazard).
  • Never reach into the hoop travel area while the machine is moving; stop the machine first.
  • Keep fingers out of the magnetic hoop “snap zone,” and avoid magnetic hoops near pacemakers.
  • Success check: Calibration runs with a smooth mechanical whir and no contact with any object around the carriage.
  • If it still fails: Clear more space behind/around the machine for hoop travel and re-start only when the area is fully safe.
