Brother Innov-is V5 Premium Pack II (Kit 2) Installation: The Calm, No-Drama Way to Register, Certify, and Update to Firmware 4.00

If you have ever stared at the LCD screen of your Brother V-series machine, finger hovering over a button, thinking, "If I press this, will I brick my $5,000 investment?", you are not alone. It is a rational fear. Software upgrades on precision machinery often feel like defusing a bomb—complex, high-stakes, and written in a language that assumes you are already an engineer.

But here is the truth from the service bench: Firmware updates are the cheapest performance upgrade you will ever give your machine. They fix bugs, improve sensor logic, and unlock features that were dormant in your hardware.

This guide effectively "de-risks" the installation of Brother Premium Pack II (Kit 2) on a Brother Innov-is V5. We will cover the Registration, the Certification Key entry, and the critical Firmware Version 4.00 update via USB. More importantly, we will apply professional "pre-flight" safety protocols that prevent the dreaded black screen of death.

The sanity check: what Brother Premium Pack II (Kit 2) actually changes on a Brother Innov-is V5

Before we touch a single button, let’s define the mission. Premium Pack II (Kit 2) is a paid upgrade ecosystem for Brother V-series machines. In practical terms, it is a productivity injection: it adds a significant library of decorative stitches (approx. 183 new stitches) and expands presser-foot functionality—specifically optimizing the Multi-Function Foot Controller.

However, there is a "trap" here that trips up 40% of first-time upgraders. You must distinguish between Permission and Capability:

1. The Kit (Permission): You must enter a key to tell the machine, "I have paid for these features."
2. The Firmware (Capability): You must update the operating system (to V4.00 or higher) so the machine actually knows how to execute those features.

Crucial Compatibility Note: Not all V-series machines are created equal. While this guide focuses on the V5, owners of the V3 or VQ2 must verify their physical ports. A software update cannot create a physical jack for a foot controller if your hardware lacks it. If you are currently researching a used or new brother embroidery machine, treat "Upgrade Ready" as a phrase that requires verification of your specific model’s ports.

The “hidden” prep that prevents update panic on Brother V-Series (V5/V7/VQ2)

Amateur mistakes happen when you rush. Professionals stabilize the variables first. Before you even open your laptop, we need to establish a "known good state."

1) Confirm your current firmware version and Kit status (Settings Page 7)

Walk to your machine. Turn it on. Navigate to the Settings menu and page through to Page 7 (this varies slightly by model, but look for the version info).

• Visual Check: Look at the "Version" number. In our baseline example, it reads 3.03.
• Status Check: Look at the "KIT" list.
  • KIT I: Checked (Active).
  • KIT II: Unchecked (Inactive).

Write this down. If you don't know where you started, you won't know if you finished successfully.

2) Prep checklist (do this before you open the Brother website)

You need to gather your "Hidden Consumables"—items that aren't in the box but are required for success.

• The Activation Card: The physical card with the silver scratch-off strip.
• A "Clean" USB Drive: Ideally 4GB - 16GB. Pro-Tip: Format it to FAT32 before starting to ensure there are no hidden partitions or old corrupt files.
• A Stylus: For precise typing on the machine screen (fingers can be greasy or imprecise).

Prep Checklist (The "No-Go" Criteria):

• Baseline Recorded: Current Firmware Version and Kit Status written down.
• Serial Number Located: Found the "No." on the machine settings screen (not the box, use the screen to be safe).
• USB Drive Sanitized: Drive is empty, formatted, and verified working on your PC.
• Power Stability: Machine is plugged directly into a wall outlet or high-quality surge protector (not a loose extension cord).
• Time Blocked: You have 30 minutes of uninterrupted time (no kids, no pets).

Registering on Brother Solutions Center: get the Certification Key without wasting an hour

The Brother Solutions Center is the gatekeeper. The friction here usually comes from browser auto-fill errors or selecting the wrong region.

Choose the correct region and model

Navigate to the Brother Solutions Center.

• Select Region: Choose your actual location (e.g., Europe / United Kingdom).
• Select Product: Choose Innov-is V5 (or your specific model). Accuracy matters here; a V7 key won't unlock a V5.


Enter the machine number and activation code to generate the Certification Key

The system will ask for two critical data points:

1. Machine Number: The internal serial number you found on the settings screen.
2. Activation Code: The code hidden under the silver scratch-off on your card.


Pro Tip: If you are upgrading a V3 or VQ2, pause here. Double-check with your dealer that the features you want (like multi-function foot control) actully apply to your hardware. It is better to return an unscratched card than to fight for a refund on a used one.

Scratch-off activation card: reveal the Kit 2 code without damaging it

This sounds trivial, but I have seen grown adults ruin a $150 upgrade with a car key.

• The Tool: Use a plastic ruler edge or a coin. Do not use a knife or sharp scissors.
• The Technique: Gentle pressure. You are removing the latex paint, not engraving the paper.
• The Security: Treat this code like a credit card number. It is a one-time license.

Once entered online, the website will generate a Certification Key. Do not close this browser window. Take a photo of the key with your phone just in case.

Certifying Kit 2 on the Brother Innov-is V5: the “SET” moment you don’t want to mistype

Now, we bridge the gap between your computer and your embroidery machine.

Enter the Certification Key on the machine

Go back to your V5. Navigate to the certification screen (usually near the Kit status on Page 7).

• Action: Type the Certification Key exactly as shown on your computer.
• Sensory Check: Use a stylus. Listen for the distinct "beep" of each registered keystroke to ensure no phantom double-taps.
• Commit: Press SET.


You are looking for specific positive feedback:

Success Metric: The screen must display: “Certification was successful. Please restart the sewing machine.” If you see an error, check for confusing characters (like sticking "O" for "0" or "I" for "1").

The safe way to enter Brother Innov-is V5 firmware update mode (Automatic Threading + Power)

Now that the machine has Permission (Kit 2 certified), we must give it Capability (Firmware V4.00). This requires booting into a special service mode.

Boot into update mode

This requires two hands and a bit of coordination.

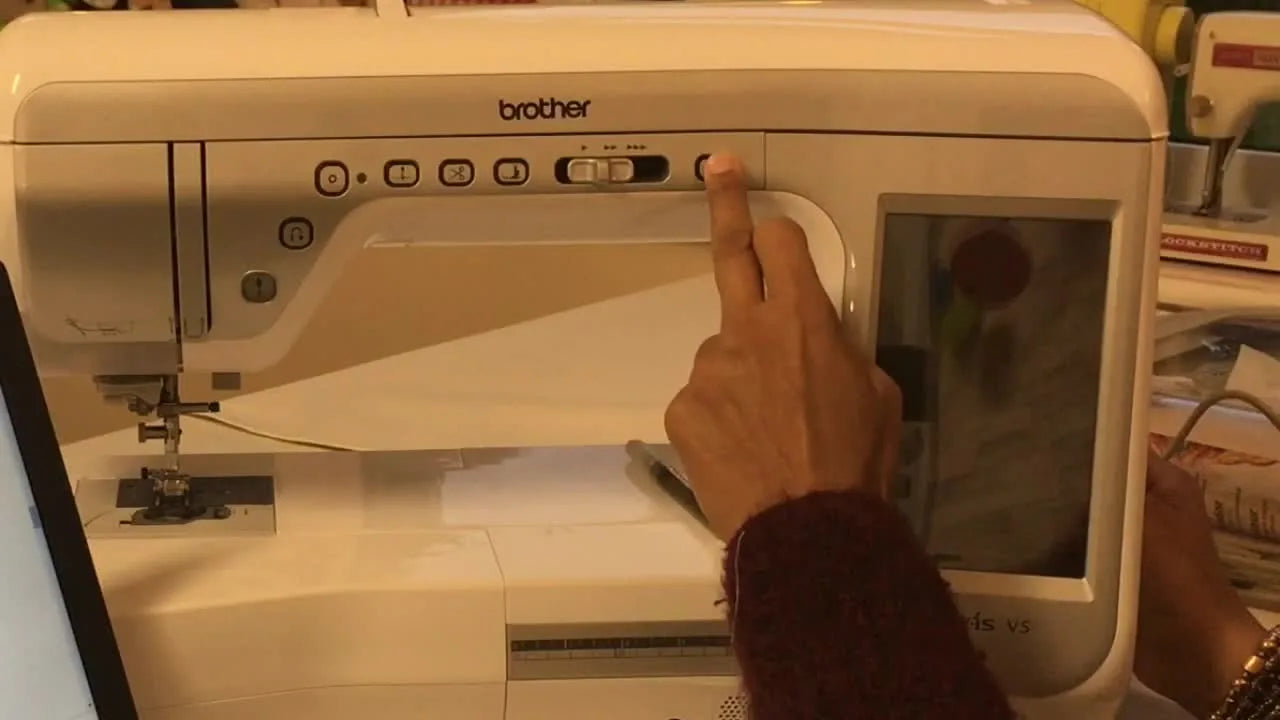

1. The Trigger: Locate the Automatic Threading button. Press it and hold it down.
2. The Power: With your other hand, flip the main power switch to ON.
3. The Hold: Keep holding the Threading button. Count to three. You will verify success when the screen lights up differently than a normal boot.


Visual Anchor: You should see a stark white screen with two large icons: a USB Stick and a Computer Icon. This is the bootloader safe mode.

Warning: Data Corruption Risk
Once the update process begins (saving software), NEVER turn off the power. A power loss during the "Write" phase can corrupt the motherboard's BIOS-equivalent, requiring a physical board replacement by a technician.

Installing Firmware Version 4.00 via USB: the cleanest path when your computer downloads are a mess

We highly recommend the USB method over the direct USB cable method. Why? Because cables introduce driver issues, Windows/Mac compatibility layers, and connection dropouts. A USB stick is pure data transfer.

This mindset—isolating variables to prevent failure—is the mark of a professional. It is the same logic used when setting up hooping stations to ensure perfectly aligned logos every time. We remove "human variance" from the equation.

Load the update file from USB

1. Computer Side: Download the firmware. Unzip the file. You normally need the .UJP (or similar extension) file, not the folder it came in. Copy only that file to the root directory of your USB stick.
2. Machine Side: Insert the USB stick into the V5's USB port.
3. Action: Tap the USB Icon on the screen.
4. Execute: Press LOAD.

[FIG-10] [FIG-11]

Visual Anchor: A progress bar will appear. It may pause or stutter—this is normal. Do not panic.

Setup checklist (The "Point of No Return"):

• File Verified: The USB stick contains the unzipped firmware file at the top level (not inside a folder).
• Mode Confirmed: Machine is in "White Screen" update mode.
• Source Selected: You pressed the USB icon, not the PC icon.
• Process Active: The progress bar is moving (blue bar filling).
• Safety Zone: hands are off the power switch; no one is walking near the power cord.

Verification on Settings Page 7: confirm Version 4.00 and Kit II checked (don’t “assume it took”)

When the bar hits 100%, the machine will likely ask to restart or simply finish. Turn the machine OFF, remove the USB, and turn it back ON normally.

Return to Settings Page 7.

• Version Check: Does it say 4.00?
• Kit Check: Is KIT II now checked?


If both are true, congratulations. You have successfully flashed the ROM without bricking the unit.

The “why it works” behind the process: certification vs firmware, and why USB is often the pro move

Understanding why we experienced this friction makes you a better operator.

Certification is permission; firmware is capability

You performed a "handshake." The Certification Key proved you paid. The Firmware provided the code to run the new tools. If you had only done the firmware update, the features would be installed but "locked" (greyed out). If you only did the certification, the machine would have permission to run code it didn't possess yet.

Why USB beats cable in many real studios

In a busy embroidery shop, computers are often far from machines. USB drives are portable, reliable, and "air-gapped" (not dependent on active drivers). This reliable simplicity is why professionals prefer it.

New features you can immediately spot after the update: Automatic Presser Foot Lift, pivoting height, and stitches

Let’s verify the payload. What did you actually get for your effort?

Automatic Presser Foot Lift options

Go to Settings Page 3. You should see new toggles.

• The Pivot: A game-changer for quilters and appliqué work. You can set the foot to lift automatically when you stop sewing, with the needle down. This allows you to pivot fabric without taking your hands off the work.


Presser foot height and pivoting height ranges

• Pivoting Height: Adjustable from 2.0mm to 7.5mm.
  • Usage: Set to 2.0mm for thin cottons; bump to 5.0mm+ for plush towels or fleece so the foot doesn't drag the loop pile.

Decorative stitches added

Navigate to the decorative stitch menu. You will find cleaner, more complex motifs that take advantage of the V5's precision transport system.

Troubleshooting the two most common “I’m stuck” moments (from the video + comment patterns)

If things went wrong, scan this layout before calling support.

The upgrade path that actually saves time: hoops, hooping technique, and when magnetic frames earn their keep

You have just optimized your machine's brain (Software). Now, look at your production bottleneck: your hands (Hardware). The #1 complaint we hear after a software upgrade is: "My machine is faster, but I am still slow."

The culprit is usually hooping. Traditional screw-hoops are fatigue-inducing and inconsistent. If you are producing batches of 20+ shirts, or struggling with thick items like Carhartt jackets, the physical strain is real.

This is where the Tool Upgrade Phase begins.

• Level 1 (Technique): Use the right stabilizer (see below).
• Level 2 (Tooling): Switch to a magnetic embroidery hoop.
  • Why? Instead of wrestling a screw, magnets snap the fabric in place. It prevents "Hoop Burn" (those shiny rings left on dark fabric) and reduces wrist strain.
  • The Search: Many Brother users specifically look for magnetic embroidery hoops for brother because standard generic hoops often don't trigger the V-series sensor switches correctly.

Warning: Magnetic Safety (Read Carefully)
Pinch Hazard: Magnetic hoops use industrial-grade neodymium magnets. They snap together with immense force. Keep fingers clear of the edge.
Medical Risk: If you have a pacemaker or insulin pump, maintain a 12-inch safe distance.
Electronics: Keep credit cards and phones away from the hoop frame.

Decision tree: choose a stabilizer approach based on fabric behavior

Software fixes bugs; Stabilizers fix physics. Use this logic tree to pair your new update with the right material.

• Scenario A: The Stretchy Knit (Performance Polos, T-shirts)
  • Risk: Pucker and distortion.
  • Fix: Cut-away Stabilizer (2.5oz or 3.0oz). Never use tear-away on knits; the stitches will break the paper and the design will collapse.
  • Hoop: Magnetic hoop preferred to avoid stretching the fabric grain while clamping.
• Scenario B: The Stable Woven (Cotton, Denim, Twill)
  • Risk: Bulletproof, but can be stiff.
  • Fix: Tear-away Stabilizer. It holds during stitching but removes cleanly for a soft hand feel.
• Scenario C: The Texture/Loft (Towels, Fleece)
  • Risk: Stitches sinking into the pile (disappearing).
  • Fix: Water Soluble Topper (Solvy) on top + Tear-away on bottom.
  • Hoop: hooping for embroidery machine usually demands a magnetic frame here, as thick towels are nightmare to force into standard plastic hoops.

Operation: run the update like a technician, not like a gambler

When you are in the "White Screen" update mode, be robotic.

• Do not multi-task.
• Do not clean around the machine (risk of bumping the USB).
• Do watch the bar finish.

Operation Checklist (Final Verification):

• Update 100%: Blue bar completed.
• Restart Successful: Machine booted to standard home screen.
• Version 4.00 Live: Verified on Page 7.
• Kit II Active: Verified on Page 7.
• Test Stitch: Run a simple "H" or box test using your new settings to confirm tension and foot height are behaving.

The real “result”: fewer interruptions, cleaner workflow—and where to upgrade next if you’re scaling

If you followed this guide, your V5 is now running at peak capability. You have unlocked new stitches, but more importantly, you have proven you can manage the technical side of your equipment without fear.

From here, your path to profit (or just pure enjoyment) is about removing friction.

• You removed Software Friction with this update.
• You can remove Hooping Friction with brother magnetic hoop sets designed for the V-series slide-on mechanism.

Embroidery is a game of details. Whether it is the firmware version in the motherboard or the tension of the fabric in the hoop, precision wins. You have handled the digital part—now go create something tangible.

FAQ

• Q: What prep items are required to update Brother Innov-is V5 firmware to Version 4.00 and certify Brother Premium Pack II (Kit 2) via USB?
  A: Use the Activation Card, a clean FAT32 USB drive (ideally 4–16GB), and a stylus, and record the baseline info before starting.
  • Record: Write down the current firmware Version and KIT I/KIT II status from the Settings screen (Page 7).
  • Prepare: Format the USB drive to FAT32 and keep it empty except for the unzipped firmware file.
  • Stabilize: Plug the Brother Innov-is V5 into a wall outlet or quality surge protector and block 30 uninterrupted minutes.
  • Success check: You can clearly confirm the starting Version (example shown: 3.03) and KIT II shows unchecked before certification.
  • If it still fails: Re-check the machine “No.” (serial) from the machine screen (not the box) and verify the USB drive works on the computer.
• Q: How do I confirm Brother Innov-is V5 Brother Premium Pack II (Kit 2) certification was successful before doing the firmware update?
  A: Enter the Certification Key on the Brother Innov-is V5 and only proceed when the machine displays the exact success message.
  • Type: Enter the Certification Key exactly as generated online, using a stylus to avoid mistypes (common mix-ups: O vs 0, I vs 1).
  • Commit: Press SET on the certification screen.
  • Restart: Follow the prompt and restart the machine.
  • Success check: The screen shows “Certification was successful. Please restart the sewing machine.”
  • If it still fails: Re-enter the key carefully and confirm the correct model/region was selected when generating the key.
• Q: How do I enter Brother Innov-is V5 firmware update mode (white screen with USB and computer icons) safely?
  A: Hold the Automatic Threading button while powering on, and verify the special white bootloader screen appears.
  • Trigger: Press and hold the Automatic Threading button.
  • Power: While holding, switch the main power to ON and keep holding for a count of three.
  • Verify: Do not continue unless the screen looks different from normal startup.
  • Success check: A stark white screen appears with two large icons (a USB stick icon and a computer icon).
  • If it still fails: Power OFF, wait about 10 seconds, then retry the same button-and-power sequence more deliberately.
• Q: Why can’t Brother Innov-is V5 see the firmware update file on the USB stick when installing Firmware Version 4.00?
  A: The Brother Innov-is V5 usually cannot read a zipped download; copy the unzipped firmware file (not the folder) to the USB root.
  • Unzip: Extract the download on the computer and locate the actual firmware file (often a .UJP-type file).
  • Copy: Place only that firmware file in the top level (root directory) of the USB drive—no folders.
  • Load: In the white update mode, tap the USB icon (not the PC icon), then press LOAD.
  • Success check: The firmware file becomes selectable/visible and a progress bar appears after pressing LOAD.
  • If it still fails: Reformat the USB to FAT32 and retry with a different USB drive if the current one is unreliable.
• Q: What are the “point of no return” safety rules during Brother Innov-is V5 Firmware Version 4.00 USB installation to avoid data corruption or a black screen?
  A: Once the Brother Innov-is V5 starts “saving software,” never interrupt power or disturb the USB connection until completion.
  • Confirm: Ensure the machine is in the white update mode and you selected the USB icon as the source.
  • Isolate: Keep hands off the power switch and keep people/pets away from the power cord during the write process.
  • Wait: Let the progress bar finish even if it pauses or stutters.
  • Success check: The progress reaches 100%, then the machine allows a normal restart without abnormal boot behavior.
  • If it still fails: Do not keep power-cycling repeatedly mid-process; restart only after the machine indicates completion, then re-check Version on Settings Page 7.
• Q: How do I verify Brother Innov-is V5 Firmware Version 4.00 and Brother Premium Pack II (Kit II) are actually active after restart?
  A: Check Settings Page 7 after a normal reboot and confirm both the Version number and KIT II status changed.
  • Power cycle: Turn the machine OFF, remove the USB, then turn it ON normally.
  • Verify: Go to Settings Page 7 and check the Version field and the KIT list.
  • Confirm: Ensure KIT II is checked (active) and Version shows 4.00.
  • Success check: Settings Page 7 shows Version 4.00 and KIT II checked.
  • If it still fails: Re-check that certification succeeded first (success message), then repeat the firmware load steps using the USB method.
• Q: When Brother Innov-is V5 production is still slow after Brother Premium Pack II (Kit 2) and Firmware Version 4.00, what is the step-by-step upgrade path from technique to magnetic hoops to a multi-needle machine?
  A: Treat speed issues as a workflow bottleneck: optimize hooping and stabilizers first, then consider magnetic hoops, then consider a multi-needle platform if volume demands it.
  • Diagnose: Identify if the slowdown is hooping fatigue/inconsistency (common with batches like 20+ shirts or thick jackets) rather than stitch time.
  • Level 1 (Technique): Match stabilizer to fabric behavior—cut-away for stretchy knits, tear-away for stable wovens, and water-soluble topper + tear-away for towels/fleece.
  • Level 2 (Tooling): Switch to a magnetic embroidery hoop if screw-hoop clamping causes hoop burn, fabric distortion, or wrist strain.
  • Level 3 (Capacity): If the shop outgrows single-operator hooping speed, consider scaling to a multi-needle workflow (generally after tooling and process are already stable).
  • Success check: Hooping becomes faster and more consistent, and test stitching runs cleanly without visible hoop burn or fabric distortion.
  • If it still fails: Re-check fabric handling (knits often pucker without cut-away) and run a simple test stitch to confirm the process change, not the design file, solved the issue.
• Q: What are the magnetic embroidery hoop safety rules for Brother-compatible magnetic frames to prevent finger pinches and device risks?
  A: Treat magnetic embroidery hoops as industrial clamps—keep fingers clear and keep medical devices/electronics at a safe distance.
  • Handle: Keep fingertips away from the closing edges; let the magnets “snap” together without guiding with fingers between frames.
  • Separate: Open the hoop slowly and deliberately to control sudden attraction.
  • Protect: Maintain a 12-inch distance from pacemakers/insulin pumps and keep phones/credit cards away from the hoop.
  • Success check: The hoop closes securely without any finger contact at the magnet edges, and nearby electronics are not stored next to the frame.
  • If it still fails: Stop using the hoop until a safer handling routine is in place (two-handed control and a clear work surface).
