Brother Luminaire XP1 Power Move: Save a Permanent 8x12 Basting Box, Then Let the Q Folder Build Your Quilt Sashing

Mastering the Brother Luminaire XP1: The Ultimate Guide to Reusable Basting & Quilt Sashing

If you’ve ever stared at your Brother Luminaire XP1 screen thinking, “I know this machine can do it… why can’t I make it repeatable?”, you’re in the right place.

Machine embroidery is an experience science. It’s not just about pressing buttons; it’s about the sound of the needle, the feel of the fabric tension, and the confidence that comes from a secure setup. This guide rebuilds a clever Luminaire XP1 workflow into a studio-grade standard operating procedure.

You will learn to create a permanent basting stitch file for a specific hoop (demonstrated here with the 8x12), label it so you never stitch the wrong size, and pivot into the Q Folder quilt sashing feature without doing mental math.

The Calm-Down Moment: What the Brother Luminaire XP1 Basting Stitch Is (and Why It’s Not “Just a Temporary Outline”)

The built-in basting stitch on the Brother Luminaire XP1 is designed to create a running-stitch perimeter that matches the current design’s outer boundary. In the video, the instructor leans into that behavior on purpose: instead of treating basting as a one-time helper, she turns it into a reusable file.

Why does this matter? Basting is your "seatbelt." It is the cleanest way to secure fabric when you don’t want to fully hoop the project—especially when you’re working in a “float it and tack it down” workflow. This technique, often paired with a floating embroidery hoop strategy, allows you to hoop only the stabilizer and "float" the fabric on top. The basting stitch then locks the fabric to the stabilizer, preventing shifting and puckering.

Two immutable rules of this workflow:

1. You are not digitizing: You aren't drawing a box point-by-point. You are manipulating the machine's logic to generate it for you.
2. The Dummy Design is the steering wheel: The basting outline size is controlled by the design you load. A tiny design equals a tiny box. A large design equals a large box.


The “Hidden” Prep Pros Do First: Stabilizer, Foot, and a Quick Machine Reality Check

A common user question is, “What foot uses this?” The video shows the standard Embroidery Foot (W+). Do not use a walking foot or a quilting foot for this specific file creation process.

Before you touch the screen, we must address the physical variables. A basting file is only as good as the machine's ability to execute it without snarling.

The "Pre-Flight" Check:

• The Needle Test: Run your fingernail down the tip of your needle. If you feel a "click" or catch, the needle is burred. A dull needle pushes fabric into the bobbin case rather than piercing it. Swap it.
• Speed Limits: While experts may run basting at 1050 SPM (Stitches Per Minute), this is dangerous for floating thick items like towels. Beginner Sweet Spot: Set your machine to 600 SPM. It gives you reaction time if the fabric starts to bunch.
• Screen Sensitivity: If the screen feels "clicky" or sluggish (as noted in the video), slow your hands down. Rapid-tapping freezes the processor.

Prep Checklist: The "Zero-Fail" Start

• Foot: Confirm Embroidery Foot (W+) is snapped on securely.
• Needle: Fresh 75/11 or 90/14 (depending on fabric weight).
• Bobbin: Check that the bobbin is wound evenly. Visual Check: Holds the thread tight? No loops sticking out?
• Hoop Selection: Decide your target hoop first (we are building for the 8x12 here).
• Consumables: Have temporary spray adhesive (like 505) or embroidery tape ready for the floating method.

Warning: Physical Safety Hazard. Keep fingers, scissors, and loose thread tails at least 4 inches away from the needle area when testing a basting file. A basting stitch moves fast and jumps long distances. It will stitch through a finger as easily as fabric.

The Template Trick That Makes It Work: Loading a Dummy Design to Build an 8x12 Basting Box

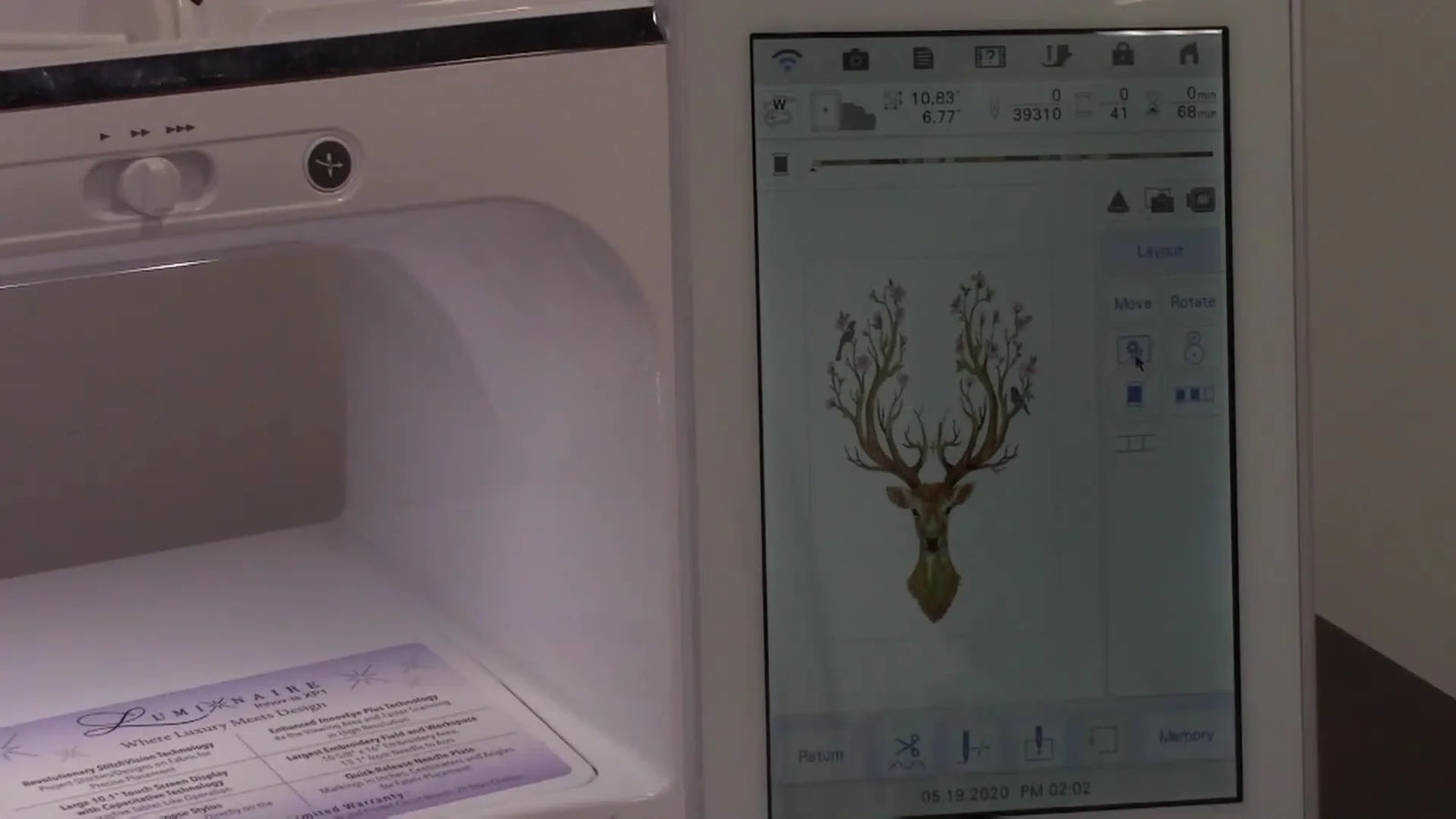

The instructor loads a large design (a deer) as a placeholder. She is very clear: she does not care if it distorts. The goal is to stretch the design until it pushes against the safety margins of the hoop.

The Logic: The Luminaire’s basting stitch is “design-size relative.”

• Small design = Small basting box.
• Maxed-out design = Maxed-out basting box.

Action: On-screen, select the 8x12 hoop. Load any built-in design. Stretch/Resize it until it nearly fills the sewing field.

The One Button That Changes Everything: Turning On the Luminaire XP1 Basting Stitch

In the Layout screen, locate the basting stitch icon. It looks like a flower inside a dotted square (usually near the "Move" commands).

Tap it once.

• Visual Check: A dotted red or black line should appear instantly around your deer design.
• Expectation Management: The outline hugs the deer, not the hoop edge. This is why we stretched the deer in the previous step.


The XP1 Advantage: Deleting the Dummy Design but Keeping the Basting Outline

Here is the specific behavior of the Luminaire XP1 that makes this hack possible (older machines might delete the basting if you delete the design).

Step-by-Step Executions:

1. Select the dummy design (the deer).
2. Delete it.
3. Observe: The basting rectangle remains on the screen.

Now, we fine-tune. The instructor adjusts the box to 11.64" x 7.70".

Expert Note on Margins: Why not go bigger? You need a "Safety Zone." If you push the needle bar to the absolute limit of the hoop, you risk the foot hitting the plastic frame, which can knock the hoop out of alignment or break a needle. 11.64" x 7.70" is a safe, proven dimension for the standard 8x12 hoop.

Checkpoints (Verify Before Moving On)

• Checkpoint A: The screen shows only a rectangular stitch line. No deer.
• Checkpoint B: You can select the rectangle and resize it.
• Sensory Check: When you move the box, the machine shouldn't beep (beeping indicates you are out of bounds).


The Label That Saves You Weeks Later: Adding “8x12” Text so Your Files Aren't "Mystery Squares"

A folder full of unnamed rectangles is a nightmare. You will genericize them, forget which is which, and eventually stitch an 8x12 box into a 5x7 hoop (a disaster for your hoop arms).

The Protocol:

1. Use the machine's font tool to add text inside the box: “8x12”.
2. Color Code: Change the text color (e.g., to Red) so it visually separates from the basting line (usually Black).

Troubleshooting the Screen Lag: If you tap "Red" and the text stays black, use the “Cut” command (scissors icon) on the text. This forces the machine to refresh the color palette steps.

This labeling system is vital. If you own multiple machine embroidery hoops—from the small 4x4 up to the magnetic monsters—naming your files immediately allows you to scale your library without confusion.

Saving and Reusing the File: Pull It From Memory, Then Delete the Numbers

After labeling, save the file to the machine’s internal memory or a USB stick.

The "Working" Workflow: When you are ready to use this file on a real towel or quilt block:

1. Load the "8x12 Basting" file.
2. Identify it matches your hoop.
3. Delete the "8x12" text from the screen.

Why? You want the basting stitch (the box) to secure the fabric. You do not want to embroider the text "8x12" permanently onto your customer's towel. The text is just a label for you, not the project.

Setup Checklist: The "Go-Button" Protocol

• File: Loaded correct basting file?
• Clean: "8x12" text deleted?
• Physical Hoop: Is the 8x12 hoop attached with the correct adapter?
• Fabric: Is the fabric floated over the hoop, smoothed flat?
• Consumable Check: Did you spray the stabilizer (if using cutaway) or pin the corners (outside the stitch zone)?

Why This Works: Avoiding "Hoop Burn" and the "Pop-Out"

Let’s talk about the physics.

Traditional hooping forces you to crush the fabric between inner and outer rings. This causes "Hoop Burn" (crushed velvet/terry loops) and is physically exhausting for the operator. By using this Basting File, you only hoop the stabilizer. The fabric sits on top. The basting stitch acts as the "hands" that hold it down.

The Commercial Upgrade Path: If you find yourself constantly fighting with hooping thick items, or if your wrists ache after a production run of 12 items, this is a hardware bottleneck, not a skill issue.

• Trigger: Wrist pain, hoop burn marks on delicate items, or "popping out" (fabric slipping mid-stitch).
• Judgment Standard: If you spend 5 minutes hooping and only 2 minutes stitching, you are losing money.
• Optimization:
  • Level 1: Use this Basting File method (Cost: $0).
  • Level 2: Upgrade to a magnetic embroidery hoop. Magnetic hoops clamp fabric instantly without the "unscrew-push-screw" friction. They are the industry standard for minimizing hoop burn.
  • Level 3: For XP1 users, searching for a specific brother luminaire magnetic hoop ensures compatibility with the unique slide-on mechanism of the machine.

Warning: Magnet Safety. Magnetic frames use industrial-strength neodymium magnets. They can pinch skin severely (blood blister risk) and must be kept at least 6 inches away from pacemakers and sensitive electronics. Handle with respect.

The Q Folder Demystified: Quilt Sashing Without the Math

The video transitions to the Q Folder (Quilt Sashing). This feature is often ignored because it looks complex. It is actually a calculator.

It asks three questions:

1. Pattern: What design do you want?
2. Block Size: How big is your quilt square? (Video example: 15.00 inches)
3. Hoop Size: What hoop do you have? (Video example: 9-1/2" x 9-1/2")


The “Next” Screen Payoff: Auto-Split Segments

After entering the data, tap Next. The machine calculates how many hoopings are needed to cover that 15-inch block.

The Fear: "Will it line up?" The Fix: The Brother system adds alignment markers (often referred to as the "Snowman" sticker system or crosshairs).

The Alignment Method:

1. Stitch Segment 1.
2. The machine stitches a "mark" at the end.
3. Re-hoop the fabric.
4. Align the purely visual needledrop point with the "mark" on the fabric.
5. Stitch Segment 2.


Decision Tree: To Split or Not to Split?

Use this logic to decide your sashing strategy.

• Scenario A: Block is smaller than hoop.
  • Action: No splitting needed. Center and stitch.
• Scenario B: Block is huge (e.g., 20").
  • Action: Use Q Folder. Trust the "Snowman" markers.
  • Critical: Use a heavy stabilizer to prevent the fabric from shrinking between hoopings.
• Scenario C: Fabric is slippery (satin/silk).
  • Action: Do not trust standard hooping. Baste first using the file we created above, then run the sashing.
• Scenario D: High Volume Production.
  • Action: If you have 50 blocks to do, standard hoops are too slow. Consider embroidery hoops magnetic to speed up the re-hooping process for the multiple segments required per block.

Touchscreen Lag: When the Luminaire "Clicks" But Doesn't Act

The video highlights a relatable frustration: clicking a color change, and nothing happens.

Diagnosis: This is usually Processor Stack. If you tap-tap-tap faster than the graphical interface loads, the machine ignores the input to prevent crashing.

The Fix:

• Tactile: Press firmly.
• Timing: Wait for the specific "Beep" or visual toggle before tapping again.
• Workaround: As mentioned, use the "Cut" tool to refresh the screen state if a button seems stuck.

Clean Machine, Fast Machine: Batch Deleting

Over time, your memory fills with failure. Test files, "maybe" designs, and bad edits clog the drive.

The Pro Tip: Use the Multi-Select Tool (icon: overlapping squares with a checkmark).

1. Tap Multi-Select.
2. Tap every file you want to purge.
3. Delete all at once.


The Upgrade Path: When Better Tools Beat Better Patience

You have optimized your software workflow with the Basting File. Now, look at your physical workflow.

If you are running a business or a serious hobby studio, your body is the weak link. Repetitive strain from tightening hoop screws is a career-ender.

• The Hooping Station: If you struggle to get shirts straight, a hoopmaster hooping station or a generic hooping station for embroidery creates a mechanical jig. You slide the shirt on, place the hoop, and press. Same spot, every time.
• The Magnetic Advantage: Pairing a hooping station with magnetic frames eliminates the hand-screw motion entirely. This is how commercial shops run 100 shirts a day without injury.

Final Operation Checklist: The Success Loop

Before you close this guide, run through this list on your next project.

1. Select & Clean: Load the 8x12 Basting file. Delete the text label.
2. Float: Spray adhesive on stabilizer, float fabric on top.
3. Secure: Run the basting stitch (Speed: 600 SPM). Watch for fabric ripples—smooth them with your hands (keeping fingers safe!).
4. Design Entry: Load your actual design or Q Folder sashing.
5. Execution: Stitch the design.
6. Removal: Pop the basting stitches (they are long and easy to remove) and tear away the stabilizer.

By standardizing this process on your brother embroidery machine with 8x12 hoop, you move from "hoping it works" to "knowing it will." That is the difference between a hobbyist and a master.

FAQ

• Q: Which presser foot should be used to create a reusable basting stitch file on the Brother Luminaire XP1?
  A: Use the standard Embroidery Foot (W+) for creating and running the Brother Luminaire XP1 basting file.
  • Confirm the Embroidery Foot (W+) is snapped on securely before starting.
  • Avoid switching to a walking foot or quilting foot for this file-creation workflow.
  • Set a beginner-safe speed like 600 SPM when testing on floated, thick items.
  • Success check: The fabric stays flat while the basting line runs without grabbing or bunching.
  • If it still fails: Re-check needle condition and bobbin winding before changing any settings.
• Q: Why does the Brother Luminaire XP1 basting stitch box come out too small when trying to make an 8x12 reusable basting file?
  A: The Brother Luminaire XP1 basting outline is controlled by the size of the loaded design, so a small design produces a small basting box.
  • Load any built-in design as a “dummy design,” then select the 8x12 hoop on-screen.
  • Resize the dummy design until it nearly fills the sewing field (close to the safe margins).
  • Turn on the basting stitch in the Layout screen to generate the outline.
  • Success check: A dotted outline appears immediately and is close to hoop capacity (not a tiny box).
  • If it still fails: Verify the correct hoop is selected on-screen before resizing the dummy design.
• Q: How can the Brother Luminaire XP1 keep the basting outline after deleting the dummy design during reusable basting file creation?
  A: On the Brother Luminaire XP1, delete the dummy design after enabling basting, and the rectangular basting outline should remain selectable.
  • Enable the basting stitch first so the outline is created around the dummy design.
  • Select the dummy design and delete it; do not delete the rectangle.
  • Resize the remaining rectangle to a safe 8x12 working size (example shown: 11.64" x 7.70") to avoid hoop strikes.
  • Success check: The screen shows only a rectangle, and it can be moved/resized without out-of-bounds beeps.
  • If it still fails: Repeat the order—turn on basting first, then delete the dummy design.
• Q: How do you label a Brother Luminaire XP1 basting box file as “8x12” without accidentally stitching the label onto a towel or quilt block?
  A: Add “8x12” text only as a saved-file label, then delete the text before stitching the basting line on the real project.
  • Add text “8x12” inside the rectangle using the machine font tool.
  • Change the text color to a contrasting color for easy identification on-screen.
  • Save the file to internal memory or USB, then reload it later and delete the “8x12” text before pressing start.
  • Success check: The stitch screen shows only the rectangle (no “8x12” lettering) right before sewing.
  • If it still fails: Stop immediately if text starts stitching, cancel the job, reload the file, and delete the text again.
• Q: Why does the Brother Luminaire XP1 touchscreen “click” but not change color or respond when editing basting file text?
  A: Brother Luminaire XP1 touchscreen lag is often caused by tapping faster than the interface refreshes, so slow down and force a refresh if needed.
  • Press firmly and wait for the beep or visible change before tapping again.
  • Avoid rapid tap-tap inputs that can be ignored by the processor.
  • Use the “Cut” (scissors) command on the text to force the screen state to refresh if a color selection looks stuck.
  • Success check: The text color visibly changes and stays changed after exiting the color screen.
  • If it still fails: Close and reopen the edit screen and repeat with slower, single taps.
• Q: What needle and bobbin checks prevent nesting or snarling when test-stitching a Brother Luminaire XP1 reusable basting file?
  A: Start with a fresh needle and an evenly wound bobbin because basting moves fast and long jumps can amplify small setup issues.
  • Replace the needle if a fingernail test catches or “clicks” on a burr.
  • Use a 75/11 or 90/14 needle depending on fabric weight (a safe starting point; confirm with the machine manual).
  • Visually inspect the bobbin: it should look evenly wound with no loose loops sticking out.
  • Success check: The basting line forms cleanly with no thread birdnesting underneath during the first perimeter run.
  • If it still fails: Slow the machine to around 600 SPM and re-test on scrap using the same floating setup.
• Q: What safety precautions should be followed when running a fast basting stitch on the Brother Luminaire XP1, especially with floated fabric?
  A: Keep hands and tools well away from the needle area because a basting stitch runs fast and travels long distances.
  • Keep fingers, scissors, and loose thread tails at least 4 inches away from the needle area during tests.
  • Start at a conservative speed (the guide’s beginner sweet spot is 600 SPM) to give reaction time.
  • Watch for fabric ripples and smooth fabric only from a safe distance while the machine is moving.
  • Success check: The basting perimeter completes without any close calls, snagged tools, or pulled-in thread tails.
  • If it still fails: Stop the machine, reposition the fabric, and restart only after clearing the entire needle path.
• Q: When should Brother Luminaire XP1 users move from the floating basting-file method to magnetic embroidery hoops or a higher-output machine for production efficiency?
  A: Upgrade when hooping time and physical strain dominate the job, because that is usually a hardware bottleneck—not a skill issue.
  • Measure time: If hooping takes about 5 minutes and stitching takes about 2 minutes, efficiency is being lost.
  • Start with Level 1: Use the reusable basting file + floating method to reduce hoop burn and fabric pop-out.
  • Move to Level 2: Consider magnetic hoops when hoop burn, wrist pain, or frequent slipping persists despite good basting technique.
  • Move to Level 3: Consider a production-oriented multi-needle setup when volume requires faster, repeatable throughput.
  • Success check: Hooping becomes quick and consistent, and fabric stays secured with fewer re-hoops or re-dos.
  • If it still fails: Standardize the setup checklist (hoop selection, basting file, label deleted, speed) before investing further.
