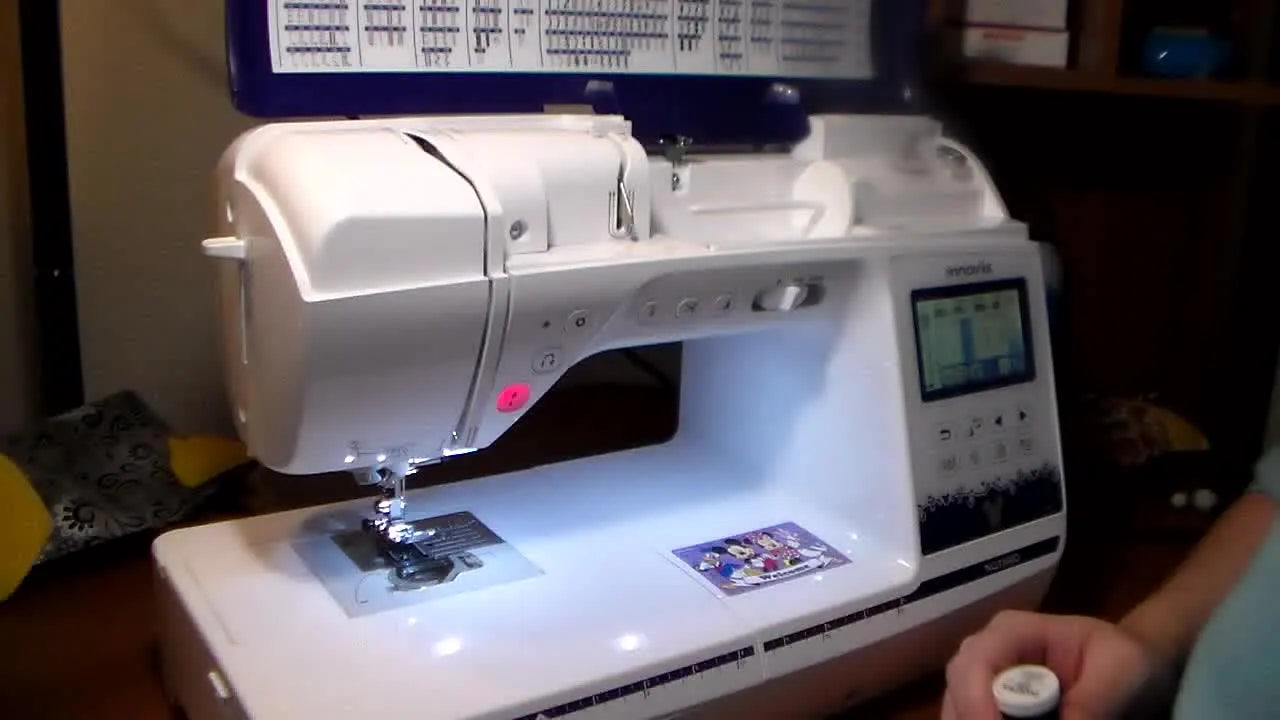

Brother NQ3500D Threading That Actually Works: Stop Wasting Thread, Stop Fighting the Needle Threader

The "Zero-Variables" Protocol: Mastering the Brother NQ3500D Without the Fear

If you’ve ever stared at your Brother NQ3500D thinking, “I know I threaded it… so why is it acting possessed?”, you’re not alone. In my 20 years of teaching machine embroidery, I’ve learned that threading problems feel personal. They waste expensive thread, ruin garments, and make the machine sound terrifying.

But here is the truth: The machine isn't possessed; it’s just physics.

This guide rebuilds the standard routine for the Brother NQ3500D—upper threading, the automatic needle threader, winding a bobbin, and loading the drop-in bobbin—into a clean, repeatable "Zero-Variables" Protocol. We will move beyond "hoping it works" to "knowing it will work."

The Calm-Down Check: Brother NQ3500D Presser Foot Lever + Screen Lock Before You Touch Thread

The fastest way to “break” a perfectly good threading job is to start with the presser foot down. It’s a matter of mechanics, not magic.

The "Garage Door" Principle: Inside the machine’s plastic shell are tension discs—metal plates that squeeze the thread to control flow.

• Presser Foot UP = Garage Door OPEN (Discs separate). Thread can slide deep between them.
• Presser Foot DOWN = Garage Door CLOSED (Discs clamp shut).

If you thread with the foot down, the thread floats on top of the closed discs. You will get zero tension, resulting in a "birdnest" of loops on the back of your fabric instantly.

Bobby also demonstrates a safety habit that saves hours of frustration: locking the screen.

Action Protocol (Execute in Order):

1. Select the Cap: Choose a spool pin cap that is strictly larger than your spool diameter.
   • Why? If the cap is too small, thread creates a "lasso" around the pin, causing a snap.
2. Mount the Spool: Push the cap until it makes firm contact with the spool. There should be no gap.
3. Raise the Presser Foot: This is non-negotiable. Lift the physical lever.
4. Lock the Screen: Tap the screen-lock button (presser-foot icon) to freeze the interface.

Expected Outcome:

• Touch: Thread pulls effectively friction-free off the spool.
• Sight: The screen is greyed out/locked, ensuring your knuckles don’t accidentally change settings.

Warning: Keep fingers, loose sleeves, and long hair away from the needle area when turning the handwheel. Even on a home machine, a sudden needle movement can puncture a finger or catch loose fabric.

Prep Checklist (Do this **before** touching the thread)

• Spool Cap Check: Is the cap wider than the spool rim?
• Physical Lever Check: Is the presser foot lever UP?
• Path Check: Is the thread free of the spool's catch-notch?
• Screen Check: Is the "Lock" icon active?
• Tool Check: Are curved embroidery scissors within reach?

The “Numbered Path” Method: Brother NQ3500D Upper Threading Guides 1–5 Without Guessing

Bobby’s key point is simple: follow the solid-line arrows for threading and the numbered guides. However, we need to add a sensory check to ensure the thread is truly seated.

Upper Threading Protocol:

1. Guide 1 (The Pre-Tension): Go behind the white guide. Hold the thread with two hands (like flossing) to snap it under the metal plate.
2. Guide 2 (The U-Turn): Go straight down the right channel, following the arrow into the U-turn.
3. Guide 3 (The Ascent): Bring the thread straight up the left channel.
4. Guide 4 (The Critical Take-Up Lever): This is where 80% of beginners fail.
   • Action: Pull thread back toward the rear dust cover, then forward firmly.
   • Sensory Anchor: You are looking for the thread to slip into the eyelet of the metal arm.
5. Guide 5 (The Descent): Bring the thread back down toward the needle bar.

The "Floss Test" (Sensory Verification): Once threaded through the take-up lever, gently tug the thread near the spool.

• Fail: It feels loose or airy.
• Pass: You feel a smooth, consistent drag, similar to pulling dental floss. This confirms the thread is between the tension discs.

Expert Insight: If you are investing in a brother sewing and embroidery machine, understanding the take-up lever is the difference between a joyful hobby and a nightmare. If the thread jumps out of this lever, the machine cannot pull the stitch tight, resulting in immediate jamming.

The Needle Threader Sweet Spot: Brother NQ3500D Needle Bar Guide (Step 6) + Threader Slot (Step 7)

The automatic needle thread is a precision instrument, not a brute-force tool. It relies on perfect alignment.

The "Top Dead Center" Rule: The threader hook cannot pass through the needle eye unless the needle is at its absolute highest point.

Action Protocol:

1. Align: Ensure the needle is at the highest position (use the "Needle Up/Down" button twice to cycle it if unsure).
2. Guide 6: Pass thread through the horizontal slit on the needle bar from right to left.
3. Guide 7 ( The Catch): Pull thread through the "7" guide.
4. Trim: Use the side cutter to trim the tail. This prevents a long tail from tangling.
5. Engage: Press the lever down firmly but smoothly.

Expected Outcome:

• Sight: A small loop of thread appears through the back of the needle eye.
• Sound: A soft mechanical clunk-click as the mechanism engages and retracts.

Troubleshooting The "Jam": If the lever refuses to go down, STOP.

• Cause: The needle is slightly too low.
• Fix: Rotate the handwheel toward you 1/4 turn or use the button to reset the needle height. Forcing it will bend the internal hook (a $40+ repair).

The Clean Unthreading Habit: Brother NQ3500D Lint Control by Snipping at the Spool

Maintenance starts with how you remove thread.

The "Clip and Pull" Rule:

1. Clip: Cut the thread at the spool pin (top of machine).
2. Pull: Pull the excess thread out through the needle (bottom of machine).

Why? (The Physics): Thread has microscopic "scales" and gathers lint. If you yank thread backwards (from the spool), you drag lint and dust into the tension discs. Over time, this buildup forces the discs apart, ruining your tension.

Whether you use a generic model or a high-end brother sewing machine, this habit preserves your machine's lifespan.

Bobbin Winding That Doesn’t Tangle: Brother NQ3500D Pretension Nub + “Inside-Out” Bobbin Hole Rule

Baggy bobbins cause broken needles. A bobbin must be wound tight and solid, like a drum.

Note: Follow the dashed-line path labeled on the machine body.

Winding Protocol:

1. Route: Follow the dashed lines. Crucially, wind the thread behind the pretension nub and under the round guide disc. This applies the necessary drag to pack the thread tightly.
2. Thread the Hole: Push the thread end through the hole in the top of the bobbin from inside to outside.
3. Lock: Place bobbin on the shaft. Slide shaft to the right (Winding Mode).
4. The "Anchoring" Start: Hold the thread tail sticking out of the top. Start the machine at low speed. Let it wind 5-10 rotations.
5. Trim: Stop the machine. Cut the tail flush with the plastic.
6. Finish: Resume winding.

Speed Limit Recommendation: For a beginner, I recommend setting the speed slider to Medium. Winding at maximum speed can sometimes stretch delicate embroidery thread or warp plastic bobbins due to friction heat.

Setup Checklist (Before you press Start to wind)

• Path Check: Are you following the dashed lines (not solid)?
• Tension Check: Is thread securely under the round pretension disc?
• Direction Check: Is the thread coming out of the bobbin hole inside-to-out?
• Engagement Check: Did you click the winder shaft to the right?
• Speed Check: Is the speed slider set to Medium for safety?

The Counter-Clockwise Rule: Brother NQ3500D Drop-In Bobbin Orientation

This is the single most common error in machine embroidery.

The "P" for Perfect Rule: When you hold the bobbin up, with the thread hanging down, it must look like the letter "P". If it looks like a "q", it is backwards.

Loading Protocol:

1. Drop: Drop the "P" shaped bobbin into the case. It must unwind Counter-Clockwise.
2. Trap: Place a finger on top of the bobbin to stop it from spinning.
3. Route: Pull the thread through the slit (arrow 1) and around the curve (arrow 2).
4. Cut: Pull gently across the built-in cutter at the end of the channel.
5. Cap: Reinstall the plastic cover (left tab first, then click right).

Why this matters: If you are learning on a brother embroidery machine for beginners, realize that the tension for the lower thread is created by that specific slit in step 3. If you miss it, you have zero bobbin tension.

The Upgrade Path: When "Skill" Isn't Enough and You Need Better Tools

Once your NQ3500D is threading reliably, you may find that the machine isn't the bottleneck—your workflow is.

In a professional studio, we upgrade tools based on Pain Triggers.

1. The "Hoop Burn" & Wrist Pain Trigger

Scenario: You are struggling to hoop a thick hoodie. You tighten the screw until your hands hurt, but the fabric still pops out or shows "hoop burn" (shiny rings) from the friction. The Diagnosis: Traditional friction hoops struggle with thick or slippery items. The Solution: Master the use of Magnetic Hoops.

• Why? They use vertical magnet force rather than horizontal friction. There is no "screwing" involved, and they hold thick garments securely without crushing the fibers.
• This is why searching for specific machine embroidery hoops keeps leading you to magnetic options—they are an ergonomic necessity for volume work.

Warning - Magnetic Safety: Magnetic hoops (like those from SEWTECH) use industrial-grade magnets.
* Pinch Hazard: They snap together instantly. Keep fingers clear.
* Medical Device: Keep 6+ inches away from pacemakers.
* Electronics: Do not place phones or credit cards directly on the magnets.

2. The "Color Change" Production Trigger

Scenario: You have an order for 20 polo shirts with a 4-color logo. You spend more time sitting in front of the machine changing thread than the machine spends stitching. The Diagnosis: You have outgrown the single-needle workflow. The Solution: This is the entry point for Multi-Needle Machines (like the SEWTECH commercial line).

• Why? You load all 4 colors at once. The machine swaps them automatically. You press start and walk away.
• If you find yourself searching for a sewing and embroidery machine that can handle "small business" volume, assess your time cost. If you swap thread 50 times a day, the machine upgrades pay for themselves.

Decision Tree: Fabric vs. Stabilizer vs. Hoop

Bad threading is often blamed for issues that are actually bad stabilization. Use this logic tree:

1. Is the fabric stretchy (T-shirt, Hoodie)?

• YES: You MUST use Cutaway Stabilizer.
  • Why? Knits stretch. Tearaway stabilizer tears. If the stabilizer tears while the fabric stretches, your design will distort.
  • Hooping: Do not stretch the fabric in the hoop. Lay it neutral.

2. Is the fabric stable (Denim, Canvas, Towel)?

• YES: You can use Tearaway Stabilizer.
  • Why? The fabric supports itself. The stabilizer just provides a temporary platform.

3. Are you struggling with placement?

• YES: Consider hooping for embroidery machine stations or magnetic frames to allow you to slide the fabric without un-hooping the backing.

Common Brother NQ3500D Symptoms & Cures Table

When things go wrong, don't panic. Consult this triage table.

Final Operation Check: The "Green Light" Stitch

Bobby finishes by sewing a straight stitch on a scrap. Never skip this.

A scrap test is your insurance policy. It confirms that the upper thread and bobbin thread have met, shook hands, and agreed to work together.

Operation Checklist (The "Go for Launch" Standard)

• Lever Check: Is the thread visibly seated in the eye of the take-up lever?
• Bobbin Check: Did you load the "P" shape counter-clockwise?
• Tail Check: Is the bobbin tail cut short by the built-in cutter?
• Sound Check: Run a test stitch. Does it sound rhythmic (good) or clunky/grinding (bad)?

If you follow this "Zero-Variables" protocol, your Brother NQ3500D becomes what it should be: a boring, reliable tool that lets you focus on the art, not the struggle. Happy stitching.

FAQ

• Q: How do I prevent Brother NQ3500D birdnesting (loops under fabric) caused by threading with the presser foot down?
  A: Re-thread the Brother NQ3500D with the presser foot lever UP so the upper thread seats between the tension discs.
  • Raise the presser foot lever fully before touching the thread path.
  • Re-thread using the numbered guides, then “floss” the thread into Guide 1 so it snaps under the metal plate.
  • Re-seat the take-up lever by pulling thread back toward the rear cover, then forward firmly.
  • Success check: the thread pulls with smooth, consistent drag (like dental floss), not loose/airy.
  • If it still fails, cut the thread out and re-thread again from the spool, then run a short scrap test stitch before embroidering.
• Q: What causes the Brother NQ3500D automatic needle threader lever to jam or refuse to go down?
  A: Stop and bring the Brother NQ3500D needle to its absolute highest position (Top Dead Center) before engaging the needle threader.
  • Tap the Needle Up/Down button twice if unsure, or rotate the handwheel toward you slightly to raise the needle.
  • Thread the needle bar slit from right to left, then route into the “7” guide before pressing the lever.
  • Trim the thread tail with the side cutter to avoid tangles during threading.
  • Success check: a small loop appears through the back of the needle eye with a soft clunk-click as the mechanism retracts.
  • If it still fails, do not force the lever; re-check needle height alignment because forcing can bend the internal hook.
• Q: How do I wind a tight bobbin on the Brother NQ3500D so the bobbin thread does not tangle or create baggy winding?
  A: Use the Brother NQ3500D dashed-line bobbin-winding path and make sure the thread goes behind the pretension nub and under the round guide disc.
  • Route the thread exactly on the dashed-line diagram, specifically behind the pretension nub/under the round disc for drag.
  • Feed the thread through the bobbin hole from inside-to-outside, then click the winder shaft to the right.
  • Start at low speed, wind 5–10 turns while holding the tail, stop and trim the tail flush, then finish winding.
  • Success check: the bobbin feels firm and “drum-tight,” not spongy or loosely layered.
  • If it still fails, reduce winding speed (a safe starting point is Medium) and re-check that the thread is truly under the pretension disc, not floating above it.
• Q: What is the correct Brother NQ3500D drop-in bobbin direction to prevent bobbin thread showing on top and tension problems?
  A: Load the Brother NQ3500D bobbin so it unwinds counter-clockwise in a “P” shape, then route it through the slit and around the curve into the tension path.
  • Hold the bobbin with thread hanging: it must look like a capital “P” (not “q”) before dropping it in.
  • Place a finger on the bobbin to stop spinning, then pull the thread through the slit (arrow 1) and around the curve (arrow 2).
  • Pull across the built-in cutter to trim, then reinstall the cover (left tab first, then click right).
  • Success check: top stitches look clean (not bobbin color pulled to the top) and the machine sounds rhythmic on a scrap stitch.
  • If it still fails, re-seat the bobbin and “floss” the thread into the slit again—missing that slit equals zero bobbin tension.
• Q: What is the safest way to remove upper thread on a Brother NQ3500D to reduce lint buildup in the tension discs?
  A: Clip the thread at the Brother NQ3500D spool and pull the thread out through the needle, not backwards through the machine.
  • Cut the thread right at the spool pin first.
  • Pull the remaining thread down and out through the needle area.
  • Make this a habit after every color change or when switching threads.
  • Success check: the thread exits smoothly from the needle end without dragging fuzz back into the machine.
  • If it still fails (thread feels stuck), stop and re-check the thread path—do not yank hard; re-thread and remove again gently.
• Q: What safety rule should Brother NQ3500D users follow around the needle area when turning the handwheel or threading?
  A: Keep fingers, loose sleeves, and long hair away from the Brother NQ3500D needle area before moving the handwheel or using needle controls.
  • Move hands out of the needle zone before rotating the handwheel toward you.
  • Lock the screen to prevent accidental setting changes while hands are near the needle area.
  • Work slowly when aligning for the needle threader—precision beats force.
  • Success check: hands stay clear during any needle movement, and there is no unexpected fabric/skin contact.
  • If it still fails (accidental needle movement keeps happening), pause and use the screen lock consistently before threading or adjusting.
• Q: When thick hoodies cause hoop burn and wrist pain on a Brother NQ3500D workflow, when should the upgrade path be magnetic hoops vs. a multi-needle machine?
  A: Use a tiered fix: first stabilize/hoop correctly, then consider magnetic hoops for hooping pain and fabric holding, and only then consider a multi-needle machine for color-change production time.
  • Level 1 (technique): Choose stabilizer by fabric type (stretchy knits need cutaway; stable fabrics can use tearaway) and avoid stretching fabric in the hoop.
  • Level 2 (tool): Switch to magnetic hoops when screw-tightening causes wrist pain or thick garments pop out/leave shiny rings; magnets hold by vertical force instead of friction.
  • Level 3 (capacity): Move to a multi-needle machine when thread-changing time dominates (for example, repeated multi-color logo runs) and the bottleneck is no longer stitching.
  • Success check: hooping feels controlled (no fabric slipping or shiny rings) and production time drops because re-hooping and re-threading decrease.
  • If it still fails, isolate the trigger: if distortion persists, revisit stabilizer choice; if hold/ergonomics is the issue, prioritize magnetic hoops; if time is the issue, prioritize multi-needle workflow.
• Q: What magnetic hoop safety rules should embroidery users follow to avoid pinches and device interference?
  A: Treat magnetic hoops as industrial magnets: keep fingers clear when closing, keep distance from pacemakers, and avoid placing phones or credit cards on the magnets.
  • Keep fingertips out of the closing path—the hoops can snap together instantly.
  • Maintain at least 6 inches of separation from pacemakers and similar medical devices.
  • Keep electronics and magnetic-stripe cards off the magnet surfaces.
  • Success check: hoops close without finger contact, and no devices are brought into the magnetic contact zone.
  • If it still fails (pinching risk feels hard to control), slow down the hoop-closing step and separate/align the rings on a stable flat surface before letting magnets engage.
