Brother NV2700 Embroidery Features That Actually Matter: Faster Hooping, Cleaner Placement, and Fewer “Why Did It Shift?” Moments

If you’ve ever stared at a new combo machine like the Brother NV2700 and felt that knot in your stomach thinking, “Is this going to be smooth… or am I about to spend my weekend unpicking a bird’s nest of thread?”, you are not alone. That feeling is valid.

Embroidery is not just pushing a button; it is a collaboration between physics, tension, and fabric stability. The NV2700 is engineered to make this approachable—with touchscreen navigation, hoop sensing, and that brilliant LED pointer foot—but the difference between a project that says “handmade” and one that looks “homemade” comes down to your setup habits.

This guide rebuilds the embroidery workflow to include the "shop-floor secrets" that manuals often skip—the tactile checks, the specific parameters, and the safety protocols that prevent fabric shift, puckering, and wasted stabilizer.

The Calm-Down Check: What the Brother NV2700 Is (and Isn’t) Before You Spend a Dollar

A viewer asked the most honest question: “I want to buy this machine. Is it good and of good quality?” That is the right instinct—because in embroidery, "quality" isn't just about the brand. It is about repeatability. Can you get the same result twice?

From the video and field experience, here is the operational reality of the NV2700:

• Interface: A 4.9” (approx. 12 cm) color touchscreen. This is your command center.
• Capacity: 260 x 160 mm embroidery area. This fits large jacket backs and decent-sized tote bag logos.
• Speed: Rated at 850 stitches per minute (SPM).
  • Pro Tip: Just because it can go 850 doesn't mean you should immediately. For your first 10 hours, or when using metallic threads, throttle this down to 600 SPM. This is the "Beginner Sweet Spot" where tension issues are more forgiving.
• Intelligence: It has active sensors for upper thread breakage and running out of bobbin thread.
• Precision: The LED pointer foot eliminates the guesswork of "where will the needle land?"

What it cannot do: It cannot physically hold slippery fabric if your hooping technique is loose. It cannot fix a design that is too dense for a t-shirt. That is where you—the operator—and your choice of tools (like stabilizers and frames) come in.

The “Hidden” Prep Pros Do First: Bobbin, Thread Path, Stabilizer, and a 30-Second Machine Health Check

Before you touch the design screen, you must perform the "Pre-Flight" checks. In my shop, 80% of failures happen before the start button is pressed.

The "Hidden Consumables" You Need

Don't rely solely on what is in the box. You need:

• Fresh Needles: Start with a 75/11 Embroidery Needle. Change it every 8 operational hours.
• Temporary Spray Adhesive (e.g., 505): Essential for floating fabric.
• Precision Snips: For trimming jump stitches close to the fabric.

30-Second Machine Health Check

1. Clear the bobbin race: Open the plate. Is there lint? One spec of dust can mess up tension.
2. Check the needle tip: Run your fingernail down the needle. If you feel a catch/burr, throw it away. It will shred your expensive thread.
3. Listen: turn the handwheel (towards you). It should feel smooth. Any grinding sound means "Stop."

Prep Checklist (Do this or risk failure)

• Bobbin: Use the correct height (Brother bobbins are specific, usually 11.5mm). Do not use generic metal bobbins.
• Thread Path: Is the thread seated deep in the tension discs? (Floss it like teeth).
• Stabilizer Selection: Matched to fabric (see Decision Tree below).
• Needle: Is it fresh and inserted all the way up?

If you are planning to run a small home business, consider a hooping station for machine embroidery. It standardizes your placement so every shirt logo lands in the exact same spot, reducing the variable of human error.

Brother NV2700 Embroidery Hoop Sizes and Slide-In Locking: Use the Hoop Sensor to Avoid a Bad Surprise

The video demonstrates the standard hoops included:

• 26 cm x 16 cm (10” x 6”): Large projects.
• 18 cm x 13 cm (7” x 5”): Standard logos/monograms.

The Physics of the Lock: These are slide-in hoops. You must push them into the embroidery unit carriage until you hear a mechanical CLICK. If you don't hear the click, the hoop will vibrate loose mid-stitch, ruining the design.

The Hoop Sensor: The machine knows which hoop is attached. If you select a large design but attach the small hoop, the machine will refuse to sew. This protects your needle from smashing into the plastic frame.

When people search for brother embroidery hoops sizes, they effectively want to know: "Can I embroider a large quilt block?" With 26x16cm, the answer is yes, but remember: the larger the hoop, the more the fabric can "trampoline" in the center. Use more pins or adhesive spray on large areas to keep fabric stable.

Optional Magnetic Frame + Cap Frame Insert on the Brother NV2700: When Accessories Stop Being “Nice” and Start Saving You

Hooping is the hardest physical skill to master. Traditional hoops require wrist strength and can leave "hoop burn" (crushed fibers) on velvet or delicate performance wear.

Here is the practical upgrade path: If you are struggling with thick items (towels, tote bag seams) or delicate items (silk), a magnetic frame for embroidery machine is the solution.

• Why? It uses vertical magnetic force rather than lateral friction/stretching.
• Result: No hoop burn, and much faster loading.

Warning: Magnet Safety
Magnetic frames use powerful neodymium magnets.
* Pinch Hazard: Do not get your fingers caught between the magnets; they snap together instantly.
* Medical Safety: Keep away from pacemakers and sensitive electronics.

If hats are your goal, the optional cap hoop for embroidery machine is non-negotiable. Hats are 3D objects that fight being flattened. A cap frame creates a cylindrical sewing area to maintain registration.

Commercial Context - The "Upgrade Logic":

• Level 1 (Hobby): Use standard hoops. Learn to tighten perfectly.
• Level 2 (Side Hustle): Buy Magnetic Hoops to save 2 minutes per shirt and save your wrists.
• Level 3 (Scale): If you are consistently doing orders of 50+ items, you will eventually outgrow a single-needle machine. This is where you look at brands like SEWTECH for industrial multi-needle solutions that allow you to queue up 12 colors at once.


Bobbin Winding on the Brother NV2700: Fill It Fast Without Overwinding (09:17–09:29)

The video’s bobbin winding sequence is straightforward, but here is the Sensory Check regarding tension:

1. Thread the path: Ensure the thread is snug under the pre-tension disk on the top left.
2. Wind: Press the lit orange Start button.
3. The Touch Test: When finished, squeeze the bobbin. It should feel hard like a rock, not squishy like a marshmallow. A squishy bobbin will release thread unevenly, causing loops on the top of your embroidery.

Pro Tip: Always wind a fresh bobbin before starting a long 20,000-stitch design. The machine has a low-bobbin sensor, but stopping in the middle of a complex fill stitch can sometimes leave a visible seam.

Automatic Needle Threader on the Brother NV2700: The “Firm Lever Press” That Makes It Work (09:30–09:43)

The NV2700 features an advanced needle threader. The Steps:

1. Follow guides 1–6.
2. At guide 7, cut the thread on the built-in cutter on the side.
3. Press the lever on the left.

The Secret: It is not a gentle tap. It requires a confident, full depression of the lever.

Warning: Mechanical Safety
Never use the automatic threader if you are using a needle smaller than size 75/11, or a specialty needle (like a Wing needle). The hook is too large for tiny eyes and will bend or break, requiring a repair shop visit. Thread these manually.

Wireless Design Transfer + Built-In Design Categories: Get to the Stitch Screen Without Getting Lost (14:45–15:50)

The NV2700 supports Wi-Fi transfer using Brother’s Design Database Transfer (PC).

Workflow:

1. Send design from PC.
2. On machine, click the "Wifi" icon tab.
3. Select design.
4. Check Dimensions: Before hitting "Set," look at the size in mm. Does it fit your intended hoop?

Edit Screen: Once loaded, you can Resize, Rotate, or Mirror.

• Rule of Thumb: Do not resize a design up or down by more than 20% on the machine. The machine does not always recalculate stitch density perfectly. If you need to double the size, do it in digitizing software on your computer first.

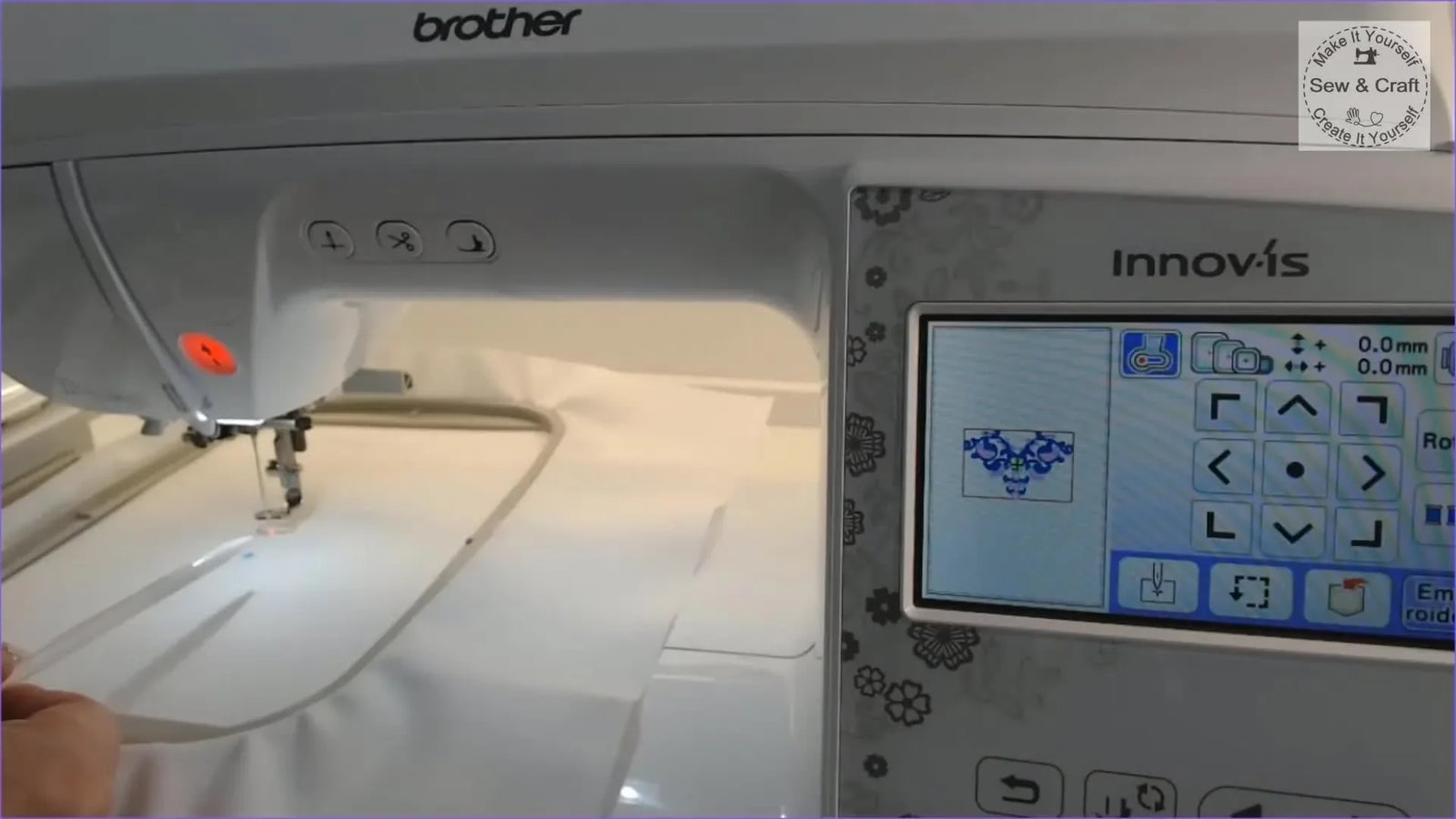

The LED Pointer Foot on the Brother NV2700: Nail Placement on the First Try (15:58–16:47)

This feature eliminates the "Where is the center?" panic.

The "Sniper" Method:

1. Mark your fabric center with a water-soluble pen or chalk.
2. Hoop the fabric. It doesn't have to be perfectly straight (we can fix that).
3. Activate the LED Pointer. A red dot appears on the fabric.
4. Use the arrow keys on the screen to move the hoop until the Red Dot sits exactly on top of your Chalk Mark.

Trace/Map: Always hit the "Trace" (box with arrows) button. The machine will move the hoop around the outer boundary of the design.

• Visual Check: Does the needle bar stay within your hoop? Does it hit any plastic clips?

This is crucial for anyone learning hooping for embroidery machine basics—it provides a visual confirmation before a single stitch is sewn.

Starting the Stitch-Out on the Brother NV2700: The Click-Lock Hoop, Presser Foot Down, Green Button Go (17:37–18:15)

The launch sequence must be disciplined.

1. Slide Hoop: Push until it CLICKS. Try to pull it back gently; it should not move.
2. Presser Foot: Lower the lever. The Light turns Green.
3. Thread Tail: Hold the top thread tail for the first 3-4 stitches to prevent it from being sucked down into the bobbin area (which causes birdnesting).

Setup Checklist (The "Pre-Flight"):

• Hoop locked (Click sound)?
• Presser foot down (Green light)?
• LED pointer turned off?
• Thread tail held?


Color Sequence Screen + Auto Trims: Why Your Finish Looks Cleaner (and When It Still Won’t)

The screen shows you the timeline: Current Color / Time Remaining / Next Color.

The Jump Stitch Trimmer: The NV2700 automatically cuts jump stitches (the thread traveling from one object to another).

• Benefit: CLEAN results. You don't have to spend 20 minutes with scissors afterwards.
• Caveat: If your stabilizer is too loose, the fabric will bounce during the trim, causing the next stitch to fray.

If you are using a magnetic embroidery hoop, the powerful hold helps minimize this "flagging" (bouncing) of fabric, ensuring the auto-trimmer works cleanly.

Power Outage Resume on the Brother NV2700: The Feature You Hope You Never Need (But You’ll Love Once)

If the power dies, the machine remembers the last needle drop position. Recovery Protocol:

1. Turn power back on.
2. Acknowledge the resume message.
3. CRITICAL: Before pressing start, check your hoop. Did the fabric shift while the motors were disengaged? If the fabric moved 1mm, your design outlines will be off.


Lettering on the Brother NV2700: Rotation, Density, Spacing, and the Knife Tool That Unlocks Real Layout Control (20:25–22:00)

The NV2700 has 13 built-in fonts.

The "Knife" Tool: This allows you to separate a word into individual letters.

• Use Case: You are embroidering a name on a Polo shirt, but the name is curved. You can split "ROBERT" and manually rotate and step "R" "O" "B" to follow the curve perfectly.

Density Control: You can adjust density between 90% - 120%.

• Small Text: Reduce density to 90%. Too much thread in small text creates a hard, illegible lump.
• Terry Towels: Increase density to 110% to prevent the loops of the towel from poking through the letters.

If you are looking for magnetic embroidery hoops for brother machines to hold towels, ensure you pair that hardware with increased stitch density for the best coverage.

Stabilizer Decision Tree for NV2700 Embroidery: Stop Guessing, Start Matching Fabric Behavior

Stabilizer is not an accessory; it is the foundation. Wrong stabilizer = puckered, ruined fabric.

The Decision Tree: Fabric → Stabilizer

1. Is the fabric stretchy? (T-shirts, Polos, Hoodies)
   • MUST USE: Cut-Away Stabilizer.
   • Why: Knits stretch. Tear-away will rip over time, distorting the logo. Cut-away stays forever to hold the shape.
2. Is the fabric stable? (Denim, Canvas, Towels)
   • USE: Tear-Away Stabilizer.
   • Why: The fabric supports itself. You only need temporary stiffness.
3. Is the fabric fluffy/textured? (Fleece, Towels, Velvet)
   • MUST ADD: Water Soluble Topper (Solvy).
   • Why: Stops stitches from sinking and disappearing into the pile.


Optional Hooping Stations and Magnetic Frames: The Real ROI Is Your Hands, Not the Machine

If you embroider one item a week, standard hoops are fine. If you run a small shop, standard hoops are a bottleneck.

Many users search for terms like the hoop master embroidery hooping station, which is a fantastic industry standard. However, the core concept is repeatability. Whether you use a branded station or a simple jig, you need a way to hoop the same spot every time.

The Ergonomic Argument for Magnetic Frames:

• Standard Hoop: Requires loosening screws, pushing inner ring (force), tightening screws. (High wrist strain).
• Magnetic Frame: Lay fabric, drop magnetic lid. Snap. Done. (Low wrist strain).

If you are looking to scale, upgrading to magnetic frames on your NV2700 is Step 1. Step 2 is moving to a multi-needle machine (like SEWTECH) where you can leave the hoops on the machine and just swap garments.

Common NV2700 Embroidery Problems (and the Fixes That Don’t Waste a Whole Hoop)

Troubleshoot like a mechanic: Symptom -> Cause -> Fix.

Troubleshooting Matrix

The Upgrade That Makes the NV2700 Feel “Pro”: Faster Loading, Cleaner Results, and a Path to Selling Work

The Brother NV2700 is a capable machine that can produce professional results if you treat it with professional respect.

Your Path to Proficiency:

1. Master the Prep: 30-second health checks and fresh needles.
2. Master the Hooping: Use the decision tree for stabilizers. If you struggle with sliding hoops, invest in Magnetic Hoops immediately to save your sanity and your fabric.
3. Scale the Business: When the NV2700 is running 6 hours a day and you are frustrated by changing thread colors manually, that is your signal. That is when you look at SEWTECH multi-needle machines to take your production volume to the commercial level.

Final Operation Checklist:

• Bobbin full & winding correct?
• Stabilizer matches fabric elasticity?
• Hoop locked firmly (Click)?
• Design Traced/Mapped to ensure clearance?
• Presser foot down?

Go slow, verify every step, and let the machine do the work. Happy stitching.

FAQ

• Q: What pre-flight consumables and 30-second health checks prevent embroidery failures on the Brother NV2700 before pressing Start?
  A: Do the NV2700 “pre-flight” every time: fresh needle, clean bobbin area, correct bobbin, correct threading, and stabilizer matched to fabric.
  • Replace: Install a fresh 75/11 embroidery needle and insert it fully.
  • Clean: Open the plate and clear lint from the bobbin race.
  • Rethread: With the presser foot UP, rethread the top path and seat the thread deep in the tension discs (floss it in).
  • Match: Choose stabilizer by fabric behavior (cut-away for stretchy knits; tear-away for stable fabrics; add water-soluble topper for fluffy fabrics).
  • Success check: Turning the handwheel toward you feels smooth and quiet (no grinding), and the thread path feels firmly seated in the discs.
  • If it still fails: Stop and re-check bobbin type/direction and needle tip for a burr before running the design.
• Q: How do Brother NV2700 slide-in embroidery hoops lock correctly, and what causes the hoop to vibrate loose mid-stitch?
  A: Push the Brother NV2700 hoop into the carriage until an audible, mechanical “CLICK” confirms the slide-in lock is fully engaged.
  • Insert: Slide the hoop straight in and keep pushing until the click happens.
  • Test: Gently pull back; the hoop should not move.
  • Verify: Use the machine’s hoop sensing to confirm the attached hoop matches the design size you selected.
  • Success check: The click is heard and the hoop cannot be pulled back out without releasing it.
  • If it still fails: Re-seat the hoop and run the machine “Trace/Map” to ensure the design boundary stays inside the hoop.
• Q: How can Brother NV2700 users stop birdnesting (giant knot under the throat plate) at the start of embroidery?
  A: Rethread the Brother NV2700 top thread with the presser foot UP and hold the top thread tail for the first 3–4 stitches.
  • Rethread: Lift the presser foot (to open tension discs) and rethread the entire upper path.
  • Launch correctly: Lower the presser foot (green light) before starting.
  • Control the tail: Hold the upper thread tail for the first few stitches so it does not get pulled into the bobbin area.
  • Success check: The underside shows normal bobbin stitches instead of a dense thread wad, and the top thread no longer “sucks down” at stitch one.
  • If it still fails: Stop, remove the hoop, clear any jam under the plate, and repeat threading slowly from the spool to the needle.
• Q: How can Brother NV2700 users fix puckering (wrinkles around the design) by choosing the correct stabilizer?
  A: Upgrade stabilizer strength first—puckering on the Brother NV2700 is often a stabilizer mismatch, especially when tear-away is used on stretchy fabric.
  • Switch: Use cut-away stabilizer for T-shirts, polos, hoodies, and other knits.
  • Use: Use tear-away stabilizer for stable fabrics like denim, canvas, and towels.
  • Add: Put water-soluble topper on fleece, towels, velvet, or other textured fabrics to prevent stitch sink.
  • Success check: After stitching, the fabric lies flat around the design with minimal rippling when laid on a table.
  • If it still fails: Re-hoop tighter (drum tight) and slow down to the beginner-friendly 600 SPM starting point.
• Q: What is the safe way to use the Brother NV2700 automatic needle threader, and when should Brother NV2700 users avoid it to prevent damage?
  A: Use a confident, full lever press on the Brother NV2700 threader, and do not use the automatic threader with needles smaller than 75/11 or specialty needles.
  • Thread: Follow the machine guides 1–6 and cut at guide 7 using the built-in cutter.
  • Press: Fully depress the left lever (do not “tap” it).
  • Avoid: Thread manually if using a needle smaller than size 75/11 or a specialty needle (the hook can bend/break).
  • Success check: The thread loop reliably pulls through the needle eye without forcing the mechanism.
  • If it still fails: Re-seat the needle fully and retry; if the mechanism feels strained, stop and thread manually.
• Q: What magnetic frame safety rules should Brother NV2700 users follow when upgrading to a magnetic embroidery hoop to reduce hoop burn?
  A: Treat magnetic embroidery hoops as pinch-hazard tools: keep fingers clear, and keep strong magnets away from pacemakers and sensitive electronics.
  • Load safely: Lay fabric flat first, then lower the magnetic “lid” straight down—do not let magnets snap sideways onto your fingers.
  • Control hands: Keep fingertips away from the closing edge before magnets meet.
  • Protect health/electronics: Keep magnets away from pacemakers and sensitive devices.
  • Success check: The fabric is clamped firmly without crushed fibers (“hoop burn”) and the frame closes without finger contact.
  • If it still fails: If the item is too thick or awkward to clamp evenly, consider switching back to a standard hoop for that job or using a more appropriate frame type.
• Q: When should Brother NV2700 users upgrade from technique fixes to magnetic hoops, and when is it time to scale production to a SEWTECH multi-needle embroidery machine?
  A: Start with setup discipline, move to magnetic hoops when hooping is the bottleneck, and consider a multi-needle machine when color changes and long daily runtime limit output.
  • Level 1 (Technique): Do the 30-second health check, match stabilizer to fabric, slow to 600 SPM for early hours/metallics, and always Trace/Map before sewing.
  • Level 2 (Tool): Upgrade to magnetic hoops when hooping is slow, inconsistent, causes wrist strain, or leaves hoop burn on delicate fabrics.
  • Level 3 (Capacity): Upgrade to a SEWTECH multi-needle machine when running around 6 hours/day and frequent manual thread color changes are the main productivity pain.
  • Success check: You can repeat placement and stitch quality across multiple garments with fewer re-hoops and fewer restarts.
  • If it still fails: Standardize placement with a hooping station/jig to remove human variation before investing in higher-capacity equipment.
