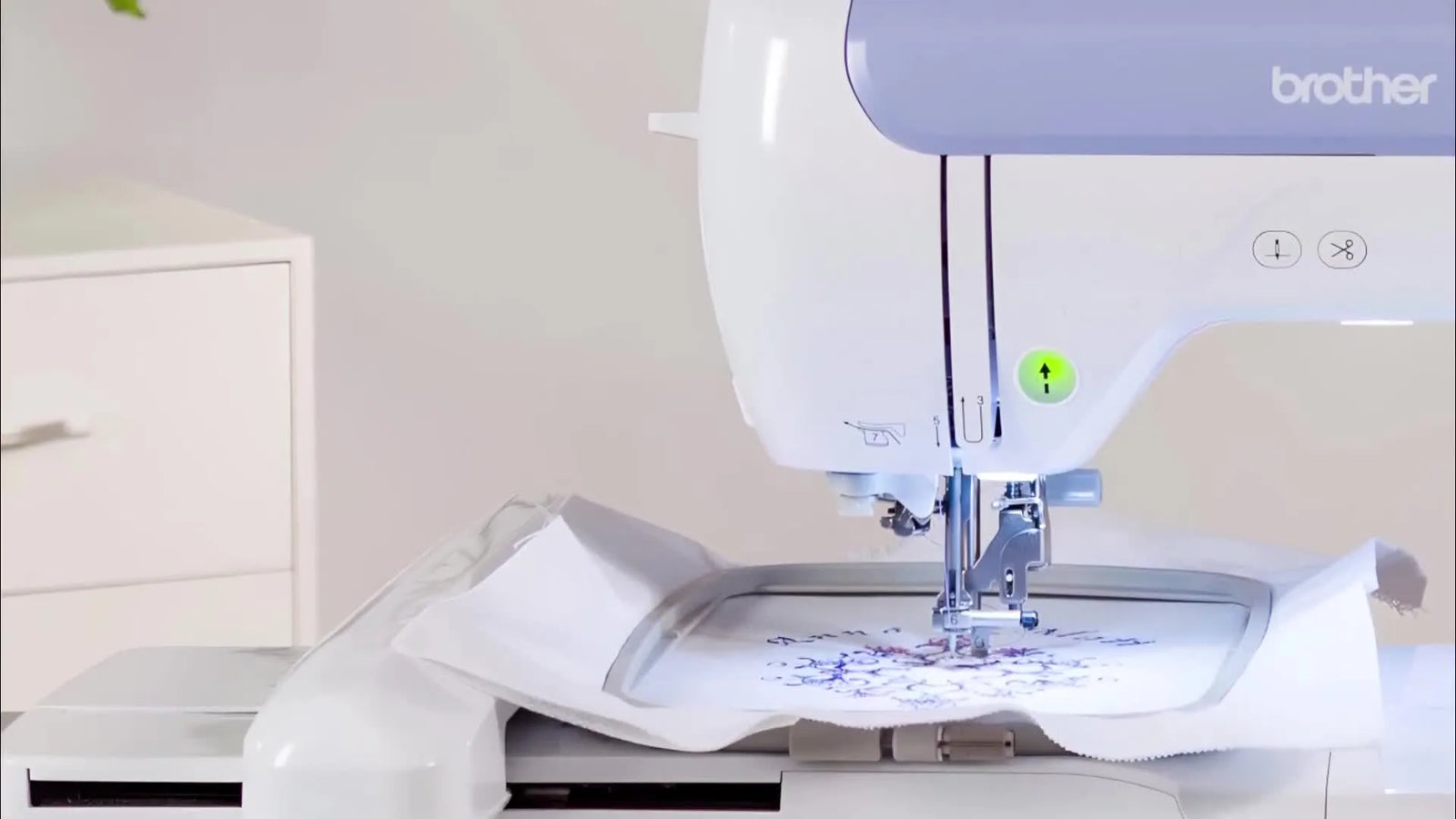

Brother PE800 in Real Life: The Features You’ll Love, the Bobbin Brush Trap to Avoid, and a Smarter 5x7 Workflow

If you’re staring at a Brother PE800 and thinking, “I just want it to stitch cleanly without drama,” you’re in the right place. The PE800 is genuinely beginner-friendly—138 built-in designs, 11 fonts, a 3.2-inch color touchscreen, a roomy 5" x 7" field, and USB importing—but it also has a couple of predictable pain points that can waste hours if you don’t know where the "experience traps" are.

As someone who has trained operators on everything from single-needle home units to industrial multi-heads, I treat this machine as a "gateway tool." It is capable, but it follows strict rules of physics.

One quick note from the community: some viewers said the background music in the original tutorial made it hard to hear. So, I’m rewriting this as a Bench-Side White Paper—a sensory, step-by-step manual you can follow with the machine right in front of you.

Calm the Panic: What the Brother PE800 Is (and Isn’t) When You’re New

The Brother PE800 Embroidery Machine is designed to get you stitching fast: you pick a design, edit it on-screen, thread the top, hoop your fabric in the 5" x 7" hoop, and let the machine run. That’s the promise—and most of the time, it delivers.

However, we need to adjust your expectations to reality. What it isn’t: A magic box that forgives physics. It cannot handle sloppy hooping, incompatible stabilizer, or lint-packed bobbin cases. What it is: A precision instrument. When stitches look messy, the PE800 is almost always reacting to a physical variable you can control:

1. Movement: The fabric shifted because the hoop wasn't tight.
2. Friction: The thread path is blocked or the tension discs didn't engage.
3. Obstruction: Lint in the bobbin case.

So, calm the panic. It’s rarely "random bad luck"; it’s usually just physics asking for an adjustment.

Use the Brother PE800 Touchscreen to Pick a Design Without Second-Guessing Yourself

On the LCD touchscreen, selection looks simple—scroll through a grid of florals, tap “Set.” But a pro operator looks at more than just the picture.

The "Safe Zone" Selection Process:

1. Select the design from the built-in grid.
2. Pause and Check Dimensions: Before you hit "Set," look at the size readout in millimeters or inches. The PE800 has a 5" x 7" (130mm x 180mm) limit. If your design is 129mm wide, you have zero margin for error in hooping.
   • Pro Tip: For your first run, choose a design smaller than 4" x 4" to give yourself easy margins.
3. Mentally Map "Pull Compensation":
   • Look at the design. Is there a dense fill (solid block of color)?
   • The Physics: Stitches pull fabric in toward the center. If you see a heavy circle, know that your fabric will try to pucker. This tells you that you need a stronger stabilizer (Mesh/Cutaway) rather than a light Tearaway.

If you are still learning hooping for embroidery machine, take an extra minute here. Most "crooked" designs are actually hooping errors, found too late because the user rushed the selection screen.

Make On-Screen Editing on the Brother PE800 Work for You (Rotate, Mirror, Resize, Move)

The PE800’s editing suite (Rotate, Mirror, Resize, Move) is your virtual safety net. Use these tools to compensate for physical reality.

The Strategic Editing Workflow:

• Rotate (The Alignment Fix): Did you hoop your towel slightly crooked? Don't un-hoop it yet. Use the rotate function to align the design with the grain of the fabric.
  • Visual Check: Rotate by 1° increments for precision. The design must stay within the red boundary box.
• Mirror (The Symmetry Hack): Essential for items like collars or shirt cuffs.
  • Checkpoint: If doing a left and right visual, insure the "direction of stitch" mirrors too, so the light reflects off the thread safely.
• Resize ( The 20% Rule):
  • The Trap: Beginners try to shrink a 5" design down to 2". This causes bulletproof density that breaks needles.
  • The Rule: Never resize more than 10% to 20% up or down on the machine itself. The machine does not recalculate stitch density (it just squishes the existing stitches closer together).
• Move (The Margin Saver):
  • Sensory Check: Tap the "Check" key (looks like a spool in a box). The machine will trace the outer boundary of the design. Watch the needle move. Does it hit the plastic hoop? If yes, MOVE the design until the trace is clear.


The “Hidden” Prep Before You Stitch: Thread, Needle, Stabilizer, and a 60-Second Machine Check

This section separates the hobbyists from the operators. You cannot just "press play." You must build a clean environment.

The Hidden Consumables (What you usually forget):

• Fresh Needle: A 75/11 Embroidery Needle is standard. Use a Ballpoint for knits (T-shirts), Sharp for wovens. Rule of thumb: New project, new needle.
• Spray Adhesive (Temporary): To stick fabric to stabilizer without hoop slippage.
• Curved Scissors: For trimming jump threads flush to the fabric.

Stabilizer Decision Tree: The "Safety First" Method

Wrong stabilizer = Pucker. Use this logic to decide.

• Is the fabric STRETCHY (T-shirt, Hoodie, Knit)?
  • Decision: You MUST use Cutaway (Mesh) stabilizer.
  • Why: Knits move. Tearaway will disintegrate efficiently, leaving the fabric unsupported, causing a distorted mess.
• Is the fabric STABLE (Denim, Canvas, Cotton Towel)?
  • Decision: Tearaway is usually fine.
  • Why: The fabric supports itself; the stabilizer just floats the stitches.
• Is the fabric FLUFFY (Terry Cloth, Velvet, Fleece)?
  • Decision: Add a Water Soluble Topping (Solvy) on top.
  • Why: Prevents stitches from sinking into the pile and disappearing.

**Prep Checklist 1 (Pre-Flight)**

• Needle Condition: Run your fingernail down the needle tip. If it catches, throw it away. Using a burred needle is the fastest way to shred thread.
• Bobbin: Is it low? Don't play "chicken." Change it now.
• Lint Check: Remove the needle plate. Is there "grey fuzz" (lint) packed in the feed dogs? Remove it.
• Thread Path: Is the spool cap tight? A loose spool cap causes thread to snag and snap.

Warning (Safety): Keep fingers, hair, jewelry, and drawstrings away from the needle bar and take-up lever during operation. 650 stitches per minute is fast enough to puncture a finger bone instantly if you try to "fix" something while it's moving.

Thread the Brother PE800 the Way It Was Designed: Numbered Path + Automatic Needle Threader

Threading issues cause 90% of "tension problems." If the machine isn't threaded with the presser foot UP, the tension discs are closed, and the thread sits on top of the discs rather than inside them.

Sensory Threading Guide:

1. Presser Foot UP: This is non-negotiable. Raising the foot opens the tension discs.
2. Point 1 to 3 (The Path): Follow the solid lines/numbers.
3. Point 4 (The Check): At the top take-up lever (the metal arm that moves up and down), make sure the thread falls into the eyelet.
   • Tactile Check: Hold the thread near the spool with your right hand. Pull the thread near the needle with your left hand. It should feel smooth, with zero friction yet.
4. Presser Foot DOWN: Now, lower the foot.
   • Tactile Check: Pull the thread again. You should now feel strong drag, like flossing tight teeth. This confirms the tension discs have grabbed the thread.
5. Needle Threader: Use the lever on the left.
   • Visual Check: Ensure the hook passes through the eye. If it bends, your needle is likely slightly bent.






Load the 5x7 Hoop Like a Pro: Tension Physics That Prevents Puckers and “Hoop Burn”

The "Hooping" phase is where most users quit. The goal is "Drum Tight," but achieving that on a standard plastic hoop takes hand strength and technique.

The Physics of Failure:

• Too Loose: The fabric gets pulled into the needle plate (Birdnesting).
• Too Tight: You stretch the fabric fibers. When you un-hoop, the fabric shrinks back, and the embroidery puckers.
• Hoop Burn: The friction ridge left by standard plastic hoops on delicate fabrics (velvet, performance wear).

The "Tactile Drum" Test:

1. Lay outer hoop -> Stabilizer -> Fabric -> Inner Hoop.
2. Press down. Tighten the screw.
3. The Tap Test: Tap the fabric with your finger. It should sound like a dull drum (thump-thump).
4. The Pinch Test: Try to pinch a wrinkle in the middle. If you can easily pinch fabric up, it's too loose.

The Tool Upgrade: If hooping is physically painful for your wrists, or if you are ruining shirts with "hoop burn" marks, this is a hardware problem, not a skill problem. Many users transition to a magnetic hoop for brother pe800 relatively early. These frames use magnetic force rather than friction to hold fabric, which eliminates the "burn" marks and makes hooping thick items (like towels) instant.

Warning (Magnet Safety): Magnetic frames are incredibly powerful. Keep them way from pacemakers. Do not place your fingers between the magnets—they snap together with enough force to cause blood blisters or pinch injuries.

Attach the Embroidery Arm and Confirm the Setup Before You Waste a Hoop

The embroidery arm is the robot brain; the machine body is just the muscle. The connection between them must be solid.

Setup Checklist 2 (Mechanical):

• Arm Connection: Push the arm unit onto the machine. Listen for a solid CLICK. If it wiggle-wobbles, it’s not seated.
• Hoop Lock: Slide the hoop onto the carriage. Push the locking lever down.
  • Check: Try to wiggle the hoop. It should move with the carriage, not independently.
• Clearance: Look behind the machine. Is there a wall or a coffee mug? As the arm moves back for large designs, it needs 5-6 inches of clearance. If it hits a wall, your design will shift.
• Tail Management: Hold the top thread tail for the first 5 stitches so it doesn't get sucked under.

If you are doing production runs (e.g., 20 patches), setting up a dedicated hooping station for embroidery ensures every single patch is placed in the exact same spot, reducing the mental load of alignment.

Import PES Files Through the Brother PE800 USB Port Without the Usual Confusion

The PE800 reads .PES files. It does not read .JEF, .DST, or PDFs.

The Clean Import Workflow:

1. Format USB: Use a Stick smaller than 8GB if possible (formatted to FAT32). Large modern drives (64GB+) sometimes confuse the machine.
2. File Structure: Do not bury designs in folders inside folders. Keep them on the root (top level).
3. The Insert: Put the stick in the side port.
4. The Touch: Tap the USB icon.
   • Troubleshooting: If the screen is blank, the file might be corrupted, wrong format (.DST?), or too big (larger than 5x7).

Note on "Connected" features: This machine is offline. If you want to use files from apps or "connected desires," you must bridge the gap with a USB stick.

Start the Stitch-Out and Watch for Sensory Clues: Sound, Vibration, and Thread Behavior

Do not walk away. The first 60 seconds are critical.

Sensory Anchors (What to monitor):

• Sound: You want a rhythmic, sewing-machine hum-chug-hum-chug.
  • Bad Sound: A sharp CLACK-CLACK (Needle hitting something hard).
  • Bad Sound: A grinding RRRRT (Motor stalling/Birdnest).
• Sight: Watch the top spool. Is it unwinding smoothly? Or is it jerking? Jerking leads to snapped threads.
• Touch: Gently place a hand on the table. Heavy vibration usually means the machine is struggling to penetrate density (wrong needle?).

If the sound changes, STOP IMMEDIATELY. Never "power through" a bad noise on an embroidery machine.

The Bobbin Case Brush Problem on the Brother PE800: The One Check That Solves Many “Tension” Complaints

The PE800 has a known quirk: the bobbin case area is sensitive. There is a small brush/tension spring mechanism in the bobbin case that keeps the bobbin from over-spinning.

The Fix:

1. Remove the plastic bobbin cover.
2. Take out the bobbin.
3. Inspect: Look for a tiny piece of lint or a broken thread tail trapped under the metal tension leaf on the black bobbin case.
4. Clean: Use a small brush or a piece of un-waxed dental floss to clear under the tension spring.

Expected Outcome: If you see loops of white thread on top of your design, 99% of the time, it is not the top tension—it is lint in this bobbin area preventing the bottom tension from engaging.

Quick Troubleshooting Map for the Brother PE800 (Symptoms → Likely Cause → Fix)

Use this logic flow before calling support.

Finish Like a Shop That Charges Money: Clean Edges, Flat Fabric, and Repeatable Results

A design isn't done when the machine stops. Post-processing determines if it looks "homemade" or "pro."

The Finishing Standard:

1. Jump Threads: Use your curved scissors or snips. Cut the connecting threads between letters closely.
2. Stabilizer Removal:
   • Tearaway: Support the stitches with your thumb while tearing to prevent distorting the design.
   • Cutaway: Lift the stabilizer and trim cleanly around the design, leaving about 1/4 inch border. Do not cut the fabric.
3. The Press: Steam the fabric (from the back!) to relax the fibers and remove hoop marks.

Consistency is key. If you are struggling to get the fabric exactly straight every time for a batch of 10 shirts, standard plastic hoops fail here. Professionals switch to embroidery hoops magnetic because they allow you to adjust the fabric without unscrewing the whole mechanism—just pop the magnet, slide the fabric, snap it back.

The Upgrade Path That Actually Makes Sense: When to Invest in Better Hoops, Thread, and Production Tools

The Brother PE800 is an incredible learning tool. But as your skills grow, you will hit the "Physics Wall."

Here is the logical path to upgrading your toolset to match your ambition:

• Level 1: Stability & Comfort:
  • Trigger: Wrists hurt from tightening screws; Hoop burn on velvet.
  • Solution: Get a brother pe800 magnetic hoop or a brother 5x7 magnetic hoop. It upgrades the machine's usability instantly.
• Level 2: Speed & Volume:
  • Trigger: You are refusing orders because you can't change thread colors fast enough (single needle life). You need to make 20 hats.
  • Solution: This is when you graduate from "Household" to "Prosumer/Industrial." Look into multi-needle machines (like our SEWTECH multi-needle embroidery machines). They hold 10+ colors at once, rarely need re-threading, and run faster.

Operation Checklist 3 (The Final Pass):

• Design is centered and checked for size (5x7 limit).
• Stabilizer matches fabric elasticity (Knit = Cutaway).
• Top thread is locked in tension discs (Foot UP rule).
• New Needle installed.
• Sounds checks pass (No grinding or clicking).
• Jump threads trimmed cleanly.

Build these habits now on the PE800, and they will serve you for the rest of your embroidery career.

FAQ

• Q: How do I fix loops on the BOTTOM (birdnesting) on a Brother PE800 embroidery machine during the first minute of stitching?
  A: Rethread the Brother PE800 with the presser foot UP so the top thread actually seats into the tension discs.
  • Stop the machine immediately and cut away any loose thread; do not “power through.”
  • Raise the presser foot, completely unthread the top path, and rethread following the numbered guides.
  • Lower the presser foot and tug the thread: you should feel strong drag only after the foot is DOWN.
  • Success check: the next stitch-out starts with a steady hum and the underside shows a clean bobbin line instead of a thread ball.
  • If it still fails: remove the needle plate and clear any jammed thread/lint under the plate before restarting.
• Q: How do I fix white bobbin thread showing on TOP on a Brother PE800, especially when the design suddenly looks “inside-out”?
  A: Clean the Brother PE800 bobbin case tension spring area first, because lint there often makes bobbin tension act like it is “zero.”
  • Remove the bobbin cover, take out the bobbin, and inspect the black bobbin case for lint or a broken thread tail under the metal tension leaf/brush area.
  • Brush out debris or gently floss under the tension spring with un-waxed dental floss.
  • Restart and only then make small top-tension adjustments if needed.
  • Success check: the top surface shows mostly top thread color with no long white loops surfacing.
  • If it still fails: recheck correct threading with presser foot UP and confirm the bobbin is seated correctly.
• Q: How tight should fabric be hooped in the Brother PE800 5" x 7" hoop to prevent puckers, shifting, and “hoop burn”?
  A: Aim for “drum tight,” not stretched—tight enough to stop movement but not so tight that fibers are distorted.
  • Tighten the hoop screw and do the Tap Test: the fabric should give a dull drum “thump,” not a slack flutter.
  • Do the Pinch Test in the center: if a wrinkle pinches up easily, the hoop is too loose.
  • Avoid over-tightening on delicate fabrics to reduce hoop burn marks from the plastic hoop ridge.
  • Success check: the design outline stitches land where expected and the fabric stays flat after unhooping.
  • If it still fails: upgrade stabilizer (often cutaway/mesh for stretchy fabrics) and consider a magnetic frame to reduce hoop burn and improve grip.
• Q: What stabilizer should I use on a Brother PE800 for knit T-shirts vs denim/canvas vs towels to avoid puckering and distortion?
  A: Match stabilizer to fabric behavior: knits need cutaway/mesh, stable wovens often work with tearaway, and fluffy fabrics need a water-soluble topping.
  • Use cutaway (mesh) for stretchy knits (T-shirts/hoodies) so the stitches stay supported after sewing.
  • Use tearaway for stable fabrics (denim/canvas/cotton towel base) when the fabric itself resists distortion.
  • Add water-soluble topping on terry/velvet/fleece to stop stitches from sinking into the pile.
  • Success check: lettering stays crisp with minimal rippling and satin columns do not “sink” into towel loops.
  • If it still fails: reduce design density choices (avoid overly dense fills) and recheck hoop tightness using the drum test.
• Q: Why does resizing a design on the Brother PE800 cause needle breaks, and what is the safe resize limit on the PE800 screen?
  A: Keep on-screen resizing within 10%–20% because the Brother PE800 does not recalculate stitch density when you scale a design.
  • Avoid shrinking a large design dramatically (for example, forcing a 5" design down to 2") because stitch density becomes too tight.
  • Change to a fresh needle before blaming the file, especially if breaks repeat.
  • Use the “Check” boundary trace after resizing to ensure the needle path stays inside the hoop limits.
  • Success check: the machine runs without sharp “clack” sounds and the needle stops breaking on dense sections.
  • If it still fails: choose a properly digitized size version of the design rather than scaling heavily on the machine.
• Q: What is the Brother PE800 “pre-flight checklist” to prevent shredding thread, tension complaints, and mid-design stoppages?
  A: Do a 60-second consumables-and-cleanliness check before pressing start—most “random” problems are needle, bobbin, lint, or thread-path issues.
  • Install a fresh needle (new project, new needle) and discard any needle that catches on a fingernail test.
  • Check bobbin level and replace early; do not gamble on “one more design.”
  • Remove the needle plate and clear grey lint fuzz around the feed dogs/bobbin area.
  • Confirm spool cap is secure and the thread path is smooth and correctly seated.
  • Success check: startup stitching is smooth, the spool unwinds without jerking, and tension looks balanced from the first color.
  • If it still fails: rethread with presser foot UP and inspect the bobbin case tension spring area for trapped lint.
• Q: What safety steps should I follow when operating a Brother PE800 embroidery machine and when using magnetic embroidery frames?
  A: Keep hands and loose items away from moving parts, and treat magnetic frames as pinch-hazard tools that can snap shut with high force.
  • Keep fingers, hair, jewelry, and drawstrings away from the needle bar and take-up lever during operation; stop the machine before touching anything near the needle.
  • Do not try to “fix” thread issues while the machine is running; pause/stop first.
  • Keep magnetic frames away from pacemakers and never place fingers between magnet halves when closing the frame.
  • Success check: setup feels controlled—no reaching near the needle while stitching, and magnets are handled without sudden snaps onto skin.
  • If it still fails: slow down the first 60 seconds of monitoring (sound/sight/vibration) and stop immediately if any clicking/grinding begins.
