Brother PE800 Settings That Actually Work: Tension “00”, Needle-Down, and Thread Choices That Stop Birdnesting

If you just unboxed a Brother PE800, the screen looks friendly—right up until the first “birdnest” (that gnarly tangle of thread under the throat plate), a shredded fabric corner, or a machine that shakes like it’s trying to walk off the table.

I have spent twenty years in this industry, and I know the emotional arc of a beginner perfectly: excitement, followed by one ugly stitch-out, followed by panic-Googling at midnight. You aren't just fighting a machine; you are fighting the physics of thread tension and fabric stability.

This guide rebuilds the source video’s routine into a clean, ISO-standard workflow. We will move beyond "button mashing" and teach you the sensory cues—what to hear, see, and feel—that guarantee a professional result on a single-needle home machine.

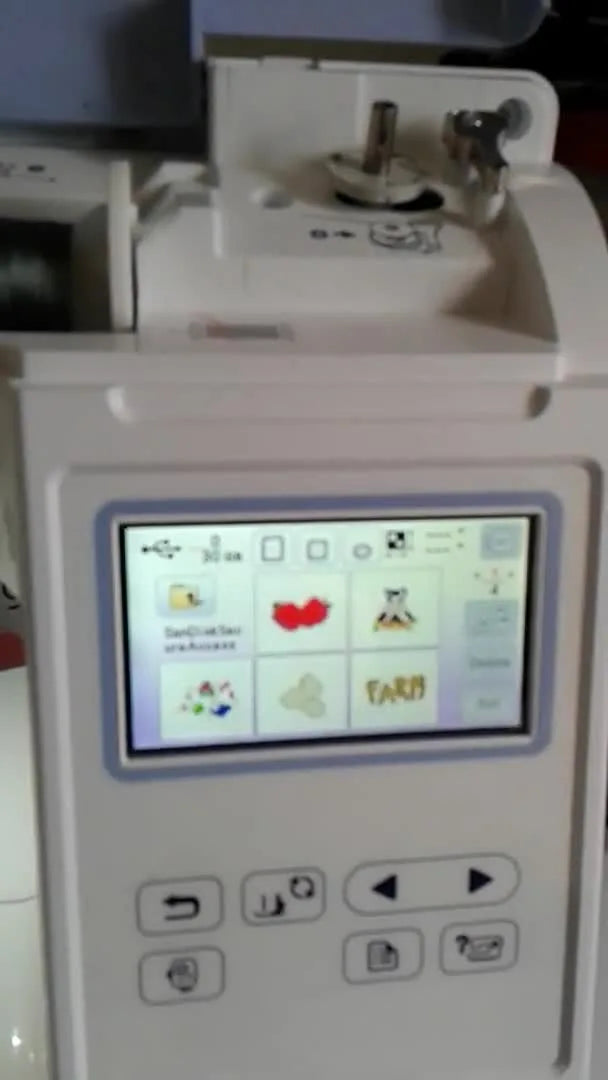

Read the Brother PE800 Home Screen Icons Without Guessing (USB Fork, Frames, Alphabet)

On the PE800 home screen, there are three neural centers you will use constantly. Memorize them to reduce cognitive load during a project:

• The “Fork” Icon = USB: This is your data port. It is where you access designs imported from a flash drive.
• Frames: Built-in border and badge shapes (essential for patches and labels).
• Alphabet: The onboard repository for fonts, numbers, and symbols.

The host also highlights the arrow keys used to navigate pages. This sounds basic, but it is the root of 40% of beginner errors. Users often think they are adjusting a setting (like width), but they are actually just scrolling pages.

Pro Sensory Tip: Before you touch the screen, verbalize your intent. Say, "I am going to USB," then press. This micro-pause prevents the "phantom press" error where you accidentally enter the wrong menu and get lost.

Make Names Fit the Hoop: Brother PE800 Font Size (L/M/S) and the “Check” Preview Habit

In the alphabet area, the workflow for customization follows a strict logic:

1. Select Font Style: Choose from the six available options.
2. Select Size (L / M / S): This is critical.
3. Input Text: Example shown: “KINGSTON”.
4. The "Check" Protocol: Always hit the Check button to see the spatial bounding box.

The Expert Insight: The host notes that Medium (M) letters usually fit full names better than Large (L). Here is the "why" that manuals don't tell you: detailed fonts at Large sizes often push the stitch count too high for standard fabric stability, leading to puckering. Medium size usually sits in the "sweet spot" of density and legibility for 4x4 or 5x7 hoops.

Production Habit: Never press "Sew" until you have pressed "Check." If the machine beeps and refuses to sew, 9 times out of 10, your design is physically outside the printable area limit.

Use Brother PE800 Frame Patterns the Right Way (Placement Outline vs Blanket Stitch)

The Frames menu is not just for decoration. The video makes a vital distinction between two stitch types that look similar on the rough LCD screen but act very differently:

• Straight Stitch (Placement): A single line. Use this to mark exactly where a patch or appliqué fabric should go.
• Blanket/Satin Stitch: A heavy, covering stitch. Use this for the final decorative edge.

Common Pitfall: Beginners often choose the heavy stitch when they just wanted a layout guide. This drives unnecessary needle penetrations into the fabric, weakening the fiber integrity. If you just need a boundary to center a name, select the single-run stitch.

The “Always Press” Button: Safely Removing the Brother PE800 Embroidery Unit

The video displays a warning regarding the embroidery arm. This is a mechanical safety lock.

The Rule: When you are finished, press the Release Button (often located on the underside or clearly marked) before pulling the unit.

Warning: Mechanical Safety
Never force the Brother PE800 embroidery unit off the machine body. You should hear a soft mechanical click or feel the tension release. If you have to use bicep strength, you are about to break the carriage gears. Stop, re-align, and press the release button again.

The “Hidden” Prep That Stops 80% of Beginner Problems (Thread, Needle, Table, and Bobbin Reality)

Amateurs guess; professionals prepare. Before you touch a digital setting, you must secure the physical environment.

Prep Checklist (Do verify this before every session)

• Thread Check: Ensure you are using 40wt Polyester Embroidery Thread. Do not use cotton sewing thread (it creates lint and snaps under high speed).
• Needle Freshness: Install a new Schmetz Embroidery Needle (Size 75/11). A dull needle is the #1 cause of frantic sounds and shredded fabric.
• Platform Stability: Place the machine on a solid wooden desk. The host notes that flimsy plastic tables cause vibration. Only a stable table absorbs the kinetic energy of the pantograph moving at 650 stitches per minute.
• Bobbin Audit: Use Brother-specific bobbins (Class 15/SA156 type usually). Generic bobbins often differ by millimeters in height, causing tension chaos.


Thread Choice: The Physics of 40wt Polyester

The host recommends Isacord 40wt polyester and advises against Rayon for beginners. The Why: Rayon has a lower tensile strength; it snaps easily if the tension isn't perfect. Polyester has "stretch and recovery," making it forgiving of beginner mistakes.

If you are struggling with hoop stability while learning thread properties, a magnetic hoop for brother pe800 can be a stabilizer for your workflow. It holds the fabric firmly without the "drum tightening" ritual that often distorts the material grain, allowing you to focus purely on thread pathing.

The Table Problem: Vibration = Error

If your table wobbles, your embroidery will suffer from "registration errors" (where outlines don't match the color fill). The vibration causes the fabric to shift microscopically with every needle impact. Stabilize your table to stabilize your stitch.

Brother PE800 Settings Menu: The Small Tweaks That Prevent Big Messes (Speed, Units, Tension, Needle Down)

Navigate to the settings menu (Page 2/5). We need to override the factory defaults to suit a beginner's reality.

1. Speed Limiter (The "Sweet Spot")

The video shows the max speed set to 650 spm. Expert Calibration: 650 is fine for simple shapes. However, if you are doing dense lettering or metallic thread, drop it to 400. Speed amplifies friction. Slowing down reduces heat and breakage.

2. Metric vs. Imperial

The video switches units to Inches. Reasoning: Most U.S. stabilizers, hoops, and blanks are sold in inches. Aligning your machine's language with your material's language reduces conversion errors.

3. Tension Set to “00” (The Controversy & The Fix)

The host sets Embroidery Tension to “00” to stop "birdnesting" (top thread looping underneath). Context: Normally, tension dials sit around 4. However, the PE800 can run tight.

• The Check: If you see white bobbin thread puling up to the top, your top tension is too tight.
• The Fix: Lowering to “00” reduces top resistance.
• Sensory Check: Look at the back of your embroidery. You should see 1/3 white bobbin thread down the center, flanked by the colored top thread. This is the "Fox Tail" look.




4. Needle Position: DOWN

Set Needle Position = Down. The Why: When the machine stops for a color change or thread trim, the needle remains buried in the fabric. This acts as an anchor, preventing the fabric from shifting while the machine is idle. This single setting prevents "gaps" in your design.

Use the Brother PE800 Built-In Tutorials and Grid View Like a Pro

The built-in help menu is your first line of defense. It contains visual guides for Bobbin Placement and Needle Changes.

The Grid: Your Digital Ruler

The host toggles the Grid View On. Application: never "eyeball" center. Use the grid lines to align with the crosshairs marked on your hoop's plastic template. This ensures your design isn't rotated 3 degrees off-center.

Hoop Size Display

The video highlights selecting 7x5 (5x7) or 4x4. Critical Warning: If you load a 5x7 frame but tell the machine it's a 4x4, the machine will refuse to sew borders. Always match the digital setting to the physical reality.

The Bobbin and Thread Rules (Hard-Learned Lessons)

Two non-negotiable rules from the video:

1. NO Sewing Thread: Regular cotton sewing thread is too "hairy" (linty). It clogs the tension disks and bobbin case sensor.
2. Bobbin Prep: While the machine can wind bobbins, pre-wounds or carefully wound bobbins (using high-quality 60wt or 90wt bobbin thread) are superior. The host admits to struggling with the onboard winder filling bobbins partially—common on aggressive settings.


Expert Note: Keep the bobbin area surgically clean. A single piece of lint under the bobbin tension spring can mimic a tension failure.

The Coffee Cup Hack for Large Thread Cones

Commercial thread comes on large cones (1000m+) which do not fit the PE800's horizontal spool pin. The Hack: Place the cone in a heavy ceramic mug directly behind the machine. Bringing the thread up from the mug mimics a professional thread stand.

Why it works: It allows the thread to unspool vertically (which avoids twisting) and the cup prevents the cone from tipping over. In the long run, investing in a standalone thread stand is cleaner, but this saves the day for beginners.

If you find that your workflow is slowed down by constant re-hooping rather than thread issues, looking into a brother pe800 magnetic hoop allows you to clamp fabric in seconds, making the physical setup as efficient as your thread feed.

Fabric “Almost Cut Through” on Brother PE800: What That Comment Is Really Telling You

A viewer commented that lettering "almost cut through the material." This is a density issue. When a satin stitch is too narrow and dense, the needle perforates the fabric so many times in one millimeter that it acts like a postage stamp cutter.

The Diagnosis & Fix:

• Cause: Not enough Stabilizer support.
• Fix: Add a second layer of stabilizer or switch to Cut-Away.
• Prevention: Use the "Decision Tree" below to choose the right backing.

Warning: Physical Safety
When testing density or watching closely for "cutting," keep your face and hands at least 6 inches from the needle bar. If a needle hits the hoop or a heavy seam, it can shatter. Protective eyewear is recommended for operators.

Professionals often stick to magnetic embroidery hoops for brother pe800 for delicate items because they distribute holding pressure evenly around the edges, preventing the "hoop burn" (crushed fibers) that exacerbates fabric damage.

Stabilizer Decision Tree for Brother PE800 Lettering

Stop guessing. Follow this logic path to prevent ruined garments.

1. Is the fabric stretchy? (T-shirts, Polos, Hoodies, Knits)

• YES: You MUST use Cut-Away Stabilizer. (Tear-away will result in distorted, wavy letters).
• NO: Proceed to Step 2.

2. Is the fabric unstable/sheer? (Silk, thin Rayon)

• YES: Use No-Show Mesh (Polymesh) or light Cut-Away.
• NO: Proceed to Step 3.

3. Is the fabric a stable woven? (Denim, Canvas, Towels)

• YES: You can use Tear-Away Stabilizer.
• NOTE: For towels, add a Water Soluble Topper (Solvy) on top to prevent stitches from sinking into the pile.

If you struggle with "hoop burn" on dark fabrics, many users switch to embroidery hoops magnetic systems, as they leave virtually no residue marks compared to traditional friction rings.

Setup Habits That Make the Brother PE800 Feel “Less Bipolar”

Consistency is king. Perform this "Sensory Sweep" before pressing Start:

• Touch: Pull the thread through the needle. It should pull with a slight, consistent resistance (like flossing precision teeth). If it jerks, re-thread.
• Sound: Listen to the machine. A rhythmic thump-thump is good. A harsh clack-clack means the needle is dull or hitting the plate.
• Sight: Watch the first 100 stitches. Then PAUSE. Check under the hoop. No birdnest? Proceed.

Setup Checklist (The "Pre-Flight" Check)

• Hoop Size matches Screen Size.
• Grid is ON for alignment.
• Tension is verified (Try 00 if birdnesting occurs).
• Needle Position is Down.
• Bobbin thread is visible and full.
• Coffee cup (or thread stand) is positioned correctly behind the machine.

For batching jobs (like 20 Christmas stockings), a brother 5x7 magnetic hoop ensures that every stocking is hooped with identical tension, removing human error from the equation.

Troubleshooting Brother PE800 Problems (Symptom → Cure)

The Upgrade Path: When to Move Beyond the Basics

Once you master the "00" tension, the threading, and the stabilizer choices, your bottleneck will shift. You will stop worrying about the needle and start hating the hooping process.

When you reach the stage where you are declining jobs because "hooping takes too long" or your wrists hurt from tightening the screw:

1. Level 1 (Technique): Use spray adhesive to float fabric (messy, but works).
2. Level 2 (Tool): Upgrade to magnetic hoops for brother. This removes the screw-tightening friction and creates a safer, faster production cycle for home machines.
3. Level 3 (Scale): If you are producing 50+ shirts a week, you have outgrown a single-needle PE800. This is the trigger point to investigate multi-needle machines (which allow you to set up the next shirt while the current one sews).

Warning: Magnet Safety
Magnetic hoops use strong industrial neodymium magnets. Keep them away from pacemakers, credit cards, and hard drives. Watch your fingers—they snap together with significant force.

Operation Checklist (Final Go/No-Go)

• Design: Correct design selected.
• Hoop: Correct hoop loaded and recognized by sensors.
• Clearance: Carriage arm path is clear of mugs, walls, or scissors.
• Stabilizer: Correct type for fabric (Cut-away for knits!).
• Start: Run the first minute at moderate speed. Monitor.

By following this script, you stop being a confused user and become a confident operator. The machine doesn't change—your control over it does.

FAQ

• Q: What thread, needle, bobbin, and table setup prevents beginner problems on the Brother PE800?
  A: Use 40wt polyester thread, a fresh 75/11 embroidery needle, Brother-compatible bobbins, and a solid desk to avoid most early failures.
  • Install: Schmetz Embroidery Needle 75/11 (new for the session if issues appear).
  • Load: 40wt polyester embroidery thread (avoid cotton sewing thread that makes lint).
  • Verify: Brother-specific bobbin type (small size differences in generic bobbins can cause tension chaos).
  • Place: Brother PE800 on a solid wooden desk (avoid flimsy tables that amplify vibration).
  • Success check: The machine sounds rhythmic (not harsh clacking) and stitches track cleanly without shifting.
  • If it still fails: Clean lint from the bobbin area and re-thread the top thread with the presser foot up.
• Q: How do I stop Brother PE800 birdnesting (thread tangles under the throat plate) on the first stitches?
  A: Re-thread correctly and reduce the Brother PE800 embroidery tension to “00” if the top thread is looping underneath.
  • Re-thread: Thread the top path again with the presser foot UP to fully seat the thread in the tension path.
  • Set: Embroidery tension to “00” (the PE800 can run tight for some setups).
  • Watch: Run the first 100 stitches, then pause and inspect underneath the hoop.
  • Success check: The back of the embroidery shows a “fox tail” balance—about 1/3 bobbin thread centered with top thread on both sides.
  • If it still fails: Confirm the bobbin is the correct Brother type and remove any lint near the bobbin tension spring.
• Q: What is the correct success standard for Brother PE800 thread tension using the “fox tail” check?
  A: Aim for a balanced stitch where bobbin thread is visible only as a narrow line centered on the back, not pulling to the top.
  • Stitch: Sew a short test area of the design, then flip the hoop to inspect the underside.
  • Adjust: If white bobbin thread pulls up on top, the top tension is too tight—lower the embroidery tension (the blog example uses “00”).
  • Confirm: Keep thread pull at the needle feeling slightly resistant and smooth (no jerks).
  • Success check: On the back, bobbin thread forms a centered line with colored top thread flanking it (the “fox tail” look).
  • If it still fails: Change to a fresh 75/11 embroidery needle and verify 40wt polyester thread is installed.
• Q: Why does the Brother PE800 beep or refuse to sew after selecting text, and how do I fix the “design outside hoop” issue?
  A: Always use the Brother PE800 “Check” preview to confirm the text fits inside the hoop boundary before pressing Sew.
  • Select: Font style, then size (Medium often fits full names better than Large for common hoops).
  • Press: “Check” to view the bounding box and placement before sewing.
  • Adjust: Reduce lettering size if the box exceeds the hoop’s sewable area.
  • Success check: The machine allows sewing without warning beeps, and the bounding box sits fully inside the hoop limit.
  • If it still fails: Confirm the hoop size set on-screen matches the physical hoop installed (4x4 vs 5x7).
• Q: How do I prevent gaps and registration shifts on the Brother PE800 (outlines not lining up with fills)?
  A: Reduce vibration and fabric movement—use a stable table and turn Needle Position to DOWN to anchor stops.
  • Move: Put the Brother PE800 on a solid desk to stop wobble-driven registration errors.
  • Set: Needle Position = DOWN so stops/color changes keep the fabric anchored.
  • Stabilize: Use appropriate stabilizer (cut-away is often needed when fabric shifts easily).
  • Success check: Outlines and fills stack cleanly without drifting, and the design doesn’t “walk” between color changes.
  • If it still fails: Pause after the first minute to check for movement under the hoop and re-evaluate stabilizer choice.
• Q: What stabilizer should I use for Brother PE800 lettering when fabric “almost cuts through” or satin stitches perforate the material?
  A: Add stronger support—use an extra layer or switch to cut-away stabilizer to prevent dense lettering from perforating fabric.
  • Diagnose: Treat “almost cut through” as a density/support problem, not a random machine failure.
  • Add: A second layer of stabilizer, or switch to cut-away (especially on stretchy garments).
  • Match: Use no-show mesh (polymesh) or light cut-away for sheer/unstable fabrics; tear-away for stable wovens; add water-soluble topper on towels.
  • Success check: The fabric holds together under satin columns without looking perforated like a postage-stamp edge.
  • If it still fails: Reduce speed for dense lettering (the blog suggests dropping from 650 spm to around 400 for demanding situations).
• Q: What safety steps prevent damage when removing the Brother PE800 embroidery unit and when testing dense designs near the needle?
  A: Press the Brother PE800 embroidery unit release button before removing the arm, and keep hands/face away during close monitoring of dense stitching.
  • Press: The embroidery unit Release Button and wait for a soft click/tension release before pulling the unit off.
  • Stop: If removal takes force, re-align and press release again—forcing can damage carriage gears.
  • Keep clear: Stay at least 6 inches away from the needle area when watching “cutting” or density tests; needles can shatter if they strike a hoop or seam.
  • Success check: The embroidery arm detaches smoothly without force, and monitoring can be done without putting fingers near moving parts.
  • If it still fails: Power off, re-seat the unit, and follow the machine’s on-screen warnings/tutorials before trying again.
• Q: When should Brother PE800 users upgrade from technique fixes to a magnetic hoop or to a multi-needle embroidery machine for production speed?
  A: Upgrade in layers: fix technique first, then switch tools if hooping becomes the bottleneck, then scale to multi-needle when weekly volume outgrows single-needle pacing.
  • Level 1: Improve technique (stabilizer choice, threading, tension checks, slower speed for dense work).
  • Level 2: Use a magnetic hoop if re-hooping time, inconsistent hoop tension, or wrist fatigue is the main limiter.
  • Level 3: Consider a multi-needle machine when producing high volume (the blog’s example trigger is ~50+ shirts/week) and you need faster color changes and parallel setup.
  • Success check: Your slowest step shifts from “fixing stitch problems” to “loading the next item,” and output becomes consistent job-to-job.
  • If it still fails: Reconfirm the basics (needle, thread, bobbin, stable table, needle-down) before investing in upgrades, because setup issues can mimic “capacity” problems.
