Brother PE800 vs SE1900 vs SE600 vs PE535 vs PE550D: Choose the Right Hoop Size, Screen Workflow, and Upgrade Path (Without Buyer’s Remorse)

If you are staring at Brother’s lineup and thinking, “I just want the right machine—and I don’t want to buy twice,” you are not alone. In my 20 years on the production floor, I have watched thousands of home embroiderers go through the exact same emotional cycle: excitement when buying a machine, frustration when the first design puckers, and eventually, the desire for professional results.

Embroidery is not just about pushing a button; it is a discipline of physics, tension, and material science. Whether you want to make baby bibs, towels, or custom team gear, the machine is only 40% of the equation. The rest is your workflow.

This guide rebuilds the standard lineup overview into a "Master Class" roadmap. We will decode what each model is truly good at, reveal the "invisible" prep work that saves your garments from the trash bin, and identify exactly when you should upgrade your tools to protect your sanity.

Start With the One Decision That Saves the Most Money: 4x4 vs 5x7 Brother Embroidery Area

The video correctly identifies that the Brother lineup splits into two distinct "work zones": the 5x7 machines (PE800 and SE1900) and the 4x4 machines (SE600, PE535, and PE550D). This single choice determines your "pain threshold" for the next two years.

• PE800 embroidery area: 5x7 inches.
• SE1900 embroidery area: 5x7 inches.
• SE600 embroidery area: 4x4 inches.
• PE535 embroidery area: 4x4 inches.
• PE550D embroidery area: 4x4 inches.

The Expert Perspective: If you already know you want to stitch jacket backs, large floral bouquets, or standard adult chest logos (which often run 4.5 to 5 inches wide), the 5x7 field is mandatory. Limiting yourself to 4x4 means you will constantly be shrinking designs.

Why resizing hurts: When you shrink a dense design by more than 20% to fit a 4x4 hoop, the stitch density increases drastically. This creates a "bulletproof vest" effect—hard, stiff embroidery that breaks needles and puckers fabric.

In practical terms, ask yourself: do you need the standard brother pe800 hoop size today, or will you regret the limitations in three months when a friend asks for a large "Bride" hoodie?

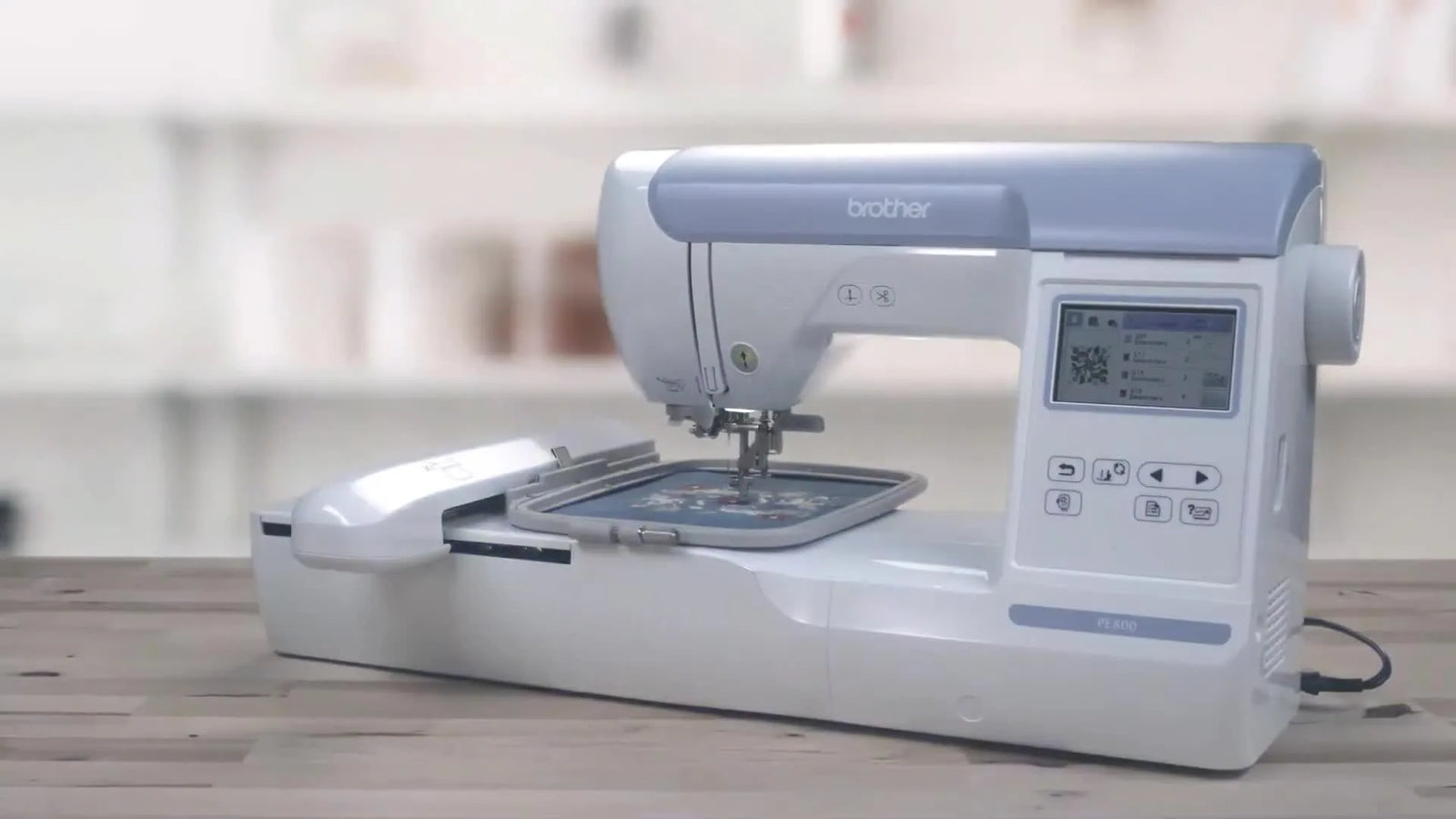

The PE800 “Embroidery-Only Workhorse”: Big 5x7 Results Without Paying for Sewing Features

The Brother PE800 is positioned as a dedicated embroidery machine with a 3.2-inch color LCD touchscreen, a 5x7 embroidery area, 138 built-in designs, and 11 built-in fonts.

Why Pros Respect This Machine: It does one thing, and it does it reliably. By removing the sewing mechanics (feed dogs for sewing, different motor logic), you get a focused tool.

The Hidden Friction Point: As you move to larger 5x7 designs, the physical grip on the fabric becomes critical. Standard plastic hoops rely on a friction screw. If you don't tighten it enough, the fabric slips inward (flagging). If you tighten it too much, you get "hoop burn"—a permanent crush mark on delicate velvet or performance polos.

If you plan on doing repetitive tasks like team shirts or towels, this is the moment to consider your hardware. Many users find that upgrading to a magnetic hoop for brother pe800 eliminates the struggle of tightening screws and prevents the dreaded "hoop burn" on customer textiles.

SE1900 vs SE600 Combo Machines: The Real Question Is “How Often Will You Sew?”

The video contrasts the two popular combination units:

• Brother SE1900: Sewing + Embroidery, 5x7 field, 240 built-in stitches, includes a knee lifter and superior feed system.
• Brother SE600: Sewing + Embroidery, 4x4 field, 103 built-in stitches.

The Decision Matrix: Choose the SE1900 if you need the 5x7 field and you plan to construct garments. The SE1900 isn't just bigger; it feeds fabric better for refined sewing. Choose the SE600 only if budget is the absolute constraint or you are strictly doing small patches and baby items.

Commercial Reality Check: The SE1900 is often the "gateway drug" to small business. But be warned: if you are using it for business, you will eventually hate switching back and forth between sewing mode and embroidery mode. It breaks your flow. Furthermore, as you ramp up production, standard plastic hoops wear out. Professionals frequently search for brother se1900 hoops that offer better durability or magnetic grip to handle the daily abuse of a 50-shirt order.

The “Hidden” Prep Pros Do Before Touching the Screen: Fabric, Stabilizer, and Hooping Tension

The video shows the act of hooping, but it skips the physics. 80% of beginner failures—thread nests, broken needles, and shifting outlines—happen because of poor prep, not the machine.

The "Drum Skin" Rule: Your fabric must be taut, like a drum skin, but not stretched. If you pull a stretchy t-shirt tight in the hoop, you stretch the fibers. When you un-hoop it, the fibers snap back, and your embroidery wrinkles immediately.

Prep Checklist (The "Save Your Shirt" Protocol)

• Needle Check: Run your fingernail down the needle tip. If you feel a "catch" or burr, replace it. A burred needle shreds thread.
• Bobbin Area: Open the bobbin case. Blow out any lint. Lint builds up under the tension spring and causes "bird nesting."
• Stabilizer Match: Confirm you have the correct backing (see Decision Tree below).
• Center Marking: Mark your fabric center with a water-soluble pen or chalk. Don't guess.
• Hoop Tension: Tighten the hoop screw before you fully press the inner ring down. Use the "finger test"—tap the fabric; it should sound like a dull thud.

Warning: Safety First. Keep fingers, loose hair, and jewelry away from the take-up lever and needle bar. These machines stitch at 650+ stitches per minute. A finger in the path of a needle results in a hospital trip, not a band-aid.

Fabric → Stabilizer Decision Tree

Stabilizer is the foundation of your house. Build it wrong, and the house sinks.

1. Is the fabric stretchy (T-shirts, polo, jersey knit)?
   • Decision: You MUST use Cut-Away Stabilizer.
   • The Why: Stitches punch thousands of holes. Tear-away stabilizer disintegrates, leaving the stretchy fabric to hold the design alone. It will fail. Cut-away stays forever to support the thread.
2. Is the fabric stable and woven (Denim, canvas tote, towels)?
   • Decision: Use Tear-Away Stabilizer.
   • The Why: The fabric is strong enough to support the stitches once the stabilizer is removed.
3. Is the fabric napped or fluffy (Terry cloth towel, velvet, fleece)?
   • Decision: Use Tear-Away (Backing) + Water Soluble Topper (Top).
   • The Why: The topper prevents the stitches from sinking into the loops of the towel.


USB Import on Brother PE800/SE1900/SE600/PE535/PE550D: The Cleanest Way to Load Designs

The video demonstrates the USB side port. This is standard, but here is where beginners get stuck.

The "File Blindness" Problem: You plug in the stick, but the machine shows nothing.

• Fix: Ensure your USB stick is 4GB or smaller (older architecture prefers small drives) or formatted to FAT32.
• Format: These machines only read .PES files. They cannot see .JEF (Janome) or .XXX (Singer) files.
• Organization: Do not dump 1,000 files in the root folder. The processor will choke. Create folders: "Flowers," "Fonts," "Logos."

Pro Tip: Always check the file size limits. A design with 50,000 stitches might lag or crash a smaller machine like the SE600. Keep your designs optimized.

On-Screen Editing That Actually Helps: Color Changes, Rotation, and Placement

The video highlights on-screen editing. This is your "last line of defense" before committing to fabric.

The "Safety Zone" for Resizing: You can rotate freely. You can flip or mirror capabilities freely. However, be extremely careful with scaling. Brother machines generally allow resizing +/- 20%.

• Expert Caution: If you shrink a design by 20% on the screen, the machine re-calculates the stitch points, but often simply crowds them. This increases density.
• The Symptom: If your machine sounds like it is hammering hard (thump-thump-thump) and thread keeps breaking, you have likely shrunk the design too much. Re-digitize it properly on a computer instead.

PE535 Note: The PE535 allows rotation in 1-degree increments. This is fantastic for correcting a slightly crooked hoop job without re-hooping the fabric.

The SE600 Drag-and-Drop Placement Trick: Fast Positioning, Fewer Re-Hoops

The SE600's color LCD allows you to drag the design with your finger. This is critical for saving money on "blanks" (t-shirts, towels).

The "Hooping Station" Concept: Even with drag-and-drop, aiming is hard. Professional shops use a physical jig or station to ensure every shirt is hooped in the exact same spot. For home users, consistency is key. If you find yourself struggling to align the fabric straight in a standard hoop, using a dedicated hooping station for brother embroidery machine can stabilize the outer hoop while you press the inner hoop, acting like a "third hand" to ensure straightness.

Automatic Needle Threading: The Feature Everyone Loves—Until It Breaks

The video demonstrates the automatic needle threader. It is a brilliant convenience, but it is also the most fragile part of the machine.

How to extend its life:

1. Needle Position: The needle MUST be in the highest position (press the "Needle Up/Down" button twice to reset).
2. No Force: Press the lever with a smooth, committed motion. Do not jerk it.
3. Thread Path: Ensure the thread is caught in the guide hook (the tiny number "7" guide).

Sensory Check: You should feel a soft mechanical resistance, followed by the hook passing through the eye. If you hear a plastic "snap," stop immediately. You may have bent the internal micro-hook.

SE1900 Sewing Features That Matter for Embroidery People

Why buy the SE1900 if you only want to embroider? Because of the clearance space and construction ability.

If you are making custom "In-the-Hoop" (ITH) projects—like zippered pouches, stuffed animals, or keyfobs—you eventually need to close the turning holes or add hardware. Having a sewing machine with a slightly larger throat space (like the SE1900) makes maneuvering these bulky 3D items much easier than on a standard domestic sewing machine.

The SE600 Feature Set in Plain English: A Realistic 4x4 Business Plan

The SE600 is a marvel of entry-level engineering. However, the 4x4 limit is strict.

Profitable 4x4 Niches:

• Baby Onesies (Logos are naturally small).
• Hat Patches (Stitched flat, then glued/sewn on).
• Left-Chest Corporate Logos (Usually 3.5 inches wide).
• Napkin Monograms.

The "Trap": Do not try to split a large design into two 4x4 hoopings ("multi-hooping") as a beginner. It requires advanced software alignment and frustrates everyone. If you stick to the 4x4 limit, you can run a business. But make sure you have spare hoops. Having a secondary brother 4x4 embroidery hoop allows you to hoop the next shirt while the machine is stitching the current one, doubling your efficiency.

PE535 and PE550D: Compact 4x4 Machines Wins on Simplicity

The PE535 and PE550D are siblings. The main difference is the internal memory: the PE550D contains Disney-licensed patterns.

Note on Licensing: You generally cannot sell items made with the built-in Disney designs commercially. They are for personal use.

Ergonomics Alert: Standard 4x4 hoops require significant hand strength to clamp thick towels. Users with arthritis or repetitive strain issues often struggle here. This is a prime scenario where upgrading to a brother magnetic embroidery frame can save your wrists. The magnets snap sets together without the need to twist a screw or force a plastic ring down.

The Fix That Prevents “Why Did It Shift?”: Hooping Physics and Magnetic Solutions

The video shows the standard grey plastic hoops. These work by friction. But friction fails when fabric is thick (like a Carhartt jacket) or slippery (like satin).

The Physics of Failure:

1. Hoop Burn: You tighten the screw to hold a thick towel. The plastic crushes the towel loops. The mark never washes out.
2. Pop-Out: You are stitching a heavy canvas bag. The machine moves fast. The weight of the bag pops the inner hoop out. The needle breaks.

The Magnetic Solution: Magnetic hoops clamp fabric using vertical force (downward pressure) rather than friction (sideways stretching). This allows you to hold thick items securely without crushing them. For owners of the SE1900/PE800, using a brother 5x7 magnetic hoop is often the turning point where their hobby starts to feel like a professional production. It allows for "continuous hooping" (sliding fabric/stabilizer without full disassembly) which is a massive time saver.

Warning: Magnetic Safety. These are not refrigerator magnets. They are industrial Neodymium magnets.
* Pinch Hazard: They snap together instantly. Keep fingers clear.
* Medical: Do NOT use if you have a pacemaker.
* Electronics: Keep away from credit cards, phones, and the machine's LCD screen.

If you are looking for specific sizes, always search for magnetic embroidery hoops for brother followed by your specific machine model number to ensure the connector arm fits your carriage.

Setup That Keeps You Out of Trouble: The "No-Surprises" Sequence

The video shows the "Happy Path"—everything works perfectly. Here is the Real World protocol to prevent disasters.

Setup Checklist (Do this exactly in order)

1. Load Design: Select file on screen.
2. Orientation Check: Does the top of the design match the top of the hoop?
3. Thread Path: Pull the thread near the needle. You should feel a slight, consistent drag (like flossing tight teeth). If it pulls freely, the thread jumped out of the tension discs. Rethread.
4. Bobbin Check: Look at your bobbin. Is the thread tail caught in the cutter? Is the bobbin spinning counter-clockwise?
5. Clearance: Check: Is there a wall, a mug, or a stash of scissors behind the machine? The embroidery arm will move back and knock them over.


Operation: What “Normal” Looks and Sounds Like

You press the green button. The machine starts.

The 10-Second Rule: Do not walk away. Watch the first 10 seconds.

• Sound: The machine should have a rhythmic "Chunk-Chunk-Chunk" sound. If it sounds like "Grr-Grr-Grr," stop.
• Fabric: The fabric should stay flat. If it lifts or bubbles, you hooped poorly.
• Bobbin: Wait for the machine to stop. Check the back of your design. The white bobbin thread should be 1/3 in the center, flanked by the top thread color.

Hooping Physics: The Upgrade Path That Actually Pays You Back

The top comment asks for links. I can give you links, but I want to give you a career.

The Upgrade Path:

1. Thread: Buy higher quality polyester thread (Isacord, Glide, Simthread). Cheap thread breaks.
2. Stabilizer: Buy proper cut-away rolls, not pre-cut squares.
3. Hoops: Invest in magnetic hoops for production speed.

The Hooping Warning: If you insist on standard hoops for thick items, you are fighting physics. Eventually, the plastic hoop screw strips out or cracks. If you own the larger SE1900, many professionals find that adding a brother se1900 magnetic hoop solves the heavy-towel problem permanently. This is the difference between a frustrating fight and a smooth production run.

When “Good Enough” Stops Being Enough: The Multi-Needle Leap

Once you master your 4x4 or 5x7 machine, you will hit a wall.

• The Wall: You get an order for 50 left-chest logos. On a single-needle machine, you stop every 2 minutes to change thread colors. It takes 30 minutes per shirt.
• The Fix: This is when a business moves to a Multi-Needle Machine.

A multi-needle machine (like a 10-needle or 15-needle) holds all threads simultaneously. It trims automatically. It runs faster. It gives you your life back. When you reach that point, remember the fundamental rule: Buy the tool that respects your time.

Quick Model Snapshot (from the video)

• PE800: Embroidery-Only, 5x7 field, 138 designs, USB.
• SE1900: Sewing + Embroidery, 5x7 field, 240 sewing stitches.
• SE600: Sewing + Embroidery, 4x4 field, 103 sewing stitches.
• PE535: Embroidery-Only, 4x4 field, budget-friendly.
• PE550D: Embroidery-Only, 4x4 field, 125 designs (45 Disney).

If you want the simplest advice: Start with the hoop size (4x4 vs 5x7) that fits your dream projects, then upgrade your hooping tools (magnetic hoops) to make the repetitive work painless.

FAQ

• Q: How do Brother PE800, Brother SE1900, Brother SE600, Brother PE535, and Brother PE550D users stop fabric puckering caused by stretching fabric too tight in the embroidery hoop?
  A: Hoop the fabric “drum-tight” but not stretched, and let stabilizer—not fabric tension—carry the design.
  • Float the stabilizer if needed, but avoid pulling knit fabric tight before locking the inner ring.
  • Tighten the hoop screw before fully pressing the inner ring down to avoid over-stretching during clamping.
  • Match stabilizer to fabric: use cut-away for stretchy knits; tear-away for stable wovens; add water-soluble topper for towels/fleece/velvet.
  • Success check: after unhooping, the embroidery stays flat without ripples forming around the design edges.
  • If it still fails: reduce design size/density expectations and re-check that the correct stabilizer type was used for that fabric category.
• Q: What is the fastest way to diagnose and stop bird nesting on Brother PE800 / SE1900 / SE600 during the first minute of stitching?
  A: Stop immediately and re-check needle condition, bobbin lint, and correct threading tension drag before continuing.
  • Replace the needle if a fingernail test catches on a burr; a damaged tip shreds thread and triggers nests.
  • Open the bobbin area and remove lint that can sit under the tension spring and cause looping.
  • Rethread the top path and confirm slight, consistent drag when pulling thread near the needle (not free-sliding).
  • Success check: the first stitches form cleanly with no thread “pile-up” under the hoop and the machine sound stays rhythmic.
  • If it still fails: inspect the back of the embroidery for imbalance and re-seat the bobbin and thread tail (caught tails can cascade into a nest).
• Q: How can Brother PE800 / SE1900 / SE600 owners verify correct top-and-bobbin tension by looking at the back of the embroidery?
  A: Use the “1/3 bobbin rule” on the back to confirm balanced tension before walking away.
  • Stitch a small test area first and stop the machine before inspecting.
  • Look at the back: the white bobbin thread should sit about 1/3 in the center, flanked by the top thread color.
  • Listen during stitching: normal is a steady “chunk-chunk”; abnormal grinding or hammering cues a stop-and-check.
  • Success check: back-side shows a consistent, centered bobbin line rather than wide top-thread coverage or messy loops.
  • If it still fails: rethread the top path (most common), then re-check lint in the bobbin area.
• Q: Why does a Brother PE800 / SE1900 / SE600 show no designs after USB import, and what is the cleanest fix?
  A: Use a small FAT32-formatted USB drive and load only .PES files organized into folders.
  • Format the USB drive to FAT32 and, if possible, use a 4GB-or-smaller drive (older architecture often prefers small drives).
  • Confirm the design file type is .PES; these machines will not display .JEF or .XXX files.
  • Create a few folders (for example, Flowers/Fonts/Logos) instead of placing hundreds of files in the root directory.
  • Success check: the machine displays folders/files immediately when the USB is inserted and the design preview loads without delay.
  • If it still fails: try a different USB stick and confirm the design is not excessively large for a smaller model to load smoothly.
• Q: How can Brother PE800 / SE1900 / SE600 users avoid thread breaks and “hammering” sounds after resizing a design on the machine screen?
  A: Keep on-screen resizing within the safe range (generally up to ±20%) and avoid heavy shrinking that increases stitch density.
  • Undo aggressive shrink steps and return closer to original size if the machine starts thumping hard.
  • Prefer rotation/mirroring for placement corrections instead of scaling down dense designs.
  • If a smaller finished size is truly required, re-digitize on a computer rather than forcing extreme density changes on the machine.
  • Success check: the stitch-out runs smoothly without repeated top thread breaks and without a harsh “thump-thump” sound.
  • If it still fails: test the original design size on the same fabric/stabilizer to confirm whether the issue is density-related or prep-related.
• Q: What safety steps should Brother PE800 / SE1900 / SE600 / PE535 / PE550D users follow during hooping and the first seconds of stitching to avoid needle injuries?
  A: Treat the first 10 seconds as a “hands clear, eyes on” safety window and keep fingers away from needle motion at all times.
  • Remove loose jewelry and tie back hair before starting; high-speed stitching can catch anything near the needle bar.
  • Press start, then keep hands off the hoop and away from the needle path while watching the first stitches.
  • Stop immediately if fabric lifts/bubbles or the sound changes to grinding; correct setup before continuing.
  • Success check: the machine runs with a steady rhythm and the fabric stays flat without you needing to touch the hoop.
  • If it still fails: re-hoop and re-check clearance behind the machine so the embroidery arm cannot strike objects.
• Q: When do Brother PE800 and Brother SE1900 users benefit most from upgrading from standard plastic hoops to a magnetic embroidery hoop for towels, canvas, and thick garments?
  A: Upgrade when standard hoops cause hoop burn, fabric slippage/flagging, or inner-hoop pop-outs on thick or slippery materials.
  • Diagnose the pain point: hoop burn from over-tightening, or shifting outlines from fabric creeping under friction hoops.
  • Try Level 1 first: correct hoop tension (tight but not crushing) and correct stabilizer/topper for the fabric type.
  • Move to Level 2 when physics keeps winning: magnetic hoops apply vertical clamping force and can hold thick items without crushing loops.
  • Success check: the fabric stays secure through fast arm movements with no shifting and no permanent crush marks after unhooping.
  • If it still fails: confirm the magnetic hoop size and connector fit the exact Brother model carriage, and reduce drag from heavy items pulling on the hoop during stitching.
