Brother PR 600 Seized Needle Bar Fix: The “Soak, Listen, and Free It” Method That Saves a Service Call

If your Brother PR 600 needle bar suddenly feels “seized solid,” your stomach drops for a reason: it sounds like an expensive head rebuild. You picture weeks of downtime and a bill that wipes out your profit margin for the month.

Take a breath. In my 20 years of diagnostics, a fully stuck needle bar on a multi-needle head is rarely a catastrophic drive failure. It is usually a simple mechanical story told by physics: humidity, rust, and time. This is especially common if the machine sat in storage—garages and basements are the natural enemies of precision steel bushings.

This guide rebuilds the workflow shown in the video, but applies an "expert filter." We will add the sensory checkpoints the camera missed, the safety margins you need, and the tooling upgrades that prevent this from stalling your business again.

The first 30 seconds on a Brother PR 600 seized needle bar: confirm it’s mechanical, not a control issue

The video starts with the most critical diagnostic move: manual tactile inspection. Before you touch a screwdriver or software, you must rely on your fingers.

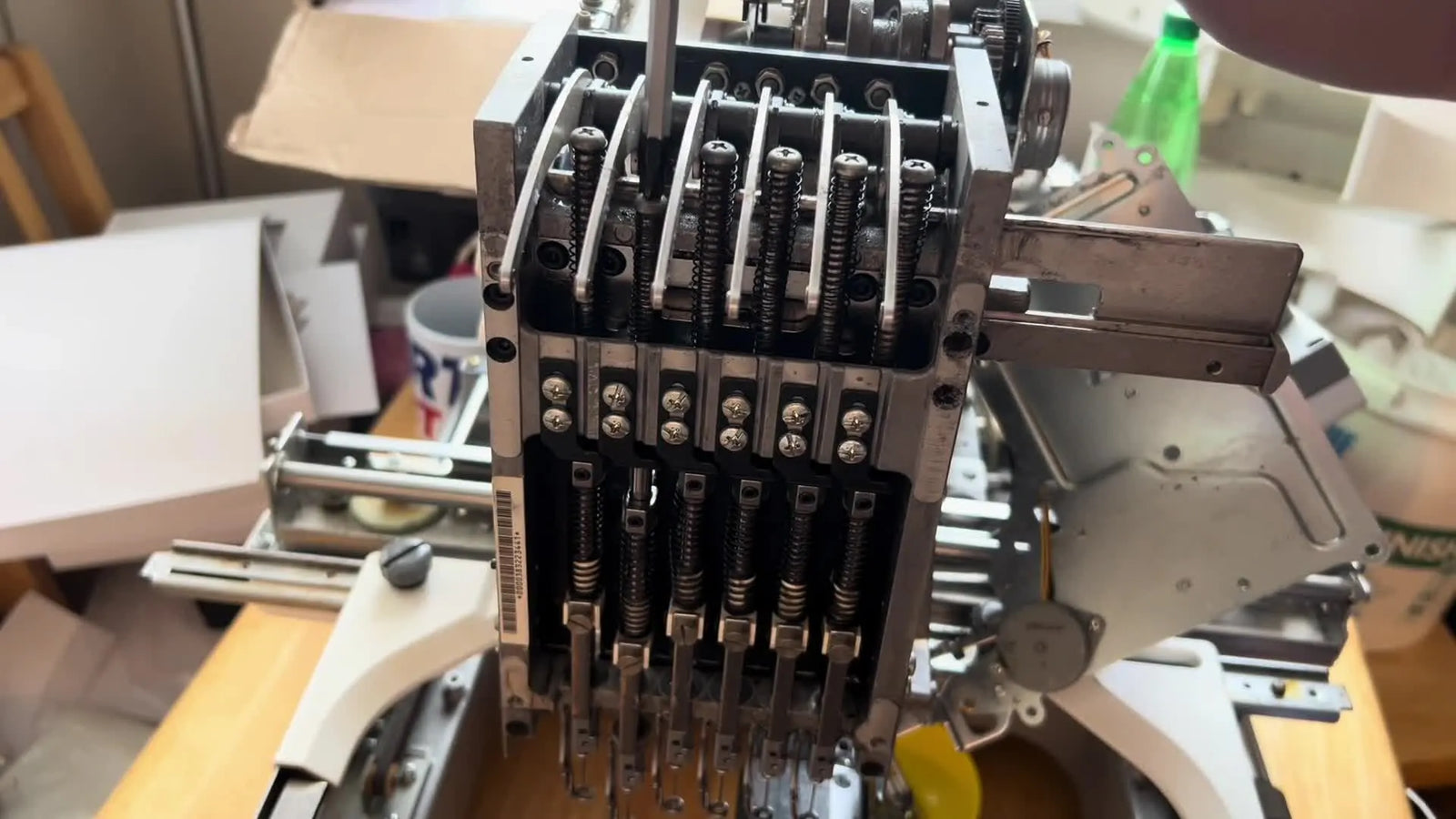

With the front cover already removed, the technician presses each needle bar toggle by hand. You are looking for a baseline. Most bars should slide up and down with spring tension. In this case, one is seized solid—zero travel. He also points out visible brown rust on the springs and shafts.

What you’re looking for (The Sensory Diagnosis):

• Visual: Look at the springs. Are they shiny silver, or do they look like old pennies (brown/dull)? Brown means moisture has penetrated the assembly.
• Tactile: When you press the needle bar driver, it should feel "bouncy." A seized bar feels like pressing against a brick wall. There is no "give."
• Auditory: A seized bar is silent because it doesn't move. A gritty bar makes a "shhh-shhh" sandpaper sound (we want to avoid this).

Warning: Mechanical Pinch Hazard. Keep fingers, tools, and loose clothing away from any moving parts if the machine is powered. For this entire diagnosis and freeing process, treat the head as a pinch-point zone—needle bars and linkages can snap free suddenly under spring tension. Always unplug the machine when applying liquids.

If you are operating a brother embroidery machine in a non-climate-controlled environment (like a garage or near a window), this seizure is a "when," not an "if." The rust you see on the outside is just the tip of the iceberg; the real glue is inside the bushing.

The “hidden” prep that makes penetrating oil actually work on Brother PR 600 needle bars

The technician doesn’t just mist the area—he soaks it. This distinction is the difference between a 10-minute fix and a broken shaft.

He uses a spray can with a straw applicator. Do not attempt this without a straw applicator. You need to direct the fluid precisely into the bushing channel, not spray the electronics board behind it. He applies penetrating oil generously to the springs, needle bars, and upper bushings until oil drips and rust-colored residue starts to run out.

Prep Checklist (Do this BEFORE you spray)

• Isolate the Bar: Confirm exactly which number bar (1-6) is stuck via hand-press testing.
• The Right Chemical: Use a true penetrating oil (like PB Blaster or WD-40 Specialist) to break the rust. Do not use standard sewing machine oil yet—it is too thick to penetrate a seized gap.
• The Straw: Ensure the red straw is firmly inserted into the nozzle.
• The Catch Rag: Place a thick towel or rag at the bottom of the head to catch the brown "rust slurry" that will drip down.
• Time Allocation: The video’s soak time is 3–4 hours. This is not a suggestion; it is a requirement.

Why soaking beats spraying (The Science): Penetrants work by capillary action—creeping into microscopic gaps against gravity. Rust expands, closing those gaps and increasing friction. A quick spray evaporates. A heavy soak creates a "fluid reservoir" that forces the oil into the threads of the rust, chemically breaking the iron oxide bond.

Open the access points: removing the top guides/screws so rust doesn’t grind inside the PR 600 head

In the video, the technician suggests removing the top metal guides/screws. Access is king here. You cannot fix what you cannot reach.

He also recommends wiping off rust residue with a cotton cloth. This "wipe" step is not cosmetic—it is abrasion control. Rust slurry is essentially liquid sandpaper. If you free the bar and then cycle it while that grit is sitting in the channel, you will scour the bushing. Once a bushing is scored, that needle bar will always be loose, leading to wobbly stitches and frequent thread breaks.

What to do exactly (as shown):

1. Identify: Locate the top retaining screws/metal guides directly above the seized spring.
2. Remove: Unscrew them carefully. Place them in a magnetic tray (screws love to fall into the machine belly).
3. Clean: Use a lint-free shop cloth to wipe away the brown liquid sitting on top of the assembly.

If you’re also fighting hooping marks and fabric distortion in daily production, remember that smooth needle-bar motion is crucial. Jerky reciprocation causes the fabric to flag (bounce), which often looks like tension issues but is actually mechanical friction.

The controlled “Soak and Pry” release: using a flathead screwdriver without cracking anything

This is the moment everyone wants to rush—and the moment that breaks parts when done carelessly. The physics here is "Leverage," not "Force."

The technician uses a flathead screwdriver as a lever against the machine frame and carefully pries the needle bar engaging stud upward to break the rust seal. He does not hammer it. He applies steady, increasing pressure until the chemical bond of the rust snaps.

The Fix (Step-by-Step) with Checkpoints

1. Soak First (Zero Tolerance): Apply penetrating oil heavily to the seized area.
   • Sensory Check: The metal should look wet and glossy.
   • Success Metric: Rust-colored liquid begins to bleed out from the bushing.
2. Apply Controlled Leverage: Place the flathead under the engaging stud. Use the frame as a fulcrum. Gently lift.
   • Sensory Check: You are waiting for a distinct "Pop" or "Crack" sensation. This is the rust seal breaking.
   • Safety: If it bends but doesn't move, stop. Apply more oil and wait another hour.
3. Cycle by Hand: Once it moves even 1mm, grab the bar (or stud) and work it up and down.
   • Sensory Check: It will feel "sticky" like pulling a spoon out of cold honey.
   • Success Metric: The range of motion increases with every stroke.
4. Flush the Wound: Re-apply oil while moving the bar.
   • Sensory Check: The oil coming out will turn from dark brown to a lighter tea color. this means the rust is clearing.

Warning: Tool Slippage. A screwdriver used as a lever can slip under pressure. Protect your hands and eyes. if the screwdriver slips, it can gouge the aluminum frame or stab your hand. Always push away from your body.

A lot of owners ask whether this kind of repair is “worth it.” If you saved a service call ($300+) and downtime (3 days), you understand the value. One commenter noted this exact method saved them hundreds of dollars.

The 3–4 hour soak on a PR 600: what changes, and what *shouldn’t* be ignored

After the initial wiggle, leave the assembly to soak for 3–4 hours. Then, return and press the bars again.

This is where the video gets unusually valuable: he doesn’t just celebrate movement—he listens. Mechanical empathy is your best diagnostic tool on a multi-needle machine.

The Sound Test: Soft “Rubber Thud” vs. Hard “Plastic Click / Sandpaper”

He compares a healthy bar to the previously stuck bar:

• Healthy Bar: When released, it drops with a dull, dampened sound. Thud. This indicates the rubber bumpers and bushings are absorbing the energy.
• Problem Bar: It makes a harder, higher-pitched sound. Click-Clack. Or a scratching sound. Shhhk.


What that sound means (Expert Interpretation):

• The "Thud" (Good): Oil film is present, and the dampener is intact.
• The "Sandpaper" (Caution): There is still rust pitting inside the bushing. It needs more oil and more cycling.
• The "Click" (Bad): The rubber bumper may have hardened or disintegrated due to age or rust. While the machine will run, it will be noisier and may vibrate more on that needle.

This "sensory feedback" is your maintenance superpower. On multi-needle heads, your ears often detect trouble 50 running hours before the machine throws an error code.

Reassembly reality check: don’t chase every rust spot—chase the ones that affect motion

In the video, the technician notes rust on top levers but admits he doesn’t fully clean everything because it’s time-consuming. This is a practical "Triage" decision.

Here is the professional hierarchy of rust removal:

1. Critical (Must Clean): Anything that slides, rotates, or touches thread. (Needle bar, bushing, hook assembly).
2. Functional (Should Clean): Springs and levers. (Rust can weaken spring tension).
3. Cosmetic (Ignore): Surface rust on the cast iron frame or screw heads that don't touch fabric.

If you’re running production, your goal is not a museum restoration—it’s reliable motion and predictable stitch quality. Don't let perfectionism delay your production schedule.

Before you stitch: the manual shaft-rotation check that prevents a second panic

The technician manually rotates the main shaft knob to check that the reciprocator engages correctly.

Do not skip this. Before you plug the machine in, turn the handwheel/knob on the side. The machine should cycle through a stitch.

Checkpoint:

• Does the machine rotate smoothly 360 degrees?
• Does the previously stuck needle bar go down and come back up without hesitation?
• Do you feel any "hard spots" or resistance?

If you’re maintaining a pr600 embroidery machine for business, this 20-second "pre-flight check" saves you from snapping a drive belt if the bar is still partially stuck.

The PR-600 color-bar test pattern: prove all 6 needles engage before you trust the head

Once reassembled and powered on, do not run a customer design. You need a specific diagnostic pattern: vertical color blocks across all needles.

He uses the standard hoop (approx 180×130 mm) and stitches six vertical bars. This forces the head to physically move and engage every single needle bar (1 through 6) in sequence.

Setup Checklist (Right before the test stitch)

• Sacrificial Fabric: Use a white woven scrap. White helps you see oil accumulation.
• Stabilizer: Use a stiff Cutaway. You want zero stability variables right now.
• Machine State: Ensure covers are secure (loose covers can vibrate into the path of the pantograph).
• Mental Prep: Be ready to hit the "Stop" button instantly if you hear a grinding noise.

If you’re using brother pr600 hoops daily, treat this test like a “calibration stitch-out” after any internal mainteneance.

The messy truth: oil stains and dirty stitches are normal right after freeing a seized needle bar

The technician calls it out clearly: the inside is dirty, and the machine will need some stitching to clean up. During the first run, oil stains will appear on the fabric.

This is not failure—it’s the purge.

The penetrating oil combined with the dissolved rust creates a brown liquid. As the needle bar moves up and down at 600-1000 SPM, gravity pulls that liquid down the needle.

Practical Shop Tip: Keep a "Purge Hoop" ready. Clamp a double layer of thick felt or stabilizer. Run the machine on that needle for 2 minutes to wick away the excess oil before touching a garment.

The “why it seized” lesson: humidity, idle time, and friction points you can actually control

The video implies the root cause is humidity and lack of service. This is accurate.

The Physics of Seizure: Steel swells when it rusts. The clearance tolerance between the needle bar and the bushing is extremely tight (microns). Even a tiny layer of rust fills that gap, creating an interference fit.

What you can control (Preventative Maintenance):

1. Climate: If you can't control humidity, cover the machine with a plastic dust cover when not in use.
2. Exercise: Run the machine at least once a week, even if you have no orders. Movement distributes the oil film.
3. Lubrication: Weekly, apply one drop of clear embroidery machine oil (not spray!) to the needle bars.

If you’re a shop owner, downtime on a multi-needle head costs more than the oil ever will.

Troubleshooting a Brother PR 600 seized needle bar: symptoms → likely cause → what to do next

Use this logic flow to diagnose your specific issue:

A stabilizer decision tree for post-repair test stitch-outs (so you don’t ruin good fabric)

When you are purging oil, your goal is not perfect embroidery—it’s "Safe Cycling."

Decision Tree (Fabric → Backing choice):

• Testing on Woven Scrap (Recommended):
  • Choice: Standard Cutaway. It holds the fiber tight so you can see if the needle penetration is straight.
• Testing on Knits (Tees/Hoodies):
  • Choice: Heavy Cutaway (2.5oz+). Since you just stressed the mechanism, you want to eliminate fabric flagging as a variable.
• Testing on Delicate/Light Fabric:
  • Choice: Don't. Never test a repaired machine on silk or satin. The oil splatter risk is 100%.

The upgrade path after a PR 600 repair: reduce hooping stress, speed up jobs, and protect your wrists

Once the head is moving again, you will feel a sense of relief. But as you return to production, you might notice the other pain point: the physical toll of hooping.

If you’re doing steady garment runs, the fastest productivity gains come from removing friction in your setup process:

1. The Trigger: You are spending 3 minutes hooping a shirt for a 5-minute stitch run. Or, you notice "hoop burn" (rings) on delicate leftovers.
2. The Standard: If you are producing 50+ items a week, traditional screw-tightened hoops are a bottleneck and an ergonomics hazard (Carpal Tunnel is real in this industry).
3. The Upgrade Options:
   • Level 1 (Tooling): Magnetic Hoops. For industrial workflows, switching to magnetic hoops eliminates the need to unscrew rings. You simply lay the fabric and snap the magnets on. This reduces "hoop burn" and cuts hooping time by 40%.
   • Level 2 (Capacity): Multi-Head/New Plantform. If your PR 600 is constantly requiring maintenance due to age and high volume, it may be time to relegate it to a backup role. Modern platforms, like SEWTECH multi-needle embroidery machines, offer updated bushings and sealed mechanics designed for higher duty cycles.

If you’re still wrestling with a conventional hoop for brother embroidery machine and you’re hooping dozens of pieces a day, upgrading to a magnetic system is not just a luxury—it's safety equipment for your wrists.

Warning: High Power Magnets. Magnetic hoops contain industrial-strength neodymium magnets. They can pinch fingers severely. Keep them away from pacemakers, ICDs, and magnetic storage media.

For cap work specifically, a brother pr600 hat hoop is essential, but for flats, magnetic frames are the industry standard for efficiency.

Operation Checklist (After the machine is freed and reassembled)

Before you accept a client order, tick these boxes:

• Manual Cycle: Hand-turn the shaft 3 full rotations. No binding?
• Full Spectrum Test: Run the 6-color bar test. Do all needles fire?
• Purge Complete: Is the white bobbin thread free of brown oil stains?
• Sound Check: Put your ear near the head. Is there a rhythmic "thump-thump" (Good) or a "screech" (Bad)?
• Inventory: Did you remove the red straw and the screwdriver from the table?

If you’re building a small production workflow around hooping for embroidery machine efficiency, the real win is consistency. A healthy head plus a repeatable hooping method is what turns a hobby machine into a revenue generator.

FAQ

• Q: How can a Brother PR 600 owner confirm a seized needle bar is a mechanical rust lock and not a control/electronics issue?
  A: Unplug the Brother PR 600 and do a tactile press-test on each needle bar driver—one bar that has zero travel is almost always mechanical seizure.
  • Remove the front cover (if already open) and press each needle bar toggle/driver by hand to compare movement across bars 1–6.
  • Look for brown/dull rust on springs and shafts near the stuck bar.
  • Listen while pressing: a truly seized bar is silent (no motion), while a gritty bar may make a “shhh-shhh” sandpaper sound.
  • Success check: the healthy bars feel “bouncy” with spring return, while the seized bar feels like pushing a brick wall (no give).
  • If it still fails: stop forcing the mechanism and proceed to a penetrating-oil soak before any prying.
• Q: What penetrating oil setup is required to free a Brother PR 600 seized needle bar without spraying the electronics?
  A: Use a true penetrating oil with a straw applicator and plan a heavy soak with a catch rag—light misting is usually not enough for a Brother PR 600 needle bar bushing.
  • Confirm the exact stuck needle bar number first by hand-press testing.
  • Insert the straw firmly into the spray nozzle and aim only into the bushing/needle bar area (not toward boards/wiring).
  • Place a thick towel/rag at the bottom of the head to catch dripping brown “rust slurry.”
  • Wait 3–4 hours after soaking before expecting meaningful release.
  • Success check: the metal stays wet/glossy and rust-colored liquid begins bleeding out from the bushing area.
  • If it still fails: re-soak and extend the wait time rather than switching to force.
• Q: Should a Brother PR 600 user remove the top guides/screws above the seized needle bar before cycling the bar, and why?
  A: Yes—removing the top metal guides/screws improves access and wiping away rust slurry reduces abrasion that can score the bushing.
  • Locate the top retaining screws/metal guides directly above the seized spring/needle bar and remove them carefully.
  • Wipe off pooled brown residue with a lint-free cloth to prevent grit from grinding inside the channel.
  • Keep removed screws controlled (a magnetic tray helps prevent drops into the machine).
  • Success check: the area around the seized bar is visibly cleaner (less brown slurry) before you attempt repeated movement.
  • If it still fails: re-soak first; do not “run it clean” at speed with gritty slurry present.
• Q: How can a Brother PR 600 owner pry a seized needle bar engaging stud safely without cracking parts or bending linkages?
  A: Use controlled leverage (not impact) with a flathead screwdriver after a heavy soak, and stop if the stud bends without releasing.
  • Soak the seized area until it is visibly wet and rust-colored fluid starts to run.
  • Set the flathead under the engaging stud and use the machine frame as the fulcrum; apply slow, increasing lift pressure.
  • Cycle the bar by hand as soon as it moves even 1 mm, then re-apply oil while moving to flush residue.
  • Success check: you feel a distinct “pop/crack” as the rust seal breaks, followed by increasing travel with each hand cycle.
  • If it still fails: stop prying, apply more penetrant, and wait another hour before trying again.
• Q: After freeing a Brother PR 600 seized needle bar, what sound indicates the needle bar is healthy versus still damaged or gritty?
  A: A dull, dampened “thud” is a good sign, while a scratching “sandpaper” sound or hard “click-clack” means more attention is needed.
  • Compare the freed bar’s drop sound to a known-good needle bar on the same Brother PR 600 head.
  • Re-soak and hand-cycle if you hear scraping/“shhhk” to keep flushing remaining rust.
  • Treat persistent hard clicking as a sign the rubber bumper/dampening may be degraded (the machine may run but be noisier/vibrate more).
  • Success check: the freed bar moves with a smoother feel and produces a softer “rubber thud” similar to the other bars.
  • If it still fails: continue the soak-and-cycle routine and avoid high-speed runs until the gritty sound is gone.
• Q: What manual rotation check should be done on a Brother PR 600 before powering on after a seized needle bar repair?
  A: Hand-turn the main shaft/handwheel through a full smooth 360° cycle to confirm the Brother PR 600 reciprocation is not binding.
  • Rotate the handwheel/knob slowly and feel for any hard spots or resistance.
  • Watch the previously stuck needle bar: it must go down and return up without hesitation.
  • Do not plug in power until the manual cycle feels consistent.
  • Success check: the shaft completes a smooth full rotation with no binding and the repaired needle bar reciprocates normally.
  • If it still fails: stop and re-check for partial seizure or mis-engagement before attempting powered motion.
• Q: What is the safest Brother PR 600 test stitch pattern and fabric/stabilizer setup to confirm all six needles engage after a seized needle bar?
  A: Stitch a six-needle vertical color-bar test on sacrificial white woven fabric with stiff cutaway stabilizer before running any customer design.
  • Use a white woven scrap to make oil/purge staining easy to see.
  • Use a stiff cutaway stabilizer to remove stability variables during diagnosis.
  • Run a pattern that forces needles 1–6 to engage sequentially (vertical color blocks).
  • Be ready to hit Stop immediately if any grinding noise appears.
  • Success check: all six color bars stitch without grinding sounds, and each needle engages cleanly when its color runs.
  • If it still fails: stop the test and re-check reciprocator engagement on the needle that will not sew, or continue cleaning/purging if oil slurry is still draining.
