Brother PR-620 Main Motor Encoder Signal Error: Replace the Encoder Board Without Cracking the Disc (and Avoid the Costly Re-do)

There is a specific kind of silence in an embroidery shop that everyone dreads: the sudden stop of the machine mid-design, followed by a cryptic error message. When your reliable workhorse throws a "Main motor encoder signal error," it feels like the machine has lost its mind.

But it hasn't. It has simply lost its vision.

In my 20 years of running shop floors and training technicians, I’ve learned that the encoder system is the "optic nerve" of your machine. When it gets clouded by lint, grease, or age, the machine goes blind to the needle's position and stops to prevent catastrophic damage. This isn't just a repair guide; it is a systematic, sensory-based walkthrough to restoring that vision without creating new problems.

The Calm-Down Check: What the Brother PR-620 Encoder Board Actually Does (and Why the Error Looks So Dramatic)

Before you start unscrewing panels, you need to visualize what is happening inside the metal casing. The encoder system consists of two parts: a thin, transparent plastic disc (the map) attached to the main shaft, and a U-shaped circuit board (the reader) that the disc spins through.

Think of it like a lighthouse keeper. The sensor (lighthouse) watches the spinning disc. If lint blocks the beam, or if the sensor burns out, the machine loses track of where the needle is—is it up? Is it down? Is it about to hit the hoop? To protect itself, it freezes.

The "Why" Matters:

• Symptom: The machine stops abruptly. Screen says "Encoder Signal Error."
• Reality: The sensor cannot "see" the disc spinning.
• Good News: Often, the board isn't fried; it's just dirty. A microscopic piece of polyester lint or a smear of oil can break the beam.


The “Hidden” Prep Pros Do First: Tools, Lighting, and a No-Loss Screw Strategy for Brother PR-620 Covers

Most beginners fail this repair not because they can't turn a screwdriver, but because they lose a specific washer or drop a screw into the motor housing. We are going to set up a "surgical tray" environment.

Hidden Consumables You Need (But Often Forget):

• Magnetic Parts Tray: Do not put screws in a cup; they will spill.
• Headlamp or Flexible LED Light: You need to see into deep, dark crevices.
• Isopropyl Alcohol (90%+) & Microfiber Swab: For cleaning the disc (optional but recommended).

Tools shown in the video

• Phillips head screwdriver (Standard size).
• Magnetic tip Phillips screwdriver (Critical for the deep internal screws).
• Drywall screw (The "Secret Weapon" for cap removal).

pre-Flight Checklist (Do NOT skip):

• Power Safety: Machine is turned off and unplugged from the wall.
• Needle Position: No fabric or hoops are attached; needles are up.
• Static Grounding: Touch a bare metal part of the case to discharge static electricity before touching circuit boards.
• Workspace: Clear a 2ft radius around the right side of the machine.
• Screw Map: Have a tray ready to separate "Exterior Case Screws" from "Internal Electronic Screws."

Warning: Mechanical Hazard. This procedure exposes you to the machine's drive train. Even unplugged, internal capacitors can hold charge, and sharp metal edges inside the chassis can slice fingers. Never force a component; if it’s stuck, you missed a screw.

The Fastest Way to Remove Brother PR-620 Screw Caps Without Chewing Up the Plastic

Prying plastic caps with a flathead screwdriver leaves ugly gouges that ruin the resale value of your machine. The video demonstrates a "technician's secret" that relies on tactile feedback.

The Drywall Screw Technique:

1. Insert: Take a sharp-tipped drywall screw and place it into the tiny center hole of the plastic screw cap.
2. The "Bite" (Tactile Anchor): Turn the screw gently by hand or with a driver. You are waiting to feel a distinct "bite"—the moment the threads grip the plastic cap without screwing all the way into the machine casing behind it.
3. The Pull: Once you feel that grip, pull straight back. The cap should pop out silently.

Checkpoint: Inspect the cap. It should be clean, with only a small pinprick in the center, and no pry marks on the outer rim.

Expected Outcome: You can now see the clean, recessed Phillips heads behind each cap.

Don’t Miss the “One Screw That Still Holds Everything”: Removing Brother PR-620 Side Panel Screws and the Top Arm Screw + Washers

This is the frustration point. You think you have removed every screw, you pull the case, and crack—plastic snaps. The PR-620 hides screws in deep recesses.

The Removal Sequence:

1. Cap Screws: Remove the screws revealed in the previous step.
2. The Deep Recess: Use your magnetic tip driver for the holes that look empty; there are often screws buried 2 inches deep.
3. The Top Arm (Critical): Locate the screw on the top bracket.
   • Visual Anchor: Watch for the washers. There is often a split washer (lock washer) and a flat washer. If these fall inside, you will spend an hour fishing them out with a magnet.

Checkpoint: Count your screws. Does the number of screws match the number of holes? If you have 5 holes and 4 screws, stop and find the missing one immediately.

Expected Outcome: The plastic covers feel loose and "floating," not rigidly attached.

Cover Removal Without Snapping Clips: The “Rear Cover First” Trick on the Brother PR-620

Plastic gets brittle with age. Yanking covers off is a recipe for buying expensive replacement plastics. The video uses a specific order of operations to unlock the puzzle.

The "Unlock" Method:

1. Rear First: Remove the back cover panel. This unlocks the tension on the side panel.
2. Tilt and Lift: Do not pull the main side cover straight out. Tilt the bottom out slightly (about 15 degrees), then lift upwards.
3. The "Pop": You should hear a sharp pop or click as the internal retaining tabs release. If you hear a crunch, stop—you are bending a tab.

Checkpoint: Inspect the inside of the removed cover. Are all plastic tabs still attached?

Expected Outcome: The "guts" of the machine are exposed: the main board, the motor belt, and the tangled wiring harness.

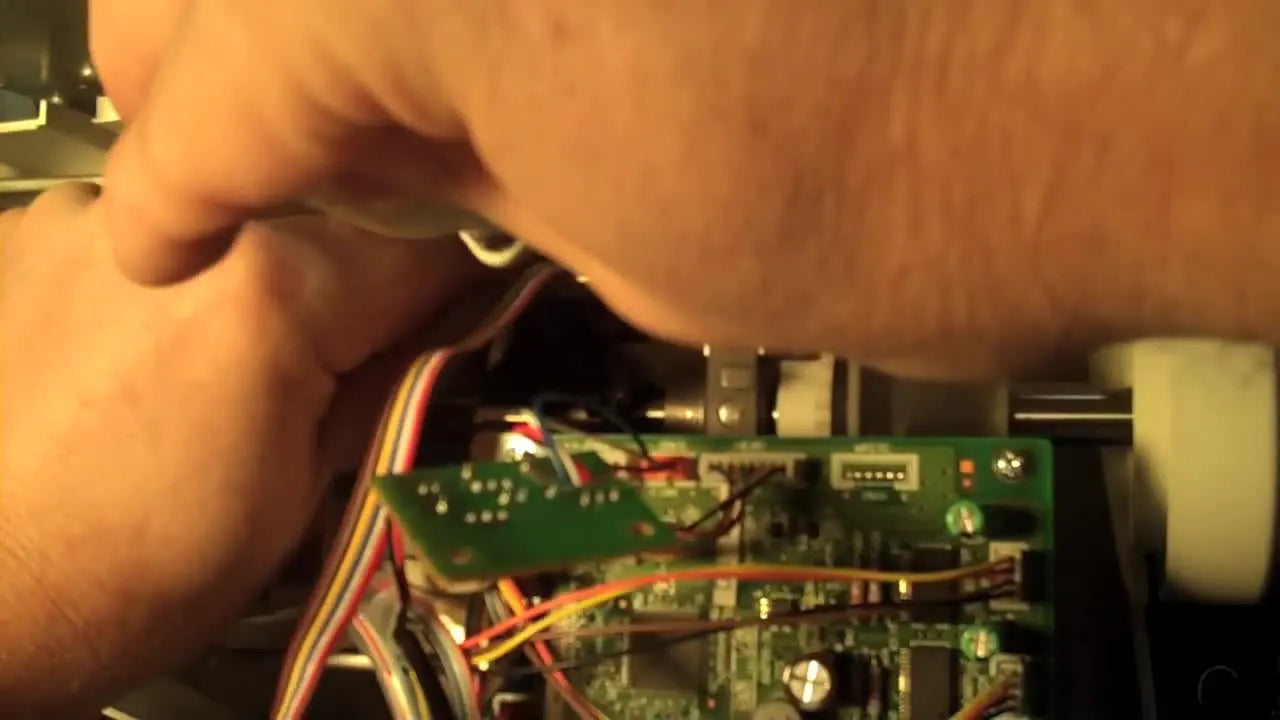

Pulling the Ribbon Cable the Safe Way: Removing the Small Circuit Board Assembly and Unplugging the Encoder Harness

We are now entering the nervous system. You need to remove a small intermediate board to get to the encoder.

The Gentle Extraction:

1. Unscrew: Remove the two screws holding the small obstructing circuit board.
2. Peel: Move this board aside like opening a book page. Do not stress the wires connected to it.
3. The Ribbon: Locate the flat ribbon cable coming from the encoder (the part we are fixing).
4. The Unplug: Grasp the white plastic connector (the plug), NOT the wires. Pull straight out.
   • Sensory Check: You should feel the friction release. Never yank the ribbon cable itself; you can tear the microscopic copper traces inside.

Checkpoint: The ribbon cable should be free from the retainers and hanging loose, not kinked or pinched.

Expected Outcome: You have a clear line of sight to the metal bracket holding the encoder sensor deep in the machine.

The High-Risk Moment: Removing the Encoder Bracket Without Bending the PR-620 Encoder Disc

This is the most dangerous step in the entire repair. The encoder disc is a thin, flexible film. If you scratch it, bend it, or get grease on it, the part is ruined.

The Surgical Extraction:

1. Tool Selection: You must use a magnetic screwdriver here. If the screw falls, it lands in the main drive gears or motor housing.
2. Loosen: Unscrew the bracket holding the sensor.
3. The Extraction Dance: Carefully maneuver the U-shaped sensor bracket around the delicate plastic disc. Imagine playing the game "Operation"—don't touch the sides (the disc).

Checkpoint: The screw is attached to your magnetic driver tip. The bracket is in your hand. The plastic disc on the machine is untouched.

Expected Outcome: The old sensor assembly is completely removed from the machine.

Swapping the Encoder Circuit Board: Match the Alignment Hole to the Bracket Indentation (No Guessing)

Bench work time. You are swapping the electronic board component onto the metal bracket.

The "Poka-Yoke" (Mistake-Proofing): Manufacturers design parts so they can only fit one way—if you look closely.

1. Remove: Unscrew the single screw holding the old board to the metal bracket.
2. Inspect: Look at the metal bracket. You will see a tiny raised "bump" or indentation.
3. Install: Place the new board. The small hole on the circuit board must sit perfectly over that metal bump. This ensures the angle is perfectly 90 degrees.
4. Tighten: Secure the screw.

Checkpoint: Run your finger over the board. It should sit flush against the metal. If it rocks or wobbles, it’s not seated on the alignment bump.

Expected Outcome: The new sensor provides a perfect "U" shape, ready to accept the disc.

Reinstall Like a Technician: “Catch the Screw First,” Then Tighten—So You Don’t Smash the Encoder Wheel

Reaching back into the machine is tricky. If you jam the bracket in, you might crush the encoder disc.

The "Soft Touch" Technique:

1. Load the Driver: Place the screw on your magnetic screwdriver tip before your hand enters the machine.
2. Hover: Position the bracket roughly in place, keeping the sensor "mouth" wide open around the disc.
3. The Catch: Insert the screw into the hole. Turn the screwdriver counter-clockwise (left) slightly until you feel a "click"—that is the threads aligning. Then turn clockwise (right) to tighten. This prevents cross-threading.
4. Don't Torque Yet: Tighten it only until it is snug, but allows a tiny fraction of movement for adjustment.

Checkpoint: The bracket is secure enough not to fall, but you haven't locked it down fully yet.

Expected Outcome: The sensor is back in the machine, "floating" around the disc.

The Make-or-Break Calibration: Center the Encoder Disc in the Photo Eye Sensor Gap on the Brother PR-620

This is where the magic happens. 90% of repeat failures happen because this step is rushed. The disc needs to be perfectly centered in the sensor gap—not touching the left wall, not touching the right wall.

The "Daylight" Test:

1. Visual Alignment: Get your eyes level with the sensor. You want to see "daylight" on both sides of the plastic disc as it passes through the black U-speed sensor.
2. The Hand-Wheel Test: Slowly turn the machine's hand wheel. Watch the disc. Does it wobble? Does it rub?
   • Auditory Anchor: Listen closely. If you hear a rhythmic swish-swish or scritch, the disc is rubbing the sensor wall. It must be silent.
3. Lockdown: Once centered, tighten the screw firmly without shifting the bracket.

Checkpoint: Spin the hand wheel one full rotation. The disc spins freely through the center of the gap without touching sides.

Expected Outcome: The "eye" can now see clearly. The signal will be clean.

Cable Routing That Prevents Pinched Wires: Retainers, Ridges, and the Correct Plug Orientation

Sloppy wiring leads to "ghost" electrical shorts later.

The Routing Path:

1. Retainers: Push the ribbon cable back into the white plastic routing clips. This keeps it away from moving belts.
2. Orientation: Plug the connector in. The ridges on the connector usually face inward (verify with the photo you took in step 6).
3. The Click: Push the connector until you feel/hear the definitive click of the latch.

Setup Checklist (The "Pre-Cover" Verification):

• Physical Clearance: Encoder disc spins silently in the center of the sensor gap.
• Connection: Sensor cable is clicked in tight.
• Safety: No loose screws left inside the chassis.
• Cleanliness: No greasy fingerprints on the encoder disc (wipe gently with isopropyl alcohol if needed).


“It Won’t Start After I Cleaned It”: What the Comments Reveal About Cleaning Mistakes (and When Replacement Is Smarter)

A common debate in the comments: "Should I clean it or replace it?"

The Reality of Cleaning: Cleaning works if the problem is dust. It fails if the problem is a dying electronic component or if you use the wrong cleaner.

• The Trap: Avoid "Methylated Spirits" or aggressive solvents on the plastic disc; they can fog the plastic, permanently blinding the sensor. Use 90%+ Isopropyl Alcohol or just dry compressed air.
• The Grease Factor: If oil from the shaft has migrated to the disc, cleaning keeps the machine running. But if the board is 10+ years old, the photo-eye diode may simply be dimming.

Pro Tip: If you clean it and the error returns in a week, stop fighting. Replace the board.

A Quick Decision Tree: Clean First or Replace the Brother PR-620 Encoder Board?

Use this logic to save money and time.

Reassembly Without Regret: Covers, Clips, and the “Don’t Grab a Cable” Habit

Putting the case back on is where wires get pinched, causing new errors.

The Safe Close-Up:

1. Cable Check: Ensure no wires are draping over screw holes.
2. Snap Fit: Align the side cover. Press firmly until the mechanical clips snaps.
3. Screw Order: Install screws loosely first to align the holes, then tighten them down. Do not over-tighten plastic screws; stop when they stop turning.

Operation Checklist (The "Smoke Test"):

• Manual Turn: Turn the hand wheel manually before powering on. It should move freely.
• Power On: Turn the machine on. Listen for the normal boot-up sequence.
• Test Sew: Run a simple 5-minute test pattern at low speed (400-600 SPM) before resuming customer orders.

Parts Reality Check and Service Expectations: What the Comments Say About Sourcing and Repeat Failures

Encoder boards are consumable parts. Like tires on a car, they wear out (electronically) or get dirty (environmentally). If you can't find the part online, authorized Brother dealers can order from the master inventory.

Expectation Management: Replacing this board fixes position tracking. It does not fix belt tension, needle bar timing, or hook timing. If the error persists, ensure your drive belts aren't slipping, which mimics an encoder error.

The Upgrade Path for Shop Owners: Reduce Downtime First, Then Upgrade Productivity

Repairing your PR-620 buys you time, but in a production environment, time is your most expensive asset. When you are fighting a 15-year-old machine, you aren't making money.

If you find yourself constantly repairing aging equipment, analyze your bottleneck:

1. The "Reliability" Bottle Neck: If your current machine requires monthly teardowns, you are losing more in downtime than the cost of a new lease. High-volume shops eventually graduate to Sewtech multi-needle embroidery machines, which offer modern industrial reliability and speed (up to 1200 SPM) without the "vintage machine" headaches.
2. The "Physical Strain" Bottle Neck: Often, we blame the machine when the operator is actually the variable. Fatigue leads to mistakes. If you are struggling with wrist pain or hoop burns from traditional plastic frames, consider upgrading your workflow tools.
   • Many professionals switch to magnetic embroidery hoops for brother. These clip fabric instantly without the "unscrew-tighten-pull" struggle of traditional hoops.
   • This isn't just about comfort; it's about consistency. A magnetic hooping station ensures every chest logo is placed identically, reducing the rejects that cause you to stop the machine and troubleshoot.
   • For specific older models, searching for compatible brother pr600 hoops that offer magnetic attachment can breathe new life into an older workflow by reducing setup time by 50%.

Warning: Magnetic Hazard. Magnetic frames use industrial-strength magnets. They are incredibly powerful. Keep them away from pacemakers, ICDs, and other implanted medical devices. Keep fingers clear of the "snap zone" to avoid painful pinches.

A Few Keyword-Specific Notes for PR Owners (So You Find This Later When You Need It)

If you are keeping a legacy brother pr 620 embroidery machine alive, treat the encoder area as a "No Dust Zone." Preventative cleaning during your monthly oiling routine can prevent this error entirely.

For those managing a fleet of older units, distinct from the 620, the brother pr600 embroidery machine shares many chassis similarities. However, always verify part numbers, as sensor voltages can differ between generations.

Ultimately, whether you are fixing an encoder or upgrading to magnetic embroidery hoops, the goal is the same: predictable, boring, profitable production. A machine that runs without drama is the only kind that makes money. Learning hooping for embroidery machine production runs efficiently means minimizing the variables—both mechanical (like sensors) and physical (like hooping)—so you can press "Start" and walk away with confidence.

FAQ

• Q: What causes the Brother PR-620 “Main motor encoder signal error” during a design, and what is the fastest safe first check?
  A: In many cases the Brother PR-620 encoder sensor cannot “see” the encoder disc due to lint/grease or a poor connection, so start with a safe visual/connection check before assuming a bad board.
  • Power down and unplug the Brother PR-620, then remove any hoop/fabric and ensure needles are up.
  • Inspect the encoder area for visible lint/grease and check that the encoder ribbon/connector is fully seated (pull by the plastic plug, not the wires).
  • Clean only if needed using 90%+ isopropyl alcohol on a microfiber swab or use dry compressed air.
  • Success check: After reassembly, the machine completes a normal boot and runs a simple low-speed test without stopping.
  • If it still fails… Proceed to alignment of the encoder disc in the photo-eye gap, then consider encoder board replacement if the error returns quickly.
• Q: What prep items prevent lost screws and stripped plastics when opening Brother PR-620 covers for an encoder board repair?
  A: Set up a “no-loss” workstation first—most PR-620 cover-removal problems come from dropped screws, bad lighting, or rushed handling.
  • Use a magnetic parts tray and separate “exterior case screws” from “internal electronic screws.”
  • Wear a headlamp or position a flexible LED so deep recess screws are clearly visible.
  • Use a magnetic-tip Phillips screwdriver for deep internal screws to prevent drops into the drive area.
  • Success check: Every screw removed is accounted for, and the covers feel loose/floating before any pulling.
  • If it still fails… Stop and re-check for the “one hidden deep screw” before applying force to any panel.
• Q: How can the Brother PR-620 screw caps be removed without gouging the plastic or lowering resale value?
  A: Use the drywall-screw pull method instead of prying—this removes PR-620 caps cleanly with minimal marking.
  • Insert a sharp drywall screw into the tiny center hole of the cap.
  • Turn gently until a light “bite” is felt (threads grab the cap), then pull straight back.
  • Avoid levering with a flathead screwdriver against the outer rim.
  • Success check: The cap pops out with only a small center pinprick and no pry marks around the edge.
  • If it still fails… Stop turning sooner; too much bite can jam the cap instead of letting it pull free.
• Q: How can Brother PR-620 covers be removed without snapping brittle clips, and what order prevents breaking tabs?
  A: Remove the rear cover first, then tilt and lift the side cover—pulling straight out is what usually breaks PR-620 tabs.
  • Remove the back cover panel to release tension on the side cover.
  • Tilt the bottom of the side cover out about 15 degrees, then lift upward to release retaining tabs.
  • Listen for a clean pop/click; stop immediately if a crunching sound occurs.
  • Success check: All plastic tabs remain attached on the inside of the removed cover.
  • If it still fails… Re-check screw locations (especially deep recess screws and the top arm screw with washers) before trying again.
• Q: What is the safest way to unplug the Brother PR-620 encoder ribbon/connector without damaging traces or wires?
  A: Pull the PR-620 encoder connector by the plastic plug body, not by the ribbon/wires, and pull straight out.
  • Remove the obstructing small circuit board screws and “open” the board aside gently like a page.
  • Locate the flat encoder ribbon and grasp the white connector housing (not the cable).
  • Pull straight outward until friction releases; do not yank or twist.
  • Success check: The ribbon hangs free without kinks, pinches, or torn-looking edges.
  • If it still fails… Inspect for a pinched routing path and re-seat the connector until it clicks during reassembly.
• Q: How can Brother PR-620 encoder disc alignment be checked so the “Main motor encoder signal error” does not return after installation?
  A: Center the encoder disc in the photo-eye sensor gap—rubbing is the #1 cause of repeat PR-620 encoder signal faults after a swap.
  • Position eye-level with the U-shaped sensor and confirm “daylight” on both sides of the disc.
  • Turn the hand wheel slowly and watch for wobble; adjust the bracket before fully tightening.
  • Listen closely while turning; any rhythmic swish/scritch indicates disc contact with the sensor wall.
  • Success check: One full hand-wheel rotation is silent, and the disc passes through the exact center of the sensor gap without touching.
  • If it still fails… Re-do the centering step and confirm the bracket screw is snug only after perfect alignment is achieved.
• Q: When should Brother PR-620 users clean the encoder area versus replace the encoder board after a “Main motor encoder signal error”?
  A: Clean first for intermittent stops with visible lint/grease, but replace the Brother PR-620 encoder board for hard-stop-at-startup or repeated errors after correct cleaning/alignment.
  • Choose cleaning when the stopping is random/infrequent and lint or oil is visible near the sensor/disc.
  • Choose replacement when the machine hard-stops immediately on startup or the error persists after cleaning and precise centering.
  • Avoid aggressive solvents (including methylated spirits) that can fog the disc; use 90%+ isopropyl alcohol or dry air.
  • Success check: After the chosen action, the machine runs a 5-minute simple test pattern at 400–600 SPM without stopping.
  • If it still fails… Treat the issue as beyond position tracking—check for belt slip (which can mimic encoder faults) or seek qualified service.
