Brother PR Series & PRS100 (VR) Needle Threader Replacement XC5732151: The Calm, No-Broken-Parts Way to Fix It

Mastering the Brother PR Needle Threader Replacement: An Expert’s Recovery Guide

When the automatic needle threader fails on a high-end machine like the Brother PR series or the Persona (PRS100), the immediate feeling isn't just annoyance—it is genuine anxiety. You hear a sickening snap, the hook hangs limply, and suddenly your production line is dead in the water.

As someone who has trained thousands of embroiderers, I want to reframe this moment for you: This is not a catastrophe. It is a maintenance ritual.

The needle threader unit (Part No. XC5732151) is a consumable component. Much like tires on a car or rotary hooks on a sewing machine, it is designed to wear out so that more expensive components (like the needle bar driver) don't break.

This guide acts as your "service manual plus." We will move beyond the basic steps and dive into the feel of the repair—the specific clicks, angles, and alignments that ensure you only have to do this once. We will also explore why this happens and how upgrading your workflow with better tools, like magnetic embroidery hoop systems, can protect your machine from future trauma.

The "Don't Panic" Protocol: Understanding the Failure

If your threader is bent, snapped, or simply refusing to catch the thread, you are not facing a motherboard failure. You are dealing with a precise, exposed mechanical assembly that lost a fight with some physics.

On the brother pr670e embroidery machine and similar multi-needle models, the threader is tucked away. However, on the single-needle VR or brother prs100 embroidery machine, the mechanism is more exposed. This makes it vulnerable to "snagging" on bulky items like towels or tote bags.

The Strategy: We aren't going to wrestle the machine. We are going to create space by lowering the internal rack, giving your hands room to work surgically rather than forcefully.

The Surgeon’s Tray: Preparation and Tools

In my experience, 80% of repair mistakes happen because the user is rushing and disorganized. We are going to pause and set up a "Zero-Error" workspace.

You do not need a full service kit. You need specific dexterity tools.

Required Tools

• Part XC5732151: The Replacement Needle Threader Unit. (Pro Tip: Always buy two. If you break one during the install, having a backup saves your sanity).
• Allen Screwdriver (Hex Key): Standard size included with your machine kit.
• Precision Tweezers: Mandatory for handling screw covers and the tiny latch.
• Standard Flathead Screwdriver: For the needle clamp.
• Needle Exchange Tool: The white plastic tool found in your accessory box.

The "Hidden" Consumables List

• Fresh Needles (System 130/705 H): Never calibrate a new threader with an old needle.
• Small Parts Dish: Magnetic is best.
• Headlamp or Task Light: Shadows are the enemy of alignment.


Phase 1: The "Clean" Setup

Before touching a screw, we must neutralize the machine.

1. Power Down: Turn the machine completely OFF. We will be working near moving gears; do not rely on sleep mode.
2. Screen Management: Loosen the thumb screw on the LCD screen arm. Pivot the screen fully to the right (or left, depending on your dominance) to expose the left side panel.
3. Needle Removal: Remove the current needle entirely. This prevents you from stabbing your hand and gives you a clear line of sight to the threader mechanism.

Warning — Physical Safety: The needle bar area contains sharp protrusions and pinch points. Even with the power off, moving parts can pinch skin. Keep fingers clear of the needle clamp path when manually moving the bars.

Pre-Flight Checklist

• Machine Power: OFF.
• Needle: Removed.
• Screen: Pivoted clear.
• Parts Tray: Empty and within reach.
• Lighting: Focused on the needle bar area.


Phase 2: Surgical Access (The Side Cover Trick)

You do not need to strip the machine naked. We only need access to the specific carriage mechanism.

1. Remove Screw Covers: Use your tweezers to gently pry out the two white silicone screw covers. Sensory Check: Do not dig. A gentle leverage pop is all it takes.
2. Unscrew: Use the Allen key to remove the two hex screws. Place them immediately in your parts dish.
3. The Pivot-Pull: Lift the cover slightly to disengage the plastic tabs, then pull it away.

Expert Note: If it feels stuck, do not yank. Wiggle it gently. Plastic tabs snap easily under frustration.

Phase 3: The Secret Move (Lowering the Rack)

This is the step that separates amateurs from pros. Inside the opening, you will see a metal sliding rack (the mechanism that drives the threader up and down).

Action: Manually press this metal rack DOWN.

The "Why": By lowering the rack, you physically move the threader mechanism out of the cramped upper housing and into the open "working zone" near the needle bar. This gives your fingers 300% more clearance.

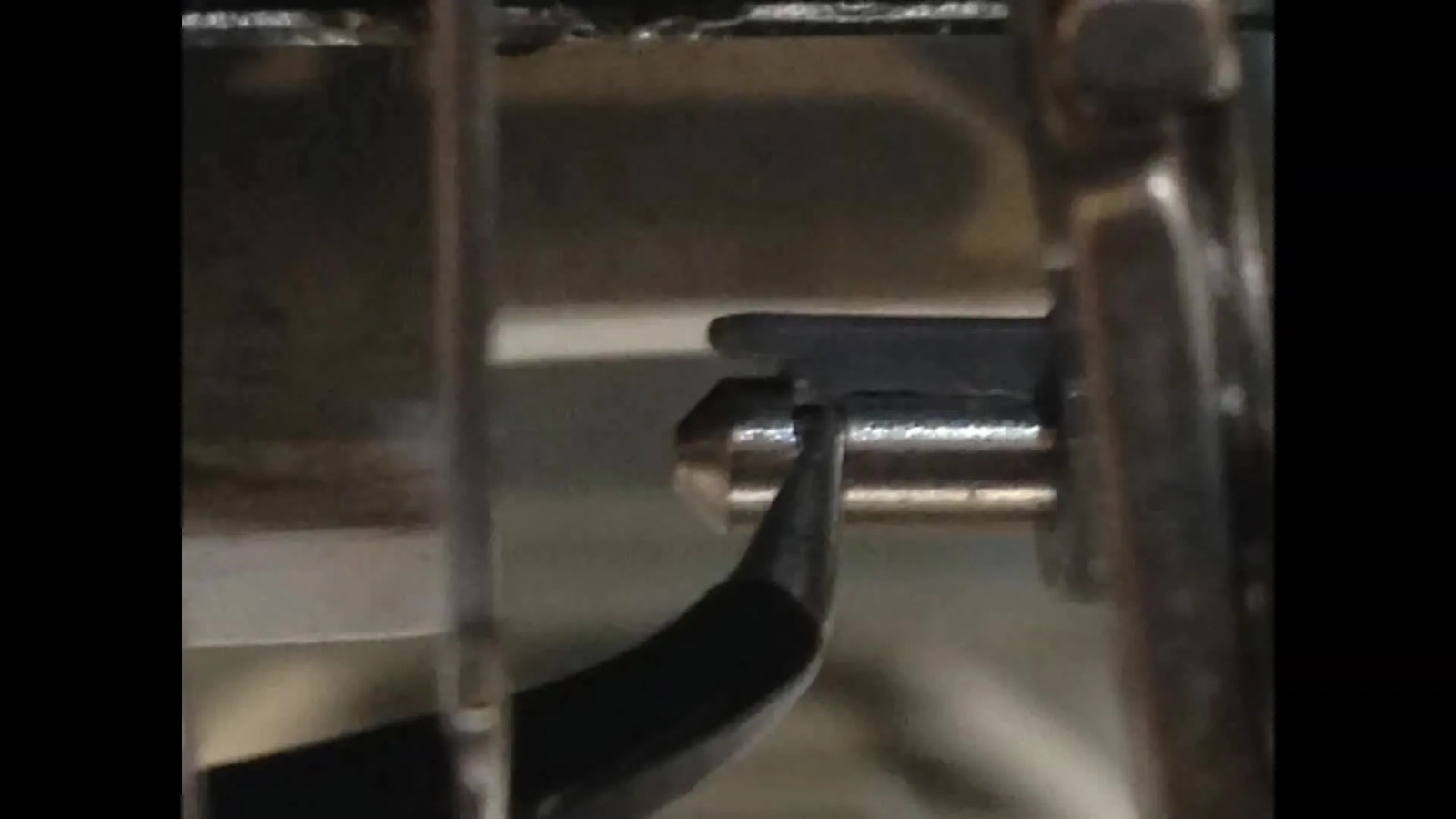

Phase 4: Removal (The "Jesus Spring" Danger Zone)

This is the most critical step. We need to disengage the old unit without losing internal components.

1. Unlock: Locate the small plastic latch/hook on the threader unit. Lift it gently with tweezers or a fingernail.
2. The Left-Right Dance:
   • Push the white plastic threader unit to the LEFT.
   • Simultaneously, gently pull the metal positioning bar to the RIGHT.
3. Disengage: The unit should slide off its mounting pins.

CRITICAL WARNING: Inside the metal positioning bar, there is a tiny compression spring. If you pull the bar too far right, this spring will launch across the room (hence the nickname "Jesus Spring"). Move the bar only as far as necessary to clear the pins—usually 3-4mm.

Phase 5: Installation and Alignment

Now, we install the fresh XC5732151. This is about feel.

1. Align: Position the new unit over the mounting holes.
2. Seat: Push the unit onto the pins while managing the positioning bar.
3. The "Click": You must feel the plastic hook snap securely into its slot.
4. The Squareness Test: Look at the unit from the front. Is it perfectly horizontal? If it sits at a slight angle, it is not seated.

Sensory Check: It should feel solid. If you can wiggle it loosely, it is not locked.

Phase 6: The Reset and Reassembly

1. Retract: Manually pull the metal rack back UP. Watch the threader unit retract smoothly into the machine head without scraping.
2. The 90-Degree Cover Trick: Reinstalling the side cover is often the most frustrating part.
   • Technique: Hold the cover parallel to the LCD screen arm (90 degrees to the machine body).
   • Action: Slide it straight in. Do not come in at an angle. It needs to glide along the rail.
3. Secure: Replace the screws (hand-tight, do not over-torque) and the white caps.




Setup Checklist (Before Powering On)

• Side cover is flush with no gaps.
• Internal rack is returned to the TOP position.
• No spare parts (especially springs) are left in the tray.

Phase 7: The "Sight Window" Needle Calibration

Most replacement threaders "fail" because the needle is wrong, not the part. The threader hook is calibrated to hit a target (the eye) capable of tolerating only 0.5mm of error.

We will use the Needle Exchange Tool for this.

1. Insert: Place a new needle into the tool. Flat side to the back.
2. Seat: Push the needle up into the clamp.
3. The Sight Window Test: Look at the small hole (sight window) on the needle clamp.
   • Pass: The top of the needle touches the metal stop. NO GAP is visible.
   • Fail: You can see empty space above the needle shaft.

The Physics: If the needle is even 1mm too low, the threader hook will hit the metal of the needle instead of the eye, instantly bending your new part.

Phase 8: The Moment of Truth

1. Power On.
2. The Test: Press the automatic needle threader button.
3. Observe: Watch the hook. It should swing out, pass through the eye, catch the thread, and pull a loop back.
4. Repeat: Do this 3 times to ensure consistency.


Operation Checklist (Success Metrics)

• Threader motion is smooth and quiet.
• The hook catches the thread every time.
• Result is a clean loop through the eye.

Bonus: Manual Threading Workaround (The Speed Method)

Sometimes, you need speed. The video demonstrates a manual threading "hack" using just your fingers:

• Right hand guides thread to the lower guide.
• Left hand presses the threader bar down.
• Thread is routed through the guide and cutter.
• Press the button to retract.

Expert Opinion: Use this only if you have steady hands. For production consistency, the tool is safer.

Troubleshooting: The "Why Isn't It Working?" Matrix

If you followed the steps but still have issues, consult this diagnostic table before calling a tech.

The Root Cause Analysis: Why Did It Break? (And How to Stop It)

Replacing the part is Step 1. Preventing the next break is Step 2. As a Chief Education Officer, I categorize threader failures into three buckets shown in the Decision Tree below.

Decision Tree: Optimizing Your Workflow

Question: What caused the stress on the needle bar?

• Scenario A: "I was doing a thick towel/bag and it snagged."
  • Diagnosis: Physical Obstruction. The exposed threader on the VR/PRS100 caught on the fabric loops during hooping or frame movement.
  • The Fix: Use a magnetic embroidery hoop. Traditional hoops create a "ridge" of fabric that stands tall. Magnetic frames hold fabric flatter and allow for gentler sliding under the needle head. This is the #1 upgrade for preventing physical damage.
• Scenario B: "It just stopped working after 1,000 shirts."
  • Diagnosis: Wear & Tear.
  • The Fix: This is normal. keep 2x spares in stock.
• Scenario C: "I am fighting the machine to change colors/thread constantly."
  • Diagnosis: Workflow Bottleneck.
  • The Fix: If you are running high-volume production on a single-needle machine, you are overworking the threader mechanism.
    • Level 1: Upgrade to high-quality thread to reduce breakage.
    • Level 2: Consider scaling to a brother pr1055x or similar multi-needle platform. These machines are designed for color changes without re-threading, protecting the mechanism from overuse.

Commercial Reality: When to Upgrade the Tooling

Many users reading this are owners of the brother vr or similar machines. You love the open arm, but you hate the exposure of the threader.

If you find yourself dreading the "hooping wrestle," it is time to look at your accessories. Traditional plastic hoops force you to pull, tug, and screw—often creating a "bubble" of fabric that hits the needle bar.

Searching for terms like how to use magnetic embroidery hoop will reveal a different world. These frames use magnets to clamp fabric instantly.

• Safety: Flatter fabric = Less chance of snagging the threader.
• Speed: No more "hoop burn" or re-hooping mistakes.
• Profit: Faster turnaround means better margins.

Warning (Magnetic Safety): If you choose to upgrade to magnetic hoops, be aware they use powerful Neodymium magnets.
* Pinch Hazard: They snap together with enough force to bruise fingers. Handle with care.
* Medical Devices: Keep them at least 6 inches away from pacemakers or insulin pumps.

Conclusion

You have now successfully replaced the XC5732151 assembly. You have verified the needle height, and you understand the physics of why it failed.

Remember: Machines speak to us. A change in sound, a slight resistance in the lever, or a consistent fraying of thread are all early warning signs. Listen to them. And when the work becomes too heavy for the current setup, don't force it—upgrade your tooling (stabilizers, hoops, or machines) to match your ambition.

Whether you are running a baby lock alliance embroidery machine or a Brother PR powerhouse, confidence comes from competence. You fixed it once; you can fix it again. Now, get back to stitching.

FAQ

• Q: How do I safely replace the Brother PR/Persona XC5732151 needle threader unit without damaging the needle bar area?
  A: Power the machine completely OFF, remove the needle, and create working space before touching the threader—this repair is common, not a disaster.
  • Turn OFF power (do not rely on sleep), pivot the LCD screen out of the way, and remove the needle fully.
  • Remove the two screw covers, take out the two hex screws, and pivot-pull the side cover off gently (do not yank tabs).
  • Manually press the internal metal sliding rack DOWN to bring the threader into the open working zone.
  • Success check: Hands have clear access and the mechanism is not cramped; nothing is being forced.
  • If it still fails: Stop and re-check that the rack is lowered and the needle is removed before proceeding.
• Q: Why does a new Brother PR/Persona XC5732151 needle threader hit the needle with a metal-on-metal sound after installation?
  A: The needle is almost always not fully seated up in the clamp, so the threader hook strikes the needle instead of passing through the eye.
  • Remove the needle and reinstall a fresh needle (do not calibrate with an old needle).
  • Use the Needle Exchange Tool and perform the Sight Window test on the needle clamp.
  • Push the needle up to the metal stop so there is NO GAP visible in the sight window.
  • Success check: The hook passes cleanly through the needle eye without contacting metal.
  • If it still fails: Re-seat again and verify the needle orientation (flat side to the back) and that the needle is new.
• Q: Why does the Brother PR/Persona automatic needle threader move but not pull the thread through the needle eye after XC5732151 replacement?
  A: The threader unit is usually not locked in or is seated crooked, so the hook cannot reliably grab the thread.
  • Remove the side cover again and lower the internal rack to access the threader comfortably.
  • Press the threader unit firmly onto the mounting pins while managing the positioning bar, then ensure the latch “clicks” into place.
  • Check from the front for the “squareness test”: the unit must sit perfectly horizontal (not angled).
  • Success check: The mechanism feels solid (no loose wiggle) and pulls a clean thread loop through the eye.
  • If it still fails: Reinstall the unit and focus on getting a positive latch click and a perfectly level seat.
• Q: How do I avoid losing the tiny “Jesus Spring” when removing the Brother PR/Persona XC5732151 needle threader unit?
  A: Move the metal positioning bar only a few millimeters—pulling it too far can launch the small compression spring.
  • Unlock the small plastic latch on the threader unit gently.
  • Push the white threader unit LEFT while pulling the metal positioning bar RIGHT only as far as needed to clear the pins (usually 3–4 mm).
  • Slide the unit off once it disengages; do not over-travel the bar.
  • Success check: The spring remains in place and nothing “pings” or flies out during removal.
  • If it still fails: Search the floor with a magnet and order a replacement spring if it is missing.
• Q: What are the success metrics for a Brother PR/Persona automatic needle threader test after installing XC5732151?
  A: Run the automatic threader three times and judge by motion, sound, and repeatability—not by a single lucky pass.
  • Power ON and press the automatic needle threader button while watching the hook.
  • Confirm the hook swings out, passes through the needle eye, catches the thread, and pulls a loop back.
  • Repeat the test 3 times for consistency.
  • Success check: Motion is smooth and quiet, and the hook catches the thread every time producing a clean loop.
  • If it still fails: Re-check needle seating with the Sight Window test and re-check that the threader unit is latched and level.
• Q: What safety precautions should I follow when working near the Brother PR/Persona needle bar and needle clamp during needle threader replacement?
  A: Treat the needle bar area as a pinch-and-puncture zone even with the power off, and keep fingers out of the needle clamp path.
  • Turn the machine completely OFF before opening covers or moving internal parts.
  • Remove the needle entirely to prevent accidental punctures and to improve visibility.
  • Keep fingers clear when manually moving racks/bars; pinch points can still bite.
  • Success check: No hand contact occurs with sharp protrusions or moving linkages while repositioning parts.
  • If it still fails: Pause and improve lighting/visibility (task light/headlamp) before continuing.
• Q: When thick towels or tote bags keep snagging the Brother VR/PRS100 exposed needle threader, what is a practical upgrade path from technique to tooling?
  A: First reduce physical obstruction risk, then consider magnetic hoops to keep fabric flatter, and only then consider a multi-needle platform if the workload is driving constant threader stress.
  • Level 1 (technique): Create more clearance and avoid “hooping wrestle” situations that drag bulky fabric near the needle bar.
  • Level 2 (tooling): Use magnetic embroidery hoops/frames to clamp fabric flatter and reduce snagging on thick, loopy materials.
  • Level 3 (capacity): If frequent re-threading/color changes are overworking the mechanism, consider moving production to a multi-needle machine designed for that workflow.
  • Success check: Fewer snags during hooping/frame movement and fewer threader impacts over repeated jobs.
  • If it still fails: Treat repeated snagging as a workflow mismatch and prioritize flatter clamping (magnetic) before pushing the machine harder.
