Brother PR1050X in the Real World: The 7 Features That Actually Save You Time (and the Hooping Mistakes That Don’t)

Stepping up to a multi-needle machine like the Brother PR1050X is a transition that terrifies as many people as it excites. In my 20 years on the shop floor, I’ve seen this story play out a hundred times: a passionate embroiderer buys the “dream machine,” only to let it sit idle because the complexity feels overwhelming compared to their trusty single-needle flatbed.

The video below offers a glossy feature overview, but it doesn’t tell you how to run this beast without breaking needles or ruining customer garments. In a real studio, your success isn’t defined by the machine’s specs; it’s defined by your workflow.

This guide translates those seven headline features into a battle-tested “Standard Operating Procedure” (SOP). We will cover exactly what to prep, how to listen to your machine (literally), and how to avoid the expensive pitfalls that trap new owners.

The Brother PR1050X “Calm-Down Check”: What This Machine Is Built to Do All Day

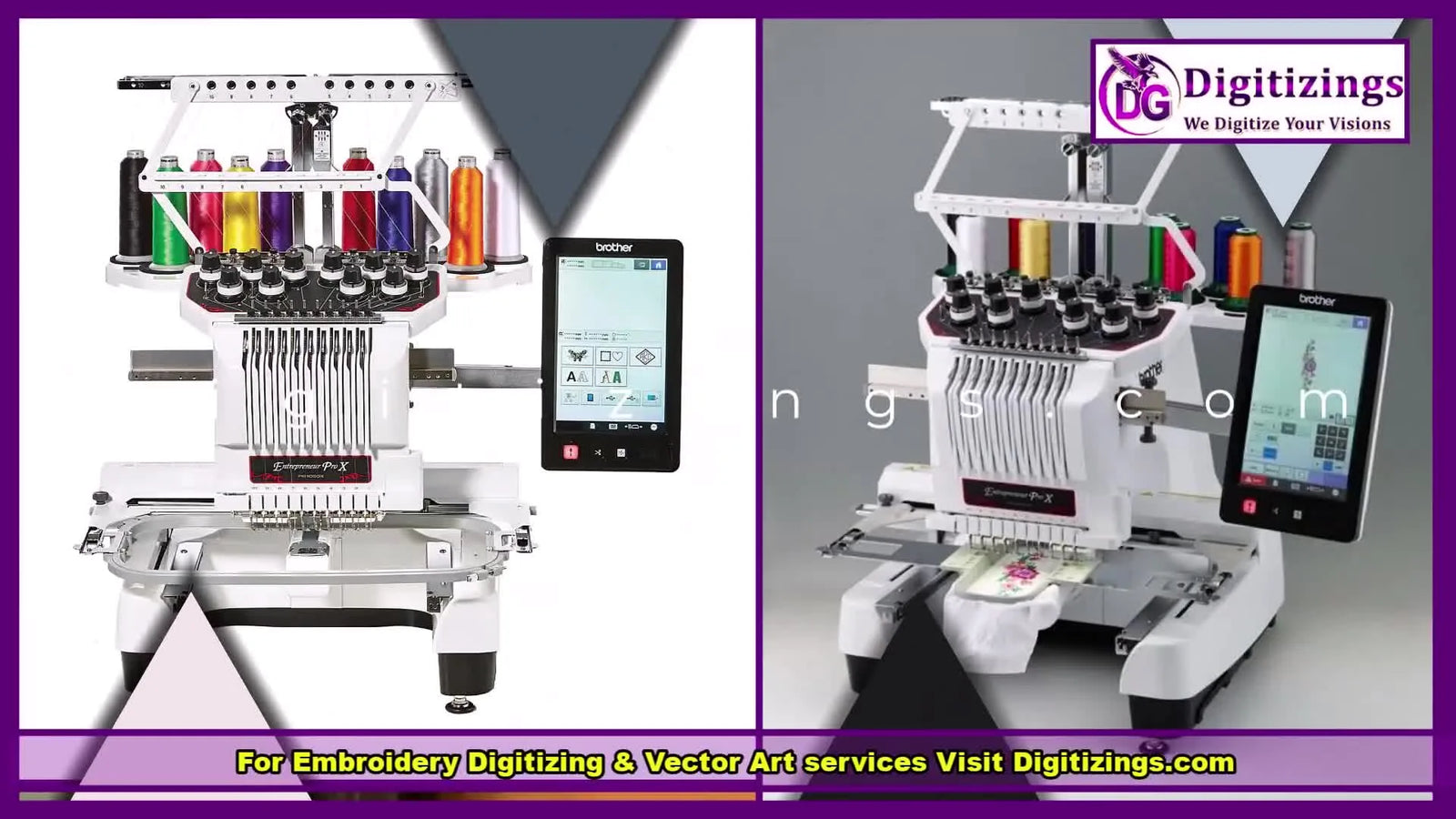

The Brother PR1050X (Entrepreneur Pro X) sits in a unique "prosumer" sweet spot. It offers the firepower of industrial equipment—10 needles, a 14" x 8" field, camera positioning, and 1,000 stitches per minute (SPM)—with an interface designed for humans, not engineers.

If you are feeling that familiar panic—“Did I just spend a used car’s worth of money on something I can’t fly?”—take a deep breath. This machine effectively separates the setup phase from the stitching phase.

On a single-needle machine, you are the tool changer. You stop, cut, re-thread, and restart every few minutes. On the PR1050X, you load the system once, and it runs autonomously. Your value shifts from "operator" to "manager."

The Manager’s Mindset:

• Single-Needle: You act as the mechanic, constantly intervening.
• Multi-Needle: You act as the pilot. You do the pre-flight check, then you let the machine fly.

The trap? If your hooping technique is flawed, a multi-needle machine doesn't just make mistakes—it makes them ten times faster.

Ten Needles, Ten Chances to Win (or Lose): Threading the PR1050X for Fewer Stops and Cleaner Color Changes

The video highlights the 10-needle head as a speed feature. In reality, it is a tension consistency feature.

In a professional environment, we don't just load colors randomly. We standardize.

The "Standard Load" Strategy:

1. Needles 1-4: Load your "House Blacks and Whites" (or your most common logo colors). Never change these unless necessary.
2. Needles 5-9: Variable colors for the specific job.
3. Needle 10: The "Test Needle" (usually a high-contrast color like Red or Blue) for fabric penetration tests on scrap.

Sensory Check: The "Dental Floss" Pull New users often rely on numbers for tension. I rely on feel.

• Top Thread: With the presser foot down, pull the thread near the needle. It should feel like pulling unwaxed dental floss through your teeth produces a steady, firm resistance, but not a struggle.
• Bobbin: Hold the bobbin case by the thread. It should barely hold its own weight. A slight shake should drop it a few inches (the "Yo-Yo Test").


The hidden physics: Why "Default" rarely works

Every spool of thread has a different coefficient of friction (Rayon slides; Metallic grabs). If you rely solely on automatic tension, you will get looping.

• The Check: Look at the back of your satin stitch. You should see white bobbin thread occupying the middle 1/3 of the column. If you see only top color, your top tension is too loose.

Warning: Pinch Hazard. Keep fingers, scissors, and loose sleeves at least 6 inches away from the moving head. The PR1050X typically jumps between needles faster than human reaction time. A needle puncture at 1,000 SPM can strike bone.

The 14" x 8" Field Isn’t Just “Bigger”—It’s How You Stop Re-Hooping Yourself Into Misalignment

The video calls out the jumbo embroidery area. The commercial value here isn't just stitching big jacket backs; it's about reducing risk.

Every time you re-hoop a garment to join a split design, you introduce a 2-3mm margin of error. Cumulative errors ruin credibility. A large field allows you to stitch complex, multi-part designs in one continuous pass, maintaining perfect registration.

Operational Reality:

• The Physics of "Flagging": With a large hoop, the center of the fabric is far from the clamping edges. It bounces up and down (flagging) with the needle.
• The Fix: You must use a more substantial stabilizer for large hoops. One layer of tearaway is rarely enough. Use a robust cutaway or fuse a layer of stabilizer to the fabric to stop the bounce.

Checkpoint:

• Tap the hooped fabric. It should sound like a dull thud, not a high-pitched drum. If it's too tight (drum-tight), you are stretching the fabric grains, and the design will pucker when unhooped.


Why hoop tension matters more than density

Puckering is rarely the digitizer's fault; it is usually the hooper's fault. If you stretch a knit shirt 5% while hooping, it will shrink back 5% when you release it. The stitches can't shrink, so the fabric ripples.

The Golden Rule: Hold the fabric neutral. Let the stabilizer take the tension, not the garment.

The Built-In Camera on the Brother PR1050X: Your Best Defense Against Crooked Logos on Awkward Items

The built-in camera allows you to view the needle drop position live on the LCD. This covers up a multitude of hooping sins.

In my shop, we call this the "30-Second Insurance Policy."

1. Rough Hoop: Hoop the item as straight as you can visually.
2. grid Check: Lay a clear plastic ruler over the garment to find the true physical center.
3. Camera Nudge: Use the camera to jog the needle to match your ruler, and rotate the design on-screen if your hooping was slightly crooked (up to 5-10 degrees).

Checkpoint:

• Do not rely on the camera to fix a 45-degree error. The camera aligns the design, but if the fabric grain is twisted that severely, the shirt will hang poorly.


Pro tip: The Camera cannot see "Shift"

The camera ensures you start in the right spot. It does not prevent the fabric from moving during the sew. If you are stitching on slick performance wear, the camera is useless if your hoop tension is loose.

InnovEye Scanning: The Fast Way to Align Layered Designs Without Guessing

InnovEye scans the entire background fabric. This is critical for appliqué or adding names to pre-patterned fabrics (like plaid or stripes).

The Workflow:

1. Hoop the item.
2. Scan background.
3. Zoom in on the LCD.
4. Drag your text directly onto the specific stripe or pattern element you want to match.

Checkpoint:

• Ensure your lighting is even. Strong shadows in the room can sometimes confuse the scanner's edge detection on shiny fabrics.

On-Screen Editing on the PR1050X LCD: The “Save the Job” Moves You’ll Use Weekly

The video showcases resizing, rotating, and combining designs.

While the machine can resize designs by 20%, experienced digitizers know that density does not always scale linearly. Shrinking a design by 20% without reducing stitch count creates a "bulletproof vest" patch that is too stiff.

Safe Editing Limits:

• Scale: +/- 10% is safe.
• Rotation: Unlimited.
• Density: If you scale down >10%, use the machine's density adjustment to lower the stitch count.

If you are struggling to get consistent placement on multiple shirts, relying solely on screen edits is slow. This is where a hooping station for embroidery machine becomes vital. It ensures every shirt enters the hoop in the exact same spot, so you don't have to edit the design position for every single run.

Hoops, Cap Frames, and the Speed Trap: When 1,000 SPM Helps—and When It Just Makes Bad Hooping Faster

Here is the most important lesson in this guide. The brochure says "1,000 stitches per minute." Physics says "Maybe."

The New User Speed Limit:

• Week 1-4: Run at 600-700 SPM.
• Sound Check: Listen for a rhythmic thump-thump-thump.
• The Red Flag: If you hear a metallic clack or a machine-gun rattle, you are running too fast for the stabilizer setup. The needle is deflecting.

Real World Decision Tree: Fabric → Stabilizer → Hoop Strategy

The default hoops provided with the PR1050X are functional, but they rely on thumbscrews and friction. This requires significant hand strength and creates "hoop burn" (shiny crushed fibers) on delicate items.

Use this logic to choose your tool:

1. Standard Woven (Denim/Canvas):
   • System: Included Green/Blue Standard Hoops.
   • Action: Tighten the screw until "finger tight," then one half-turn with the screwdriver.
2. Structured Caps:
   • System: 270-degree Cap Driver (Included).
   • Requirement: Use two layers of tearaway. Steam the cap first to soften the buckram.
3. Delicate Knits / Performance Polos / Bulk Runs:
   • Pain Point: Standard hoops leave ring marks that ruin the shirt. Hands fatigue after 20 shirts.
   • Solution: This is where professionals upgrade to brother pr1050x hoops that use magnetism.
   • The Upgrade: magnetic embroidery hoops solve the "hoop burn" issue by clamping downward rather than squeezing inward.

Warning: Magnetic Safety. Powerful magnetic hoops (like the Mighty Hoop system) snap together with over 30 lbs of force. They can crush fingers. Never place them near pacemakers. Do not let children handle them.

The upgrade path: Why Magnetic Hoops?

If you browse forums, you will see constant discussions about mighty hoop for brother pr1050x. The reason isn't hype; it's ergonomics and fabric safety.

If you are doing production runs of 50+ shirts, standard screw-hoops will hurt your wrists (Carpal Tunnel is a real risk in this industry).

• Level 1 Fix: Use a rubber grip to turn screws.
• Level 2 Upgrade: Switch to magnetic embroidery hoops for brother. They self-align and clamp instantly.
• ROI: If a magnetic hoop saves you 30 seconds per shirt, and you do 100 shirts a week, you gain back nearly an hour of production time—plus you save the cost of garments ruined by hoop burn.

Pricing Reality Check: The PR1050X Range and What You Must Calculate Before You Buy

The video states a typical retail price range of $9,500–$11,500.

Do not calculate ROI based on "cost per stitch." Calculate it based on "items per hour."

• Single Needle: 1 shirt per 20 minutes (including re-threading).
• PR1050X: 1 shirt per 8 minutes.

However, the machine is only fast if you are fast. If you spend 10 minutes struggling to hoop a thick tote bag, the machine's speed is irrelevant. This is why accessories like a brother magnetic embroidery frame are often factored into the initial loan or purchase budget—they debottleneck the human operator.

The Tote Bag Example: What “Good Production” Looks Like on the PR1050X

The video shows the machine stitching a beige tote bag.

Tote bags are the ultimate stress test. They have thick seams that cause standard hoops to pop open mid-stitch.

The "Thick Item" Protocol:

1. Needle: Switch to a 75/11 Titanium sharp. (Standard ballpoints may deflect).
2. Speed: Drop to 500 SPM. Momentum is the enemy of heavy items.
3. Stabilizer: Use a sticky tearaway or spray adhesive. You cannot rely on hoop friction alone for a heavy bag.

If the bag handle gets caught under the needle head, it will ruin the machine's X/Y alignment motors. Always tape handles down.

The “Hidden” Prep That Makes the PR1050X Feel Like a Pro Machine

A multi-needle machine rewards discipline. Skipping these details will result in the feared "Bird's Nest" (a knot of thread under the throat plate).

Prep Checklist (Do this daily)

• Oil the Hook: One drop of embroidery oil on the rotary hook race. (Listen for a smooth whir, not a dry hiss).
• Check the Bobbin: Clean lint from under the bobbin case tension spring. Even a speck of dust here drops tension to zero.
• Consumables Check: Do you have spray adhesive (like 505 spray) and fresh needles? Change needles every 8-10 running hours.

Setup Checklist (Do this per job)

• Needle Match: Am I using a Ballpoint (knits) or Sharp (woven/caps)?
• Hoop Logic: Did I choose the smallest hoop that fits the design? (Smaller hoop = greater stability).
• Trace: Run the "Trace" button on screen to ensure the needle bar won't hit the plastic hoop frame.
• Magnet Safety: If using a magnetic hoop for brother pr1050x, ensure the backing is fully covering the magnet to prevent detailed fabric from snagging.

Operation Checklist (The "Pilot's Watch")

• First 100 Stitches: Watch the start with your hand near the "Stop" button. This is when birds-nests happen.
• Sound Check: Listen for the "Click-Click" of the trimmer. If it sounds sluggish, clean the blade area.
• Flagging Watch: Is the fabric bouncing? If yes, pause and slip a piece of cardboard or firm stabilizer under the hoop (floating method).

The Upgrade Result: Turning PR1050X Features Into Real Throughput

The PR1050X features—10 needles, camera, InnovEye—are tools to reduce friction. But the machine cannot overcome physics.

To succeed:

1. Respect the Prep: Oiling and threading are part of the work, not obstacles to it.
2. Upgrade the Weak Link: If hooping is slow or painful, upgrade to magnetic systems.
3. Listen to the Machine: It will tell you via sound/vibration when it is unhappy before it breaks.

Do that, and this machine becomes the most profitable employee in your shop.

FAQ

• Q: How should Brother PR1050X upper thread tension and bobbin tension feel during threading to prevent looping and messy backs?
  A: Use a feel-based tension check first, then verify on the stitch back before changing settings.
  • Pull the upper thread with the presser foot down and aim for a steady “unwaxed dental floss” resistance—firm, not jerky.
  • Do the bobbin “yo-yo test”: hold the bobbin case by the thread; it should barely hold its own weight and drop a few inches with a small shake.
  • Inspect the back of a satin stitch and confirm bobbin thread sits in the middle 1/3 of the column rather than disappearing.
  • Success check: the stitch back looks balanced (no big top-thread loops), and the machine runs without frequent thread breaks.
  • If it still fails: change variables one at a time (thread type/spool, rethread path, clean lint under the bobbin case tension spring) before chasing numeric tension values.
• Q: How do Brother PR1050X hooping tension and stabilizer choice prevent flagging and puckering on large 14" x 8" designs?
  A: Keep fabric neutral and let stabilizer provide the structure—over-tight hooping is a common cause of puckering.
  • Choose a stronger stabilizer for large hoops; one layer of tearaway is often not enough, so step up to a robust cutaway or fuse stabilizer to reduce bounce.
  • Hoop without stretching the garment; avoid “drum-tight” tension that distorts fabric grain.
  • Tap the hooped area and adjust until it sounds like a dull thud, not a high-pitched drum.
  • Success check: fabric does not visibly bounce (flag) during stitching, and the design lays flat after unhooping with minimal ripples.
  • If it still fails: reduce hoop size to the smallest hoop that fits the design and re-evaluate stabilizer strength before blaming digitizing density.
• Q: How do Brother PR1050X new owners set a safe stitches-per-minute speed to avoid needle deflection, clacking sounds, and poor quality?
  A: Start slower than the brochure speed and let sound/vibration tell you when the setup is unhappy.
  • Run 600–700 SPM for the first 1–4 weeks while dialing in stabilizer and hooping habits.
  • Listen while sewing: a steady rhythmic thump is normal, but metallic clacks or a machine-gun rattle means the speed is too high for the current setup.
  • Slow down further for heavy items (for example, thick tote bags are a “drop to 500 SPM” situation).
  • Success check: the machine sounds smooth and consistent, with fewer needle breaks and cleaner stitch formation.
  • If it still fails: strengthen the stabilizer/hoop hold first, then reassess needle choice for the fabric type.
• Q: How do Brother PR1050X operators prevent bird’s nests under the throat plate during the first stitches of a job?
  A: Treat the first 100 stitches as the danger zone and combine daily cleaning with close monitoring at start-up.
  • Oil the rotary hook race with one drop of embroidery oil and listen for a smooth whir instead of a dry hiss.
  • Clean lint from under the bobbin case tension spring because even a speck can drop tension dramatically.
  • Watch the first 100 stitches with your hand near Stop so you can halt immediately if thread starts piling up underneath.
  • Success check: the start of the design is flat, the bobbin area stays quiet (no sudden thread jam), and trimming sounds crisp rather than sluggish.
  • If it still fails: rethread the machine carefully and confirm the bobbin is seated correctly before changing tension settings.
• Q: What safety precautions are required around the Brother PR1050X moving needle head during fast needle changes at 1,000 SPM?
  A: Keep hands and tools well clear because the head can jump between needles faster than human reaction time.
  • Keep fingers, scissors, and loose sleeves at least 6 inches away from the moving head while stitching or needle-changing.
  • Stop the machine before reaching near the needle area for trimming, threading, or checking fabric.
  • Use the on-screen Trace function before sewing so the needle bar does not strike the hoop frame.
  • Success check: no near-misses—hands never enter the needle area while the head is moving, and the job traces without contact.
  • If it still fails: slow the machine and redesign your workflow so tools stay off the bed during operation.
• Q: What magnetic hoop safety rules should Brother PR1050X users follow to prevent finger injuries and pacemaker risks?
  A: Treat magnetic hoops as high-force clamps and handle them like a pinch/crush hazard.
  • Keep fingers out of the closing gap; magnetic hoops can snap together with significant force.
  • Keep magnetic hoops away from pacemakers and do not allow children to handle them.
  • Ensure backing/stabilizer fully covers the magnet area so delicate fabric does not snag at the contact edge.
  • Success check: hoop closes without pinching, fabric sits cleanly under the clamp, and there is no snagging or sudden “slam” onto fingers.
  • If it still fails: switch to a slower, two-hand closing method and re-train the loading routine before running production.
• Q: How do Brother PR1050X users reduce hoop burn and hand fatigue on delicate knits or bulk polo runs without sacrificing placement accuracy?
  A: Fix hooping friction first, then upgrade the hooping system only if production volume justifies it.
  • Level 1 (technique): tighten standard screw-hoops only to finger tight plus a half-turn with a screwdriver and avoid over-compressing delicate fibers.
  • Level 2 (tool): use magnetic hoops to clamp downward rather than squeezing inward, which often reduces ring marks and speeds up loading on repetitive runs.
  • Level 3 (throughput): if hooping time dominates the job, consider a production-focused workflow upgrade (faster, more consistent runs come from reducing operator bottlenecks).
  • Success check: shirts come out without shiny ring marks, and hooping remains consistent after 20+ pieces without wrist strain.
  • If it still fails: reassess stabilizer choice and hoop size (smaller hoop = greater stability) before increasing speed or blaming the machine.
