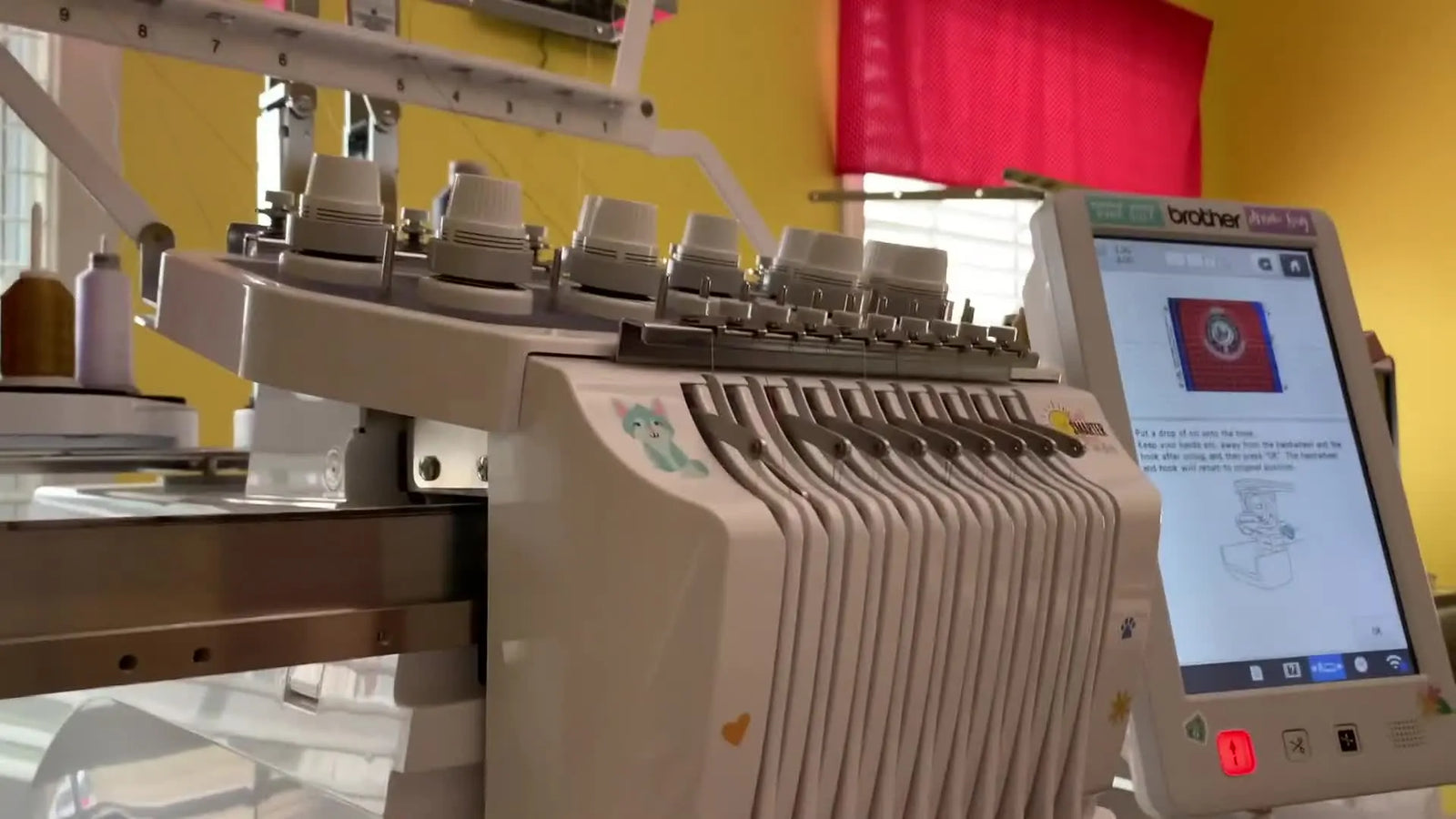

Brother PR1055X Bird’s Nest Panic? Clear the Jam, Save the Design, and Stop the Take-Up Lever Mistake for Good

The Anatomy of a Bird's Nest: An Expert Guide to Recovery and Prevention on the Brother PR1055X

A bird’s nest on a multi-needle machine is a visceral experience. It’s that sickening, rhythmic thump-thump-crunch sound followed by silence, and the sinking feeling in your stomach when you realize the bobbin area has swallowed a massive clump of thread.

If you are reading this, you are likely staring at a jams beneath the needle plate of your Brother PR1055X. You might feel frustrated, perhaps even afraid that you’ve broken a machine worth thousands of dollars.

Pause. Take a breath.

As a veteran of the embroidery floor, I can tell you two things with absolute certainty:

1. You have probably not broken the machine. The Brother PR series is built like a tank.
2. The problem is almost certainly not in the bobbin. The mess is downstairs, but the culprit is upstairs.

This white paper will guide you through the surgical removal of a bird's nest, the critical reassembly of the hook system, and the "invisible" root causes—specifically the thread path—that create these disasters. We will also discuss when it is time to stop blaming your skills and start upgrading your tools, from magnetic embroidery hoop systems to stabilizing solutions.

1. The Forensics: Why the Bobbin Looks Guilty (But Isn't)

When a machine jams, the bobbin area looks like a crime scene. In the case study we are analyzing, a mass of red thread is packed into the rotary hook, completely immobilizing the machine.

However, in 90% of cases, the rotary hook is simply the victim of a failure elsewhere.

The Physics of the "Knot Factory"

To understand the fix, you must understand the mechanism.

• The Hook: Rotating at 1,000 RPM, it catches the top thread loop.
• The Take-Up Lever: This is the "Slack Manager." Its job is to pull that loop back up tight against the fabric after the hook releases it.

The Diagnosis: If the top thread misses the take-up lever (or slips out), the lever cannot pull the slack back up. Gravity and rotation take over. The hook grabs the same loop of thread repeatedly on every rotation, wrapping it around the basket until friction stops the motor.

If you own a brother pr1055x, you must adopt a forensic mindset: Clear the mess below, but fix the path above.

2. The Calm Prep: Safety, Lighting, and "Hidden" Consumables

Before you stick a screwdriver into the machine, we need to establish a safety perimeter. Rushing here is how you scratch a rotary hook (a $150+ mistake) or put a needle through your fingernail.

The "Surgical" Toolkit

You cannot fix precision machinery with blunt instruments. You need:

1. High-Lumen Task Light: Use a headlamp or a bendable LED. You need to see into the dark recesses of the hook assembly.
2. Precision Tweezers: Long, angled tips are best.
3. The "L" Offset Screwdriver: The specific tool included with your machine.
4. A Magnetic Parts Dish: Essential for the tiny screws and the elusive white spacer.
5. Hidden Consumables:
   • Fresh Needles: Never reuse a needle involved in a bird's nest. It is likely bent microscopically.
   • Unwaxed Dental Floss: excellent for testing tension paths later.

CRITICAL SAFETY WARNING: Sharp Hazard / Crush Zone.
A bird’s nest creates high tension. When you cut the thread, parts can snap back. Furthermore, embroidery machines have automated cutters (knives) near the bobbin. Never put your fingers near the movable knife mechanism if the machine is powered on. If you must have power on to rotate the handwheel, keep your hands entirely clear of the active needle zone.

The "Resume" Feature

A common fear is losing the design position. The Brother PR series has excellent memory. If you stop the machine and turn it off to work safely, it will remember the exact stitch count when you power back on. Do not risk your fingers to save a "position"—the computer has you covered.

Phase 1: Pre-Flight Checklist

• Power State: Machine stopped (or off, if you are nervous).
• Visual Access: Needle plate removed? (Not yet—we clean what we can see first).
• Inventory: Magnetic dish placed to the right of the machine.
• Mental Marker: Note the needle number that jammed (e.g., Needle #9).


3. Surgical Removal: The Strand-by-Strand Protocol

The video demonstrates the only safe way to remove a nest: Patience over Power.

Many novices panic and try to yank the wad of thread out in one piece. Do not do this. Yanking can:

• Bend the rotary hook shaft.
• Disalign the automatic cutter.
• Burr the metal of the hook (which will shred thread forever after).

The Technique

1. Lift, Don't Pull: Use your tweezers to lift a few strands.
2. The "Release" Cut: Use precision scissors to snip only the threads you are lifting. You are trying to break the tension of the knot, not excavate it.
3. Manual Rotation: In the video, the operator presses the "Oil/Maintenance" button to electronically rotate the hook. If your machine is off, use the handwheel knob. Rotate the hook basket slightly to expose hidden threads.
4. Feel the Resistance: If you pull a thread and it feels "locked" (like flossing tight teeth), stop. Find where it is caught and snip it.

The "No Air" Rule

There is a pervasive myth that canned air is good for cleaning. It is arguably the worst thing you can use on a computerized machine.

Why? Compressed air does not remove debris; it relocates it. It blasts lint and thread snippets deep into the optical sensors (causing false thread-break errors) or into the greased gears (creating abrasive sludge).

The Alternative: Use a small cosmetic brush (mascara wands work wonders) or a mini-vacuum attachment.

4. Reassembly: The Case of the Missing White Spacer

This is the step that causes the most post-repair failures. You have removed the nest, but now you have a pile of parts: the needle plate, two screws, and a strange little white plastic piece.

The Function of the White Spacer

That small white plastic component is not packing material. It is a height gauge and vibration dampener. If you leave it out, your needle plate will not sit level. A tilted needle plate leads to needle deflection, which leads to... another bird's nest.

The Correct Reassembly Sequence

1. Identify the Post: Look for the screw post on the left side of the arm.
2. Seat the Spacer: Place the white plastic spacer over that post before the metal plate.
3. Align: Place the needle plate cover. It should sit flat without rocking.
4. Finger-Tighten: Start both screws by hand. This ensures you are not "cross-threading," which feels gritty and tough. The screws should spin freely.
5. Final Torque: Use the offset screwdriver. Tighten until snug, but do not crank it like a car lug nut. These are small threads.






Phase 2: Reassembly Checklist

• Spacer Check: Is the white plastic spacer installed on the left screw boss?
• Plate Stability: Does the plate sit perfectly flat with no "rocking" motion?
• Screw Torque: Are both screws hand-started, then tightened?
• Bobbin Tail: Did you leave a 2-inch tail of bobbin thread hanging out?
• Debris Check: Is the hook area 100% free of "fuzz" (use a flashlight)?


5. The Root Cause Solution: The Thread Path

Now that the "crime scene" (the hook) is clean, we must correct the "criminal" (the thread path).

The video clearly identifies the cause: Needle #9 missed the Take-Up Lever.

The Sensory Check for Threading

When threading a multi-needle machine like the Brother PR1055X, visual checks are not enough. You need Auditory and Tactile confirmation.

1. Tension Disks: When you floss the thread through the top tension knobs, you should feel a distinct drag.
2. The Take-Up Lever: This is the critical step. You must visually confirm the thread has passed through the eyelet of the moving lever. If it merely rests on top, it will slip off during the first stitch.
3. The "Click": As you pass guides, listen for the faint click of the thread seating into check springs.

Pro Tip: If you are searching for embroidery machine bird's nest fix solutions, 9 times out of 10, the solution is to strip the thread completely off the machine and re-thread from the spool up. Do not trust your previous threading.

6. The "Smoke Test": Operational Verification

You are ready to run. But do not hit the green button and walk away.

The Speed Limit

Your machine might be capable of 1,000 stitches per minute (SPM). However, your "test run" should be conducted in the Safety Zone: 400 - 600 SPM.

• Why? At slower speeds, you can hear problems before they become disasters. A rhythmic ticking means a needle is hitting the plate. A grinding noise means the hook is dry or damaged.

The Role of Hooping in Nests

Sometimes, the threading is perfect, but the fabric causes the nest. This is called "flagging"—when the fabric bounces up and down with the needle.

In the video, the operator uses a magnetic hoop. If you are struggling with garments, this is a distinct advantage.

The Hooping Connection: Traditional screw-tightened hoops can distort t-shirt knit, stretching it like a drum. When the needle penetrates, the stretched fabric snaps back, gripping the needle and preventing the loop from forming correctly.

Terms like magnetic embroidery hoop are your gateways to understanding efficient production. These hoops allow the fabric to rest naturally while being held firmly by magnetic force. This reduces flagging and, consequently, reduces bird's nests.

MAGNETIC SAFETY WARNING:
Pinch Hazard & Medical Device Risk.
Industrial magnetic hoops (like Mighty Hoops or SEWTECH equivalents) use Neodymium magnets with over 10lbs of force.
* Do not place fingers between the brackets. They will snap shut instantly.
* Pacemakers: Keep these hoops at least 12 inches away from anyone with a pacemaker or insulin pump.
* Electronics: Keep away from credit cards and phone screens.

Phase 3: Operational Checklist

• Speed Set: Machine speed lowered to 600 SPM for the first 500 stitches.
• Thread Path: Visually verified thread is inside the Take-Up Lever eyelet.
• Sound Check: Machine sounds smooth (no metallic clicking).
• Under-Check: Paused after 1 minute to check the underside of the garment? (Should be clean).

7. The Hierarchy of Prevention: Decision Tree

How do you stop this from happening next week? Use this logic flow to determine your setup.

Decision Tree: Fabric & Stabilizer Strategy

1. Is the material stretchy (e.g., T-Shirt/Polo)?
   • YES: You must use Cutaway Stabilizer. Tearaway will fail, causing the design to shift and the thread to nest.
   • NO: You can use Tearaway (e.g., on Towels or Denim).
2. Is the design dense (high stitch count)?
   • YES: Use a "No-Show Mesh" Cutaway plus a floating layer of Tearaway for extra rigidity.
   • NO: Standard Cutaway is fine.
3. Are you fighting "Hoop Burn"?
   • YES: If standard hoops are leaving permanent rings, your fabric is under too much stress. This is a hardware trigger. Consider upgrading to a mighty hoop 5.5 or compatible magnetic system.

8. Beyond the Fix: When to Upgrade Your Workflow

There comes a point where "fixing" the machine costs more in labor time than upgrading the tool.

The Professional Tool Path

If you are doing production runs of 50+ shirts and facing constant fatigue or minor errors:

1. Level 1: Stability Upgrade.
   Switch to pre-cut commercial stabilizers and high-grade polyester threads. Inconsistent consumables cause inconsistent tension.
2. Level 2: Hooping Upgrade.
   If you spend more than 2 minutes hooping a shirt, or if you struggle with wrist pain, look for mighty hoops for brother pr1055x. Magnetic hoops reduce hooping time to under 15 seconds and drastically reduce fabric distortion errors.
3. Level 3: Capacity Upgrade.
   If your single-head PR machine is running 8 hours a day, you are bottlenecking your revenue. Transitioning to a dedicated commercial multi-needle system (like SEWTECH's commercial lines) separates "hobby" from "enterprise."

Final Thinking: The "Old Hand" Mindset

Fixing a bird's nest is a rite of passage. The first time is terrifying; the tenth time is a minor annoyance.

The secret of the pros is not that they never get jams. It is that they respect the physics of the machine. They know that a bird’s nest is rarely a mystery—it is a missing white spacer, a skipped take-up lever, or a rushed hooping job.

Clean the hook, check the lever, and listen to the machine. It will tell you everything you need to know.

• Need replacement hoops or parts mentioned in this guide? Check our compatibility charts for brother pr1055x hoops and stabilizer kits.
• Struggling with hoop burn? Explore the science behind our hooping for embroidery machine magnetic solutions.

FAQ

• Q: How do I safely remove a bird’s nest jam under the needle plate on a Brother PR1055X without damaging the rotary hook?
  A: Stop and remove the nest strand-by-strand—never yank the wad out.
  • Power off (or stop the machine) and add bright task lighting before reaching into the hook area.
  • Lift a few strands with angled tweezers, then snip only the lifted threads to release tension.
  • Rotate the hook slightly (Oil/Maintenance rotate function or the handwheel) to expose hidden threads, then continue cutting and lifting.
  • Avoid canned air; brush or vacuum out lint and snippets instead.
  • Success check: The hook area rotates freely by hand/maintenance-rotate and no thread is “locked” in place.
  • If it still fails: Stop pulling, find the exact snag point, cut again, and re-check for thread wrapped behind the hook basket.
• Q: What safety steps should be followed before clearing a Brother PR1055X bird’s nest jam near the needle and automatic cutter area?
  A: Treat the needle zone and cutter as a sharp/crush hazard and keep hands clear whenever power is on.
  • Turn the machine off if there is any risk of fingers entering the needle/cutter zone while removing thread.
  • Cut threads slowly—tension can snap parts back when the knot releases.
  • Use tools (tweezers/scissors), not fingers, to reach into tight areas around the hook assembly.
  • Trust the Brother PR1055X resume/memory feature; do not risk hands to “save position.”
  • Success check: Hands never enter the active needle/cutter zone with power on, and the jam is removed without sudden snap-back incidents.
  • If it still fails: Stop and reset the work area with better lighting/tools before continuing.
• Q: After removing a bird’s nest on a Brother PR1055X, how do I reinstall the needle plate correctly if the white plastic spacer fell out?
  A: Reinstall the white plastic spacer first—missing it can tilt the needle plate and trigger repeat jams.
  • Locate the left-side screw post/boss and place the white spacer onto that post before the metal plate goes on.
  • Set the needle plate cover down and confirm it sits flat before installing screws.
  • Start both screws by hand first, then snug with the offset screwdriver (do not over-torque).
  • Leave a bobbin thread tail hanging out before closing up.
  • Success check: The needle plate sits perfectly flat with no rocking and screws tighten smoothly (no gritty cross-thread feel).
  • If it still fails: Remove and reseat the plate again—most repeat issues come from spacer omission or plate misalignment.
• Q: What is the most common thread-path cause of bird’s nests on a Brother PR1055X, and how do I confirm correct threading?
  A: The most common cause is the top thread missing the take-up lever—rethread from the spool up and verify the lever eyelet.
  • Strip the thread off completely and rethread each guide in order instead of “fixing” one spot.
  • Floss the thread through the tension disks and feel distinct drag as proof it is seated.
  • Visually confirm the thread is inside the moving take-up lever eyelet (not resting on top where it can slip off).
  • Listen/feel for the thread seating into guides/check springs as you thread.
  • Success check: You feel consistent drag at the tension area and can clearly see the thread passing through the take-up lever eyelet.
  • If it still fails: Replace the needle used during the jam and re-check for any missed guide on the same needle position (for example, the jammed needle number).
• Q: What speed should be used for a Brother PR1055X “smoke test” after a bird’s nest repair, and what sounds indicate a problem?
  A: Run the first test at 400–600 SPM so problems are audible before they become another jam.
  • Lower speed to the safety zone and stay nearby for the first several hundred stitches.
  • Pause after about a minute and inspect the underside of the garment for clean stitching (no looping/nesting).
  • Listen for rhythmic ticking (needle striking the plate) or grinding (hook dry/damaged or debris still present).
  • Confirm the thread path is still inside the take-up lever eyelet before resuming speed.
  • Success check: The machine runs smoothly with no metallic clicking and the underside remains clean after the first minute.
  • If it still fails: Stop immediately and recheck needle plate alignment/spacer installation and rethread the affected needle.
• Q: How can hooping and stabilizer choice reduce bird’s nests and fabric flagging on a Brother PR1055X when embroidering T-shirts or polos?
  A: Prevent fabric bounce (flagging) by supporting stretchy garments with cutaway stabilizer and minimizing fabric distortion during hooping.
  • Use cutaway stabilizer for stretchy materials; avoid relying on tearaway for knits.
  • For dense designs, add rigidity with a no-show mesh cutaway plus a floated layer of tearaway.
  • If standard screw hoops stretch knits “like a drum,” reduce distortion and consider a magnetic hooping approach for a more natural fabric hold.
  • Re-check the underside early in the run to catch looping before it becomes a full nest.
  • Success check: The fabric does not visibly bounce with needle penetration and the underside shows clean stitches without clumps.
  • If it still fails: Re-evaluate hooping tension and stabilizer stack, then re-verify threading through the take-up lever.
• Q: What magnetic hoop safety rules should be followed when using strong magnetic embroidery hoops on a Brother PR1055X workflow?
  A: Treat magnetic hoops as a pinch hazard and keep them away from pacemakers and sensitive electronics.
  • Keep fingers out of the closing path; magnets can snap shut instantly with high force.
  • Keep magnetic hoops at least 12 inches away from pacemakers or insulin pumps.
  • Store/handle magnetic hoops away from credit cards and phone screens.
  • Stage the hooping area so the top ring cannot “jump” onto the bottom ring unexpectedly.
  • Success check: Hooping is done without finger pinches and the hoop closes in a controlled, aligned motion.
  • If it still fails: Slow down and reposition hands—most injuries happen during rushed alignment rather than during stitching.
