Brother PR1055X Cap Embroidery That Actually Centers: A No-Panic Workflow From Jig to Stitch-Out

Cap Embroidery Masterclass: How to Hoop & Stitch on the Brother PR1055X Without Fear

Cap embroidery is one of those skills that looks effortless in a demo—and then the first time you do it alone, you’re staring at the brim thinking, “How is this supposed to fit under the head?” If that’s you, breathe.

The workflow on a Brother PR-series cap frame is genuinely straightforward once you respect two realities:

1. A cap is a 3D spring: It’s a curved object that actively fights to return to its original shape.
2. Physics wins: Your results live or die on centering and specific tension adjustments before the first stitch.

This post rebuilds the exact cap embroidery demonstration shown on the Brother Entrepreneur Pro X PR1055X, then adds the “old tech” habits that keep your monograms centered, your stabilizer doing its job, and your fingers safe.

The “Don’t Panic” Moment: Removing the Brother PR1055X Cap Frame Without Smacking the Visor

Before you hoop anything new, you have to get the finished cap frame off the machine—and this is where most beginners feel clumsy or damage the machine.

In the demo, the cap frame is removed by rotating it 90 degrees on the driver axis so the visor clears the machine head area, then sliding it off the arm. That sideways rotation is not optional; it’s the difference between a smooth removal and a visor collision.

Warning: Machine Safety & Pinch Points. Cap drivers are heavy metal components. Your machine head is metal. Your hands are in the middle. Remove rings and jewelry. Keep fingers clear of the locking mechanism when rotating the driver. If you feel resistance, STOP. Do not force the slide.

What you’re aiming for (Sensory Check):

• Visual: The visor points directly to the side (3 o'clock or 9 o'clock), clearing the needle needles completely.
• Tactile: The frame should slide off the driver bar like a drawer on smooth rails—no grinding.

A small pro habit: if anything feels like it’s binding, stop and re-check the angle. Forcing a cap frame is how people bend parts or chip paint—slow is fast here.

The “Hidden” Prep Pros Do Automatically: Tear-Away Stabilizer + Cap Jig Setup That Prevents Drift

Cap embroidery isn’t hard because the machine can’t stitch—it’s hard because the cap wants to shift while you’re hooping. The demo uses a heavy metal cap hooping jig (gauge) and a sheet of medium-weight tear-away stabilizer (around 2.5oz - 3oz).

Pro Tip: Do not use cut-away stabilizer heavily on caps unless the fabric is incredibly unstable. Tear-away provides the necessary rigidity without leaving bulk inside the hat.

The stabilizer is placed over the cylindrical jig arm and tucked under the metal prongs/tabs.

This is the first place where physics matters: the stabilizer is your “flat plane” inside a curved object. If it’s skewed, wrinkled, or not held evenly, the cap fabric will follow that distortion.

If you’re new to hooping for embroidery machine, treat stabilizer placement like you’re laying a foundation. A loose foundation creates a crooked house.

Prep Checklist (Do this BEFORE the cap touches the jig)

• Correct Stabilizer: Fresh sheet of 2.5oz+ Tear-Away (not scraps).
• Secure Anchor: Stabilizer tucked firmly under the jig tabs—no sliding.
• Sweatband Management: Sweatband pulled completely OUT or folded back so the crown sits metal-on-fabric.
• Needle Check: Is your machine equipped with Sharp needles (75/11)? (Ballpoints can struggle with stiff buckram in structured caps).

Centering That Doesn’t Lie: Align the Cap Seam to the Jig Mark Before You Lock Anything

Next, the cap is slid over the stabilizer and jig. The crucial move in the demo is visually aligning the cap’s center seam with the red center mark/notch on the metal jig.

This is the moment that decides whether your monogram looks professional or “off by just enough to bug you forever.” On caps, a 2–3 mm shift reads as “crooked” because the viewer’s eye uses the seam and the brim as reference lines.

Expected Outcome:

• Visual: The center seam of the cap bisects the red mark on the jig perfectly.
• Tactile: Pull the cap down firmly. The sweatband should be pressed tight against the jig’s stop.

Watch out (from real-world shop floors): If the sweatband is bunched or the crown is not fully seated on the cylinder, you can align the seam perfectly and still end up off-center once you lock the frame. Smooth first, align second, lock last.

The “Click Means Commit”: Locking the Brother Cap Frame Strap, Buckle, and Side Clips So It Stays Taut

Once aligned, the demo secures the cap frame. This must be done in a specific order to prevent the cap from twisting:

1. Strap: Pull the metal strap over the brim/bill area.
2. Buckle: Engage the latch buckle at the back and push down until it clicks solidly.
3. Clips: Attach spring/binder clips on the sides to keep the cap side panels and stabilizer taut.






That audible/physical “click” matters. A half-latched buckle is one of the most common reasons caps shift mid-run.

Sensory Check - The "Drum" Test:

• Sound: Listen for a sharp SNAP when the buckle locks.
• Touch: Tap the front of the cap. It should feel firm, not spongy.
• Visual: Look at the sides. Are they rippling? If so, the side clips aren't doing their job.

If you’re evaluating a cap hoop for brother embroidery machine setup, your benchmark is simple: it should hold the cap firmly without crushing the crown or leaving heavy clamp marks that won't steam out.

Setup Checklist (Before walking to the machine)

• Seam Check: Is the seam still on the red line loops after locking? (It often shifts right—check it!)
• Buckle Security: Did it click? Can you pull it open? (You shouldn't be able to).
• Side Tension: Clips attached? Cap fabric smooth against the stabilizer?
• Brim Clearance: Ensure the brim is centered in the wire frame so it won't hit the machine leg.

Loading the Brother PR1055X Cap Driver on the Free Arm: The Sideways Slide That Saves Your Brim

To mount the hooped cap on the machine, the demo again uses the 90-degree sideways orientation:

1. Hold the hooped cap sideways (visor at 3 or 9 o'clock).
2. Slide the frame onto the driver shaft around the free arm.
3. Rotate back upright until it snaps into the locked position.




This is the “cap frame dance” every PR-series operator learns. Don’t fight it—caps are bulky, and the sideways approach is the safe approach.

Sensory Anchor: You will feel three distinct mechanical "thunks" if done right. Slide on (smooth), Rotate (smooth), Lock (Snap). If you don't hear the final snap, the driver isn't engaged, and your design will be ruined instantly.

If you run brother multi needle embroidery machines in production, teach every operator this exact motion early. It prevents accidental impacts that can knock alignment off or damage a cap brim.

Touchscreen Setup on Brother PR1055X: Fonts → “M” → Red → End Edit → Embroidery → Lock

In the demo, the design is created directly on the machine:

• Navigate to Fonts
• Choose the letter “M” and press Set
• Keep it large (default large font size shown)
• Change the color to Red in the edit palette
• Press End Edit → Embroidery → Lock (to unlock for stitching)






The machine defaults to Needle 1 for stitching in the demonstration.

The "Upside Down" Confusion: A comment worth turning into a real-world reminder: one viewer noted that with the cap hoop, the embroidery may appear to “flip upside down” when moving from the edit screen to the embroidery screen. That’s a normal behavior on Brother PR machines. The software rotates the view to match the cap driver's logic. Trust the orientation icon on the screen.

If you’re learning brother pr1055x, don’t judge placement by panic—judge it by verification using the trace key.

The Alignment Insurance Policy: Use the PR Camera Feature Instead of Trusting Auto-Centering

In the demo, that host mentions she usually uses the camera for alignment, but relied on auto-centering for this quick trial.

Expert Advice: Auto-centering is a gamble. It assumes the cap was hooped geometrically perfect. If the cap is for a customer, a team order, or anything you’ll photograph for your portfolio, verify placement with the camera or the Live Pointer.

Why? Caps introduce variables that flat goods don’t:

• Seam thickness variations.
• Factory defects (sometimes the bill isn't perfectly centered on the crown).
• Hooping drift (1mm to the left).

Even when the machine “centers,” it’s centering based on the frame’s assumed geometry—not your specific cap’s seam reality.

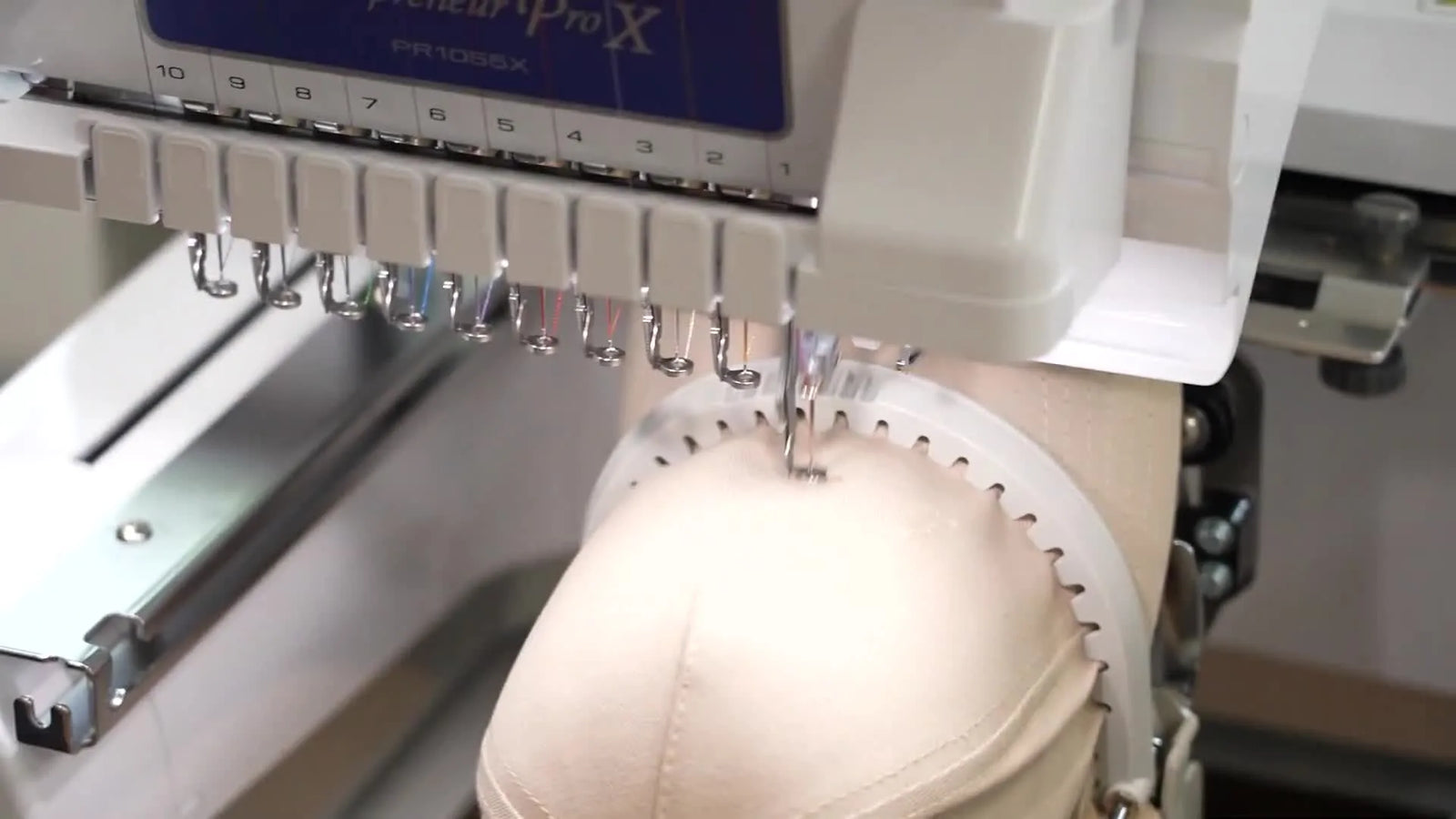

Stitch-Out on the Brother PR1055X: Speed Limits & Observation

Once you press start, the machine stitches automatically. In the demo, you can see the red thread forming the “M” on the cap crown.

The Speed Check (Data & Safety): While these machines can run fast, caps are unstable.

• Beginner Sweet Spot: 600 SPM (Stitches Per Minute).
• Expert Range: 800-900 SPM (Only with perfect tension and stable caps).
• Why? At 1000 SPM, the cap "flags" (bounces) too much, causing thread breaks and poor registration. Slow down for quality.

Sensory Troubleshooting:

• Listen: A rhythmic thump-thump is normal. A sharp CRACK usually means a needle hit the metal frame or the needle plate. Stop immediately.
• Watch: Look at the brim. Is it clearing the machine body?

If you’re using brother 10 needle embroidery machine capability to run faster and more often, build the habit of listening—small issues caught early prevent broken needles and ruined caps.

Finishing Like a Pro: Remove that Cap, Release the Buckle, and Tear Away Stabilizer Cleanly

After stitching, the demo shows:

1. Remove the frame from the machine (rotate sideways again!).
2. Release the buckle and side clips.
3. Slide the cap off the cylinder.
4. Tear away the excess stabilizer from inside the cap.






Expected Outcome:

• The center of the "M" aligns with the center seam.
• The inside is neat after tear-away removal—no big chunks left to scratch the wearer.
• Quality Check: Rub your finger over the embroidery. It should feel firm. If it feels squishy or loose, your top tension was too low or your hooping was loose.

The "Why It Works" (and Why It Sometimes Doesn’t): Hooping Physics on Caps, Not Flat Fabric

Caps behave differently than shirts because you’re tensioning a 3D object onto a rigid cylinder. When you lock the buckle and add side clips, you’re distributing force across:

• The center seam (thicker, less flexible).
• The side panels (more flexible).
• The brim area (stiffer, shape-retaining).

This is why cap hooping feels slow at first. Friction is your enemy here. If the side clips pull harder on one side, the crown twists.

If you’re shopping for brother pr1055x hat hoop options, prioritize systems that reduce distortion and speed up repeatability—because repeatability is what makes caps profitable.

Decision Tree: Cap Stabilizer + Setup Choices Based on Your Goal

Use this quick decision tree to choose how careful you need to be on any given cap:

1. Is this a structured cap (stiff front) or unstructured (floppy)?

• Structured: Use standard Tear-Away. Use Sharp Needles (75/11).
• Unstructured: Use Adhesive Tear-Away or add a layer of starch spray. Use Ballpoint Needles.

2. Is this for a paying customer?

• Yes: Use the Camera/Live Pointer to verify the center seam. Run at 600 SPM.
• No (Test): Auto-center is acceptable.

3. Are you embroidering closer than 1/2 inch to the bill?

• Yes: SLOW DOWN to 400 SPM. The presser foot needs time to navigate the slope.
• No: Standard speed (600-800 SPM).

Troubleshooting the Top 3 "Cap Scares" on Brother PR Series

The Upgrade Path: When to Stop Fighting the Hoop

If you’re making one vacation hat for the family, the standard jig-and-frame method is perfectly workable.

But if you’re doing caps as a product—logos, initials, team runs—the bottleneck is almost never the stitch time. It’s hooping time, re-hooping time, and the mental load of “Did I center that one?”

Here’s the practical way to think about upgrades based on your volume:

1. Level 1 (Optimization): Buy a better jig and dedicated cap needles (Titanium).
2. Level 2 (Tool Upgrade): If "Hoop Burn" or clamping marks are ruining your flat goods (bags, thick jackets) or if standard hoops are causing wrist fatigue, Magnetic Hoops are the industry standard for speed. They clamp instantly without the "unscrew-tighten-pray" cycle.

Warning: Magnetic Safety. Powerful magnetic hoops can pinch fingers severely and interfere with pacemakers. Handle with care and store separately.

1. Level 3 (Scale Upgrade): If you are running orders of 50+ hats, a single-head machine is your bottleneck. Moving to SEWTECH multi-needle embroidery machines or adding heads allows you to hoop one cap while the other stitches, doubling your profit per hour.

Operation Checklist (Right before you press start)

• LOCKED: Driver snapped onto the arm? (Push it to check).
• CLEARANCE: Rotate the handwheel (or do a trace). Does the needle bar hit the cap brim?
• SPEED: Is the machine set to an appropriate speed (600-700 SPM for beginners)?
• THREAD: Is the thread path clear? (No loops caught on the spool pin).
• GO: Press start and watch the first 100 stitches.

FAQ

• Q: How do you remove the Brother PR1055X cap frame from the cap driver without the visor hitting the machine head?
  A: Rotate the Brother PR1055X cap frame 90° sideways first, then slide it off—do not pull it straight forward.
  • Rotate: Turn the hooped cap so the visor points to 3 o’clock or 9 o’clock before you move it along the driver axis.
  • Slide: Pull the frame off the driver bar like a smooth drawer; stop immediately if anything binds.
  • Protect hands: Keep fingers away from the locking area; remove rings/jewelry and never force the metal parts.
  • Success check: The visor fully clears the needle area and the frame slides off smoothly with no grinding.
  • If it still fails: Re-check the angle and locking position; forcing the slide is what bends parts or chips paint.
• Q: What stabilizer should be used for Brother PR1055X cap embroidery on the Brother PR-series cap frame, and what should be avoided?
  A: Use medium-weight tear-away stabilizer (about 2.5–3 oz) on caps, and avoid heavy cut-away unless the cap fabric is extremely unstable.
  • Place: Lay a fresh sheet of tear-away over the cylindrical jig arm and tuck it evenly under the jig tabs so it cannot drift.
  • Manage sweatband: Pull the sweatband completely out or fold it back so the crown seats metal-on-fabric.
  • Choose needle: Start with sharp needles (75/11) for structured caps; ballpoints may struggle with stiff buckram.
  • Success check: The stabilizer sits flat and anchored (no wrinkles or skew) before the cap is pulled on.
  • If it still fails: Replace scraps with a full fresh sheet and re-tuck under the tabs—uneven stabilizer anchoring often causes drift.
• Q: How do you center a cap on the Brother PR1055X cap hooping jig so the monogram is not crooked on the seam?
  A: Align the cap’s center seam exactly to the red center mark/notch on the Brother cap hooping jig before locking anything.
  • Seat: Pull the cap down firmly so the sweatband presses tight against the jig stop (smooth first, align second).
  • Align: Visually bisect the jig’s red center mark with the cap seam; treat 2–3 mm as “too much” on caps.
  • Re-check after locking: Confirm the seam did not shift (it often pulls to the right when you latch).
  • Success check: The seam stays centered on the red mark after the buckle is fully locked.
  • If it still fails: Unlatch and reseat the crown—bunched sweatbands or a cap not fully seated can “fake” a good seam alignment.
• Q: What is the correct order to lock the Brother PR1055X cap frame strap, buckle, and side clips to prevent cap twisting?
  A: Secure the strap first, lock the buckle until it clicks, then add the side clips to hold the panels taut.
  • Strap: Pull the metal strap over the brim/bill area before touching the buckle.
  • Buckle: Push the latch down firmly until you get a solid click; a half-latched buckle is a common cause of shifting.
  • Clip: Attach the side spring/binder clips so the sides stay smooth against the stabilizer (no rippling).
  • Success check: You hear/feel a sharp “snap,” the cap front feels firm (not spongy), and the sides look smooth.
  • If it still fails: Unlock and repeat while holding the cap center firmly against the jig during the buckle lock to prevent a twist.
• Q: Why does a design look flipped or upside down on the Brother PR1055X cap hoop screen, and how do you confirm placement safely?
  A: The “flip” on Brother PR1055X cap embroidery screens is normal display logic—verify placement with trace and, for important jobs, the camera/Live Pointer.
  • Verify: Use the trace function to confirm the boundary clears the brim and matches the cap’s center seam position.
  • Trust icons: Follow the orientation indicator rather than judging by panic from the preview view.
  • Upgrade verification: Use the PR camera/Live Pointer for customer work instead of relying on auto-centering.
  • Success check: The trace path stays within the safe stitching area and matches the intended seam-centered location.
  • If it still fails: Re-hoop and re-align to the jig mark—auto-centering assumes perfect hooping geometry.
• Q: What Brother PR1055X stitching speed is safest for cap embroidery, and what symptoms show the speed is too high?
  A: A safe starting point on the Brother PR1055X for caps is about 600 SPM; running too fast can cause flagging, thread breaks, and poor registration.
  • Set speed: Use ~600 SPM as the beginner sweet spot; increase only when the cap is stable and tensions are proven.
  • Slow near the bill: Drop to about 400 SPM when stitching within 1/2 inch of the bill because the slope increases movement.
  • Monitor sound: Stop immediately if you hear a sharp “crack” (possible needle strike on frame/plate).
  • Success check: Stitching sounds rhythmic and steady, and the cap does not visibly bounce/flag while sewing.
  • If it still fails: Reduce speed first, then address needle choice (e.g., switch to a titanium 75/11 needle if thread is shredding).
• Q: When should cap embroidery operators switch from Level 1 technique fixes to Level 2 magnetic hoops or Level 3 SEWTECH multi-needle embroidery machines for production efficiency?
  A: Use a layered approach: fix hooping technique first, upgrade tools if hooping time or clamp marks are the bottleneck, and upgrade to SEWTECH multi-needle capacity when order volume makes one head the limit.
  • Level 1 (Technique): Improve jig discipline, verify seam alignment after buckling, use dedicated cap needles, and slow to ~600 SPM to reduce breaks and re-hoops.
  • Level 2 (Tool): Consider magnetic hoops when wrist fatigue, repetitive clamping time, or hoop/clamp marks (“hoop burn”) on flat goods are slowing output.
  • Level 3 (Capacity): Consider SEWTECH multi-needle embroidery machines when runs of ~50+ hats make hooping/stitching overlap necessary to keep profit/hour up.
  • Success check: Re-hoops drop noticeably, and centering becomes repeatable without constant “did I center that one?” re-checking.
  • If it still fails: Track where time is lost (hooping vs. stitching vs. rework); the upgrade choice should match the real bottleneck, not the stitch speed.
• Q: What magnetic hoop safety rules should cap embroidery operators follow when handling powerful magnetic embroidery hoops/frames?
  A: Treat magnetic embroidery hoops as pinch hazards and a medical-device hazard—handle slowly and store them safely.
  • Protect fingers: Keep fingertips out of the closing path; magnets can clamp suddenly and pinch severely.
  • Medical caution: Keep magnetic hoops away from pacemakers and similar devices.
  • Store separately: Keep hoops separated when not in use to prevent sudden snapping together.
  • Success check: The hoop closes in a controlled way with hands positioned outside the pinch zone.
  • If it still fails: Stop and reset hand placement—do not “fight” magnets; reposition and close deliberately.
