Brother PR1055X Cap Frame Setup That Actually Works: 7 Pro Tips to Stop Scraping, Popping, and Crooked Hats

Cap frames can feel like a “three-piece puzzle” the first time you open the box—jig, frame, driver—and the fear is real: Will this scrape? Will it break needles? Will I ruin a stack of hats? You’re not alone. I’ve watched plenty of capable embroiderers park their cap setup for years because the first attempt felt intimidating.

This post turns the video into a shop-floor workflow you can repeat. Everything that’s a specific step, tool size, setting, or sequence comes straight from the tutorial and the comment Q&A. However, I have added "sensory checkpoints"—what you should feel and hear—to ensure you are operating within the safety zone.

The Cap Frame “Reality Check”: Brother PR Cap Frame Set Parts and What Each One Controls

The video shows three big components laid out together: the mounting jig, the cap frame itself, and the cap driver that mounts to the machine. Seeing them as a system helps you troubleshoot faster.

• Mounting Jig: This is your stable hooping platform. It clamps to a PR stand or a normal table. Think of this as your "loading dock."
• Cap Frame: The part that physically holds the cap and keeps it straight while you clamp and tension it. This travels with the hat.
• Cap Driver: The machine-side attachment that replaces the standard arm and provides the track/rollers the cap frame snaps into. This is the engine that moves the hat.

If you’re searching for a cap hoop name because yours looks different, the channel reply in the comments matters: Brother has three types—a standard cap frame (best for structure), a wide cap frame (more stitch area, harder to tension), and a flat brim cap frame. That explains why two PR owners can both say “I have the cap hoop” but be talking about different hardware.

One more thing: if you’re running a brother pr multi-needle, treat the cap frame like a calibrated attachment, not a casual hoop swap. Once the driver height is set correctly, you shouldn’t be re-doing that calibration every session.

The “Hidden” Prep Pros Do First: Table Stability, Cap Choice, and Backing Strategy Before You Clamp Anything

Before you touch screws or Allen keys, set yourself up so the cap doesn’t fight you. Success in cap embroidery is 80% preparation and 20% stitching.

Choose caps that won’t sabotage you

The video’s tip list is blunt: stable fabrics work best. Thin or stretchy caps pull and are harder to frame. Also, low-profile caps under 50 mm / 2 inches from the brim to the crown are not recommended, and caps with brims longer than 80 mm are dangerous because they act like leverage bars that can dislodge the frame.

That’s not about skill—it’s geometry. A cap that’s too short forces the needle bar too close to the steel frame, and a brim that is too long risks hitting the machine body during rotation.

Backing: Keep it simple, keep it controlled

In the demo, the stabilizer is placed over the gauge and pierced onto the small teeth to hold it. The presenter also mentions an alternative: a sticky backing attached directly to the cap so you’re not managing two layers that can shift.

• Pro Tip (Hidden Consumables): Always keep Painter's Tape or Tearaway Sticky Stabilizer nearby. In production, I often see people “blame the cap frame” when the real culprit is a backing choice that allows micro-movement (flagging).

Prep Checklist (Do this before the jig goes on the table)

• Inventory Check: Confirm you have the mounting jig, cap frame, cap driver, and the spacer pad (do not lose this!).
• Cap Audit: Measure your cap brim. Is it <80mm? Is the face height >50mm? If not, stop.
• Stabilizer Prep: Cut tearaway stabilizer to size. (Rule of thumb: 2 layers of medium weight for structured caps; cutaway for unstructured).
• Tool Staging: Have binder clips and a 3mm Allen key ready.
• Marking: Keep a water-soluble pen or chalk to mark center lines if the cap seam is crooked (common in cheap caps).


Lock In the Mounting Jig: The One Clamp That Makes Hooping Faster (and Less Crooked)

The jig is clamped to the edge of a table/stand by loosening the bottom screw, sliding it onto the edge, and hand-tightening until it’s secure. The presenter notes you can attach it to a normal table if you don’t have the PR stand.

Why I care about this step: Physical Leverage. You will be pulling the cap fabric tight. If the jig shifts even slightly while you’re aligning the cap seam to the red line, you’ll chase “mystery” centering issues later. A stable jig is your first anti-crooked-hat insurance policy.

If you’re building a dedicated workflow, think of the jig as a mini embroidery hooping station—it’s not just a holder, it’s a repeatability tool. Ensure the clamp is tight enough that you can yank on it without it budging.

Hooping a Baseball Cap on the Brother Cap Frame: Center Line, Sweatband, Strap Teeth, and Clips (No Guessing)

This is the part most people rush—and it’s where 90% of cap problems are born. Follow these steps with your eyes and hands.

1) Mount the cap frame onto the jig

Align the two rollers on the jig with the rectangular slots on the cap frame, then slide until it clicks/locks into place. Sensory Check: You must hear a distinct metallic click. If it feels mushy, it’s not locked.

2) Apply stabilizer first

Open the clamp. Place stabilizer over the gauge and pierce it on the small teeth to hold it. The demo uses small clips to keep the stabilizer from shifting.

A viewer asked in German what the “paper” is—this is the stabilizer backing. Critical Detail: Ensure the stabilizer covers the entire sewing field, not just the center.

3) Sweatband: Flip it out or you’ll stitch it down

Unfold the sweatband completely outward before sliding the cap onto the frame. The video explicitly warns that leaving it inside can cause you to sew the hat to itself.

Warning (Safety): Keep fingers clear of clamp edges and frame teeth while positioning stabilizer and closing the clamp. The snap-action of the band is strong—pinch points on cap frames are real, and a rushed clamp can also distort the cap’s front panel.

4) Seat the cap correctly under the locating tab

Slide the cap onto the frame. Use your fingers to ensure the sweatband goes under the locating tab (the small metal lip at the bottom center).

5) Centering: Align the cap seam to the red line

Use the cap’s center seam marks and align them with the red line on the jig. If the cap has no center line, mark it with chalk.

A commenter asked about a white plastic piece on the back/top of the jig. Ignore the plastic piece for alignment; trust the red line. The red line represents the absolute center of the driver’s rotation.

6) Strap and buckle: Make the teeth bite the right spot

Pull the flexible metal strap over the brim area. Ensure the strap teeth grip at the cap–brim seam intersection (the "ditch"). Fasten the buckle latch. Sensory Check: The strap should feel tight, like a drum skin. If the cap fabric ripples when you run your finger over it, it's too loose.

7) Adjust strap tension with screws if it’s not flush

Use a screwdriver to loosen the two outer screws on the buckle plate, adjust strap length for a tighter fit against the cap curve, then retighten. Rule of Thumb: You should struggle slightly to close the buckle. If it closes easily, it’s too loose.

8) Smooth and clip the sides/back to prevent flagging

Remove temporary stabilizer clips. Smooth the side and back fabric underneath the frame arms and secure with large binder clips.

If you’re searching for brother cap hoop technique, this “smooth + clip” step is the secret sauce. Loose fabric on the sides causes "flagging" (bouncing fabric), which breaks needles and causes birdnesting.

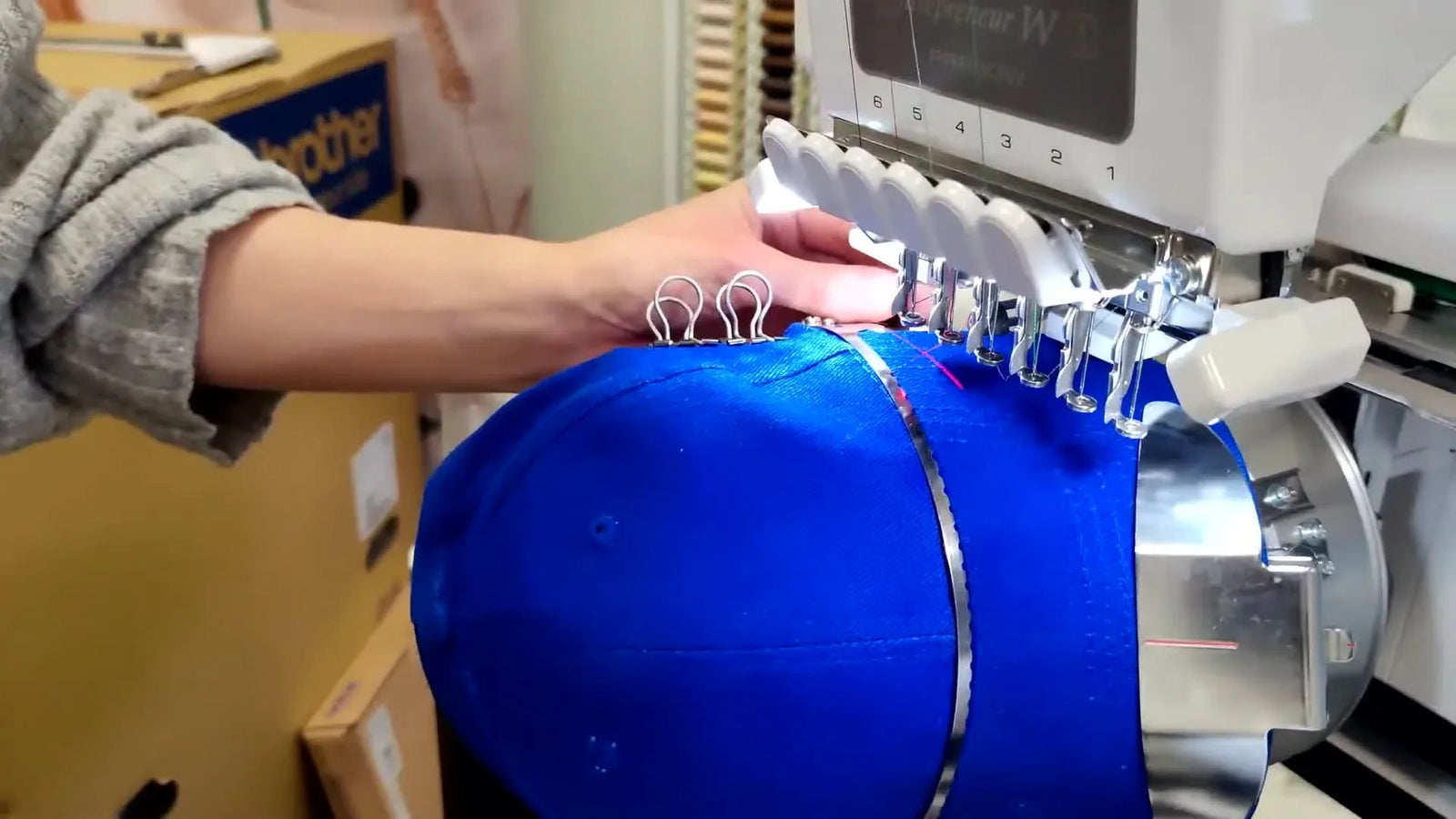

Install the Cap Driver on a Brother PR1055X: The A-Arm Swap and the Screw “Parking” Habit

On the machine side, the video removes the standard A-Arm by undoing two small screws. Then the cap driver slides onto the machine arm via the keyed hole, aligns with the upright pins, and is secured with the two small screws. The larger thumb screws underneath are tightened after positioning.

Expert Habit: Store the A-Arm screws in the designated parking holes on the A-Arm itself. Do not put them on the table. If you’re running a brother pr1055x in a busy shop, lost screws represent downtime. Make "Parking the Screws" a mandatory ritual.

The Allen-Key Calibration That Stops Scraping: 2.5mm L-Bracket Drop + 3mm Spacer Pad Clearance

This is the most critical mechanical step. It is the difference between a perfect cap and a broken machine.

In the box, there are two Allen keys:

• 2.5 mm (medium)
• 3 mm (large)

A) Set the L-shaped bracket with the 2.5 mm Allen key

Loosen the two small screws on the L-bracket about one turn—just enough for it to drop into place under gravity—then tighten back up. This sets the X-axis alignment.

B) Set the driver ring clearance with the spacer pad and 3 mm Allen key

Insert the white spacer pad between the driver ring and the machine cylinder arm. Using the 3 mm Allen key, loosen the four screws about one turn so the assembly drops/settles onto the pad.

Sensory Check (The Friction Test): Pull the assembly down so it sits on the pad. While tightening the screws, wiggle the pad slightly. You should feel resistance—like pulling a dollar bill out of a vending machine—but it shouldn't be immovable. Once tightened, remove the pad.

The presenter emphasizes: this adjustment only needs to be done once for the machine installation, not every time you hoop a hat.

If you’re hearing scraping, stop immediately. Scraping means the metal driver is touching the machine arm. This friction creates heat and drag, leading to motor overload or registration loss.

Warning (Risk of Damage): If you hear scraping (metal-on-metal grind), popping (needle deflection), or you’ve already broken needles, STOP. Do not press start again. Re-check cap driver height/clearance using the spacer pad. Forcing a cap frame through contact points can damage the machine’s needle plate sensor or the plastic housing.

Loading the Framed Cap Without Hitting the Needle Bar: The 90° Turn Trick and the “Snap” Check

To load the cap:

1. Remove the framed cap from the jig.
2. Rotate the frame 90 degrees sideways (brim facing 3 o'clock or 9 o'clock) to clear the needle bar area.
3. Once under the head, rotate it back upright.
4. Align the rollers with the driver slots and push firmly until it snaps.

Sensory Check: You must feel a solid "thump" or snap. Try to gently pull the cap frame away from the machine. If it slides out without releasing the latches, it wasn't locked.

One commenter specifically said the cap frame rubs against the plastic behind the needles during installation. This is why the "90-degree twist" is mandatory—it clears the hardware.

Brother PR Screen Settings for Cap Embroidery: 180° Rotation, Trace First, and Needle Color Swaps

Once the cap is mounted, the video uses the machine interface to prevent the classic “upside-down logo” mistake.

Rotation

Because the cap is situated upside down in the machine relative to the user, the design needs rotation. In the demo, selecting 'Cap Mode' or rotating 90° often triggers the machine to apply 180° orientation automatically (depending on firmware). Always check the visual preview.

Trace (The Final Safety Check)

The presenter runs a trace to preview where it will stitch. Watch the needle bar 1 and needle bar 10 (or 6). Ensure they do not hit the metal cap frame clamp.

Thread/needle assignment swaps

They swap needle assignments manually:

• Swap 1 ↔ 5 (or center needles) to keep the design centered on the path of least resistance.
• Swap 2 ↔ 6.

Speed

The cap frame speed is automatically set to 600 stitches per minute (SPM) by the machine.

• Beginner Sweet Spot: If you are new, manually lower this to 400-500 SPM. Speed amplifies vibration. Slowing down gives the thread time to recover tension on the curve.

If you’re shopping for a cap hoop for brother embroidery machine setup, understanding that the software controls the safety limits is just as important as the hardware.

The Stitch-Out Mindset: Test on a Flat Frame First So You Don’t Learn on Expensive Caps

The presenter gives a piece of advice that saves real money: do a test run on a flat frame first (using denim or heavy cotton) so you can adjust the design before you risk expensive caps.

Caps are unforgiving. The "Push/Pull" effect is exaggerated on a curve. If a design looks okay on a flat hoop, it might look distorted on a cap.

• Production Rule: Never run a cap until the design has run clean on a flat swatch.

A Decision Tree You Can Use Every Time: Cap Style → Stabilizer Approach → Risk Level

Use this quick decision tree to reduce wasted caps.

Start: What cap are you hooping?

1. Does the cap meet the video’s safe geometry?
   • If low profile < 50 mm / 2 in: STOP. High risk of needle hitting the frame.
   • If brim > 80 mm: STOP. High risk of brim hitting the machine body.
   • If it’s within limits: Go to Step 2.
2. Is the fabric stable (Structured vs. Unstructured)?
   • Structured (Buckram front): Use Tearaway stabilizer. Method: Clip stabilizer to gauge, hoop cap.
   • Unstructured (Floppy/Dad hat): Use Cutaway stabilizer. Consider Sticky Stabilizer to prevent the fabric from sliding (flagging) under the embroidery.
3. Are you seeing movement/flagging at the sides/back?
   • Yes: Smooth fabric under frame arms and add binder clips as shown.
   • No: Proceed.
4. Do you hear scraping/popping or see the frame dislodge on trace?
   • Yes: STOP IMMEDIATELY. Re-check driver clearance using the spacer pad and Allen-key steps.
   • No: Stitch at 500-600 SPM.

The 7 Tips Rebuilt as a Shop-Floor Checklist (So You Don’t Have to Rewatch the Video)

The video ends with seven tips; here they are in a practical order you can tape to the wall.

Setup Checklist

• Manual Check: Have I performed the L-bracket and Spacer Pad calibration for this machine?
• Center Mark: Did I mark the center line with chalk if the seam is vague?
• Cap Audit: confirmed cap is standard size (not low profile baby size, not huge visor).
• Fabric Check: Is the fabric stable? If not, did I add extra backing/sticky stabilizer?
• Sweatband: Is it flipped OUT? (Check again).
• Proof: Did I sew a flat test swatch first?
• Orientation: Is the design rotated 180° on the screen?
• Trace: Did the trace clear all metal parts?

Troubleshooting the Problems People Actually Report: Scraping, Popping, Needle Breaks, and Frame Dislodging

This section addresses the panic moments gathered from user comments and workshop floors.

Symptom: Design is rotated wrong / stitches upside down

• Likely cause: Cap is physically upside down (normal), but software flag wasn't set.
• Fix: Rotate the design in the machine software. Brother machines usually flip visuals when "Cap Frame" is selected in settings.

Symptom: You stitched through the sweatband

• Likely cause: Sweatband folded back in during hooping.
• Fix: Use painter's tape to tape the sweatband back if it keeps falling forward.

Symptom: Cap looks off-center

• Likely cause: You trusted the cap seam, but the cap seam was sewn crooked at the factory.
• Fix: Measure and mark the true center with a pen. Align the mark to the red line, not the seam.

Symptom: Scraping sound or rubbing behind the needles when installing/trace

• Likely cause: Driver clearance/height not set correctly.
• Fix: Re-do the spacer pad procedure. Do not "power through" scraping.

Symptom: Popping noise and broken needles

A commenter described popping and breaking two needles.

• Likely cause: Needle deflection caused by too many layers, or the cap flagging (bouncing).
• Fix: Slow down to 400 SPM. Change to a Titanium Needle (#75/11 or #80/12) sharp point. Ensure the cap is clipped tightly at the back to stop bouncing.

The Upgrade Path When Caps Become “Real Work”: Faster Hooping, Less Wrist Strain, and More Consistency

Once you can hoop and stitch one cap cleanly, the next bottleneck is physical pain and time. Cap frames require significant hand strength.

Here is how to scale logically without breaking the bank:

1. The "Hoop Burn" & Wrist Pain Solution (For Flats/Garments) While this guide focuses on the mechanical cap driver for hats, you likely embroider shirts and bags too. Traditional screw-hoops cause wrist strain and leave "hoop burn" marks.

• The Upgrade: Magnetic Hoops.
• Why: They use magnets to clamp fabric instantly. No screws, no wrist pain, and no hoop burn on delicate polos.
• Critera: If you are producing 50+ chest logos a week, the time saved pays for the hoop in a month. When searching for magnetic hoops for brother pr1055x, look for kit compatibility with your specific arm width.

Warning (Magnet Safety): Magnetic hoops are industrial tools with extreme clamping force. Keep them away from pacemakers. Watch your fingers—they can pinch severely if handled carelessly.

2. The Stabilization Solution Consumable inconsistency causes puckering.

• The Upgrade: Buy specialized Cap Backing (pre-cut strips) rather than cutting broad rolls. It saves prep time and ensures the grain of the stabilizer is correct.

3. The Production Scale Solution If your order volume means you are spending more time hooping than stitching, your single machine is the bottleneck.

• The Upgrade: SEWTECH Multi-needle Machines.
• Why: Dedicated production. Use one machine set up permanently for caps (driver installed, tension set for caps) and another for flats. This eliminates the 20-minute screw-driver swap time completely.

Final Operation Checklist (End-of-Run Habits)

• Clear Area: Remove the cap driver if switching back to flats.
• Parking: Put all screws in their "parking holes."
• Cleaning: Blow out the bobbin case. Cap embroidery creates 2x more lint than flats.
• Needle Check: Dispose of the needle used for caps; it is likely dull from the heavy canvas.

If you’ve been staring at your cap frame for months and avoiding it, start with just the Jig setup today. Trust the "Click" and the "Spacer Pad," and you will be safe. Predictable setup leads to predictable profit.

FAQ

• Q: How do I confirm the Brother PR cap frame is fully locked into the mounting jig before hooping a cap?
  A: Slide the cap frame onto the jig rollers until it locks with a clear metallic click—do not proceed with a “mushy” engagement.
  • Align the jig rollers with the rectangular slots on the cap frame, then slide straight until it stops.
  • Re-seat and try again if the frame feels uneven or partially engaged.
  • Success check: A distinct metallic “click” is heard and the frame feels solid with no wobble on the jig.
  • If it still fails: Inspect for misalignment on the roller/slot path and re-slide from the start rather than forcing it.
• Q: How do I set Brother PR cap driver clearance using the spacer pad to stop scraping on a Brother PR1055X?
  A: Re-do the spacer pad clearance adjustment with the 3 mm Allen key so the driver ring settles correctly—scraping means metal contact and must be corrected.
  • Insert the white spacer pad between the driver ring and the machine cylinder arm.
  • Loosen the four screws about one turn with the 3 mm Allen key so the assembly drops/settles onto the pad, then tighten while holding it seated.
  • Success check: The spacer pad can be wiggled with slight resistance (firm friction) and removes cleanly after tightening—no grinding sound on movement/trace.
  • If it still fails: Stop and repeat the procedure; do not “power through” any metal-on-metal scraping.
• Q: What cap size limits should be avoided when using a Brother PR cap frame to reduce needle strikes and frame/body collisions?
  A: Do not hoop caps with a low profile face height under 50 mm (2 in) or brims longer than 80 mm, because the geometry increases collision risk.
  • Measure brim-to-crown face height; stop if it is under 50 mm / 2 inches.
  • Measure brim length; stop if it exceeds 80 mm.
  • Success check: The cap meets both measurements before any hooping, reducing the chance of the needle bar getting too close to the steel frame.
  • If it still fails: Switch to a more stable, standard-geometry cap style before adjusting machine settings.
• Q: How do I prevent stitching through the sweatband when hooping a baseball cap on a Brother PR cap frame?
  A: Flip the sweatband completely outward before sliding the cap onto the frame, and keep it out of the sewing field.
  • Unfold the sweatband all the way out before seating the cap under the locating tab.
  • Re-check the sweatband position right before closing the clamp.
  • Success check: The sweatband stays fully outside the clamped area and cannot drift under the needle path when you smooth the front panel.
  • If it still fails: Tape the sweatband back with painter’s tape so it cannot fold inward during hooping.
• Q: How do I stop flagging, birdnesting, and needle breaks caused by loose sides when using a Brother PR cap frame?
  A: Smooth the side/back fabric under the frame arms and secure it with large binder clips to stop cap fabric bounce.
  • Remove temporary stabilizer clips after the stabilizer is positioned, then smooth the side and back fabric tightly under the arms.
  • Add large binder clips to hold the sides/back so the fabric cannot lift during stitching.
  • Success check: The cap fabric feels stable (no “bouncing” when touched) and does not ripple when you run a finger across the hooped area.
  • If it still fails: Slow the machine down (a safe starting point is 400 SPM for beginners) and re-check hooping tension at the strap teeth area.
• Q: How do I load a Brother PR cap frame onto the cap driver without rubbing behind the needles on a Brother PR1055X?
  A: Use the 90° sideways rotation during loading, then snap the frame into the driver slots only after clearing the needle bar area.
  • Remove the framed cap from the jig and rotate the frame 90° sideways (brim facing 3 o’clock or 9 o’clock) to clear the needle area.
  • Rotate back upright under the head, align the rollers with the driver slots, and push firmly until it snaps.
  • Success check: A solid “thump/snap” is felt, and a gentle pull test confirms the frame does not slide out without releasing latches.
  • If it still fails: Stop and re-check driver clearance/height with the spacer pad procedure before attempting to trace or stitch.
• Q: When should an embroidery shop upgrade from standard screw hoops to magnetic hoops or to a SEWTECH multi-needle machine for productivity and consistency?
  A: Upgrade in levels: optimize technique first, add magnetic hoops when hooping speed and hoop burn/wrist strain become the bottleneck, then add a dedicated SEWTECH multi-needle machine when swapping setups creates downtime.
  • Level 1 (Technique): Standardize a repeatable checklist (trace first, stable jig, correct strap tension, and clip sides/back to stop movement).
  • Level 2 (Tool): Use magnetic hoops for flats/garments when screw-hooping causes wrist pain or hoop burn and you need faster, consistent clamping.
  • Level 3 (Capacity): Use a SEWTECH multi-needle machine when order volume makes one machine the bottleneck and you need a cap-dedicated setup to avoid repeated driver swaps.
  • Success check: Hooping time drops and rework decreases (less crooked placement, less fabric movement, fewer thread nests).
  • If it still fails: Review stabilizer consistency (often switching to pre-cut cap backing reduces variability) and confirm cap driver calibration is not being skipped.
