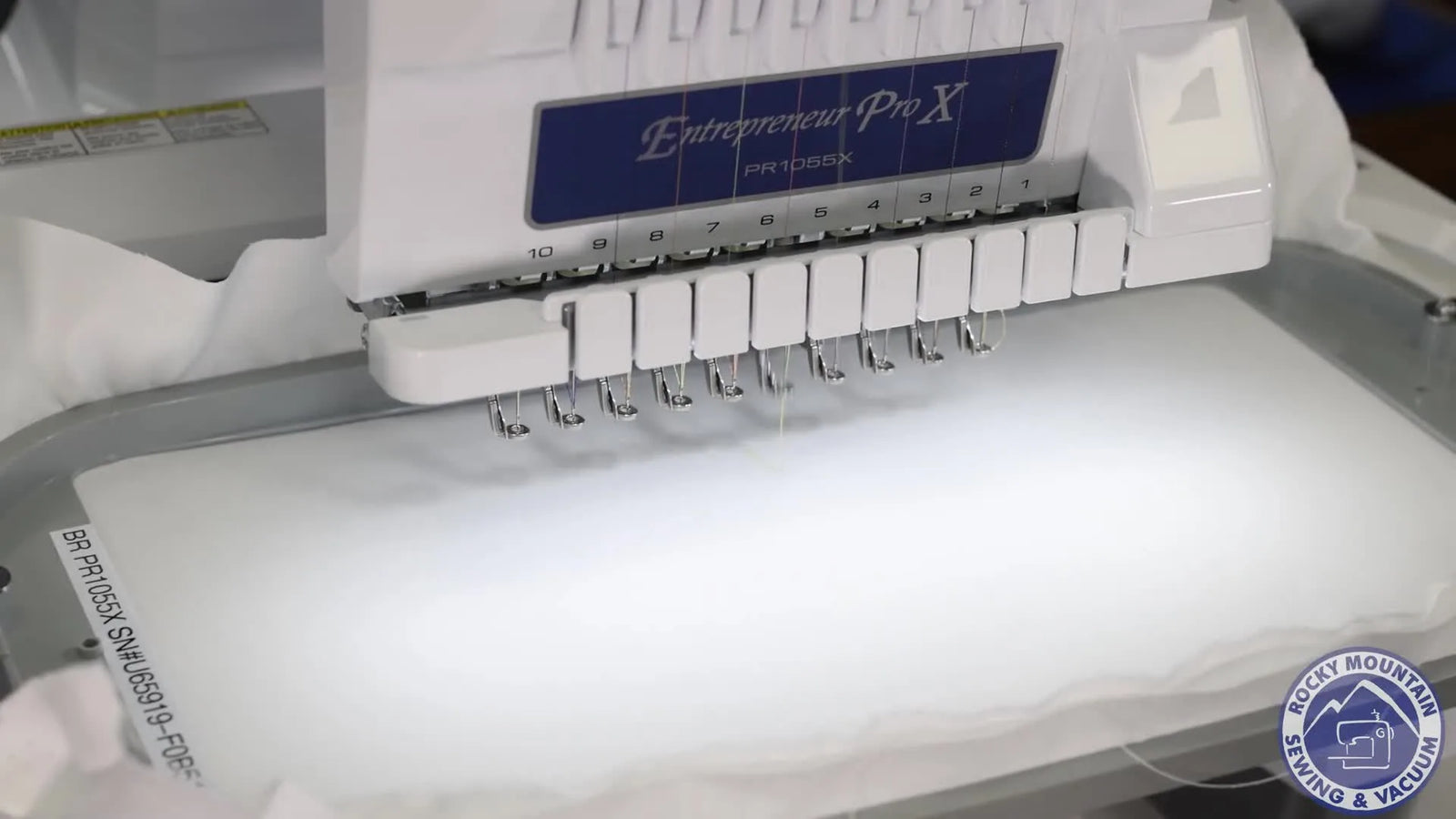

Brother PR1055X in the Real World: Free-Arm Hooping, Camera Placement, and 10-Needle Workflow Without the Headaches

Mastering the Brother PR1055X: A Production-Ready Workflow for Nervous Beginners

If you’ve ever stared at a multi-needle machine thinking, “This looks amazing… but I’m terrified I’m going to ruin this expensive hoodie,” you are not alone. This is what I call “The Multi-Needle Paradox”: the machine is powerful enough to build a business, but complex enough to freeze you in your tracks.

The Brother PR1055X is a workhorse, but it requires a shift in mindset from "crafting" to "manufacturing." This guide rebuilds the standard demo into a shop-ready, repeatable process. We will cover the tactile physics of free-arm stitching, how to use camera placement as a safety net, and—crucially—when you should stop blaming your skills and start upgrading your tools.

Calm the Panic: What the Machine Actually Solves (The "Why")

The PR1055X (and similar multi-needle equivalents) shines where your standard flatbed machine fails: geometry.

When you try to stuff a finished hoodie pocket or a narrow sleeve onto a flatbed machine, you are fighting physics. You have to bunch the fabric up, which creates torque.

• Torque = Distortion.
• Distortion = Puckering and Misalignment.

In the demo, Megan shows the machine's superpower: converting into a narrow cylinder bed (free arm). This allows gravity to work for you, letting the garment hang naturally rather than being forced flat.

Commercial Reality Check: While often sold to advanced hobbyists, this machine class is the entry point for home-based businesses. If you are quoting jobs for small local businesses, you need the speed and the cylinder arm. However, be aware: dealer pricing varies wildly. Treat this as a capital investment, not a consumer purchase.

The Free-Arm Switch: Eliminate "Garment Torque"

When hooping feels like a wrestling match, stop. It’s usually not your hands; it’s the table.

Removing the table isn't just about making space; it's about neutralizing fabric tension.

1. Lift & Pull: Lift the large white extension table straight up and remove it.
2. expose the Arm: You now have the narrow cylinder arm exposed.
3. Drape, Don't Drag: Slide your garment (like a hoodie or tote bag) around the arm.


The "Neutral Fabric" Sensory Check

Pro Tip: Before you lock the hoop in, perform this sensory check.

• Visual: Does the fabric look relaxed?
• Tactile: If you feel the garment "springing" or pulling back against your hand as you position it, you are storing tension. That tension will release the second the needle hits, causing the design to "walk" (drift off center). The fabric should feel neutral—supported, but not stretched.

The Upgrade Trigger: Handling "Hoop Burn"

If you are doing this commercially (50+ items a week), you will encounter a specific pain point: Hoop Burn. This is the permanent ring left by standard plastic hoops crushing the fabric fibers.

• The Diagnosis: If you are spending 5 minutes ironing/steaming every shirt after embroidery to remove ring marks, you are losing money.
• The Solution: This is when professionals switch to Magnetic Hoops (Magnetic Frames). Unlike the friction-fit of standard hoops, magnetic frames use vertical magnetic force to hold the fabric without crushing the weave.
• Many professionals search for how to use magnetic embroidery hoop techniques specifically to solve the "hoop burn" issue on velvet, thick fleece, or delicate performance wear.

Warning: Keep your fingers clear when removing or reinstalling tables and hoops. The pinch points around the arm and hoop brackets can bite fast. Also, if you upgrade to magnetic hoops, Slide, Don't Snap. The magnets are industrial strength and can pinch skin severely. Keep them away from pacemakers.

The "Hidden" Prep: Stabilizer, Thread, and Safety Checks

An amateur presses "Go" and hopes for the best. A pro wins the battle before the machine is even turned on. The demo shows a white-on-white setup, but let's break down the consumables you actually need.

The "Iceberg" Theory of Prep

90% of embroidery quality is determined by three things: Stabilizer, Thread, and Hooping.

• Thread: Use high-quality polyester (like SEWTECH or similar trusted brands). Cheap thread sheds lint that clogs your tension discs.
• Stabilizer: This is your foundation.
  • Rule of Thumb: If the fabric stretches (T-shirts, hoodies), use Cutaway.
  • Rule of Thumb: If the fabric is stable (Canvas, denim), use Tearaway.

Prep Checklist (Pre-Flight)

• Hidden Consumables: Do you have adhesive spray (temporary bond), sharp snips, and a fresh needle (75/11 Ballpoint for knits)?
• Hardware Check: Run your finger over the hoop's inner ring. Is it smooth? Any nick will snag your fabric.
• Bobbin Check: Inspect the bobbin case area for lint. A tiny dust bunny can throw off your tension by 20%.
• Plan the Path: If using a machine embroidery hooping station, ensure your markings are visible under the hoop.

Managing the Screen: Formats and Connectivity

Megan demonstrates the PR1055X’s ability to load designs via USB or wireless transfer.

Formats Simplified:

• DST: The industrial standard. It contains X/Y coordinates and "Stops." It does not contain color information (the screen might show weird colors—that's normal).
• PES: Brother's format. Contains color info and specific settings.

Workflow Tip: If you are running a business, stop using physical USB sticks. They get lost, stepped on, or mixed up. Setting up wireless transfer creates a "Digital Thread" from your PC to your machine, reducing version control errors.

On-Screen Editing: Limits and Capabilities

You can resize, rotate, and mirror designs directly on the screen.

The "Jagged Edge" Trap: A common complaint in the comments was: "My drawing pieces don't fit well."

• The Cause: On-screen digitization (My Design Center) essentially "traces" an image. If your source image has a fuzzy pixelated edge, the machine will create a jagged stitch line.
• The Fix: Use the Zoom function to inspect the vector lines before stitching. If it looks shaky on screen, it will look terrible in thread. For logos, always use professional digitizing software rather than auto-digitizing on the machine.

Terms like brother pr1055x often appear in forums discussing these exact limitations—it is a powerful tool, but it cannot fix bad artwork magicially.

Hooping & Attaching: The "Click" of Security

The demo shows the standard hoop sliding into the pantograph bracket.

The Tactile Anchor

• The Sense: You are listening and feeling for a sharp mechanical CLICK.
• The Check: Once locked, grab the hoop gently and wiggle it. It should move with the machine arm, not independent of it. If there is any play or wobble between the hoop and the bracket, your design will look like a blurry photograph.

If you struggle with standard hoops (e.g., wrists hurting, inability to hoop thick items), this is a "Tool Limit." Users frequently look for brother pr1055x hoops compatibility lists to find larger or easier-to-use aftermarket options like magnetic frames to relieve this physical strain.

Precise Placement: Computed Vision vs. Physical Reality

The "Live Camera" feature is the PR1055X's selling point. It allows you to scan the fabric and align the design digitally.

The Workflow:

1. Tap the Camera Icon.
2. Watch the arm scan (Safety: Stand back!).
3. Use the Stylus or Arrows to align the digital design with your chalk mark on the fabric.

Crucial Expert Insight: The camera aligns the design to the hoop. It cannot fix a garment that was hooped crookedly.

• If you hoop a shirt twisted, and use the camera to rotate the design 15 degrees to match, you will stitch a straight design on a twisted shirt. When you unhoop it, the shirt relaxes, and the design looks crooked.
• Rule: Hooping straight is primary. The camera is for fine-tuning (1-2mm adjustments), not coarse correction.

This is critical for hats. Users searching for brother pr1055x hat hoop tutorials often fail because they trust the camera more than the physical cap frame stability.

Efficiency Hack: The "Switch" (Color Remapping)

You do not need to physically move thread spools to change colors.

• Scenario: You have Metallic Gold on Needle 1, but the design creates the border (Color 5) using Needle 1. You don't want a metallic border.
• The Fix: Use the "Switch" icon. You can tell the machine "For this design, treat Needle 5 as Needle 1."


Productivity Win: This feature alone saves 5-10 minutes per setup. In a 10 needle embroidery machine environment, managing flow digitally is faster than manual rethreading.

Running the Stitch: Speed and Safety

Megan mentions the machine can run at 1000 Stitches Per Minute (SPM).

The "Beginner Sweet Spot"

Just because the speedometer says 120, doesn't mean you drive 120 in a school zone.

• Expert Speed: 1000 SPM (for stable canvas/denim).
• Beginner/Safe Speed: 600 - 700 SPM.
• Why? Lower speeds reduce friction, heat, and thread breaks. If you are using metallic thread (as shown in the demo), drop speed to 400-500 SPM. Metallic thread is brittle and sensitive to heat friction.

The Auditory Check

• Good Sound: A rhythmic, rapid "hum-thump-hum-thump."
• Bad Sound: A harsh, metallic "CLACK-CLACK" or a grinding noise.
• Action: If you hear the "Bad Sound," hit STOP immediately. It usually means a needle is hitting the hoop or a bird's nest (tangle) is forming in the bobbin.

Setup Checklist (The "Green Light" Protocol)

• Clearance: Is the extension table removed? Is the shirt back pulled clear of the needle?
• Hoop Lock: Did you hear the click? Is the hoop stable?
• Presser Foot: Is the height set correctly (just hovering over the fabric, not dragging)?
• Speed: Is it set to a safe RPM (e.g., 600) for this fabric?
• Consumables: Is there enough bobbin thread to finish the run?

Troubleshooting from the Trenches

Real-world problems from the comments section, solved with a production mindset.

The Stabilizer Decision Tree

Stop guessing. Use this logic flow to choose your foundation.

1. Is the item a "Tube" (Sleeve/Sock/Pocket)?
   • YES: Remove Table -> Use Free Arm -> Go to Step 2.
   • NO: Flatbed Mode -> Go to Step 2.
2. Does the fabric stretch? (T-shirt, Hoodie, Knit)
   • YES: Cutaway Stabilizer. (Must hold the design forever).
   • NO: Go to Step 3.
3. Is the fabric unstable/loose weave? (Linen, light cotton)
   • YES: Cutaway or Fused Poly-mesh.
   • NO (Denim, Canvas, Towel): Tearaway Stablizer.

If sleeves are your primary product, researching a specific sleeve hoop or a defined embroidery sleeve hoop station can drastically reduce your setup time compared to fighting with standard round hoops.

The Finish: Dealing with the Output

The machine flashes lightly. You are done.

The 40% Rule: Professional embroiderers know that 40% of the work happens after the machine stops.

1. Trim: Snip jump stitches close (if the machine missed any).
2. Clean: Tear away the backing (support the stitches so you don't distort them!).
3. Finish: Steam the garment (from the back) to remove hoop marks.

The Commercial Upgrade Path (When to Grow)

You will reach a point where your skill is excellent, but your output is capped. This is the Bottleneck.

• Bottleneck 1: Hooping Fatigue.
  • Trigger: Your wrists hurt or you are rejecting shirts due to hoop burn.
  • Upgrade: Magnetic Hoops. They snap on instantly, hold thick garments without pain, and reduce burns.
• Bottleneck 2: Production Volume.
  • Trigger: You are turning down orders because you can't stitch fast enough.
  • Upgrade: Multi-Head Machines (SEWTECH/Industrial). Moving from a single-head 10-needle to a multi-head unit allows you to stitch 2, 4, or 6 garments simultaneously.

The Brother PR1055X is a fantastic bridge machine. By respecting the physics of the free arm, strictly managing your prep work, and upgrading your hoops when volume demands it, you can turn that intimidating robot into your most profitable employee.

FAQ

• Q: How do I switch the Brother PR1055X into free-arm mode to stop hoodie sleeves or pockets from pulling and distorting the design?
  A: Remove the extension table and let the garment hang naturally around the cylinder arm to eliminate “garment torque.”
  • Lift straight up and remove the large white extension table.
  • Slide the hoodie/sleeve/pocket around the exposed cylinder arm—drape, don’t drag.
  • Do the “neutral fabric” check before locking the hoop.
  • Success check: The fabric looks relaxed and feels neutral in your hand (no spring-back or pulling).
  • If it still fails: Re-hoop—stored tension usually causes drifting the moment stitching starts.
• Q: How can I do the “neutral fabric” sensory check on the Brother PR1055X to prevent design drift after the first stitches?
  A: The fabric must feel supported but not stretched before the hoop is locked, or the design can “walk.”
  • Look for a relaxed surface with no twisting or forced flattening.
  • Feel for spring-back while positioning—if it pushes against your hand, remove and re-seat the garment.
  • Lock the hoop only after the garment hangs freely on the free arm (when applicable).
  • Success check: No stored tension sensation; the garment does not pull back when you let go.
  • If it still fails: Reduce “coarse corrections” on-screen; fix hooping first, then fine-tune placement.
• Q: What stabilizer should I choose for Brother PR1055X embroidery on hoodies, T-shirts, denim, or canvas using the blog’s decision tree?
  A: Use cutaway for stretch, tearaway for stable fabrics, and switch to cutaway/poly-mesh for loose weaves.
  • Choose Cutaway if the fabric stretches (T-shirts, hoodies, knits).
  • Choose Tearaway if the fabric is stable (denim, canvas, towels).
  • Choose Cutaway or fused poly-mesh if the fabric is unstable/loose weave (linen, light cotton).
  • Success check: The fabric stays flat without puckering and the design holds shape after unhooping.
  • If it still fails: Re-check hooping neutrality and confirm the garment is not being torqued on a flatbed setup.
• Q: What is the Brother PR1055X pre-flight checklist for hidden consumables and quick hardware checks before pressing Start?
  A: Treat it like a pre-flight—verify needle, bobbin area, hoop condition, and basic tools before running.
  • Install a fresh needle appropriate to the fabric (the blog notes 75/11 ballpoint for knits as a starting point; confirm with the machine manual).
  • Clean and inspect the bobbin case area for lint buildup.
  • Run a finger around the hoop inner ring to confirm it is smooth (no nicks to snag fabric).
  • Stage essentials: sharp snips and temporary adhesive spray if needed for control.
  • Success check: The run starts smoothly without immediate thread issues or fabric snagging.
  • If it still fails: Slow the machine speed and re-check bobbin area lint—small debris can destabilize tension.
• Q: How do I confirm the Brother PR1055X hoop is properly attached to the pantograph bracket (the “click” standard) to avoid wobble and blurry stitching?
  A: Do not stitch until the hoop locks with a clear mechanical click and shows zero play.
  • Slide the hoop into the bracket until a sharp CLICK is felt/heard.
  • Wiggle the hoop gently after locking to test for movement.
  • Re-seat and re-click if any looseness is detected.
  • Success check: The hoop moves only with the machine arm and does not wobble independently.
  • If it still fails: Stop and inspect the attachment path—any play at the bracket/hoop connection will translate into unstable results.
• Q: What is a safe Brother PR1055X stitch speed for beginners, and what speed should I use for metallic thread to reduce breaks?
  A: Start slower for control—about 600–700 SPM for beginners, and drop to 400–500 SPM for metallic thread.
  • Set speed to 600–700 SPM while learning and when stitching garments where friction matters.
  • Reduce to 400–500 SPM when running metallic thread to limit heat/friction.
  • Listen for sound changes and stop immediately if the machine sounds harsh.
  • Success check: A steady “hum-thump” rhythm with fewer breaks and no overheating behavior.
  • If it still fails: Re-check needle choice and thread path, and consider further speed reduction for the problem segment.
• Q: What should I do if the Brother PR1055X makes a loud “CLACK-CLACK” sound or grinding noise while stitching?
  A: Hit STOP immediately—this commonly indicates needle/hoop contact or a bird’s nest forming in the bobbin area.
  • Stop the machine as soon as the harsh sound starts.
  • Check for hoop clearance and confirm the garment is pulled clear of the needle area.
  • Inspect the bobbin area for a developing tangle (bird’s nest) and remove lint/tangles before restarting.
  • Success check: The sound returns to a smooth, rhythmic hum when you resume.
  • If it still fails: Re-check hoop lock stability and slow down; persistent noise should be addressed before continuing to avoid damage.
• Q: When should I upgrade from standard hoops to magnetic hoops for Brother PR1055X production to reduce hoop burn and hooping fatigue, and what magnetic hoop safety rules matter most?
  A: Upgrade when hoop burn cleanup or wrist strain becomes a repeat bottleneck, and handle magnetic hoops by sliding—never snapping.
  • Diagnose: If you routinely spend minutes steaming/ironing ring marks after embroidery, hoop pressure is costing time.
  • Try Level 1: Improve hooping neutrality and reduce unnecessary clamp pressure where possible.
  • Move to Level 2: Use magnetic hoops to hold fabric with vertical magnetic force instead of crushing fibers.
  • Safety: Slide magnets into position; keep fingers clear and keep magnets away from pacemakers.
  • Success check: Fewer permanent ring marks and faster, less painful hooping on thick or delicate garments.
  • If it still fails: Re-evaluate stabilizer choice and workflow volume—higher weekly output may justify stepping up production equipment.
