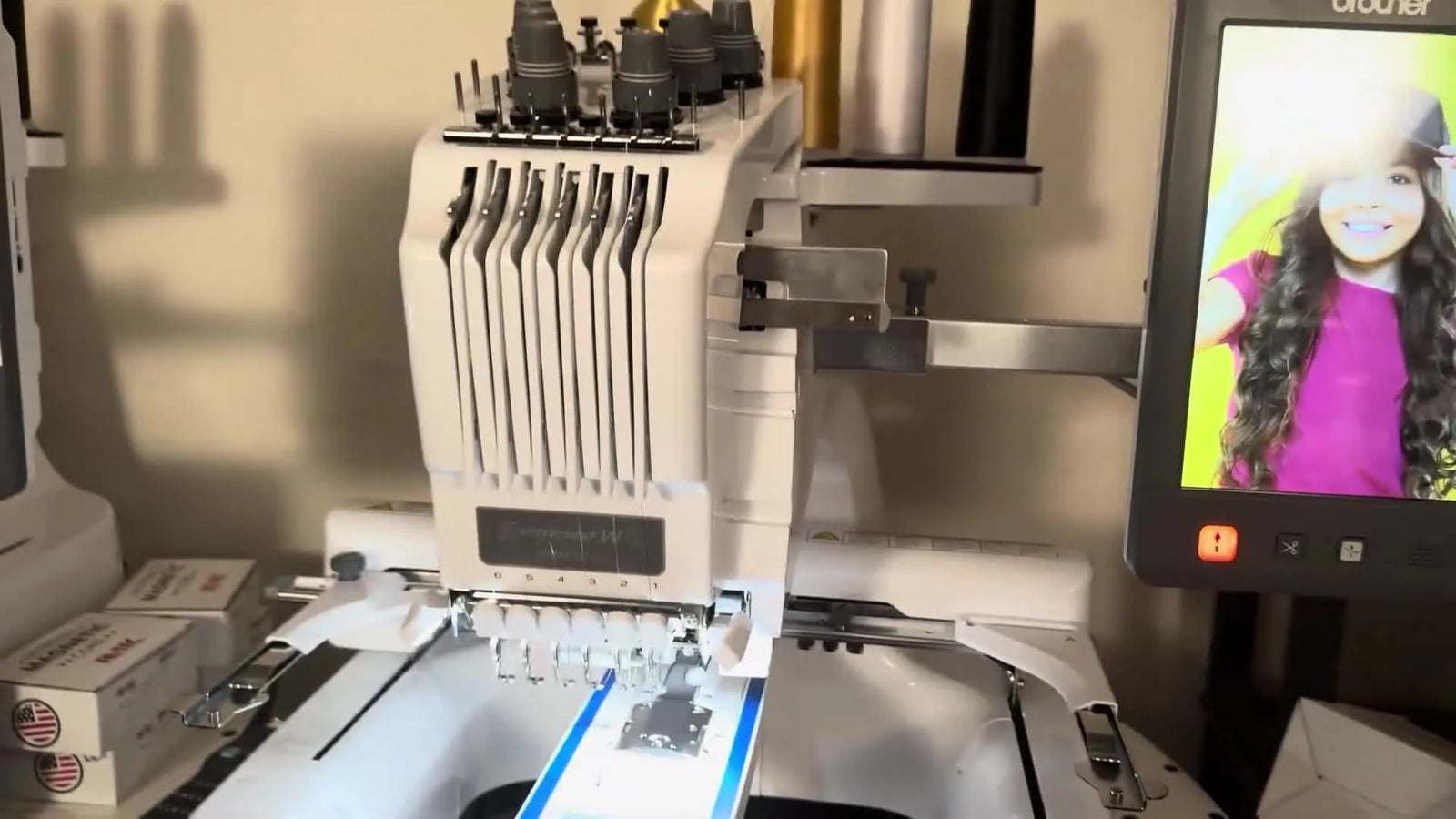

Brother PR680W Reality Check: The Maintenance Habits and Hoop Upgrades That Keep a 6-Needle Profitable

If you’re looking at the Brother PR680W because you want multi-needle speed without jumping into full industrial pricing, I get it. I’ve watched a lot of owners go through the same emotional arc: excitement, then the first “what is that noise?” moment, then the realization that a multi-needle isn’t just a faster stitcher—it’s a small production system that needs habits.

This post rebuilds a candid long-term PR680W review into a practical workflow: what to check before you stitch, what to clean before it breaks, and how to stop heavy hoops and structured hats from turning into expensive re-dos.

The “Don’t Panic” Primer for Brother PR680W Owners: It’s a Good Machine—But It Demands Adult Supervision

The PR680W can absolutely make you happy if your goal is to embroider and ship work reliably. However, transitioning from a single-needle home machine to this 6-needle beast requires a cognitive shift. The machine’s real cost isn’t only the purchase—it’s the time you’ll spend preventing avoidable failures.

From a veteran's perspective, here are the realities of long-term ownership you need to accept:

• Weight & Physics: The machine is manageable to move compared with heavier commercial heads (the video calls out 90 lbs), but it’s still heavy enough that lifting it effectively requires two people. Service trips are a logistical project, not a quick errand.
• The "Mechanic" Mindset: Yearly maintenance is part of the deal. Because service availability can be limited in some regions, many owners end up learning at least some self-maintenance. You need to become comfortable with screwdrivers and grease.
• Delicacy within Power: Some “convenience” features (especially the automatic needle threader and the thread cutter assembly) are ironically the parts most likely to frustrate you if you don’t treat them gently.

If you’re currently in the “dealer says upgrade, but I’m scared it’s more parts to break” mindset, you’re not wrong to be cautious. The right move is not fear—it’s building a maintenance-and-fixturing routine that matches how you actually sew.

The Hidden Prep Nobody Mentions: Service Manuals, Grease, and the One Thing You Must Never Do

The presenter’s experience is blunt: Brother doesn’t really teach you how to do your own deep maintenance, and they may even advise against it to protect their dealer service network. So owners often end up using documentation from an older, similar model.

One commenter asked where to get the PDF service guide, and the reply pointed to a free manual for an older model (PR655) hosted online. That’s useful context because the internal chassis is described as “roughly the same,” but always treat any older manual as a reference map—not a GPS guarantee.

The Hidden Consumables List: Before you start deep maintenance, ensure you have these specific items that new owners often forget:

1. Precision Screwdriver Set: Specifically, a stubby driver for accessing the needle plate screws.
2. Dental Pick or Tweezers: For fishing out thread nests.
3. Headlamp: You need to see inside the dark crevices of the bobbin area.
4. Specific Lubricants:
   • EPNOC GREASE AP(N)0 for metal-on-metal gears.
   • High-quality clear sewing machine oil (like Singer or similar light oils) for the hook assembly.

And here’s the hard rule that saves machines from catastrophic seizures:

Warning: The Compressed Air Ban
Never, under any circumstances, use canned compressed air inside the Brother PR680W.
The Physics of Failure: Lint in an embroidery machine isn't dry dust; it's often oily. When you blast it with air, you don't remove it. You compact it deeper into bushings, sensors, and the main shaft. Over time, this creates a "cement" that increases friction, overheats the motor, and leads to expensive repair bills. Always vacuum out or brush out; never blow in.

Why this matters (the “old tech” explanation)

Lint isn’t just “dust.” In embroidery, lint mixes with oil residue and becomes a paste. If you blast it inward, you’re basically packing that paste into shafts and channels where friction builds. Friction becomes heat, heat becomes wear, and wear becomes “why is my tension suddenly weird?”

Prep Checklist (do this before you touch settings)

• Visual Inspection: Is the bobbin area clear of thread nests? Use a flashlight.
• Lubrication: Add one drop of oil to the hook race (every 4-6 hours of running time). Do not over-oil.
• Needle Check: Run your finger down the needle. If you feel a burr or if the needle is bent, replace it immediately. A $0.50 needle can ruin a $50 garment.
• Tool Readiness: Confirm you have the correct oil and grease on hand (don’t substitute blindly; check your manual).
• Safety Protocol: Power off the machine before opening covers or working near moving parts.

Structured Hats vs. the PR680W Head: Why Richardson 112 Caps Collide and How to Prevent Registration Errors

The video demonstrates a design flaw that surprises new owners: the automatic needle threader mechanism adds bulk to the head, and that bulk reduces clearance when embroidering hats.

On soft-brim hats ("dad hats"), you can often “get away with it.” On structured hats—specifically the Richardson 112 trucker hats mentioned in the video—the stiff buckram and brim can physically hit the machine head. This collision pushes the hat down, deforming the cap during stitching. The result? Registration errors (where the outline doesn't match the fill).

The Workflow Fix:

1. Steam Pre-treatment: Use a steamer to soften the buckram and brim. Deform/flatten the brim slightly so it clears the head.
2. Post-Process: After embroidery, use a hat mold or steam again to restore the hat to a factory-like shape.

That last part is the business reality: customers want the hat to look new, not “embroidered but crushed.” If hats are a major product line for you, you should treat clearance and fixturing as part of your pricing model.

If you’re shopping specifically for a hat solution, be careful with expectations around brother pr680w hat hoop kits. The hoop is only one piece of the puzzle; simple hooping doesn't solve the clearance physics. You must manage the cap structure itself.

The “Hidden” Setup That Stops Hoop Bounce: Tubular Hoop Support + Magnetic Hoops for Heavy Garments

If you embroider jackets, hoodies, Carhartt gear, or anything with real weight, the PR680W’s free arm needs help supporting the hoop. The presenter installs a Tubular Hoop Support by sliding metal brackets onto the sides of the machine arm, creating a wide resting platform.

The Mechanics of Hoop Bounce: When a heavy jacket hangs off a standard hoop, gravity pulls it down. As the pantograph moves at 800 stitches per minute (SPM), the hoop "bounces" or flexes. This micro-movement causes outlines to drift and letters to look drunk.

The video’s logic matches what I teach in production shops: You must neutralize gravity.

The Solution Hierarchy:

1. Level 1 (Technique): Use clips to roll up the jacket so the weight stays close to the center gravity.
2. Level 2 (Hardware): Install a table or tubular support.
3. Level 3 (System Upgrade): Use magnetic hoops.

Standard hoops rely on friction and arm strength. Magnetic hoops clamp with vertical force. When you combine a mighty hoop tubular support (or compatible SEWTECH table) with a magnetic frame, you eliminate the "flagging" and bouncing that ruins heavy garments.

Setup Checklist (before you run a heavy item)

• Support Install: Install a hoop support (table/arms) if the garment exceeds t-shirt weight.
• Bounce Test: Tap the hoop gently. It should feel solid against the support, not like a diving board.
• Clearance Check: Manually trace the design to confirm the hoop can travel its full path without hitting the machine head or arm.
• Fabric Management: Clip/roll excess fabric so it doesn’t drag on the table or floor.
• Speed Limit: For heavy items, cap your speed at 600-700 SPM until you trust the setup.

Warning: Magnetic Force Hazard
Magnetic frames (like Mighty Hoops or SEWTECH Magnetics) are industrial tools. They snap together with enough force to pinch skin severely.
* Keep fingers out of the "kill zone" between the rings.
* Medical Safety: Keep powerful magnets at least 6 inches away from pacemakers and sensitive electronics like phones or tablets.

Tool-upgrade path (natural, not salesy)

• If you’re doing occasional personal projects, standard hoops may be “fine.”
• If you’re doing repeat garment work, magnetic hoops often reduce hooping time and hoop marks ("hoop burn"), and they can be easier on your wrists (preventing Carpal Tunnel).
• For production, pairing magnetic hoops with a support platform is where the real stability gain shows up.

In our shop ecosystem, this is exactly where magnetic hoops/frames become a practical upgrade—especially when your pain point is “hooping is slow” or “my borders wobble on heavy items.”

The Automatic Needle Threader on the PR680W: Use It Only When You Mean It

The presenter calls the automatic needle threader the most delicate part of the machine—and the first thing likely to break.

Operating Rules for Longevity:

1. No Dry Cycling: Only activate the threader when you are actually threading a needle. Without thread, the hook mechanism can jam against the eye.
2. Thread Weight Limits: It works reliably for standard 40 wt and 60 wt thread. Do not use it for 12 wt or 75 wt metallic threads. The hook is too fine for thick threads and can bend.
3. Alignment: If your needle is slightly bent (even invisibly), the threader will crash into the metal shaft. If the threader feels "stuck," stop immediately. Do not force it.

This is one of those “small habit, big savings” areas. In a production environment, I often tell operators: if a feature is convenience-only, don’t treat it like a fidget toy. Every unnecessary cycle is wear.

If you’re running a brother pr 680w in a home studio, this single habit can save you downtime that feels disproportionate to the tiny action that caused it.

Tension Isn’t Just the Knob: How PR680W Friction Paths Create “Same Setting, Different Results” Across Machines

The video shows a real-world frustration: two PR680W machines set “the same” can behave differently.

One machine may need the tension knob near the maximum red line, while another runs with only one white line visible—yet both are aiming for the same effective tension.

The "Floss" Sensory Check: Don't trust the numbers on the screen or the knob. Trust your hands.

• The Check: With the presser foot down, pull the thread near the needle.
• The Feeling: It should feel like pulling dental floss through tight teeth—smooth resistance, but not a struggle. If it pulls freely (like a loose shoelace), it's too loose. If it snaps back or bends the needle, it's too tight.

The presenter also makes a point that’s worth repeating: Tension is friction created at every point the thread touches. Small differences in guides, faceplate paths, washers, and assembly variance can change the total resistance the thread experiences.

Practical takeaway

When tension feels “mysterious,” don’t chase the knob first. Confirm:

• Thread path is correct.
• Thread is seated properly in pre-tension guides.
• Nothing is adding accidental friction (lint, burrs, misrouted thread).

And if you want numbers instead of vibes, the video recommends a Towa bobbin case tension gauge.

Using a hoop master embroidery hooping station will ensure your placement is consistent, but for thread tension, you need a gauge. A Towa gauge removes the guesswork. For 60wt bobbin thread, you are generally looking for 180mN - 220mN (roughly 18-22g on the drop test).

The “False Needle Break” Error That Isn’t a Break: Wrap the Thread Twice on the Tension Wheel

The video calls out a specific cause of scary false alarms: A "Thread Break" error when the thread is clearly intact.

The Mechanism: The PR680W uses a metal sensor wheel to detect thread movement. If the thread slides over the wheel without turning it, the machine thinks the thread is broken because the wheel stopped spinning.

The Fix: Wrap the thread around the tension knob/guide twice (or ensure it catches the check-spring firmly depending on the specific guide geometry shown in the diagram).

This is a classic example of “the machine is doing what it’s designed to do, but your setup didn’t trigger the sensor correctly.” In production, this kind of false stop is expensive because it breaks flow and invites operator over-correction.

Bobbin Area Grinding and Jams: The Magnetic Core Bobbin Must Click In (Lever Down)

The PR680W uses L-style magnetic core bobbins (the video references Fil-Tec Magna-Glide Classics). The presenter describes a first-time mistake that scared them: thread winding, catching, and grinding noises.

The Sensory Insertion Technique:

1. The Orientation: Magnetic side usually goes in (towards the machine), but check your specific bobbin brand instructions.
2. The Lever: Ensure the retention lever on the bobbin case is DOWN.
3. The Sound: Push firmly until you hear an audible, sharp CLICK.

Why the "Click" Matters: If you don't hear the click, the bobbin case is sitting 1mm too far out. The hook driver will hit it on every rotation, creating a terrifying grinding sound and likely snapping your needle. Listen for the click every single time.

Thread Cutter Maintenance: The Menace That Behaves If You Clean It

A commenter called the thread cutter “a menace,” and the creator replied with the shop truth: it’s usually fine if you keep it clean.

The video’s cleaning method:

• Unscrew the cover of the thread cutter assembly (usually two screws).
• Open it up and brush out accumulated thread tails and lint near the blade mechanism.






Warning: Blade Safety and Alignment
The thread cutter contains a sharp blade and tight mechanical clearances.
1. Power Off: Always turn the machine off. If the cutter cycles while your screwdriver is in there, you will destroy the mechanism.
2. No Force: Do not bend the moving knife. If it gets bent, it won't cut, and it's a difficult part to replace yourself.

Why cutters act up (what’s happening inside)

Every trim leaves a tiny "dust" of thread fibers. These accumulate into a felt-like pad. Once enough tails pack into the housing, the cutter can't fully retract or extend. You’ll see symptoms like:

• "Wiper error."
• Thread nests on the start of the next letter.
• Long tails left on the fabric.

Decision Tree: Fabric + Project Type → Stabilizer and Hooping Strategy (So You Don’t Fight the Machine)

Stop guessing. Use this decision tree to choose a stable setup.

1) What are you embroidering?

• Structured hat (e.g., Richardson 112):
  • Risk: Head collision.
  • Fix: Steam-shape brim BEFORE stitching. Keep designs roughly 2.25" high or less.
• Heavy garment (Jacket, Hoodie):
  • Risk: Hoop bounce/Flagging.
  • Fix: Must use a Table/Hoop Support.
  • Upgrade: Magnetic Hoops are highly recommended to hold thick fabric without "hoop burn."
• Stretchy Performance Wear (Polo):
  • Risk: Distortion/Pucker.
  • Fix: Use Cutaway stabilizer (don't trust Tearaway). Do not stretch fabric in the hoop; let it rest naturally.

2) How stable is the fabric?

• Stable Woven (Denim, Canvas):
  • Stabilizer: Strong Tearaway is usually sufficient.
• Unstable/Knits (T-shirts, Beanie):
  • Stabilizer: Cutaway is mandatory (at least 2.5oz). Avoid "floating" if possible; hoop the stabilizer and fabric together for best results, OR use magnetic hoops to clamp them without stretching.

3) Are you doing one piece or a batch?

• One-off: You can tolerate slower hooping and manual adjustments.
• Batch (50+ items): You need speed. Upgrade to Magnetic Hoops and a Hooping Station immediately. The labor savings will pay for the tools in two jobs.

If your pain point is “I’m losing time hooping and re-hooping,” searching for magnetic embroidery hoops for brother is the logical next step—because it attacks the repeatable bottleneck in your workflow.

The Upgrade Results That Actually Matter: Less Stress on the Arm, Cleaner Borders, and More Predictable Production

The video makes a strong case that the PR680W can be a good investment, but only if you accept the real operating model:

• You’ll likely do at least some maintenance yourself.
• You’ll need to respect delicate mechanisms (auto threader).
• You’ll get better results on heavy items when the hoop is supported.

From a business owner’s perspective, the “upgrade” isn’t about just buying the machine—it’s about buying consistency.

• Hoop Support reduces bounce and mechanical stress on the Y-axis stepper motor.
• Magnetic Hoops reduce hooping time and fabric damage (hoop burn).
• A Tension Gauge reduces guesswork when machines behave differently.

If you’re considering mighty hoops for brother pr680w (or SEWTECH compatibles), treat it as part of a system: Hoop + Hooping Method + Support + Design.

Operation Checklist (the repeatable routine that prevents most disasters)

• Thread Path: Confirm thread is wrapped correctly (check the "wrap twice" rule on the tension wheel).
• Needle Threading: Use the automatic threader only when necessary; never dry cycle.
• Bobbin Seat: Listen for the CLICK. Verify the lever is flat.
• Hoop Clearance: Check that the hoop arms won't hit the wall or the machine body.
• Hygiene: Brush-clean lint out of the bobbin case area every time you change a bobbin.

A Final Word on “Is It Worth It?”: Price Is One Number—Downtime Is the Real Cost

The presenter mentions the PR680W around the ~$13,000 range and notes that magnetic hoops can add significant cost per size. That sticker shock is real.

But here’s the veteran perspective: the machine cost is fixed; your downtime cost is variable—and you control a lot of it with habits and the right support tools.

If you’re staying in hobby volume, keep it simple and maintain it well. If you’re trying to run orders, build a workflow that protects the head, stabilizes the hoop, and keeps tension predictable. That’s how a multi-needle stops being “more parts that can break” and starts being a reliable production partner.

And if your current bottleneck is hooping speed or hoop marks, magnetic hoops are worth evaluating as a practical tool upgrade—especially when paired with a support platform for heavier work.

FAQ

• Q: What prep tools and lubricants should Brother PR680W owners have before doing deep cleaning or maintenance?
  A: Have the right small tools and the correct grease/oil ready before opening covers, because substitutions and bad access are what cause most “oops” damage.
  • Gather: a precision screwdriver set (including a stubby driver for needle plate screws), dental pick or tweezers, and a headlamp/flashlight for the bobbin area.
  • Use: EPNOC GREASE AP(N)0 for metal-on-metal gears and a high-quality clear sewing machine oil for the hook assembly (follow the machine manual for exact points).
  • Power off: turn the Brother PR680W OFF before removing plates/covers or working near moving parts.
  • Success check: all screws can be reached without stripping, and the bobbin/hook area is clearly visible and lint-free before lubrication.
  • If it still fails… stop and reference the Brother PR680W manual (or dealer guidance) before applying unfamiliar lubricants or removing deeper assemblies.
• Q: Can I use canned compressed air to clean lint inside a Brother PR680W embroidery machine?
  A: No—do not use canned compressed air inside the Brother PR680W; vacuum or brush instead to avoid packing oily lint deeper into shafts and sensors.
  • Vacuum out: use a small vacuum attachment around the bobbin area and thread paths you can access safely.
  • Brush out: loosen lint with a soft brush, then remove it (don’t “blast” it inward).
  • Oil correctly: add only one drop to the hook race on the schedule you follow; avoid over-oiling because it attracts more lint.
  • Success check: lint is removed (not redistributed), and the machine runs without new heat/friction symptoms after cleaning.
  • If it still fails… if friction/noise persists, stop running the machine and schedule service—compressed-air “cleaning” often masks the real buildup.
• Q: How do I stop Brother PR680W structured hats (like Richardson 112) from colliding with the machine head and causing registration errors?
  A: Manage clearance by reshaping the hat before stitching, because the Brother PR680W head (including the automatic needle threader mechanism) can physically hit structured caps.
  • Steam-shape: use a steamer to soften the buckram/brim and flatten the brim slightly to increase clearance before embroidering.
  • Restore shape: after embroidery, use a hat mold or steam again to return the cap to a factory-like profile.
  • Keep realistic sizing: for structured hats, keep designs roughly 2.25" high or less as a safer target for clearance and stability.
  • Success check: during a manual trace, the hat does not touch the head and the outline stays aligned with the fill (no shifting).
  • If it still fails… reduce design height further and re-check hooping/positioning; the hat hoop alone cannot solve a head-clearance collision.
• Q: How do I prevent hoop bounce and “drunk letters” when running heavy jackets or hoodies on a Brother PR680W?
  A: Support the hoop and neutralize garment weight first; heavy items can flex the hoop at high speed and cause drifting outlines on the Brother PR680W.
  • Install support: use a tubular hoop support/table so the hoop rests on a stable platform instead of hanging like a lever.
  • Manage fabric: clip or roll the garment so weight stays close to the hoop’s center of gravity and doesn’t drag.
  • Slow down: cap speed around 600–700 SPM until the setup proves stable.
  • Success check: a gentle tap test feels solid (not springy), and a manual trace completes without wobble or contact.
  • If it still fails… upgrade the holding method (magnetic frame) and re-check that the hoop path clears the head/arm through the full travel.
• Q: What safety precautions should Brother PR680W users follow when using magnetic embroidery hoops/frames?
  A: Treat magnetic hoops/frames as pinch-hazard tools—control the snap and keep hands out of the closing gap.
  • Keep fingers clear: never place fingers between the rings when bringing the magnetic rings together.
  • Close deliberately: align first, then lower/close slowly to avoid sudden snap-together.
  • Protect health/electronics: keep strong magnets at least 6 inches away from pacemakers and sensitive electronics (phones/tablets).
  • Success check: the frame closes without a surprise slam, and fabric is clamped evenly without chasing it with your hands near the pinch zone.
  • If it still fails… use a safer handling routine (set one ring on a table and bring the other down in a controlled motion) before attempting higher-volume hooping.
• Q: Why does the Brother PR680W show a “Thread Break” error when the top thread is not broken, and how do I fix it?
  A: Ensure the thread drives the sensor wheel—if the thread slides over the metal sensor wheel without turning it, the Brother PR680W can falsely detect a break.
  • Re-thread: follow the correct path so the thread contacts and turns the sensor wheel consistently.
  • Wrap twice: wrap the thread around the tension knob/guide twice (as shown in the guide logic) so the wheel/guide engagement is firm.
  • Avoid over-correction: do not immediately crank tension; fix the sensor engagement first.
  • Success check: the sensor wheel turns during stitching and the machine stops giving false thread-break alerts.
  • If it still fails… inspect for misrouting or accidental friction points (lint, mis-seated guides) that prevent steady thread movement.
• Q: How do I stop Brother PR680W bobbin-area grinding noises and jams after inserting an L-style magnetic core bobbin?
  A: Seat the bobbin case fully—most grinding/jam scares happen when the retention lever is not down and the bobbin case is not clicked into place.
  • Set lever down: confirm the bobbin-case retention lever is DOWN before insertion.
  • Push to click: insert firmly until an audible, sharp CLICK confirms full seating.
  • Verify orientation: install the magnetic-core bobbin in the correct orientation for the bobbin brand you use (follow that brand’s instructions).
  • Success check: you hear/feel the CLICK and the machine runs without hook-driver contact noise (no rhythmic grinding).
  • If it still fails… stop immediately to prevent needle breaks, remove and re-seat the bobbin case, and inspect for thread nests before restarting.
