Brother Quattro 2 (Innov-is 6700D) in Real Life: Placement You Can Trust, Resizing That Won’t Ruin Density, and Hooping That Stops Wasting Your Day

Brother Quattro 2 (Innov-is 6700D): The Master Class Guide to Taming the Beast

When you unbox a machine as feature-dense as the Brother Quattro 2 (Innov-is 6700D), the feeling is rarely pure joy—it is often a mix of excitement and paralyzing anxiety. You are not worried about whether the machine can stitch; you are worried about whether you can operate it without ruining an expensive garment or snapping a needle.

I have spent two years on shop floors and design studios, and I can tell you: this fear is valid. Embroidery is an unforgiving medium. Unlike sewing, where you can rip out a seam, a bad embroidery design often means the garment is trash.

The Quattro 2 was engineered specifically to kill that anxiety. Its core systems—InnovEye camera technology, real-time background scanning, and Stitch-to-Block density adjustments—are not just "features." They are safety nets. This guide will move beyond the marketing brochure and teach you how to use this machine like a veteran, turning your fear into production-grade confidence.

Brother Quattro 2 (Innov-is 6700D): The features that matter (and the ones that are just noise)

The Quattro 2 boasts a massive 50-square-inch work area and a Sharp HD LCD capable of displaying 16.7 million colors. The manual will tell you it stitches at 1000 stitches per minute (SPM).

Here is the veteran reality check: speed kills quality until you master stabilization. While the machine can hit 1000 SPM, your "sweet spot" for most projects—especially as you learn—is 600 to 750 SPM. At this speed, friction is lower, thread breakage is rare, and the stitch registration is tighter.

The features that will actually change your daily workflow are the "Feedback Loops":

1. Visual Feedback: Seeing the exact needle drop point via camera.
2. Environmental Feedback: Scanning the fabric to see wrinkles or grain lines.
3. Data Feedback: Automatically recalculating density when you resize.

If you have ever unhooped a finished jacket only to realize the logo is tilted 3 degrees to the left, you know that "trusting the machine" is not enough. You need to verify.

The Sharp HD LCD display: Why your eyes need to learn to "Read" the screen

A high-resolution screen is not a luxury; it is a diagnostic tool. When you are matching thread colors to a specific corporate logo or checking the edge of a design against a precarious pocket seam, clarity is safety.

However, a screen can be a trap. It shows you the ideal outcome, not the physical reality of tension.

The Golden Rule: The screen is for placement; your hands are for physics. If your fabric is loose in the hoop, the most beautiful high-definition preview will result in a puckered, distorted mess.

The "Hidden" Prep: The boring ritual that prevents 80% of failures

Before you touch the InnovEye camera or the fancy scanner, you must perform the physical preparation. Novices skip this. Pros obsess over it.

The "Silent" Consumables

Most manuals forget to tell you about the invisible helpers. You should always have:

• Temporary Spray Adhesive (e.g., 505): To float fabrics without hooping them directly.
• Water Soluble Pen: For marking physical crosshairs on the fabric.
• Fresh Topstitch/Embroidery Needles (75/11): They have a larger eye to protect the thread.

Pre-Flight Prep Checklist

Perform this sequence every single time. No exceptions.

• Needle Check: Run your fingernail down the needle tip. If it catches or you feel a burr, replace it immediately. A burred needle shreds thread.
• Bobbin Discipline: Check the bobbin case for lint. Even a tiny dust bunny can throw off your tension. Ensure you are using 60wt or 90wt bobbin thread, not standard sewing thread.
• Fabric Sound Check: Tap the hooped fabric. It should sound like a dull thud (taut), not a high-pitched "ping" (too tight, which warps fabric) and not a loose rattle (too loose, which causes registration errors).
• Stabilizer Matching: Ensure your backing covers the entire hoop area, not just the design.
• Thread Path: Floss the thread through the tension discs. You should feel a slight, consistent resistance—like pulling dental floss through teeth.


Automatic Height Adjuster (AHA): The "Denim Hump" test

The video demonstrates the Automatic Height Adjuster (AHA) effortlessly sewing over a folded denim seam. This system actively senses fabric thickness and adjusts the presser foot height in real-time.

What this means for you: When stitches travel from a single layer of cotton onto a thick velcro patch or a pocket seam, standard machines often get stuck, creating a "bird's nest" of thread. The Quattro 2 lifts its foot to glide over.

The Limit of Physics: AHA aids vertical movement, but it cannot stop horizontal shifting. If your stabilizer is too weak, the heavy denim will push the needle off course.

Warning: Safety Hazard. When stitching over thick seams or using AHA on bulky items, keep your hands well away from the needle bar. If the needle hits a hard seam at high speed, it can deflect and shatter. Factors like needle shrapnel are a genuine risk to your eyes and fingers.

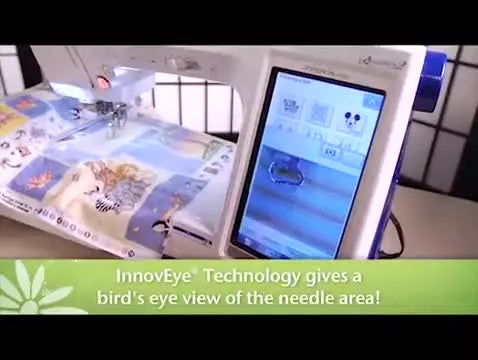

InnovEye Technology: Stop guessing and start "Seeing"

InnovEye utilizes the built-in camera to give you a live video feed of the needle area on the LCD. This allows you to align your digital design with the physical reality of your fabric.

Real-world Application: Standard plastic hoops are notorious for "Hoop Burn"—the crushing ring mark left on delicate fabrics like velvet or performance wear. You can minimize this by hooping loosely, but that ruins accuracy. This is a Catch-22.

Many professionals solve this by upgrading their tooling. The search volume for brother embroidery hoops is high, but specifically, magnetic frames are the industry secret here. By using a magnetic hoop, you avoid crushing the fiber, and you can use the InnovEye camera to perfectly align the design even if the fabric isn't "square" in the hoop.

The Action: Use the "Snowman" sticker. Place it on your fabric where you want the center. The camera finds it and automatically rotates the design to match your manual placement.

Built-in Background Scanning: Augmented reality for embroiderers

The machine can scan the entire hooped area and display the fabric on-screen. You can then drag and drop your design onto the specific spot you want.

Why this is a game-changer:

• Pattern Matching: You can place a name specifically inside the plaid square of a shirt.
• Saving "Trash": If you have a scrap piece of expensive leather, scan it, and fit a small logo into the only usable corner.






Stitch-to-Block (Auto Density): Resizing without the "Bulletproof" effect

Amateurs resize designs; professionals resize density.

If you shrink a design by 20% but keep the same number of stitches, the thread packs so tightly it becomes stiff—we call this "bulletproof embroidery." It creates holes in the fabric and snaps needles.

The Quattro 2’s Stitch-to-Block feature recalculates the stitch count.

• Scale Up to 200%: It adds stitches so you don't get gaps.
• Scale Down to 60%: It removes stitches so you don't destroy the fabric.




Color Shuffling: Designing for contrast, not just color

The Color Shuffling function generates multiple colorway variations (Random, Vivid, Gradient, Soft).

The Cognitive Science: Human eyes struggle to see definition when adjacent colors have similar "value" (brightness). Use this tool to find a palette where the text pops against the background.

• Bad: Dark Blue text on Black fabric.
• Good: The machine suggests Gold or White.




Pen Tablet & My Custom Design: Managing expectations

The tablet allows you to draw line art that converts to stitches.

Expert Verdict: This is excellent for:

1. Signatures (Grandma’s handwriting on a quilt).
2. Simple children’s drawings.
3. Basic quilting stippling.

It is not a replacement for professional digitizing software (like PE-Design 11 or Hatch). Do not expect to draw a photorealistic dog and get a perfect result. Keep it simple.

Hooping Physics: The #1 cause of failure

You can have a $10,000 machine, but if your hooping is bad, your work will look like it came from a $200 toy. The fabric acts like a fluid; it wants to move. Your job is to freeze it.

The Physical Toll: If you are doing a production run (e.g., 20 polo shirts), the repetitive motion of unscrewing and tightening standard hoops can cause repetitive strain injury (RSI) in your wrists. This is often the "trigger moment" for embroiderers to look for hooping stations. A station holds the hoop frame rigid, allowing you to use both hands to smooth the fabric, ensuring perfect tension every time without the physical struggle.

Warning: Magnetic Safety. If you upgrade to magnetic hoops, be aware they use powerful Neodymium magnets. They can pinch skin severely. Keep them away from pacemakers, insulin pumps, and credit cards.

Stabilizer Decision Tree: How to choose

Stop guessing. Use this logic flow to determine your foundation.

Step 1: Is the fabric stretchy? (T-shirts, Polo, Spandex)

• YES: Use Cut-away stabilizer. (Tear-away will eventually rip, causing the design to distort in the wash).
• NO: Go to Step 2.

Step 2: Is the fabric sheer or "see-through"? (Organza, Tulle)

• YES: Use Water Soluble (Wash-away) stabilizer or a very light mesh.
• NO: Go to Step 3.

Step 3: Does the fabric have a "pile" or fluff? (Towels, Velvet, Fleece)

• YES: You need a Water Soluble Topper (Solvy) on top to stop stitches sinking, AND a Tear-away or Cut-away on the bottom.
• NO: Use standard Tear-away (Medium weight).

The "Impossible" Fabrics: For slippery performance wear or thick bags, traditional hooping is a nightmare. This is where magnetic embroidery hoops for brother excel. They simply "slap" onto the fabric, holding it secure without the need to force an inner ring into an outer ring, essentially eliminating hoop burn and wrestling matches.

Continuous Border Hoop: The secret to endless designs

The 4" x 12" continuous border hoop allows you to stitch long motifs (like on a tablecloth) by re-hooping down the line.

The Pitfall: Alignment often drifts by 1mm each time. By the 5th hoop, you represent 5mm off. The Fix: Use the built-in camera to align the "start point" of the new section with the "end point" of the previous one. Do not trust your eye; trust the camera.

For users setting up a small business, consistency is key. Investing in a hooping station for machine embroidery can drastically reduce alignment errors in these multi-hoop projects by ensuring the fabric serves perfectly straight into the frame every time.

Final Setup: The "First 30 Seconds" Ritual

The settings screen shows max speeds and foot heights. But your eyes need to be on the needle.

Setup Checklist (The "Do Not Crash" List):

1. Clearance: Check that the hoop arms will not hit the wall or objects behind the machine.
2. Tail Management: Hold the top thread tail for the first 3-5 stitches to prevent it from being sucked down into the bobbin case.
3. Auditory Check: Listen to the first 30 seconds.
   • Rhythmic Thump: Good.
   • Gridning/Groaning: Needle is dull or hitting metal. STOP.
   • Slapping Sound: Thread tension is too loose.

Troubleshooting: Structured Logic

Do not panic. Follow the logic path from cheapest to most expensive.

Symptom: Thread Shredding / Breaking

1. Re-thread (Free): 90% of issues are just the thread slipping out of a tension disc. Rethread top and bobbin completely.
2. Change Needle ($0.50): The needle is likely bent, dull, or sticky with adhesive.
3. Check Thread Quality ($5.00): Old thread becomes brittle. Try a new cone.
4. Check Tension Settings (Advanced): Only touch digital tension if physical fixes fail.

Symptom: Gaps in Outline (Registration Error)

1. Stabilizer Failure: Did you use Tear-away on a T-shirt? (See Decision Tree).
2. Hooping Failure: Did the fabric slip? (Consider magnetic hoops).
3. Speed: Did you run at 1000 SPM? Slow down to 600 SPM.

The Upgrade Path: Moving from Hobby to Business

The Brother Quattro 2 is a magnificent creative tool, but eventually, you may hit a bottleneck.

• Bottleneck: "I spend too much time hooping tiny items."
  • Solution: A brother 4x4 magnetic hoop allows for rapid-fire hooping of left-chest logos without adjusting screws.
• Bottleneck: "I hate re-hooping large quilt blocks."
  • Solution: The brother 10x10 magnetic hoop gives you a massive, stable canvas that is easier on your hands than the standard tension hoops.
• Bottleneck: "I keep breaking hoops on standard projects."
  • Solution: Sometimes you just need a better standard replacement. Check your size requirements; a brother 4x4 embroidery hoop is essential for small items to save stabilizer, but ensure it is high quality.
• Bottleneck: "I need to do 50 shirts by Friday."
  • Solution: If this is your reality, you are ready for a multi-needle machine. But if you aren't there yet, look into a hoopmaster system to speed up your single-needle production line.

Operation Habits: The Professional Mindset

Once you press "Start," do not walk away for the first layer (underlay). This is where the foundation is laid.

• Watch for "flagging" (fabric bouncing up and down with the needle).
• Listen for the clean "click" of the cutter.
• Feel the table—excessive vibration means the machine is struggling.

The Quattro 2 is a beast, but you are the master. Respect the physics, prep the "boring" stuff religiously, and use the camera to verify everything. That is how you turn a spool of thread into a masterpiece.

FAQ

• Q: What is the safest stitching speed setting on the Brother Quattro 2 (Innov-is 6700D) to reduce thread breaks and improve registration?
  A: Use 600–750 SPM as a safe learning “sweet spot” instead of running 1000 SPM.
  • Lower speed first when embroidering dense designs, tricky fabrics, or thick seams.
  • Stabilize correctly before increasing speed; speed amplifies any hooping/stabilizer weakness.
  • Success check: stitches look tighter with fewer outline gaps, and the machine sound stays steady without harsh slapping.
  • If it still fails: re-check hoop tension and stabilizer choice, then re-thread and change the needle.
• Q: What prep consumables prevent most failures on the Brother Quattro 2 (Innov-is 6700D) before using InnovEye and background scanning?
  A: Keep temporary spray adhesive, a water-soluble marking pen, and fresh 75/11 embroidery/topstitch needles on hand.
  • Spray-baste or “float” fabric when direct hooping risks marks or distortion.
  • Mark crosshairs clearly so placement is physical, not just on-screen.
  • Replace needles early if adhesive residue builds up or thread starts shredding.
  • Success check: fabric stays controlled during stitching and thread runs smoothly without fuzzing at the needle.
  • If it still fails: inspect bobbin area lint and re-thread through the tension discs carefully.
• Q: How tight should fabric be hooped on the Brother Quattro 2 (Innov-is 6700D) to avoid puckering and registration errors?
  A: Hoop to “taut, not stretched,” using the sound test instead of guessing.
  • Tap the hooped fabric: aim for a dull thud (taut), not a high “ping” (too tight) and not a loose rattle (too loose).
  • Make sure stabilizer covers the entire hoop area, not just the design footprint.
  • Use the LCD for placement, but rely on hands for fabric physics (tightness and flatness).
  • Success check: the fabric stays flat after unhooping and outlines land cleanly without shifting.
  • If it still fails: change stabilizer type/weight and slow the machine down.
• Q: How do I stop bird’s nesting when sewing over thick seams using the Brother Quattro 2 (Innov-is 6700D) Automatic Height Adjuster (AHA)?
  A: Let AHA handle thickness, but prevent fabric shifting with stabilization and safer handling.
  • Slow down before crossing bulky seams; avoid high-speed impacts on hard seam ridges.
  • Strengthen the foundation (stabilizer support) because AHA cannot stop horizontal drift.
  • Keep hands well away from the needle area when crossing thick seams.
  • Success check: stitches cross the hump smoothly without a thread wad forming under the fabric.
  • If it still fails: stop immediately, cut away the nest, re-thread top and bobbin, and restart at a lower speed.
• Q: How do I reduce hoop burn on delicate fabric while keeping accurate placement on the Brother Quattro 2 (Innov-is 6700D) InnovEye camera system?
  A: Avoid crushing the fabric while maintaining accuracy by using gentler holding methods and camera-based alignment.
  • Use temporary spray adhesive to float delicate fabric when direct hoop pressure marks fibers.
  • Use InnovEye with the “Snowman” sticker method to auto-find center and rotate alignment to match your placement.
  • Do not rely on the screen preview to “fix” loose fabric; physical hold still matters.
  • Success check: the fabric shows minimal ring marks after unhooping and the design lands centered/straight as previewed.
  • If it still fails: upgrade the holding method (many users move to magnetic hoops to reduce hoop burn while keeping consistent grip).
• Q: What stabilizer should I choose on the Brother Quattro 2 (Innov-is 6700D) for T-shirts, towels/velvet, and sheer fabrics?
  A: Use the stabilizer decision tree: stretch needs cut-away, pile needs topper, sheer needs wash-away or light mesh.
  • Choose cut-away for stretchy garments (T-shirts, polos, spandex) so the design won’t distort after washing.
  • Add water-soluble topper on towels/velvet/fleece to prevent stitches sinking into pile; pair with tear-away or cut-away underneath.
  • Use wash-away (or very light mesh) for sheer fabrics like organza or tulle.
  • Success check: outlines stay registered after unhooping and stitches sit on top of pile instead of disappearing.
  • If it still fails: increase stabilizer coverage to the full hoop area and review hoop tension with the tap test.
• Q: How do I troubleshoot thread shredding or breaking on the Brother Quattro 2 (Innov-is 6700D) without changing advanced tension settings first?
  A: Follow the cheapest-to-fastest fixes: re-thread, change needle, then verify thread quality before touching tension.
  • Re-thread top and bobbin completely; floss the thread into the tension discs until resistance feels slight and consistent.
  • Replace the needle immediately if it is bent, dull, burred, or sticky from adhesive.
  • Test with a fresh cone of embroidery thread if the current thread is old/brittle.
  • Success check: the first 30 seconds run with a clean, rhythmic sound and no fraying at the needle eye.
  • If it still fails: inspect bobbin case lint and only then consider adjusting digital tension cautiously (consult the manual).
• Q: What safety risks should beginners watch for on the Brother Quattro 2 (Innov-is 6700D) when embroidering thick seams or using magnetic embroidery hoops?
  A: Treat thick seams and strong magnets as real hazards: protect hands, eyes, and medical devices.
  • Keep hands away from the needle bar when crossing bulky areas; a deflected needle can shatter.
  • Slow down on hard transitions to reduce needle impact and break risk.
  • Handle magnetic hoops carefully; strong magnets can pinch skin severely.
  • Keep magnetic hoops away from pacemakers, insulin pumps, and credit cards.
  • Success check: setup feels controlled—no risky hand positions near the needle, and hoop handling is pinch-free and deliberate.
  • If it still fails: pause the job, reassess the setup (speed, clearance, stabilization), and restart only when the work area is safe.
