The Ultimate Guide to the Brother SE400 Bobbin System: From Frustration to Precision

When a Brother SE400 suddenly starts “messing up”—creating birds' nests of thread or jamming mid-design—it feels personal. It feels like the machine is fighting you. But as an embroidery veteran, I can tell you: it isn’t personal. It’s physics.

In 90% of beginner cases, the chaos boils down to two invisible variables: Direction and Debris. Either the bobbin creates backlash because it unspools against the grain, or microscopic lint has packed into the tension spring, killing the drag required for a perfect stitch.

This guide is not just a summary of a video; it is a forensic breakdown of the bobbin mechanics. We will move beyond "just do this" into the specific sensory checks—what you should feel, hear, and see—to ensure your machine runs safely and your results look professional.

The 3-Second “P” Rule on a Brother SE400 Bobbin: The Fastest Way to Prevent a Jam

The video’s core rule is the Golden Rule of Brother mechanics: The "P" shape.

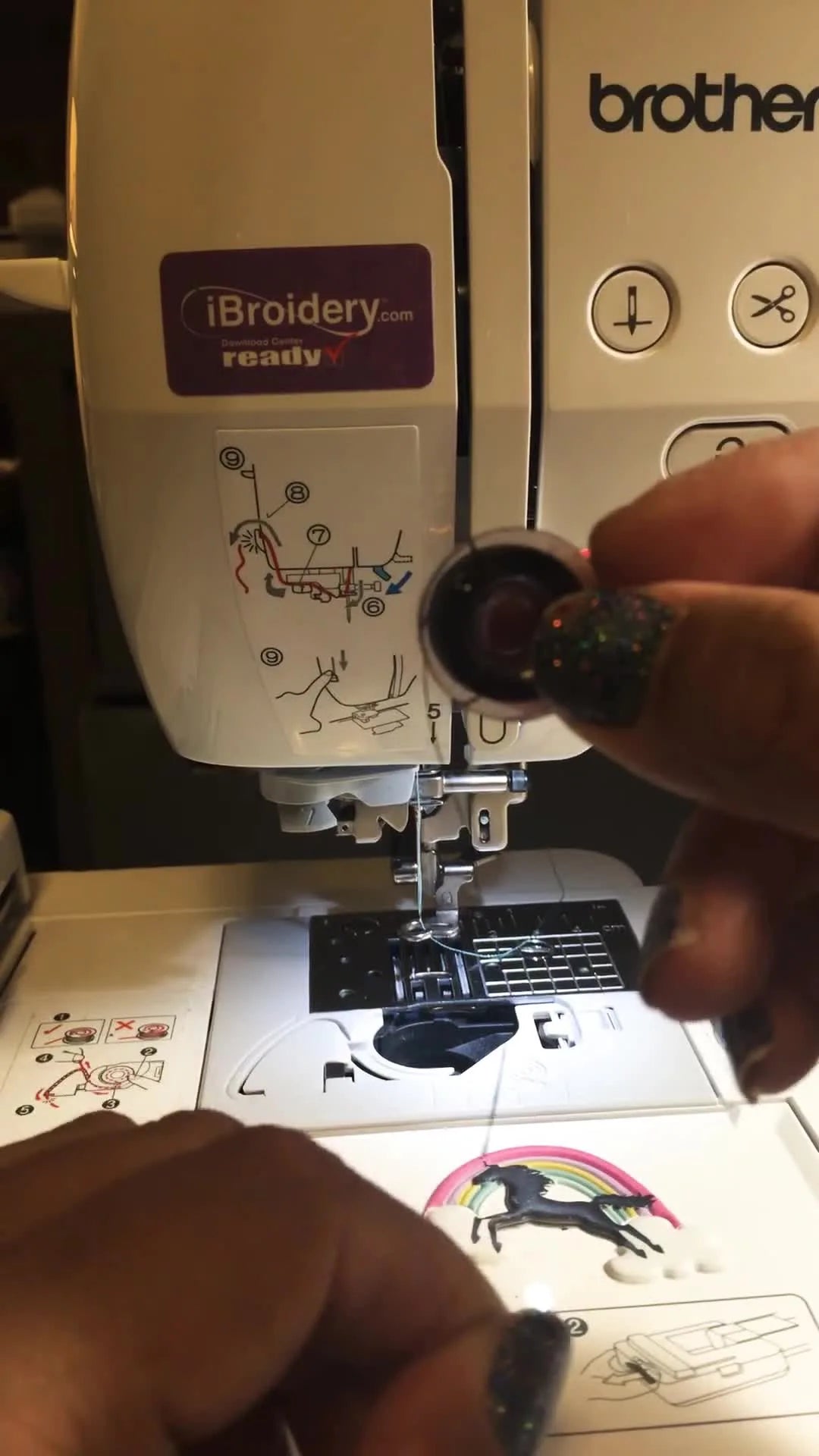

Before the bobbin ever touches the machine, hold it up in front of your eyes. The thread tail must hang down from the left side of the bobbin. Visually, the round bobbin plus the straight thread tail must form the letter P.

Why This Physics Matter

This isn’t arbitrary. The Brother SE400 is engineered with a specific tension hook angle.

• Correct "P" Shape: As the machine pulls thread, the bobbin rotates counter-clockwise. This creates the necessary drag against the case walls to keep the thread taut.
• Wrong "q" Shape: If the thread comes off the right (forming a "q"), the bobbin rotates clockwise. This bypasses the built-in tension resistance. The result? The thread feeds too loosely, causing loop-de-loops under the fabric—the dreaded "bird nesting."

If you’re brand new to a brother embroidery machine for beginners, this visual check is the single highest-return habit you can build. It takes 3 seconds and saves hours of picking out jammed thread.

The “No-Drama” Bobbin Install on a Brother SE400: Finger Hold, Arrow Path, Clean Cut

Most manuals show you where the thread goes, but they don't tell you how to handle it. The difference between a loose stitch and a perfect satin stitch is in the finger pressure.

Here is the professional installation sequence. Do not skip the "Sensory Checks."

Step-by-Step Execution

1. Open the bobbin cover: Slide the black latch to the right. Listen for the click of the release mechanism. Lift the clear cover off.
2. Remove the old bobbin: Lift straight up. Tip: Check the empty basket for visible dust bunnies immediately.
3. Visual Verification: Hold your new bobbin. Confirm the "P" shape.
4. Drop and Stabilize: Place the bobbin into the basket.
5. The "Finger Anchor" (Crucial Step): Place your right index finger gently but firmly on top of the bobbin. Do not let the bobbin spin.
6. Route the Tension: While keeping the bobbin frozen with your finger, pull the thread tail with your left hand. Guide it into the slit and around the curved channel, following the printed arrows (usually numbered 1 and 2 on the bed).
7. The "Floss" Check: As you pull the thread through the tension spring, you should feel a slight resistance—similar to snapping dental floss between teeth. If it slides with zero resistance, it hasn't seated in the tension spring. Retry.
8. Trim: Pull the thread across the built-in cutter blade at the end of the channel.
9. Close: Replace the clear cover. Ensure the small tab inserts first, then press down until it snaps flat.

Success Metrics (The "Pre-Flight" Check)

• Visual: The thread tail is short and disappears into the race; no long "spaghetti" tails are visible.
• Tactile: The bobbin sits flat. If you pull the thread (before cutting), the bobbin rotates smoothly counter-clockwise without hopping/rattling.
• Auditory: The cover clicked shut. (If not, the safety sensor may prevent the machine from sewing).

Warning: Project Safety Protocol. Keep fingers clear of the needle area when testing. A machine starting unexpectedly can drive a needle through a fingernail. Additionally, never ignore a loud "thunk" sound—stop immediately. A bent needle striking the bobbin case can permanently scar the plastic, ruining future tension.

Prep Checklist (Do Only Once Per Session)

Before you even touch the bobbin, ensure your environment is ready:

• Machine Check: Confirm you are working on the Brother SE400 or compatible SE-series layout.
• Tool Readiness: Locate your small white lint brush and a "stubby" screwdriver (often included in the kit).
• Needle Integrity: Run your fingernail down the needle tip. If you feel a burr or hook, replace the needle immediately. A bad needle will fray thread regardless of perfect bobbin installation.
• Consumables: Have a spare needle (Size 75/11 for general embroidery) and smooth embroidery bobbin thread (usually 60wt or 90wt) ready.

The Hidden Reason Holding the Bobbin Down Works: Tension Path Control (and Less Wasted Thread)

The video emphasizes “always hold it in place.” Let’s explain the mechanics so you understand why this isn't optional.

When you pull the thread tail to seat it in the tension spring, you are applying force. If the bobbin is free to spin, it will simply rotate and unspool more thread—creating a "slack loop" inside the case.

The Physics of the Finger Hold: By braking the bobbin with your finger, you force the thread to slip under the metal tension leaf spring rather than just pulling more thread off the spool. That tension spring is the gatekeeper of stitch quality. If the thread sits on top of it instead of under it, you will have zero tension on the bottom, resulting in loops on top of your fabric.

If you’re running a brother sewing and embroidery machine where you switch between sewing (heavier thread) and embroidery (lighter thread), this discipline is vital. The tension spring memory needs to be engaged correctly every single time.

Feed Dogs “Not Working” on Brother SE400? The Embroidery Mode Surprise That Tricks Beginners

You put your fabric under the needle, press the pedal, and... the fabric stays still. The needle hammers in one spot. Panic sets in.

The Diagnosis: This is a feature, not a bug.

On the Brother SE400, when you attach the embroidery unit or select an embroidery pattern, the machine automatically disengages (lowers) the feed dogs. Embroidery relies on the motorized carriage (the arm moving the hoop) to move the fabric, not the feed dogs beneath it.

Action Item: If you are trying to sew a hem and the fabric won't move, check your screen. If you see embroidery icons, you are in the wrong mode. Exit to the main menu and select a utility stitch to re-engage the feed dogs.

The Deep Clean That Stops Brother SE400 Bobbin Jamming: Brush the Hook Race Before It Packs Solid

Fuzz is the enemy of precision. Embroidery thread (especially rayon) sheds microscopic fibers as it passes through the eye of the needle at 400+ stitches per minute. This "lint snow" drifts down into the bobbin race.

Over time, this lint mixes with machine oil to create a cement-like paste that packs into the hook corners.

The Cleaning Protocol (Video Verified + Expert Optimized)

1. Safe Shutdown: Turn the machine power OFF.
2. Expose the Core: Remove the bobbin cover. Then, use your screwdriver (or coin) to remove the two screws holding the grey needle plate. Lift the plate off.
3. Remove the Bobbin Case: Lift the black plastic casing (the "basket") out of the metal race. Note its position (take a photo if you are a beginner).
4. The Sweep: Use the white brush. Sweep the lint outward, away from the center shaft. Pay attention to the feed dog teeth—lint loves to pack tightly between them.
5. The "Air" Debate: The video mentions compressed air. Expert Caution: If you use canned air, blow from the center outward. Blowing air into the machine can force lint deep into the gears or sensors, requiring a professional servicing. Quick, controlled bursts are best.




Setup Checklist (Maintenance Phase)

• Power Safety: Machine is unplugged or switched off.
• Part Management: Needle plate screws are placed in a magnetic dish or cup (they are tiny and vanish easily).
• Inspection: While the case is out, check the black plastic bobbin case for needle strikes (rough scratches). If found, use fine sandpaper (600 grit) to smooth them, or order a replacement case. Rough spots snag thread instantly.

Cleaning the Removable Brother SE400 Bobbin Case: Don’t Ignore the Tension Spring Area

The video demonstrates removing the black bobbin case. This is the heart of the machine.

You must look closely at the thin metal slit on the side of this plastic case. This is the tension spring.

The "Business Card" Trick: Sometimes, a piece of lint or a shard of broken thread gets stuck under that metal spring. The brush bristles might be too soft to dislodge it.

• Technique: Take a piece of unparalleled dental floss or the corner of a crisp business card. gently slide it through the thread path. This clears out unseen debris that causes "phantom tension issues" (where tension varies wildy for no reason).




Reinstalling the Bobbin Case on Brother SE400: Align the Triangle/Dot So It Seats Cleanly

Reassembly is a precision game. Just because the black case fits in the hole doesn't mean it's seated.

The Alignment Geometry

Look at the rim of the black bobbin case. You will see a small white triangle (or sometimes an arrow). Now look at the metal machine race (the fixed part). You will see a white dot.

The Maneuver:

1. Align the Triangle with the Dot.
2. Gently wiggle the case.
3. Sensory Anchor: It should drop in and feel "loose" but captive. It acts like a floating cushion.
4. If it feels tight or jammed, lift it out and retry. Do not screw the needle plate back on until this case sits perfectly flat and creates the correct gap for the thread to pass around it.






Troubleshooting Brother SE400 Bobbin Problems: Symptom → Likely Cause → Fix You Can Do Now

When production stops, use this triage table to restart fast. Always start with the physical/cheap fixes before changing digital settings.

1) Symptom: "Bird Nesting" (Huge tangle of loops under the fabric)

• Likely Cause: Upper threading has failed (thread jumped out of the take-up lever) OR Bobbin installed backward ("q" shape).
• The Fix:
  1. Cut the mess carefully (don't pull hard).
  2. Re-thread the TOP of the machine completely (ensure presser foot is UP when threading).
  3. Check bobbin orientation ("P" rule).

2) Symptom: Bobbin thread showing on top of fabric (little white dots)

• Likely Cause: Top tension is too tight, or Bobbin tension is non-existent (lint in spring/didn't catch perfectly).
• The Fix:
  1. Re-seat the bobbin. Ensure you feel the "floss" resistance.
  2. Check for lint under the bobbin tension spring.
  3. Only then, lower the top tension slightly (e.g., from 4.0 to 3.0).

3) Symptom: Machine jams and makes a grinding noise

• Likely Cause: Needle strike or Bobbin case jumped out of alignment.
• The Fix:
  1. Stop immediately.
  2. Remove fabric and hoop.
  3. Remove needle plate and realign the black bobbin case (Triangle to Dot).
  4. Replace the needle (it is likely bent).

A Simple Stabilizer Decision Tree (So Your Bobbin Area Stays Cleaner, Longer)

Choosing the wrong stabilizer isn't just an art issue; it's a mechanical issue. Using the wrong backing forces the machine to work harder, generating more lint and vibration.

Use this decision logic to keep your machine clean and your stitches flat:

Decision Tree: What Fabric are you stitching?

• Is it Stretchy? (T-shirts, Polo, Jersey)
  • Rule: If it stretches, it distorts.
  • Choice: Cut-Away Stabilizer. (Must be cut, not torn). The mesh holds the fabric structure forever.
  • Option: Add water-soluble topper if the fabric is fuzzy.
• Is it Stable? (Denim, Canvas, Cotton Woven)
  • Rule: The fabric can support the stitch count.
  • Choice: Tear-Away Stabilizer. Cheap, easy, and clean removal.
• Is it "Naked"? (Free-standing lace, Towels with see-through areas)
  • Rule: You need support that disappears.
  • Choice: Water-Soluble Stabilizer (Wash-Away).
• Is it Delicate/Sheer? (Silk, Organza)
  • Rule: Heavy stabilizers will show through.
  • Choice: No-Show Mesh (Poly-mesh). Strong but invisible.

The Upgrade Path When You’re Tired of Fighting the Hoop: Faster Hooping, Less Fabric Stress, Cleaner Results

Mastering the bobbin is Step 1. But as you get better, "Step 2" usually involves fighting with the hoops. Standard plastic hoops are notorious for causing "Hoop Burn" (crushing the fabric texture) and hand fatigue from tightening those tiny screws 50 times a day.

If you find yourself dreading the setup process, diagnose your situation:

Scenario A: The Production Bottleneck

• Trigger: You have an order for 20 shirts. Hooping each one takes 3 minutes of wrestling.
• Assessment: Your machine is fast, but your hands are slow.
• Upgrade: Professional shops utilize magnetic embroidery hoops. These snap together instantly using magnets, eliminating the need to screw and unscrew. This can cut hooping time by 60%.

Scenario B: The Placement Struggle

• Trigger: Your logos are crooked, or you struggle to center items on thick sweatshirts.
• Assessment: You lack a consistent mechanical reference point.
• Upgrade: Pairing a hooping station for embroidery with magnetic embroidery frames creates a repeatable system. You slide the shirt on, snap the magnet, and it is perfectly centered every time. This is the difference between "homemade" and "pro production."

Warning: High-Power Magnet Safety. Magnetic hoops contain industrial-grade neodymium magnets.
* Pinch Hazard: They snap together with extreme force. Keep fingers clear of the contact zone to avoid blood blisters.
* Medical Safety: Keep away from pacemakers/ICDs (maintain at least 6-12 inches distance).
* Electronics: Store away from credit cards, phones, and computerized machine screens.

Operation Checklist (the “I want this to work every time” routine)

Print this mental list. If you do these four things, 99% of your errors disappear.

• The "P" Check: Verify orientation visually before every install.
• The Anchor: Hold the bobbin still with your finger while threading the tension path.
• The Click: Ensure the bobbin cover is snapped flush; the sensors need this.
• The Environment: Keep the hook race clean. Brush it out every 8-10 bobbin changes (or after every project if using plush fabrics like fleece).

If you treat bobbin installation as a disciplined ritual rather than a chore, your brother embroidery machine becomes a reliable partner. Predictable inputs yield predictable, beautiful outputs.

FAQ

• Q: How do I install a Brother SE400 bobbin correctly to prevent jams using the “P” rule?
  A: Install the bobbin so the thread tail hangs from the left and visually forms a “P” before dropping it in.
  • Hold the bobbin up and confirm the “P” shape (thread tail on the left).
  • Drop the bobbin into the basket and keep it from spinning while you route the thread.
  • Follow the printed arrow path through the slit/channel, then cut on the built-in cutter.
  • Success check: The bobbin rotates smoothly counter-clockwise when pulled (before cutting), and the cover snaps fully flush.
  • If it still fails… Re-thread the upper thread completely with the presser foot UP, then recheck bobbin orientation.
• Q: Why does the Brother SE400 bobbin thread not catch the tension spring, causing loose loops or bird nesting?
  A: Hold the bobbin still with a finger while seating the thread so the thread slips under the tension spring instead of unspooling extra slack.
  • Press a fingertip gently but firmly on top of the bobbin to stop rotation.
  • Pull the thread into the slit and around the curved channel following the arrows.
  • Feel for slight “dental floss” resistance as the thread seats in the spring, then trim at the cutter.
  • Success check: The “floss” resistance is noticeable and there is no long thread tail (“spaghetti”) under the cover.
  • If it still fails… Clean lint from the bobbin case tension spring area and re-seat the thread path again.
• Q: Why are the Brother SE400 feed dogs not moving fabric when trying to sew after using embroidery mode?
  A: The Brother SE400 automatically lowers/disengages feed dogs in embroidery mode, so switch back to a utility stitch (sewing mode) to re-engage them.
  • Check the screen for embroidery icons or an active embroidery pattern.
  • Exit embroidery mode and select a utility stitch for regular sewing.
  • Test on scrap fabric before returning to the project.
  • Success check: Fabric advances steadily under the presser foot instead of the needle punching in one spot.
  • If it still fails… Confirm the embroidery unit is not engaged and recheck the selected mode on the screen.
• Q: How do I deep clean a Brother SE400 to stop bobbin jamming from lint packed in the hook race?
  A: Remove the needle plate and bobbin case, then brush lint outward from the hook race before it compacts into paste.
  • Power OFF the Brother SE400 before opening the needle plate area.
  • Remove the bobbin cover, unscrew and lift off the needle plate, then lift out the black bobbin case.
  • Brush lint outward (including around feed dog teeth), keeping debris away from the center shaft.
  • Success check: The hook race corners and feed dog teeth look clear (no “lint cement”), and the bobbin case seats without grinding noises afterward.
  • If it still fails… Inspect the bobbin case for needle strikes (rough scratches) and smooth or replace the case as needed.
• Q: How do I clean the Brother SE400 removable bobbin case tension spring when tension becomes “random” or inconsistent?
  A: Clear debris under the bobbin case tension spring using a business card corner or dental floss to remove hidden lint/thread shards.
  • Remove the black bobbin case and locate the thin metal tension spring slit.
  • Slide a crisp business card corner or dental floss gently through the thread path to dislodge trapped debris.
  • Reinstall the bobbin and re-seat the thread until the “floss” resistance is felt.
  • Success check: Thread pull feels consistent (light resistance), and stitches stop flipping between loose and tight without changing settings.
  • If it still fails… Do a full hook race cleaning and verify the bobbin is installed in the correct “P” orientation.
• Q: How do I reinstall and align the Brother SE400 bobbin case correctly using the triangle and dot marks?
  A: Align the triangle mark on the black bobbin case with the dot on the metal race so the case drops in flat and “floats” correctly.
  • Locate the white triangle/arrow on the bobbin case rim and the white dot on the machine race.
  • Align triangle to dot, then gently wiggle until the case settles flat.
  • Do not reinstall the needle plate until the case feels loose-but-captive (not tight or jammed).
  • Success check: The case sits perfectly flat with no binding, and the machine does not make a loud “thunk” or grinding sound when running.
  • If it still fails… Remove and retry alignment, then replace the needle (a bent needle can trigger repeat strikes).
• Q: How do I troubleshoot Brother SE400 bird nesting under fabric and decide between technique fixes, magnetic hoops, or upgrading machines?
  A: Start with threading and bobbin orientation first, then improve stability/hooping efficiency only after the stitch system is stable.
  • Level 1 (Technique): Re-thread the upper path fully (presser foot UP), confirm the bobbin “P” orientation, and re-seat the bobbin thread until “floss” resistance is felt.
  • Level 2 (Tool): If hooping is the time bottleneck or causes hoop burn/hand fatigue, switch to a magnetic embroidery hoop to speed hooping and reduce fabric stress.
  • Level 3 (Capacity): If workload volume is the real issue (many garments/day), consider a multi-needle embroidery machine for production efficiency.
  • Success check: Stitching runs without underside tangles, and setup time/placement becomes repeatable instead of “wrestling” each item.
  • If it still fails… Stop and deep clean the hook race and inspect for needle strikes or bobbin case misalignment before changing tension settings.
• Q: What safety steps prevent needle injuries and damage when testing or troubleshooting a Brother SE400 bobbin jam or grinding noise?
  A: Stop immediately on any loud “thunk” or grinding, keep fingers away from the needle area, and replace a suspect needle before restarting.
  • Power OFF before removing fabric, hoop, needle plate, or bobbin case.
  • Keep hands clear when doing any test run; the machine can start unexpectedly.
  • Replace the needle if there was a jam or strike (bent needles can scar the bobbin case and restart the problem).
  • Success check: The machine runs quietly without impact sounds, and the bobbin case shows no new strike marks after a short test.
  • If it still fails… Recheck bobbin case alignment (triangle-to-dot) and inspect the bobbin case for rough scratches that can snag thread.
