Brother SE400 Embroidery Setup That Actually Works: Needle, Foot Q, Carriage, and the T-Shirt Hooping Trick That Saves Shirts

If you’ve ever switched your Brother SE400 over to embroidery mode and felt that little spike of panic—Did I forget something? Is this about to break a needle? Am I about to stitch my shirt shut?—you’re not alone. The SE400 is a friendly machine, but it’s also very literal: if one small setup detail is off, it will punish you with thread nests, broken needles, or a design that lands in the wrong spot.

As someone who has trained hundreds of operators, I call this "The Transition Anxiety." It happens because you are moving from guiding the fabric (sewing) to trusting a robot to do it for you (embroidery).

This post rebuilds the exact workflow shown in the video (needle → Foot Q → embroidery unit → bobbin thread → on-screen text → hoop mounting → trace → start), but I am adding the "Old Hand" sensory checks—the sounds, feelings, and visual cues that tell you you're safe—especially when you’re embroidering on a tricky tubular knit T-shirt.

Calm the Panic: What “Embroidery Mode” Really Changes on a Brother SE400 Sewing and Embroidery Machine

The Brother SE400 is a combo unit, so converting from sewing to embroidery isn’t just pressing a button—it’s a physical metamorphosis. In the video, the creator treats it like a ritual: swap the needle, swap the foot, attach the embroidery carriage, then load the correct bobbin thread.

Here’s the mindset shift that prevents mistakes: Sewing is about flow; Embroidery is about stabilization.

In embroidery, the machine performs a controlled "needle punching" process (often at 400+ stitches per minute) where the fabric must stay practically frozen while the hoop moves. Anything that adds drag, bulk, or unexpected fabric layers (like the back of a T-shirt creeping under the hoop) will cause "flagging"—where the fabric bounces up and down with the needle—leading to deflection and breaks.

If you’re new, keep this simple rule: Do not rush the changeover. The 2 minutes you "save" skipping checks is usually paid back with 45 minutes of picking out stitches, wasted stabilizer, and a ruined shirt.

The Hidden Prep Pros Do First: Schmetz Embroidery Needle (130/705 H-E), Thread Choices, and a Quick Safety Scan

Before you touch the touchscreen, do the physics prep that prevents 80% of beginner failures.

In the video, the creator specifically calls out using a thin embroidery needle for T-shirt material and shows a Schmetz Embroidery Needle pack (130/705 H-E). This is not optional suggestion; it is a mechanical necessity.

• The Physics: An embroidery needle has a special scarf (groove) and a larger eye that protects high-speed rayon/poly threads from shredding.
• The Size: For T-shirts (knits), a 75/11 needle is the industry "Sweet Spot." It pushes fibers aside rather than cutting them. A standard 90/14 Universal needle is often too aggressive for light knits and creates holes.

Also, note the thread pairing shown: white Brother #60 bobbin thread in the bobbin, and red Sulky embroidery thread on top. This is the 60/40 Rule: Use a lighter weight bobbin thread (60wt or 90wt) to allow the top thread (40wt) to pull slightly to the back for a clean finish.

Warning: Always power down the machine or lock the screen when working around the needle area. A bumped Start/Stop button while your fingers are threading the needle can result in serious injury. Treat the needle area like a power saw blade.

Consumables You Might Have Missed (The "Hidden" List)

• Temporary Spray Adhesive (e.g., Odif 505): Vital for floating stabilizers or keeping knits from shifting.
• Water Soluble Topper: If your T-shirt has a ribbed texture, this prevents stitches from sinking in.
• Curved Tip Tweezers: For grabbing that bobbin thread tail without poking the fabric.

Prep Checklist (do this before you remove anything)

• Environment: Confirm you’re in a well-lit area. Shadows hide thread tangles.
• Tools: Have your coin tool/screwdriver ready.
• Needle: Select a fresh 75/11 Embroidery or Ballpoint needle (A dull needle makes a "thud-thud" sound; a sharp one sounds like a crisp "click-click").
• Bobbin: Ensure you have Embroidery Bobbin Thread (typically 60wt or 90wt), not sewing thread.
• Project Plan: If embroidering a T-shirt, decide now: will you cutaway or tearaway? (Hint: For T-shirts, Cutaway stabilizer is non-negotiable for professional results).

One more “shop-floor” habit: Listen to your machine. If your SE400 sounds different after conversion—harsher, grinding, or straining—stop immediately. Machines often "speak" before they break.

Needle Change on Brother SE400: The Thin Embroidery Needle Choice That Helps on T-Shirt Knit

In the video (00:39–00:54), the first action is simple: remove the current needle and install an embroidery needle.

Why specific needles matter for T-Shirts: Knitted fabric is made of interlocking loops. A sharp, thick needle can cut a loop, causing a "run" in the fabric that destroys the shirt. An Embroidery 75/11 or Ballpoint needle slides between these loops.

What to do (as shown):

1. Power off (or lock).
2. Use the coin tool to loosen the screw (righty-tighty, lefty-loosey).
3. Remove the old needle.
4. The Flat-Back check: Insert the new Schmetz needle with the flat side facing the back of the machine.
5. The Ceiling Bump: Push the needle up until it hits the absolute top of the stopper. If it's even 1mm too low, the timing will be off, and you won't pick up the bobbin thread.
6. Tighten securely.

Checkpoint: The needle is seated at the "ceiling" of the bar, and the flat side faces exactly rearward.

Expected outcome: A clean stitch formation without cutting fabric fibers.

If you are dealing with repeated needle breaks, don't just blame the needle. On single-needle machines, breaks are usually caused by deflection—the fabric pulls the needle slightly bent, breathing the needle plate. This usually means your hoop tension is wrong or the fabric is dragging.

Installing Embroidery Foot “Q” on the Brother SE400: The Screw-Back Trick and the Lever Lift That Makes It Easy

Stitching with the wrong foot (like the 'J' Zigzag foot) is a guaranteed disaster. You must switch to Embroidery Foot Q. In the video (00:55–02:30), the creator demonstrates two subtle physical tricks:

• Unscrewing the holder screw almost entirely off to get clearance.
• Lifting the presser bar lever extra high manually.

What to do (as shown):

1. Unscrew the presser foot holder screw until it feels loose.
2. Lift the presser foot lever at the back. Pro Tip: Push it up slightly past its locking point to get an extra 5mm of clearance.
3. Remove the standard sewing foot.
4. Approach with Foot Q from the back. Position the top bar over the needle clamp screw area and the mount around the presser bar.
5. Finger-tighten first to ensure cross-threading doesn't happen, then use the coin tool to torque it down.


Checkpoint: Grab Foot Q and try to wiggle it. It should feel like a solid part of the machine chassis. If it wobbles, tighten again.

Expected outcome: The foot hovers just above the fabric (it does not press down firmly like a sewing foot) to allow the hoop to glide.

Setup Checklist (right after Foot Q is installed)

• Foot Q is mounted specifically with the upper arm over the needle screw.
• The screw is tool-tightened (finger tight is not enough for embroidery vibration).
• The presser foot lever moves smoothly up and down.
• Clearance Scan: No loose thread tails are wrapped around the upper shaft or foot.

Embroidery Carriage Installation on Brother SE400: The Click, the Feed Dogs Drop, and the Screen Warning You Should Respect

The embroidery carriage is the "brain" that moves the hoop. In the video (02:50–03:30), the creator slides the unit into the left side until it creates a satisfying mechanical click.

The "Feed Dog" Mechanism: Notice that when the unit clicks in, a switch is triggered that automatically drops the feed dogs (the metal teeth under the plate). In embroidery, we do not want the machine pulling the fabric; the carriage does the work.

What to do (as shown):

1. Clear the table space to the left of the machine.
2. Slide the unit firmly into the port.
3. Listen: Wait for the sharp CLICK.
4. Screen Prompts: The screen will warn: “The carriage will move.” Keep hands clear and press OK.




Checkpoint: The unit acts effectively as one solid piece with the base.

Expected outcome: The carriage calibrates (moves X and Y axes) to find its "home" position.

Bobbin Setup on Brother SE400: Why Brother Embroidery Bobbin Thread #60 Matters (and Why It’s White Under Red)

Beginners often ask: "Can I just use the same red thread in the bobbin?" Technical Answer: Yes, but you shouldn't unless it is a free-standing lace project. Practical Answer: No. Use the designated 60wt or 90wt Bobbin Thread.

In the video (03:58–05:00), the creator loads Brother #60 white bobbin thread. This thread is thinner than the top thread, ensuring the knot forms on the bottom of the fabric, keeping the top looking crisp.

What to do (as shown):

1. Drop the bobbin in. Sensory Check: The bobbin should spin counter-clockwise (checking the "P" shape vs. "q" shape).
2. Guide thread through the tension spring. You should feel a slight "flossing teeth" resistance.
3. Use the built-in cutter to trim the tail.
4. Replace the clear cover.

Checkpoint: The bobbin turns counter-clockwise when you pull the thread.

Expected outcome: The bottom tension is slightly tighter than standard sewing, pulling the top thread down for a clean look.

A quick word on metal bobbins (comment hot topic)

Some viewers noticed a metal bobbin in the comments. Rule of thumb: Brother machines typically use plastic Class 15 (SA156) bobbins. Metal bobbins can be heavy and wear out the magnetic bobbin case, affecting tension timing. Stick to the manufacturers' plastic bobbins unless you have calibrated the machine specifically for metal.

Brother SE400 Touchscreen Text Setup: Choosing a Font, Typing “Cook,” Resizing Smaller, and Nudging +0.37" Up

Getting the design on the screen is where the logic happens. In the video (05:06–06:30), the creator creates the word "Cook."

What to do (as shown):

1. Select Fonts (Sans Serif shown).
2. Type C - o - o - k.
3. Hit ADJUST or LAYOUT.
4. Resize: Remember, you can only resize built-in fonts by about 10-20% before density becomes an issue.
5. Position: Move the design to +0.37" vertically.


Checkpoint: Ensure the design fits within the 100mm x 100mm (4x4) boundary. If the box turns red or grey, you are outside the stitchable area.

Expected outcome: Design is loaded and ready for the physical hoop.

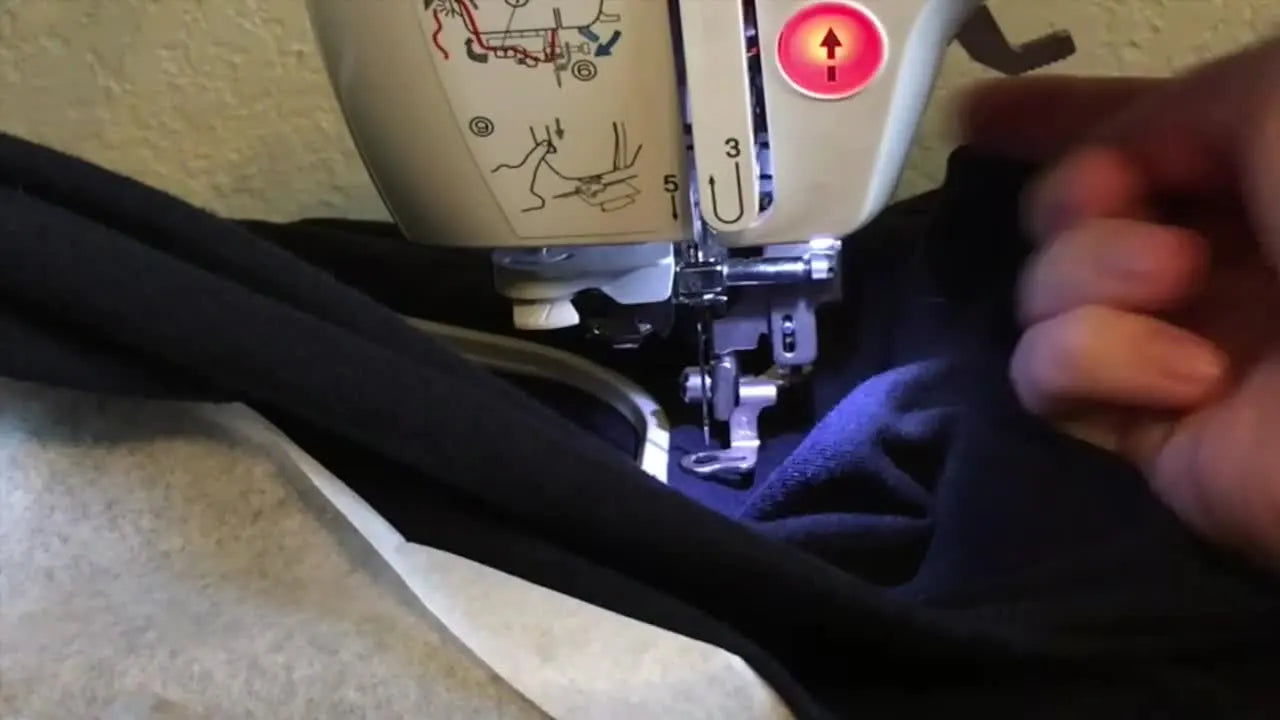

The T-Shirt Hooping Moment That Ruins Shirts: Mounting a Brother 4x4 Embroidery Hoop Without Sewing the Back to the Front

This is the "make or break" step. 90% of T-shirt embroidery failures happen here.

In the video (06:31–08:40), the creator demonstrates the "Cuffing" technique: pulling the shirt entirely inside out or rolling the excess to manage bulk.

The Physics of Hooping T-Shirts: A standard plastic hoop creates tension by friction. On a stretchy T-shirt, this creates two risks:

1. Hoop Burn: The friction leaves a permanent white ring or crease on the fabric.
2. Stretching: If you pull the shirt tight after the hoop is closed (the "tambourine" method), the fabric will relax after you unhoop it, and your letters will pucker.


What to do (as shown):

1. Stabilize: (Not explicitly shown in video detail, but optional expert advise) Iron a fusible mesh stabilizer or stick a cutaway stabilizer to the inside of the shirt front.
2. Hoop the shirt with the front chest area visible.
3. Slide the hoop under the foot.
4. The Roll: Turn the bulk of the shirt up and over the machine arm so it doesn't get caught underneath.
5. Align the slots on the hoop with the carriage pins.
6. Squeeze the hoop levers and snap it down.


Checkpoint: Give the hoop a gentle tug. It should be locked onto the carriage arm.

The "Hoop Burn" Solution

If you find that standard hoops are leaving permanent marks on delicate knits, or you are struggling to hoop thick items, this is a hardware limitation. Many experienced hobbyists eventually upgrade to magnetic embroidery hoops. These use strong magnetic force rather than friction to hold the fabric. This eliminates "hoop burn" and makes adjusting the T-shirt drastically faster. If you are doing bulk orders, searching for a compatible magnetic hoop for brother machine series is a common workflow upgrade.

Warning: Magnetic hoops contain powerful neodymium magnets. If you use them, keep them away from pacemakers, and watch your fingers—the snap is powerful enough to pinch severely.

The “Under the Hoop” Clearance Check on Brother SE400: The 10-Second Habit That Prevents Stitching the Shirt Closed

Failure to do this check results in the classic "I sewed the back of the shirt to the front" disaster. The video (08:12–08:40) emphasizes a manual sweep.

How to perform the "Tunnel Check":

1. Before hitting traverse/trace, reach your hand under the hoop.
2. Feel the needle plate.
3. Ensure the only thing between the needle plate and the hoop is the single layer of fabric you want to stitch.
4. Push all excess shirt material (sleeves, back, collar) away from the connection point.

Checkpoint: Can you slide your fingers freely under the hoop area?

Expected outcome: The needle will pass through the front of the shirt and the stabilizer only.

Trace on the Brother SE400: The “Ghost Run” That Saves You From Off-Center Lettering

Never press "Start" without Tracing. In the video (09:00–09:55), the creator uses the Trace function (icon: a square with a dashed arrow).

What to do (as shown):

1. Tap the Trace button.
2. Watch the Needle: As the hoop moves in a rectangle, visualize where the needle is pointing.
3. Does it hit the plastic frame? Does it go too high near the collar?

Checkpoint: The design stays comfortably inside the fabric area and hits no hard plastic.

Expected outcome: Confidence that the design is centered and safe.

Threading the Needle With Sulky Embroidery Thread: Getting Ready to Press the Green Start Button

The automatic needle threader on the SE400 is a great tool, but it requires finesse.

What to do (as shown):

1. Thread the upper path (1 through 6).
2. At step 7 (the bar above the needle), pull firmly to seat the thread.
3. Use the lever to swing the threader hook through the eye.
4. Gentle Release: Let the lever go slowly. If you snap it, the thread might miss the eye.


Operation Checklist (The Start Sequence)

• Stabilizer is correct (Cutaway for knits!).
• Hoop is snapped onto the carriage pins securely.
• Tunnel Check: No shirt fabric underneath.
• Trace: Completed successfully.
• Presser foot is DOWN (Green light will turn on).
• Speed Slider: Set to Low/Medium for the first few stitches to ensure safety.

Troubleshooting Brother SE400 Embroidery Setup: Symptoms → Likely Cause → Fix

Sometimes, despite your best efforts, things go wrong. Use this "Low-Cost First" logic to troubleshoot.

A Simple Decision Tree: Stabilizer + Hooping Strategy for T-Shirts

The video focuses on mechanics, but stabilizer is the secret sauce.

Constraint: You are embroidering a Knit T-Shirt.

1. Do you want the embroidery to last forever?
   • Yes: Use Cutaway Stabilizer. Knits stretch; Cutaway does not. It provides a permanent foundation.
   • No (or testing): Tearaway (Not recommended for knits as stitches will eventually distort).
2. Is the fabric slippery?
   • Use Spray Adhesive (505) to bond the shirt to the stabilizer inside the hoop. This create a "sandwich" that acts like woven fabric.

The Upgrade Path: When a Standard Hoop Stops Making Sense

The workflow shown in the video works, but it is labor-intensive. You have to fight the fabric, struggle with the clips, and pray you don't get hoop burn.

Here is a practical "When to Upgrade" guide for your embroidery journey:

1. The "Hobbyist" Level: You are doing 1-2 shirts a week.
   • Tools: Standard 4x4 hoop, standard stabilizer.
   • Pain Point: Slow hooping, potential hoop marks.
2. The "Enthusiast" Level: You are doing 10 shirts for a family trip.
   • Tools: Upgrade to a brother 4x4 embroidery hoop replacement kit just to have spares.
   • Efficiency: Consider a hooping station for embroidery or a simple jig to get the placement consistent on every shirt.
3. The "Prosumer" Level: You are selling shirts on Etsy.
   • Pain Point: Hoop burn is ruining your profit margins, and clamping takes too long.
   • Solution: This is when you invest in a magnetic hooping station or Magnetic Hoops. They snap on instantly, hold thick/delicate fabrics without bruising fibers, and hold knits securely without over-stretching.
   • Search Strategy: Look for a hoopmaster hooping station or equivalent magnetic systems compatible with the SE400 or your future multi-needle machine.

The Brother SE400 is an incredible gateway machine. Master the "ritual" of the setup, respect the physics of the needle and thread, and eventually, when the manual labor of hooping becomes your bottleneck, know that better tools exist to speed you up.

FAQ

• Q: What needle should be installed on a Brother SE400 for embroidering a knit T-shirt to avoid holes and needle breaks?
  A: Use a fresh 75/11 embroidery needle (or a ballpoint for knits) and seat it fully to prevent missed bobbin pickup and fabric damage.
  • Power off or lock the screen before touching the needle area.
  • Insert the needle with the flat side facing the back, then push it up to the “ceiling” stop before tightening.
  • Start with the thin embroidery needle choice shown (Schmetz 130/705 H-E pack is referenced in the workflow).
  • Success check: the stitch sound is a crisp, consistent “click-click” (not a dull “thud-thud”), and the machine picks up bobbin thread reliably.
  • If it still fails: replace the needle again and check for fabric flagging in the hoop (often caused by insufficient stabilization or fabric drag).
• Q: How do you prevent bird’s nests (thread tangles under fabric) on Brother SE400 embroidery when switching from sewing to embroidery mode?
  A: Rethread the Brother SE400 top thread completely with the presser foot UP, because most bird’s nests come from incorrect top-thread seating.
  • Raise the presser foot lever before threading so the tension discs are open.
  • Rethread the entire upper path (don’t “patch” one guide), then rethread the needle carefully.
  • Pull the thread firmly into the last guide/bar above the needle so it seats correctly.
  • Success check: the underside shows controlled bobbin thread and no sudden “pile-up” at the start.
  • If it still fails: remove the hoop, cut the nest away safely, then recheck bobbin insertion and that the bobbin thread is in the tension spring.
• Q: Why should Brother SE400 embroidery use 60wt white bobbin thread instead of matching top thread, and how should the bobbin be inserted?
  A: Use 60wt (or 90wt) embroidery bobbin thread because it helps the knot form on the underside for a clean top, and insert the bobbin so it feeds counter-clockwise.
  • Drop the bobbin in and verify the “P vs q” direction: pulling the thread should make the bobbin turn counter-clockwise.
  • Guide the thread into the tension spring until you feel light “flossing teeth” resistance, then trim with the built-in cutter.
  • Keep the clear cover seated properly before stitching.
  • Success check: top stitching looks crisp with minimal bobbin thread showing on the top side.
  • If it still fails: re-seat the bobbin so it is definitely under the tension spring; then slightly lower top tension if white bobbin thread is still pulling to the top.
• Q: How can you tell Brother SE400 Embroidery Foot “Q” is installed correctly, and what causes problems if it is loose?
  A: Install Embroidery Foot “Q” firmly with tool-tight torque, because a loose Foot Q can wobble and contribute to vibration, thread issues, and needle strikes.
  • Loosen the holder screw enough to create clearance, and lift the presser bar lever extra high for easier mounting.
  • Position Foot Q correctly (upper arm over the needle clamp screw area), finger-tighten first, then tighten with the coin tool.
  • Do a quick clearance scan for loose thread tails around the foot/shaft area.
  • Success check: grabbing Foot Q shows no wiggle—it feels like part of the machine body.
  • If it still fails: remove and reinstall Foot Q to avoid cross-threading, and confirm the correct foot is used (not the sewing “J” foot).
• Q: How do you stop a Brother SE400 from sewing the back of a T-shirt to the front during embroidery with a 4x4 hoop?
  A: Do the Brother SE400 “Tunnel Check” before tracing and starting—this is the fastest way to prevent stitching the shirt closed.
  • Reach under the hoop area and feel the needle plate to confirm only the intended layer (plus stabilizer) is under the needle.
  • Roll or “cuff” the excess shirt up and over the machine arm so it cannot creep under the hoop.
  • Clip or hold bulky areas away from the hoop connection point before pressing Start.
  • Success check: fingers slide freely under the hoop zone without catching extra fabric layers.
  • If it still fails: stop immediately, unhoop, carefully remove stitches with a seam ripper, then repeat the tunnel check more slowly.
• Q: Why should Brother SE400 embroidery users always run the Trace function before pressing Start, especially for T-shirt chest lettering?
  A: Always use Brother SE400 Trace as a “ghost run” to confirm placement and prevent the needle from hitting the hoop or stitching too close to collars/seams.
  • Tap Trace and watch the hoop move the boundary while you visualize where the needle will land.
  • Confirm the design stays inside the stitchable area and clears the plastic hoop frame.
  • Adjust layout/position on-screen if the trace path is too high or too close to edges.
  • Success check: the traced rectangle stays comfortably within the fabric area and never approaches hard plastic.
  • If it still fails: re-hoop for better centering and manage shirt bulk again (excess fabric drag can shift what “looks centered” in the hoop).
• Q: What are the key safety steps when converting a Brother SE400 to embroidery mode and working near the needle and start/stop controls?
  A: Power down or lock the Brother SE400 before needle-area work, because an accidental Start/Stop press can cause serious injury.
  • Turn the machine off (or lock the screen) before changing the needle, swapping to Foot Q, or threading near the needle.
  • Keep hands clear when the embroidery unit is installed and the screen warns “The carriage will move,” then press OK only when safe.
  • Slow the speed slider for the first stitches to confirm everything is stable.
  • Success check: hands are fully clear during carriage calibration, and the machine runs without harsh/grinding sounds.
  • If it still fails: stop immediately if the sound changes after conversion and recheck installation steps (foot tightness, carriage click-in, and thread paths) before continuing.
• Q: When should Brother SE400 users upgrade from a standard 4x4 hoop to a magnetic hoop workflow for T-shirt embroidery efficiency and fewer hoop marks?
  A: Upgrade when hoop burn, slow clamping, or repeated hooping frustration becomes the bottleneck—first optimize technique, then consider magnetic hoops as the next tool step.
  • Level 1 (technique): stop over-stretching knits, use cutaway stabilizer for T-shirts, and manage bulk with the roll/cuff method.
  • Level 2 (tool): consider magnetic hoops if standard hoop friction leaves marks or you need faster, repeatable hooping on delicate knits.
  • Level 3 (capacity): if volume grows beyond comfortable single-needle throughput, consider moving up to a multi-needle workflow.
  • Success check: hooping time drops and the shirt surface shows fewer visible hoop rings while stitches remain stable.
  • If it still fails: verify safe handling—magnetic hoops can pinch fingers severely and must be kept away from pacemakers and sensitive medical devices.
