Brother SE425 ITH Heart Purse Charm: The Floating Faux Leather Method (Plus the Loop Mistake That Can Scare You)

Master the ITH Heart Charm: A Step-by-Step Guide for the Brother SE425

If you’ve ever walked past those high-end bag charms in boutique stores and thought, "I could make that differently—and better," you are absolutely right. The barrier to entry isn't expensive software; it is simply understanding the physics of your machine.

This guide reconstructs a popular In-The-Hoop (ITH) project—a puffed faux leather heart—specifically for the Brother SE425. However, we are going to elevate the process. We will move beyond "hope and pray" stitching to a controlled, engineering-based approach. We will cover how to use the built-in Shapes menu, how to manage the dreaded "loop collision," and how to achieve a finished edge that doesn't fray.

Whether you are a hobbyist looking to use up scraps or a small business owner prototyping your first product, this is your blueprint for a clean, safe, and repeatable result.

The "Digitizing Myth": You Don't Need Software to Start

A common psychological barrier for new embroidery enthusiasts is the belief that every design requires expensive PC software like PE-Design or Hatch. This causes "analysis paralysis," where machines sit in boxes gathering dust.

Here is the industry reality: Your Brother machine is a computer. It has vector shapes built into its firmware. For geometric projects like tags, patches, and charms, the Built-in Shapes menu is often faster and more reliable than auto-digitizing software because the stitch paths are native to the machine.

However, working with faux leather (vinyl) on a single-needle machine introduces a physical challenge: Hoop Burn. Traditional hoops use friction and inner/outer ring pressure to hold fabric. Vinyl has a memory; if you crush it, the ring marks are permanent. This leads us to the essential technique of "floating"—placing the material on top of the hoop rather than inside it.

If you find yourself constantly fighting with thick materials, or if your wrists ache from forcing the inner ring into place, this is usually the trigger point where professionals investigate a floating embroidery hoop workflow. But first, let’s master the manual setup.

Material Science: "Garden Fabric" vs. Professional Stabilizer

In the source demonstration, the creator uses a black, grid-textured material identified as polypropylene landscape fabric (weed barrier).

Why use this?

• Cost: It is incredibly cheap.
• Structure: It acts like a crisp Cutaway stabilizer. It doesn't stretch, which is critical for maintaining the heart shape.

The Professional Verdict: For prototyping or "craft" items like keychains that won't be washed, garden fabric is an acceptable "hack." However, for anything that touches skin or goes in a washing machine, it is too scratchy and can disintegrate over time.

• Recommendation: Use the garden fabric for your first test run. For a sellable product, switch to a medium-weight Cutaway Stabilizer (2.5 oz). It provides the same stability but with a softer hand feel and better longevity.


Prep Checklist: The "Mise-en-place"

Do not turn on the machine until these physical items are within arm's reach.

• Stabilizer: Tightly hooped garden fabric (or Cutaway) in a standard 4x4 hoop.
• Material A (Front): Faux leather/Vinyl sheet (approx 4x4 inches).
• Material B (Loop): A strip of thinner vinyl (folded, it should not exceed 2mm thickness).
• Consumables:
  • Adhesive Tape: Painter’s tape (blue/green) or embroidery-specific tape. Avoid standard clear office tape as it leaves gummy residue on needles.
  • Needle: Size 90/14 (essential for penetrating vinyl without deflection).
  • Thread: 40wt Polyester (stronger than Rayon for keychains).
• Tools: Curved embroidery scissors and a small key ring.

Warning — Physical Safety: This project involves placing hands near the needle zone to hold tape or loops. Never put your fingers inside the hoop area while the machine is running. If a loop lifts, hit the "Stop/Start" button immediately. Do not try to hold it down with your finger while stitching.

Machine Setup: Engineering the Heart Shape

The Brother SE425 interface is simple, but we need precise dimensions to ensure the running stitch frame matches our material size.

The Workflow:

1. Navigate to the Shapes menu (Square/Circle icon).
2. Select the Heart shape.
3. Choose Stitch Style #10 (Straight Running Stitch). Note: Do not choose satin stitch for the first pass; it will perforate the vinyl too much.
4. Enter the Edit/Size menu.
5. Adjust dimensions to approximately 5.6 cm (W) × 6.5 cm (H).

The "Dry Run" Protocol: Before you stitch, visually verify the needle path.

• Action: Press the "Trace" or generic frame layout button on your screen.
• Check: Watch the needle carriage move. Does it stay well within the hoop?
• Sensory Check: Listen for the carriage hitting the limit switches (a grinding noise). If you hear this, you are too close to the edge.

If you are using the standard plastic brother 4x4 embroidery hoop, remember that the usable area is actually smaller than 4x4 inches (approx 3.93 x 3.93). Always leave a 10mm safety margin to avoid the needle striking the plastic frame, which can shatter the unexpected needle.

Setup Checklist (Pre-Flight)

• Screen: Heart shape selected, Stitch #10 active.
• Hoop: Stabilizer is "drum-tight" (tapping it makes a thrumming sound).
• Bobbin: Full bobbin loaded (you cannot change bobbin mid-sandwich easily).
• Speed: Set machine speed to Slow/Medium (approx 350-400 SPM). Vinyl creates friction; high speeds cause thread shredding.

The "Loop Trap": A High-Risk Maneuver

This step causes the most accidents in ITH projects. You are attaching a folded strip of vinyl (the loop) to the top of the heart.

The Risk: If the loop is stiff, it acts like a spring. As the hoop moves, the loop can pop up and catch on the presser foot bar. This will knock your hoop out of alignment (ruining the design) or bend the needle bar.

The Safe Protocol:

1. Stitch the Outline: Run the first heart outline directly onto the stabilizer. This is your placement guide.
2. Position the Loop: Place the folded vinyl strip centers at the top of the heart (legs inside the heart, loop pointing out).
3. Tape Aggressively: Tape the legs of the loop down. Then, place a second piece of tape strictly over the loop end outside the stitch area.
4. The "Finger Test": Flick the loop with your finger. If it bounces up even 1mm, add more tape. It must be flush with the stabilizer.




Expert Insight: If you hear a "thud-thud" sound while sewing over the loop, your needle is struggling to penetrate. Stop. Switch to a sharp 90/14 needle or slow down further.

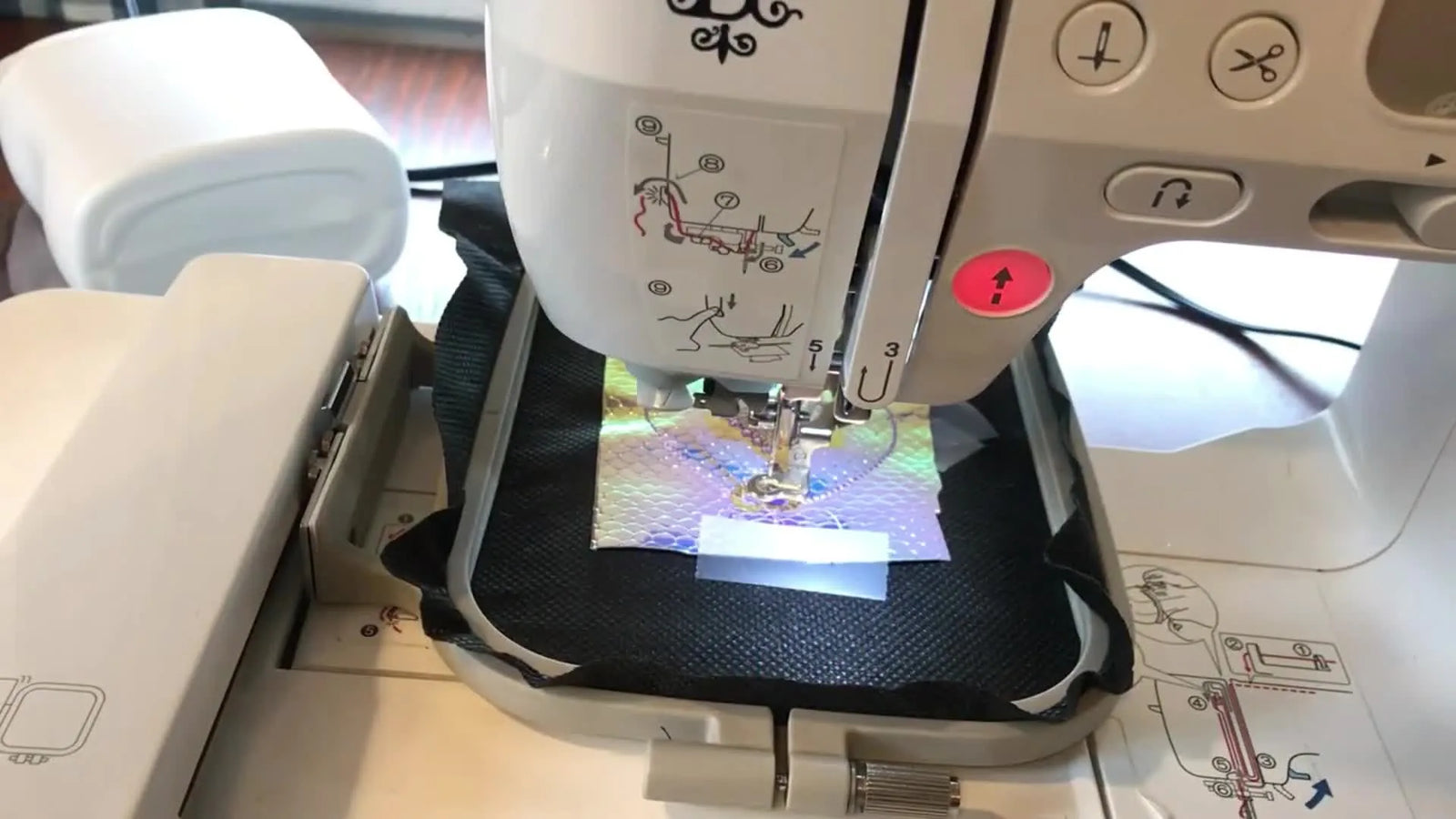

The Floating Technique: Managing Hoop Burn

Now we place the main face fabric. Instead of un-hooping the stabilizer, we "float" the main faux leather piece on top.

The Physics of floating: By floating, you eliminate the mechanical stress of the inner ring, which is the primary cause of "halo" marks on vinyl. Action: Center your main vinyl piece over the stitched outline. Securing: Tape the Top Edge and Bottom Edge.

• Crucial: Do not tape where the needle will stitch (the heart outline). Sewing through adhesive gum up your needle, leading to shredded thread later.

If you find yourself doing production runs of 50+ charms, taping becomes a bottleneck. The constant application and removal of tape is slow and creates waste. This is the logic trap where professionals switch to magnetic embroidery hoops for brother machines. These hoops use magnets to clamp the material flat without the "crush" of a traditional ring, effectively automating the "floating" process and saving about 45 seconds per unit.

Adding Design Elements: The Merge Function

The creator adds an inner decorative heart. On the SE425, you use the "Add" or "Merge" function to layer shapes.

Alignment Strategy: Because you are floating the material, it might not be perfectly square.

• Action: Stitch the inner heart before you do any stuffing.
• Style: A Triple Stitch (Bean Stitch) stands out beautifully on vinyl. Satin stitches tend to sink in and disappear unless you use a topping.


The "Puff" Mechanics: Trapunto without the Fuss

To give the charm a premium, 3D feel, the video demonstrates a "Pocket Stuffing" method.

1. Remove Hoop: Keep everything in the hoop, but remove the hoop from the machine.
2. Flip Over: Look at the back (stabilizer side).
3. Slit: Use a seam ripper to cut a small vertical slit in the stabilizer only (inside the heart shape). Do not cut the front vinyl.
4. Stuff: Insert stuffing.
   • Option A (Video): Chopped up stabilizer scraps. (Result: Firm, hard puff).
   • Option B (Pro): Polyester fiberfill. (Result: Soft, pillow-like puff).

The Physics of the Pocket: By cutting the stabilizer, you create a cavity between the front vinyl and the stabilizer. The tension of the stitches holds the sides down, forcing the middle to dome upwards. This is a simplified version of the "Trapunto" quilting technique.

The Backing and Final Seal

The back of your embroidery currently looks messy (bobbin threads, slit stabilizer). We must cover it.

1. Float the Back: Cut a second piece of faux leather.
2. Tape: Place it on the underside of the hoop, covering the entire heart area. Tape all four corners securely to the stabilizer.
3. The Bridge: Ensure the tape bridges from the vinyl to the stabilizer frame so gravity doesn't pull it off when you slide the hoop back onto the machine.


The Final Stitch: Return the hoop to the machine. Select a Triple Running Stitch (Bean Stitch) for the final border.

• Why Triple Stitch? It runs back-and-forth (Forward-Back-Forward). This creates a very strong, thick line that seals the sandwich (Front Vinyl + Stuffing + Stabilizer + Back Vinyl) and perforates the material enough to make trimming easy, but not so much that it tears.


Trimming: The "Bottleneck" Safety Cut

Once the stitching is done, un-hoop the project. You now have a sandwich. You need to trim the excess vinyl without cutting the loop or the stitches.

The Technique:

1. Scissors: Use sharp, curved appliqué scissors.
2. Distance: Cut approximately 2mm-3mm from the stitch line.
3. The Hazard Zone: When you reach the top (the loop), do not cut straight across.
4. The Bottleneck Maneuver: Peel the front and back layers apart slightly. Trim the front layer, then trim the back layer, being extremely careful to cut around the loop tab, not through it.






Decision Tree: Customizing Your Workflow

Embroidery is about variables. Use this logic tree to make decisions based on your specific materials.

Variable 1: Material Sensitivity

• Is the material prone to hoop burn? (e.g., Velvet, Vinyl, Leather)
  • Yes: MUST FLOAT. Use adhesive spray or tape. Consider a magnetic hoop for brother to prevent crushing the nap/grain.
  • No (e.g., Felt, Denim): Hoop normally for best stability.

Variable 2: End Use Durability

• Will this be washed?
  • Yes: Use Cutaway Stabilizer (Mesh or Standard). Avoid garden fabric.
  • No (Keychain): Garden fabric or Tearaway is acceptable.

Variable 3: Volume

• Making 1-5 units? Use tape and manual floating.
• Making 50+ units? Upgrade to a magnetic frame system to save wrist strain and setup time.

Troubleshooting: The "Symptom-Fix" Matrix

The Upgrade Path: From Hobby to Production

The method above is perfect for learning. But if you begin selling these charms, you will hit mechanical limits.

1. The Wrist Pain / Hooping Limit: Standard hoops require significant hand strength to tighten the screw and force the inner ring in. If you are doing this 20 times a day, you risk repetitive strain injury (RSI).

• Solution: A Magnetic Embroidery Hoop. These use high-force magnets to snap the material in place. There is no screw tightening, no forcing, and zero hoop burn. It allows you to hoop a piece of vinyl in 5 seconds versus 45 seconds.

2. The Color Change Limit: The Brother SE425 is a single-needle machine. If your design has 4 colors, you are stopping 4 times per unit.

• Solution: When your order volume exceeds 10 units/week, the math suggests moving to a Multi-Needle Machine (like SEWTECH’s affordable multi-needle options). This allows you to set up the colors once and let the machine run the entire batch, drastically increasing your profit per hour.

Warning — Magnet Safety: Magnetic hoops contain powerful Neodymium magnets. They can pinch fingers severely (blood blister risk). Always slide the magnets apart; never pry them. Keep them at least 12 inches away from pacemakers, insulin pumps, and magnetic storage media (credit cards, hard drives).

Operation Checklist (Final Quality Control)

• Stitch 1: Outline creates a perfect guide map.
• Component: Loop placed exactly over the center mark.
• Safety: Loop taped down flat; "Flick Test" passed.
• Stitch 2: Faux leather floated; tape is outside the needle path.
• Stitch 3: Decorative inner design completed.
• Mechanics: Stabilizer slit cut carefully; puff inserted without tearing vinyl.
• Stitch 4: Backing vinyl taped securely to the UNDERSIDE.
• Finish: Triple stitch border completed with no skipped stitches.
• Post-Process: Trimmed clean; ample clearance around the loop.

You have now successfully engineered a product, not just sewn a craft. This process is scalable, and by adhering to these safety margins, you protect both your fingers and your machine investment.

FAQ

• Q: What Brother SE425 needle, thread, and tape setup prevents vinyl “loop collision” during an ITH heart charm?
  A: Use a size 90/14 needle, 40wt polyester thread, and painter’s/embroidery tape placed outside the stitch path to keep the loop and vinyl stable.
  • Change: Install a fresh 90/14 needle before stitching the vinyl and the loop.
  • Tape: Secure the loop legs down first, then tape the loop end so it cannot spring up during hoop travel.
  • Avoid: Do not use clear office tape; it can leave gummy residue on the needle.
  • Success check: The loop passes the “flick test” (it does not bounce up even 1 mm) and the machine runs without thudding or stopping.
  • If it still fails: Slow the Brother SE425 down further and re-tape so the loop sits perfectly flush.
• Q: How do Brother SE425 users verify the built-in Heart shape will not hit the Brother 4x4 embroidery hoop during tracing?
  A: Use the Brother SE425 trace/frame layout function and keep a clear safety margin so the needle path stays well inside the hoop’s usable area.
  • Set: Choose Shapes → Heart → Stitch Style #10 (straight running stitch), then size to about 5.6 cm (W) × 6.5 cm (H).
  • Trace: Run the trace/frame layout preview and watch the carriage movement across the full path.
  • Leave margin: Keep about a 10 mm safety margin from the hoop edge to reduce risk of needle striking plastic.
  • Success check: The carriage moves smoothly with no grinding/limit-switch noise and the outline stays clearly inside the hoop boundary.
  • If it still fails: Reduce the heart size slightly and re-run trace before stitching.
• Q: How can Brother SE425 users float faux leather to prevent permanent hoop burn on vinyl for an ITH heart charm?
  A: Hoop only the stabilizer “drum-tight,” then tape the faux leather on top (float) so the hoop rings never crush the vinyl.
  • Hoop: Tighten stabilizer until it feels “drum-tight” (a thrumming sound when tapped).
  • Place: Center the faux leather over the stitched placement outline.
  • Tape: Secure only the top and bottom edges, keeping tape completely out of the needle stitch path.
  • Success check: After stitching, the vinyl shows no ring/halo marks and the needle does not pick up adhesive (no sticky buildup).
  • If it still fails: Reposition tape farther from the stitch line and replace/clean the needle if adhesive contact occurred.
• Q: What should Brother SE425 users do when the machine makes a “thud-thud” sound sewing over a vinyl loop in an ITH heart charm?
  A: Stop immediately and switch to a sharper size 90/14 needle (or slow the machine) because the needle is struggling to penetrate the dense loop area.
  • Stop: Press Stop/Start; do not keep sewing through the thudding.
  • Replace: Install a new sharp 90/14 needle (a safe upgrade is a more durable needle type for vinyl).
  • Slow: Sew at slow/medium speed (about 350–400 SPM) to reduce friction and deflection.
  • Success check: The sound becomes smooth/consistent and stitches form without needle hesitation over the loop.
  • If it still fails: Confirm the folded loop thickness stays under about 2 mm and re-tape it fully flat.
• Q: How can Brother SE425 users fix bobbin thread showing on top when stitching a thick vinyl “sandwich” (front vinyl + stuffing + stabilizer + back vinyl)?
  A: Lower the Brother SE425 top tension by 1–2 as an immediate correction when the project thickness pulls bobbin thread upward.
  • Adjust: Reduce top tension one step, test, then reduce one more step if needed.
  • Prepare: Start with a full bobbin so tension stays consistent through the final border.
  • Match: Use matching thread in the bobbin when appearance is critical.
  • Success check: The top stitching looks clean and balanced with no bobbin thread peeking on the surface.
  • If it still fails: Re-thread the top path carefully and re-check that tape/adhesive is not adding drag near the needle.
• Q: What safety steps should Brother SE425 users follow to avoid needle-zone injury during ITH loop placement and taping?
  A: Keep hands out of the hoop/needle area while the Brother SE425 is running, and stop the machine immediately if the loop lifts.
  • Tape first: Do all loop positioning and aggressive taping with the machine stopped.
  • Stop fast: If the loop pops up or shifts, press Stop/Start immediately—do not try to hold it down with a finger while stitching.
  • Power down: If a collision occurs (or a safety stop happens), turn off the machine and check for a bent needle before restarting.
  • Success check: The loop stays flat through the entire outline pass without any contact noises or sudden stops.
  • If it still fails: Increase taping on both the loop legs and the loop end until the flick test is passed.
• Q: When should Brother SE425 users upgrade from taping/floating to magnetic embroidery hoops or a multi-needle machine for producing ITH vinyl heart charms?
  A: Upgrade based on the bottleneck: improve technique first, then use magnetic hoops to reduce setup time and hoop burn, and consider a multi-needle machine when frequent color changes limit profit.
  • Level 1 (Technique): If results vary, tighten stabilizer “drum-tight,” keep tape out of the stitch path, and run trace every time for safe margins.
  • Level 2 (Tooling): If taping is slowing production (especially 50+ units) or hoop burn/wrist strain is frequent, a magnetic hoop can clamp vinyl quickly without crushing.
  • Level 3 (Capacity): If the Brother SE425 single-needle color-change stops are the main time loss (e.g., multiple colors per charm), a multi-needle machine removes repeated re-threading.
  • Success check: Setup time drops and repeatability improves (fewer crooked loops, fewer stops, cleaner edges).
  • If it still fails: Standardize one tested material stack (vinyl thickness + stabilizer type) before scaling volume.
