Brother Stellaire Innov-is XJ2 Embroidery Features That Actually Save You Time: Library, Fonts, Disney, Couching, and Laser Placement

If you just unboxed (or are considering) the Brother Stellaire Innov-is XJ2, the embroidery side can feel like a candy store—18 design categories, Disney/Pixar, couching with yarn, micro fonts, and a laser pointer for placement.

But here’s the cold truth most “feature overviews” skip: features only work if your physics are right. The fastest way to waste a Saturday is to pick a gorgeous design, ignore the friction variables, miscalculate the hoop tension, and watch your fabric ripple in the first 500 stitches.

This article follows the exact on-screen path shown in the video, but we are going to rebuild the workflow with production-grade habits. We will move beyond "how to press the button" to "how to guarantee a clean finish."

Calm the Panic: The Brother Stellaire Innov-is XJ2 Embroidery Screen Is Built for Fast Decisions (Not Guesswork)

The first time you tap into embroidery mode, the cognitive load is high. It is normal to feel fear—fear of breaking a needle, fear of ruining a $40 hoodie, fear of the machine noise.

We need to lower that friction. Establish a repeatable Decision Loop:

1. Access: Enter the library.
2. Data Check: Review stitch count and density (the "physics" of the design).
3. Selection: Choose font or motif.
4. Staging: Set to canvas and validate layers.
5. Validation: Laser check (the "safety net").

This loop prevents the two most expensive mistakes: Hoop Burn (permanent fabric damage from over-tightening) and Placement Drift (stitching off-center).

Enter Embroidery Mode on the Brother Stellaire XJ2 and Read the Left Sidebar Like a Pro

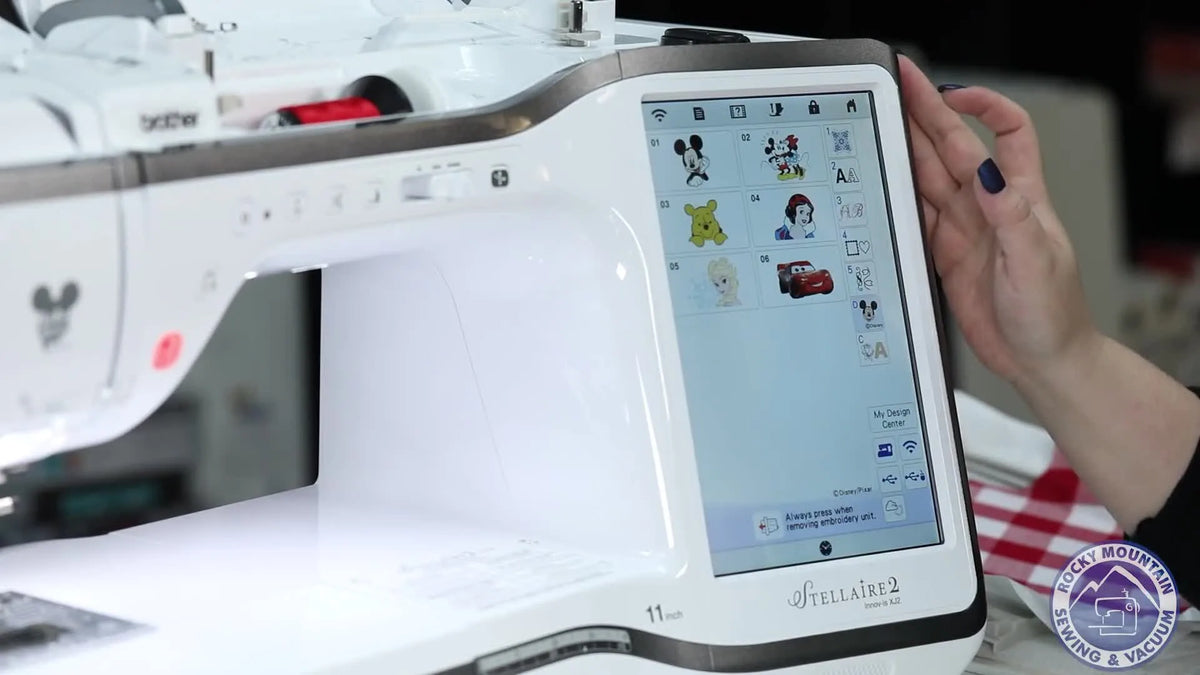

On the main home screen, the video shows tapping the large Embroidery icon. Once inside, the numbered tab system is your map.

The “Hidden” Prep Phase: The 5-Minute Insurance Policy

Professional embroiderers know that 90% of quality happens before you press start. If you skip this, no amount of software editing will save the shirt.

Prep Checklist (The "Pre-Flight" Checks):

• Needle Protocol: Is the needle fresh? Inspect the tip. A burred needle sounds like a dull "tud-tud-tud" rather than a crisp "zip-zip."
  • Knits: Ballpoint 75/11.
  • Wovens: Sharp 75/11.
• Bobbin Inspection: Open the bobbin case. Blow out lint. Ensure the bobbin thread feeds smoothly (simulating flossing teeth resistance).
• Hooping Station Setup: Clear your table. If your hoop rocks or slides while you try to frame a shirt, you will get Hoop Burn.
• Consumable Audit: Do you have temporary spray adhesive (like 505)? Do you have water-soluble topping for towels?

If you find yourself sweating while trying to get a sweatshirt straight in a standard hoop, this is a hardware bottleneck. Many home users struggle here. This is why professionals use an embroidery hooping station—it mechanically holds the fixture so you can focus on aligning the fabric grain, ensuring squares are actually square.

Use the Brother Stellaire XJ2 Design Library (18 Categories) Without Getting Burned by Density

The video highlights Tab 17 (Rabbit motif). It looks cute, but you must read the data behind the cute image.

When you select a design, the preview window gives you the Stitch Count and Dimensions.

The "Safe Zone" Data Verification

Do not just look at the colors. Look at the numbers.

• Stitch Count vs. Fabric Weight:
  • Lightweight Tee: < 8,000 stitches is safe. > 15,000 stitches requires heavy cutaway stabilizer or it will pucker.
  • Denim/Canvas: Can handle 20,000+ stitches easily.
• Color Changes:
  • A design with 15 color changes on a single-needle machine means 15 manual stops. This turns a 20-minute run into a 45-minute run.

Expert Rule: If a design is small (under 4 inches) but has over 12,000 stitches, it is dense. You must use a Cutaway Stabilizer (not Tearaway) to prevent a "bulletproof patch" effect.

Pick Brother Stellaire XJ2 Fonts Like a Shop Owner: 22 Fonts, 2 Micro Fonts, and 6 Monogram Styles

The video shows the “AA” font tab and the specialized Micro Fonts.

The Physics of Micro Fonts (Why they disappear)

Micro fonts are approximately 5-6mm tall. In the industry, we call these "needle breakers" if handled poorly.

Why they fail:

1. Texture: The loops of a polo shirt are often bigger than the text. The letters sink.
2. Drift: If the fabric moves even 0.5mm, the "A" looks like a blob.

The Fix:

• Top it: Always use a water-soluble topping approach (Solvy) to keep stitches floating.
• Stabilize it: Standard hoops rely on friction. If the fabric slips, micro-text distorts instantly. This is a primary reason why pros switch to a magnetic hoop for brother stellaire. The magnetic force clamps vertically, reducing the "push-pull" distortion that kills small text.

Warning: Mechanical Safety. Keep fingers at least 3 inches away from the needle bar when testing placement or threading. If the machine engages, a needle through the finger is a serious hospital-grade injury.

Monograms: The "Giftable" Trap

Monograms are high-reward but high-risk because they usually go on expensive items (towels, robes).

• Sensory Check: When hooping a towel for a monogram, the hoop inner ring should "pop" into place. If you have to force it so hard your knuckles turn white, you are crushing the pile.
• Workflow upgrade: If you are doing a set of 6 towels for a wedding, the bottleneck is the re-hooping time. This repetitive strain is real. Terms like hooping for embroidery machine often lead users to discover that magnetic frames can cut this setup time by 50% while saving their wrists.

Don’t Sleep on Brother Frames and In-the-Hoop Utility Stitches

The video mentions frames and buttonholes.

Setup Checklist: The Frame Run

Frames are geometric. If your hoop is crooked by 2 degrees, a circle frame looks fine, but a square frame looks terrible.

1. Mark the Axis: Use a water-soluble pen or chalk to draw a crosshair on fabric.
2. Align to Grid: Use the plastic grid template that came with your hoop. Matches? Good.
3. Hoop Tension: Tighten the screw until the fabric sounds like a drum skin when tapped. Not a dull thud—a crisp drum sound.

Browse the Brother Disney and Pixar Designs (And Avoid The "Licensing" Drift)

The video cycles through Pixar (Cars) and Princesses.

The "Heavy Ink" Warning

Disney designs are digitized to look like cartoons—this means full fill capability. They are heavy.

• Risk: A heavy Lightning McQueen design on a thin t-shirt will ripple and contract.
• Prevention: Use Fusible Mesh stabilizer ironed onto the back of the shirt, plus a layer of sticky tearaway or cutaway. Structure is everything here.

Add Texture with Couching (Yarn Icon)

Couching uses yarn stitched down by thread. It adds specific challenges regarding Height Clearance.

The "Bulk" Problem

Standard plastic hoops have a specific vertical limit. If you jam a thick quilt sandwich or heavy jacket with yarn into a plastic hoop:

1. Pop-out: The inner ring shoots out mid-stitch.
2. Bruising: The plastic ring leaves a permanent white "halo" on denim.

If you plan to do heavy couching on jackets, you are fighting the physics of the plastic clamp. This is a textbook scenario for magnetic embroidery hoops for brother. Because they hold with magnetic force rather than friction fit, they accommodate the yarn thickness without crushing the fabric fibers.

Hit “Set” and Land on the Edit Screen (Your Last Line of Defense)

The Edit screen is not for admiring the view. It is for Collision Detection.

The "Edit" Habit

• Rotate: Orient the design to the shirt, not the shirt to the design.
• Mirror: Check if your machine automatically mirrored it (common error).
• Move: Shift the distinct center point.

Use the Laser Pointer for Placement Validation

The laser pointer is your visual anchor.

How to use the Laser (The "Trace" Method)

Don't just look at the center.

1. Touch the "Trace" button (square icon with arrows).
2. Watch the LED: It will travel the perimeter of the design.
3. Visual Check: Does the red dot cross a seam? Does it hit a button? Does it fall off the stabilizer edge?
4. Listen: Is the hoop hitting the machine arm at the back limits?

Decision Tree: Fabric vs. Stabilizer vs. Hoop

Stop guessing. Use this logic flow to make safe decisions.

Start: What is the Fabric?

• PATH A: Stretchy (T-Shirt / Polo / Jersey)
  • Risk: Design distortion & puckering.
  • Stabilizer: Cutaway (No-Show Mesh).
  • Hooping: Low tension. Don't stretch!
  • Optimization: If you see "hoop burn" rings, switch to a brother magnetic hoop to hold gentle vertical pressure.
• PATH B: Unstable/Thick (Terry Towel / Fleece)
  • Risk: Stitches sinking & hoop pop-out.
  • Stabilizer: Tearaway (Back) + Solvy Topping (Front).
  • Hooping: Needs firm grip.
  • Optimization: Thick layers fight plastic hoops. brother stellaire hoops with magnetic attachments handle the "puff" of a towel better than standard frames.
• PATH C: Stable (Denim / Canvas)
  • Risk: Needle deflection.
  • Stabilizer: Tearaway is usually fine.
  • Hooping: Standard hoop works well here. Ensure drum-tightness.

The Commercial Upgrade Path: When to Scale Up

You have mastered the XJ2. You are producing flawless caps and shirts. But now, friends want to buy them. You are doing 50 shirts for a local school.

The Bottleneck: The XJ2 is a single-needle machine. To change colors, it stops and waits for you.

• Symptom: You are "babysitting" the machine for 4 hours to do 5 shirts.
• Pain Point: Your wrists hurt from re-hooping standard frames.

The Solution Hierarchy:

1. Level 1 (Workflow): Buy a magnetic hooping station to speed up the loading process and ensure every logo is straight.
2. Level 2 (Speed): Upgrade your hoops. Magnetic frames allow you to hoop a garment in 5 seconds vs 45 seconds.
3. Level 3 (Capacity): If you are running orders of 20+ items, the single-needle XJ2 is costing you profit. This is where a Multi-Needle Machine (like SEWTECH) becomes an investment, not a cost. It threads 10-15 colors at once and runs while you prep the next hoop.

Warning: Magnet Safety. Magnetic hoops contain neodymium magnets. They are incredibly strong.
* Pinch Hazard: They can snap effective immediately; keep fingers clear.
* Medical: Keep away from pacemakers.
* Tech: Do not place directly on laptops or phones.

Operation Checklist (The "Green Light" Protocol)

• Design Set? (Size checked, density safe).
• Hoop Secure? (Fabric drum-tight, no wrinkles, correct stabilizer).
• Trace Complete? (Laser confirmed no collisions).
• Thread Path Clear? (No tangles at the spool pin).
• GO.

Mastering the Brother Stellaire XJ2 isn't about memorizing the manual—it's about respecting the materials. Respect the fabric limit, validate your placement, and upgrade your tools when the volume demands it. Happy stitching.

FAQ

• Q: What pre-flight checks prevent puckering and thread nests on the Brother Stellaire Innov-is XJ2 before pressing Start?
  A: Do a 5-minute pre-flight check—most stitch quality problems on the Brother Stellaire Innov-is XJ2 start before the first stitch.
  • Replace/inspect the needle tip and match fabric type (knits: ballpoint 75/11; wovens: sharp 75/11).
  • Open the bobbin area, remove lint, and confirm the bobbin thread feeds smoothly (steady “flossing teeth” resistance, not jerky).
  • Stabilize the setup area so the hoop does not rock or slide while hooping.
  • Confirm consumables are ready for the fabric (temporary spray adhesive like 505; water-soluble topping for towels when needed).
  • Success check: the machine sound is crisp (not dull “tud-tud”), the hoop is stable in your hands, and the bobbin thread pulls evenly.
  • If it still fails… stop and re-check hooping tension and stabilizer choice before editing the design.
• Q: How tight should fabric be hooped on a Brother Stellaire Innov-is XJ2 to avoid hoop burn and placement drift?
  A: Hoop to “drum-skin” tightness—secure but not crushing, because over-tightening can cause hoop burn and under-tightening can cause drift.
  • Tighten the hoop screw until the fabric taps like a crisp drum sound, not a dull thud.
  • Avoid stretching knits while hooping; keep the garment relaxed and flat.
  • Keep the hoop from shifting during hooping by working on a firm table (or using a hooping station if the hoop keeps rocking).
  • Success check: the fabric surface looks smooth with no ripples, and the hoop leaves minimal marking (no strong white “halo”).
  • If it still fails… reduce tension on delicate fabrics and focus on stronger stabilization rather than cranking the hoop tighter.
• Q: How do you verify stitch density is safe on the Brother Stellaire Innov-is XJ2 using stitch count and design size?
  A: Use stitch count + size as a quick density test—dense small designs are the most common cause of puckering on light fabrics.
  • Read the design stitch count and dimensions in the preview before sewing.
  • Treat small designs (under 4 inches) with over ~12,000 stitches as dense and plan cutaway stabilizer.
  • Match stitch count to fabric weight (lightweight tees: under ~8,000 is safer; over ~15,000 needs heavy cutaway to avoid puckering).
  • Success check: the fabric stays flat during the first few hundred stitches (no rippling or contracting around the design).
  • If it still fails… switch from tearaway to cutaway and reduce risk by choosing a less dense design for that fabric.
• Q: Why do Brother Stellaire Innov-is XJ2 micro fonts (5–6 mm) turn into blobs on polos, and what fixes it?
  A: This is common—micro fonts fail when texture + tiny movement overpower the letter shapes; topping and stable hooping are the fixes.
  • Add water-soluble topping so stitches do not sink into knit loops or towel-like texture.
  • Stabilize with cutaway on stretchy garments to limit push-pull distortion.
  • Keep hooping gentle on knits (do not stretch), because even ~0.5 mm movement can distort micro lettering.
  • Success check: letter edges stay readable and the satin columns do not “melt” into the fabric texture.
  • If it still fails… choose a larger font or switch to a magnetic embroidery hoop to reduce fabric slip compared with friction-based hooping.
• Q: How do you use the Brother Stellaire Innov-is XJ2 laser “Trace” function to prevent hoop collisions and bad placement?
  A: Run “Trace” every time—laser tracing is the fastest way to catch collisions, seams, and off-stabilizer placement before stitching.
  • Tap the Trace button and watch the red dot travel the design perimeter.
  • Confirm the trace does not cross seams, buttons, or fall outside the stabilizer edge.
  • Listen for contact risk at the back limits (hoop nearing or hitting the machine arm).
  • Success check: the traced perimeter stays fully on the safe stitching area with clearance in all directions.
  • If it still fails… move/rotate the design on the Edit screen and trace again until the perimeter is clear.
• Q: What needle safety rule should beginners follow when testing placement or threading on the Brother Stellaire Innov-is XJ2?
  A: Keep hands at least 3 inches away from the needle bar—accidental engagement can cause serious injury.
  • Stop the machine before reaching near the needle area.
  • Use the laser trace and on-screen placement tools instead of holding fabric near the needle path.
  • Recheck clearance and thread path with hands away from moving parts.
  • Success check: placement is validated without any fingers entering the needle bar area.
  • If it still fails… pause, reset the process, and only resume once the area is clear and stable.
• Q: What magnet safety steps are required when using magnetic embroidery hoops with the Brother Stellaire Innov-is XJ2 workflow?
  A: Treat magnetic hoops as pinch hazards—neodymium magnets can snap shut instantly and must be kept away from medical devices and electronics.
  • Keep fingers out of the closing path when seating the magnetic frame.
  • Keep magnetic hoops away from pacemakers and similar medical implants.
  • Do not place magnetic hoops directly on laptops or phones.
  • Success check: the hoop closes under control (no sudden snap onto fingers) and remains stable during handling.
  • If it still fails… slow down the loading motion and reposition your grip so hands never cross the magnet’s closing line.
• Q: When does a Brother Stellaire Innov-is XJ2 owner upgrade from workflow tweaks to magnetic hoops, and then to a multi-needle machine like SEWTECH?
  A: Upgrade in layers based on the bottleneck—first consistency, then hooping speed, then color-change capacity.
  • Level 1 (workflow): add a hooping station when keeping items straight and stable during hooping is the main struggle.
  • Level 2 (tooling): move to magnetic hoops when re-hooping time and fabric slip/hoop burn are limiting quality or comfort.
  • Level 3 (capacity): consider a multi-needle machine like SEWTECH when frequent manual color changes and “babysitting” are consuming hours on batches (for example, 20+ items).
  • Success check: total time per item drops and re-hooping becomes repeatable without fabric damage or wrist strain.
  • If it still fails… track what is consuming time (hooping vs. color changes vs. fix-ups) and upgrade the specific bottleneck rather than changing everything at once.
