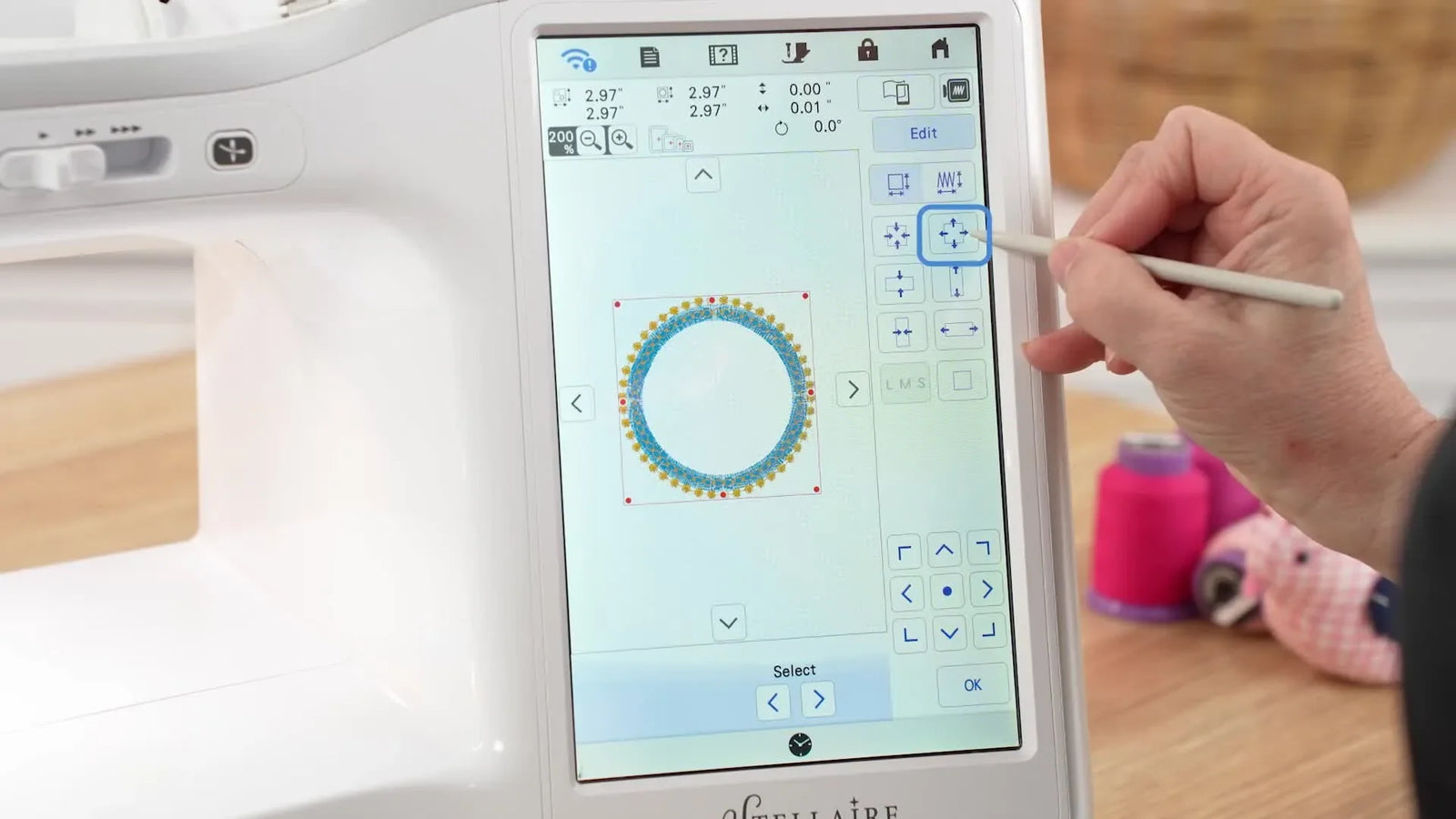

Brother Stellaire My Design Center Line Designs: Build Layered Satin, Diamond & Candlewick Circles That Stitch Clean

Precision Layering: A Master Class on Brother Stellaire "My Design Center"

When you are learning the My Design Center ecosystem on a Brother Stellaire, the screen taps feel deceptively easy—until they aren't. You finish your design, press start, and reality hits: your layers don't land perfectly on top of each other, your satin stitches gap, or the fabric shifts, turning a "simple geometric circle" into something that looks unmistakably homemade.

As someone who has spent two decades diagnosing embroidery failures, I can tell you that machine embroidery is an "unforgiving science." It relies on the perfect marriage of digital precision and physical stability. This project—a layered circle/oval-style motif—is the perfect skill-builder because it forces you to master the three pillars that separate hobbyists from professionals:

1. Predictable Measurement: Setting the machine to speak the language of your physical rulers.
2. Controlled Layering: Using memory functions effectively to ensure concentricity.
3. The "Recalculation" Protocol: How to bypass the software's safety limits when the machine "knocks" and refuses to resize a design.


The "Knock" of Doom: Decoding Stellaire's Error Signals

If you have ever watched the Stellaire make a sharp, digital "knock" or "bonk" sound and thought, Did I break something?, pause. You haven’t broken the machine.

That sound is the operative system’s way of saying: "Mathematical Conflict Detected."

In this workflow, that auditory cue appears in two specific scenarios:

• The Redundancy Knock: When you tap a line with the bucket tool that has already been assigned that specific property.
• The Geometry Knock: When you try to resize a line design smaller, but the stitch algorithm (specifically the interval between motif points) physically cannot shrink any further without corrupting the shape.

The good news? The fix is a built-in "Reset" button that few beginners know how to use. Once you understand why the math fails, you will stop wasting hours redrawing shapes from scratch.

Zero-Friction Setup: Units, Grid, and Frame Display

Before you draw a single pixel, we must sterilize the workspace. Jackie’s setup in the tutorial mirrors what I enforce in professional studios: Align your digital workspace with your physical reality.

The Essential Configuration

• Measurement Unit: Change from mm to Inches.
  • Why? Most commercial stabilizers, hoops, and rulers in the US market are inch-based. Thinking in inches prevents mental conversion errors.
• Embroidery Frame Display: Set to the 9-1/2" x 14" frame.
  • Why? Visualizing the largest field prevents you from accidentally designing outside the printable area.
• Grid: Turn OFF.
  • Why? When aligning concentric circles, the grid lines often create visual noise that competes with your design lines.

This setup is crucial when dealing with precise values like 0.240" versus 0.200". In embroidery, a difference of 0.040" (about 1mm) is the difference between a border that "kisses" the next layer and one that overlaps it messily.

Phase 1: The "Pre-Flight" Prep Checklist

Do not touch the screen until you can check off every item below.

• Machine State: Units set to Inches; Grid OFF.
• Stylus Check: Use the fine-point stylus, not your finger. Fingers cover the contact point; styluses reveal it.
• Needle Freshness: Install a fresh 75/11 Embroidery Needle. A burred needle will drag fabric and ruin alignment.
• Bobbin Status: Visually inspect the bobbin case. Vacuum any lint. Ensure the bobbin is full (you do not want to run out mid-layer).
• Thread Plan: Teal (Satin Layer) + Orange (Texture Layers).
• Hidden Consumable: Have temporary spray adhesive or a sticky stabilizer ready. Layered outlines require absolute fabric immobility.

Hooping Physics: The Secret to Concentric Circles

The video tutorial focuses on screen manipulation, but I must intervene with a hard truth: The best digitization in the world cannot fix bad hooping.

Layered outlines (Satin + Diamond + Candlewick) are essentially a "stress test" for your hooping technique. If your fabric creates a "trampoline" effect (too tight) or a "hammock" effect (too loose), the layers will drift. The first circle will stitch round, but as the fabric relaxes, the second circle will stitch as an oval.

To combat this, professional embroiderers often abandon traditional screw-tightened hoops in favor of modern hooping for embroidery machine protocols using magnetic tension.

Critical Hooping Laws

1. Neutral Tension: The fabric should be smooth, not stretched. If you pull the fabric after the hoop is tightened, you have already failed.
2. Backing is Structural: For a design like this with a heavy satin border, a single layer of tearaway is insufficient. Use a medium-weight Cutaway (2.5oz) to prevent the circle from distorting.
3. Friction: If using standard hoops, wrap the inner ring with bias tape or Vetrap to increase grip on slippery fabrics.

Warning: Physical Safety
Never place your hands inside the hoop area while the machine is live. Even a machine moving at a "slow" 350 stitches per minute moves faster than your reflex reaction time. A needle puncture through the finger is a serious medical emergency.

The Workflow Bottleneck: When to Upgrade

If you find yourself resetting the hoop 3-4 times to get it straight, or if you see "hoop burn" (crushed fibers) on delicate fabrics, this is a hardware limitation.

• Trigger: You start avoiding embroidery because hooping hurts your wrists or takes too long.
• Criteria: Are you doing production runs (5+ items)? Do you need to hoop thick items like towels or jackets?
• The Option: Transition to magnetic embroidery hoops. Unlike screw hoops, magnets clamp straight down, preventing the fabric "drag" that causes misalignment.

Building Layer 1: The Anchoring Satin Circle (Teal)

We begin by establishing the heavy base layer. This satin stitch acts as the visual frame.

Digital Execution

1. Draw: Select Circle in My Design Center.
2. Activation: Note the Red Selection Box. This indicates the object is "live" and malleable.
3. Scale: Use the corner arrows to resize to exactly 2.50 inches.


Property Assignment (The "Bucket" Workflow)

1. Open Line Properties.
2. Select Satin Stitch (Zigzag icon).
3. Color: Teal Blue.
4. Action: Tap the Bucket (Fill) Tool, then tap the outline.
   • Sensory Check: Watch the thin line transform into a thick, solid block. Zoom in to confirm visually.




Parameter Tuning (The Heavy Lifting)

Jackie adjusts the satin width to 0.240" (approx 6mm).

Expert Note: A 6mm satin stitch is wide. It is prone to "looping" if the tension is too loose. Check your top tension before stitching this layer. It should pull firmly.

The "Menu Trap": Be aware that entering certain sub-menus to change settings can inadvertently reset your width to default. Always double-check values before saving.

Phase 2: Setup Checklist

• Circle size confirmed at 2.50".
• Line Property confirmed as Satin.
• Satin Width locked at 0.240".
• SAVE the design to machine memory now. This is your safety net.

Building Layer 2: The Memory Recall Technique (Orange)

Efficiency is king. Instead of drawing a new circle and hoping you drag it to the exact same center point, use the machine’s memory.

The "Recall" Workflow

1. Select Add -> My Design Center.
2. Select the Saved Circle you just created.
3. Result: You now have a duplicate perfectly centered on the original coordinates.

Modification

1. Change Property to Diamond Stitch (Chain-link appearance).
2. Color: Orange.
3. Bucket Tool: Tap to apply.


Refined Parameters

• Size: 0.200"
• Thickness: Reduce to 3.
  • Why? A thickness of 3 puts less stress on the fabric than the default, keeping the design flexible.


Pro Tip: Always Save the file after every layer modification. Treat your save slots like "Undo" checkpoints in a video game.

Building Layer 3: The "Candlewick" Texture

Candlewick stitches are dense, knot-like stitches that mimic hand embroidery. They require specific spacing to avoid bunching up.

Recall & Modify

1. Recall the base circle again.
2. Property: Candlewick Stitch.
3. Color: Orange.
4. Bucket Tool: Tap to apply.


Critical Spacing Data

• Size: 0.120" (The minimum allowed).
• Spacing: 0.052".
  • Why 0.052"? If spacing is too close, the knots will overlap and break the needle. If too far, it looks disjointed. This is the sweet spot.


Visual Alignment

Zoom in 400%. Increase the circle size until it sits just outside the Teal Satin circle. Use the specific "Center" alignment key to ensure you haven't nudged it left or right.

Note on Large Frames: If using the massive 9.5" x 14" embroidery frame, even a 1-degree tilt in hooping will be magnified at the edges. Trust the machine's center, but verify your physical hoop is secure.

The "Knock" Solution: Forcing a Recalculation

Here is the climax of the technical lesson. You attempt to create an inner Candlewick circle. You recall the shape, but when you try to shrink it, the machine makes that "Knock" sound and refuses to go smaller.

The Physics of the Error: The machine has calculated the stitch points for a 2.50" circle. It typically allows scaling down by 10-20%. Beyond that, the math breaks because the candlewick knots would crush into each other.

The Cheat Code

1. Locate the "Recalculate" Button: It usually looks like a question mark or a reset icon within the edit screen.
2. Action: Press it. Confirm the prompt to "Reset Pattern to Default?"
3. Result: The machine clears the previous sizing history. It now sees a new shape.
4. Resize: You can now shrink the circle significantly without the "knock."


Troubleshooting Guide: From Symptom to Cure

Stop guessing. Use this logic flow to fix issues efficiently.

Operational Checklist: Final Countdown

Run this immediately before pressing the blinking green "Start" button.

• Layer Integrity: Check screen to see: Teal Satin Base -> Orange Diamond -> Outer Candlewick -> Inner Candlewick.
• Parameter Lock: Diamond Thickness is 3? Candlewick Spacing is 0.052"?
• Stabilizer Match: Is the stabilizer heavy enough for a 0.240" satin stitch? (If you can see light through it, it's too thin).
• Needle Clearance: Rotate the handwheel manually (one full rotation) to ensure the needle doesn't hit the hoop edge—crucial for these edge-to-edge designs.
• Thread Tension: Pull a few inches of thread from the needle. It should feel like flossing your teeth—resistance, but smooth.


Decision Tree: Stabilizer & Hoop Strategy

Your design is only as good as the foundation it sits on.

• Scenario A: Quilting Cotton / Woven Fabric
  • Stabilizer: Medium Tearaway (2 layers) OR Mesh Cutaway.
  • Hooping: Standard hoop is acceptable if tightened correctly.
• Scenario B: T-Shirts / Stretchy Knits
  • Stabilizer: Fusible Cutaway (Must use cutaway).
  • Hooping: Critical Risk. Do not stretch the knit.
  • Recommendation: This is the prime use case for the brother stellaire hoops upgrade (Magnetic). The magnets hold the knit without warping the grain.
• Scenario C: Towels / Minky
  • Stabilizer: Tearaway (Bottom) + Water Soluble Topper (Top).
  • Why? The topper prevents the Candlewick stitches from sinking into the pile.

Scaling Up: The Path to Production

This tutorial is fun for a single coaster. But what if you need to make 50 logo patches using this border technique?

The workflow described above—drawing, recalling, bucket-filling—is slow. Manual hooping is physically exhausting.

The Production Upgrade (Leveling Up)

If you are transitioning from hobbyist to business owner, you must identify your "Profit Killers":

1. Time: Changing threads manually for every layer.
2. Hoop Burn: Ironing out ring marks on every finished shirt.
3. Consistency: Rejecting items because the border is off-center.

The Solution Stack:

• Level 1 (Tool): magnetic hoop for brother stellaire. Eliminates hoop burn and speeds up hooping by 60%.

Warning: Magnetic Force
High-grade embroidery magnets are industrial strength. They can pinch skin severely. Keep away from pacemakers, credit cards, and mechanical watches.

• Level 2 (Machine): A SEWTECH Multi-Needle Machine. Pre-load all your colors (Teal, Orange, White, etc.). Press start once, and walk away while the machine handles the changes.


The Result: Clean, Concentric, Professional

When you respect the math and stabilize the physics, the result is stunning. The heavy Teal Satin provides a 3D lift, the Orange Diamond adds intricate detail, and the Candlewick provides a delicate finish.

Remember: The machine can drive the needle, but only you can steer the process. Save your files, stabilize your fabric, and when in doubt—Recalculate.

FAQ

• Q: Why does the Brother Stellaire My Design Center make a “knock/bonk” sound and refuse to resize a Candlewick circle smaller?
  A: The Brother Stellaire is hitting a stitch-calculation limit, so use the Recalculate/Reset Pattern function to force new math.
  • Press the Recalculate/Reset icon in the edit screen and confirm the reset prompt.
  • Resize the recalled Candlewick circle again after the reset.
  • Avoid repeatedly shrinking the same previously-sized object without recalculating.
  • Success check: the Brother Stellaire stops “knocking” and the circle resizes smaller normally on-screen.
  • If it still fails: recall a fresh copy of the base circle again, then apply Candlewick properties and resize after recalculation.
• Q: What Brother Stellaire My Design Center settings prevent measurement mistakes when drawing a 2.50" circle and tuning values like 0.240" and 0.052"?
  A: Set the Brother Stellaire My Design Center to Inches, select the 9-1/2" x 14" frame display, and turn the grid off before drawing.
  • Change Measurement Unit from mm to Inches.
  • Set Embroidery Frame Display to 9-1/2" x 14".
  • Turn Grid OFF to reduce visual interference when aligning concentric circles.
  • Success check: the on-screen dimensions match the physical ruler without mental conversion, and small differences (0.240" vs 0.200") are easy to verify.
  • If it still fails: restart the setup and re-check units before saving, because incorrect units can make every later size value wrong.
• Q: Why does Brother Stellaire My Design Center satin stitch width revert after menu changes, and how do I stop a 0.240" satin border from resetting?
  A: Re-check and re-enter the satin width immediately before saving, because certain Brother Stellaire sub-menus can reset the value to default.
  • Set Line Properties to Satin Stitch, then set the width to 0.240".
  • Exit the menu, then immediately open the parameter screen again to confirm the width stayed at 0.240".
  • Save the design to machine memory as a checkpoint before building the next layer.
  • Success check: returning to the satin parameters still shows 0.240" (not the default) right before stitch-out.
  • If it still fails: repeat the width entry and save again after each change; treat each layer as its own “undo” checkpoint.
• Q: How do I stop Brother Stellaire layered circles (Satin + Diamond + Candlewick) from shifting and leaving gaps between teal satin and orange lines?
  A: Prevent fabric movement first—use a medium-weight cutaway stabilizer and aim for neutral hoop tension so the layers land concentrically.
  • Hoop with neutral tension: keep fabric smooth but not stretched (no “trampoline” tightness and no “hammock” sag).
  • Use medium-weight cutaway (2.5oz) for structural support under a heavy satin border.
  • Increase hoop grip on slippery fabrics by wrapping the inner ring with bias tape or Vetrap if using a standard hoop.
  • Success check: the orange Diamond/Candlewick stitches “kiss” the teal satin edge evenly all the way around with no widening gaps.
  • If it still fails: reduce re-hooping by switching to a magnetic-style clamping method, because repeated hoop adjustments commonly introduce drag and misalignment.
• Q: What Brother Stellaire My Design Center pre-flight checklist prevents alignment failures before stitching a 2.50" satin circle and recalled layers?
  A: Do a quick consumables-and-control check—fresh 75/11 embroidery needle, clean/full bobbin area, stylus use, and have spray adhesive or sticky stabilizer ready.
  • Install a fresh 75/11 embroidery needle before precision layering.
  • Inspect and clean the bobbin area (vacuum lint) and confirm the bobbin is full.
  • Use a fine-point stylus instead of a finger to place objects and taps accurately.
  • Prepare temporary spray adhesive or sticky stabilizer to keep fabric immobile during layered outlines.
  • Success check: the design edits feel precise on-screen, and stitching starts without thread starvation, sudden shifting, or mid-layer interruptions.
  • If it still fails: stop and re-check hoop stability and stabilizer choice first, because layering is extremely sensitive to fabric movement.
• Q: What needle and hand safety steps should be followed on a Brother Stellaire before running edge-to-edge designs in a 9.5" x 14" embroidery frame?
  A: Keep hands out of the hoop area while the Brother Stellaire is live, and manually rotate the handwheel one full turn to confirm needle clearance before pressing Start.
  • Power down or keep hands completely away from the hoop area whenever the machine can move.
  • Rotate the handwheel manually one full rotation to ensure the needle will not strike the hoop edge.
  • Verify the hoop is secure before stitching, because even slight tilt is magnified on large frames.
  • Success check: the handwheel rotation completes smoothly with no contact, and the needle path clears the frame edge.
  • If it still fails: reposition the design or re-seat the hoop—do not “test and hope” with the Start button.
• Q: What magnetic hoop safety rules apply when using a magnetic embroidery hoop on a Brother Stellaire to reduce hoop burn and speed hooping?
  A: Treat embroidery magnets as industrial-strength clamps—handle slowly to avoid pinch injuries and keep magnets away from pacemakers and magnet-sensitive items.
  • Lower the magnetic ring straight down under control; do not let magnets snap together near fingers.
  • Keep magnetic hoops away from pacemakers, credit cards, and mechanical watches.
  • Store magnets so they cannot slam into each other or onto metal surfaces.
  • Success check: fabric is clamped evenly without crushed “hoop burn” rings, and hooping is repeatable without multiple re-hoops.
  • If it still fails: reassess stabilizer support and neutral tension, because magnets improve grip but cannot compensate for incorrect foundation materials.
• Q: When layered border projects on a Brother Stellaire take too long or cause repeated re-hooping and hoop burn, what is the practical upgrade path from technique to magnetic hoops to a multi-needle machine?
  A: Use a tiered approach: optimize setup first, add magnetic hooping when hooping is the bottleneck, and consider a multi-needle machine when thread changes and consistency become the profit killer.
  • Level 1 (Technique): lock in Inches + correct frame display, save after every layer, and stabilize with medium cutaway for heavy satin borders.
  • Level 2 (Tool): move to a magnetic hooping method when you are re-hooping 3–4 times, fighting hoop burn, or hooping thick items (towels/jackets).
  • Level 3 (Capacity): switch to a multi-needle machine when manual color changes and repeatability limit output on runs (generally when you need consistent batches, not one-off tests).
  • Success check: fewer rejected pieces from misalignment, faster hooping, and less operator fatigue per item.
  • If it still fails: document the exact failure point (shift, gaps, stiffness, or resizing knock) and address that specific variable first instead of changing multiple things at once.
