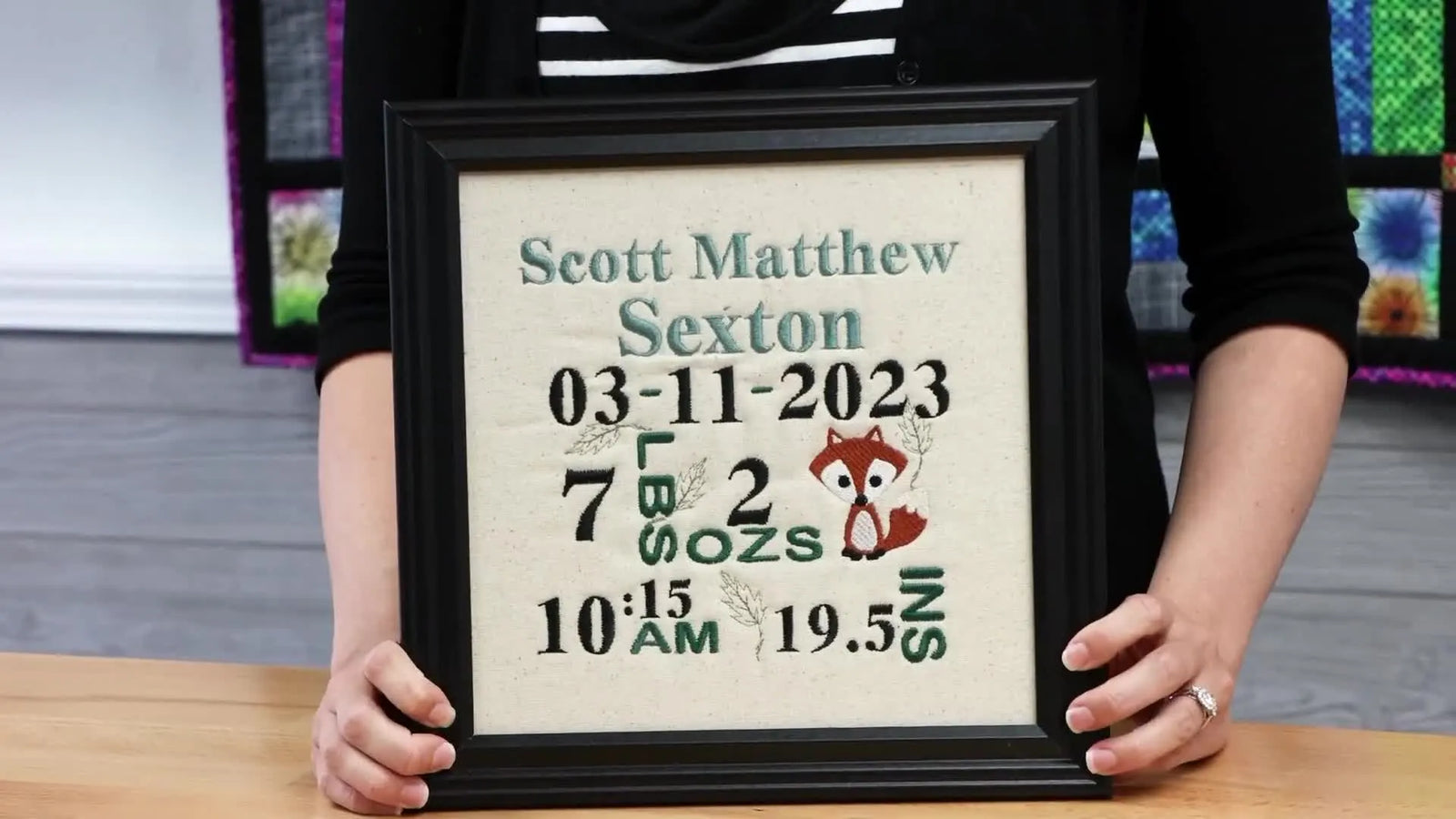

Brother Stellaire XJ1 Birth Announcement Templates: Clean On-Screen Text, Perfect Alignment, and a Finish You’d Actually Gift

Master the Birth Announcement: A Professional’s Guide to Precision on the Brother Stellaire

A birth announcement stitch-out looks “simple” right up until the moment your numbers don’t match, the name feels slightly crooked by a millimeter, or the fabric ripples inside the frame like a topographic map.

I’ve watched beginners blame their machine for these results for 20 years. However, the machine connects the dots; you define where those dots go. The culprit is almost always a lack of setup discipline: how you prepare the physical materials, how you manipulate the digital data, and how you stabilize the embroidery field so the stitches land exactly where the screen promised.

This project is the perfect training ground for the Brother Stellaire XJ1 workflow. We will break down Kelsey’s method from The She Shed and elevate it with industrial best practices. We will move beyond "hoping it works" to a system of predictable precision.

1. The Foundation: Selecting the Template & Hoop Size

The Goal: Eliminate physical constraints before digital editing begins.

Kelsey starts with a pre-purchased template (her fox design example is from My Memory Design). She highlights the first non-negotiable rule of embroidery engineering: Respect the minimum hoop size. This design requires a 5" x 7" hoop minimum.

Why This Matters (The Physics of Registration)

If you try to shrink a 5x7 design to fit a 4x4 hoop, you increase the stitch density (stitches per inch). This forces too much thread into too little fabric, leading to:

• Bulletproof patches: The design becomes stiff and unyielding.
• Thread breaks: The needle heats up from friction against existing thread.
• Distortion: The fabric pulls inward, ruining the circular shape of the wreath.

Pro Tip: when shopping for templates, look for negative space. Tiny text crammed into decorative borders is a nightmare for beginners. You need room for the thread to "breathe" and for the natural expansion of the fabric.

2. The "Hidden" Prep: The Stability Sandwich

Before you touch the screen, you must engineer your substrate. In embroidery, we don't just "hoop fabric"; we create a composite material that can withstand the push and pull of thousands of needle penetrations.

Kelsey’s go-to combo for framed announcements is distinct from wearable embroidery:

• Fabric: Osnaburg or Essex (cotton linen blend) for a textured, premium look.
• Stabilizer: No-show mesh (PolyMesh).
• Volumizer: Batting.

The Sensory Check: How Tight is "Tight"?

When you hoop this sandwich (Fabric + Batting + Mesh), you are looking for specific sensory feedback:

1. Visual: The grain of the linen must be perfectly perpendicular to the hoop edges. If the grid of the fabric waves, your text will look crooked even if the machine stitches straight.
2. Tactile: Tap the fabric in the center of the hoop. It should feel like a tufted sofa—firm and cushioned, but not stretched so tight that the weave distorts.
3. Auditory: When tightening the hoop screw, you want to tighten it finger tight plus one half-turn with a screwdriver. Do not over-torque, or you will strip the screw or crack the outer ring.

Commercial Insight: If you struggle to get this "drum-skin" tension without leaving "hoop burn" (shiny marks) on delicate linen, this is a hardware limitation. Standard plastic hoops rely on friction. Professionals often upgrade to magnetic embroidery hoops because they use vertical magnetic force to clamp the fabric without dragging it, eliminating ring marks and reducing wrist strain.

The "Hidden Consumables" You Need

• Temporary Spray Adhesive (e.g., 505): To bond the batting to the stabilizer so it doesn't shift.
• New Needle: Use a 75/11 Sharp (not Ballpoint) for linen.
• Curved Scissors: For trimming intricate jump stitches later.

Prep Checklist (Do this before powering on)

• Hoop Check: Confirm the template fits inside the red safety lines of your 5x7 (or larger) hoop.
• Sandwich Build: Adhere stabilizer to batting, and batting to fabric.
• Grainline Check: Ensure fabric weave runs straight north-south in the hoop.
• Needle Swap: Install a fresh 75/11 needle.
• Bobbin Check: Ensure you have a full bobbin of 60wt or 90wt bobbin thread (white).


3. Import and Data Hygiene on the Brother Stellaire

Kelsey’s import path is standard: Embroidery Menu → USB Icon.

However, the "Professional Upgrade" here is USB Hygiene.

• Format: Ensure your drive is formatted to FAT32 (most machines require this).
• Isolation: Don't keep 5,000 files on one stick. The machine's processor has to index them. Keep a dedicated "Current Project" USB.
• Selection: Verify you are selecting the .PES file (for Brother) and specifically the size that matches your hoop. Loading a .DST (industrial format) often creates color-stop issues on home machines.


4. The Grid Overlay: The Only Truth You Can Trust

Kelsey enables the background grid immediately. Do not skip this.

• The Lie: Your eyes will tell you text is centered based on the shape of the letters.
• The Truth: The grid shows the mathematical center.

If you have ever stitched a design that looked straight on screen but slanted on fabric, it is usually because you trusted your eyes over the grid. Use the grid lines to align the baseline of your text, not the bottom of curly fonts.

5. Typography Engineering: The "Separate Elements" Technique

If you take only one thing from this guide, let it be this: Never type the full date as one line.

Kelsey demonstrates the industry-standard method:

1. Select Font No. 03 (or your choice).
2. Type the Name ("Scott"). Set to Size M.
3. The Pivot: Instead of typing "03/11/2023" as one block, she types "03", then "11", then "2023" as three separate objects.

Why Separate?

• Kerning Control: You can adjust the gap between the month and day without splitting the text object.
• Height Normalization: 4 digits ("2023") naturally appear smaller than 2 digits ("11") at the same point size due to optical scaling. Separating them allows you to force them to be the exact same physical height.




Warning: Mechanical Safety
Keep fingers clear of the needle area and never reach under the presser foot while the machine is actively moving. Even during "trace" or "check" modes, the carriage moves rapidly. A 1000 SPM needle puncture through a finger is a medical emergency that requires bolt cutters to remove.

6. Precision Sizing: The 0.82" Standard

This is where amateurs guess and pros measure.

Kelsey selects the "2023" object and notes its height in the Size tab: 0.82 inches. She then selects the "11". It might default to 1.18". She manually overrides this layout to match 0.82".

The Rule of Consistency: When combining different text blocks (Name, Date, Weight, Length), establish a "Gold Standard Height" for your secondary text (e.g., 0.50" or 0.82") and force every non-headline element to match that number exactly.

Setup Checklist (Digital Edit Phase)

• Grid On: Turn on the layout grid relative to the hoop center.
• Separation: Ensure Date, Weight, and Length are individual editable objects.
• Height Match: Verify all secondary data points match your chosen height (e.g., 0.82").
• Font Audit: Check that your chosen font is legible at the small size required for "AM/PM".


7. The Placement Workflow: Zoom, Stylus, and Parallax

Kelsey drags the numbers to their placeholders. Here, she encounters Parallax Error: The gap between the touchscreen glass and the LCD panel can make your finger look like it's touching X when it's actually touching Y.

The Fix:

1. Zoom In: Never place text at 100% view. Zoom to 200% or 400%.
2. Use the Stylus: Your finger is too blunt for 1mm adjustments.
3. The "Nudge" Keys: Use the directional arrows on the screen for final placement, not the drag-and-drop method.

This workflow is critical when placing text into pre-stitched appliqué borders or template gaps.

8. Workflow Expansion: When "Fun" Becomes "Production"

Kelsey is working on one special gift. But what if you decide to sell these?

The Production Bottleneck: On a single-needle machine like the Stellaire, every color change requires you to stop, cut, re-thread, and restart. A 6-color design with text might have 12 thread changes.

• Time per unit: ~45 minutes.
• Risk: High (re-threading fatigue leads to mistakes).

The Tool Upgrade Path:

1. Level 1 (Better Hoops): If you are fighting with hooping for embroidery machine accuracy, upgrading to a magnetic hoop for brother stellaire allows you to slide fabric for micro-adjustments without un-hooping.
2. Level 2 (Multi-Needle): If you start getting orders for 10+ announcements or team shirts, a single-needle machine creates a bottleneck. A SEWTECH Multi-Needle Machine allows you to set up all 6 colors at once. The machine handles the changes automatically, reducing that 45-minute runtime to 20 minutes of hands-off labor.

Warning: Magnet Liability
Magnetic embroidery hoops utilize extremely powerful Neodymium magnets.
* Pinch Hazard: They can snap together with enough force to bruise skin or break fingernails. Slide them apart; do not pull.
* Medical Device Safety: Keep at least 6 inches away from pacemakers and insulin pumps.
* Electronics: Keep away from credit cards, mechanical hard drives, and non-shielded screens.

9. The Fine Detail: High-Compression Text

For the "Time" (10:15), the text must be very small. Kelsey inputs "10" and "15" and shrinks them significantly.

The Physics of Small Text: When you shrink a standard font below 0.25" (6mm), the loops of the 'e' and 'a' often close up.

• Density Danger: As size decreases, density increases.
• The Fix: You need a thinner thread (60wt) and a smaller needle (65/9) for text smaller than 0.25". Or, choose a "Micro" font specifically digitized for small sizes.
• Visually: Look for the "selection box trap." When items are tiny, it's easy to accidentally select the wrong object. Always watch which box highlights before moving.


10. Font Auditioning: Non-Destructive Editing

Kelsey highlights existing text and scrolls through fonts to preview changes. This preserves the sizing and placement work she just did.

Design Strategy:

• Varsity/Block: Good for "Boy" themes or sports.
• Script: Traditional, elegant, but harder to read at small sizes.
• Sans Serif: Modern, clean, safest for small dates/weights.

If you are exploring different brother embroidery hoops sizes, be aware that some script fonts typically require larger hoops to stitch out connecting tails cleanly.

11. The Stabilizer Decision Matrix

Kelsey uses a specific "stack" (Mesh + Batting), but you may not always want that puffy look. Use this logic tree to decide what to put behind your fabric.

Decision Tree: Stabilizer Selection for Framed Art

1. Is the fabric stretchy (Jersey/Knit)?
   • Yes: STOP. You must use Fusible No-Show Mesh (Cutaway). Tearaway will cause distortion.
   • No (Woven/Linen): Go to step 2.
2. Is the background light-colored or white?
   • Yes: Use No-Show Mesh. Heavy Cutaway will show a "shadow" through the fabric.
   • No: You can use standard Medium Weight Cutaway (2.5oz).
3. Do you want a "Quilted" 3D effect?
   • Yes: Add Batting or Fusible Fleece between fabric and stabilizer.
   • No: Iron a layer of Fusible Woven Interfacing (SF101) to the back of the linen to prevent puckering, then hoop with Mesh.

12. Troubleshooting: When The Screen Looks Right but the Stitch Looks Wrong

Even with perfect editing, issues arise. Here is your structured guide to fixing common errors.

13. The Professional Finish

Kelsey leaves the stabilizer sequence in the frame. This is a brilliant finishing move for framed art.

• Don't Tear It: Tearing stabilizer stresses the stitches.
• Trim It: Use rotary cutters to trim the stabilizer/batting flush with the frame size. It acts as a supportive backing board inside the picture frame.

Final Operation Checklist (The "Pre-Flight")

• Visual Scan: Zoom to 400% on the date and overlapping areas. Are any letters touching?
• Color Check: Do you have all thread colors lined up in order?
• Speed Setting: Lower your max speed to 600 SPM for the text portions. High speed on small satin columns causes messy turns.
• Hoop Clearance: Ensure there is nothing behind the machine (wall, coffee cup) that the hoop arm will hit.
• Breathe: Take a breath. Press Start.

By following this disciplined approach—separating elements, verifying hooping tension, and confirming physical measurements—you transform a stressful gamble into a repeatable, high-quality product. Whether you are making one for a nephew or fifty for a boutique, the secret is in the setup.

FAQ

• Q: What hidden consumables should be prepared before stitching a birth announcement on the Brother Stellaire XJ1?
  A: Prepare the stabilizer “sandwich” supplies and a fresh needle before powering on to prevent shifting, puckering, and thread issues.
  • Gather: no-show mesh stabilizer, batting, temporary spray adhesive (e.g., 505), curved scissors, and a new 75/11 Sharp needle (for linen).
  • Check: use a full bobbin with 60wt or 90wt bobbin thread (white) before starting.
  • Success check: fabric sits smooth in the hoop with no pre-stitch ripples, and the bobbin area feels clean and consistent during the first few minutes of stitching.
  • If it still fails: re-check the stabilizer choice (mesh vs heavier cutaway) and confirm the fabric is woven linen (not knit) before changing any machine settings.
• Q: How tight should the fabric + batting + no-show mesh stabilizer be hooped for a Brother Stellaire framed birth announcement?
  A: Hoop to “tufted sofa” tight—firm and cushioned—without stretching the weave or crushing the fabric.
  • Align: keep the linen grain perfectly perpendicular to the hoop edges before tightening.
  • Tighten: go finger-tight on the hoop screw, then add about a half-turn with a screwdriver (do not over-torque).
  • Success check: tap the center— it feels firm with a little cushion, and the fabric weave is not distorted or wavy.
  • If it still fails: if hoop burn (shiny ring marks) or slippage keeps happening, consider a magnetic clamping-style hoop system since standard friction hoops may mark delicate linen.
• Q: How can Brother Stellaire XJ1 users prevent text from looking centered on-screen but stitching slightly crooked on fabric?
  A: Use the Brother Stellaire grid overlay as the alignment reference, not the visual shape of the letters.
  • Turn on: enable the background grid immediately after importing the design.
  • Align: match the text baseline to grid lines (especially with script fonts), not the “bottom” of curly letterforms.
  • Success check: the text object’s baseline visually tracks the grid line across the full width before stitching begins.
  • If it still fails: re-check hooping grainline (fabric weave must run straight north–south in the hoop), because a shifted grain can make straight stitching look crooked.
• Q: How do Brother Stellaire XJ1 users avoid touchscreen placement errors (parallax) when positioning tiny date/time text?
  A: Place text at high zoom with a stylus, then finish with nudge keys instead of finger drag.
  • Zoom: work at 200% or 400% view for placement work.
  • Use: a stylus for initial positioning to avoid 1 mm finger error.
  • Nudge: use directional arrow “nudge” controls for final alignment rather than drag-and-drop.
  • Success check: at 400% zoom, the gap around the text is even relative to the template space before pressing start.
  • If it still fails: confirm the correct object is selected (watch the highlighted selection box), because tiny items are easy to mis-select.
• Q: How should Brother Stellaire XJ1 users build dates like “03/11/2023” so the numbers match height and spacing in a birth announcement template?
  A: Type month, day, and year as separate text objects so each block can be sized and spaced precisely.
  • Create: “03”, “11”, and “2023” as three independent objects (not one line).
  • Normalize: pick one “gold standard” height (the example uses 0.82") and manually set each secondary text block to that exact height.
  • Success check: the Size tab shows the same height value for each of the date parts, and the spacing looks consistent on the grid.
  • If it still fails: audition a more legible font for small numbers, because some fonts visually shrink or thicken in ways that make matching harder.
• Q: What causes “eyelashing” (bobbin thread showing on top) on a Brother Stellaire XJ1 birth announcement stitch-out, and what is the first fix?
  A: Re-thread the top thread correctly first—most eyelashing comes from the thread not being fully seated in the tension path.
  • Raise: the presser foot, then re-thread the machine from the start so the thread can enter the tension discs.
  • Floss: the thread into the tension discs (firm, controlled pull) before continuing.
  • Success check: satin columns and outlines show the top thread cleanly with minimal bobbin thread peeking on the surface.
  • If it still fails: inspect the bobbin case area for lint buildup or a damaged tension spring before assuming a larger machine problem.
• Q: What are the key needle-area safety rules when running “trace/check” modes on the Brother Stellaire XJ1?
  A: Keep hands fully clear of the needle and carriage area at all times, even during trace/check, because the carriage can move suddenly and fast.
  • Stop: never reach under the presser foot while the machine is moving in any mode.
  • Position: keep fingers out of the hoop travel path before pressing start or trace.
  • Success check: hands remain outside the hoop/needle zone for the entire motion cycle, including rapid direction changes.
  • If it still fails: if a habit of “quick adjusting” near the needle is hard to break, pause the machine completely before any adjustment and wait for all motion to stop.
