Bucket Hat Embroidery Without the Headache: The Floating Technique That Keeps Brims, Sweatbands, and Sanity Intact

The Ultimate Guide to Bucket Hat Embroidery: A Zero-Friction Workflow for Single-Needle Machines

Bucket hats are the "final boss" for many embroidery enthusiasts. Unlike a flat t-shirt or a stable towel, a bucket hat is tubular, unstructured, and biologically engineered to fight a standard flat hoop. The brim gets in the way, the sweatband wants to sneak under the needle, and the fear of stitching the hat shut is very real.

But here is the truth derived from twenty years on the production floor: Geometry is not your enemy—friction is.

If you try to jam a bucket hat into a standard plastic hoop, you are fighting physics. The hat will slip, the "hoop burn" (those shiny ring marks) will ruin the fabric, and you will likely break a needle. The solution isn't brute force; it is the Floating Method.

This guide is your "White Paper" on mastering hat embroidery on domestic single-needle machines (like the Brother Innov-is series). We will move beyond basic instructions into the sensory details—the sounds, sights, and feelings—that guarantee a professional result. We will cover the specific "Safe Zone" settings you need and identify exactly when it’s time to upgrade your tools from hobbyist hacks to professional production.

Why Bucket Hat Embroidery Fights You: Curved Fabric, Brim Bulk, and “I Can’t Hoop This” Reality

To conquer the bucket hat, you must first respect its structure. A bucket hat presents a triad of challenges that standard hooping cannot solve:

1. Compound Curves: The crown of the hat is spherical, but your hoop is planar (flat). Forcing a sphere flat creates ripples (puckering).
2. Structural Resistance: The brim is reinforced with stiff interfacing. It does not bend easily, creating leverage that pops the inner ring out of the outer ring.
3. The "Kill Zone": The sweatband. This flap of fabric is the #1 cause of ruined projects. If it drifts under the needle plate, you will sew the hat to itself.

Traditional clamping creates immense cognitive friction. You spend 20 minutes wrestling the hoop, only to find the alignment is off by 3 degrees.

The Solution: We stop trying to hoop the object. Instead, we hoop the stabilizer, and then "float" the object on top. This eliminates hoop burn completely and gives you 100% control over placement.

The “Hidden” Prep Pros Do First: Stabilizer, Template, and a Clean Work Surface (So the Hat Doesn’t Drift)

Success happens before the machine is even turned on. In professional embroidery, 80% of the work is preparation; 20% is stitching.

For this workflow, you need to assemble a precise toolkit. Missing one of these items allows variables to creep in, and variables lead to failure.

The Mandatory Gear List:

• The Consumable: High-quality Adhesive Tearaway Stabilizer (often called "Sticky-Back" or "Peel-and-Stick"). Do not use standard tearaway with spray adhesive for hats; the hold isn't strong enough for the brim's weight.
• The Hardware: Standard 5x7 hoop (or the largest hoop your machine accepts).
• The Needle: Install a fresh 75/11 Sharp or Ballpoint needle. (Use Sharps for cotton twill, Ballpoint for floppy polyester/knits). Pro-tip: If you can hear the needle "punching" the fabric with a thud, your needle is dull.
• The Analog Tools: A clear plastic ruler, a straight pin, scissors with sharp tips, and a printed paper template of your design with crosshairs.

Hidden Consumable: Keep a roll of Painter's Tape or Masking Tape nearby. This is your "security guard" for the sweatband.

Prep Checklist: The Pre-Flight Safety Protocol

• Design Audit: Open your design in software or on the machine screen. Does it have a Basting Box (a loose perimeter stitch) added? If not, add it. This is non-negotiable for floating.
• Bobbin Check: Is your bobbin at least 50% full? Changing a bobbin in the middle of a hat project is a nightmare.
• Blade Check: Test your scissors on a scrap piece of stabilizer. They must cut cleanly at the very tip to trim basting threads later without sniping the fabric.
• De-linting: Remove the needle plate and clean the bobbin case. Hat lint is heavy and causes tension issues.

Warning: Mechanical Safety. Small scissors and pins are hazardous near the needle bar. Never place tools on the machine bed. When threading the needle or changing the presser foot, always engage the machine's "Lock" mode (if available) or power off to prevent the needle from descending on your fingers if the start button is bumped.

Hoop the Tacky-Back Tearaway Stabilizer “Drum Tight” (Tighter Than Fabric) to Stop Micro-Slips

This step defines the stability of your entire project. Unlike fabric, which naturally stretches, stabilizer is static paper. It must be hooped under high tension to prevent the design from distorting.

The Sensory Anchor:

1. Place the stabilizer over the outer hoop, paper side/shiny side UP.
2. Press the inner hoop down.
3. Tighten the hoop screw.
4. The Sound Test: Tap the stabilizer with your fingernail. It should make a sharp, high-pitched "drum" sound. If it sounds dull or thudding, it is too loose. It should feel taut, like the skin of a drum.

Note: Do not use pliers to tighten the screw. Finger-tight plus one-half turn is the safe limit to avoid cracking the plastic.

Checkpoint: Run your hand over the surface. It must be perfectly flat. Any ripple here translates to a distorted logo later.

Score and Peel a Sticky Window the Right Size (So the Full 2.5" Design Actually Sticks)

You need to expose the adhesive without destroying the structural integrity of the stabilizer. This requires a delicate touch—known as "scoring."

The Technique:

1. Use your ruler and a straight pin (or another sharp object like a seam ripper tip, used gently).
2. Sensory Cue (Tactile): Drag the pin across the paper. You want to feel the paper fibers separating, but you should not feel the needle dip into the fibrous stabilizer underneath. Think of it like scratching a lottery ticket—surface only.
3. Create a window slightly larger than your design. If your logo is 2.5 inches wide, score a 3.5-inch window.


Why not peel the whole sheet? Because exposed adhesive collects lint, thread dust, and friction from the machine bed. Limits are efficient.

1. Lift one corner of the scores paper.
2. Peel it back.
3. Visual Check: The exposed surface should be shiny and uniform. If you see fuzzy white fibers sticking up, you cut too deep. (If you cut too deep, patch it with tape on the back or re-hoop. Do not stitch over a cut stabilizer.)


Checkpoint: Touch the adhesive lightly. It should be aggressively tacky. If it feels dry or weak, your stock is old; discard it.

Expert Note on Tooling: This scoring process is tedious. In high-volume shops, this step creates a bottleneck. This is why many manufacturers switch to magnetic embroidery hoops. These allow you to clamp the backing and fabric simultaneously without sticky residue, bypassing the scoring process entirely. If you find yourself doing 10+ hats a week, the time savings of magnetic frames pay for the upgrade within a month.

Find True Center on a Bucket Hat Using Side Seams + Label (So Your Design Isn’t Quietly Crooked)

The human eye is terrible at judging curves. If you "eyeball" the center, your logo will end up rotated 5 degrees, which looks amateurish. We need a physical anchor.

The Geometry Method:

1. Locate the tag inside the hat; this is almost always the exact back center.
2. Locate the two side seams.
3. Flatten the hat so the side seams touch each other exactly.
4. The fold line that forms at the front is your True Mechanical Center.


Use tailors chalk or a water-soluble pen to mark this vertical line. Then, measure up from the brim junction to find your vertical placement (usually 0.5 to 1.0 inches above the brim seam).

Pin the Paper Crosshair Template Flat (No Bunching) and Keep Pins Out of the Hoop Edge

Digital positioning is great, but analog verification is safer.

1. Take your printed paper template (actual size).
2. Align the crosshairs on the paper with the chalk crosshairs on your hat.
3. Critical Action: Pin the template through the hat fabric.
4. The Safety Rule: Place pins horizontal and flat. Ensure the pin heads are well away from the center where the embroidery foot will travel.


Checkpoint: Run your palm over the pinned template. It must follow the curve of the hat without bunching. If the paper buckles, the fabric underneath is bunched, and you need to re-pin.

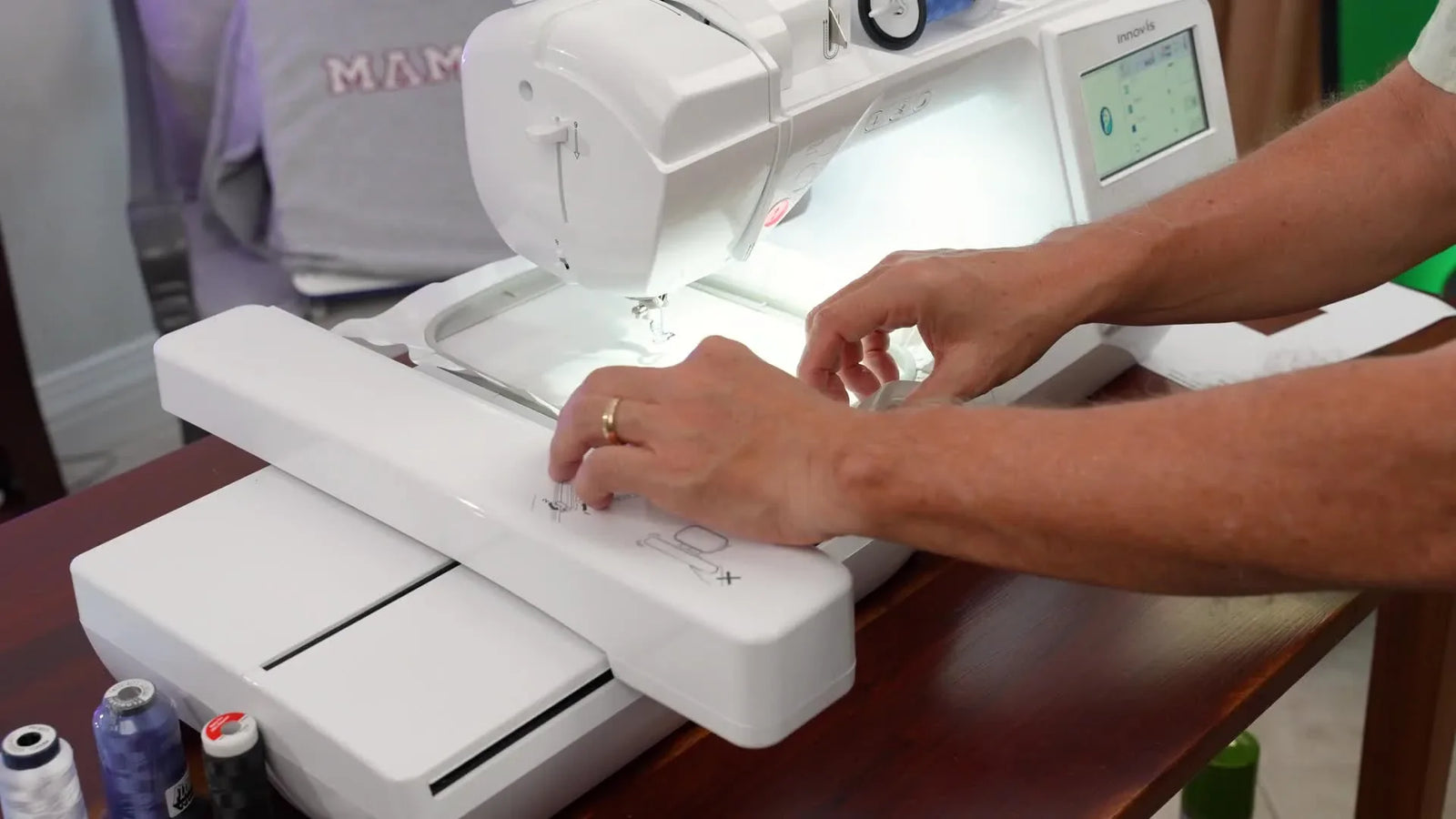

Load the 5x7 Hoop, Then “Float” the Bucket Hat Onto the Sticky Stabilizer (While Hiding the Sweatband)

This is the most physically awkward part of the process. Relax your shoulders.

1. Install the hoop onto the machine arm before attacking the hat. This gives you a stable platform.
2. Raise the presser foot to its highest position.
3. The Sweatband Maneuver: Flip the sweatband out of the hat or tape it back deeply inside. It must be nowhere near the sticky window.
4. Slide the hat over the needle bar area.
5. Press the hat onto the sticky adhesive, aligning your visual center with the hoop center.


Sensory Touch: Press firmly. Massage the fabric onto the adhesive. You want to bond the fibers to the glue.

Decision Tree: Stabilizer Choice

• Is the hat heavy Canvas/Cotton? -> Use Standard Sticky Tearaway.
• Is the hat soft Knitted/Stretchy? -> Use Cutaway Stabilizer with temporary spray adhesive. Tearaway will support the stitches, but it won't stop the knit from stretching during the process, leading to gaps.

Warning: Magnet Safety. If you upgrade to magnetic frames to speed this up, treat the magnets with extreme respect. These are industrial neodymium magnets. They can pinch skin severely and erase credit cards. Pacemaker Warning: Keep strong magnets at least 6 inches away from medical devices.

If you own a Brother machine, you might have searched for a specific hat hoop for brother embroidery machine. While dedicated cap drivers exist, they are expensive and complex to install. The floating method is the universal "hack" that bypasses the need for $1,000+ hardware attachments.

Do the Needle-Drop “Truth Test” on the Template Crosshair Before You Commit

Never trust the screen blindly. The screen shows you a digital ideal; the needle shows you physical reality.

1. Use the machine's handwheel to slowly lower the needle.
2. Visual Anchor: Watch the tip of the needle. It must land precisely in the center of the X on your paper template.
3. If it misses, use the machine's arrow keys to jog the hoop until it is perfect.


Checkpoint: Once aligned, carefully remove the pins and the paper template. Ensure you don't lift the hat off the adhesive while doing this.

Run the Basting Stitch First—It’s Not Optional on Floating Hats (It’s Your “Temporary Hoop”)

Adhesive is strong, but stitch density creates "pull." A dense design can pull the hat off the glue. You need a mechanical anchor.

The Basting Stitch: This is a long-stitch box that runs around the perimeter of your design.

1. Speed Setting: Turn your speed DOWN. 400 SPM (Stitches Per Minute) is the "Sweet Spot" for this step.
2. Start the machine.
3. Watch Like a Hawk: Keep your fingers ready on the stop button. Watch the sweatband. Watch the brim. If anything shifts, stop immediately.


Expected Outcome: A box is stitched, pinning the fabric through the stabilizer. The hat is now mechanically locked. It cannot move.

Stitch the Main Design (Oval Shapes Hide Curvature Better Than Straight Lines)

Now you can breathe slightly easier. But don't walk away.

Operational Parameters for Beginners:

• Speed: Maintain 600 SPM. High speeds (1000+) increase vibration, which is the enemy of heavy, floating items.
• Design Choice: The video suggests an oval. Why? Physics. A straight square border on a curved hat will look "bowed" or curved when the hat is worn (due to the compound curve flattening out). An oval or organic shape hides this distortion naturally.


Sensory Check (Auditory): The machine should sound rhythmic. Thump-thump-thump. If you hear a grinding noise or a sharp snap, hit stop. A snap usually means the needle hit the brim or the thread shredded.

Clean Removal: Cut Basting Bobbin Threads, Then Tear Away Stabilizer Gently (No Yanking)

The project is finished, but you can still ruin it by being aggressive.

1. Remove the hoop from the machine.
2. Flip the hoop over.
3. The Surgical Cut: Simply pulling the basting thread will pucker your design. Instead, use your sharp scissors to snip the bobbin thread of the basting box every 1 inch.
4. Flip to the front. Now you can pull the top basting thread out easily, like pulling a loose thread from a sweater.


5. Tearing Technique: Place your thumb on the embroidery stitches to support them. With your other hand, gently tear the stabilizer away. Do not yank against the stitches.


Checkpoint: Inspect the back. Is it a "bird's nest"? A little mess is okay, but massive loops indicate tension issues.

Post-Op Checklist:

• Verify all basting threads are removed.
• Use small curved scissors to trim jump threads flush to the fabric.
• Check the inside: Did the sweatband survive unscathed?
• Use a lint roller to remove any stabilizer dust from the hat.

Troubleshooting Bucket Hat Embroidery: Symptoms, Causes, and Fast Fixes

When things go wrong, don't panic. Use this diagnostic table.

When to Upgrade Your Workflow: From Sticky Stabilizer to Production Power

The method described above is perfect for doing 1 to 5 hats. It is low-cost and high-control.

However, the "Pain Threshold" exists. If you receive an order for 20 hats, scoring rigid stabilizer and fighting with tape for every single unit will hurt your wrists and destroy your hourly wage.

The Upgrade Path:

1. Level 1: The Speed Fix (Component Upgrade).
   If you hate the sticky mess and scoring paper, professionals switch to a magnetic hoop for brother (or your specific machine brand). These hoops use powerful magnets to clamp the hat and backing instantly. It eliminates "hoop burn" entirely and reduces hooping time by 60%.
   • Search Strategy: Look for a brother 5x7 magnetic hoop compatible with your arm width.
2. Level 2: The Stability Fix (Workflow Upgrade).
   If your alignment is inconsistent across 10 hats, you need a hooping station for embroidery machine. This is a physical jig that ensures every hat is clamped in the exact same spot, every time.
3. Level 3: The Scale Fix (Machine Upgrade).
   Single-needle machines adhere to the "flat bed" rule. You have to twist the hat to make it fit. Commercial machines (like SEWTECH multi-needle systems) have a "free arm" combined with specialized Cap Drivers. The hat spins 270 degrees naturally. If you are doing volume production (50+ units), a multi-needle machine isn't a luxury; it's a math equation that solves for profit.

The Bottom Line: Trust the Logic, Not the Luck

Embroidery is not magic; it is engineering. By understanding the forces at play—stabilizer tension, adhesive friction, and mechanical basting—you remove the luck from the equation.

Follow the checklist. Listen for the "drum tight" sound. Watch the needle-drop test. If you respect the process, the bucket hat stops being a nightmare and becomes just another canvas for your creativity.

Ready to streamline your setup? Check your stabilizer stock and consider if your current hoop is holding you back.

FAQ

• Q: On a Brother Innov-is single-needle embroidery machine, what is the safest way to embroider a bucket hat without hoop burn using sticky-back tearaway stabilizer?
  A: Use the Floating Method: hoop only adhesive tearaway stabilizer, then stick the bucket hat on top (do not clamp the hat in a standard hoop).
  • Hoop adhesive tearaway “drum tight” (paper/shiny side up) and expose only a small sticky window sized slightly larger than the design.
  • Tape or flip the sweatband fully out of the stitching area before pressing the hat onto the adhesive.
  • Run a basting box first to mechanically lock the hat before stitching the main design.
  • Success check: the hooped stabilizer makes a sharp, high-pitched “drum” sound when tapped, and the hat does not creep when the basting box runs.
  • If it still fails, slow down and re-hoop the stabilizer tighter; hat shifting usually starts with micro-slips in the backing.
• Q: On a Brother Innov-is using adhesive tearaway stabilizer, how do you score and peel the sticky window without cutting through the stabilizer?
  A: Score only the paper layer—do not cut into the fibrous stabilizer—then peel a window slightly larger than the design.
  • Drag a straight pin along a ruler with light pressure, “lottery ticket” style, to separate paper fibers only.
  • Make the window larger than the design (for a 2.5" logo, score about a 3.5" window) to ensure full contact.
  • Inspect the exposed adhesive for a shiny, uniform surface before mounting the hat.
  • Success check: the adhesive feels aggressively tacky and looks smooth; no fuzzy white fibers should be standing up.
  • If it still fails, patch minor over-scoring from the back with tape or re-hoop; do not stitch over a cut stabilizer.
• Q: On a Brother Innov-is 5x7 hoop setup, how tight should sticky-back stabilizer be hooped to prevent bucket hat designs from stitching crooked or distorted?
  A: Hoop the sticky-back stabilizer tighter than fabric—aim for “drum tight” to stop micro-slips.
  • Tighten the hoop screw finger-tight plus about a half turn (do not use pliers to avoid cracking the hoop).
  • Smooth the surface by hand and remove any ripples before exposing the adhesive window.
  • Keep the hoop surface perfectly flat because any ripple can translate into logo distortion.
  • Success check: tapping the hooped stabilizer produces a sharp, high-pitched drum sound and the surface feels uniformly taut.
  • If it still fails, re-hoop from scratch; a slightly loose backing is enough to rotate a floating hat during stitching.
• Q: On a Brother Innov-is, how do you center a bucket hat embroidery design so the logo is not rotated a few degrees?
  A: Use physical references (side seams + inside label) and confirm with a needle-drop test on a paper crosshair template.
  • Fold the hat so the side seams touch; the front fold line becomes the true mechanical center, and the inside tag usually marks back center.
  • Mark the center line and pin an actual-size paper template with crosshairs flat to the curve (no buckling).
  • Use the handwheel to lower the needle onto the template crosshair and jog the hoop until the needle hits dead center.
  • Success check: the needle tip lands precisely in the center of the paper “X” before stitching starts.
  • If it still fails, re-pin the template flatter; paper buckling usually means the fabric underneath is bunched and will sew crooked.
• Q: On a Brother Innov-is embroidering a floating bucket hat, why is a basting box required and what speed should be used to prevent the hat from shifting mid-stitch?
  A: A basting box acts like a temporary hoop and prevents dense stitching from pulling the hat off the adhesive; run it slow at about 400 SPM.
  • Add a basting box in the design (or on-machine if available) before the main stitching sequence.
  • Reduce speed to around 400 SPM for the basting step and watch the sweatband and brim closely.
  • After the basting box, stitch the main design at a controlled speed (about 600 SPM for beginners) to reduce vibration.
  • Success check: after the basting box finishes, the fabric is mechanically pinned through the stabilizer and cannot be nudged out of place by hand.
  • If it still fails, re-check that the stabilizer was hooped drum tight and that the adhesive feels tacky (old adhesive often releases under pull).
• Q: On a Brother Innov-is, what causes instant needle breaks when embroidering a bucket hat, and what is the quickest fix?
  A: The needle usually hits the brim because the design is placed too low; move the design higher before stitching.
  • Reposition the design upward (the guide suggests moving up about 10 mm if brim strikes happen).
  • Perform a slow needle-drop truth test at the lowest-risk point using the handwheel before running at speed.
  • Keep the sweatband taped/held away so extra layers don’t drift into the needle path.
  • Success check: handwheel needle drops clear all thick brim/interfacing areas with no contact and no “snap” sounds.
  • If it still fails, stop immediately and re-check hat orientation on the sticky window; even a slight rotation can bring the brim into the stitch field.
• Q: What safety steps should be followed on a Brother Innov-is single-needle machine when using pins, scissors, and the needle area for bucket hat embroidery?
  A: Power off or use the machine “Lock” mode whenever hands are near the needle bar, and keep all tools off the machine bed.
  • Engage “Lock” mode (if available) or turn the machine off before threading, changing presser feet, or adjusting near the needle.
  • Keep scissors and pins away from the needle travel area and never lay tools on the machine bed.
  • Pin templates horizontally and flat, with pin heads well away from where the embroidery foot will move.
  • Success check: the needle cannot descend unexpectedly while fingers are in the needle area, and no pin is positioned where the foot can strike it.
  • If it still fails, remove pins earlier and rely on the needle-drop test for final alignment; pin strikes are a common avoidable cause of needle damage.
• Q: For bucket hat embroidery production, when should a shop switch from sticky-back stabilizer to magnetic embroidery hoops or a SEWTECH multi-needle machine?
  A: Use sticky-back floating for 1–5 hats; consider magnetic hoops when scoring/taping becomes a time bottleneck (often 10+ hats/week), and consider a multi-needle system when volume reaches true production scale (often 50+ units).
  • Level 1 (Technique): Keep the floating method, basting box, and slower speeds to reduce rework on small batches.
  • Level 2 (Tool): Switch to magnetic hoops when sticky residue, scoring time, or hooping inconsistency is hurting throughput.
  • Level 3 (Capacity): Move to a multi-needle commercial platform when single-needle “flat bed” handling time dominates labor on larger orders.
  • Success check: the upgrade is justified when hooping time drops noticeably and repeat placement becomes consistent across a run.
  • If it still fails, add a hooping station to reduce alignment variability before changing machines; inconsistent placement is often a process-control issue.
