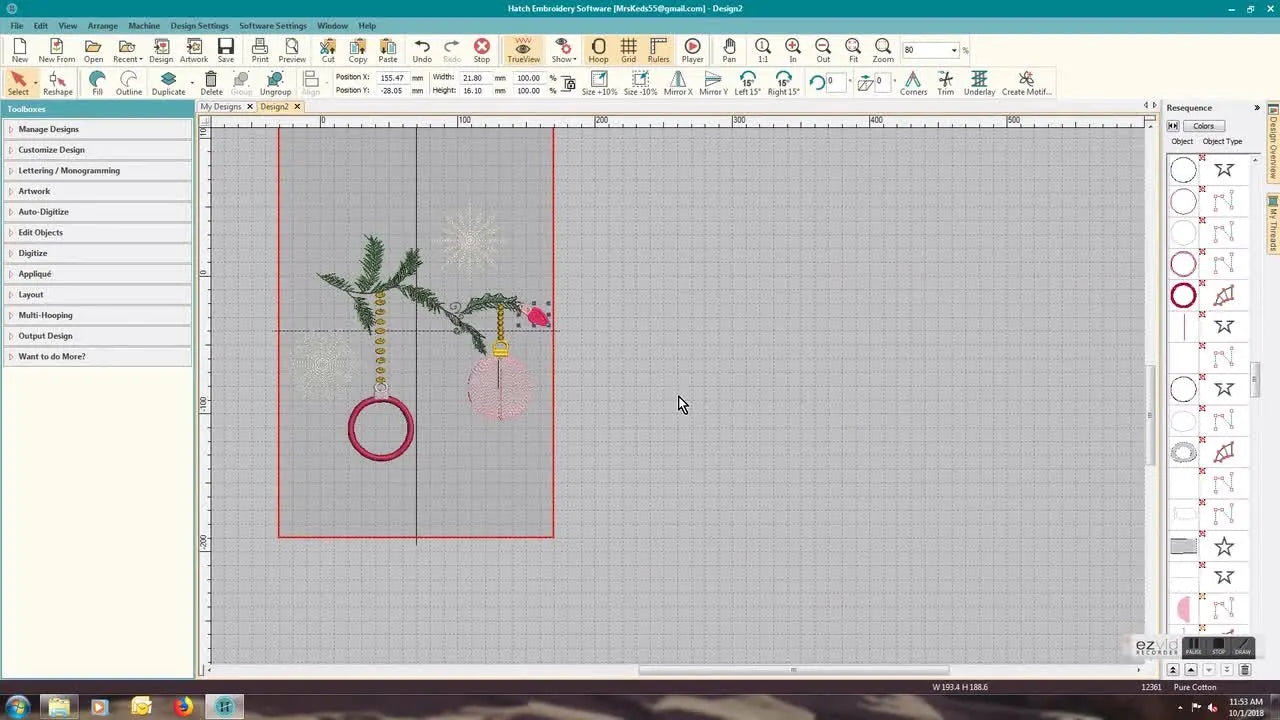

Build a Custom Christmas Scene in Wilcom Hatch: The Group–Copy–Paste Workflow That Keeps Every Stitch Intact

Building a custom embroidery "scene"—combining multiple pre-digitized elements into one cohesive layout—is the hallmark of moving from a novice operator to a true designer. However, it is also the fastest way to ruin a garment if you lack digital discipline. I have watched countless digitizers spend hours nudging festive ornaments and delicate chains on screen, only to discover at the machine that the stitch order is chaotic, the parts didn’t travel together, or the final export didn't match the specific file constraints of their equipment.

The workflow details below solve that chaos.

The logic we are analyzing follows an intermediate Wilcom Hatch method for assembling a full design from multiple .PES elements (pine limbs, ornaments, danglers, snowflakes, and a lightbulb). The secret isn't in the artistic placement; it is in the rigorous data management. We will repeat one reliable rhythm: Select All → Group → Copy → Close Without Saving → Paste → Position.

Calm the Panic: Why Wilcom Hatch “Build Your Own” Feels Easy—Until One Piece Won’t Move With the Rest

If you have ever dragged a pine branch across your screen, only to realize the ornaments stayed behind like ghost data, you are not crazy—you are just experiencing "object integrity" failure. In Wilcom Hatch (and most high-end digitizing software), a single design element, like a Christmas ornament, is legally composed of multiple stitch objects: the hook, the glass ball, and the reflection highlight are all separate entities.

If they aren't grouped, the software will happily let you select and move only the "glass" part, leaving the "hook" floating in space.

The instructor’s key habit here is simple but non-negotiable: Group before you Copy. That digital "Ziploc bag" strategy ensures that each imported element behaves like a single, predictable unit when pasted into your master scene.

Equally critical is the file hygiene rule: Do not save changes to the original source file. When you open a library component to copy it, you must leave it pristine. If you accidentally save your grouping or resizing adjustments back to the source, you corrupt your library for future projects.

The “Hidden” Prep Inside Wilcom Hatch: Set Up a Master Tab So You Don’t Lose Your Place

The workflow begins with a blank design tab already open. Treat this as your "Assembly Bench." Everything you import will be pasted onto this one workbench.

Veterans use specific habits to keep this process smooth:

1. The Master Canvas: Keep your destination tab open the entire time.
2. The Tab Shuffle: Open each .PES element in its own unique tab, perform your operations, and then close it immediately.
3. The Muscle Memory: Use the exact same keystroke rhythm for every single element. Boredom is good; boredom means consistency.

Mental Projection: This is the moment to visualize the physical reality of the stitch-out. A composition that spans 200mm on screen looks majestic, but do you have a hoop that supports a 200mm x 300mm field? Or are you limited to a 100mm x 100mm (4x4) area?

Prep Checklist: The "Pilot's Walkaround"

• Master Canvas: Confirm a clean, blank design tab is active.
• Hoop Visualization: Enable your hoop visualizer in Hatch (View > Show Hoop) to ensure you aren't designing outside your physical limits.
• Asset Location: Locate your source folders (Limbs, Ornaments, Danglers).
• The "No-Save" Vow: Commit right now: "I will close source tabs without saving."
• Needle Check: (Mental Note) For a complex scene with multiple layers, plan to use a fresh 75/11 embroidery needle (Ballpoint for knits, Sharp for woven) to ensure crisp placement.


Import “Limb 3a” First: Build the Base Layer So Everything Else Has a Real Anchor Point

Structural integrity starts at the foundation. In this scene, the pine limb acts as the anchor.

The Process:

1. Click Open.
2. Navigate to your asset directory.
3. Select “Limb 3a” (or your primary background element).

It opens in a separate tab. This is good. Do not rush to copy it yet.

The Integrity Move:

• Action: Click any part of the limb design.
• Action: Press Ctrl + A (Select All). Visual Check: Look for a magenta selection box around every single stitch object.
• Action: Click Group (or Ctrl + G). Sensory Check: When you click one leaf now, the whole branch should highlight.
• Action: Copy (Ctrl + C).
• Action: Close the tab.
• CRITICAL: When prompted "Save changes?", click NO.
• Action: Return to Master Tab, Right-Click, and Paste.

Success Metric: The limb appears on your master grid. Click it and drag it. If it moves as one solid unit without leaving stray pine needles behind, you have succeeded.

The Non-Negotiable Transfer Ritual: Ctrl+A + Group Before Copying (So Your Stitch Objects Don’t Scatter)

This is the core "Safety Protocol" of the tutorial. Let’s break down the Why so you never forget it.

• Ctrl+A: Ensures you don't miss a tiny detail, like a single jump stitch or a highlight glint.
• Group: Wraps the metadata of those objects into a container. Without this, Hatch treats the pasted data as a pile of loose puzzle pieces.
• Copy: snapshots the Grouped state.

If you skip grouping, you create a "Time Bomb." You might paste it successfully, but ten minutes later, you will try to rotate that limb 5 degrees, and the pine needles will rotate while the branch stays still. This ruins the stitch density calculations and causes thread nests.

Warning: "Hoop Burn" isn't the only risk in embroidery; "Data Burn" is real. If you accidentally hit "Save" on a source file after grouping or resizing, you have permanently altered that library asset. Always look at the prompt before clicking "No" when closing.

Add “Limb 1” and Make It Look Like One Continuous Branch (Not Two Stickers Touching)

You are now acting as a floral arranger.

1. Open “Limb 1”.
2. Execute the Ritual: Select All → Group → Copy → Close (No Save) → Paste.
3. Positioning: Drag the new limb to intersect or connect with the first.

Expert Tip on Overlap: When overlapping embroidery files, be wary of "Bulletproof Stitching." If two dense satin stitch branches overlap perfectly, you might create a spot that is 4mm thick with thread.

• Visual Check: Look at the junction point. Does it look too dense?
• Physical Reality: A standard home machine needle cannot penetrate four layers of satin stitching. If the overlap is deep, you may need to use Hatch’s "Remove Overlaps" tool, or simply arrange them so they barely kiss rather than stack.


Bring in the Applique Ornament: Keep Your Scene Balanced Before You Get “Danglers” Involved

Now, we introduce visual weight. The instructor opens an applique circular ornament.

The Workflow:

• Open Applique file.
• Select All → Group → Copy.
• Close without saving.
• Paste into Master.

You are now balancing the composition. Place this element low—this anchors the "gravity" of the scene.

Hidden Consumable: Applique requires cutting. Do you have curved applique scissors or "duckbill" scissors ready? Attempting to trim applique fabric with straight craft scissors inside a hoop is a recipe for cutting your base fabric.

Add “Ornament 4A” Texture on the Right: Use Visual Weight So the Design Doesn’t Feel Lopsided

The instructor imports “Ornament 4A” (a textured pink bulb) and places it on the right.

Design Theory: This is specific to embroidery physics. A large, dense tatami fill (like a filled ornament) puts stress on the fabric. If you place all your dense objects on the left side of the hoop, you increase the risk of the fabric warping or puckering on that side during the stitch-out.

By balancing the textured ornament on the right against the applique on the left, you distribute the "pull force" across the stabilizer more evenly. This leads to a flatter, cleaner final product.

Make “Dangler 1” Look Like It’s Actually Hanging: Position the Chain First, Then Nudge the Ornament Up

Here is the secret to realism: Gravity Logic.

The video imports “Dangler 1” (the gold chain).

• The Mistake: Placing the ornament first, and then trying to stretch or squash the chain to reach the branch. This looks cartoonish.
• The Fix: Place the chain (dangler) first. Hang it from the branch where it looks natural. Then, move the ornament up to meet the chain.

This ensures the chain remains straight and undistorted (physics dictates chains hang straight down).

Expert Tip: Zoom in to 600%. Check the connection point between the Chain loop and the Ornament hook. They should overlap by about 1-2mm. If they merely touch, the fabric pull during stitching will likely separate them, leaving a visible gap of fabric (a "gap-osis") between the metal chain and the glass ball.

Repeat With “Dangler 4C”: Copy the Same Logic So Your Second Ornament Doesn’t Look Like an Afterthought

Consistency breeds quality. Repeat the process for “Dangler 4C”:

1. Import, Group, Copy, Paste.
2. Hang the chain from the branch.
3. Snap the pink ornament to the bottom of the chain.

Visual Check: Does the second chain hang parallel to the first? Unless there is "wind" in your scene, all loose chains should hang vertically at 90 degrees.

Fill Negative Space With “Snowflake 1B” and “Snowflake 7”: The Trick Is Restraint, Not Quantity

Now, decoration.

1. Import “Snowflake 1B”.
2. Group, Copy, Paste.
3. Place in negative space.
4. Repeat for “Snowflake 7”.

The "Travel Stitch" Trap: Scattering small snowflakes all over the design looks magical on screen, but think about your machine. Every single isolated snowflake requires:

1. A Lock stitch ( Tie-in).
2. The stitching.
3. A Lock stitch (Tie-off).
4. A Trim.

If you have a single-needle machine, excessive trims add significant time and potential for thread nests ("bird nests"). Keep scattered elements to a number your patience can handle.

Add the Tiny Lightbulb Accent: Small Details Are Where Clean Stitching (and Clean Hooping) Start to Matter

The final touch is a small lightbulb on the branch tip.

The Reality Check: Small elements (under 5mm) are the canary in the coal mine for your stabilizer choice.

• The Risk: If you are stitching on a towel or fleece, a tiny lightbulb will sink into the pile and vanish.
• The Solution: You must use a Water Soluble Topper (Solvy) on textured fabrics.

Furthermore, small details show vibration. If your hoop isn't tight (drum-tight), the outline of the lightbulb won't match the fill. This is often where users blame the digitizer, but the culprit is usually loose hooping.

Export the Right Way: “File > Export Design” So Your Machine Format Isn’t a Guess

Saving is for you; Exporting is for the machine.

1. File > Save As: Save the raw .EMB working file. This is your master record. You can edit this later.
2. File > Export Design: This creates the machine file (DST, PES, JEF, VP3).
   • Note on DST: This is an industrial format. It does not save colors. It will look weird on your machine screen (often red/blue/green), but it will stitch correctly.
   • Note on PES/VP3: These preserve color data better for home machines.

Success Metric: You now have two files. One editable master (.EMB) and one ready-to-run machine file.

Setup Reality Check: Hoop Size, Stabilizer, and Stitch Order—Before You Waste a Blank

The design phase is over. Now we enter the physical domain. The best design in the world will fail if the foundation—hooping and stabilization—is weak.

Before you press "Start," you must verify the Machine-Fabric-Hoop Trinity.

1. Hoop Size: Does the combined scene fit? Warning: If your design is 120mm wide and your hoop is 120mm wide, do not run it. You need a safety margin (usually 10mm-15mm) for the presser foot.
2. Hoop Burn: Traditional plastic hoops require you to jam inner and outer rings together. On delicate velvet or performance polos, this leaves a permanent "burn" ring.
3. The "Third Hand" Problem: Trying to wrestle a sweatshirt, stabilizer, and a screw-tightened hoop often requires three hands. This struggle leads to crooked designs.

If you are planning a production run (e.g., 20 family Christmas shirts), you should consider if your current hooping station is up to the task. A dedicated hooping station for embroidery ensures that every snowflake lands in the exact same spot on every shirt, removing the guesswork of manual marking.

Setup Checklist: The "Pre-Flight"

• Format Check: Does the exported file actually open on your machine?
• Bobbin Check: Do you have a full bobbin? (Running out mid-branched is a nightmare).
• Thread Path: Rethread the upper thread. Ensure the foot is UP when threading to engage tension discs to provide drag. Sensory Check: Pull the thread near the needle; it should feel like flossing teeth—firm resistance, not loose.
• Needle: Is only the needle tip sharp? Run your fingernail down the shaft; if you feel a burr, replace it immediately.
• Speed: Dial it down. For a complex scene with varied layers, 600 - 800 stitches per minute is your "Quality Sweet Spot."

A Simple Decision Tree: Fabric Type → Stabilizer Strategy (So Your Scene Doesn’t Pucker)

Use this logic to select your hidden foundation.

1. Is the fabric Stretchy (T-shirt, Beanie, Performance Knit)?

• YES: You MUST use Cutaway Stabilizer (Mesh).
  • Why: Knits move. Tearaway will disintegrate after 1000 stitches, leaving your design unsupported.
  • Topper? Maybe, if the knit has a loose weave.
• NO: Proceed to question 2.

2. Is the fabric Textured/Fluffy (Towel, Fleece, Velvet)?

• YES: Use Tearaway (or Cutaway for wearablity) + Water Soluble TOPPER.
  • Why: The topper keeps the stitches sitting on top of the loops, preventing the "sinking" effect.
• NO (It is Denim, Canvas, Woven Cotton):
  • Use Medium Weight Tearaway. This is the easiest cleanup.

Physical Hooping Pain: If you are struggling to hoop thick items like towels or Carhartt jackets using standard plastic rings, you are fighting physics. The plastic rings can pop open mid-stitch. This is a primary scenario where professionals switch to magnetic embroidery hoops. The magnets clamp through thick layers without forcing you to unscrew/rescrew the hoop mechanism, saving both your wrists and the garment fibers.

Troubleshooting the “Why Won’t This Line Up?” Problems: Symptoms → Likely Cause → Fix

When things go wrong, do not panic. Use this diagnostic table.

Warning: Magnet Safety. If you upgrade to magnetic hoops, be aware they are industrial strength. Keep fingers clear of the clamping zone to avoid pinching. Do not place hoops near pacemakers or magnetically sensitive medical devices.

The Upgrade Path That Actually Matters: From Hobby Assembly to Repeatable Production

Once you master the software side of building scenes, the bottleneck shifts from your computer to your production floor (even if that floor is your dining table).

Here is the progression of a growing embroidery setup:

Level 1: The Stabilized Hobbyist

You are using standard tools, but you have mastered the Decision Tree above. You use Cutaway for knits, use fresh needles, and slow your machine down. Your quality is high, but your speed is low.

Level 2: The Efficiency Expert (Tools Upgrade)

You start taking orders. Hooping 10 shirts with standard screw-hoops hurts your wrists and takes 5 minutes per shirt.

• The Pivot: You integrate an embroidery magnetic hoop.
• The Result: Hooping takes 30 seconds. No hoop burn. You can clamp thick winter jackets that were previously impossible.

Level 3: The Production Studio (Machine Upgrade)

You have orders for 50 logos or complex multi-color Christmas scenes. A single-needle machine requires you to sit there and change threads 15 times per design. You are trapped.

• The Pivot: You move to a Multi-Needle Machine (like the SEWTECH ecosystem solutions).
• The Result: You press "Start" and walk away. The machine handles the 12 color changes automatically. Your profitability per hour triples because your labor time drops to near zero.

Operation Checklist: The First Live Run

• Test Stitch: Run the design on a scrap of similar fabric first. Never run the final garment first.
• Watch the First Layer: Is the underlay stitching laying flat? If it loops, stop immediately—check tension.
• Listen: A happy machine creates a rhythmic "Thump-thump-thump" sound. A sharp "Click-click" or a grinding noise means STOP.
• Inspect Connections: After the run, check where the chain meets the ornament. Is there a gap? If so, adjusting your master file in Hatch (nudge overlap) before the next run.

FAQ

• Q: In Wilcom Hatch Embroidery, why do pasted .PES elements fall apart or leave parts behind when moving a Christmas ornament scene?
  A: Re-copy the element using Ctrl+A → Group → Copy, because ungrouped stitch objects paste as separate pieces.
  • Action: Reopen the original .PES element in its own tab, press Ctrl+A, then Group (Ctrl+G), then Copy (Ctrl+C).
  • Action: Close the source tab and click No when asked to save changes, then paste into the master tab.
  • Success check: Drag the pasted element—every part (hook, ball, highlight) moves as one unit with no “ghost” pieces left behind.
  • If it still fails: Delete the pasted version and repeat the process, watching for a full magenta selection box around all objects before grouping.
• Q: In Wilcom Hatch Embroidery, how do I prevent accidentally corrupting my .PES library files when assembling a multi-element scene?
  A: Treat every source .PES as read-only: copy what is needed and always close without saving.
  • Action: Open each asset in a separate tab, do Select All → Group → Copy, then close the tab immediately.
  • Action: When the “Save changes?” prompt appears, click No to keep the original library pristine.
  • Success check: Reopening the source .PES later shows it unchanged (not grouped/resized/repositioned from the original).
  • If it still fails: Restore the asset from a backup copy and restart the habit of closing source tabs without saving.
• Q: For a Wilcom Hatch Embroidery “build a scene” design, how do I confirm the combined layout fits my embroidery hoop before stitching?
  A: Turn on hoop visualization and keep a safety margin; do not run a design that touches the hoop boundary.
  • Action: Enable the hoop display in Hatch (View > Show Hoop) and check the full scene against the hoop field.
  • Action: Leave margin (about 10–15 mm) so the presser foot has clearance; avoid designs that are exactly the hoop size.
  • Success check: The entire design sits comfortably inside the hoop boundary with visible clearance around the edges.
  • If it still fails: Reduce the design size or switch to a hoop that supports the required field before exporting a machine file.
• Q: When stitching a Wilcom Hatch scene, how do I stop “gap-osis” (a visible gap) between a dangler chain and an ornament hook?
  A: Overlap the connection slightly on-screen to compensate for fabric pull during stitching.
  • Action: Zoom in (often 600%) and nudge the ornament so it overlaps the chain connection by about 1–2 mm.
  • Action: Position the chain first (hang point), then move the ornament upward to meet it.
  • Success check: After stitching, the chain-to-hook connection looks continuous with no fabric showing through at the joint.
  • If it still fails: Increase the overlap slightly and re-test on scrap fabric before running the final garment.
• Q: On a home embroidery machine stitching a multi-element Wilcom Hatch scene, how do I reduce thread nests caused by too many scattered snowflakes and trims?
  A: Limit isolated small elements because each one adds tie-ins, tie-offs, and trims that increase nesting risk.
  • Action: Reduce the number of separate snowflake objects in the layout, especially widely scattered ones.
  • Action: Keep the design simpler if running a single-needle machine to avoid excessive trim cycles.
  • Success check: The stitch-out runs with fewer stop-start trim events and no “bird nest” buildup under the hoop.
  • If it still fails: Slow the machine to a steadier 600–800 spm and re-check threading with the presser foot up so tension discs engage.
• Q: What stabilizer setup should be used for a Wilcom Hatch multi-layer scene on stretchy knits, fluffy fabrics, and woven cotton?
  A: Match stabilizer to fabric type: cutaway for knits, topper for textured pile, medium tearaway for stable wovens.
  • Action: For T-shirts/performance knits, use cutaway (mesh) to prevent shifting and puckering.
  • Action: For towels/fleece/velvet, add a water-soluble topper so small details do not sink into the pile.
  • Action: For denim/canvas/woven cotton, start with medium-weight tearaway for clean removal.
  • Success check: Small details (like a tiny lightbulb accent) stay visible and outlines align with fills without distortion.
  • If it still fails: Re-hoop for drum-tight tension and test again on a scrap of the same fabric and stabilizer stack.
• Q: What are the key safety precautions when using industrial-strength magnetic embroidery hoops and when handling embroidery needles during a complex scene stitch-out?
  A: Keep fingers clear of the clamp zone and replace damaged needles immediately to avoid injury and fabric damage.
  • Action: Keep fingertips out of the magnetic closing area to prevent pinching; control the clamp deliberately.
  • Action: Keep magnetic hoops away from pacemakers or magnetically sensitive medical devices.
  • Action: Inspect the needle for burrs (run a fingernail down the shaft) and replace if any roughness is felt; use a fresh 75/11 embroidery needle as a safe starting point (ballpoint for knits, sharp for wovens).
  • Success check: No pinched fingers during hooping, and the machine stitches without harsh clicking caused by a damaged needle.
  • If it still fails: Stop the machine immediately, re-check needle condition and threading path, and consult the machine manual for model-specific safety guidance.
• Q: For repeated production of complex multi-color Wilcom Hatch “scene” designs, when should an embroiderer move from technique fixes to magnetic hoops to a multi-needle embroidery machine?
  A: Escalate in three levels: first optimize stabilization and speed, then upgrade hooping efficiency, then upgrade machine capacity when thread changes become the bottleneck.
  • Action (Level 1): Fix fundamentals—use the correct stabilizer, rethread with presser foot up, use a fresh needle, and run 600–800 spm for quality control.
  • Action (Level 2): If hooping is slow, leaves hoop marks, or struggles on thick items, switch to magnetic hoops to clamp faster and reduce hoop burn.
  • Action (Level 3): If frequent manual color changes dominate labor time on large orders, move to a multi-needle embroidery machine so color changes run automatically.
  • Success check: The biggest pain point (puckering, hooping time, or manual thread changes) is measurably reduced on the next test run or small batch.
  • If it still fails: Run one controlled test stitch on scrap and identify whether the bottleneck is layout (software), hooping/stabilizer (setup), or operator time (production).
