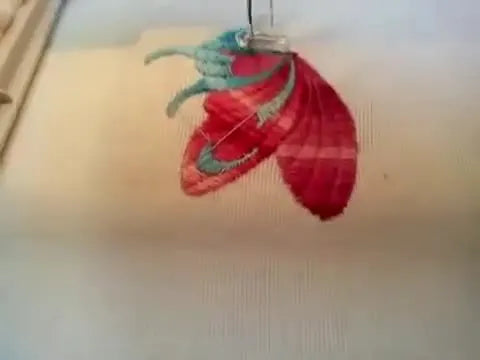

Butterfly Wing Embroidery on a Domestic Machine: Clean Color Layers, Better Hooping, and Fewer “Why Did It Shift?” Moments

The gap between watching a flawless YouTube stitch-out and seeing your own fabric pucker is one of the most disheartening moments in machine embroidery. You watch a digital butterfly glide onto the screen—its wings perfectly aligned, the satin stitches gleaming—and it looks effortless. Then you try it. The wing edges ripple like bacon, the fill stitches look bumpy, or the entire design drifts two millimeters to the left, ruining the symmetry.

Here is the truth that the camera angle doesn’t show: The video you are referencing is likely stitching on a "perfect condition" setup—often just a piece of stable white backing material, or a stiff fabric that acts like paper. The machine builds the butterfly in logical color layers: hot pink base fills, a darker red/magenta overlay for depth, cyan/teal for the body, and finally the outlines.

But you are not stitching on paper. You are stitching on t-shirts, totes, or quilt blocks.

This guide deletes the guesswork. drawing on 20 years of production experience, we will rebuild this butterfly project into a shop-ready workflow. We will cover the specific physics of hooping for embroidery machine success, the sensory cues of a machine running correctly, and the decision-making logic that prevents failure before you press "Start."

Don’t Panic: A Domestic Embroidery Machine Stitch-Out Is Predictable When You Control Hooping and Stabilizer

A domestic embroidery machine is a brutal truth-teller. It has no brain; it will execute the coordinate commands in the file exactly. If your fabric is loose, the machine will push it. If your stabilizer is too thin, the stitches will crush it.

In the reference video, the crispness of the fills comes from one factor: Zero Fabric Movement.

When you move to real-world substrates (cotton, jersey, denim), you are introducing variables that fight the needle. Your success relies on two "Golden Rules" that we use in professional shops:

1. Hooping is an Engineering Task, Not a Chore: The tension must be even across 360 degrees. It shouldn't be "drum tight" (which warps the fabric fibers), but it must be "taut and neutral."
2. Stabilizer is the Foundation: You cannot ask a flimsy piece of tear-away to support 15,000 stitches of dense satin fill.

If you have been struggling, treat this butterfly design as a diagnostic tool. Because it creates layers (fill on top of fill), it is the ultimate test of your setup. If the layers align, your mechanics are sound. If gaps appear, it is almost never the file—it is the physics of your hoop.

The “Hidden” Prep Pros Do Before the First Stitch: Thread Path, Needle Choice, and Stabilizer Discipline

Amateurs load the file and hit start. Pros spend 80% of their time on prep so the stitching is boring and predictable. Before you even touch the screen, you must clear the "invisible" risks.

The "Hidden Consumables" You Need

Establish your workspace with these often-overlooked essentials:

• Fresh Needles: Specifically a 75/11 Ballpoint for knits or a 75/11 Sharp for wovens.
• Temporary Spray Adhesive (e.g., 505): To bond fabric to stabilizer, preventing "flagging" (fabric bouncing up and down).
• Precision Tweezers: To grab thread tails before they become birds nests.

Stabilization Decision Tree (The "If-Then" logic)

Do not guess. Use this logic gate to determine your foundation.

• Scenario A: The fabric stretches (T-shirts, hoodies, performance wear)
  • The Risk: The needle pushes the knit loops apart, causing distortion.
  • The Solution: Cut-Away Stabilizer (2.5oz minimum). No exceptions. The stabilizer stays forever to support the stitches.
• Scenario B: The fabric is stable (Denim, Canvas, Twill)
  • The Risk: Stiffness causing needle deflection.
  • The Solution: Tear-Away Stabilizer (Medium weight). Or, for high stitch counts (like this butterfly), use a lightweight Cut-Away for insurance.
• Scenario C: The fabric is delicate/sheer (Silk, thin cotton)
  • The Risk: Hooping marks (burn) and fiber damage.
  • The Solution: No-Show Mesh (Soft Cut-Away). Hoop the stabilizer, float the fabric, and use spray adhesive or basting stitches.

Warning: Physical Safety Protocol
Never place your fingers inside the hoop perimeter while the machine is powered on. Domestic machines can accelerate to 600+ stitches per minute instantly. A needle strike to the finger can shatter the bone or break the needle, sending metal shards into your eyes. Keep hands clear.

Prep Checklist: The "Pre-Flight" Inspection

• Bobbin Check: Is the bobbin case free of lint? A single dust bunny can ruin tension.
• Needle Orientation: Is the flat side of the needle facing the correct specific direction (usually back) for your machine?
• Thread Path: Floss the thread through the tension discs. You should feel distinct resistance, like dragging a finger through water.
• Tail Control: Pull 3 inches of top thread and hold it gently.
• Clearance: Is the embroidery arm free to move without hitting the wall or a coffee mug?

Setting Up the Plastic Hoop: Get “Flat and Even,” Not “Overtight and Warped”

The video shows a standard plastic hoop with a screw clamp. This is the tool that comes with your machine, and while it can work, it is the source of 90% of beginner frustration.

The failure mode is simple: You tighten the screw, but the inner ring pushes the fabric forward as it seats, creating a "bubble" or "loose belly" at the bottom of the hoop. To compensate, you pull the fabric borders (a huge mistake), which stretches the grain. When you unhoop later, the fabric snaps back, and your butterfly puckers.

Professional setups often utilize a machine embroidery hooping station to hold the outer hoop static while you press the inner hoop down. This uses body weight and geometry rather than hand strength.

The "Tactile" Hoop Test

How do you know it's right?

1. The Tap: Tap the fabric with your fingernail. It should sound like a dull thud, not a high-pitched ping (too tight) and not a flappy paper sound (too loose).
2. The Glide: Run your palm over the surface. It must be perfectly planar. If you feel a "hill" in the center, you must re-hoop.

The Problem with Screw Hoops & The Solution

If you find yourself constantly re-hooping or suffering from "Hoop Burn" (permanent shiny rings on the fabric), this is a tooling limitation. The friction of plastic rings crushes fibers.

Tool Upgrade Option (Level 2): Many enthusiasts search for magnetic embroidery hoops to solve this. Magnetic frames hold the fabric using vertical force (clamping down) rather than friction (wedging sideways). This eliminates hoop burn and makes hooping thick items like towels effortless. It is the single fastest way to improve consistency without buying a new machine.

Warning: Magnetic Field Safety
Professional magnetic hoops use industrial-grade magnets (Neodymium). They snap together with massive force (~20lbs+).
* Pinch Hazard: Keep fingers away from the contact zone.
* Medical Device Safety: Keep magnets away from pacemakers and insulin pumps.
* Electronics: Do not place phones or credit cards directly on the magnets.

Setup Checklist (Post-Hooping)

• Inner Ring Check: Is the inner ring protruding slightly on the bottom (bed side) to grip the fabric?
• Grainline Check: Is the fabric grain vertically straight? Warped grain = warped design.
• Visual Scan: Are there any brightness/shadows on the fabric indicating a ripple?


The Pink Base Fill Layer (Hot Pink Thread): Watch the Fill Behavior Before You Trust the Rest of the Design

Video Sequence: 00:00 – 00:55 (Left and Right Wing Base)

The machine begins with a "Tatami" fill (walking stitches). This acts as the foundation. Listen to your machine here.

Sensory Anchor (Auditory): You want to hear a rhythmic, purring chug-chug-chug.

• Bad Sound: A sharp CLACK-CLACK usually means the needle is hitting the needle plate or the hoop. Stop immediately.
• Bad Sound: A laboring grind suggests the needle is struggling to penetrate dense stabilizer/fabric.

The Speed Limit

For this dense fill, if you are a beginner, look at your screen. Is it set to "Max"? Turn it down.

• Professional Recommendation: Run this layer at 500 - 600 SPM (Stitches Per Minute). Speed creates vibration; vibration causes hoop creep. Slow is smooth, smooth is fast.

Visual Check: The "Railroad Track"

Watch the stitches lay down. The rows should touch gently.

• If you see gaps (white stabilizer showing): Your thread tension is too tight, or the fabric is shrinking away.
• If you see "tunneling" (fabric puffing up between rows): You are under-stabilized. Pause. You cannot "fix" this with software. You may need to slide a piece of stabilizer under the hoop (floating) to add rigidity.


The Red/Magenta Overlay (Shading Layer): This Is Where Registration Errors Show Up

Video Sequence: 00:56 – 01:14

This darker red layer stitches on top of the pink. This is a critical moment called "Registration." We need Layer B to land exactly on top of Layer A.

The Physics of "Push and Pull"

Embroidery naturally distorts fabric. Stitches running horizontally will squeeze the fabric height-wise (Pull) and expand it width-wise (Push). A good digitizer programs compensation for this, but they cannot compensate for a loose hoop.

If the red stripes drift outside the pink wing, or if there is a white gap between them:

1. Do NOT unhoop.
2. Do NOT tighten the screw. (Note: If you use an embroidery frame with magnets, this drift is rare because the grip is uniform over the entire surface area).
3. Diagnosis: If the drift is constant (e.g., everything is 2mm to the right), your hoop bumped something. If the drift gets worse as it sews, your stabilizer is failing (tearing).


The Cyan/Teal Color Change: Body Satin Stitches and Fine Details Need Clean Thread Handling

Video Sequence: 01:15 – 01:50

This is a functional transition. You are switching colors to build the body and antennae. The body is a "Satin Column"—a zigzag stitch that is prone to snagging if your tension is off.

The "Tension Test" using the letter H

Before this stage, check the back of your hoop (carefully).

• The Goal: You should see 1/3 top thread (left), 1/3 bobbin thread (center), and 1/3 top thread (right). This is the classic "H" pattern.
• The Reality: If you see only top thread on the back, your top tension is too loose. If you see white bobbin thread on the top of the butterfly body, your top tension is too tight.

Addressing "Birdnesting"

When you start the cyan body, hold the thread tail for the first 5-10 stitches. If you let it go, the machine might pull it down into the bobbin case, creating a tangled knot described as a "bird nest." This lifts the hoop up and ruins the registration instantly.

The Upper Wing Cyan Fills: Long Fill Runs Expose Hooping Physics

Video Sequence: 01:51 – 03:00

Now the machine tackles the large upper wings. This involves thousands of needle penetrations. This creates "Flagging"—where the fabric tries to lift up with the needle on the upstroke.

The Role of Friction

If you are using a standard plastic hoop, the plastic-on-plastic friction is the only thing holding that fabric. Over 5 minutes of stitching, the fabric creates micro-movements, slowly slipping inward.

This is the exact production bottleneck that drives shops to upgrade. A magnetic hoop eliminates this slippage because the magnetic force is constant and vertical. It arrests the fabric fibers so they cannot perform that microscopic "crawl."

Observation Point: Watch the perimeter of the hoop. If you see ripples forming outside the sewn area pointing toward the needle, your fabric is slipping. Pause the machine. You may need to add temporary adhesive tape to the perimeter (a triage move) to stop the bleeding.

The Near-Finish Check: Pause When the Butterfly Looks 90% Done—It Saves the Last 10%

You are three minutes in. The wings are full, the body is done. The machine stops for the final color. Do not just press start.

Take 30 seconds to audit the situation:

• Bobbin Alert: Check your bobbin level. Running out of bobbin thread during the minute final outlines is a disaster (alignment often breaks during a bobbin change). If it’s low, change it now.
• Trim Jump Stitches: Use your curved scissors to trim any long threads crossing the design. If you don't, the final outlines will sew over them, trapping them forever.


Final Outlines and Details: The Finishing Pass Makes (or Breaks) the Professional Look

Video Sequence: 03:00 – 04:24

The machine is now running a "Running Stitch" or thin "Satin Stitch" around the edges. This is high-risk.

Why Outlines Miss

If the outline falls inside the wing (leaving a gap) or outside the wing (leaving a white line), the fabric has shifted.

• The "Slow Down" Rule: Drop your speed to 350-400 SPM for this final pass. High speed causes the needle to deflect (bend) slightly. We want surgical precision here.
• Needle sharpness: If you’ve heard a lot of "popping" sounds, your needle might be dull. A dull needle pushes fabric rather than piercing it, moving the outline.


Troubleshooting the Most Common Butterfly Stitch-Out Problems (Symptoms → Likely Cause → Fix)

When things fail, do not blame the "software" immediately (like the viewer asking about Janome 350E software). Software doesn't cause loopiness; physics does.

The Upgrade Path That Actually Matters: Faster Hooping, Cleaner Results, and a Realistic Route to Small-Batch Production

If you successfully stitched this butterfly, congratulations. You have conquered the basics of stabilization and machine control.

However, as you move from "one-off hobby" to "making 10 shirts for a family reunion," your pain points will shift. The frustration will no longer be how to stitch, but how long it takes to hoop correctly.

Here is the logical hierarchy of tools to solve that specifically:

1. Level 1: Consumables (The Foundation)
   Stop buying "mystery stabilizer" packs. Standardize on commercial-grade Cut-Away and Tear-Away. Use branded needles (Organ/Schmetz). This solves 50% of quality issues for under $20.
2. Level 2: The Efficiency/Consistency Solve
   If hooping is your bottleneck (too slow, crooked, or causing wrist pain), this is where an embroidery magnetic hoop pays for itself. By removing the variable of "how tight is the screw," you get consistent tension every single time. It turns a 3-minute struggle into a 10-second "click."
3. Level 3: The Production Solve
   Ideally, you want to scale up. If you find yourself turning down orders because your single-needle machine takes too long to change colors (remember, this butterfly had 3+ manual changes), look at the math. A multi-needle machine allows you to set up 6-10 colors at once. SEWTECH multi-needle embroidery machines serve this gap—bridging the home user to the commercial profit maker.

Operation Checklist: The Shutdown Ritual

• Un-hooping: Release the mechanism gently. Do not "pop" the fabric out roughly.
• Trimming: Trim the stabilizer on the back closer to the design (leave 1/4 inch), but be careful not to snip the fabric.
• Documentation: Write on the back of your stabilizer or in a notebook: Fabric type, Stabilizer used, Needle type, Result. This data is your most valuable asset for next time.

Mastering this butterfly is not about the butterfly—it is about mastering control. Once you control the hoop, you control the outcome. Happy stitching.

FAQ

• Q: What “pre-flight” checks prevent birdnesting on a domestic embroidery machine before stitching a dense butterfly design?
  A: Do the needle–thread–bobbin checks first; most birdnests start from skipped prep, not the design file.
  • Change: Install a fresh 75/11 needle (Ballpoint for knits, Sharp for wovens) and confirm correct needle orientation for the machine.
  • Clean: Remove lint from the bobbin area/bobbin case; even a small lint wad can destabilize tension.
  • Rethread: Floss the top thread through the tension discs so distinct resistance is felt, then pull a 3" top thread tail before starting.
  • Success check: The machine sound stays rhythmic and the first stitches do not form a knot under the hoop.
  • If it still fails: Hold the top thread tail for the first 5–10 stitches and verify the thread path is not missing any guides.
• Q: How tight should fabric be in a domestic embroidery machine screw hoop to avoid puckering and hoop slip on a layered butterfly stitch-out?
  A: Aim for “flat and even” tension—taut and neutral—never drum-tight and never loose.
  • Test: Tap the hooped fabric; listen for a dull thud (not a high-pitched ping and not a floppy sound).
  • Check: Glide a palm across the hoop surface; re-hoop if a center “hill/bubble” is felt.
  • Avoid: Do not pull fabric edges after tightening; stretching during hooping is a primary cause of post-unhoop puckering.
  • Success check: The fabric surface looks perfectly planar with no shadows/ripples before stitching starts.
  • If it still fails: Add better stabilization (cut-away or an extra floated layer) instead of cranking the hoop screw tighter.
• Q: When should cut-away stabilizer be used on T-shirts and hoodies for a high-stitch-count butterfly design on a domestic embroidery machine?
  A: Use cut-away stabilizer (2.5 oz minimum) anytime the fabric stretches; it is the non-negotiable foundation for dense fills.
  • Choose: Pick cut-away for knits (T-shirts/hoodies/performance wear) to prevent distortion as stitches build in layers.
  • Bond: Use temporary spray adhesive to secure fabric to stabilizer and reduce flagging during long fill runs.
  • Float: For delicate fabrics, hoop the stabilizer and float the fabric with adhesive or basting stitches to reduce hoop marks.
  • Success check: During fill stitching, the fabric does not “tunnel” (puff between rows) and the fill rows lay down evenly like a railroad track.
  • If it still fails: Pause and add a floated stabilizer layer under the hoop to increase rigidity rather than trying to “fix it in software.”
• Q: How can domestic embroidery machine thread tension be checked using the “H pattern” before satin stitches on a butterfly body?
  A: Flip and inspect the back; correct tension usually shows a balanced “H” look before fine satin details.
  • Inspect: Look for roughly 1/3 top thread, 1/3 bobbin thread, 1/3 top thread across the stitch formation on the back.
  • Adjust: If only top thread shows on the back, tighten top tension; if bobbin thread shows on the top of the design, loosen top tension.
  • Handle: Hold the top thread tail for the first 5–10 stitches after a color change to prevent the tail being pulled into the bobbin area.
  • Success check: Satin stitches on the body look smooth (not loopy) and bobbin thread does not pop onto the top.
  • If it still fails: Rethread the machine (ensuring the thread is seated in tension discs) and re-check for lint in the bobbin area.
• Q: What causes outline misalignment (registration drift) on a multi-layer butterfly embroidery design stitched on a domestic embroidery machine, and what should be done first?
  A: Registration drift is most often fabric movement or stabilizer failure; do not unhoop and do not “chase it” by tightening the screw mid-run.
  • Stop: Pause immediately when drift is noticed and keep the project hooped.
  • Diagnose: If the offset is constant (e.g., everything shifted 2 mm), check for a hoop bump/impact; if it worsens over time, suspect stabilizer tearing or fabric slipping.
  • Stabilize: Add support (often by floating extra stabilizer under the hoop) rather than continuing at full speed.
  • Success check: The next overlay lands directly on the base fill with no white gaps between layers.
  • If it still fails: Reduce stitch speed to cut vibration and revisit hooping flatness and stabilizer choice before restarting the design.
• Q: What stitch speed should a domestic embroidery machine use for dense butterfly fills versus final outlines to reduce vibration and needle deflection?
  A: Slow down strategically—about 500–600 SPM for dense fills and about 350–400 SPM for final outlines.
  • Set: Run the base fill layer at 500–600 SPM to reduce vibration-driven hoop creep.
  • Drop: Reduce to 350–400 SPM for the final outline pass to improve edge precision and reduce needle deflection.
  • Listen: Stop immediately if sharp clacking occurs (possible hoop/plate contact) or if grinding suggests penetration strain.
  • Success check: The machine sounds like a steady rhythmic “purr,” and outlines land cleanly on the wing edges.
  • If it still fails: Replace the needle (dull needles push fabric) and confirm the hoop is not contacting any part of the machine during arm travel.
• Q: What safety rules prevent finger needle strikes and magnetic hoop pinch injuries during machine embroidery setup?
  A: Keep hands out of the hoop area when powered, and treat magnetic hoops as industrial pinch hazards.
  • Power safety: Never place fingers inside the hoop perimeter while the machine is powered on; domestic machines can accelerate instantly.
  • Control: Keep the embroidery arm path clear of objects so there is no sudden snag or bump during stitching.
  • Magnet safety: Keep fingers away from the magnet contact zone; magnets can snap together with high force.
  • Success check: Hands remain outside the hoop perimeter during operation and magnets are joined with deliberate, controlled placement.
  • If it still fails: Stop and power down before making any adjustment, and keep magnets away from pacemakers/insulin pumps and sensitive electronics.
