The "Zero-Panic" Guide to Cap Embroidery: From Fear to Factory Precision

Cap embroidery is notoriously unforgiving. Unlike a flat t-shirt that lies obediently on the needle plate, a baseball cap is a three-dimensional curved object that fights you every step of the way. It wants to flag, it wants to shift, and if you aren't careful, it wants to break your needles.

One wrong menu setting, one loose thumb screw, or one rushed hooping job, and you’re staring at a "drunk" logo that’s crooked on the curve—or worse, a machine collision.

However, after training thousands of operators, I can tell you this: Cap embroidery is not magic; it is physics. By following a strict "safe travel" workflow—Cap Mode → Driver Install → Magnetic Hooping → Trace → Stitch—you can achieve repeatable, commercial-grade results, even on your first run.

This guide will deconstruct the process using the Smartstitch control system as our classroom, but the principles applying to stabilizing, hooping, and speed control are universal for anyone looking to upgrade their production game.

Phase 1: The "Don’t Panic" Primer (Software Before Hardware)

Before you even touch a screwdriver, you must synchronize the machine's brain with its body. The most common crash happens because the operator installs a cap driver physically, but the machine still thinks it’s holding a flat hoop.

The "Safe Travel Map"

On the Smartstitch control panel (and most modern multi-needle machines), you must select the Cap Frame preset first (Icon #5 in the reference video).

Why? This limits the embroidery field's Y-axis motion. A flat sash frame can travel much further back than a cap driver. If you don't restrict this motion via software, the pantograph will slam the cap driver into the machine body.

When technicians discuss the operational parameters of a smartstitch embroidery frame, they aren't just talking about the metal hoop; they are referring to this software-hardware handshake. The frame mode is your safety fence. Set it first.

Phase 2: The "Hidden" Prep (Hardware Integrity)

Reliability in embroidery is 90% preparation and 10% stitching. The video highlights unlocking the cap driver mechanism before installation. This is a subtle but critical "Pro Move."

Rotary drivers rely on a bearing system to slide onto the machine's beam. If the latch is partially locked, you might force the driver onto the rail. It may feel tight, but it won't be seated. Under the vibration of 800 stitches per minute (SPM), a poorly seated driver will drift, causing your design to lose registration (outlines not matching the fill).

The "Clean Deck" Principle

Before mounting the driver, perform a 10-second inspection.

1. Clear the debris: Blow out the mounting holes on the beam. A single piece of thread or lint can introduce a 1mm wobble.
2. Check the "Hidden Consumables":
   • Needles: For structured caps (standard baseball hats), ensure you are using a Sharp Point 75/11 needle. Ballpoints often deflect off the hard buckram, causing needle breaks.
   • Bobbin: Ensure you have a full bobbin. changing a bobbin mid-cap is a recipe for alignment disaster.

Prep Checklist (Pre-Installation):

• Software: Machine is set to "Cap Mode" on the screen.
• Hardware: Cap driver latch is verified unlocked.
• Surface: Beam mounting points are wiped clean of lint/oil.
• Consumables: Fresh Sharp 75/11 needle installed in Needle #1.
• Safety: Bobbin case area is clear of loose threads.

Warning (Mechanical Hazard): Keep fingers, long hair, and loose sleeves (hoodie strings!) away from the needle bar and pantograph arm. A rotary cap setup moves rapidly and can pinch severely between the driver and the machine arm.

Phase 3: Driver Installation (The "Seat and Secure" Rhythm)

Installing the driver is where you establish rigidity.

1. Slide: Move the cap driver onto the pantograph rails until it hits the hard stop. Even pressure—don't wiggle it.
2. Align: Match the holes visually.
3. Finger-Tighten: Insert thumb screws. Sensory Check: You should be able to spin them down freely with two fingers. If you feel "gritty" resistance, you are cross-threading. Stop and back out.
4. Lock: Engage the driver latches.
5. Final Torque: Hand-tighten the screws firmly.

The "Solid Rock" Standard: Once installed, grab the driver and try to wiggle it up and down. It should move the entire machine base, not the driver itself. If there is any "play" or clicking sound, re-install.

Phase 4: The Magnetic Advantage (Hooping Logic)

This is the step that breaks most beginners. Traditional screw-tightened cap rings are difficult to master; you need the grip strength of a mechanic to get them tight enough to prevent "hoop burn" (the ring mark left on the fabric).

This is why the industry is shifting toward magnetic solutions. If you heavily research the magnetic embroidery hoop, you will find that its primary value isn't just speed—it's consistent tension without fabric damage.

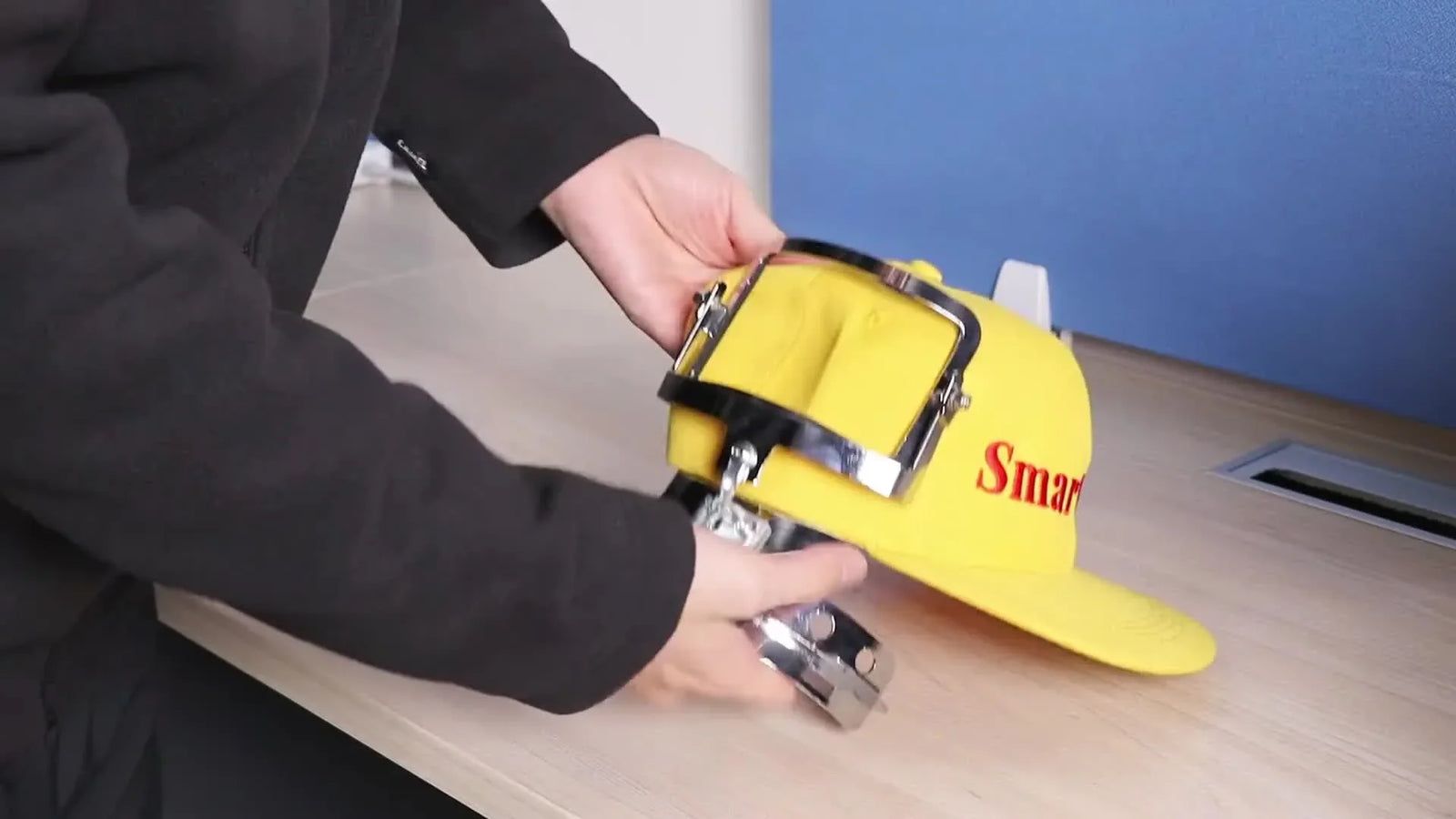

The Hooping Sequence (For Structure Cups)

1. Stabilize: Even with structured caps, use a piece of Tear-away stabilizer. It adds friction and prevents the cap from flagging (bouncing up and down).
2. Insert: Place the bottom curved unit inside the cap (under the sweatband).
3. Smooth: Use your thumbs to smooth the bill area and the front panels.
4. Snap: Align the top magnetic frame over the seams. Press down firmly.

Sensory Check: You are looking for a "Snap" sensation. The fabric should feel "drum-tight" across the front face. If you push on the embroidery area, it should not deflect easily.

Why Magnetic Hoops?

Caps are fighting three forces:

1. Buckram stiffness: Wants to stay flat (or curved).
2. Hoop pressure: Wants to flatten the curve.
3. Thread tension: Wants to pull the fabric inward (puckering).

A magnetic pocket hoop applies vertical clamping force evenly around the perimeter. This stops the cap from "walking" under the needle.

Warning (Magnet Safety): These are industrial-strength neodymium magnets. They can pinch skin painfully. Do not place them near pacemakers, insulin pumps, or credit cards. Keep distinct separation between the top and bottom frames when not in use.

Phase 5: Mounting and The "Shake Test"

Mounting the hooped cap to the driver is the "Moment of Truth."

1. Align: Match the hoop bracket holes to the driver pins.
2. Click: Snap it into place.
3. The Shake Test: Before you do anything else, give the bill of the cap a gentle but firm shake. Everything should move as one solid unit. If you hear a "clack-clack," the hoop is not fully seated on the pins.

If you are running a workflow involving a smartstitch hat hoop, this shake test is your cheapest insurance policy against a broken needle.

Phase 6: Digital Setup & The "180 Rule"

Standard caps are hooped "upside down" (bill facing out). Therefore, your design must be rotated.

1. Select Design: Load your logo.
2. Rotate: Select the 180° Rotate icon. Critical: Do this first. Embroidering a logo upside down is a rite of passage for every embroiderer, but let's try to skip it.
3. Needle Assignment: Set the design to Needle #1.

Why Needle #1? On multi-needle machines, the needle closest to the head (usually #1 or the last needle) often has the straightest drop path depending on the machine head geometry. For training, standardizing on Needle #1 simplifies troubleshooting. Many operators of the smartstitch 1501 use this "primary needle" method for high-volume runs to keep thread paths consistent.

Phase 7: The "Trace Ritual" (Avoid the Crash)

Never pressing 'Start' without tracing.

Press the Trace button. The machine will move the hoop to outline the design's square area.

• Visual Check: Watch the Red Laser Guide (or the needle itself). Does it come too close (within 5mm) to the metal hoop frame or the heavy bill?
• Clearance: Ensure the bill of the cap doesn't hit the machine head back.

Setup Checklist (The "Flight Check"):

• Mechanical: Hooped cap passed the "Shake Test."
• Digital: Design is rotated 180°.
• Position: Design is centered (Laser confirms center alignment).
• Safety: Trace completed successfully with no collisions.
• Environment: No scissors or spare bobbins resting on the machine table.


Phase 8: Stitching - Speed & Sound

You are cleared for takeoff. But how fast?

The "Sweet Spot" for Beginners: While machines can go faster, I recommend starting structured caps at 600 - 750 SPM (Stitches Per Minute).

• Too Slow (<400): You lose momentum; the needle may struggle to penetrate stiff buckram.
• Too Fast (>900): The cap produces "flagging" (bouncing), which leads to birdnesting (thread loops) and needle deflection.

Sensory Monitoring:

• Listen: A good cap sew-out sounds like a rhythmic "thump-thump-thump."
• Bad Sound: A sharp, metallic "click" or "slap" usually means the hoop is hitting the needle plate or the cap is flagging. Stop immediately.

Using a reliable pocket hoop for embroidery machine setup will generally allow for smoother operation at higher speeds compared to traditional clamps because the hold is more secure, dampening vibration.

Phase 9: The Clean Finish

When the machine stops:

1. Trim: Ensure the thread is trimmed.
2. Unload: Support the cap with two hands and disengage from the driver pins using a smooth motion. Do not yank or twist, or you will bend the driver pins over time.
3. Separate: Slide the magnets apart (don't pry them up) to release the cap.


Troubleshooting: The "Why Did That Happen?" Guide

Even with the best tools, issues arise. Use this matrix to diagnose typical cap embroidery failures.

The Decision Tree: When to Upgrade Your Toolkit?

Embroidery is a journey from "Making it work" to "Production Efficiency." At SEWTECH, we believe in upgrading when the bottleneck costs you money.

Use this decision tree to decide on your next investment:

1. Is "Hoop Burn" or Hooping Pain slowing you down?

• Yes: It is time to upgrade to Magnetic Hoops. They reduce wrist strain and eliminate ring marks on sensitive fabrics.
• No: Stick to standard hoops, but check your tension screws.

2. Are you doing production runs of 20+ caps?

• Yes: You need a Magnetic Hooping Station. This ensures every logo is placed in the exact same spot on every hat, reducing setup time by 50%.

3. Is changing thread colors killing your profit margin?

• Yes: If you are stopping every 2 minutes to re-thread a single-needle machine, you are losing money. This is the trigger to upgrade to a Multi-Needle Machine (like the SEWTECH 1501 series). The ability to load 15 colors and run continuous production is the only way to scale a cap business.

4. Is your embroidery puckering despite perfect hooping?

• Yes: Check your Stabilizer and Thread. Upgrade to premium backing and high-tensile polyester thread to ensure the foundation matches the quality of your machine.

Final Operation Checklist (Shutdown):

• Remove cap from driver gently.
• Inspect driver pins for bending.
• Clean lint from the bobbin area (caps generate a lot of dust).
• Store magnetic frames separated or with spacers to prevent accidental pinching.
• Log your settings (Speed, Tension) for the next run.

Mastering caps takes patience, but with the right workflow and the right tools, you can turn the most feared item in embroidery into your most profitable one.

FAQ

• Q: On a Smartstitch multi-needle embroidery machine, why must “Cap Frame/Cap Mode” be selected on the screen before installing a cap driver?
  A: Select Cap Mode first so the machine limits Y-axis travel and prevents the pantograph from crashing the cap driver into the machine body.
  • Tap the Cap Frame preset on the control panel before touching the hardware.
  • Install the cap driver only after the screen confirms the cap frame setting is active.
  • Run a Trace after mounting to confirm safe clearance.
  • Success check: During Trace, the laser/needle stays safely away from the metal frame and the cap brim with no near-hits.
  • If it still fails: Stop and re-check the selected frame preset—do not “Start” until the correct cap setting is confirmed.
• Q: During cap embroidery setup, what “hidden consumables” should be checked to prevent needle breaks and mid-cap alignment issues on a multi-needle machine?
  A: Replace the needle and confirm a full bobbin before caps to avoid breaks and registration loss.
  • Install a Sharp Point 75/11 needle for structured caps (buckram is stiff and can deflect a ballpoint).
  • Verify the bobbin is full to avoid stopping mid-design (stopping mid-cap often leads to alignment trouble).
  • Clear loose thread and lint from the bobbin/case area before the run.
  • Success check: The cap run starts cleanly with no early thread looping and no sudden stop for bobbin change.
  • If it still fails: Drop speed by 200 SPM and re-check needle condition and thread path for snags.
• Q: How can an operator tell if a magnetic cap hoop is clamped correctly to prevent cap “walking” and registration loss?
  A: The magnetic frame must fully “snap” and the cap face must feel drum-tight so the cap cannot shift under stitching.
  • Add one layer of tear-away stabilizer to increase friction and reduce flagging.
  • Smooth the front panels with thumbs before closing the top magnetic frame.
  • Press down firmly until a clear snap is felt around the perimeter.
  • Success check: Press the embroidery area—fabric should not deflect easily, and the cap should not creep when handled.
  • If it still fails: Re-hoop and ensure the top frame is aligned and fully seated before mounting to the driver.
• Q: When mounting a hooped cap onto a cap driver, what does a failed “Shake Test” mean and how should it be corrected?
  A: A “clack-clack” during the Shake Test usually means the hoop is not fully seated on the driver pins.
  • Align the hoop bracket holes precisely with the driver pins before snapping in.
  • Re-seat the hoop until it clicks solidly into place.
  • Avoid starting any trace or stitch cycle until the mount feels rigid.
  • Success check: Shaking the cap bill moves the entire unit as one piece with no clicking or looseness.
  • If it still fails: Remove and inspect for misalignment, debris on the mounting points, or incomplete engagement on the pins.
• Q: On cap embroidery, what is the safest way to avoid a hoop strike or collision before pressing Start?
  A: Always run Trace and verify at least 10–15 mm clearance from the brim and metal hoop before stitching.
  • Rotate the design 180° first (standard caps are hooped “upside down” with the bill facing out).
  • Press Trace and watch the laser/needle outline path closely.
  • Stop immediately if the path approaches the hoop or the brim too closely.
  • Success check: Trace completes with smooth motion and no contact risk; the brim does not hit the machine head back.
  • If it still fails: Re-center or reduce the design area and repeat Trace until the clearance is safe.
• Q: What speed range helps beginners reduce flagging, birdnesting, and needle deflection on structured cap embroidery?
  A: Use 600–750 SPM as a safe starting point for structured caps, then adjust based on sound and stability.
  • Start within 600–750 SPM to balance penetration and control.
  • Stop if a sharp metallic click/slap appears—this often signals flagging or contact.
  • If needle breaks occur, switch to a Sharp 75/11 or 80/12 Titanium needle and drop speed by 200 SPM.
  • Success check: The sew-out sounds like a steady “thump-thump-thump” with no slapping and no top-thread loops forming.
  • If it still fails: Re-hoop tighter, add tear-away stabilizer for friction, and check presser foot height (lower slightly if needed).
• Q: What are the key mechanical and magnetic safety rules when using a rotary cap driver and magnetic cap hoops on a multi-needle embroidery machine?
  A: Treat the cap setup as a pinch-and-impact hazard: keep clear of moving parts and handle magnets as industrial tools.
  • Keep fingers, hair, and loose sleeves away from the needle bar and pantograph arm during cap driver motion.
  • Separate magnetic top and bottom frames when not in use; slide them apart to release—do not pry upward.
  • Keep magnets away from pacemakers, insulin pumps, and credit cards; prevent accidental snap-together pinches.
  • Success check: Hands stay outside the driver travel area during Trace/stitching, and magnets are stored with safe separation/spacers.
  • If it still fails: Pause operations and re-train the loading/unloading routine before continuing production.
• Q: If cap embroidery keeps suffering from hoop burn, slow hooping, or inconsistent placement, what upgrade path makes sense from technique to tools to production capacity?
  A: Start with process fixes, then upgrade to magnetic hooping for consistency, and consider a multi-needle machine only when single-needle downtime is costing money.
  • Level 1 (Technique): Add tear-away for friction, re-hoop to drum-tight tension, always Trace, and run 600–750 SPM to control flagging.
  • Level 2 (Tool): Switch to magnetic hoops (and a hooping station for 20+ cap runs) to reduce hooping time and improve repeatable placement with less fabric marking.
  • Level 3 (Capacity): Move to a multi-needle machine when constant re-threading/color changes on a single-needle setup is the main bottleneck.
  • Success check: Caps show stable registration (outline matches fill) and setup time per cap drops noticeably run-to-run.
  • If it still fails: Audit stabilizer choice and thread quality, then log the exact speed/tension settings to repeat what works.
