The Multi-Needle Master Class: Taming the Brother PR1050X & Conquering "Un-Hoopable" Items

If you have ever held your breath while pressing the "Start" button on a structured cap, terrified that the bill is going to slam into the needle bar, you are not alone. Machine embroidery is 20% art, 30% science, and 50% "holding your breath."

But here is the truth I have learned after two decades in the industry: Fear comes from a lack of workflow.

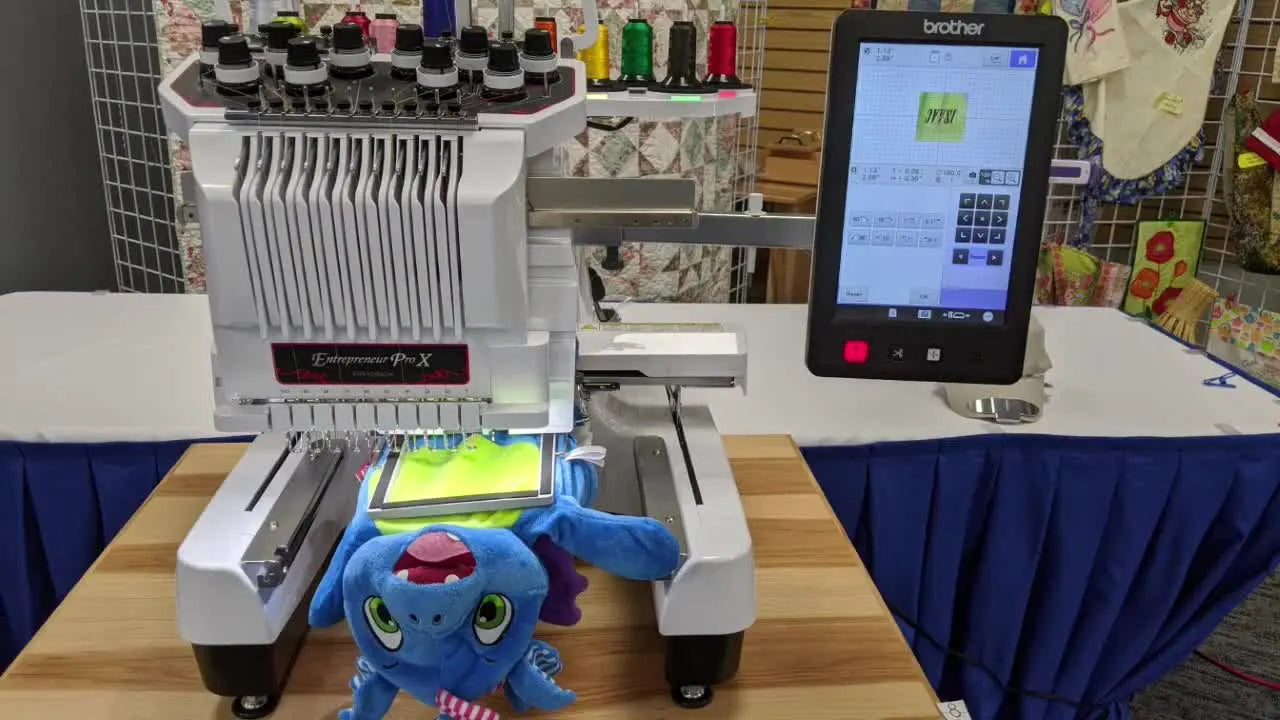

When you watch a demo of the Brother Entrepreneur Pro X PR1050X—or any high-end multi-needle machine—you aren't just seeing a machine; you are seeing a solution to the geometrical nightmare of stitching on 3D objects. Whether you are running a single-needle home machine and dreaming of an upgrade, or you just unboxed a beast like the PR1050X, this guide is your operational manual.

We are going to move beyond the manual’s "what" and dive into the "how" and "feel" of professional embroidery.

1. The Physics of the Free Arm: Why "Tubular" Changes Everything

The single biggest frustration for embroiderers moving from flatbed machines (like a sewing machine) to professional units is understanding tubular embroidery.

On a flatbed, gravity is your enemy. You have to fight to keep the rest of the garment out of the way. On a machine like the PR1050X (or our SEWTECH multi-needle equivalents), the free arm—that narrow beam that sticks out—allows gravity to become your friend.

The "Gravity Assist" Concept

When you load a onesie, a tote bag, or a sleeve onto a free arm, the excess fabric hangs down. This does two things:

1. Eliminates Drag: The weight of the garment isn't pulling against the pantograph (the driving arm).
2. Prevents "Sew-Shut" Disasters: The bottom layer of the tube naturally falls away from the needle plate.

For shop owners, this is the dividing line. If you are debating between a high-end single-needle and a brother 10 needle embroidery machine or similar multi-needle platform, the decision comes down to this: How much time do you spend wrestling fabric versus actually stitching?

2. The Invisible Phase: Prep, Consumables, and "The Ritual"

Before we even touch a hoop, we need to establish a "Zero-Fail" Prep Ritual. 80% of embroidery failures (birdnesting, thread breaks, shifting) happen because of what didn't happen before the machine started.

The Hidden Consumables List

Most manuals forget to tell you about the "silent partners" you need on your desk:

• Temporary Spray Adhesive (e.g., 505): Crucial for preventing shifts in applique or managing stabilizer.
• Tweezers (Curved Tip): Your fingers are too fat for the needle plate area. You need these for thread tails.
• Seam Ripper & Erasable Pens: For marking centers and fixing mistakes.
• Titanium Needles (75/11): If you are doing adhesive or heavy caps, standard needles heat up and gum up. Titanium stays cooler.

The "Floss Test" Tension Check

New users obsess over digital tension settings. Experts focus on the physical path. The Action: Pull a few inches of thread through the needle eye (presser foot down). The Feeling: It should feel like pulling dental floss through tight teeth—consistent, smooth resistance. If it jerks, your thread is hung up on the cone or caught in a guide. If it falls through, you have zero tension.

Warning: Never change a needle or touch the bobbin area while the machine is in "Ready" mode. These machines have high-torque motors. If your finger is in the strike zone and you accidentally hit 'Start', the needle will go through bone.

Prep Checklist (The "Pre-Flight" Routine)

• Oil Check: Has the rotary hook had its single drop of oil today? (Listen for a dry "chatter" sound—that’s bad).
• Bobbin Audit: Is the bobbin thread visible? Look for the "1/3 rule" on the back of a test stitch (1/3 white bobbin thread in the center).
• Needle Freshness: If you can't remember when you changed them, change them now. A $0.50 needle saves a $20 garment.
• Path Clearance: Spin the thread cones by hand. Ensure no thread has fallen under the cone creating a "catch point."

3. Mastering Cap Embroidery: The "Drum Skin" Standard

Caps are the nemesis of every embroiderer. They are curved, they have a stiff center seam, and they fight the needle. The Brother PR1050X cap system (and similar pro systems) relies on a Driver, a Gauge, and a Frame.

The Ratchet Procedure (Step-by-Step)

1. The Sweatband Flip: Flip the sweatband out. If you stitch over the sweatband, the hat won't fit the customer, and you might break a needle.
2. The Gauge Seat: Place the cap on the gauge. Ensure the sweatband is snug against the locators.
3. The Strap & Snap: Bring the metal strap over the bill/brim.
4. The Lock: Engage the ratchet.

Sensory Anchor: When tightening the band, you are looking for the "Goldilocks" zone.

• Too Loose: The cap front feels spongy. Result: Wavy letters.
• Too Tight: The brim starts to buckle or warp. Result: Distorted cap shape.
• Just Right: Tap the front panel. It should feel firm and supported, like a ripe melon, but not rock hard.

Speed Settings: The "Sweet Spot"

Just because a machine can do 1000 stitches per minute (SPM) doesn't mean it should on a structured cap.

• Expert Advice: Slow down. For structured hats with a center seam, drop your speed to 600-700 SPM. This gives the needle bar time to penetrate the hard buckram without deflecting.

Improving Consistency

If you struggle with alignment, search for a hooping station for brother embroidery machine. These are external fixtures that hold the gauge steady, preventing the "wobbly hand" error that leads to crooked logos.

4. The Cap Driver Loading: The 90-Degree Twist

Loading the hooped cap into the machine is where costly collisions happen.

The Move:

1. Rotate the cap 90 degrees (sideways).
2. Slide the driver ring onto the machine’s rotary axis bar.
3. Rotate back to center until you hear a sharp CLICK.
4. The Jiggle Test: Grab the frame gently and give it a tiny shake. It should be rock solid. If it wobbles, it is not locked, and you are about to break a needle driver.

5. Onesies and Sleeves: The "Pinch Test" Survival Skill

Larissa’s demo of the onesie is critical because onesies are stretchy and small. This is where the Free Arm shines, but also where the "Sew-Shut" disaster lurks.

You use the appropriate sleeve hoop or arm fixture. You slide the leg opening on. The back hangs down.

The "Pinch Test" (Do this EVERY time)

Before you hit start, put your thumb inside the tube (under the hoop) and your finger on top of the fabric. The Action: Pinch the top layer and lift slightly. The Check: Can you feel the separation? If you feel two layers of fabric rubbing against each other, STOP. You have caught the back layer.

This two-second check saves you 30 minutes of seam ripping.

6. The Clamp Frame Strategy: Solving the Un-Hoopable

For tote bags with heavy zippers, stiff canvas, or shoes (like the sneaker tongue shown), standard hoops fail. They "pop" off because the inner and outer rings can't grip the thickness.

Enter the Clamp Frame.

The Grip Physics

Clamp frames use powerful springs or levers to apply vertical pressure. They require friction, not nested rings.

• Benefit: Zero "hoop burn" (those shiny rings left on dark fabric).
• Risk: If the canvas is slippery, it can slide.
• The Fix: Use a layer of non-slip backing (like a grip tape or specialized velvet-texture stabilizer) if you are doing slick nylon bags.

Shoe Embroidery: This requires a specialized "Shoe Clamp." It holds the tongue open. Note that the embroidery field is very small/narrow. Do not try to force a large design onto a shoe; the needle bar will hit the rubber sole. Words like cap hoop for brother embroidery machine often confuse beginners—shoes need shoe clamps, not cap frames.

7. The Upgrade Logic: When to Buy What?

You don't need every accessory on Day 1. You upgrade based on Pain Points.

Scenario A: "My wrists hurt and I hate the marks traditional hoops leave."

• The Problem: Traditional hoops require muscle to force rigid rings together. This causes physical fatigue and damages delicate fabrics (hoop burn).
• The Solution: Magnetic Hoops (Level 2 Upgrade).
  • SEWTECH Magnetic Hoops slide together and snap shut with magnets.
  • Why convert? They are faster to load (productivity) and gentle on fabric (quality). They are essential for a magnetic hoop for brother pr1050x setup.
  • Benefit: They hold thick material (towels, jackets) that standard hoops can't grip.

Warning: Magnetic Safety
Modern magnetic hoops use Neodymium magnets. They are incredibly strong.
* Pinch Hazard: They can crush fingers if they snap together unexpectedly.
* Medical Device Safety: Keep them at least 6 inches away from pacemakers or insulin pumps.
* Electronics: Do not place them directly on the machine's LCD screen or near credit cards.

Scenario B: "I have outgrown my single needle."

• The Problem: You are spending 10 minutes changing threads for every 5 minutes of stitching. You can't take orders for 50 shirts because it would take a week.
• The Solution: Multi-Needle Machine (Level 3 Upgrade).
  • Machines like the brother pr1055x or SEWTECH multi-needle equivalents offer automatic color changes.
  • The ROI: You press start and walk away. The machine handles the 12 colors.


8. Stabilizer Decision Tree: The Engineering Choice

A machine is only as good as the Stabilization (Backing). Stop guessing. Use this logic tree.

Decision Tree: Fabric Type → Stabilizer Choice

1. Is the fabric STRETCHY? (T-shirt, Onesie, Polo)
   • Yes: You MUST use Cut-Away (2.5oz - 3.0oz).
     • Why? Knits deform when punctured. Tear-away will disintegrate and your design will ball up.
   • No: Proceed to 2.
2. Is the fabric UNSTABLE but non-stretch? (Thin Woven, Linen)
   • Yes: Use Tear-Away + Temporary Spray Adhesive. Maybe a light Cut-Away for dense designs.
   • No: Proceed to 3.
3. Is the fabric HEAVY structure? (Carhartt Jacket, Canvas Tote)
   • Yes: Use Tear-Away. The fabric supports itself; the stabilizer just reduces friction.
4. Does it have PILE/FUZZ? (Towel, Velvet, Fleece)
   • Yes: You need a Topper (Water Soluble / Solvy).
     • Why? Prevents stitches from sinking into the fur.

9. Troubleshooting Guide: The "ER" Protocol

When things go wrong, do not panic. Use this hierarchy (Cheapest Fix to Expensive Fix).

10. Operational Checklist: The Final Countdown

Print this out. Tape it to your machine.

• Design Orientation: Is the design right-side up relative to the person wearing it? (Caps are often upside down in the file!).
• Hoop Clearance: Do a "Trace" (Design outline check). Does the foot hit the plastic/metal frame?
• Bobbin Check: Do you have enough bobbin left to finish the run?
• Thread Path: Are any threads tangled at the tree?
• The Pinch Test: (For tubular items) Are the layers separated?








Whether you are looking for fast frames for brother embroidery machine to speed up production, or hunting for the discontinued PR1050X, remember that the machine is just a tool. Your skill lies in the setup, the hooping, and the stabilization.

Master the prep, respect the physics of the hoop, and upgrading to tools like brother pr1050x hoops or magnetic frames will feel like a superpower rather than just a purchase. Happy stitching!

FAQ

• Q: How can Brother PR1050X users prevent birdnesting (thread wads under the needle plate) during startup?
  A: Re-thread the Brother PR1050X completely with the presser foot UP, because birdnesting most often happens when the top thread has zero tension from an incorrect thread path.
  • Action: Raise the presser foot, remove the thread, and re-thread from cone to needle in the correct order.
  • Action: Pull a few inches of thread through the needle eye with the presser foot DOWN (“floss test”) before pressing Start.
  • Success check: The thread pull feels like dental floss through tight teeth—smooth, consistent resistance, not jerky and not free-falling.
  • If it still fails: Inspect whether the thread cone spins freely and is not catching under the cone or on a guide, then re-thread again.
• Q: How do Brother PR1050X owners perform the “floss test” to confirm the embroidery thread tension path is correct?
  A: Use the Brother PR1050X “floss test” to verify the physical thread path instead of chasing digital tension settings.
  • Action: Thread the machine normally, then lower the presser foot.
  • Action: Pull several inches of top thread through the needle eye by hand.
  • Success check: The pull feels steady and smooth (like floss); jerky resistance suggests a snag in the path, and a free-fall feel suggests no effective tension.
  • If it still fails: Re-seat the thread in every guide/tension point and make sure the thread is not hung on the cone or caught at the thread tree.
• Q: What is the safest way to avoid needle injury when servicing the Brother PR1050X needle or bobbin area?
  A: Never change a needle or touch the bobbin/needle plate area while the Brother PR1050X is in “Ready” mode.
  • Action: Exit “Ready” mode before hands go near the needle bar or rotary hook area.
  • Action: Keep fingers out of the needle strike zone when powering on or preparing to stitch.
  • Success check: The machine is not in a state where a single Start press can drive the needle immediately.
  • If it still fails: Follow the Brother PR1050X manual’s service/safety sequence for the exact screen state and lockout behavior.
• Q: What is the correct Brother PR1050X structured cap embroidery speed to reduce needle deflection and breaks on buckram caps?
  A: Slow the Brother PR1050X down to 600–700 stitches per minute for structured caps, especially with a center seam.
  • Action: Set the cap job speed to the 600–700 SPM range before starting the design.
  • Action: Watch the first minute of stitching to confirm the needle penetrates cleanly without “bouncing.”
  • Success check: Fewer needle snaps and cleaner, more stable lettering with less waviness on the cap front.
  • If it still fails: Re-check cap tightening (“Goldilocks” firm-but-not-warped) and verify the cap frame is fully locked before stitching.
• Q: How do Brother PR1050X users prevent cap frame collisions by loading the cap driver correctly with the “90-degree twist”?
  A: Load the Brother PR1050X cap driver by rotating the hooped cap 90 degrees, sliding onto the rotary axis bar, then rotating back until it clicks.
  • Action: Rotate the cap/frame sideways (90 degrees) before bringing it to the machine.
  • Action: Slide the driver ring onto the machine’s rotary axis bar, then rotate back to center until a sharp CLICK is heard.
  • Success check: Perform the “jiggle test”—the cap frame feels rock solid with no wobble.
  • If it still fails: Remove and re-seat the driver; do not start stitching until the frame locks without play.
• Q: How can Brother PR1050X users avoid sewing sleeves or onesies shut when doing tubular embroidery on the free arm?
  A: Do the Brother PR1050X “pinch test” every time before pressing Start to confirm the back layer is not trapped under the hoop area.
  • Action: Put a thumb inside the tube (under the hoop area) and a finger on top, then pinch and lift the top layer slightly.
  • Success check: The layers feel clearly separated; if two layers rub together, the back layer is caught and the item will sew shut.
  • If it still fails: Reposition the garment on the free arm so the excess fabric hangs down naturally and re-check separation before stitching.
• Q: What magnetic hoop safety rules should Brother PR1050X users follow when using neodymium magnetic embroidery hoops?
  A: Treat Brother PR1050X-compatible magnetic hoops as pinch-hazard tools and keep them away from medical devices and sensitive electronics.
  • Action: Keep fingers clear when bringing magnetic hoop rings together; let them close in a controlled way.
  • Action: Keep magnetic hoops at least 6 inches away from pacemakers or insulin pumps.
  • Success check: The hoop closes without finger pinches and is not placed on/near the machine’s LCD screen or near cards/devices that can be affected by magnets.
  • If it still fails: Pause usage and change handling technique (separate hands, slow closure) before returning to production.
