Chenille Patches on the Ricoma MCC-061501: The Exact Chroma-to-Panel Workflow That Keeps Loops Clean (and Customers Coming Back)

Chenille patches—those nostalgic, plush icons of varsity jackets—are deception in physical form. They look soft and effortless, but manufacturing them requires a brutal amount of tension, precision, and physics management.

The difference between a patch that sells for $40 and one that ends up in the scrap bin usually comes down to "containment." Chenille loops are unruly; they want to explode outward. Your job, as the operator, is to build a fortress around them.

In this guide, we are going to move beyond basic buttons. We will break down the workflow for the Ricoma MCC-061501 (a common combo machine) using a "safety-first" approach that prioritizes consistent sell-ability over raw speed.

The “Don’t Panic” Primer: Understanding the Combo Beast

The Ricoma MCC-061501 isn’t just one machine; it’s two distinct mechanical systems sharing a chassis.

• Head 1 (The Artist): A standard 15-needle embroidery head responsible for crisp details and borders.
• Head 2 (The Weaver): A single-needle chenille head that feeds yarn from the bottom to create loops (moss stitch) or chains.

The Cognitive Shift: unlike standard embroidery where you just hit "Start," combo work requires you to act as a traffic controller. You must tell the machine exactly when to switch from "painting" (Embroidery) to "weaving" (Chenille). If you get this sequence wrong, you don’t just ruin a patch; you risk driving a needle into the wrong plate.

The “Hidden” Prep: Materials That Prevent Puckering

Most beginners fail here because they treat chenille like a logo on a polo shirt. Chenille puts massive stress on fabric. If your foundation flexes, your loops will bulge, and your borders will misalign.

The "Sweet Spot" Material Matrix

Do not guess. Use this trusted setup for patches:

• Stabilizer: Use 2.5oz to 3.0oz Cutaway. Do not use tearaway. For chenille, you need a stabilizer that fights back.
• Fabric: Felt or Twill. Avoiding stretchy fabrics is the best way to keep your sanity.
• Yarn: Acrylic/Wool blend specific for chenille (Size roughly equivalent to Tex 200-300 depending on needle).
• Needles: Chenille machines often use specific needle systems (like the DBxK5). ensure your embroidery head has a sharp 75/11 for the satin border to cut through that thick yarn.

Hidden Consumables Checklist:
* Temporary Spray Adhesive (KK100): Essential for laminating fabric to stabilizer so they move as one unit.
* Curved Trimming Scissors: For snipping jump threads without diving into the loops.
* Lighter: To singe the edges of the yarn after trimming.

Prep Checklist (Pre-Digitizing):

• Confirm you have the Chenille Module serial number (for software activation).
• Stage Heavy Cutaway Stabilizer (2.5oz+) cut larger than your 20x20 frame.
• Check your yarn path: Is the yarn feeding smoothly from the bottom without tangles?
• Sensory Check: Tap your sash frame clips. They should feel rigid, not wobbly.


Activate the Chroma Chenille Module: The Administrative Gate

Before you can design, you must unlock the toolset. This is a one-time administrative hurdle, but often a source of frustration.

The Action Sequence:

1. Open Chroma Luxe.
2. Navigate: Help → Activation.
3. Product Dropdown: Select Chenille.
4. Input: Type the serial number exactly as provided.
5. Restart: Close and reopen the software to initialize the new tools.

Note: You do not need the highest tier of Chroma for this; the module is an add-on.

Digitizing Chenille: The "Magic Wand" Trap

The video demonstrates using the Magic Wand to select areas for Chenille Fill. While this is fast, automated tools are notorious for creating jagged edges.

Expert Refinement: Use the Magic Wand to get the rough shape, but then zoom in (200%+) and clean up the nodes. Chenille loops are bulky; they cannot handle sharp 90-degree turns well. Smooth out your curves.

When you finish a section (e.g., the orange basketball fill), you must Right-Click to terminate that specific tool function before switching to the Complex Fill or Satin tool for the embroidery parts. This logical separation is vital for the machine to understand "Stop looping, start stitching."

If you rely on ricoma embroidery machines or similar combo units, your digitizing file is your manufacturing blueprint. A messy input equals a messy output.

The "Containment Wall": Border Settings That Actually Work

This is the most critical technical data point in the entire process. The satin border is not just decoration; it is a dam holding back a flood of yarn.

The "Sweet Spot" Settings:

• Density: 0.30mm - 0.35mm (Standard satin is 0.40mm). You need this density high (lower number) to prevent loops from poking through.
• Pull Compensation: 110% - 115%.
• Width: Minimum 3.5mm. Anything thinner than 3mm will struggle to cover the rough edges of the chenille.

The Physics of Why: Chenille has "loft" (height). When the embroidery foot comes down to stitch the border, it compresses the yarn. If the column is too narrow or the density too loose, the yarn pops back up through the stitches, creating a "ragged" look that customers hate.

Texture Strategy: Spiral vs. Lattice

You have two main choices for how the loops fill the space. This isn't random; it's a design language.

1. Lattice (Crosshatch): stitches in grids.
   • Result: A flatter, more rugged, "carpet-like" texture. Good for geometric shapes.
2. Spiral (Concentric): Stitches in circles working inward (or outward).
   • Result: A higher loft, softer, "plush toy" feel. Ideal for round objects (like the basketball in the example) or letters.

Visual Check: Use the Slow Redraw simulator in Chroma. Watch the path. Crucial: Ensure the chenille fills before the satin border runs. The border must always be on top to hide the raw edges of the yarn.

Hardware Awareness: Know Your Heads

The Ricoma MCC-061501 setup forces you to be spatially aware.

• Head 1 (15 Needles): Top thread feed. This acts like your standard commercial machine.
• Head 2 (Chenille): Bottom yarn feed. Requires a rotary hook system designed for "Chain" and "Moss" (loop) stitches.

Safety Check: Ensure there is no obstruction between the heads. When the pantograph (the table moving the hoop) shifts from Head 1 to Head 2, it travels a significant distance. Keep scissors and spare hoops out of this "no-fly zone."

The Control Panel: Programming the "Hand-Off"

This is where 80% of errors occur. You have loaded the design, but the machine doesn't know how to stitch it until you map the colors.

The Protocol:

1. Load Design and go to Color Settings.
2. Mode Check: The default is usually "Flat." For chenille steps, switch the mode to Loop.
3. Color Mapping (The Sequence):
   • Step 1 (Chenille Fill): Assign to a Chenille Needle. Set to Loop Mode.
   • Step 2 (Chenille Detail): Assign to Chenille Needle. Set to Chain Mode (if doing outlines).
   • Step 3 (Satin Border): Assign to an Embroidery Needle (e.g., Needle 1). Set to Flat Mode.
4. Loop Height: Set to 3 (Factory Standard). Raising this to 4 or 5 creates shaggier patches but increases the risk of the foot catching loops. Stick to 3 for now.

If you are looking to optimize your shop, correct panel mapping is just as vital as using a hooping station for embroidery; both prevent downtime caused by human error.

Hooping: The "Drum-Tight" Directive

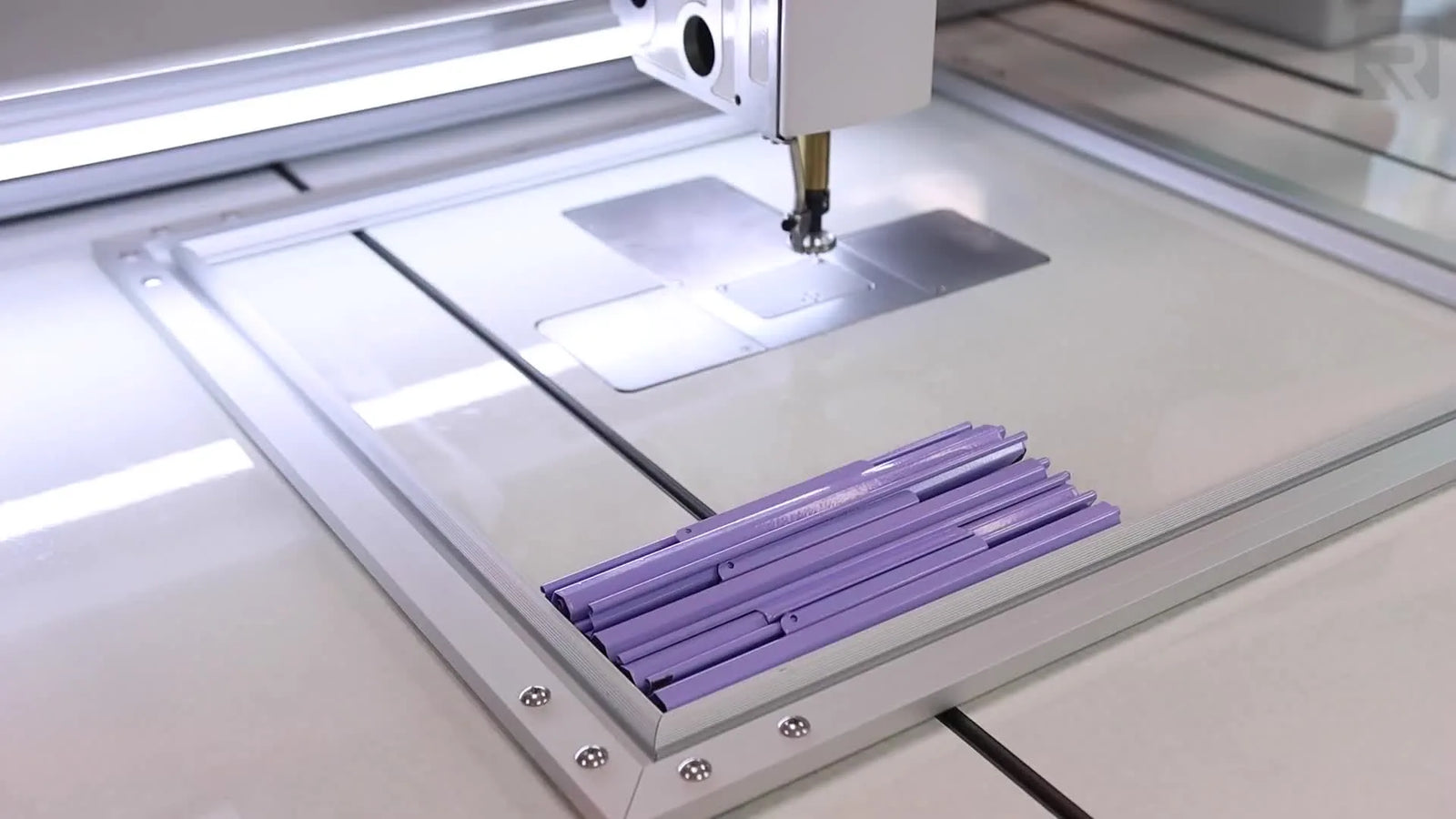

The video uses a 20x20 sash frame. Here is the reality check: Sash frames are versatile, but they are notoriously difficult to get tight enough for thick patch production.

The Risk: Heavy chenille stitching creates a "push" effect. If your stabilizer is even slightly loose, the fabric will wave, and by the time the machine gets to the final border, your alignment will be off by 2-3mm.

The Solution Hierarchy:

1. Standard Sash Frame: Use clips every 2 inches. Hand-tighten, then dismantle and tighten again.
2. Upgrade Path: For consistent production, magnetic hooping station systems combined with magnetic embroidery hoops are superior. They clamp the thick "Fabric + Stabilizer" sandwich instantly without the need for manual screw tightening. This eliminates "Hoop Burn" and operator wrist fatigue.

Sensory Anchor: Tap the hooped stabilizer. It should emit a low-pitched thud like a drum. If it sounds like paper rattling, it is too loose. Remount it.

Warning (Safety): Magnetic frames are industrial tools with crushing force. They can pinch fingers severely. Never place fingers between the magnets. Users with pacemakers should maintain a safe distance as recommended by the manufacturer.

The Run: Sensory Monitoring

Press Start. But do not walk away.

What to Listen For:

• Chenille Head: You should hear a rhythmic thump-thump. A sharp clack indicates the needle might be hitting the needle plate or the loop mechanism is jamming.
• Speed: Do not run at max speed.
  • Chenille Safety Speed: 550 - 650 SPM.
  • Embroidery Border Speed: 700 - 800 SPM.
  • Why? Chenille yarn needs a millisecond to "relax" into the loop. Running too fast pulls the loop flat.

Setup Checklist (The "Flight Check"):

• Panel Mode: Is the first step set to Loop (not Flat)?
• Loop Height: Set to 3.
• Clearances: Is the pantograph path clear of obstructions?
• Sensory Check: Is the yarn spool spinning freely? Any resistance will flatten your loops.


Troubleshooting Guide: The "Symptom-Fix" Matrix

When things go wrong, use this logic flow.

Warning (Physical): Sash frames carry significant momentum. Keep your head and hands well clear of the moving pantograph. Never reach into the frame area while the chenille head is active—the needle bar moves differently than you expect.

Finishing: The Retail Polish

The patch isn’t done when the machine stops.

1. Inspect: Look for "jump loops" (loops that crossover unintended areas). Snip them with curved scissors.
2. Trim: Cut the stabilizer close to the satin edge—but be careful not to nick the satin stitches.
3. Heat: Use a heat gun or lighter (quickly!) to singe any fuzzy yarn fibers sticking out of the border. This gives it that crisp, manufactured look.

Operation Checklist (Post-Run):

• Verify the Satin Border completely encapsulates the chenille edges.
• Check the back: Is the bobbin tension even? (No massive birdnests).
• Clean the chenille head: Lint builds up fast. Brush it out after every 5-10 patches.

Decision Tree: Fabric & Stabilizer Selection

Use this logic to avoid ruined garments.

• Scenario A: Making a Standalone Patch?
  • Foundation: Heavy Twill + 2 layers of 2.5oz Cutaway.
  • Hoop: Sash Frame or magnetic embroidery frame (Mag frames prevent hoop marks on the twill).
• Scenario B: Stitching Direct to Cardigan/Jacket?
  • Foundation: 1 layer Heavy Cutaway (Adhered with Spray) + 1 layer floating Cutaway.
  • Hoop: magnetic embroidery hoops are virtually mandatory here to hold the thick seam/placket without crushing the zipper or buttons.

The Growth Path: From Hobby to Production

Creating one perfect patch is art; creating 500 is a business. As you scale, the bottlenecks shift from "How do I digitize?" to "How fast can I hoop?"

1. Level 1 (Technique): Master the settings in this guide.
2. Level 2 (Workflow): Invest in a mighty hoop for ricoma or similar magnetic system. The speed gain from not screwing/unscrewing frames creates massive ROI on large runs.
3. Level 3 (Capacity): When your single-head Ricoma can't keep up, move to multi-head solutions like the SEWTECH line, allowing you to run 4, 6, or more patches simultaneously.

Chenille is a premium product. Treat the process with respect, respect the physics of the yarn, and upgrading your tooling only when your volume demands it. Now, go load that yarn and make something tangible.

FAQ

• Q: What stabilizer and base fabric should be used to prevent puckering on Ricoma MCC-061501 chenille patches?
  A: Use 2.5oz–3.0oz cutaway stabilizer with felt or twill; avoid tearaway for the main hooping.
  • Laminate fabric to stabilizer with temporary spray adhesive so both layers move as one unit.
  • Cut stabilizer larger than the 20x20 sash frame to reduce edge flex.
  • Add a floating layer only as a quick rescue, not as the main structure.
  • Success check: the hooped “fabric + stabilizer” feels rigid and stays flat with no waving during the run.
  • If it still fails, re-hoop with heavier (3.0oz) cutaway instead of adding more tearaway.
• Q: How can Ricoma MCC-061501 operators tell whether a 20x20 sash frame hooping is tight enough for chenille patch alignment?
  A: Re-hoop until the setup is truly drum-tight; slightly loose hooping is enough to cause 2–3 mm border misalignment.
  • Clip aggressively (about every 2 inches), hand-tighten, then dismantle and tighten again.
  • Tap the hooped stabilizer and compare the sound before stitching.
  • Keep the “fabric + stabilizer sandwich” uniformly clamped with no soft spots near the edges.
  • Success check: the hoop produces a low-pitched “thud” like a drum (not a papery rattle).
  • If it still fails, switch to a magnetic hooping setup to remove screw-tightening inconsistency and reduce hoop burn.
• Q: What satin border settings prevent chenille loops from spilling out on Ricoma MCC-061501 chenille patches?
  A: Build a containment wall: increase satin density and width so the border fully covers compressed yarn edges.
  • Set satin density to 0.30–0.35 mm (tighter than typical 0.40 mm satin).
  • Set pull compensation to 110%–115%.
  • Keep satin width at least 3.5 mm (4 mm is a common safe target in this workflow); avoid under 3 mm.
  • Success check: the finished satin border completely encapsulates chenille edges with no loops poking through.
  • If it still fails, smooth sharp corners in the digitizing (chenille does not like tight 90° turns) and re-run the simulator to confirm border stitches on top.
• Q: Why does the Ricoma MCC-061501 stitch chenille steps flat instead of making loops, and how can the control panel be corrected?
  A: This is usually a Color Settings mode-mapping mistake—set the chenille steps to Loop (and Chain when needed) before running.
  • Stop immediately if flat stitching starts where loops should be.
  • Open Color Settings and assign the chenille fill step to a chenille needle in Loop mode.
  • Assign chenille outline/detail (if used) to Chain mode, and keep the satin border on an embroidery needle in Flat mode.
  • Success check: Slow Redraw (or the stitch sequence view) shows chenille fill first, then satin border on top.
  • If it still fails, reload the design and re-map each step carefully; do not start until the first step is confirmed as Loop.
• Q: What are the safest starter speeds and loop height for running chenille on a Ricoma MCC-061501 combo machine?
  A: Run slower than maximum: 550–650 SPM for chenille and 700–800 SPM for the embroidery border, with loop height set to 3.
  • Set loop height to 3 (factory standard) before the first production run.
  • Reduce speed if loops look flattened or inconsistent, especially on dense fills.
  • Listen actively during the first minutes rather than walking away.
  • Success check: the chenille head sounds like a steady rhythmic “thump-thump,” not a sharp “clack.”
  • If it still fails, stop and check for yarn feed resistance or a jam near the loop mechanism before increasing loop height.
• Q: What causes bald spots (missing chenille loops) on Ricoma MCC-061501 patches, and what is the fastest fix?
  A: Bald spots usually come from yarn break/tangles or yarn tension that is too high—restore smooth feed first.
  • Check the bottom yarn path for tangles and confirm the yarn spool spins freely.
  • Loosen yarn tension if the yarn looks strained or keeps snapping.
  • Inspect whether the needle is dull and replace if needed (chenille is sensitive to wear).
  • Success check: loops return evenly with no skipped areas across the fill.
  • If it still fails, slow the chenille speed and re-check for intermittent drag in the yarn path.
• Q: What safety rules prevent injuries when switching between embroidery and chenille heads on the Ricoma MCC-061501, and what extra safety applies to magnetic frames?
  A: Treat the MCC-061501 like two machines sharing one moving table—keep hands/tools out of the pantograph travel zone, and handle magnetic frames as pinch-hazard tools.
  • Clear the “no-fly zone” between heads before starting (no scissors, spare hoops, or tools on the table path).
  • Never reach into the frame area while the chenille head is active; the motion is not the same as standard embroidery.
  • If using magnetic hoops/frames, never place fingers between magnets and keep pacemaker users at a manufacturer-recommended safe distance.
  • Success check: the pantograph can travel head-to-head without any obstruction and without the operator needing to “grab” anything mid-run.
  • If it still fails, stop the machine fully, remove power if required by shop policy, then re-stage tools away from the moving area before restarting.
