Circular Stitch Attachment, Standalone Lace, and Serger Differential Feed: The “Small Tweaks” That Stop Ruined Fabric (and Save Hours)

Circular attachments, lace files, and knit serging often feel like three distinct, terrifying disciplines. However, after two decades in production sewing and embroidery education, I can tell you they share a single, fundamental DNA: controlling fabric under stress.

Whether you are a hobbyist afraid to cut into expensive silk or a shop owner tired of ruining blanks, the physics remain the same. In this comprehensive guide—rebuilt from Martha Pullen’s classic techniques and fortified with modern production standards—we will dismantle the fear of complex attachments.

We are going to move beyond "hope and pray" stitching. Instead, we will apply engineering principles to prevent the three most common disasters: blown-out centers on circular work, collapsing lace, and waving knit seams. This is your blueprint for moving from amateur guessing to professional consistency.

Calm the Panic: Circular Stitch Attachment Pins, Lace Mesh, and Serger Blades Only Look Scary

If your fabric is already puckering, your knit seam is waving like a rollercoaster, or your center point looks like a bullet hole—stop immediately.

Most "ruined" projects are not a lack of talent; they are a failure of physics. Specifically, the fabric is shifting faster than the needle can capture it. Unlike standard straight stitching, circular attachments and sergers apply radial and lateral stress.

The core fixes we will implement are:

1. Chemical Stabilization: Using iron-on layers before mechanical rotation starts.
2. Physical Shielding: Protecting pivot points with sacrificial layers.
3. Pressure Management: Reducing presser-foot force to allow rotation without drag.
4. Differential Feeding: Mathematically adjusting the feed dogs to counteract knit stretch.

These are not just sewing tricks; they are the exact same principles that govern industrial embroidery hooping. If you are scaling up to production, you will find that treating your fabric prep like a rigorous engineering step is the only way to build repeatable hooping stations for daily volume.

Warning: Mechanical Safety. Keep fingers, hair, hanging jewelry, and loose sleeves strictly away from circular attachments and serger blades. Circular attachments pivot the fabric unexpectedly, and sergers cut instantly. Always start at a "crawl speed" (approx. 200 SPM) for the first 3 inches until you visually confirm the feed is safe.

The “Hidden” Prep for Circular Stitch Attachment Success: Stabilizer Layers + a Center-Point Shield

Circular stitching creates a unique "torque" on the fabric. The needle pulls the fabric forward while the pin anchors it in place. If the fabric has even 1% stretch, the center hole will wallow out, and your circle will become an oval.

To prevent this, we must create a rigid "sandwich" that mimics the stability of a drum head.

The Physics of Stability (Why Chris Tryon’s Method Works)

Chris starts by fusing an iron-on stabilizer to the back of the entire work area. This arrests the deeper fibers of the fabric, preventing internal shifting.

• Expert Adjustment: If your decorative stitch is dense (e.g., a satin stitch wider than 3mm), add a layer of tearaway stabilizer underneath. This acts as a shock absorber.

The "Sacrificial Shield" Technique

The most critical step is applying blue painter’s tape to both the top and bottom of the fabric at the center pivot point.

• Why Top & Bottom? The pin enters from the top (stress point A) and exits the bottom (stress point B).
• The Result: The tape takes the abrasion of the rotation, not your delicate silk or cotton. It distributes the torque force across a square inch rather than a single thread.

Prep Checklist (Do verify this before the first stitch)

• Substrate Selection: Fabric is substantial (Decor weight/Canvas) or heavily interfaced.
• Adhesion Check: Iron-on stabilizer is fully fused. Sensory Check: The fabric should feel stiffer, like cardstock, with no bubbling when flexed.
• Center Shield: Painter's tape applied to both sides of the pivot point.
• Pre-Flight Test: Manually push the pin through the tape/fabric sandwich. Sensory Check: It should require firm pressure and stay vertical, not wobbling.
• Template Verification: If you lack a template, stitch a test circle on scrap denim to measure the exact radius.

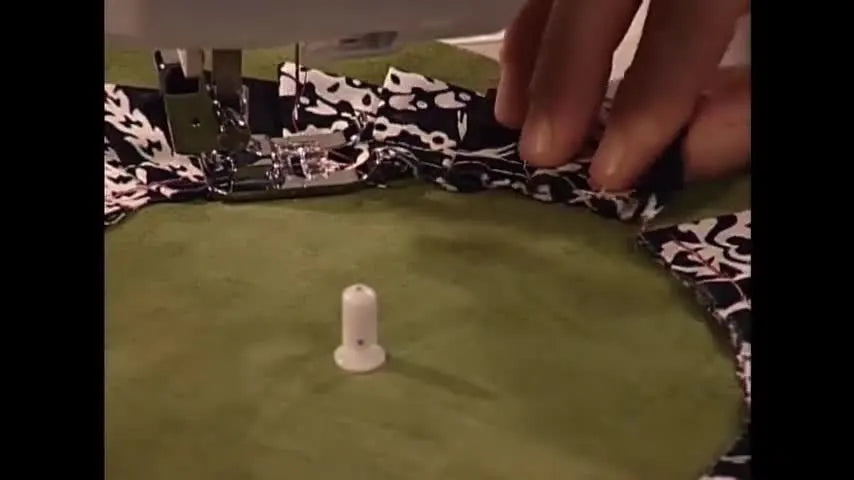

Stitch a Circular Ruffle Without Fighting the Fabric: Let the Attachment Rotate, You Just Steer

Attaching a ruffle in a perfect circle is a test of "steering vs. forcing." The most common mistake beginners make is gripping the fabric too tightly, which distorts the radius.

Ruffle Prep Protocol

1. Cut & Press: Cut a strip (approx. 3 inches wide), fold in half, and press.
2. Gather: Use a ruffler foot or gathering stitch.
3. Flatten: Press the gathers flat using steam. Critical: Flat gathers feed under the foot; puffy gathers get stuck and cause skip stitches.

Operation: The "Hands-Off" Guide Technique

1. Set your machine speed to medium-low (~400-500 SPM).
2. Align the ruffle's raw edge with your pre-stitched guide circle.
3. The Golden Rule: Let the attachment rotate the fabric. Your hands should only gently guide the ruffle strip to meet the needle. Do not push the main fabric.

Why this matters for production: When you "help" the machine by pushing, you introduce variable tension. In the world of commercial embroidery, this same variable tension is what causes "hoop burn" or puckering. This is why professional shops transition to magnetic embroidery hoops for difficult jobs. Magnets provide consistent, calculated vertical pressure that human hands cannot replicate perfectly every time.

Cover the Raw Edge Like a Pro: Braiding Foot + Lower Presser-Foot Pressure (1–2)

Once the ruffle is attached, you are left with a raw, bulky edge. Covering this with braid or ribbon is standard, but doing it in a circle often leads to "feed drag," where the machine marches in place.

The Problem: Friction

Standard presser-foot pressure (usually set to '3' or '4' on a scale of 1-4) clamps the fabric too hard against the feed dogs for circular rotation, especially with the added bulk of a ruffle.

The Fix: Reduce Pressure

Chris recommends dialing the presser-foot pressure down to 1 or 2.

• Sensory Check: With the foot down, you should be able to pivot the fabric slightly with your hand without ripping it. It should feel secure but not "locked."

Machine Setup for Dimension

Use a Triple Straight Stretch Stitch. This places three thread layers for every visible stitch step.

• Visual Check: The stitch should look thick and rope-like, sitting on top of the braid, not sinking into it.

Operation Checklist (Verify before covering the edge)

• Bulk Check: Ruffle gathers are pressed flat enough to pass under the braiding foot.
• Pressure Adjustment: Foot pressure reduced to 1 or 2.
• Stitch Selection: Triple Stretch Stitch selected (Length: 3.0mm - 4.0mm to account for bulk).
• Consumable: New needle inserted (Size 90/14 Topstitch is recommended for piercing braid).


Make “Optical Illusion” Pillows Without Losing Your Mind: Paint First, Then Stitch Rows of Circles

This segment demonstrates a high-margin home décor technique: painting fabric, stitching concentric circles, and cutting/reassembling them for an "op-art" look.

The Workflow Efficiency Secret: Always paint and stencil before stitching. Painting over raised stitching ruins brushes and creates uneven coverage. However, the real challenge here is volume. If you plan to sell these pillows, the bottleneck will not be the painting; it will be the setup time for each circle.

The Production Lesson: In a business context, profit comes from reducing handling time. Just as you use templates for painting, you need templates for your embroidery. This is where a dedicated magnetic hooping station becomes invaluable. It allows you to align your fabric and stabilizer off-machine, ensuring that when you do get to the needle, your fabric is squared perfectly every single time.

Baby Lock Embellisher Needle Felting: Layer Silk Fibers Without Thread (and Without Overworking the Base)

Needle felting (using barbed needles to mesh fibers) offers a texture that thread cannot mimic. However, it is structurally aggressive. The needles essentially "chew" the fibers together.

Material Science: Base Matters

• Correct Base: Closely woven, heavy fabrics like Duck Cloth, Denim, or heavy Canvas.
• Incorrect Base: Standard quilting cotton or lightweight linens (these will shred and pucker).

Technique: The "Smoosh"

Layer Silk Organdy over Silk Dupioni. As the needles engage, the fibers may separate.

• Action: Stop the machine. Use your fingers to physically "smoosh" or rub the fibers back over the bald spots.
• Consumable Alert: Felting needles are brittle. Keeping a replacement pack of 12 on hand is not optional; it is required.


Standalone Lace That Actually Holds Together: Customize the Motif, Then Stitch on Water-Soluble Mesh

Standalone lace (FSL) is the ultimate test of tension and stabilization. Because there is no fabric left after rinsing, the thread is the structure.

Software Prep: Structural Integrity

Pam Mahshie demonstrates removing elements (clicking "None" inside the software).

• Critical Note: When scaling lace designs (e.g., specific resizing for children's wear), do not scale down more than 10-15%. Going smaller forces stitch points too close together, resulting in a stiff, bulletproof patch rather than lace.

The Stabilizer Non-Negotiable

You must use Water-Soluble Mesh (fibrous), not Water-Soluble Film (plastic-wrap style).

• Why? Film perforates and tears away too early during the thousands of needle penetrations required for lace. Mesh holds its structure until water touches it.
• Visual Check: The stabilizer should look like sheer fabric.
• Tactile Check: It should feel soft but difficult to tear by hand.


Decision Tree: Fabric Type → Stabilizer Strategy (Circular Stitching vs Standalone Lace vs Knits)

Confusion about stabilizers is the #1 cause of project failure. Use this decision tree to navigate 90% of your production scenarios.

A) Are you doing Circular Stitching with a center pin?

• Yes:
  • Base: Iron-on Fusible (medium weight).
  • Reinforcement: Tearaway underneath if stitch count > 10,000.
  • Pivot Protection: Painter's tape (Top & Bottom).

B) Are you stitching Standalone Lace (FSL)?

• Yes:
  • Base: Water-Soluble Mesh (2 layers for large pieces).
  • Post-Process: Warm water rinse (leave some starchiness in for body).

C) Are you serging/embroidering on Knits (T-shirts, Jerseys)?

• Yes:
  • Base (Serging): Wash-away basting tape in seams + Differential Feed 1.3+.
  • Base (Embroidery): Cutaway stabilizer (Mesh) adhering to the back.

Pro Production Tip: If you are running commercial embroidery on knits, stabilizer is only half the battle. Hooping tension triggers the "stretch reflex" of the fabric. Switching to embroidery magnetic hoops eliminates the "tug and screw" tightening method, clamping the knit in its relaxed state. This prevents the dreaded "bacon neck" or square outlines on finished shirts.

Serger Differential Feed: The “Happy Medium” Setting That Stops Wavy Knit Seams

The serger's differential feed controls two sets of feed dogs. Understanding this solves the "wavy seam" problem instantly.

• Setting < 1.0: Front dogs move slower. Stretches fabric (Lettuce edge effect).
• Setting > 1.0: Front dogs move faster. Feeds more fabric in (Gathers/Eases).

Determining the "Sweet Spot"

Kathy McMakin identifies 1.3 to 1.5 as the magic range for standard garment knits.

• Sensory/Audio Check: A properly feeding knit on a serger makes a consistent, low hum. If you hear a rhythmic "thump... thump," the fabric is fighting the feed settings.

Setup Checklist (Perform on scraps first)

• Material: Scraps of the exact project fabric (cut on the same grain).
• Initial Test: Run at Differential Feed N (1.0). Observe waves.
• Adjustment: Increase to 1.3. Test. If still wavy, go to 1.5.
• Success Metric: The seam lies flat on the table relative to the raw fabric. It should not curl up or fan out.


The Wash-Away Basting Tape + Lead-In Slit Trick: Clean Serger Starts Without Layer Separation

The start of a serger seam is notorious for layers shifting perfectly out of alignment right as the blade hits.

The Problem

The presser foot pushes the top layer forward before the needle catches it.

The Solution: Chemical & Mechanical

1. Chemical: Apply Wash-Away Double-Sided Basting Tape between the layers at the starting edge. This acts as a temporary glue/stabilizer.
2. Mechanical: Cut a Lead-In Slit (approx. 1/2 inch) into the seam allowance, stopping right at the tape/seam line.

How to execute: Place the slit directly against the blade. This allows the fabric to sit further back under the foot, engaging the needles immediately without the "push" effect.

Troubleshooting the “Oh No” Moments: Symptoms → Likely Cause → Fix You Can Do Today

Use this diagnostic table to troubleshoot issues in logical order (Cheapest Fix -> Most Expensive Fix).

Shoulder Seams on Knits: Clear Elastic Reinforcement So Your Garment Doesn’t Grow Overnight

Shoulder seams bear the weight of the entire garment. Without support, a knit dress will grow 2 inches in length after a day of wear.

Kathy reinforces this high-stress zone with Clear Elastic (Framilon).

• Application: Glue or pin the elastic into the seam allowance. Serge over it.
• Result: The elastic takes the load, not the knit loops.

This is a standard industrial practice. If you look at high-quality ready-to-wear t-shirts, you will almost always find a clear strip or a fabric tape in the shoulder seam.

The Upgrade Path That Actually Makes Sense: When Better Hooping and Multi-Needle Capacity Pay for Themselves

As you master these techniques, you may hit a ceiling. It’s not your skill; it’s your equipment's duty cycle.

The Hooping Bottleneck

If you are spending 5 minutes hooping for a 2-minute stitch-out, you are losing money.

• The Fix: A hooping station for machine embroidery standardizes placement, reducing "do-over" time.
• The Stability Upgrade: For difficult items (thick jackets, slippery performance wear), standard plastic hoops struggle to grip. machine embroidery hoops utilizing magnetic force can clamp thick seams that would snap a plastic hoop, ensuring production continuity.

Warning: Magnet Safety. Magnetic hoops use industrial-grade magnets. They can pinch fingers severely (blood blisters are common if careless). They must be kept at least 6 inches away from pacemakers, insulin pumps, and magnetic media (credit cards/hard drives). Always slide them apart; never try to pry them.

The Multi-Needle Leap

Once your order volume hits 20+ pieces a week, a single-needle machine becomes an anchor. It requires a thread change for every color stop.

• The Fix: Machines like a baby lock 6 needle embroidery machine (or similar multi-needle platforms) hold all colors at once. This allows you to press "Start" and walk away to prep the next hoop. This "continuous workflow" is the secret to profitability.


The Finishing Standard: Rinse, Press, and Inspect Like You’re Shipping to a Customer

The difference between "homemade" and "handcrafted" is the finish.

1. Rinsing Lace: Use warm water to dissolve the mesh.
   • Pro Tip: Don’t rinse until crystal clear. Leave a slight milky residue of the stabilizer in the lace. When dry, this acts as a permanent stiffener/starch.
2. Drying: Pin lace flat on a corkboard or blocking mat to ensure symmetry while drying.
3. Pressing: Press knit seams from the wrong side, using a pressing cloth to prevent "shine" on the fabric face.
4. Inspection: Trim jump threads flush (leave no "tails" longer than 2mm).


Bring It All Together: One Principle, Three Techniques, Fewer Do-Overs

Whether you are creating an heirloom pillow or serging a batch of team distinct jerseys, remember the golden rule: Control the fabric before the needle hits it.

• Prep: Stabilize and shield stress points (Tape/Fusibles).
• Setup: Calibrate your machine (Pressure/Differential Feed).
• Support: Use the right consumables (Mesh/Tape/Elastic).

Do these 90% of the work in the setup phase, and the stitching will be the easy part. Stop fighting your fabric, and start engineering your results.

FAQ

• Q: How do I stop a circular stitch attachment center pin from tearing a hole in silk or cotton fabric?
  A: Reinforce and shield the pivot point before stitching—most “blown-out centers” are pin friction plus torque.
  • Fuse a medium-weight iron-on stabilizer to the entire work area before installing the attachment.
  • Apply blue painter’s tape to BOTH the top and bottom of the fabric exactly where the center pin will enter/exit.
  • Push the pin through the tape/fabric sandwich by hand before sewing to confirm it stays vertical.
  • Success check: The pin requires firm pressure to insert and does not wobble, and the center hole does not widen after a few inches of stitching.
  • If it still fails: Add tearaway stabilizer underneath (especially for dense stitching) and re-check that the fusible is fully fused with no bubbling.
• Q: What presser-foot pressure setting should be used to stop fabric drag and jerky rotation when sewing in a circle with a braiding foot?
  A: Lower presser-foot pressure to 1–2 so the fabric can rotate instead of “marching in place.”
  • Dial presser-foot pressure down from typical 3–4 to 1 or 2 before starting the circular pass.
  • Pivot the fabric slightly by hand with the foot down to confirm it is secure but not locked.
  • Use a Triple Straight Stretch Stitch and a new 90/14 topstitch needle if sewing over braid and bulk.
  • Success check: The fabric rotates smoothly with no repeated needle hits in the same spot and no feed “jerks.”
  • If it still fails: Slow down and reduce handling—guide lightly and let the attachment rotate the fabric rather than pushing the base fabric.
• Q: What machine speed is safe for starting a circular stitch attachment or a serger seam near blades and pivot points?
  A: Start at crawl speed (about 200 SPM) for the first 3 inches until the feed is visibly stable.
  • Remove loose sleeves, jewelry, and tie back hair before approaching circular attachments or serger blades.
  • Start sewing slowly and watch the fabric path; only increase speed after the fabric is feeding cleanly.
  • Keep hands away from the pivot action and blade zone; steer from a safe distance, not at the needle.
  • Success check: The first inches sew without sudden fabric snaps, unexpected rotation, or fingers needing to “rescue” the edge.
  • If it still fails: Stop immediately and re-check stabilizer/tape prep (circular) or layer control (serger) before continuing.
• Q: How do I stop standalone lace (FSL) from collapsing or tearing during embroidery on water-soluble stabilizer?
  A: Use water-soluble MESH (fibrous), not water-soluble FILM, because film perforates too early.
  • Hoop one layer of water-soluble mesh for small lace; use two layers for larger pieces.
  • Avoid scaling lace down more than 10–15% to prevent overly tight, stiff results.
  • Rinse in warm water and leave a slight milky residue if more body is desired after drying.
  • Success check: The stabilizer looks like sheer fabric and is difficult to tear by hand, and the lace holds its shape after rinse and drying flat.
  • If it still fails: Re-run with mesh (not film) and reduce resizing; overly dense stitch points often behave like a stiff patch instead of lace.
• Q: What differential feed setting stops wavy seams when serging standard garment knits on a serger?
  A: Increase differential feed above 1.0—1.3 to 1.5 is a reliable working range for many knits.
  • Test on scraps cut from the same fabric and grain as the project.
  • Start at N (1.0), then move to 1.3; if still wavy, increase to 1.5.
  • Listen while serging; a steady low hum is a good sign, while a rhythmic “thump…thump” means the fabric is fighting the feed.
  • Success check: The seam lies flat on the table and matches the fabric’s flatness with no rippling or curling.
  • If it still fails: Use wash-away basting tape in the seam and re-test—layer shift at the start can mimic a feed problem.
• Q: How do I prevent knit layers from separating at the start of a serger seam when the blade hits the fabric?
  A: Use wash-away double-sided basting tape plus a 1/2-inch lead-in slit so the needles grab immediately instead of the foot pushing the top layer.
  • Apply wash-away basting tape between the layers right at the starting edge.
  • Cut a lead-in slit (about 1/2 inch) into the seam allowance, stopping at the tape/seam line.
  • Place the slit against the blade so the fabric sits deeper under the foot at the start.
  • Success check: The first inch of the seam stays aligned with no offset or “step” between layers.
  • If it still fails: Stop and reposition the start deeper under the presser foot; the goal is needle engagement before the fabric can creep.
• Q: When does upgrading to magnetic embroidery hoops, a hooping station, or a multi-needle embroidery machine make sense for production efficiency?
  A: Upgrade in layers: fix setup first, then standardize hooping, then add capacity when volume makes thread changes the bottleneck.
  • Level 1 (technique): Reduce do-overs by stabilizing correctly and controlling pressure/feed so fabric stops shifting under stress.
  • Level 2 (tooling): Add a hooping station when hooping takes longer than stitching and placement inconsistency causes rework.
  • Level 2 (stability): Use magnetic embroidery hoops when standard plastic hoops struggle to grip thick seams or slippery materials consistently.
  • Level 3 (capacity): Move to a multi-needle machine when weekly volume (often 20+ pieces) makes constant color changes slow and error-prone.
  • Success check: Handling time drops (less re-hooping and fewer restarts), and stitch-outs run with fewer stops caused by fabric movement or setup inconsistency.
  • If it still fails: Review magnet safety and handling habits—magnetic hoops can pinch severely; always slide magnets apart and keep them away from pacemakers and magnetic media.
