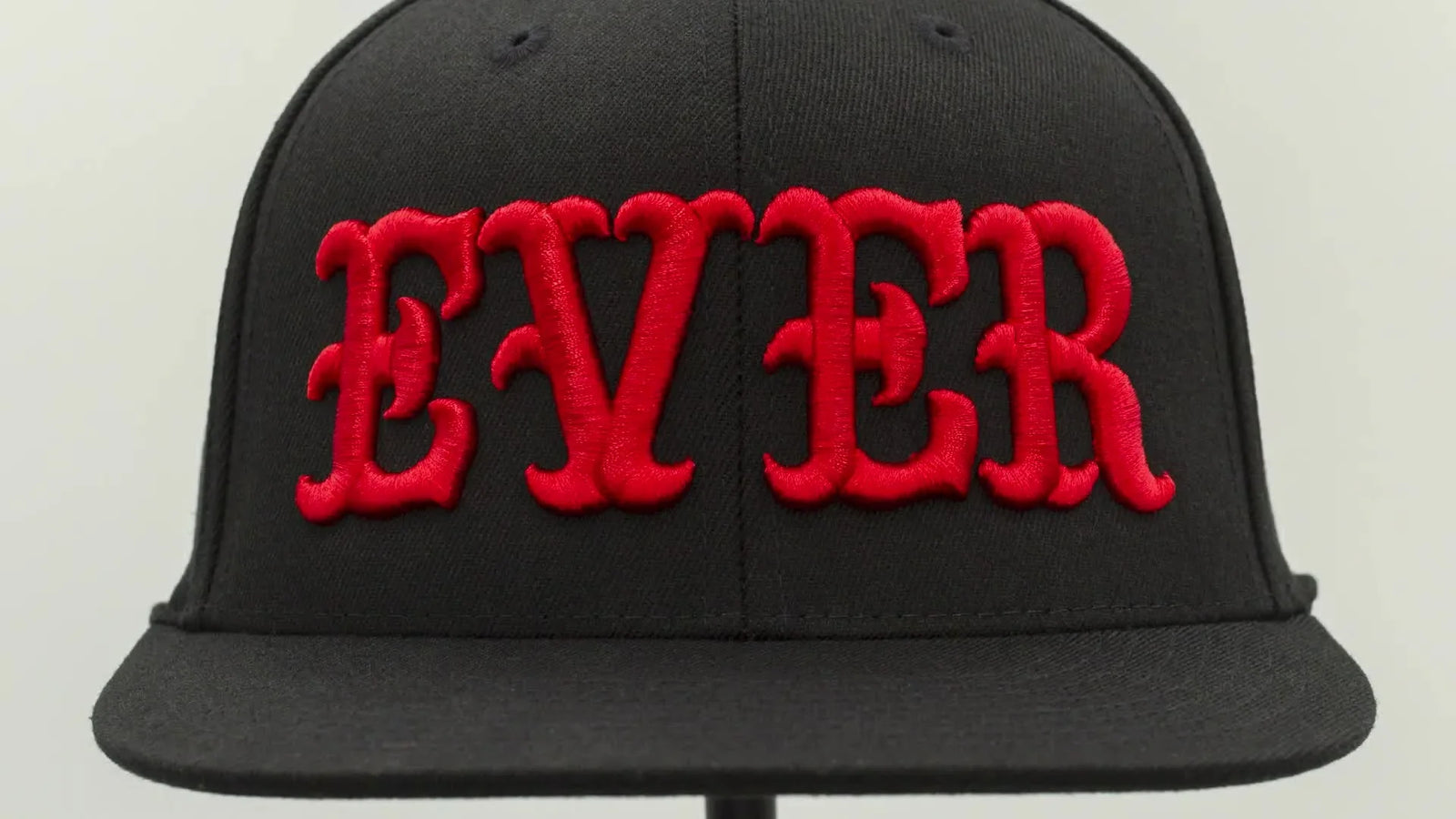

Clean 3D Puff Hat Embroidery That Sells: 5 Shop-Pro Secrets for Tajima Cap Frames (Digitizing, Needles, Tension, and Cleanup)

If you have ever pulled a finished hat off your machine, looked at the 3D puff embroidery, and felt a sinking sensation in your stomach because it looks... messy, you are not alone. 3D Puff is the "final boss" of embroidery techniques. It is unforgiving. A tiny gap in digitizing, a needle that wanders just 0.5mm, or a sloppy cleanup job can turn a premium $35 cap into a shop rag.

I have spent 20 years on the shop floor, and I can tell you this: Success with puff is 20% art and 80% physics. It is about controlling a piece of foam that desperately wants to expand while you try to cage it with thread.

This guide rebuilds the secrets from the video into a "Battle-Tested" workflow. We aren't just going to tell you what to do; we are going to explain how it feels when you do it right, and the exact safety parameters to keep you from breaking needles.

The Calm-Down Check: What “Clean 3D Puff” Actually Means on a Tajima Cap Frame

Before we touch a machine, we need to define "Victory." Beginners often obsess over the wrong details. On a professional setup using a tajima cap frame, a sellable hat has three non-negotiable traits.

1. The "Sealed edges" (Visual Check): You should see zero foam poking out. The satin stitches should cap the foam like a lid on a jar. If you see "red foam peeking out from red thread," the illusion is broken.

2. The "Smooth Profile" (Tactile Check): Run your finger over the satin column. It should feel smooth, solid, and consistent—like a hard plastic ridge. If it feels squishy (like a marshmallow) or snaggy (like Velcro), your density or tension is off.

3. The Intentional Edge: The edges of the letters should look crisp, as if they were stamped. No fuzz, no whiskers, and definitely no "chewed up" thread.

Achieving this requires mastering the variables: The resistance of the foam + the curve of the cap + the tension of the thread.

Digitizing Overlaps + Travel Runs: The Two Moves That Stop Gaps Before They Start

The first secret is in the file. You cannot sew your way out of bad digitizing. If the file doesn't account for the physics of foam (which pushes back against the needle), you will have gaps.

1) Build overlaps at transitions (The "Capping" Technique)

Foam is elastic. When you stitch on one side of a letter, the foam compresses. When you move to the next segment, the foam tries to rebound. This movement creates gaps. In the video, the creator emphasizes overlaps specifically at the joints of letters (like the corners of an 'E' or 'H').

The Fix: In your software, look at where satin columns meet. You need to overlap them by 0.3mm to 0.7mm. This ensures that the stitches physically trap the foam layer underneath.

2) Use travel runs to control Sequence (The "Anchor" Logic)

Travel runs—lines of running stitch that move the machine from Point A to Point B—are your structural anchors. Pro Tip: Never jump blindly across a 3D design. Use travel runs to "walk" the needle to the next start point. This tacks down the foam and prevents the cap driver from shifting under the heavy impact of the needle.

Empirical Data for Digitizers:

• Density: For standard 3mm foam, set your satin density between 0.18mm and 0.22mm. Standard flat embroidery is usually 0.40mm. You need almost double the density to cover foam.
• Underlay: Controversial Topic. Generally, do not use dense underlay on puff. It acts like a knife and cuts the foam before the satin can cover it. An Edge Run (Contour) is usually sufficient to perforate the foam shape.


Needle Choice That Survives Foam: 80/12 Titanium Sharp (and the Brand Trap)

The video’s second secret is needle selection: 80/12 Titanium Sharp. Let’s decode why this specific combination is the "Gold Standard" for puff.

The Physics of Deflection

Foam is thick. When a standard needle hits it at 700 stitches per minute, the needle flexes (bends) slightly. This is called Deflection.

• Deflection = Disaster. If the needle bends, it hits the metal needle plate instead of the hole. Snap. Or, it grazes the rotary hook, causing a burr that shreds thread for weeks.

Why Titanium? Why Sharp?

• Titanium: It stays cooler. Foam creates friction. Friction creates heat. Heat limits your speed and melts adhesive. Titanium needles resist heat buildup and are structurally stiffer than standard chrome.
• Sharp Point (vs. Ballpoint): This is critical. A ballpoint needle (SES) pushes fibers aside. A Sharp needle (RG or sharp) acts like a blade. You want to cut the foam, not smash it. A clean cut ensures the foam tears away easily later.

The "Brand Trap" in the Comments: Not all needles are labeled clearly. As a commenter noted, Groz-Beckert and Organ use different codes. You are looking for a "Sharp" point profile.

• Organ: PD (Perfect Durability/Titanium) + Sharp.
• Groz-Beckert: GEBEDUR (Titanium) + RG (Round tip with sharp point) or specific Sharp.

Warning: Major Safety Risk
3D Puff causes more needle breaks than any other application. When a needle breaks on a cap driver, shards can fly at high velocity toward your eyes.
1. ALWAYS wear safety glasses or install a safety shield when testing new puff files.
2. Keep your hands away from the "Danger Zone" (the hoop area) while the machine is running.

Thread That “Pops” on Puff: High-Sheen Poly and The Tension Balance

The video recommends high-sheen polyester (40 wt). But the brand matters less than the type.

Why Poly over Rayon for Puff?

Rayon is beautiful but weaker. Puff embroidery puts immense stress on the thread as it travels over the "mountain" of foam. Polyester has the tensile strength to survive that journey without snapping. Furthermore, the sheen reflects light. Puff embroidery relies on light and shadow to look 3D. Matte thread can make puff look like dull plastic; high-sheen thread makes it look like metal or liquid.

The Auditory Check for Tension

You cannot rely on your LCD screen's digital tension numbers alone. You need to use your senses.

• The Sound: When sewing puff, your machine should sound rhythmic—a dull thump-thump-thump.
• The Snap: If you hear a sharp, high-pitched snap or ping, your top tension is too tight. The thread is being strangled.
• The Slap: If you hear a loose slapping sound, your thread is too loose and whipping around.


Dense Foam Selection: The “Squeeze Test” That Predicts Clean Tear-Away

Secret three is the foam itself. Beginners often buy "craft foam" from a dollar store. Do not do this. Craft foam is soft and rubbery. It will not tear cleanly; it will stretch and leave ugly tufts poking out.

The "Squeeze Test" (Sensory Calibration)

Before you hoop, pick up your foam sheet and pinch it hard between your thumb and index finger.

• Bad Foam: Feels like a marshmallow. You can squash it flat, and it slowly bounces back. Result: Fugly, ragged edges.
• Good Foam (3D Puff): Feels like a yoga mat or firm rubber. It resists your pinch. When you let go, it snaps back instantly. Result: Clean, crisp perforation.

Thickness Guide:

• 2mm: The beginner's sweet spot. Easier to cover, less likely to break needles.
• 3mm: The industry standard for that "bold" look. Requires perfect tension.
• 6mm (Double Stack): Expert only. Do not attempt without modifying your presser foot height.


The Tension Habit That Prevents Rework: “Check After Every Hat”

Secret four is machine tension. In the video, the creator checks the inside of the hat constantly.

Why checking once isn't enough: As the bobbin gets emptier, the tension physics change slightly. As the machine warms up, friction changes. On a flat T-shirt, you won't notice. On puff, a 5% change in tension equals a visible loop.

The "I-Test" for Bobbin Tension

1. Take your bobbin case out.
2. Hold the thread end and drop the case (over your hand, not the floor!).
3. The Standard: It should slide down slightly and stop.
4. The Puff Adjustment: For puff, you generally want the bobbin slightly tighter than valid for flats, and the top tension slightly looser. You want the top thread to "lay" over the foam, not crush it flat.

Birdnesting Pulse Check: If you hear the machine laboring or a "grinding" noise, hit STOP immediately. Puff loves to grab top thread and pull it into the rotary hook (birdnesting). Catching it early saves the garment; catching it late kills the hat.

The “Hidden” Prep Pros Do Before the First Stitch

Professional setups fail or succeed during the prep phase. If you hunt for scissors after the machine stops, you are losing money.

Pre-Flight Checklist (Do NOT skip)

• Needle Check: Is the 80/12 Titanium Sharp installed? Is it straight? (Roll it on a flat table to check).
• The "Travel Path": Is the thread path clear of lint? Puff generates static; static attracts lint; lint causes breaks.
• Consumables: Do you have your Puff Foam (cut to size), Tweezers, Heat Gun, and Lighter ready?
• Machine Speed: Dial it down. Even if your machine can do 1000 SPM, run puff at 600-700 SPM. The foam needs that extra millisecond to perforate cleanly.


The Cleanup Workflow That Makes Puff Look Expensive

Secret five is the cleanup. This is where you separate the amateurs from the pros. A raw hat off the machine looks hairy and messy. Five minutes of cleanup makes it retail-ready.

Phase 1: The Tear-Away (Feel the Perforation)

Gently pull the excess foam away from the design.

• Sensory Check: It should sound like ripping a perforated check—zzzzzip.
• Fail State: If the foam stretches like chewing gum, stop! Your needle is too dull, your foam is too soft, or your density is too low. Don't force it. Use scissors.


Phase 2: The Surgical Trim

Use curved embroidery scissors. Why curved? Because the hat is round. Straight scissors will dig into the fabric or clip your satin stitch.

• Technique: Isolate the loose thread with tweezers first. Lift it up. Snip close to the knot. Never snip blindly.


Phase 3: The "Tuck" (The Seam Ripper Hack)

You will see tiny colored specks of foam at the corners. Do not pull them—you will unravel the backing. Instead, use the back edge of a seam ripper or a dull tool to gently tuck the foam speck back under the satin stitch. Think of it like tucking in a bedsheet.

Phase 4: The Heat Gun Seal

This is the magic step. Heat shrinks the foam slightly (tightening the thread) and seals the raw foam edges, making them smooth.

• Tool: A huge industrial heat gun is best, but a craft gun works.
• Technique: High heat, constant motion. Keep the gun 6 inches away.
• The 3-Second Rule: Never hold the heat on one spot for more than 3 seconds.
  • Risk: You can melt the polyester thread or warp the brim of the hat.

Warning: Heat & Synthetics
Many modern "Trucker Hats" utilize a plastic-like mesh. A heat gun will melt this mesh instantly. Always shield the mesh with a piece of cardboard while heating the front panel.

Phase 5: The Snag Nab-it (The "Undo Button")

If you have a loop of thread poking out (a "shiner"), do not cut it. Cutting it creates a hole that will unravel. Use a Snag Nab-it tool. Push it through the loop from the front, catch the thread on the textured shaft, and pull it to the inside of the hat. It hides the crime perfectly.

Cleanup Checklist:

1. Tear: Clean separation (zipper sound).
2. Trim: Isolate whiskers with tweezers, cut flush.
3. Tuck: Push foam crumbs under the satin.
4. Heat: Seal the foam surface (Keep moving!).
5. Nab: Pull loops to the inside; do not cut them.

Troubleshooting Puff Embroidery on Hats: The "Dr. House" Matrix

If things go wrong (and they will), use this logic flow. Always fix physical issues before software issues.

The Stabilizer Decision Tree: Don't Guess, Know.

While the video focuses on structured hats (which have built-in "Buckram" stiffener), you might want to puff a hoodie or bag. Here is the logic:

1. Is the item a Structured Hat?

• YES: Use Tear-away backing (2.5oz). The hat provides the stability.
• NO: Go to step 2.

2. Is the fabric Stretchy (Hoodie/Beanie/Polo)?

• YES: You MUST use Cut-away stabilizer.
  • Why? The needle perforates the fabric thousands of times. Without cut-away, the fabric will shred and the foam will sink.
  • Tip: Use a heavy cut-away or two layers of medium.
• NO (Canvas/Denim): Use heavy Tear-away or Cut-away depending on wear.

Setup Checklist: Making Production Repeatable

• Machine: Cleaned, oiled, bobbin area dusted.
• Needle: New 80/12 Titanium Sharp installed.
• Speed: Limited to 650 SPM.
• Hoop: tajima cap frame checked for tightness (no wobble).
• Foam: Dense 3mm foam pre-cut to size.

The Upgrade Path: Solving the "Hidden" Costs of Puff

The video shows you how to stitch, but it doesn't mention the toll it takes on your body and your business volume. Puff requires high precision, which means high stress.

Pain Point 1: "My Wrists Hurt from Hooping Caps"

Hooping thick caps with foam is physically demanding. You are fighting the structure of the hat.

• The Problem: Traditional clamps require force. Over time, this causes wrist strain and leads to "loose hooping," which ruins designs.
• The Diagnosis: If you dread the hooping station, your consistency is already suffering.
• The Solution: Consider upgrading to modern magnetic embroidery hoop systems compatible with your machine. They use magnetic force to self-align and clamp, reducing wrist strain to near zero.
  • Note: Ensure the hoop is rated for the thickness of cap bills/sweatbands.

Warning: Magnet Safety
Professional magnetic hoops use N52 industrial magnets. They can pinch fingers severely. Never place fingers between the rings. Keep them away from pacemakers.

Pain Point 2: "Hoop Burn on Delicate Hats"

Puff hats are often premium items. Standard plastic hoops leave shiny "burn" rings that are hard to steam out.

• The Solution: Many pros switch to magnetic embroidery hoop frames because they hold fabric firmly without the "crushing" friction of friction-fit hoops, eliminating hoop burn marks.

Pain Point 3: "I'm Turning Away 50+ Hat Orders"

Puff is slow. Running at 600 SPM means a single hat takes 15 minutes. If you have one needle, you are capped at 4 hats an hour.

• The Diagnosis: When your single-head machine is running 12 hours a day and you still miss deadlines, it is not a skill issue; it is a capacity issue.
• The Solution: Move to a multi-head or dedicated multi-needle system like SEWTECH setups. Standardized production means one operator can run 4 to 6 heads simultaneously, turning 4 hats/hour into 24 hats/hour.


Final Reality Check: The "Clean Puff" Standard

Before you ship that order, do the lighting check. Hold the hat under a strong light and tilt it 45 degrees.

• Pass: The satin looks like a solid bar of color.
• Fail: You see "hairs" or foam sparkles.

If it fails, use the heat gun one last time. If it still fails, check your digitizing overlaps and needle sharpness for the next run. Puff is a game of millimeters, but when you hit it right, nothing else sells faster.

FAQ

• Q: What 3 checks define “clean 3D puff embroidery” on a Tajima cap frame before shipping a hat?
  A: A sellable 3D puff hat has sealed edges, a smooth satin “ridge,” and crisp intentional corners.
  • Check visually: Confirm zero foam is peeking out along satin edges (“sealed like a lid”).
  • Check by touch: Run a finger across the satin; it should feel smooth and solid, not squishy or snaggy.
  • Check corners: Look for crisp edges with no fuzz/whiskers or “chewed” thread.
  • Success check: Under strong light at a 45° tilt, the satin reads like a solid bar of color with no foam sparkles.
  • If it still fails: Re-check digitizing overlaps (0.3–0.7 mm) and needle sharpness before adjusting anything else.
• Q: What satin density and overlap settings are a safe starting point for 3mm foam 3D puff hat embroidery digitizing?
  A: For 3mm foam, use satin density around 0.18–0.22 mm and add 0.3–0.7 mm overlaps at satin transitions to prevent gaps.
  • Set density: Start at 0.18–0.22 mm for satin coverage on 3mm foam (much denser than flat embroidery).
  • Add overlaps: Overlap adjoining satin columns at joints/corners by 0.3–0.7 mm to “cap” foam rebound.
  • Control sequence: Add travel runs to walk the needle and anchor foam instead of jumping across open areas.
  • Success check: After stitch-out, corners (E/H joints) show no split lines or open gaps where foam wants to rebound.
  • If it still fails: Reduce aggressive underlay (often an edge run/contour is enough) and verify the cap is not shifting.
• Q: Which needle survives 3D puff embroidery on hats best, and how do you reduce needle-break safety risk on a cap driver?
  A: Use an 80/12 Titanium Sharp needle and treat first test runs as high-risk for flying needle shards.
  • Install correctly: Fit a new 80/12 Titanium Sharp and confirm it is straight (roll-check on a flat surface).
  • Reduce deflection: Run puff slower (about 600–700 SPM) to lower impact and needle flex in foam.
  • Protect yourself: Wear safety glasses or use a safety shield, and keep hands out of the hoop area while running.
  • Success check: The machine runs without repeated needle strikes/snaps, and the stitch sound stays steady instead of “cracking.”
  • If it still fails: Stop immediately and inspect for needle burrs/plate contact before continuing (a burr can shred thread for weeks).
• Q: How do you set top and bobbin tension for 3D puff embroidery on hats using the bobbin-case “I-test” and sound cues?
  A: For puff, keep bobbin slightly tighter than a flat setup and run top tension a bit looser so thread lays over foam instead of crushing it.
  • Do the I-test: Drop the bobbin case by the thread; it should slide down slightly and stop (then tighten slightly for puff).
  • Tune by sound: Listen for a dull rhythmic “thump-thump”; a sharp “snap/ping” suggests top tension is too tight; a loose “slap” suggests too loose.
  • Watch for nesting early: If the machine starts laboring or grinding, hit STOP—puff can pull thread into the hook fast.
  • Success check: The underside stays clean (no growing thread blob) and the top satin looks smooth without visible loops.
  • If it still fails: Re-check thread path for lint (puff static attracts lint) and check bobbin fill level because tension can drift as it empties.
• Q: Why does 3D puff foam stretch like chewing gum during tear-away, and what fixes give a clean “zipper sound” separation?
  A: Stretchy tear-away usually means soft craft foam, a dull needle, or density that is too low—swap the weak link before forcing it.
  • Change foam: Use dense puff foam (firm like a yoga mat), not soft “marshmallow” craft foam that won’t perforate cleanly.
  • Refresh needle: Replace with a new 80/12 Titanium Sharp to cut foam cleanly for easy separation.
  • Verify density: For 3mm foam, keep satin density in the 0.18–0.22 mm range so stitches fully perforate and cover.
  • Success check: Excess foam tears away with a perforated “zzzzzip” sound and leaves crisp edges with minimal crumbs.
  • If it still fails: Stop tearing and switch to careful scissor trimming to avoid damaging satin edges, then revisit file settings.
• Q: What is the safest cleanup workflow for 3D puff hat embroidery (tear, trim, tuck, heat, snag) without ruining satin stitches?
  A: Follow a five-step cleanup—tear, surgical trim, tuck corners, heat-seal briefly, then pull loops inside (do not cut loops on top).
  • Tear gently: Pull excess foam away only if it separates cleanly; stop if it stretches.
  • Trim surgically: Use curved embroidery scissors; lift whiskers with tweezers first, then snip close—never cut blindly on a curved cap.
  • Tuck crumbs: Use the back edge of a seam ripper/dull tool to push tiny foam specks under satin instead of pulling.
  • Heat-seal safely: Keep a heat gun moving ~6 inches away and never hold heat on one spot over 3 seconds; shield plastic mesh trucker hats with cardboard.
  • Success check: Edges look sealed and smooth with no foam sparkles, and no “shiners” (loops) remain on the face.
  • If it still fails: Use a Snag Nab-it to pull visible loops to the inside (cutting loops can create an unravel point).
• Q: How do you reduce wrist strain, hoop burn, and missed deadlines in 3D puff hat production with a step-by-step upgrade path (technique → magnetic hoops → multi-needle machines)?
  A: Start with process control, then upgrade clamping, then upgrade capacity when volume exceeds one operator’s repeatable pace.
  • Level 1 (technique): Slow to ~600–700 SPM, prep tools before stitching, and check tension after every hat to prevent rework loops.
  • Level 2 (tooling): Consider magnetic embroidery hoops/frames to reduce forceful clamping (less wrist strain) and to help prevent hoop burn on premium hats.
  • Level 2 safety: Keep fingers out of the ring zone and keep strong magnets away from pacemakers (pinch hazard is real).
  • Level 3 (capacity): If one single-head run at puff speeds cannot meet 50+ hat orders, move to a multi-needle or multi-head production setup such as SEWTECH systems.
  • Success check: Hooping is consistent without dread/strain, hats show fewer “squished” designs from shifting, and daily output meets deadlines without 12-hour days.
  • If it still fails: Audit where time is lost (rework from tension drift vs. hooping inconsistency vs. raw throughput) and upgrade the bottleneck first.
