Clean-Edge Oly-Fun Embroidery Patches with a Fuse Tool: The Fast Heat-Cut Method That Actually Looks Professional

If you’ve ever poured hours into digitizing and stitching a patch, only to have it turn into a fuzzy, jagged disaster the moment you took scissors to it, you know the specific heartbreak of embroidery finishing. Patches are deceptive; they look simple, but they punish tiny errors in cutting with ruthless visibility.

Today, we are dismantling the traditional "scissors and prayer" method. We are replacing it with a thermal interaction workflow using Oly-Fun (a specific polypropylene craft material) and a heated Fuse Tool.

Why does this matter? Because when you master the physics of melting rather than cutting, you achieve a sealed, factory-grade edge that scissors simply cannot replicate.

The Material Science: Why Polypropylene Changes the Rules

To understand why this technique works, you need to understand the substrate. The video demonstrates using Oly-Fun, a non-woven material made of 100% polypropylene.

In professional circles, we value polypropylene for one specific trait: it has a low melting point (approx. 130°C - 171°C) compared to polyester thread (approx. 250°C - 260°C). This creates a massive safety margin. You can apply a heat tool that melts the fabric instantly but leaves your rayon or polyester embroidery thread completely unharmed.

The "Edge Consistency" Principle

The real victory here isn't just speed; it's repeatability. Scissors introduce micro-tremors from your hand, creating polygonal edges instead of smooth curves. A heat tool, guided by the satin stitch itself, uses the embroidery as a physical guardrail.

However, heat cutting requires absolute stability. If your fabric shifts 1mm during the process, you ruin the patch. This is why seasoned embroiderers obsess over hooping. With slick, thin materials like Oly-Fun, traditional friction hoops often fail to grip evenly, leading to "hoop burn" or slippage.

This is the "trigger moment" where professionals look for better tools. If you find your material slipping, terms like magnetic hoops for embroidery machines become relevant. These tools use vertical magnetic force rather than friction to clamp fabric, ensuring the Zero-Movement environment required for thermal cutting.

The "Hidden" Prep: Setup, Layers, and Safety

The host in the demonstration uses two layers of Oly-Fun combined. She skips standard stabilizer for this specific run, relying on the dual layers for structural integrity.

Note from the field: While two layers work for simple density designs, if you are stitching high-density logos (15,000+ stitches), you should sandwich a layer of Shot-Away or heat-dissolving stabilizer between them to prevent puckering.

The Physics of the Workspace

You are introducing a 400°F+ tool to your embroidery station. You cannot just wing this.

1. The Thermal Barrier: You need a glass mat or a high-temp silicone mat. Do not cut on a healing mat; you will melt a trench into it.
2. The Cleaning Station: You need a stack of dry paper towels. Polypropylene residue builds up on the tip like wax. If you don't wipe it, it chars and drags.


Phase 1: Prep Checklist (The "Go/No-Go" Check)

• Material: Confirm you have 100% Polypropylene (Oly-Fun). Do not try this with cotton or cotton-blends (they will burn/brown).
• Layers: Cut two sheets distinctively larger than your hoop area.
• Surface: Heat-resistant glass or silicone mat is clear of debris.
• Hygiene: Fold a thick paper towel and tape it to the table edge for one-handed tip wiping.
• Tool: Fuse Tool is plugged in and pre-heating (allow 5-7 minutes for full saturation).

Warning: Thermal Safety
A Fuse Tool is effectively an unprotected soldering iron. It creates instant second-degree burns.
* Never rest the tool on a table without its stand.
* Never cut toward your holding hand.
* Ventilation: Melting plastic releases fumes. Ensure you have a fan running or a window open.

Hooping Strategy: The Foundation of a Clean Cut

The video shows a standard 4x4 hoop loaded onto a Baby Lock Enterprise. The host ensures the material is "drum tight."

The Tactile Check

Visual checks aren't enough. You need to verify tension with touch and sound.

• The Tap Test: Tap the hooped Oly-Fun. It should sound like a dull drum (thump-thump). If it sounds loose or flabby, re-hoop.
• The Push Test: Push your finger in the center. It should deflect slightly but bounce back instantly.

If you are struggling to get this tension without distorting the fabric woven lines (the "grid"), or if you see white "burn marks" where the hoop rings crushed the fabric, your equipment might be fighting you. This is a common scenario where upgrading to a baby lock magnetic embroidery hoop solves the mechanical issue. By clamping flat, you remove the friction-burn variable, allowing you to hoop delicate substrates like Oly-Fun without damaging them before you even start stitching.

The Digitizing Standard: The Satin Guide

Before you stitch, look at your LCD screen. The host verifies a continuous satin border.

For this method to work, the border must be your physical barrier.

• Width: Minimum 3.0mm. Any thinner, and you risk sliding over it with the heat tool and melting the thread.
• Density: Standard (0.40mm spacing). It needs to be solid enough to stop heat transfer to the inside of the patch.
• Underlay: Center run or Edge run is mandatory to lift the satin off the fabric.

If you are doing production runs—say, 50 patches for a local scout troop—placement precision is key. You cannot afford to manually measure each hoop. This is where a hoop master embroidery hooping station transforms a hobby into a business. It guarantees that the design lands in the exact same spot on the fabric every single time, which is critical if you are pre-cutting your Oly-Fun squares to save money.

Stitching: The "Don't Touch" Rule

Process the stitch-out as normal.

• Speed Recommendation: Decrease your machine speed slightly. Oly-Fun is plastic; a needle hammering at 1000 SPM generates friction heat, which can cause the needle to gum up. Safe Range: 600 - 800 SPM.


Once finished, remove the hoop from the machine. CRITICAL STEP: Do not un-hoop the fabric. The tension of the hoop is the only thing keeping the fabric flat for the cutting phase.

Phase 2: Setup Checklist (Pre-Cut Validation)

• Inspection: Look closely at the satin border. Are there any gaps? If you see fabric peeking through the satin, the heat tool will widen that gap.
• Stability: Confirm the fabric is still tight in the hoop.
• Heat: Verify the tool tip is shiny and clean. If it's black/charred, clean it carefully while hot on the paper towel.

The Heat-Cut Technique: The "Gliding" Motion

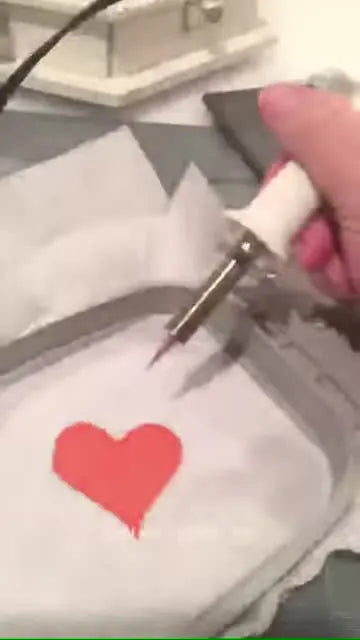

The host demonstrates using the Fuse Tool like a pen. This is the moment of truth.

The Sensory Feedback Loop

You are not cutting with pressure; you are separating with heat.

1. The Grip: Hold the tool vertical or slightly angled away from the patch center.
2. The Contact: The metal tip should gently kiss the side of the thread, but the heat should be focused on the Oly-Fun.
3. The Pace: Move at a steady crawl (about 1 inch per 2 seconds).
   • Too Fast: You will feel drag/snagging. The plastic hasn't melted yet.
   • Too Slow: You will see smoke or browning beads of plastic.

The "Booger" Problem: As you melt, a glob of molten polypropylene will gather on the tip.

The Fix: Every 2-3 inches, lift the tool and wipe it on your paper towel. Do not try to power through. The buildup acts as an insulator, cooling the tip and making the cut ragged.

Troubleshooting: Diagnosis & Repair

If your edge looks bad, use this logic to fix it immediately.

The Extraction: The "Pop" and Polish

Once the perimeter is traced, gently push the patch from the back. It should "pop" out cleanly.

If it hangs on by a thread (literally or plastic-ally), do not rip it. Ripping stretches the cooling plastic and creates a white stress mark. Re-apply the tool to the stuck bridge.

The Finishing Pass

The host snips the thread tails (FIG-15) but then does something brilliant: she uses the barrel (the side) of the hot tool to smooth the edge.

Think of this like edge-banding a table. Run the side of the hot tool quickly along the outer perimeter of the patch. This melts any microscopic jagged bits into a smooth, rounded, professional bead.

Phase 3: Operation Checklist (Final QC)

• Threads: Snip all jump stitches and tie-offs flush with the patch.
• Edge: Run your finger along the rim. If it feels scratchy, do a second "barrel pass" with the heat tool.
• Backing: Inspect the back. Ensure no melted plastic has clumped up (which would make gluing difficult).

The Production Mindset: When to Upgrade

The method shown is perfect for 1-10 patches. But what if you get an order for 100?

The bottleneck in this workflow is not the stitching—it's the hooping and cutting. Hand fatigue sets in quickly.

1. Hooping: Repetitive motion injury is real. High-volume shops switch to babylock magnetic embroidery hoops to reduce wrist strain. The magnets do the clamping work, not your muscles.
2. Consistency: To ensure the design is centered (so you don't waste Oly-Fun material), a magnetic hooping station becomes an essential investment, not a luxury. It allows you to use smaller scraps of material accurately, saving consumable costs.

Warning: Magnetic Field Safety
Professional magnetic hoops use N52 Neodymium magnets. They are incredibly powerful.
* Pinch Hazard: They can crush fingers. Handle with deliberate control.
* Medical Devices: Keep at least 6 inches away from pacemakers.
* Electronics: Do not place phones or credit cards directly on the magnets.

Decision Tree: The Materials Matrix

Use this logic flow to ensure you don't melt the wrong thing.

Q1: Is your patch base 100% Synthetic (Poly/Nylon)?

• YES: Proceed to Q2.
• NO (Cotton/Wool/Rayon): STOP. Do not use the heat cut method. You will create a fire hazard or scorched edges. Use scissors.

Q2: Is the fabric heat-sensitive? (e.g., Oly-Fun vs. Heavy Nylon)

• Oly-Fun: Melts fast. Low heat, fast movement.
• Heavy Tackle Twill: Melts slow. Higher heat, slower movement.

Q3: Are you adding stabilizer?

• NO (Raw Oly-Fun): Use 2 layers minimum. Good for light density designs.
• YES: Use a water-soluble stabilizer (Badget Master) or Heat-Away. Do not use Tear-Away, as it will look messy at the edges.

The Final Result

The result is a patch that looks die-cut. It is sealed, durable, and free of the "hairy" edges that scissors leave behind.

By respecting the chemistry of the material and upgrading your hooping stability, you turn a crafty experiment into a reliable production capability.

FAQ

• Q: How can Oly-Fun polypropylene embroidery patches be heat-cut with a Fuse Tool without melting polyester or rayon thread?
  A: Keep the Fuse Tool working on the Oly-Fun edge—not on top of the satin stitches—and use the satin border as a physical guardrail.
  • Verify the patch base is 100% polypropylene (Oly-Fun) and the border is a continuous satin stitch before starting.
  • Hold the Fuse Tool vertical or slightly angled away from the patch center so the tip “kisses” the side of the thread while heating the fabric.
  • Move at a steady crawl (about 1 inch per 2 seconds) and wipe the tip on a dry paper towel every 2–3 inches.
  • Success check: The patch “pops” out cleanly and the satin border shows no glossing, distortion, or melted spots.
  • If it still fails: Re-stitch a wider/cleaner satin border (minimum 3.0 mm) and re-test the heat-cut angle on a scrap first.
• Q: What hoop tension standards should be used when hooping Oly-Fun for heat-cut embroidery patches on a Baby Lock Enterprise 4x4 hoop?
  A: Hoop Oly-Fun “drum tight” and keep it hooped for the entire heat-cut phase to prevent 1 mm shifts that ruin the edge.
  • Tap the hooped Oly-Fun and listen for a dull drum sound (“thump-thump”), not a loose flap.
  • Push the center with a fingertip; it should deflect slightly and bounce back immediately.
  • Keep the fabric hooped after stitching; do not un-hoop before heat cutting.
  • Success check: The material stays flat and unmoving while tracing the border; the cut line follows the satin edge smoothly.
  • If it still fails: Re-hoop and reduce slippage sources; if hoop burn or uneven grip keeps happening, a magnetic embroidery hoop often solves the clamping problem.
• Q: What satin border digitizing settings are required for using a Fuse Tool heat-cut method on Oly-Fun patches?
  A: Use a continuous satin border that is wide, solid, and properly underlaid so it can safely guide the heat tool.
  • Set satin width to at least 3.0 mm so the tool does not easily slip over and touch the inside stitches.
  • Keep density at standard (about 0.40 mm spacing) to block heat transfer and prevent fabric gaps.
  • Add underlay (center run or edge run) to lift the satin off the fabric for a stronger “wall.”
  • Success check: No base material peeks through the satin border anywhere around the patch before cutting.
  • If it still fails: Close border gaps in the digitizing file first; heat-cutting will usually make gaps look worse, not better.
• Q: How can jagged or sawtooth edges be fixed when heat-cutting Oly-Fun embroidery patches with a Fuse Tool?
  A: Re-trace the edge more slowly with a fully heated, clean tip to re-melt and smooth the perimeter.
  • Pause and confirm the Fuse Tool is fully pre-heated (allow 5–7 minutes) and the plug connection is secure.
  • Slow the motion; moving too fast causes snagging because the plastic has not melted through.
  • Wipe the tip frequently to remove polypropylene buildup that insulates the heat and makes cuts ragged.
  • Success check: The edge becomes a smooth, sealed bead instead of a serrated outline when you run a fingertip along the rim.
  • If it still fails: Check for fabric movement in the hoop; even small shifts can create a jagged track no matter how steady the hand is.
• Q: What causes brown or black scorch marks when using a Fuse Tool to finish Oly-Fun embroidery patches, and how can scorch marks be prevented?
  A: Scorch marks usually come from a dirty/carbonized tip, so prevention is aggressive tip wiping and controlled speed.
  • Wipe the hot tip on dry paper towel every few inches to prevent residue from charring.
  • Maintain a steady pace; going too slow can create smoke and browning beads of plastic.
  • Work on a glass mat or high-temp silicone mat so the tool stays clean and stable (do not use a self-healing mat).
  • Success check: The cut edge is clear/clean with no dark streaks and minimal smoke during cutting.
  • If it still fails: The scorch may not be fully reversible; trim carefully with micro-snips and restart with a clean tip routine on the next patch.
• Q: What safety steps are required when using a 400°F+ Fuse Tool to heat-cut Oly-Fun embroidery patches at an embroidery workstation?
  A: Treat the Fuse Tool like an unprotected soldering iron and control heat, direction, and fumes every time.
  • Use the tool stand every time the tool is set down; never rest the hot tool directly on the table.
  • Cut away from the holding hand and keep the hoop stable on a heat-safe surface (glass or silicone).
  • Ventilate the area (fan or open window) because melting polypropylene releases fumes.
  • Success check: The tool is always parked in its stand between passes and there is no visible smoke buildup in the workspace.
  • If it still fails: Stop and reset the station layout (mat placement, stand location, ventilation) before continuing; rushing is when burns happen.
• Q: When producing 50–100 Oly-Fun heat-cut embroidery patches, how should a shop decide between technique optimization, upgrading to magnetic hoops, or upgrading to a multi-needle embroidery machine?
  A: Start by stabilizing the process first, then upgrade the tool that removes the real bottleneck (usually hooping consistency and fatigue).
  • Level 1 (technique): Lower stitch speed to a safer range (about 600–800 SPM), keep the fabric hooped for cutting, and standardize tip-wiping intervals.
  • Level 2 (tool upgrade): Use magnetic embroidery hoops when hoop burn, slippage, or wrist fatigue makes repeatable hoop tension hard to achieve.
  • Level 3 (capacity upgrade): Consider a multi-needle machine when order volume makes repeated thread changes and long runtimes the limiting factor.
  • Success check: Patches come out centered and consistent with fewer re-hoops and less operator hand strain across a full batch.
  • If it still fails: Add a hooping station for repeatable placement when alignment and material waste become the bigger cost than stitching time.
