# Mastering Converse Embroidery: The "Sideways" Method for Zero-Error Results
If you have ever stared at a pair of Converse All-Stars and thought, "This should be easy… why does it suddenly feel impossible to hoop?"—you are not alone.
Shoe embroidery is a masterclass in anxiety. Shoes are bulky, asymmetrical, and physically unforgiving. Unlike a t-shirt, a sneaker is a heavy counterweight. One wrong orientation, one moment of negligence regarding clearance, and you aren’t just breaking a needle; you are risking a collision with the machine arm, the bobbin case, or the presser foot at 800 stitches per minute.
This guide is designed to dismantle that fear. We are going to break down a shop-proven method: monogramming the *tongue* of Converse sneakers on a multi-needle machine (demonstrated on a Brother Entrepreneur Pro PR1000e) using a Fast Frame with sticky stabilizer.
But we will go deeper than the basic steps. We will cover the "feel" of correct tension, the safety protocols that protect your expensive equipment, and the specific setups that turn a panic-inducing project into a profitable, repeatable workflow.
[FIG-01]
## The “Don’t Panic” Primer: Understanding Clearance Physics
Shoes feel scary because they are not flat goods; they are 3D objects with mass. The tongue might be stitchable, but the *rest of the sneaker* is a heavy anchor that wants to drag your frame down or slam into your machine throat.
Your success hinges on two non-negotiable factors:
1. **Access:** Can you pull the tongue out far enough to lay flat on the stabilizer?
2. **Clearance:** When the machine moves, will the rubber sole or heel counter hit the machine body?
In this method, the "secret" isn't a magic needle or a special font—it’s the **sideways orientation**. By loading the shoe perpendicular to the arm, we force the heavy heel to swing harmlessly into open air, rather than into the machine's throat.
[FIG-02]
## Phase 1: The Surgeon’s Prep (Tag Removal & Surface)
Before you even look at your stabilizer, you must handle the physical obstacles. The factory "All Star" tag on the tongue is your enemy. It is thick, woven, and will cause needle deflection or thread breaks if you try to stitch over it.
### Step 1: Surgical Tag Removal
The goal is to remove the label without leaving "scars" (holes or tufts) on the canvas tongue.
**Tools Needed:**
* A curved surgical seam ripper or scalpel-style blade (like the Tula Pink hardware).
* A lint roller.
* **Hidden Consumable:** A clean cutting mat or rubber grip pad to hold the shoe still.
**The Technique:**
1. **Anchor the Shoe:** Place the shoe on a non-slip surface. Stability is safety.
2. **Start from the Bottom:** Insert your curved blade under the label at the bottom edge.
3. **Slice, Don't Rip:** Gently slice the threads *between* the label and the canvas. Listen for a crisp *snip* sound. If you hear a *tearing* sound, stop—you are cutting fabric.
4. **Work from the Front:** The bobbin thread on the back is often black and blends into the lining. Working from the front allows you to see the contrast.
5. **Clean Up:** Once the label is off, use tweezers to pull the remaining "whiskers" of thread from the canvas.
[FIG-03]
> **Warning: Physical Safety**
> Scalpel-style seam rippers are razor-sharp. **Always cut away from your body and your stabilizing hand.** Never "dig" the tip into the canvas; use the curve of the blade to slide parallel to the fabric. One slip can slice through the canvas tongue—or your finger—requiring a trip to the ER and a replacement pair of shoes.
### Step 2: The "Inside" Finish
Flip the tongue over. Converse usually have black or dark charcoal lining.
* **The Rookie Mistake:** Using white bobbin thread because "nobody looks inside."
* **The Pro Standard:** People *do* look inside. If your shop standard is high, match your bobbin thread to the lining material. It creates a seamless, "factory-finish" look that justifies a higher price point.
### Prep Checklist: The "Go/No-Go" Gauge
* [ ] **Tag Removal:** Is the tag completely gone and the canvas surface smooth/lint-free?
* [ ] **Lining Check:** Have you matched your bobbin thread to the black/grey lining?
* [ ] **Flexibility Test:** Can the tongue pull forward at least 2 inches from the laces? (If not, this method won't work).
* [ ] **Plan the Pair:** Are you prepared to do *both* shoes in the exact same session to ensure matching placement?
## Phase 2: The "Sticky Float" Setup
We are using a metal Fast Frame (a clamp-free sash frame) combined with sticky-back stabilizer. This is often called "floating" because the item relies entirely on adhesive, not hoop tension.
If you are researching **fast frames embroidery**, understand that this system is about *speed* and *surface area*. However, it creates a potential cost leak: wasting massive sheets of expensive sticky backing for a tiny 1-inch monogram.
### Optimizing the Stabilizer
1. **Apply the Sticky Backing:** Cut a piece of adhesive tear-away stabilizer that fits your frame arm.
2. **peel and Stick:** Stick it to the *underside* of the frame, sticky side up.
3. **The "Drum Skin" Test:** Smoothen it out. When you tap the sticky surface, it should be taut. If it sags, your registration will drift, and your letters will look drunk.
[FIG-04]
[FIG-05]
### The "Patch" Economy
**Do not strip the frame after one shoe.** This is how you lose money.
* **Technique:** After stitching the first shoe, peel it off. You will have a hole in the stabilizer.
* **The Fix:** Cut a small scrap of sticky backing slightly larger than the hole. Apply it from the *bottom* (sticky side up) to patch the void.
* **Result:** You can run 10-20 shoes on a single main frame setup, just patching the "kill zone" in the center.
## Phase 3: The Golden Ratio of Placement
Crooked monograms are the fastest way to turn a profit into a refund. Canvas shows every needle hole; you cannot un-stitch a mistake easily.
### The Vertical Rule
Where does the design go?
* **Standard Adult High-Tops:** The center of the design should be **1.5 inches** down from the top edge of the tongue.
* **Teen/Kid/Low-Tops:** The center should be **1.0 inch** down.
**Why these numbers?** Any higher, and the design disappears under the laces when tied. Any lower, and you run out of flat tongue surface.
[FIG-06]
### The "No-Pen" Centering Hack
Marking pens on canvas can bleed or be hard to remove. Use geometry instead:
1. **Fold:** Fold the tongue in half vertically (hot dog style).
2. **Press:** Squeeze the fold firmly with your fingers to create a temporary crease.
3. **Mark:** Place a pin or a small piece of painter's tape at the intersection of your vertical crease and your measurement down (1.5").
[FIG-07]
[FIG-08]
## Phase 4: The "Sideways" Hooping Maneuver
This is the make-or-break step. The specific orientation of the shoe determines whether you have a successful stitch-out or a machine collision.
### The Physics of the Sideways Mount
You must mount the shoe **sideways** (perpendicular to the operator).
* **Wrong:** Toe pointing toward you, heel pointing at the machine. (The heel will hit the machine throat).
* **Right:** Toe pointing Left/Right, **Heel pointing Left/Right**.

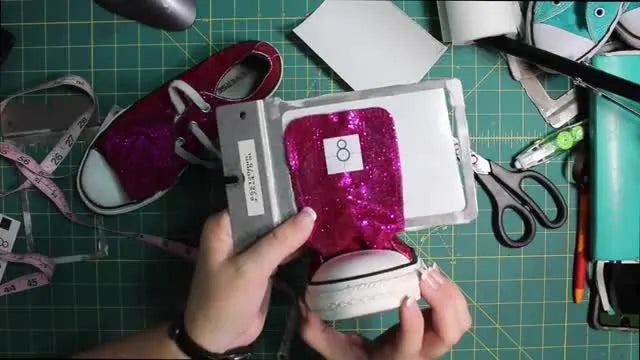

In this specific Brother PR1000e demo, the tongue is pressed onto the stabilizer so the shoe hangs off to the **left** of the frame arm.
If you are exploring **hooping for embroidery machine** techniques for heavy items, memorize this law of physics: **Hang the weight in the void.**
[FIG-09]
[FIG-10]
### Securing the Bond
Because we aren't using a top clamp, the adhesive is the *only* thing holding the shoe.
1. **Press:** Push the tongue onto the sticky backing with significant force.
2. **Rub:** Use your thumb to rub the canvas into the adhesive. You want 100% contact.
3. **Check:** Gently tug the shoe. It should move the entire frame arm, not peel away.
### Setup Checklist: The "collision Prevention" Protocol
* [ ] **Adhesion:** Is the tongue pressed bubble-free onto the stabilizer?
* [ ] **Orientation:** Is the shoe strictly sideways? (Heel is NOT pointing at the machine).
* [ ] **Lace Control:** Are laces tucked inside the shoe or taped down? (Loose aglets can catch on the presser foot).
* [ ] **Hand-Crank Test:** Before hitting start, manually move the hoop to the four corners of the design. Does anything touch the machine?
* [ ] **Design Rotation:** Did you remember to rotate your design 90 degrees in the software to match the sideways shoe?
## Phase 5: Execution & The "Sweet Spot" Settings
The host slides the frame onto the Brother PR1000e. Now, we stitch.
[FIG-11]
[FIG-12]
### Verified Settings for Success
* **Needle Choice:** Canvas is dense. Use a **size 75/11 or 80/12 Sharp (Microtex)** needle. A ballpoint needle (often used for knits) may struggle to penetrate the tight canvas weave, leading to needle deflection.
* **Speed (SPM):**
* *Rookie Mistake:* Running at 1000 SPM.
* *The Sweet Spot:* **400 - 600 SPM.**
* *The Why:* The shoe is a heavy, unbalanced pendulum. High speeds cause the shoe to vibrate or "flag," which ruins registration. Slow down to ensure the shoe moves smoothly with the pantograph.
## The Limits of Reality: Can I Embroider the Side?
A common question arises: "Can I put a school logo on the side of the shoe?"
The answer is: **Yes, but with caveats.**
* **Low Tops:** Extremely difficult. There is almost no clearance between the sole and the eyelets.
* **High Tops:** Possible, but requires a very small hoop (or clamp) and significant clearance management.
If you are using **brother pr1000e hoops**, treat side embroidery as a geometry puzzle. You are fighting the curvature of the ankle and the rigidity of the sole. Start with tongues to build your confidence in machine clearance before attempting sides.
## Decision Tree: When to Upgrade Your Tooling?
Sticky stabilizer works, but it has drawbacks: residue buildup on needles ("gunking"), cost of consumables, and the risk of the shoe shifting.
How do you know when to switch from "Sticky/Fast Frames" to a mechanical or magnetic clamping system? Use this logic flow:
### **Decision Tree: The Shoe Hooping Strategy**
1. **The Frequency Test:**
* *Scenario A:* You do 1–2 pairs a month for gifts.
* *Verdict:* **Stick with Sticky Backup.** It’s cheap setup for low volume.
* *Scenario B:* You have an Etsy order for 20 pairs of wedding Converse.
* *Verdict:* **Go to Step 2.**
2. **The Material Logic:**
* *Scenario A:* The material is canvas (Converse) and holds its shape well.
* *Verdict:* **Mechanical Clamps** (like a Robot Frame) work well here.
* *Scenario B:* You are embroidering slippery materials or need rapid changeovers.
* *Verdict:* **Go to Step 3.**
3. **The Pro Solution:**
* *Scenario:* You need absolute speed, zero residue on your needles, and zero "hoop burn" (marks on the fabric).
* *The Solution:* **Magnetic Clamping Systems.**
Many professional shops transition to **magnetic embroidery hoops** because they eliminate the "peel and stick" time. You simply place the tongue, snap the magnets, and stitch. For multi-needle production batches, investing in industrial-grade **magnetic embroidery frames** (like the MaggieFrame or SEWTECH varieties) drastically reduces wrist strain and increases units-per-hour output.
> **Warning: Magnetic Safety**
> Industrial magnetic hoops are not fridge magnets. They carry massive clamping force.
> * **Pinch Hazard:** They *will* crush fingers if you are careless. Handle by the edges.
> * **Medical Risk:** Keep powerful magnets at least 6 inches away from **pacemakers** and insulin pumps.
> * **Tech Safety:** Store away from credit cards, phones, and machine USB drives.
## Troubleshooting: The "ER" Guide (Symptom → Fix)
When shoeprints go wrong, they usually go wrong in specific ways. If you are using **fast frames for brother embroidery machine**, keep this chart handy.
| Symptom | Likely Cause | The Fix |
| :--- | :--- | :--- |
| **"Thumping" Sound** | The shoe heel is hitting the machine body or table. | **STOP IMMEDIATELY.** Re-hoop. Ensure the shoe is strictly sideways and hanging in free space. |
| **Design looks crooked** | The tongue shifted on the adhesive. | Use the "Fold & Crease" method for centering. Press firmly. Check stabilization *before* loading. |
| **Needle breaks instantly** | Hitting the "All Star" tag glue or thick seam. | Ensure placement is low enough (1-1.5" down) to clear the thick top hem. |
| **Adhesive Gunk on Needle** | Friction melting the sticky stabilizer. | **Use a titanium needle** (resists heat/glue) or wipe the needle with rubbing alcohol every 5 pairs. |
| **Left/Right Mismatch** | Inconsistent measurement. | Don't eyeball it. Measure 1.5" from top on *both* tongues. |
## The Commercial Upgrade Path
The video showcases a department store event—this is the dream for many. If you want to move from "crafter" to "vendor," you need to scale your stability.
1. **Level 1 (Skill):** Master the sideways float as described here.
2. **Level 2 (Efficiency):** Upgrade to **SEWTECH Magnetic Hoops** to stop buying rolls of sticky stabilizer and speed up loading time by 50%.
3. **Level 3 (Capacity):** If you are turning away orders because your single-needle machine creates a bottleneck, look into a cost-effective multi-needle platform like the **SEWTECH multi-needle embroidery machines**. The open-arm architecture is literally built for difficult items like shoes, caps, and bags that struggle to fit on flat-bed domestic machines.
### Operation Checklist Check (During the Stitch)
* [ ] **Trace First:** Always run the trace function. Always.
* [ ] **Watch the Aglets:** Hold the laces (or tape them) so they don't whip around and catch the needle bar.
* [ ] **The "Hover" Hand:** Keep your hand near the emergency stop button for the first 100 stitches.
* [ ] **No Helping:** Do not lift or hold the shoe while it stitches; you will alter the registration. Let the machine do the work.
[FIG-13]
Converse customization is high-risk, high-reward. But with the right clearance strategy, proper adhesive tension, and a healthy respect for the physics of the machine, you can turn a $50 pair of sneakers into a $150 custom piece of art. Stay safe, check your clearance, and happy stitching.
FAQ
-
Q: How do I hoop a Converse tongue on a Brother PR1000e without the sneaker heel hitting the machine arm or throat plate?
A: Mount the Converse sneaker strictly sideways so the heel hangs into open air, not toward the machine body.
- Rotate the shoe orientation so the toe points left/right and the heel points left/right (never heel-toward-machine).
- Tuck or tape down laces and aglets so nothing can swing into the presser foot area.
- Hand-crank/trace the hoop to all four design corners before starting.
- Success check: No “thumping” sound during trace, and nothing touches the machine at any corner.
- If it still fails: Re-hoop with more “void” clearance (move the shoe farther off the frame arm) and reduce stitch speed.
-
Q: How do I remove the Converse “All Star” tongue tag cleanly before embroidery without tearing the canvas?
A: Slice the tag threads between the label and canvas with a curved seam ripper/scalpel-style blade—do not rip.
- Anchor the shoe on a non-slip cutting mat or rubber grip pad so it cannot shift.
- Insert the curved blade under the bottom edge and cut threads in small controlled snips (stop if you hear tearing).
- Work from the front of the tongue so thread contrast is visible, then pull leftover whiskers with tweezers and finish with a lint roller.
- Success check: The canvas surface feels smooth and looks lint-free with no tufts or enlarged needle holes where the tag was.
- If it still fails: Stop cutting and reassess blade angle—keep the blade parallel to the fabric to avoid digging into canvas.
-
Q: How do I know sticky-back stabilizer on a metal Fast Frame is tight enough for Converse tongue embroidery (so the monogram doesn’t drift)?
A: Make the sticky surface pass the “drum skin” test before pressing the tongue down.
- Apply adhesive tear-away to fit the frame arm and smooth it until it is taut (no sagging).
- Tap the sticky surface and confirm it feels tight rather than soft or droopy.
- Press and rub the canvas tongue firmly into the adhesive to achieve full contact.
- Success check: The stabilizer sounds/feels taut when tapped, and a gentle tug moves the entire frame arm instead of peeling the tongue up.
- If it still fails: Re-smooth or reapply the stabilizer (sagging backing commonly causes registration shift and crooked lettering).
-
Q: How do I keep Converse tongue monograms from stitching crooked when floating the shoe on sticky stabilizer?
A: Use the fold-and-crease centering method and measure placement instead of eyeballing.
- Fold the tongue vertically (“hot dog style”) and finger-press a crease as a temporary centerline.
- Measure down from the top edge of the tongue: 1.5 inches for standard adult high-tops, 1.0 inch for teen/kid/low-tops, then mark the intersection with a pin or painter’s tape.
- Press the tongue onto the sticky backing with significant force and rub for 100% contact.
- Success check: The design center aligns with the crease intersection and the finished monogram sits above the lace line (not hidden when tied).
- If it still fails: Recheck that the tongue did not shift while loading—adhesion and crease alignment must both be correct.
-
Q: What needle size and stitch speed settings work best for embroidering dense Converse canvas on a Brother PR1000e without needle breaks?
A: Start with a 75/11 or 80/12 Sharp (Microtex) needle and slow down to 400–600 SPM for stability.
- Install a 75/11 or 80/12 Sharp (Microtex) needle to reduce deflection in tight canvas weave.
- Set speed to 400–600 SPM (high speed increases vibration/“flagging” from the shoe’s weight).
- Run trace first and keep a hand near emergency stop for the first 100 stitches.
- Success check: The shoe moves smoothly with the pantograph and stitches stay registered without repeated needle deflection or instant breaks.
- If it still fails: Confirm the design placement avoids thick seams/tag glue zones near the top hem and redo the sideways clearance test.
-
Q: How do I fix adhesive gunk buildup on the needle when using sticky-back stabilizer for Converse embroidery?
A: Reduce buildup by switching to a titanium needle or cleaning the needle regularly during production.
- Pause every few pairs and wipe the needle with rubbing alcohol to remove adhesive residue.
- Consider a titanium needle because it often resists heat/glue buildup better during repeated runs.
- Use the stabilizer “patch” method (patch the hole from the bottom) instead of constantly replacing the whole sticky sheet, which can increase residue and waste.
- Success check: Thread runs smoothly with fewer breaks and the needle looks clean (no visible sticky film).
- If it still fails: Slow the machine toward the lower end of the 400–600 SPM range and verify the tongue is fully pressed down to prevent rubbing and heat.
-
Q: When should a shop switch from sticky-back Fast Frames to magnetic embroidery hoops for batching Converse tongue monograms?
A: Switch when sticky setups create time waste, needle residue, or shifting risk in higher-volume orders—magnetic clamping is the next efficiency step.
- Diagnose volume: If production moves from occasional pairs to batch orders (e.g., event or multi-pair orders), loading time and consumable cost start to dominate.
- Improve control: Use magnetic clamping when faster changeovers and reduced shifting matter more than the lowest consumable cost.
- Scale logically: Level 1 optimize the sideways float method, Level 2 upgrade to magnetic hoops for faster loading/less residue, Level 3 consider a multi-needle platform if capacity becomes the bottleneck.
- Success check: Loading becomes repeatable and fast, with consistent placement and fewer stoppages for adhesive cleanup.
- If it still fails: Re-audit collision clearance and tracing habits—no hoop system replaces the sideways orientation and trace-first protocol.
