CorelDraw X5 Pattern Fill Text That Actually Digitizes Clean: Fix the Seam Line, Add a Smart Outline, and Export with Confidence

From Screen to Stitch: The Ultimate Guide to Pattern-Filled Lettering

By the Chief Embroidery Education Officer

If you have ever tried to "spice up" a basic font with a pattern fill, only to end up with a weird vertical seam, muddy edges, or a design that looks fine on-screen but shreds your fabric in the machine—take a breath. The problem isn’t you. It is usually a translation error between graphic design physics and embroidery physics.

This guide reconstructs a proven workflow (demonstrated in CorelDraw X5) to create pattern-filled text art ready for digitizing. But we won’t stop at the software. As an embroidery veteran, I know that a great JPEG is useless if it causes thread breaks or hoop burn.

We will walk through the artwork preparation, the export logic, and the critical physical setup—including why tool upgrades like magnetic embroidery hoops are often the secret to handling dense pattern fills without puckering.

CorelDraw X5 Pattern Fill: The Calm Truth Before You Start

Pattern-filled text is the industry shortcut to "custom-looking" lettering without requiring hand-drawing skills. In the source material, the demonstrator is upfront: she is using tools to generate art, not drawing it from scratch. This is the correct mindset for production efficiency.

The Golden Rule of Digitizing Prep: CorelDraw creates artwork. Your embroidery machine creates structure. A pattern fill in software is just pixels; but once digitized, that fill becomes thousands of stitches.

• Too detailed? You get a "bulletproof vest" patch that is stiff and breaks needles.
• Too uniform? You get a flat, boring design.

Your goal in CorelDraw is to produce a graphic with high contrast and clean edges so your digitizing software (or auto-digitizing function) doesn't have to guess. This streamlined workflow is essential for hooping for embroidery machine businesses, because faster artwork prep means you can quote jobs sooner.

The "Hidden" Prep: Set Yourself Up for Success

Before applying any patterns, we must sanitize the workspace. Experienced digitizers do not start with the fun part; they start with the safety checks.

Prep Checklist (The "Pre-Flight" Routine):

• Canvas Check: Ensure a pure white background to spot edge contrast issues immediately.
• Font Selection: Choose a thick, sans-serif or slab-serif font (e.g., Impact, Arial Black). Avoid thin scripts with pattern fills—there isn't enough surface area for the texture to read clearly.
• Texture Audit: Gather high-resolution bitmaps (300 DPI minimum). Low-res images create "stair-step" edges that confuse auto-digitizers.
• Consumables Check: Ensure you have temporary spray adhesive (like KK100) and the correct needles (Size 75/11 Sharp for wovens, Ballpoint for knits).

Warning: Eye Protection Required. When testing new, dense pattern fills, needle breakage is a real risk due to potential stitch pile-ups. Always wear safety glasses and watch the first sew-out closely. Do not walk away from the machine.

Step 1: Oversizing the Letter (The Visibility Hack)

The workflow begins with the Text Tool. Type an uppercase "A", switch to the Pick Tool (arrow), and set the font size to 400 pt.

Why 400 pt? You aren't printing this. You are inspecting it. At 400 pt, you can see if the texture "tiles" awkwardly or if the edges are jagged.

• Standard approach: Working at actual size (e.g., 2 inches).
• Expert approach: Work huge to fix artifacts, then scale down for export.

Sensory Check (Visual): The letter edges must be razor-sharp. If you see fuzziness at the perimeter of the "A" even before filling it, your font file might be corrupt or low quality.

Step 2: The Paint Bucket Move

Select the Fill Tool (paint bucket icon) and choose Pattern Fill. CorelDraw includes presets, but we use these only to verify the object is closed and fillable.

The "Sanity Check" Click: Apply a standard preset first.

• Success: The letter fills instantly.
• Failure: Nothing happens. This usually means your text object is not "closed" or has been converted to curves improperly. Fix this before trying custom bitmaps.








Step 3: Loading Custom Bitmaps & The "Seam" Glitch

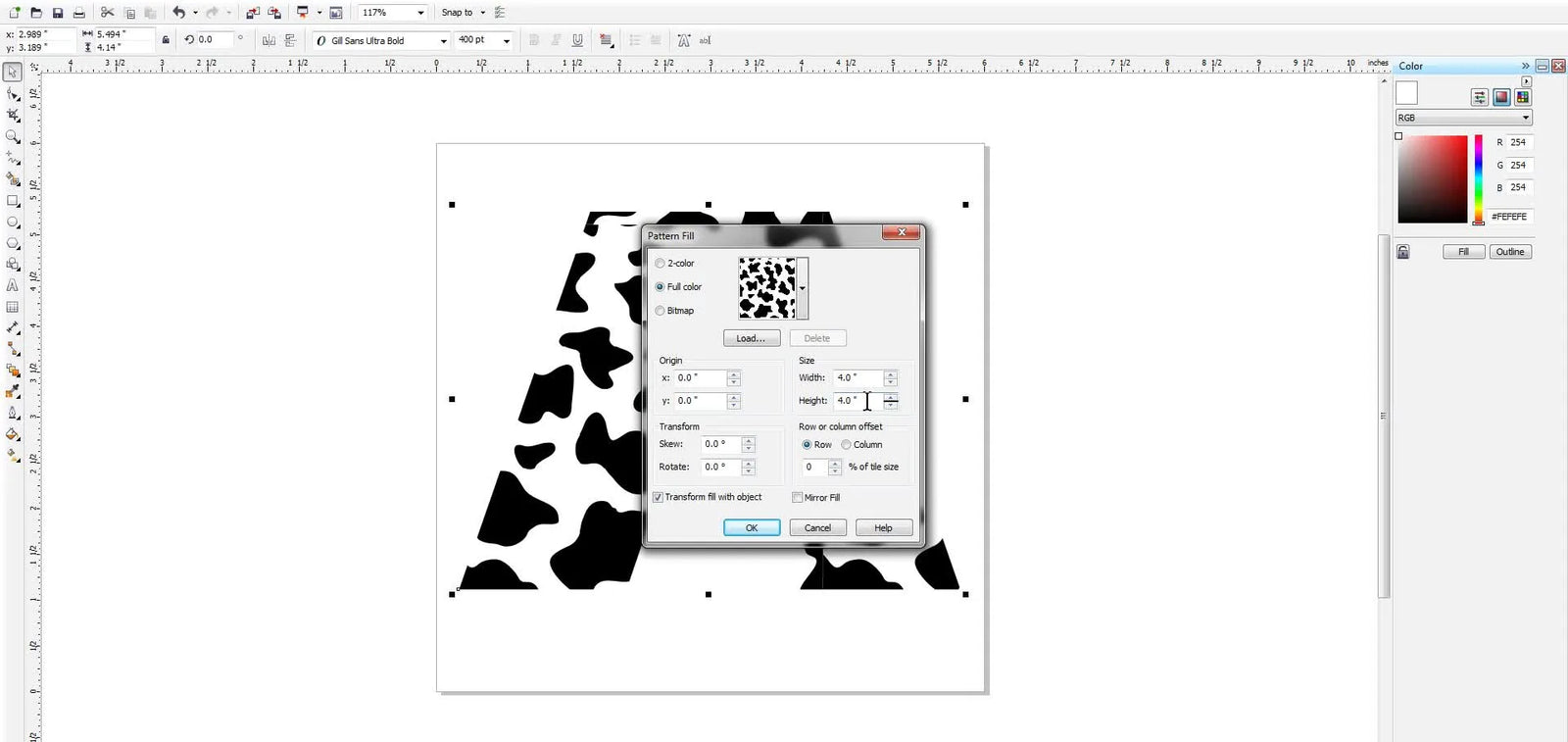

Donna, our demonstrator, navigates to "Animal Print Scrapbook Paper" and selects a cow print. This is where the most common amateur error occurs: The Vertical Seam.

The Symptom: You apply the fill, and a visible, ugly line cuts through your letter.

The Physics of the Digital seam: CorelDraw tries to "tile" the image to fill the space. If the definition of the tile is smaller than the letter, it repeats the image. If the image isn't seamless, you see the edge.

Step 4: The 6" x 6" Fix (Experience-Based Calibration)

To remove the seam, you must force the software to treat the texture as one giant sheet, not a small tile.

The Fix Protocol:

1. Open Pattern Fill settings.
2. Set the background image/paper size to match the source or larger.
3. Enter Width = 6.0" and Height = 6.0".
4. Click OK.

Why this matters for embroidery: If you leave that seam in the artwork, auto-digitizing software will interpret it as a "line." It will place unnecessary needle penetrations there, creating a ridge of thread that ruins the texture and creates a perforation line where the fabric could tear.

Step 5: The Contrast Outline (Structuring the Stitch Path)

A cow print has white sections. On a white background, the edge of the "A" disappears. This is a nightmare for digitizing because the software cannot calculate the "End Point" of the stitch.

The Solution: Use the Outline Pen tool to add a distinct black border.

Expert Insight: This outline isn't just visual; it is structural. When you eventually digitize this:

• The Fill becomes your Tatami or Pattern Step stitch.
• The Outline becomes your Satin Stitch border.

Without the visual outline in Corel, you have no guide for placing that Satin border, which is crucial for sealing the raw edges of your embroidery.

Export Strategy: Clean Data In, Clean Stitches Out

Save the artwork as a PNG (preferred) or JPEG.

• Rule: Export at 300 DPI.
• Banish the Artifacts: JPEGs use compression that creates "mosquito noise" (faint grey pixels) around high-contrast lines. Embroidery software tries to stitch that noise. PNG is lossless and cleaner.

Part 2: The Physical Reality (Turning Data into Product)

Now that you have clean artwork, the real challenge begins. Pattern-filled designs usually result in high stitch counts (standard Tatami fills often hold 15,000+ stitches for a 4-inch design). This introduces physical stress to your fabric.

The Physics of High-Density Fills

A solid fill exerts "Pull Compensation" forces. It drags the fabric toward the center of the design.

• The Risk: The fabric puckers, outlines don't line up (registration errors), or you get "hoop burn" from trying to clamp the fabric too tightly to compensate.

The Decision Tree: Fabric & Stabilizer Mapping

Do not guess. Use this logic flow to ensure your pattern-filled letter lies flat.

Start Here: What is your fabric?

1. Stretchy (T-shirts, Performance Knits)?
   • Stabilizer: Cutaway (2.5 - 3.0 oz). No exceptions. Tearaway will explode under a dense fill.
   • Adhesive: Light spray (KK100) to bond fabric to stabilizer.
   • Topper: Water-soluble Solvy if the knit has a rib.
2. Stable but Thin (Cotton Woven, Quilting Cotton)?
   • Stabilizer: Medium Cutaway OR two layers of high-quality Tearaway (cross-hatched).
   • Hooping: Needs high tension.
3. Thick & Textured (Towels, Fleece, Hoodies)?
   • Stabilizer: Tearaway (easier to remove from back) + Water Soluble Topper (Essential to keep stitches from sinking into the pile).

The Tool Upgrade Path: Solving the Grip Problem

If you are struggling to hoop thick items (like hoodies) or slippery items (like performance wear) tightly enough to support a dense cow-print letter, traditional hoop screws often fail. They either pop open or leave permanent friction marks ("burns") on the fabric.

Level 1 Fix: Better Technique "Floating" the fabric (hooping only the stabilizer and sticking the fabric on top) can work, but for dense fills, registration often slips.

Level 2 Fix: The Commercial Standard This is where professionals switch to a embroidery hooping system that uses magnetic force.

• Why? A magnetic embroidery hoop clamps the fabric flat without the "tug and screw" friction that damages fibers. The magnets hold automatically for consistent tension across the entire frame.
• The Result: You can embroider a full-density cow print on a velvet jacket without leaving a ring mark. The magnetic embroidery frame allows for zero-distortion fabric holding.

Warning: Magnetic Safety. Powerful magnetic hoops (like those used on Sewtech frames) can pinch fingers severely. Never place fingers between the magnets. Keep away from pacemakers and sensitive electronics.

Level 3 Fix: Production Scale If you are producing 50+ of these letters for a team, a single-needle machine will become your bottleneck due to color changes (black outline, white background, black cow spots). Moving to a SEWTECH multi-needle machine allows you to preset all colors. Combined with magnetic hoops for embroidery machines, you can load a shirt in 15 seconds and stitch without interruption.

Troubleshooting Guide: The "Pattern Fill" Panic Room

If your sew-out fails, use this diagnostic table. Check in this order (cheapest fixes first).

Final Setup & Operation Checklist

Before you press "Start" on that final production run, verify these 5 points to avoid ruining expensive garments.

Setup Checklist:

• Artwork: "A" has a clean outline and NO internal seam lines in CorelDraw.
• Digitizing: Stitch density is set appropriately (approx 0.40mm - 0.45mm). Underlay stitches are enabled (Tatami or Edge Run) to stabilize the fabric first.
• Needle: Brand new needle installed. (A dull needle pushes fabric down, causing registration gaps).
• Hooping: Fabric is "drum tight." Tapping it should produce a rhythmic thump-thump, not a dull thud.
• Position: Trace the design area (frame trace) to ensure the needle won't hit the hoop.

By mastering the software prep in CorelDraw and respecting the physical constraints of the machine, you turn "risky" designs into profitable, repeatable products. Remember: The machine only does what the artwork tells it to do. Tell it clearly.

FAQ

• Q: In CorelDraw X5, why does a vertical seam line appear inside pattern-filled lettering after applying a custom bitmap Pattern Fill?
  A: The vertical seam usually means CorelDraw X5 is tiling a non-seamless bitmap, and the tile edge becomes visible inside the letter.
  • Open the Pattern Fill settings for the text object.
  • Increase the pattern “paper/background image” size so the texture behaves like one large sheet (a common fix is setting Width = 6.0" and Height = 6.0").
  • Re-apply and reposition the fill if needed so no tile edge runs through the letter.
  • Success check: Visually inspect the letter—there should be no straight vertical line cutting across the texture.
  • If it still fails: Replace the bitmap with a truly seamless texture or use a higher-resolution bitmap to reduce edge artifacts.
• Q: In CorelDraw X5, what is the fastest “sanity check” to confirm a text object is closed and fillable before loading a custom bitmap Pattern Fill?
  A: Apply a built-in preset Pattern Fill first—if it fills instantly, the object is closed and ready for custom bitmaps.
  • Select the text, then choose the Fill Tool (paint bucket) and apply a standard preset pattern.
  • If nothing happens, fix the object before continuing (common causes include text converted to curves improperly).
  • Only after the preset works, load the custom bitmap Pattern Fill.
  • Success check: The preset pattern fill appears immediately with clean boundaries.
  • If it still fails: Recreate the text object and repeat the preset-fill test before trying custom textures again.
• Q: When exporting pattern-filled lettering artwork from CorelDraw X5 for auto-digitizing, should the file be PNG or JPEG to avoid stitch noise around high-contrast outlines?
  A: Use PNG at 300 DPI whenever possible because JPEG compression can create edge artifacts that embroidery software may try to stitch.
  • Export the artwork as PNG (preferred) or JPEG only if required.
  • Set export resolution to 300 DPI.
  • Keep edges high-contrast and clean (add a clear outline if the fill contains white areas on a white background).
  • Success check: Zoom in on the exported file—edges should look crisp without fuzzy grey “mosquito noise.”
  • If it still fails: Re-export as PNG (lossless) and verify the background is pure white so edge contrast is obvious.
• Q: For a dense pattern-filled letter on a T-shirt or performance knit, which stabilizer type prevents shifting and outline gaps during embroidery?
  A: Use cutaway stabilizer (about 2.5–3.0 oz) because dense fills can overwhelm tearaway on stretchy knits.
  • Hoop the knit with cutaway stabilizer, and use a light spray adhesive to bond fabric to stabilizer.
  • Add water-soluble topper if the knit has rib texture so stitches don’t sink.
  • Stitch with underlay enabled (as a safe starting point) to stabilize the area before the dense fill.
  • Success check: Visually confirm the satin outline meets the fill cleanly with no registration gap.
  • If it still fails: Check for fabric flagging/shifting and consider increasing pull compensation in digitizing (commonly around 0.3–0.4 mm, but follow the software/machine guidance).
• Q: What is the correct “drum tight” hooping success standard for dense pattern-fill embroidery to reduce puckering and registration errors?
  A: The fabric should be drum tight without over-cranking—tap the hooped fabric and listen for a rhythmic thump-thump, not a dull thud.
  • Hoop with even tension across the entire frame; avoid over-tightening just to “force” flatness.
  • Match stabilizer to fabric type (cutaway for knits; appropriate tearaway/cutaway combinations for thin wovens).
  • Run a frame trace before stitching to confirm the needle won’t strike the hoop.
  • Success check: Tactile + auditory—fabric feels flat and sounds like a consistent thump when tapped.
  • If it still fails: Float only the fabric (hoop stabilizer, adhere fabric on top) as a technique test, then reassess shifting on dense fills.
• Q: During dense pattern-fill embroidery, what should be adjusted first when white bobbin thread shows on top of black areas in the design?
  A: Slightly loosen the top tension first, and then verify the bobbin path is clean—this symptom commonly points to top tension being too tight or bobbin tension too loose.
  • Reduce top tension in small increments and test again.
  • Clean lint from the bobbin area and rethread the bobbin path carefully.
  • Stitch a short test segment of the same design section (not a different light design).
  • Success check: Visually confirm the black coverage is solid with no white specks showing on top.
  • If it still fails: Recheck threading on both top and bobbin and confirm the needle is new (a dull needle can worsen stitch formation).
• Q: What are the two most important safety precautions when test-stitching a new dense pattern-filled design on an embroidery machine with risk of needle breaks?
  A: Wear eye protection and supervise the first sew-out closely because dense fills can cause stitch pile-ups and sudden needle snaps.
  • Put on safety glasses before starting the test run.
  • Stay with the machine for the first sew-out and watch for thread build-up or abnormal movement.
  • Stop immediately if you hear a sharp SNAP or see repeated needle strikes into heavy stitch stacks.
  • Success check: The test run completes without loud snaps and without repeated thread breaks in the same area.
  • If it still fails: Reduce stitch density in the digitizing settings (a common adjustment is moving from 0.40 mm to 0.45 mm spacing) and re-test slowly.
