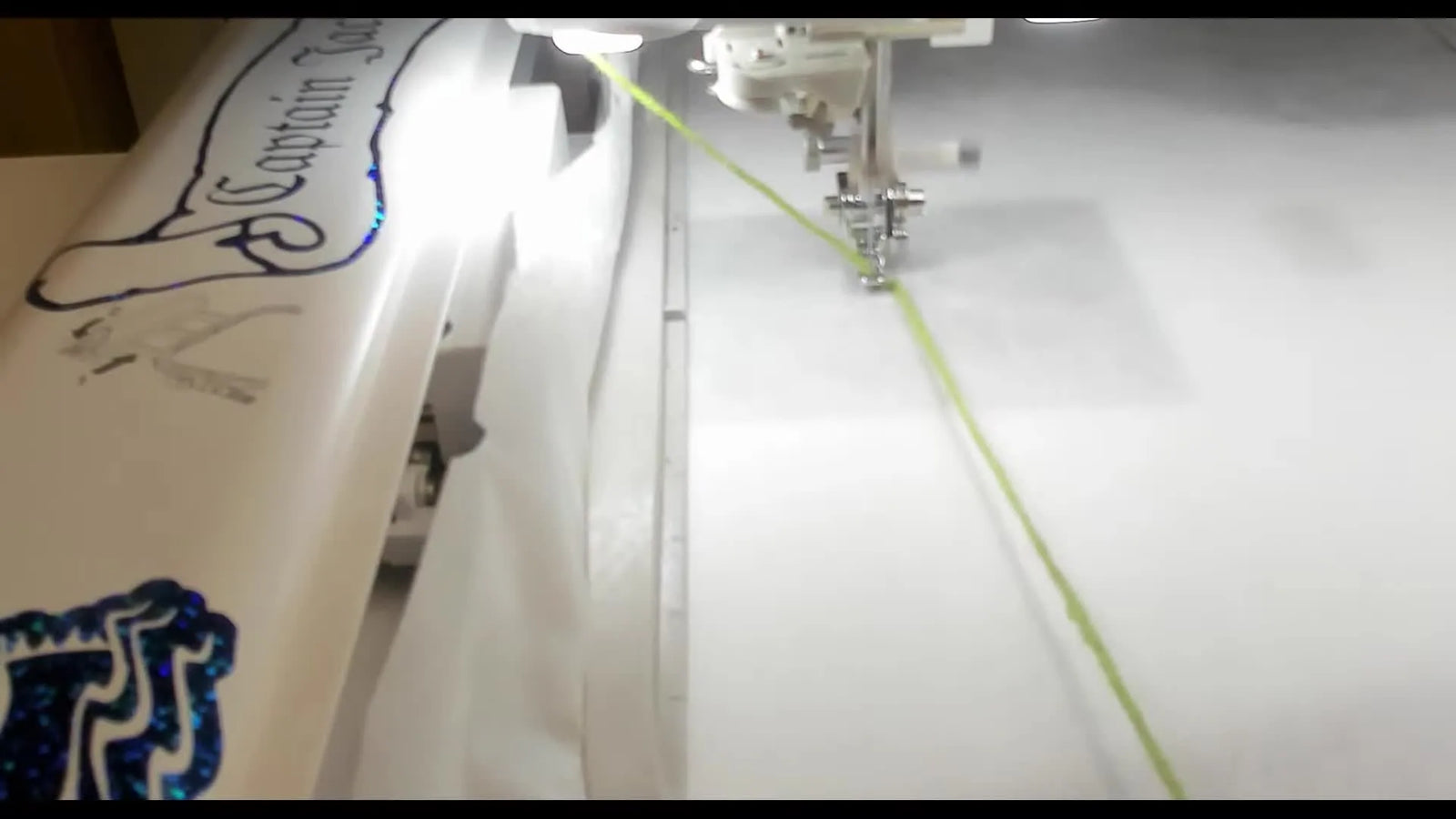

Couching on the Brother Luminaire 2 Without the Headaches: Needle-Left Setup, Yarn Feeding Control, and the Pigtail Tension Trick

Couching on the Brother Luminaire 2: The Definitive "texture-First" Guide

Couching is one of those techniques that looks "fancy" to the observer but feels incredibly risky to the machine operator the first time you attempt it. You are, effectively, deliberately feeding a thick strand of yarn directly into the path of a needle moving at hundreds of stitches per minute.

If you are staring at your Brother Luminaire 2 thinking, "I’m going to hit the foot, break a needle, snag the yarn, or ruin the whole hoop," take a breath. That fear is rational, but it is solvable with protocol. This guide moves beyond basic "how-to" steps; we are going to break down the physics of yarn control, the safety rituals that prevent machine damage, and the workflow upgrades that turn this from a stressful experiment into a profitable, repeatable texture tool for jackets, pillows, and high-end quilt accents.

The Texture Upgrade: What “Machine Embroidery Couching” Really Does on a Brother Luminaire 2

To master couching, you must first understand the mechanics. Couching on the Brother Luminaire 2 is not "free-motion yarn art" or hand-guided doodling. The machine does not "know" it is holding yarn; it is simply executing a standard straight stitch or zigzag stitch over a specific coordinate path.

The "magic" relies entirely on the Couching Foot. This foot acts as a tunnel, guiding the yarn directly under the needle so that the embroidery thread (the top thread) can swing over the yarn and tack it down to the fabric.

The Physics of the Stitch: Unlike standard satin stitching where the thread penetrates the fabric to create color, couching sits on top of the fabric. This creates three distinct variables you must manage:

1. Loft (Dimension): The height of the yarn defines the shadow and texture.
2. Drag (Friction): Thick yarn resists being pulled. If the drag is too high, the yarn will snap or the needle will deflect.
3. Speed (SPM): While your machine can run at 1000 SPM, couching requires a "Beginner Sweet Spot" of 400–600 SPM. Running faster than this prevents the feed dogs and yarn from synchronizing, leading to missed tacks.

A practical mindset shift: Couching is less about thread tension settings and 90% about yarn control—specifically direction, slack, and eliminating friction points before they reach the needle.

The Non-Negotiable Hardware: Couching Foot, Plastic Yarn Threader, and a Yarn Weight That Behaves

You cannot improvise with tools here. The tolerance between a successful couch and a shattered needle is millimeters. Ensure you have the following staged on your workspace:

• Couching Foot: This is a specialized foot with a hole or guide specifically sized for yarn. It usually comes with the upgrade kit or specific machine bundles.
• Plastic Yarn Guide / Threading Tab: This is a tiny, translucent plastic tab. It is absolutely essential for pulling fuzzy yarn through the metal foot eyelet.
• Yarn Selection: The video demonstrates using Caron Skinny Cakes.
  • The Sweet Spot: Weight 3 (Light Worsted / DK) to Weight 4 (Worsted).
  • The Danger Zone: Anything thicker than Weight 4 will struggle to pass through the foot, causing "bunching" and needle strikes. Anything thinner than Weight 2 will slip out of the tack-down stitches.
• Stabilizer: For the tutorial, we use stabilizer only (floating), but in production, this varies by fabric.
• Embroidery Thread: Keep it strong. Polyester 40wt is standard. Color choice matters: match the yarn to hide stitches, or use a contrasting color (like gold over black yarn) for a decorative effect.
• Hidden Consumables:
  • Curved Tip Tweezers: For grabbing yarn tails under the foot.
  • Masking Tape: To temporarily tape yarn tails out of the way during hoop loading.

One comment question comes up constantly: "Is this special 'machine' yarn?" It isn’t—Sue confirms it’s regular yarn from a craft store (like Michael's). The machine doesn't care about the brand; it cares about the diameter.

The “Needle-Left” Safety Ritual: Adjust the Needle Bar Before You Even Think About Pressing Start

This is the most critical section of this entire white paper. If you skip this, you risk damaging your machine. The standard center-needle position on the Luminaire 2 often does not align with the offset hole of the couching foot. You must manually offset the needle.

Sue’s key instruction is simple but vital: move the needle as far left as possible. On the Luminaire 2, this is a mechanical adjustment, not just a digital one.

The Adjustment Protocol:

1. Power down or lock the machine screen for safety.
2. Locate the screw on the needle bar clamp.
3. Use the specific screwdriver tool to loosen the clamp slightly.
4. Physically slide/adjust the needle bar to the left-most position.
5. Retighten the screw firmly.

The Verification (The "Click" Test): Once adjusted, do not trust your eyes alone. Slowly turn the handwheel toward you to lower the needle manually.

• Visual Check: The needle should pass clearly through the foot's opening without brushing the metal sides.
• Auditory Check: Listen for any tick or scrape of metal on metal.
• Tactile Check: The handwheel should turn smoothly with no resistance change at the bottom of the stroke.

Pro tip: If you can't get your head close enough to see the clearance, use your smartphone camera on 3x zoom to record the needle dropping. Watch the replay to verify the gap.

Warning: Never test clearance by running a design first. The machine moves too fast to stop if it hits metal. Needle impact can shatter the needle (sending shards toward your eyes), gouge the expensive couching foot, and potentially throw the machine’s timing out of alignment.

The Hidden Prep That Saves the Stitch-Out: Stabilizer Choice, Yarn Staging, and Snag-Proof Routing

Sue demonstrates on stabilizer only, which is perfect for learning the mechanics because you have high visibility. However, in a real-world scenario (like a denim jacket or a velvet pillow), preparation is 80% of the battle.

The "Hoop Burn" Dilemma: One of the most common frustrations with couching is that you often need to hoop delicate or thick fabrics (like velvet or towel) to get the best results. Traditional screw-tightened hoops can leave permanent "hoop burn" rings on these textures.

If you are doing this often, or if you are working with fabrics that bruise easily, this is where a workflow upgrade matters. Many shops move toward hooping station for machine embroidery setups combined with magnetic frames. A station ensures your fabric layout is perfectly square before the magnet snaps down, preventing the "drag lines" that often happen when you try to wrestle a thick quilt sandwich into a standard hoop.

Yarn Staging (The "Flow" Factor): Couching is not a set-and-walk-away technique. The yarn must flow freely.

• The Rule: Your yarn must be loose and positioned away from machine snag points (bobbin winder post, hoop levers, screen edges).
• The Setup: Place the yarn cake on the table or in a bowl to the right/front of the machine. Do not let it roll on the floor where it can catch on chair wheels.

Prep Checklist (Do this BEFORE threading)

• Action: Install the couching foot and verify it is seated "flat" and tight.
• Safety: Perform the "Needle-Left" manual clearance check (Handwheel rotation).
• Material: Hoop your stabilizer tight (drum-skin tight).
• Flow: Place the yarn cake where it can unwind without "jumping."
• Hazard Scan: Identify snag points: Bobbin winder post, hoop clamps, lever edges.
• Inventory: Locate the plastic yarn threader tab (it is small and transparent; don't lose it).


Threading the Couching Foot Cleanly: Use the Plastic Tab, Don’t Fight the Eyelet

You cannot push fuzzy yarn through a tiny metal eyelet; you must pull it. Sue’s method is the industry standard for specific reason—it compresses the yarn fibers to fit through the hole.

The Micro-Steps:

1. Insert: Push the small plastic yarn guide (the tab with the hook) through the eyelet of the couching foot from the bottom up or front to back (depending on foot style).
2. Hook: Catch the yarn strand into the notch of the plastic guide.
3. Draw: Gently pull the plastic guide back through the foot. The yarn will follow.

Sensory Checkpoint:

• Tactile: When you pull the yarn back and forth through the foot, it should feel like pulling dental floss—slight resistance is good (it keeps the yarn straight), but it should not snag or require force. If you have to yank it, your yarn is too thick for that specific foot.

Expected Outcome: You should have 3-4 inches of yarn tail extending cleanly under the foot.

Picking the Right Built-In Couching Design: Category C on the Brother Luminaire 2 (Butterfly + Frames)

On the Luminaire 2 screen, navigate to Category C. This is the dedicated folder for couching designs.

• Visual ID: These designs appear as simple line drawings on the screen.
• Data: The machine reads these files differently—it automatically adjusts the foot height and tension settings (if using default modes) to accommodate the yarn bulk.

Sue selects a butterfly (approx. 8x5 inches) and a frame design. This highlights an important "tool vs. task" realization: couching adds structure and heavy outlines.

The Stability Factor: Because couching adds physical weight and drag to the fabric, hoop stability is paramount. If your inner hoop slips even 1mm during the design, your yarn outline will not match up with any fill stitches you add later. This is why experienced embroiderers eventually build a set of embroidery hoops for brother machines that are specifically rigid or magnetic. Matching the hoop size closely to the design size (e.g., using a 5x7 frame for a 5x7 design rather than a giant 10x16 frame) creates better tension and reduces fabric distortion.

The Start Sequence That Prevents a Mess: Hold the Yarn Tail, Let the Machine Tack It Down

The first 3 seconds of the stitch-out are where 50% of failures happen. If the yarn tail is loose, the needle will suck it down into the bobbin case area, causing a "bird's nest."

The Action Protocol:

1. Tension: Hold the yarn tail gently with your left hand, keeping it taut and away from the needle entry point.
2. Engage: Press the "Start" button.
3. Observe: Watch the machine take the first 3-5 tacking stitches.
4. Release: Once the yarn is anchored to the stabilizer, release the tail.

Sensory Checkpoint (Sound):

• Auditory: You should hear a distinct thump-thump-thump rhythm. If you hear a high-pitched whine or a grinding noise, stop immediately—the yarn is likely caught in the hook assembly.

A comment asked whether you need to turn off the thread cutter. Sue confirm’s she didn’t change cutter settings. The machine’s built-in cutter works on the thread, not the yarn. You will manually cut the yarn at the end.

Yarn Feeding Management: The “Don’t Walk Away” Rule (and How to Keep Slack Without Tangles)

This is where couching succeeds or fails. You cannot press "Go" and walk away to make coffee.

Sue repeatedly emphasizes keeping the yarn loose. Here is the physics of why:

• The Pull: The couching foot acts as a fulcrum. As the pantograph (the embroidery arm) moves the hoop, it pulls yarn.
• The Resistance: If the yarn cake catches or doesn't rotate, the yarn goes taut.
• The Result: A taut yarn pulls the needle slightly off-center (deflection). The needle hits the foot (Breakage). Or, the yarn snaps back, and the tacking stitches miss the yarn entirely.

Best Practice: Keep a "slack loop" of about 6-10 inches between the yarn cake and the machine feedback points at all times. Periodically "pre-pull" yarn from the skein.

Workflow Upgrade - The Stability Pivot: If you find yourself constantly fighting the fabric—smoothing it out because the yarn drag is puckering it—your hooping method is the culprit. Standard hoops rely on friction. When the heavy yarn drags, it pulls the fabric inward. This is the primary reason professionals switch to a magnetic embroidery hoop. The clamp force of a magnetic system is vertical and uniform around the entire perimeter. It holds the fabric like a vice without the "stretching" distortion of screw hoops, allowing the yarn to lay flat on top of the fabric rather than tunneling into it.

Camera Scan Centering on the Luminaire 2: Move/Center the Frame Design Without Catching the Yarn

For the second design (the frame), Sue utilizes the Luminaire’s standout feature: the Camera Scan. This scans the hoop background to let you position the design perfectly.

Critical Nuance: You must physically hold the yarn up and out of the scan zone. If the yarn is draped across the hoop during the scan:

1. The camera may interpret the yarn as part of the fabric pattern.
2. When the hoop moves to scan, it might jerk the yarn and pull your skein onto the floor.

The Sequence:

1. Lift the yarn tail high.
2. Initiate Background Scan.
3. Once scanned, use the Edit → Move arrows on the screen to center the design within your hoop limits.
4. Checkpoint: Ensure no part of the red design outline box touches the grey "no-sew" zone on the screen.


The Pigtail Guide “Secret”: Why That Little Metal Curl Fixes Inconsistent Laydown

Sue creates a "teachable moment" by forgetting a step and immediately recognizing the drop in quality. She realizes she didn't route the yarn through the Metal Pigtail Guide located on the top-left of the machine head.

The Physics of the Pigtail: This guide acts as a pre-tensioner.

• Without the guide: The yarn enters the foot at variable angles depending on where the hoop moves. This causes the yarn to sometimes lay flat and sometimes twist.
• With the guide: The yarn enters the foot from a consistent vertical angle.

Sensory Feedback Loop: If you see your yarn looking "ropey," twisted, or if the tacking stitches are sliding off the side of the yarn, Stop. Check the pigtail. 9 times out of 10, the yarn has bumped out of the guide.

Tail Handling and Finishing: Cut It Off or Tie It Through a Hole (Both Are Valid)

Unlike embroidery thread, the machine does not trim your yarn. You have to finish it manually. Sue demonstrates two valid paths:

Option A: The Crop (Decorative Items)

• Cut the yarn tail as close to the text/design as possible using curved snips.
• Risk: If the tacking stitches aren't dense, the yarn could fray over time.

Option B: The Bury (Apparel/Useable Items)

• Use a "pokey tool" or a large needle to pull the yarn tail through to the back side of the fabric.
• Tie a small knot with the start and end tails on the back.
• Benefit: This is the professional standard for anything that will be washed or handled. It prevents unraveling.


Troubleshooting Couching on the Brother Luminaire 2: Symptoms → Causes → Fixes

When things go wrong, they go wrong quickly. Use this diagnostic table to resolve issues before they become disasters.

Warning: Keep fingers, scissors, and loose clothing/hair away from the moving needle area. In couching, you are often tempted to get your hands close to "help" the yarn. Do not do this. Use tweezers if you need to manipulate yarn near the active needle.

A Simple Stabilizer Decision Tree for Couching: Match Fabric Behavior Before You Chase Settings

The video shows the process on stabilizer alone. In the real world, you are stitching on fabric. Your choice of "backing" (stabilizer) is your insurance policy against the heavy drag of the yarn.

Decision Tree (Fabric → Stabilizer Strategy):

1. Is the fabric stretchy (T-shirt, Jersey, Knit)?
   • Technique: Cutaway Stabilizer is mandatory. Tearaway will disintegrate under the pull of the yarn, causing gaps.
   • Pro Tip: Use a fusible Cutaway or spray adhesive to bond the fabric to the stabilizer so they move as one unit.
2. Is the fabric stable/heavy (Denim, Canvas, Jacket Back)?
   • Technique: Firm Tearaway or Cutaway.
   • Focus: Hoop tightness is more important here than stabilizer type.
3. Is the fabric textured/fluffy (Terry Cloth, Velvet, Fleece)?
   • Technique: Use a Water Soluble Topper (Solvy) + Backing.
   • Why: The topper prevents the yarn and the tacking stitches from sinking deep into the pile of the fabric, keeping the couching sitting "proud" on top.

If you are doing frequent re-hooping on these tricky items (like a run of 20 velvet pouches), consider the ergonomics. Many embroiderers suffer from repetitive strain in their wrists. Moving toward magnetic hoops for brother luminaire eliminates the twisting motion of tightening screws. The magnets simply snap the fabric sandwich together, providing better consistency for the couching feed and saving your hands.

Setup Checklist (Pre-Flight): The 60-Second Scan That Prevents 90% of Problems

Do not press the green button until you have verified all six points.

• Clearance: Needle is mechanically adjusted fully LEFT; tested by manual handwheel rotation.
• Threading: Yarn is threaded through the foot using the plastic tab (no fraying).
• Tension: Yarn is routed through the top-left metal Pigtail Guide.
• Slack: Yarn source acts freely; sufficient slack loop (6-10 inches) exists.
• Obstruction: Yarn is held UP and AWAY during the camera scan.
• Speed: Machine speed is reduced to the "Sweet Spot" (400-600 SPM).


The Upgrade Path: Faster Hooping, Cleaner Results, and Less Wrist Fatigue

Once you have mastered the technique of couching, your bottleneck will shift. It will no longer be "how do I do this?" but rather "how do I do 50 of these without my wrists hurting?"

Workflow efficiency is what separates the hobbyist from the production studio.

• The Hooping Bottleneck: If loading a thick jacket takes you 5 minutes of struggle, you are losing money (or patience). Magnetic hoops reduce this to seconds and eliminate the "hoop burn" marks that ruin velvet.
• The Compatibility Check: Brother owners often look for efficiency tools like the dime snap hoop for brother luminaire to bypass the screw-tightening struggle. Just ensure you verify the specific attachment head compatibility for your machine arm.
• Scaling Up: If couching becomes your signature style, you might eventually look at SEWTECH Multi-Needle Machines. These allow you to set up multiple yarn colors or run the couching frame and then immediately switch to 6-10 colors of standard embroidery fill without re-threading or stopping.

Warning (Magnetic Safety): Magnetic hoops use powerful industrial magnets (Neodymium).
* Pinch Hazard: Never let two magnets snap together without a barrier; they can pinch skin severely.
* Medical: Keep them away from pacemakers (maintain a 6-inch safe distance).
* Tech: Keep away from credit cards and laptop hard drives.

Operation Checklist (While Stitching)

• Supervision: Stay within arm's reach; never walk away.
• Slack Management: Pre-pull yarn every 30 seconds to prevent drag.
• Path Watch: Verify yarn isn't catching on the bobbin winder post.
• Quality Audit: If the yarn looks twisted, PAUSE and check the pigtail guide.
• Ending: Leave a 3-inch tail before cutting so you can tie it off securely.

FAQ

• Q: How do I stop the Brother Luminaire 2 needle from hitting the Couching Foot and making loud clicking or metallic tapping during couching?
  A: Stop immediately and redo the Brother Luminaire 2 “Needle-Left” mechanical alignment before stitching again.
  • Power down or lock the screen, then loosen the needle bar clamp screw.
  • Slide the needle bar to the far-left position and retighten the screw firmly.
  • Handwheel-test clearance by turning the handwheel toward you slowly (never test by running a design).
  • Success check: The needle drops through the couching foot opening with no tick/scrape sound and no resistance change in the handwheel.
  • If it still fails: Re-seat the couching foot flat/tight and repeat the handwheel test; do not run at speed until clearance is perfect.
• Q: What yarn weight is safe for couching on the Brother Luminaire 2 Couching Foot, and what yarn weights cause bunching or slipping?
  A: Use yarn that matches the couching foot’s hole—Weight 3 (DK) to Weight 4 (Worsted) is the reliable range for the Brother Luminaire 2 setup described.
  • Choose Weight 3–4 yarn for consistent feed and tack-down coverage.
  • Avoid yarn thicker than Weight 4 if it struggles to pass the foot eyelet (it can bunch and trigger needle strikes).
  • Avoid yarn thinner than Weight 2 if it tends to slip out from under the tack-down stitches.
  • Success check: Yarn pulls through the foot with “dental floss” resistance—slight drag is OK, but it should not snag or require yanking.
  • If it still fails: Switch to a smaller-diameter yarn or confirm the plastic yarn threader tab is used to pull (not push) the yarn through the eyelet.
• Q: How do I thread yarn through the Brother Luminaire 2 Couching Foot without fraying or fighting the tiny metal eyelet?
  A: Pull the yarn through using the Brother couching plastic yarn threader tab—don’t try to push fuzzy yarn through the eyelet.
  • Insert the plastic yarn guide through the couching foot eyelet (direction depends on foot style).
  • Hook the yarn into the notch of the plastic guide.
  • Draw the plastic guide back through so the yarn follows cleanly, leaving a 3–4 inch tail under the foot.
  • Success check: Sliding the yarn back and forth feels smooth with light resistance and no catching.
  • If it still fails: The yarn is likely too thick for that foot opening—downsize yarn diameter rather than forcing it.
• Q: How do I prevent a bird’s nest under the needle plate when starting couching on the Brother Luminaire 2?
  A: Hold the yarn tail taut for the first few tacking stitches so the Brother Luminaire 2 cannot pull the tail down into the bobbin area.
  • Pull out a short, controlled tail (about 3–4 inches under the foot).
  • Hold the yarn tail gently away from the needle entry point and press Start.
  • Watch the first 3–5 tacking stitches, then release only after the yarn is anchored.
  • Success check: The first seconds stitch cleanly with no yarn tail getting sucked downward and no sudden snagging sound.
  • If it still fails: Stop, clear the nesting under the throat plate area, and restart while keeping the tail controlled and the yarn path snag-free.
• Q: Why does Brother Luminaire 2 couching look twisted, ropey, or inconsistent even when the stitch is tacking correctly?
  A: Route the yarn through the Brother Luminaire 2 top-left Metal Pigtail Guide to stabilize the yarn entry angle.
  • Pause the machine as soon as twist/rope texture appears.
  • Re-route the yarn through the metal pigtail guide on the top-left of the machine head.
  • Resume while keeping a consistent slack loop so the guide can do its job.
  • Success check: The yarn lays flatter and the tack-down stitches land centered on the yarn instead of sliding off the side.
  • If it still fails: Check whether the yarn has bumped out of the pigtail again (this is common) and verify the yarn source is not snagging.
• Q: What machine speed should I use for couching on the Brother Luminaire 2 to avoid missed tacks and yarn drag problems?
  A: Slow the Brother Luminaire 2 down—400–600 SPM is the safer “beginner sweet spot” for couching stability.
  • Set speed in the 400–600 SPM range before starting the design.
  • Supervise the stitch-out and maintain a 6–10 inch slack loop so the hoop movement doesn’t jerk the yarn.
  • Pre-pull yarn periodically so the yarn cake doesn’t suddenly resist.
  • Success check: The stitch rhythm stays steady (no grinding/whine), and tack-down stitches consistently capture the yarn without gaps.
  • If it still fails: Stop and look for friction points (bobbin winder post, hoop clamps, screen edges) that are increasing drag.
• Q: How do I decide between technique changes, magnetic hoops, or upgrading to a multi-needle machine for frequent Brother Luminaire 2 couching jobs with puckering and hoop burn?
  A: Use a tiered fix: optimize yarn control first, upgrade hooping method second, and consider a production machine only when volume demands it.
  • Level 1 (Technique): Reduce speed to 400–600 SPM, keep 6–10 inches of slack, and keep yarn routed through the metal pigtail guide.
  • Level 2 (Tooling): If hoop burn marks or fabric distortion keep happening on delicate/thick fabrics, switch to a magnetic hoop system for more uniform vertical clamping.
  • Level 3 (Capacity): If couching becomes a repeat product line and re-threading/colors become the bottleneck, a multi-needle setup may fit better for throughput.
  • Success check: The fabric stays flat in-hoop with minimal puckering, and outlines remain registered without the hoop slipping.
  • If it still fails: Re-check hoop stability (tight, drum-skin hooping where applicable) and stabilizer pairing before changing more settings.
