Dahao A18 Flat Frame Setup on a YunFu Multi-Head: The Calm, Repeatable Routine That Prevents Frame Limit Mistakes

Switching from a standard tubular T-shirt manufacturer frame to a large flat frame (sash frame) on a multi-head machine is a rite of passage for every embroiderer. It feels deceptively simple—until the first run slams a clamp into the needle bar with a sickening metal-on-metal crunch, or throws a "Limit Error" just as you’re trying to impress a client.

The Dahao A18 interface (standard on many SEWTECH and similar industrial machines) is actually incredibly consistent. It is a logic engine: it only knows what you tell it. If you tell it the physical frame is huge, but you programmed a small one, it will crash. If you tell it the needle is "Color 1" but you threaded "Color 4," it will ruin the logo.

This guide rebuilds the exact on-screen flow from the tutorial: Frame Select → Design Load → Color Sequence → Move Frame + Walk Border → Parameter Checks → Thread/Bobbin Check → Start. But more importantly, we are adding the "old operator" habits—the sensory checks and safety protocols—that keep your production clean, your fingers safe, and your machine profitable.

Don’t Panic: The Dahao A18 Control Computer Is Predictable Once You Follow the Same Order Every Time

If you are new to the Dahao ecosystem, the screen can look busy with icons and numbers. Ignore the noise. The logic is linear: Physical Change = Digital Change.

After you physically unbolt the tubular arms and install the flat frame sash table on the machine, you must mirror that change inside the Dahao A18 computer. The computer controls the "Safe Travel Area" (Soft limits). If these two realities don't match, the pantograph (the moving X-Y beam) will try to push the frame through the side of the machine head.

The most expensive mistakes I see in commercial shops are not "complex" engineering problems—they are skipped steps in this matching process. A single missed "Border Walk" can cost you a garment, a backing sheet, a broken needle bar, and 30 minutes of downtime.

The “Hidden” Prep Before You Touch the Dahao A18 Touchscreen: Flat Frame, Clips, Backing, and Tension Discipline

Before you start tapping menus, stop. Take 60 seconds at the machine. The success of a flat frame run is 90% physics and 10% software.

Flat frames (sash frames) rely on manual clamping. You are using clips or clamps to hold the backing and fabric to the table. This introduces human error. If you pull the fabric tighter on the left than the right, the grain line distorts. When you embroider a circle, it will look perfect under tension, but the moment you unclamp it, the fabric relaxes and your circle becomes an oval.

The Sensory Check:

• Touch: Drum the fabric with your finger. It should sound like a dull thud, not a high-pitched ping (too tight) and not a whisper (too loose).
• Sight: Look at the weave of the fabric. The horizontal and vertical threads must be straight, not bowing.

If you are doing frequent frame swaps or find yourself fighting with clips that leave "hoop burn" or crush velvet pile, this is a trigger point for a tool upgrade. For many shops, a magnetic embroidery frame becomes the "default" for flat work. Magnets apply even, vertical pressure without the "pull and drag" of traditional clamps, significantly reducing material distortion and loading time.

Warning: Keep fingers, loose sleeves, and tools (scissors/nippers) completely away from the needle area and the moving pantograph rails before you power on movement functions. A sudden "Home" command moves the heavy beam instantly—it does not care if your hand is in the way. Pinch injuries are real.

Intro Prep Checklist (Do this BEFORE touching the screen)

• [ ] Mechanical Lock: Confirm the flat frame is bolted down and locked securely on every head (if multi-head).
• [ ] Weave Check: Is the fabric clamped with the grain line straight? (No diagonal skew).
• [ ] Clearance: Look under the sash table. Are there any loose bobbins, scissors, or oil bottles in the travel path?
• [ ] Thread Route: Visually trace the upper thread from the tension knob, through the take-up lever, and through the needle eye.
• [ ] Target Acquired: Mark your desired center point on the fabric with a water-soluble pen or chalk so you have a visual target.


Match the Physical Flat Frame to Dahao A18 “Frame Select (No.14)”—This One Tap Prevents 80% of Bad Runs

On the Dahao A18 interface, the video demonstrates the critical first step: telling the brain what body it is wearing.

1. Enter the system menu.
2. Tap No.14 Frame Select.
3. Scroll the list. In the tutorial, the operator selects Frame “I (400×450)”. This corresponds to the internal dimensions of the flat sash frame installed.
4. Confirm the selection.

What happens next: The system will likely Search for Center. The pantograph will move to what it calculates is the mathematical center of that specific frame.

Why this matters: The control system uses this selection to set the "Soft Limits." If you physically have a 400x450mm frame installed, but you leave the computer set to a "Cap Driver," the machine will restrict your design to a tiny 75mm high area and likely refuse to sew, or worse, clip the frame edge because it thinks the "wall" is somewhere else.

Load the Design in Dahao A18 Design Management, Then “Set to Embroidery Design” (Flower Icon) Without Guessing

After frame selection, the machine is safe, but it's empty. You must load the file.

1. Return to the main page and open the Design Library.
2. Browse your USB or memory list.
3. Select the design (in the video, a geometric triangle-in-circle style).
4. Crucial Step: Tap the Flower Icon (labeled “Set to Embroidery Design”).
5. A popup asks “Embroidery Confirm?”. Press the green checkmark/Enter key.

Many beginners confirm the file in the library but forget the "Flower Icon" step. Without this, the file is just "previewed"—it is not "loaded" into the embroidery memory buffer. The machine will not start, and the Start button will remain inactive.

Program the Dahao A18 Color Sequence the Fast Way: Needle/Thread Icon, Tap Spools, Let It Auto-Advance

Next, the tutorial opens the color change menu using the Needle/Thread Icon to assign physical needles to the digital color blocks.

1. Tap the Needle/Thread icon.
2. You will see the sequence of colors in your design (e.g., 1, 2, 3...).
3. Tap the on-screen thread spool that corresponds to the Needle Number you want to use.
4. The system automatically jumps to the next color block.
5. Repeat until the end of the list.

The "Old Operator" Reality Check: The screen is a liar. It says "Blue" because you programmed it, but if Needle #1 has Red thread on the cone, the machine will sew Red.

In a commercial environment, treating the color sequence as a casual task destroys profit margins. One wrong needle assignment on a 6-head machine means 6 ruined garments instantly. If you are running commercial embroidery machines for client orders, you must physically verify the thread tree against your print sheet before programming the screen.

Use “Move Frame Show Design Dialog (No.15)” + Walk Border Until You See “No Frame Limit”—That Message Is Your Insurance Policy

This is the heartbeat of professional embroidery workflow. You never, ever press Start without walking the border.

In the video, the operator opens Number 15: Move frame show design dialog.

1. The design preview appears inside a green rectangular boundary (representing the frame).
2. Use the on-screen arrow keys (Manual Frame Move) to position the needle over your marked center point on the fabric.
3. Press the Walk Border (often an icon of a square with arrows).
4. The pantograph physically moves the frame in a square around the extreme edges of your design.

The Goal: You are looking for a popup message that says “No frame limit”.

The Sensory Check: While the machine walks the border, do not look at the screen. Look at the Needle.

• Watch the gap between the needle bar and the plastic frame edge/clips.
• You want a "Safety Gap" of at least 1.5 cm (finger width) between the needle and any hard object (frame wall or metal clamp).

If the needle comes dangerously close to a clamp, stop. Re-hoop or move the design. Better to lose 5 minutes adjusting than to shatter a reciprocating bar.

What “No Frame Limit” really protects you from:

• Mechanical Crash: Hitting the frame destroy the reciprocating mechanism.
• Edge Distortion: Stitching too close to the edge of the backing where stability is weak.
• Wasted Inventory: Realizing 2 minutes into the sew that the logo is off-center.

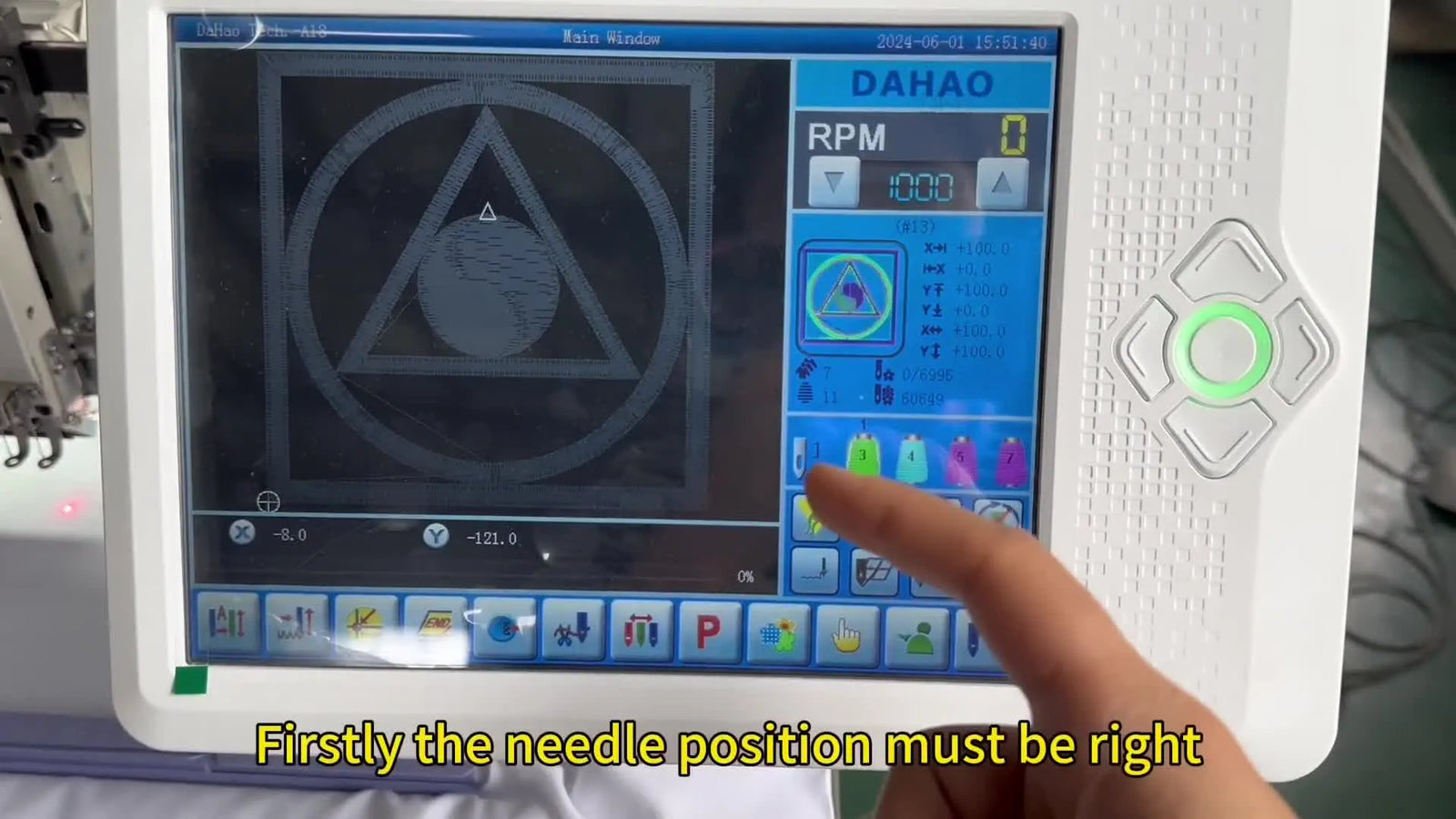

Read the Dahao A18 Bottom Status Bar Like a Pilot: Needle Position, Automatic Color Change, Normal Direction, Main Shaft 100°

After positioning, do not press start yet. The bottom status bar is your instrument panel. The tutorial highlights verification of specific icons.

From left to right on the A18 bar, verify these four states:

1. Needle Position: Does it say "Needle 1" (or your starting needle)?
2. Color Change Mode: Is the icon showing Two Spools (Automatic Color Change)? If it shows a single spool with a hand, it is in Manual mode and will stop after every color.
3. Stitch Direction: Ensure it is in Normal condition (not patch/mending mode).
4. Main Shaft Angle: It must read 100°.

Why 100°? This is the mechanical "Top Dead Center" for embroidery machines. If the shaft is at 230° or 50°, the needle is partially down. The frame cannot move safely, and the machine will throw a "Main Shaft Not at 100" error if you try to start. If it is not at 100°, press the manual trim or the "100" button to cycle the shaft to home position.

Setup Checklist (The "Green Lights" before launch)

• [ ] Frame Match: A18 Screen says "Frame I (400x450)" = Physical Frame is 400x450.
• [ ] Safety Walk: "Walk Border" performed and "No Frame Limit" confirmed.
• [ ] Visual Clearance: During the walk, the needle did not pass over any metal clips.
• [ ] Color Mode: Set to Auto (Two Spools Icon).
• [ ] Shaft: Reads exactly 100°.
• [ ] Speed: Set maximum speed to a safe level (Start at 650-750 SPM for flat frames until you trust the clamping; expert users may go to 850-1000 SPM).

The Under-Table Reality Check: Upper Threading and Bobbin Thread Supply Before You Waste a Run

The tutorial performs two physical checks often edited out of quick demos:

1. Upper Thread: Tug the thread tail. It should flow smoothly with light resistance (like flossing teeth). Ensure it isn't wrapped around the thread tree antenna.
2. Bobbin Check: Open the access door under the table. Pull the bobbin case out. Is it full?

The "Bobbin Chicken" Rule: If the bobbin looks like it only has 10% left and you are about to start a 20,000-stitch jacket back... change it. The time it takes to replace a bobbin mid-run and fix the tie-off knot is 5x longer than changing it now.

Consumable Strategy: For flat work, your choice of backing (stabilizer) dictates your tension.

• Stretchy Fabric (Knits/Performance Wear): Must use Cutaway stabilizer. Tearaway will fail, causing the design to distort.
• Stable Fabric (Denim/Canvas): Tearaway is usually acceptable.
• Difficult to Hoop Items: This is where magnetic embroidery hoops shine. They allow you to float stabilizers easily and clamp thick materials (like Carhartt jackets) that standard mechanical clips can't grip.

Warning (Magnetic Safety): If using magnetic frames, be aware they have extreme clamping force. Keep them away from pacemakers or medical implants, and never let two magnets snap together without a separator—they can pinch skin severely.

Press the Physical Green Start Button, Then Watch RPM and Progress Like You Mean It (Not Like a Demo)

In the tutorial, the operator presses the physical Green Start Design Button on the control head. The machine accelerates, and the screen shows the RPM rising to 810 RPM.

The First 30 Seconds (The Quality Window): Do not walk away. Stand there with your hand near the Emergency Stop.

• Listen: You want a rhythmic, hum-like thump-thump-thump. A sharp clack-clack or grinding noise means stop immediately.
• Watch: Look at the top stitching. Is the thread laying flat?
• Wait: Wait for the first color change or trim to ensure the knives are cutting cleanly.

Once the first 500 stitches are down and smooth, you can step back.

Operation Checklist (First Minute of Stitching)

• [ ] Start Point: Did the needle fire exactly where you marked the center?
• [ ] Fabric Stability: Is the fabric "flagging" (bouncing up and down) with the needle? If yes, pause and add temporary spray adhesive or magnetic clips to hold it down.
• [ ] Thread Delivery: Are the cones on the rack unwinding smoothly?
• [ ] Speed Stability: Is the machine maintaining the target RPM (e.g., 800) without fluctuating?

When Dahao A18 Positioning Goes Sideways: “Frame Limit” Anxiety and Quick Fixes

The video touches on the "Frame Limit" warning. Here is how to troubleshoot it methodically.

Symptom → Start Check → Fix

• Symptom: You press "Border Walk" and get a loud beep + "Frame Limit" error.
  • Cause: The design is physically too close to the edge of the software-defined area.
  • Fix: Go back to Move Frame. Jog the design away from the edge. Try Walk Border again. You typically need at least 10mm of buffer.
• Symptom: The Start button is greyed out/inactive.
  • Cause: You didn't press the "Flower Icon" (Set to Embroidery) OR the machine is not at Main Shaft 100°.
  • Fix: Press the Flower Icon to confirm. If that fails, check the 100° status.
• Symptom: Thread shreds/breaks immediately upon starting.
  • Cause: Needle is in backward or upper tension is too tight.
  • Fix: Check needle orientation (groove must face front). Check if thread is caught on the spool cap.
• Common Question: My laser light isn't centered?
  • Fact: The laser pointer is offset from the needle. The "Center" is where the needle falls, not necessarily the laser. Always trust the "Needle test" (lowering the needle manually) over the laser for precision work.

The Upgrade Path That Makes Flat Work Profitable: Faster Hooping, Less Rework, and a Workflow That Scales

Once you master the Dahao A18 routine—Frame Select, Load, Walk, Verify, Sew—the bottleneck moves from the machine to the human.

If you are running production batches (50+ pieces), you will find that the time spent clamping fabric to the flat frame is your biggest cost. Old-style clips are slow and leave marks that require steaming to remove.

This is why experienced shops invest in hooping station for machine embroidery setups or magnetic alignment systems. A machine embroidery hooping station ensures every logo is placed in the exact same spot on the shirt, eliminating the guesswork of "eyeballing" it on the machine table.

Furthermore, if your daily volume creates physical fatigue from snapping high-tension clips, moving to the SEWTECH ecosystem of magnetic frames is the logical next step. It protects your wrists, protects the customer's fabric, and allows you to load the next job while the machine is still stitching the previous one.

Final Thought: The machine is a tool for precision. The Dahao A18 interface is the language it speaks. Speak it clearly, verify your physical setup, and the machine will print money for you, stitch by perfect stitch.

FAQ

• Q: How do I prevent a Dahao A18 “Limit Error” when switching to a 400×450mm flat sash frame on a multi-head embroidery machine?
  A: Select the correct frame size in Dahao A18 before any movement commands so the soft limits match the physical sash frame.
  • Tap System Menu → No.14 Frame Select → choose the installed flat frame size (e.g., I 400×450) → confirm.
  • Let the machine “Search for Center” after confirming the frame selection.
  • Run No.15 Move Frame → Walk Border before pressing Start.
  • Success check: Walk Border completes and the screen shows “No frame limit,” with a visible safety gap between needle area and any frame/clamp.
  • If it still fails: Re-check that the physical sash table is fully bolted/locked and that the selected frame is not still set to cap/tubular mode.
• Q: Why is the Dahao A18 Start button greyed out after selecting a design from the USB design library?
  A: The design is likely only previewed—tap “Set to Embroidery Design” (Flower icon) and confirm, then verify the main shaft is at 100°.
  • Re-open the design in the library and press the Flower icon (“Set to Embroidery Design”).
  • Press the green checkmark when “Embroidery Confirm?” appears.
  • Verify the bottom status bar shows Main Shaft Angle = 100°; cycle to 100° if needed.
  • Success check: The Start button becomes active and the status bar shows the correct starting needle.
  • If it still fails: Confirm the machine is not in a mode that prevents running (for example, shaft not at 100° or design not truly set into memory).
• Q: How do I use Dahao A18 No.15 “Move frame show design dialog” to avoid a frame crash with flat frame clamps?
  A: Always position using No.15 and Walk Border while watching needle-to-clamp clearance, not the screen alone.
  • Open No.15 Move frame show design dialog and jog the design to your marked center point.
  • Press Walk Border and watch the needle path relative to frame edges, clips, and clamp hardware.
  • Stop immediately if the needle approaches a hard object; re-position or re-clamp, then Walk Border again.
  • Success check: The machine completes the border walk and shows “No frame limit,” with at least about a finger-width (~1.5 cm) safety gap to any clamp/frame wall.
  • If it still fails: Move the design inward to add buffer (often at least 10 mm) and repeat Walk Border.
• Q: How do I set Dahao A18 color sequence so the physical needles match the programmed color blocks on a multi-needle embroidery machine?
  A: Program with the Needle/Thread icon, then physically verify the thread cones match the needle numbers—don’t trust the screen color names.
  • Tap the Needle/Thread icon and assign each color block by tapping the spool/needle number you will actually use.
  • Trace and visually confirm the thread path for the starting needle (tension knob → take-up lever → needle eye).
  • Compare the thread cones on the rack to your intended needle assignments before starting.
  • Success check: The first stitches sew in the expected thread color from the correct needle number shown on the status bar.
  • If it still fails: Re-check for a mis-threaded needle (wrong cone feeding a different needle) or a skipped reassignment in the color list.
• Q: What pre-checks prevent fabric distortion and “hoop burn” when clamping garments to a flat sash frame on an industrial embroidery machine?
  A: Clamp with even tension and check grain alignment before touching the touchscreen—flat frame success is mostly physical setup.
  • Drum-test the fabric tension: aim for a dull thud (not a high ping and not floppy/whisper-loose).
  • Visually align the fabric weave so horizontal/vertical threads stay straight (no bowing/diagonal skew).
  • Clear the travel path under the sash table (remove loose bobbins, scissors, oil bottles).
  • Success check: After unclamping, circles remain round (not oval) and the fabric shows minimal clamp marks.
  • If it still fails: Reduce uneven pulling during clamping; for frequent swaps or sensitive fabrics, consider a magnetic frame to apply more even vertical pressure.
• Q: How do I troubleshoot immediate thread shredding or breaking right after pressing Start on a Dahao A18 industrial embroidery machine?
  A: Stop and check needle orientation and upper thread delivery first—these are the most common fast-fail causes at startup.
  • Confirm the needle is installed correctly (orientation matters; the groove should face front as noted in the workflow).
  • Pull the upper thread tail to ensure smooth flow with light resistance and confirm it is not wrapped on the thread tree/antenna.
  • Watch the first stitches closely and listen for abnormal sharp clacking or grinding; be ready to hit Emergency Stop.
  • Success check: The first 30 seconds sound like a steady rhythmic thump and stitches lay flat without fuzzing/shredding.
  • If it still fails: Re-thread the affected needle path completely and re-check tension-related routing points (snags at spool cap/antenna are common).
• Q: What safety rules prevent pinch injuries when using Dahao A18 “Home,” Move Frame, and Walk Border on an industrial multi-head embroidery machine?
  A: Keep hands, sleeves, and tools completely out of the needle/pantograph travel zone before any movement command—A18 moves instantly when commanded.
  • Remove scissors/nippers and any loose items from the sash table and under-table travel path.
  • Keep fingers away from the needle area and rails before tapping Home, Move Frame, or Walk Border.
  • Stand at the machine during the first movement and the first 30 seconds of stitching with a clear path to Emergency Stop.
  • Success check: Border walk completes with no near-miss contact and no sudden “crunch” sounds from clamp-to-needle-bar contact.
  • If it still fails: Stop using movement functions until the physical frame/clamps are repositioned and you can maintain safe clearance throughout the full travel.
