DAHAO Lettering on a YunFu 15-Needle Embroidery Machine: From Mixed English/Chinese Text to a Clean Laser Border Check

Lettering looks “easy” on a DAHAO screen—until you stitch the first sample and realize the text is 12 mm too low, the red isn’t actually on Needle #7, or the fabric shifted because the hooping tension wasn’t verified.

Machine embroidery is an experience science. It is not just about pressing buttons; it is about managing the variables of physics, tension, and material properly. If you’re running a 15-needle machine with a DAHAO touchscreen (common on industrial models like the YunFu or SEWTECH platforms), the built-in lettering function is one of the fastest ways to produce names, team IDs, and shop labels without touching digitizing software.

However, speed without control equals ruined garments. Below is the exact workflow shown in the video—recalibrated with 20 years of production floor experience—to ensure your results are professional, safe, and repeatable.

Don’t Panic—DAHAO Lettering Is Reliable (When You Treat Placement Like a Production Step)

On a commercial floor, 90% of lettering failures aren’t “software problems.” They are what we call "operator drift": the design is fine, but the human element skipped a physical verification.

In the video workflow, the operator creates mixed English and Chinese text, assigns it to Needle #7 (red), positions it inside a rectangular aluminum sash frame, runs a laser border trace, and presses Start.

That is the correct order. But as your Chief Education Officer, I will add the “Sensory Verification”: Do not just watch the laser. Feel the frame. Before you even trace, give the hoop a gentle shake. Is it locked? Is the fabric taut? Treat the laser trace not as a suggestion, but as a mandatory contract between you and the machine.

The “Hidden” Prep Before You Touch the DAHAO Letter Icon (ABC)

Before you start typing, you must set the physical stage. If the input (your machine setup) is garbage, the output (your embroidery) will be garbage, no matter how good the font looks on screen.

The Physical Reality Check

The video implies a ready state, but let’s make it explicit. You need three things:

1. Thread Path Integrity: The machine must be threaded correctly.
2. Fabric Tension: The fabric must be hooped flat.
3. Stabilization: Backing must be present.

If you are struggling to get consistent tension or if you are doing production runs of 50+ shirts, this is usually where the bottleneck occurs. Traditional screw-tightened hoops can cause "hoop burn" (permanent rings on delicate fabric) or wrist fatigue. This is the specific production scenario where upgrading to magnetic embroidery hoops becomes a game-changer. They use magnetic force to clamp fabric instantly without the "unscrew-adjust-rescrew" dance, reducing fabric creep and speeding up loading by up to 40%.

Warning: Mechanical Safety. Keep fingers, snips, and loose clothing/sleeves away from the needle bar area when the machine is powered. A multi-needle head shifts colors automatically and moves the pantograph suddenly. Never reach into the hoop area while the machine is in "Ready" mode.

Prep Checklist: The "Pre-Flight" Routine

Do not proceed until you can check every box.

• Bobbin Tension Check: Pull the bobbin thread. It should feel like pulling a spiderweb with slight resistance—not loose, but not fighting you.
• Top Thread Anchor: Confirm Needle #7 (Red) is threaded through the eye and held by the picker or spring.
• Hoop Tactile Check: Tap the hooped fabric. It should sound like a dull thud (like a constrained drum), not a loose rattle.
• Clearance: Ensure the table is clear of scissors, rulers, and spare bobbins that could jam the pantograph.
• Hidden Consumables: Do you have your snips for the jump stitches? Is there spray adhesive (if using floating backing)?


Tap the DAHAO “Letter” (ABC) Icon and Start Clean: One Canvas, One Job

In the video, the operator begins on the DAHAO home screen and taps the Letter icon (ABC symbol). This enters the on-board creation mode.

Why this matters: DAHAO’s on-board system creates a .DST or .DSB file internally. Think of this as "building a stitch file" rather than just "typing." You are programming instructions for X/Y movement and needle penetrations.

• Pro Tip: If you have a previous design loaded, clear it first. Starting with a blank canvas prevents "ghost stitches" or origin point confusion.


Type English Text on the DAHAO QWERTY Keyboard (and Use Enter for Line Breaks)

The video shows the operator typing:

• Line 1: “YunFu”
• Line 2: “embroidery machine”

The Critical Detail: Use the Enter key to create line breaks. Do not try to space-bar your way to the next line; the machine will interpret spaces as movement logic, which can get messy if you resize later.

Cognitive Load Tip: Keep text short. On-board lettering is perfect for names ("Steve," "Security") or simple URLs. If you are trying to type a paragaph, stop. Go to your PC digitizing software. The machine interface is built for speed, not layout design.

Switch to Chinese Input (Pinyin) and Select the Characters Carefully

The operator toggles to Chinese/Pinyin and types “Yun Fu Ji Xie” to select “云富机械.”

Even if you only embroider in English, the lesson here is Selection Verification. The machine provides a candidate list. You must select the specific character set. In a production environment, selecting the wrong option means ruining a garment.

If your shop handles international clients or bilingual labels, this capability is standard on high-end embroidery machines commercial grade equipment. Being able to toggle languages at the machine saves you the 15-minute trip back to the office computer, keeping the production line moving.

Choose a Built-In DAHAO Font, Generate Stitches, and Save to Machine Memory

After entering text, the operator selects a font, generates the stitch packet, and saves it to memory.

The "Old Hand" Wisdom on Fonts:

1. Block vs. Serif: On thick materials (towels, fleece), always choose a Block or Sans-Serif font. Thin Serifs (the little feet on letters like 'Times New Roman') will sink into the fabric pile and vanish.
2. Density Risk: Built-in fonts have a default density (usually around 0.4mm spacing). This is the "Sweet Spot." Do not mess with density settings unless you are testing on scrap. Making it too dense will cut your fabric; making it too loose will see the backing/stabilizer through the thread.

Action: Save the design. Do not just run it from temporary memory. If the power flickers, saving ensures you don't lose the setup.

Map the Lettering to Needle #7 (Red) Without Getting Burned by a Color Mismatch

The operator enters the needle setting menu and assigns the design to Needle #7.

The Disconnect: The specialized commercial screen says "Needle 7," and it might even show a red square. The machine does not know what color thread you actually tied on.

The Sensory Check: Walk to the side of the machine head. Look at Needle position 7.

• Visual: Is the spool actually red?
• Tactile: Pull the thread tail gently near the needle eye. Does it flow through the tension disks? You should feel a resistance similar to flossing your teeth. If it pulls freely with zero drag, your tension knob is too loose or the thread missed a disk. If it feels like you are pulling a fishing line against a rock, it is too tight and will snap.

This is a daily ritual. Standardization helps here—many shops dedicate specific needles (e.g., Needle 1 is always Black, Needle 15 is always White) to reduce errors.

Setup Checklist (The "Ready to Fire" State)

• Memory Check: Design is saved and loaded into the "Active To Embroider" slot.
• Needle Logic: Screen says Needle #7; physical Needle #7 has Red thread; thread path has "flossing" tension.
• Obstruction Check: No sleeves, wires, or tools are inside the hoop area.
• Start Position: The needle is hovering over the approximate center-point (or starting point) of where you want the design.

Use DAHAO Jog Keys to Position the Sash Frame—Then Treat Laser Border Trace Like Your Insurance Policy

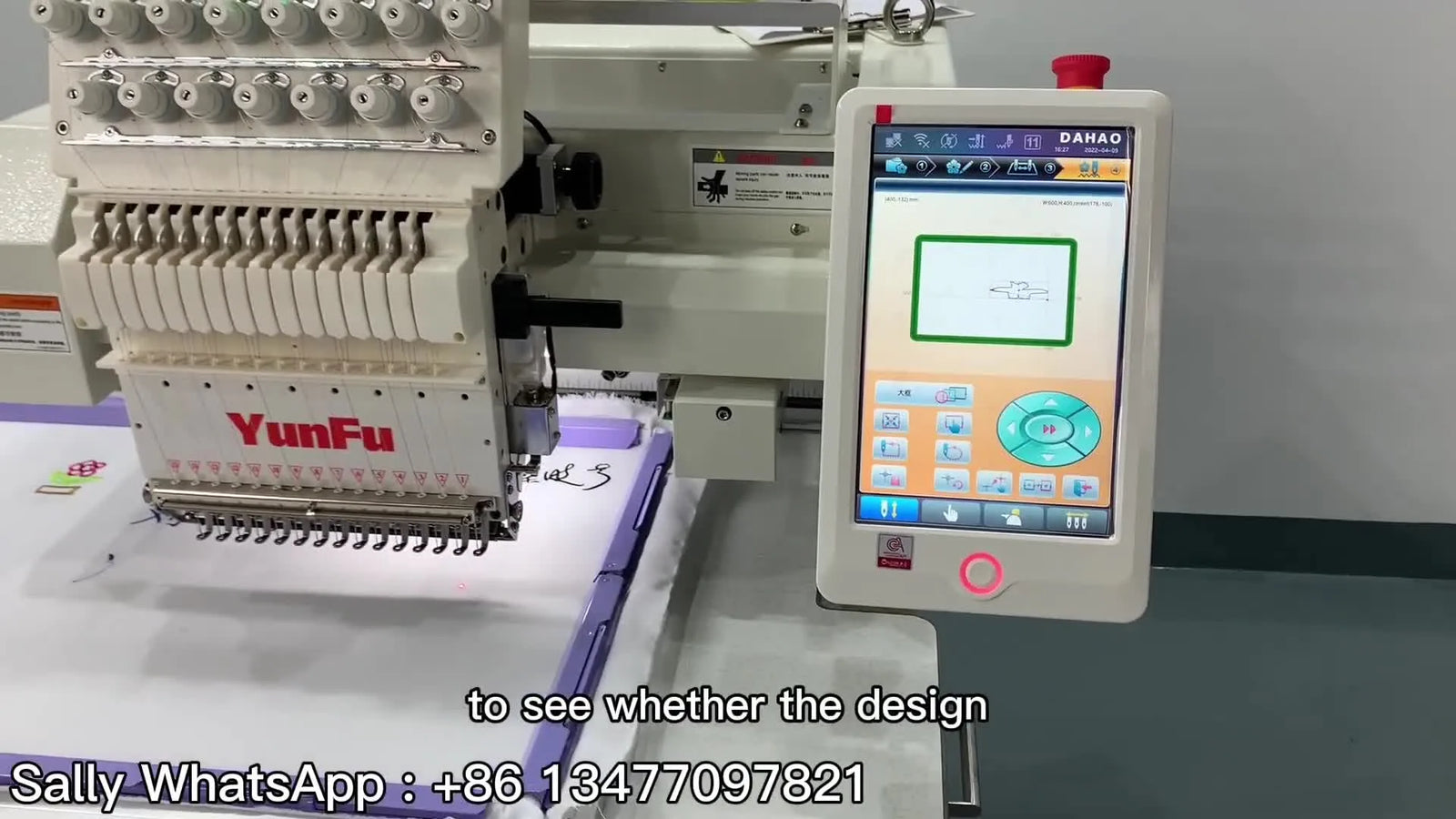

The operator jogs the frame and hits Check Border / Trace. The laser outlines the design box.

Why this is the #1 Failure Point: Hooping is an imperfect science. The fabric grain might be slightly crooked. The laser trace reveals the truth.

How to Read the Trace: Don't just nod at the red light. Look at the margins.

• Does the laser line get too close to the plastic/metal rim of the hoop? You need a "Safety Zone" of at least 15mm from the hoop edge to avoid the presser foot smashing into the frame (which breaks the needle and ruins the hoop).
• Is the text centered visually?

If you find yourself constantly re-hooping because the alignment is crooked, your tool is fighting you. A magnetic hooping station solves this by using a jig to align the garment perfectly before the hoop clamps down. It changes "eyeballing it" to "manufacturing it."

Warning: Magnetic Hazard. If you upgrade to a magnetic frame system, be aware that industrial magnets are powerful. They can pinch skin severely. Keep them away from pacemakers, sensitive electronics, and credit cards.

Decision Tree: The Fabric & Stabilizer Matrix

New operators often guess. Use this logic instead.

Press the Physical Start Button and Let Needle #7 Stitch—But Watch the First 10 Seconds Like a Hawk

The operator presses Start. The machine locks the pantograph and begins.

The "10-Second Rule": Do not walk away. The first 10 seconds are when 90% of disasters happen.

• Listen: You want a rhythmic thump-thump-thump. A high-pitched whining or a clanking noise means stop immediately (Press Emergency Stop).
• Look: Watch the "birds nest." If the thread isn't catching and just piles up, cut it now.

If you are using standard tubular hoops and notice the fabric "flagging" (bouncing up and down with the needle), your hooping is too loose. This flagging causes skipped stitches and loopiness. This is another symptom where a magnetic embroidery frame excels—the continuous magnetic pressure holds the fabric effectively flat against the needle plate, eliminating flagging.

Operation Checklist Check (Post-Run Analysis)

• Design Cleanliness: Are the edges of the letters sharp? (Fuzzy edges = Tension too loose).
• Puckering: Is the fabric bunching around the letters? (Stabilizer too weak or hooping too loose).
• Bobbin Show: Turn the fabric over. You should see about 1/3 white bobbin thread in the center of the satin column. If it's all colored thread, top tension is too tight.

The “Why” Behind Clean Lettering: Hooping Tension, Fabric Control, and Repeatability

The video shows the "How," but professional quality lies in the controls you place around the machine.

1. Hooping Tension is a "Goldilocks" Zone

Too tight, and you stretch the fabric grain (when you unhoop it, the text shrinks and wrinkles). Too loose, and the registration slips. You want it taut, but not distorted. This is manual skill that takes time to learn. If you want to bypass the learning curve, look into hooping station setups that standardize the tension every single time.

2. Speed Management

Just because the machine can sew at 1200 stitches per minute (SPM) doesn't mean it should.

• Sweet Spot for Lettering: 650 - 850 SPM.
• Why: Satin stitches in small text involve rapid X/Y direction changes. Slowing down slightly (to 700-ish) allows the frame to stabilize, giving you sharper corners and fewer thread breaks.

3. The Border Trace is Non-Negotiable

In production, the laser trace matches your mental image to the machine's reality. It catches the two biggest errors: loading the design upside down, and hitting the hoop frame.

Troubleshooting the Problems Operators Actually Hit

When things go wrong, do not guess. Follow this logical path from easy fixes to complex ones.

When discussing productivity (the last row), if you find your hooping time exceeds your sewing time, you have a tooling problem. Professionals often compare systems like the hoopmaster against newer magnetic options. While mechanical stations aid alignment, adding magnetic frames to the mix tackles the wrist-fatigue and clamping speed directly.

“Price?”—How to Think About Cost Without Guessing (and What to Upgrade First)

A common question is simply: “Price.” Price of the machine? Price of the lettering? Price of the mistake?

Let’s look at value through the lens of a business owner:

1. Level 1: The Consumables (Quality Fix). If your lettering looks bad, spend money on better stabilizer and high-quality thread. This is cheap insurance.
2. Level 2: The Workflow (Efficiency Fix). If you are wasting blanks due to alignment errors or suffering from repetitive strain, upgrading to hoops for embroidery machines that use magnetic clamping is the highest ROI investment you can make for an existing machine.
3. Level 3: The Scale (Profit Fix). If you are turning away orders because your single-head machine is too slow, it is time to look at a multi-head or a faster 15 needle embroidery machine (like the SEWTECH commercial models). These machines reduce downtime by holding 15 colors ready to go, eliminating the thread-change bottleneck of home machines.

Final Thought: The DAHAO controller is a robust industrial tool. The workflow—Letter icon → Input → Font → Generate → Map Needle → Trace → Sew—is solid. But the magic doesn't happen on the screen. It happens in the prep. Verify your thread path, standardize your hooping, and respect the "feel" of the machine. Do that, and you will move from "operator" to "craftsman."

FAQ

• Q: What must be checked before using the DAHAO “Letter (ABC)” function on a 15-needle industrial embroidery machine to prevent misplacement and thread issues?
  A: Do a short pre-flight check first—most DAHAO lettering failures come from skipped physical verification, not the lettering screen.
  • Confirm bobbin tension by pulling the bobbin thread for slight “spiderweb” resistance.
  • Verify the intended needle (for example Needle #7) is fully threaded through the eye and seated in the tension path.
  • Clear the table/hoop area of scissors, rulers, spare bobbins, and anything that can jam the pantograph.
  • Success check: tap the hooped fabric and feel it locked/taut; it should sound like a dull thud, not a loose rattle.
  • If it still fails, re-thread the top thread completely with the presser foot up and repeat the border trace before stitching.
• Q: How can hooping tension be verified on an industrial embroidery machine sash frame to avoid fabric shifting and “flagging” during small lettering?
  A: Hooping tension must be “Goldilocks”—taut but not distorted—because loose hooping causes flagging and registration slip.
  • Shake the frame gently to confirm the hoop/frame is fully locked before tracing or sewing.
  • Re-hoop if the fabric grain looks stretched or skewed; avoid forcing extreme tightness that distorts the knit.
  • Add appropriate backing (especially on knits) if the fabric still moves under the needle.
  • Success check: during stitching, the fabric should stay flat (no bouncing up/down under the needle in the first seconds).
  • If it still fails, reduce stitch speed into the 650–850 SPM range for lettering and re-check stabilization choices.
• Q: How should Needle #7 be mapped and physically verified on a DAHAO 15-needle embroidery machine to prevent color mismatch and tension surprises?
  A: Never trust the screen color alone—physically verify Needle #7 thread color and thread-path drag before pressing Start.
  • Walk to Needle position #7 and visually confirm the actual spool/thread is the intended color.
  • Pull the thread tail near the needle eye to feel “dental floss” resistance through the tension disks (not free-sliding, not rock-tight).
  • Standardize needle assignments in the shop (often fixed needles for black/white) to reduce operator mistakes.
  • Success check: thread pull feels like flossing (consistent drag) and the stitched sample does not show bobbin on top from over-tight top tension.
  • If it still fails, clean lint around the bobbin area and re-check bobbin vs. top tension balance.
• Q: What is the correct laser border trace “safety zone” on a DAHAO industrial embroidery machine to avoid instant needle breaks from hitting a sash frame or hoop edge?
  A: Treat border trace as mandatory insurance and keep at least a 15 mm margin from the hoop/frame edge to prevent presser foot/frame collisions.
  • Jog the frame to the intended start/center position before running Check Border / Trace.
  • Watch the entire trace path and check margins on all sides, not just one corner.
  • Re-position or re-hoop if the trace approaches the rim or looks visually off-center.
  • Success check: the traced box stays clearly inside the hoop/frame with a visible buffer all around (≥15 mm).
  • If it still fails, stop and inspect for a bent needle before restarting, then re-run the border trace.
• Q: How can birdnesting (thread wad under the needle plate) be stopped on a DAHAO-controlled multi-needle embroidery machine during lettering runs?
  A: Stop immediately and re-thread the top thread completely—birdnesting is commonly caused by missed threading/no tension.
  • Cut and remove the nest carefully before re-starting to avoid pulling debris deeper.
  • Re-thread the top path from spool to needle with the presser foot up to ensure the thread seats in the tension disks.
  • Do a quick tension feel-check at the needle (aim for “dental floss” resistance).
  • Success check: first stitches form cleanly without thread piling and the machine sound returns to steady “thump-thump,” not struggling.
  • If it still fails, verify bobbin tension/installation and check for obstructions in the hoop area that can disrupt stitching.
• Q: What are the two key safety warnings when operating a DAHAO 15-needle embroidery machine and when using magnetic embroidery hoops/frames?
  A: Keep hands and loose items out of the needle/hoop zone in Ready mode, and treat magnetic hoops as pinch hazards with strong magnets.
  • Keep fingers, snips, sleeves, and tools away from the needle bar and hoop area when the machine is powered (the head and pantograph can move suddenly).
  • Use the physical Start/E-Stop discipline: watch the first 10 seconds and hit Emergency Stop if noise becomes clanking/abnormal.
  • Handle magnetic frames carefully to avoid severe pinches; keep magnets away from pacemakers, sensitive electronics, and credit cards.
  • Success check: operator can run border trace and start stitching without reaching into the hoop area while the machine is in Ready state.
  • If it still fails, slow down the workflow and add a “clearance check” step before every Start to prevent repeat near-misses.
• Q: If hooping takes longer than sewing on a DAHAO 15-needle embroidery machine, what upgrade path improves productivity without guessing?
  A: Diagnose the bottleneck first, then upgrade in levels: technique/consumables → magnetic hoop workflow → higher-capacity multi-needle production.
  • Level 1: Improve outcomes with better stabilizer and quality thread when lettering quality is inconsistent.
  • Level 2: Reduce alignment re-hooping, wrist fatigue, and loading time by moving from screw hoops to magnetic clamping solutions and (when needed) an alignment station/jig.
  • Level 3: If orders are limited by throughput, consider scaling to faster commercial multi-needle capacity so thread colors stay ready and downtime drops.
  • Success check: hooping time no longer exceeds sewing time on typical jobs, and fewer garments are rejected due to placement errors.
  • If it still fails, time each step (hooping vs. sewing vs. trimming) to locate the real bottleneck before buying equipment.
