Dahao Multi-Head Firmware Update Without Losing Your Frame Offsets: The Photo-Backup Method Techs Trust

The Ultimate Guide to Dahao Control System Updates: How to Reboot Your Machine Without Losing Your Mind

If you are reading this, you are likely standing in front of a silent machine with a blank screen, or you are staring at a menu that suddenly looks different than it did yesterday. The anxiety is real. When a Dahao control system update goes wrong, it doesn't fail politely—it wipes the specific "DNA" (parameters) that tell your machine where the needles are and how the frame moves.

But here is the good news: You can fix this.

As someone who has spent two decades on production floors, I treat machine embroidery as an "experience science." It’s not just about pushing buttons; it’s about understanding the rhythm of the servo motors and the logic of the frame. This guide is your safety net. We will rebuild the workflow shown in standard industrial tutorials, but we will add the "shop-floor reality"—the specific safety checks, sensory cues, and backup protocols that experienced technicians use to prevent a 15-minute update from becoming a 3-day shutdown.

The Psychology of the Update: Why Your Machine "Forgets"

Before we touch a USB drive, understand what is happening. A firmware update on a Dahao system (common in many industrial multi-needle machines, including multiple needle embroidery machine setups like SEWTECH) replaces the operating brain of the unit.

Inherently, this process resets the Frame Parameters to factory defaults. The machine isn't broken; it just has amnesia. It has forgotten that it has 6 heads or 8 heads. It has forgotten where "Center" is. The video guide you might have seen is solid, but it misses the one step that separates a pro from a panic attack: The Pre-Flight Photo Ritual.

Warning: Firmware updates involve moving mechanical parts during re-initialization. Keep hands, scissors, and loose clothing away from the pantograph and needle case. Never reach into the sewing field while the machine is booting.

Phase 1: The "Golden Rule" of Preparation

Most nightmares happen because users skip the prep. Do not be that user. You need to capture your machine’s "personality" before you wipe its brain.

Step 1: The Photo Backup

You cannot rely on memory. You must photograph the Frame Para pages.

1. Navigate to "Frame Para1" and "Frame Para2".
2. Sensory Check: Use your phone. Zoom in on the photo immediately. Can you clearly read the numbers for J, K, I, A, and B? If they are blurry, retake them. These numbers govern your X/Y motion. If you lose them, your design registration will be off forever.

Step 2: The Meaning of the Numbers

• Frame A: Usually defines your hoop center logic.
• Frame J: Defines the pantograph limit.
• Frame I: Often the offset for needle 1.
• Note: There is no "Universal List" for these. Every machine handles mechanical tolerances differently. Your photos are the only truth.

Step 3: File Acquisition

Do not guess which file to use.

• Action: Ensure you have the .DAT file specific to your control board model provided by your vendor.
• Hidden Consumable: Have a clean, high-quality USB drive (under 8GB is often safer for older boards) ready.

Prep Checklist (Do OR Fail)

• Data Safety: Photos of Frame Para1 & Para2 taken and verified for legibility.
• Power Safety: Machine is plugged into a stable outlet (no loose extension cords).
• Tool Safety: Clear the table. No scissors or snips on the pantograph.
• File Safety: Vendor-supplied update files are on the root directory of the USB.


Phase 2: The Update Procedure (The "Heart Transplant")

We are now entering the boot menu. This is where you must follow the sequence exactly. Mixing up the order can confuse the layered architecture of the software.

Step 1: Triggering the Boot Menu

1. Insert the USB into the control panel slot.
2. The "Two-Handed" Start: Press and hold the Green Enter Button with one hand, and flip the power switch with the other.
3. Auditory/Visual Cue: Keep holding until you hear a beep or see the "Update Menu" screen.

Step 2: Updating the Data Program

This is the foundation.

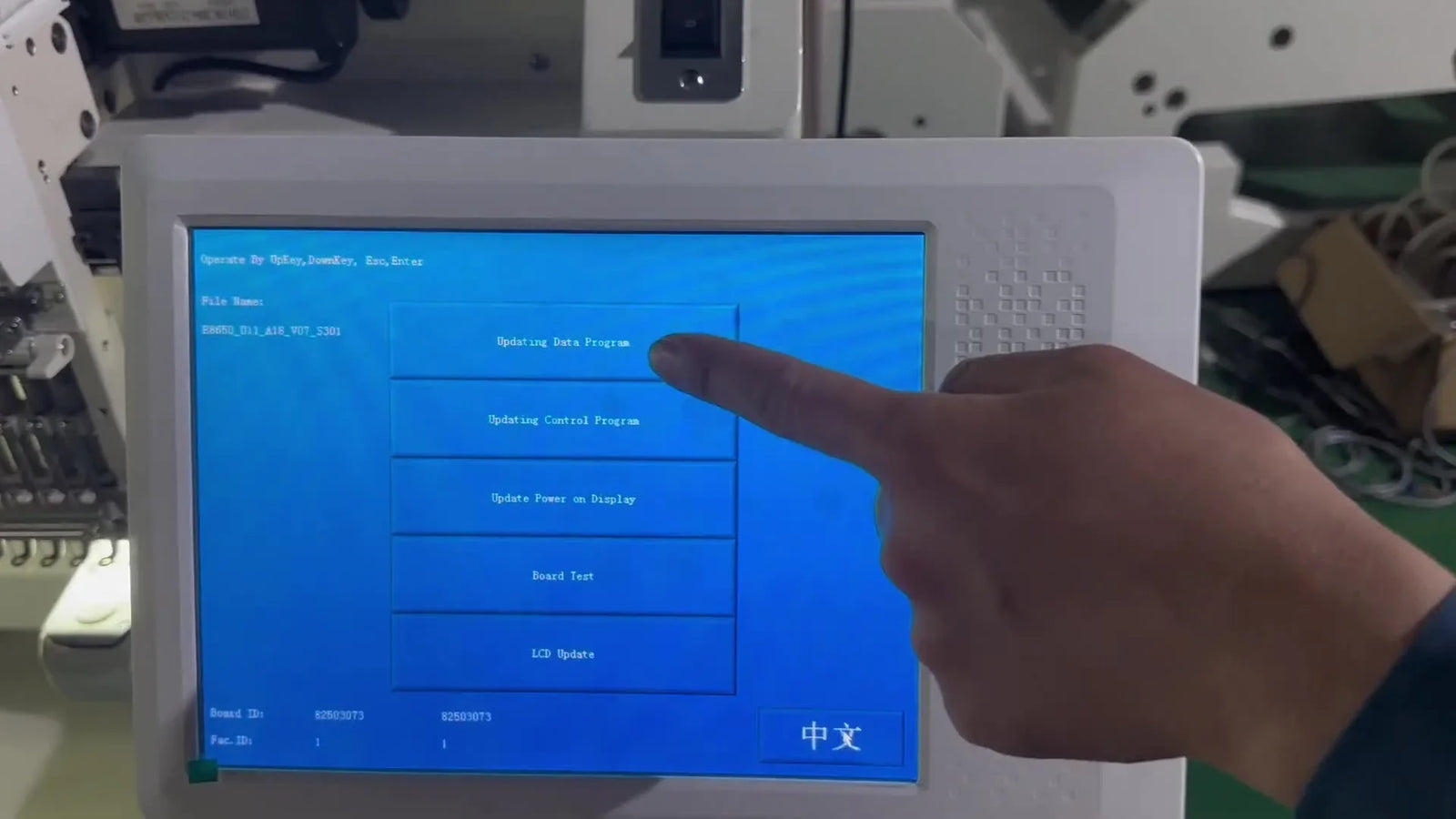

1. Select "Updating Data Program."
2. Select "Updating from USB."
3. Choose the specific .DAT file.
4. Visual Check: Watch the progress bar. Do not touch the machine until it says "Success."

If you are setting up a professional shop, precise organization effectively prevents mistakes. A dedicated machine embroidery hooping station area keeps your messy work (backing, spray adhesive) away from your clean work (tech updates loops). Keep your firmware USBs in a clean, dry drawer, labeled clearly.

Step 3: Updating the Control Program

Once the Data Program is 100% done, you must update the Control Program. Do not reboot yet.

1. Return to the main update menu.
2. Select "Updating Control Program."
3. Select the matching file.
4. Wait for "Updating Complete."


Phase 3: The Critical Reboot (The 30-Second Rule)

Here is a trap that catches many beginners. The video audio might mention "30 minutes," but the text overlay and engineering reality dictate 30 Seconds.

The Sequence:

1. Turn the machine power switch OFF.
2. Count out loud: "One Mississippi, Two Mississippi..." up to 30.
3. Why? You need the capacitors on the mainboard to fully discharge so the RAM clears. If you flick it off and on too fast, the old "garbage" data might persist.
4. Turn the machine ON.


Post-Boot Housekeeping

Upon reboot, the machine will likely default to Chinese.

• Action: Navigate to the Flag/Language icon and switch to English.
• Benefit: Accurate reading of error messages is critical for the next steps.


Phase 4: Servo Parameters (The Machine's Identity)

This is the "Make or Break" moment for multi-needle machines. The control box doesn't know if it is attached to a compact 6-needle machine or a massive 12-head industrial unit until you tell it.

Matching Head Count to Data

1. Go to Machine Test → Integrated Multi-Shaft Servo Test → Servo Parameter Import.
2. The Decision:
   • If you have a 6-Head/Needle machine: Select 61.DAT.
   • If you have an 8-Head/Needle machine: Select 81.DAT.
3. The Risk: If you mismatch (e.g., load 81.DAT onto a 6-needle machine), the color change mechanism will attempt to rotate to a needle that doesn't exist. You will hear a grinding noise—a very expensive sound.

When looking at multiple needle embroidery machines for sale, smart buyers check the control system version. Modern systems like those on SEWTECH machines are generally robust, but knowing how to restore these parameters is a skill that protects your investment (and your profit margins).

Phase 5: Restoration (Bringing the Memory Back)

Now we restore a baseline functionality.

Step 1: Read from Disk

1. Go to Machine Authorization/Management.
2. Select "Read All Parameters From Disk."
3. What this does: It pulls generic factory settings stored on the hard drive into the active memory. It fixes about 80% of the settings, but it is NOT precise enough for production registration.


Step 2: The Manual Frame Alignment (The "Secret Sauce")

This is where your photos from Phase 1 save the day. The "Read from Disk" features might give you a generic Frame A, but your machine physically wears in a unique way.

1. Navigate to Frame Para1.
2. Visual Verification: Compare every number on the screen to your phone photo.
3. The Essential Edits (Based on Tutorial Baseline):
   • Frame I: Set Horizontal/Vertical to 0 / 0.
   • Frame A: Set to 30 / 15 (or match your photo).
   • Frame J: Set to 25 / 0 (or match your photo).
4. Machine Head Num: Verify this matches your physical needles (e.g., 6).




Step 3: The "Embroidery Ready" Test

Before you high-five anyone, prove the machine works.

1. Select a design.
2. Engage "Embroidery Ready" mode (Monitor icon).
3. Auditory Check: Listen for the pantograph motors engaging (a solid thunk or hum).
4. Release the mode.


Setup Checklist (Post-Reboot)

• Language: Set to English.
• Identity: Correct Servo file imported (61.DAT vs 81.DAT).
• Baseline: "Read All Parameters From Disk" executed.
• Precision: Frame I, A, J values manually matched to pre-update photos.
• Status: Machine successfully enters and exits "Embroidery Ready" mode.

Phase 6: Common Pitfalls & Solutions

Even with a guide, things get tricky. Use this table to diagnose issues quickly.

Beyond the Update: Optimizing Your Workflow

Updating the firmware is technically a repair, but let's talk about production efficiency. A lot of operators blame the "firmware" for issues that are actually mechanical or user-induced, particularly Hoop Burn and Registration Shift.

If you have updated your firmware and perfectly restored your Frame Parameters, but your outlines still don't line up, the problem is likely your hooping technique.

The Toolkit for Perfection

1. Stability: Using the right stabilizer is physics, not magic. If you are embroidering on knits without cutaway backing, no amount of software updates will fix the distortion.
2. The "Expert" Upgrade: Many shops struggle with traditional hoop rings causing hand fatigue and leaving marks on fabric. This is where magnetic embroidery hoop systems change the game.
   • Why? They clamp instantly without "screwing" the frame tight, preventing the fabric drag that causes misalignment.
   • The SEWTECH Advantage: For both single-needle and industrial machines, magnetic hoops allow for faster hooping and zero "hoop burn."

Warning (Safety): Magnetic hoops use powerful Neodymium magnets. They can pinch fingers severely. Pacemaker Warning: Keep magnetic hoops at least 6 inches away from implanted medical devices.

When to Upgrade Your Machine

Sometimes, the frustration isn't the software—it's the limitation of the hardware. If you are spending more time fighting with color changes (rethreading a single needle) than actually sewing, it might be time to look at multi needle brother embroidery machines or, for a more industrial solution, the SEWTECH multi-needle series.

• The Shift: Moving from 1 needle to 10+ needles isn't just about speed; it's about not having to babysit the machine.
• The Logic: If your order volume requires you to act as a "human color changer," your labor cost is eating your profit.

Decision Tree: What is Breaking Your Workflow?

Use this logic flow to decide your next move.

Start: My Design Looks Bad.

• Q1: Is the machine making a grinding sound?
  • Yes: Stop immediately. Check Servo Parameters (Software issue).
  • No: Proceed to Q2.
• Q2: Is the design consistently shifting in the same direction every time?
  • Yes: Check Frame A offsets (Parameter issue).
  • No: Proceed to Q3.
• Q3: Is the fabric puckering or is the outline random?
  • Yes: This is a Hoop/Stabilizer issue.
    • Solution A: Switch to heavy Cutaway stabilizer.
    • Solution B: Upgrade to a embroidery frame with magnetic clamping to stop fabric slippage.


Final Operational Checklist

Before you run that client order on your freshly updated machine, one last check:

• Frame Motion: Manually jog the frame to all four corners. Does it move smoothly?
• Needle Indexing: Manually prompt a color change (if safe). Does it center the needle over the hole?
• Test Sew: Run a simple "H" test (a block letter H) to verify column alignment.
• Consumables: Fresh needle installed? Bobbin area cleaned of lint?

Recovering from a Dahao update crash is a rite of passage for embroidery professionals. It forces you to understand the numbers that drive your business. Keep your backup photos safe, respect the 30-second power cycle, and remember: the machine is only as smart as the parameters you give it. Now, get back to stitching.

FAQ

• Q: What is the safest way to update a Dahao control system firmware without losing Frame Para1 and Frame Para2 settings?
  A: Take clear, readable phone photos of Dahao “Frame Para1” and “Frame Para2” before any update, because the update commonly resets frame parameters to factory defaults.
  • Photograph: Open “Frame Para1” and “Frame Para2” and take close-up photos you can zoom and read (especially J, K, I, A, B).
  • Verify: Zoom in immediately and retake if any digits are blurry.
  • Prepare: Use the vendor-provided correct .DAT file and a clean USB (older boards often behave better with smaller-capacity drives).
  • Success check: After the update, every value on the Frame Para pages can be matched back to the photos digit-for-digit.
  • If it still fails: Stop guessing numbers and contact the vendor for the correct parameter set for that specific control board/machine.
• Q: How do I enter the Dahao boot/update menu using the Green Enter button and a USB drive?
  A: Use the two-handed start: insert the USB first, then hold the Green Enter button while powering on until the Dahao update menu appears.
  • Insert: Plug the USB into the control panel USB slot before switching power on.
  • Hold: Press and hold the Green Enter button, then flip the machine power switch on with the other hand.
  • Wait: Keep holding until a beep or the “Update Menu” screen shows.
  • Success check: The Dahao screen displays an update menu (not the normal sewing screen) and responds to update selections.
  • If it still fails: Power off, wait 30 seconds, try again, and switch to a different (often smaller) USB drive.
• Q: What is the correct Dahao update order for “Updating Data Program” vs “Updating Control Program,” and when should the machine reboot?
  A: Update Dahao “Data Program” first, then “Control Program,” and only reboot after both show success.
  • Run: Select “Updating Data Program” → “Updating from USB” → choose the correct .DAT file → wait for “Success.”
  • Continue: Return to the menu and run “Updating Control Program” → select the matching file → wait for “Updating Complete.”
  • Reboot: Turn power OFF only after both updates complete.
  • Success check: Both update steps finish with a clear completion message before any power cycle.
  • If it still fails: Do not mix files; re-check that the vendor supplied the correct files for the specific Dahao control board model.
• Q: Why does a Dahao control system update require a 30-second power-off wait, and how do I do the “30-Second Rule” correctly?
  A: Power the Dahao-controlled machine OFF, wait a full 30 seconds, then power ON to allow the mainboard to fully discharge and clear residual data.
  • Switch: Turn the machine power OFF.
  • Count: Count out loud to 30 seconds (do not rush).
  • Restart: Turn the machine power ON after the full wait.
  • Success check: The reboot behaves cleanly (no “half-boot” behavior) and the system loads normally so language/settings can be adjusted.
  • If it still fails: Repeat the 30-second power cycle once; if the screen stays blank, retry the Data Program update and consider changing to a different USB drive.
• Q: How do I choose the correct Dahao servo parameter import file (61.DAT vs 81.DAT) to avoid grinding noise during color change?
  A: Import the servo file that matches the physical head/needle count (61.DAT for 6, 81.DAT for 8), because a mismatch can cause the color-change mechanism to hunt for a needle that isn’t there.
  • Navigate: Go to Machine Test → Integrated Multi-Shaft Servo Test → Servo Parameter Import.
  • Select: Choose 61.DAT for a 6-needle/head setup, or 81.DAT for an 8-needle/head setup.
  • Stop: If grinding starts during color change, stop immediately and re-import the correct servo file.
  • Success check: A manual color change indexes smoothly without grinding or attempting to rotate past the available needles.
  • If it still fails: Reconfirm the machine’s actual needle/head count and re-import the correct servo parameter file again.
• Q: How do I fix a Dahao “Frame Overlimit” error after a firmware update?
  A: Restore the exact Dahao Frame J values from the pre-update photos, because a wrong Frame J commonly sets the motion limit incorrectly and triggers “Frame Overlimit.”
  • Compare: Open Frame Para1/Para2 and compare every value against the phone photos taken before the update.
  • Correct: Re-enter the Frame J value(s) to match the photo precisely.
  • Verify: Jog the frame carefully after correction to confirm it can reach expected positions without tripping limits.
  • Success check: The machine jogs toward corners smoothly without throwing “Frame Overlimit.”
  • If it still fails: Re-check that all frame parameters (not only J) match the photos, then run the “Embroidery Ready” test to confirm stable motor engagement.
• Q: What are the key safety warnings during a Dahao firmware update reboot, and what should be kept away from the pantograph?
  A: Keep hands, scissors, and loose clothing away from the pantograph and needle area during Dahao update boot/re-initialization because mechanical parts may move unexpectedly.
  • Clear: Remove scissors/snips/tools from the pantograph/table area before powering on.
  • Distance: Do not reach into the sewing field while the machine is booting or initializing.
  • Control: Stand to the side so you can hit the power switch quickly if motion looks wrong.
  • Success check: The machine completes boot/update movement without any contact with tools, fabric, or hands in the sewing field.
  • If it still fails: Power off, wait 30 seconds, and restart only after the work area is fully clear and safe.
• Q: After a Dahao firmware update restores parameters but embroidery still shows hoop burn or registration shift, what is the best step-by-step fix path (technique → magnetic hoop → multi-needle machine)?
  A: Treat this as a workflow problem: first stabilize and hoop correctly, then consider magnetic hoops to prevent fabric slippage/marks, and only then consider a multi-needle machine upgrade if labor/time is the real bottleneck.
  • Level 1 (Technique): Switch to the correct stabilizer for the fabric (knits often need cutaway) and re-check hooping to reduce distortion.
  • Level 2 (Tool): Use a magnetic hoop to clamp quickly and evenly, which can reduce hoop marks and fabric drag that causes misalignment.
  • Level 3 (Capacity): If frequent color changes and babysitting are killing throughput, consider moving from single-needle workflows to a multi-needle production setup.
  • Success check: Outlines sew consistently in the same place without random shifting, and fabric shows reduced marking after hoop removal.
  • If it still fails: Re-verify Frame A/center-related settings against the pre-update photos, because consistent directional shift often points back to frame offsets.
